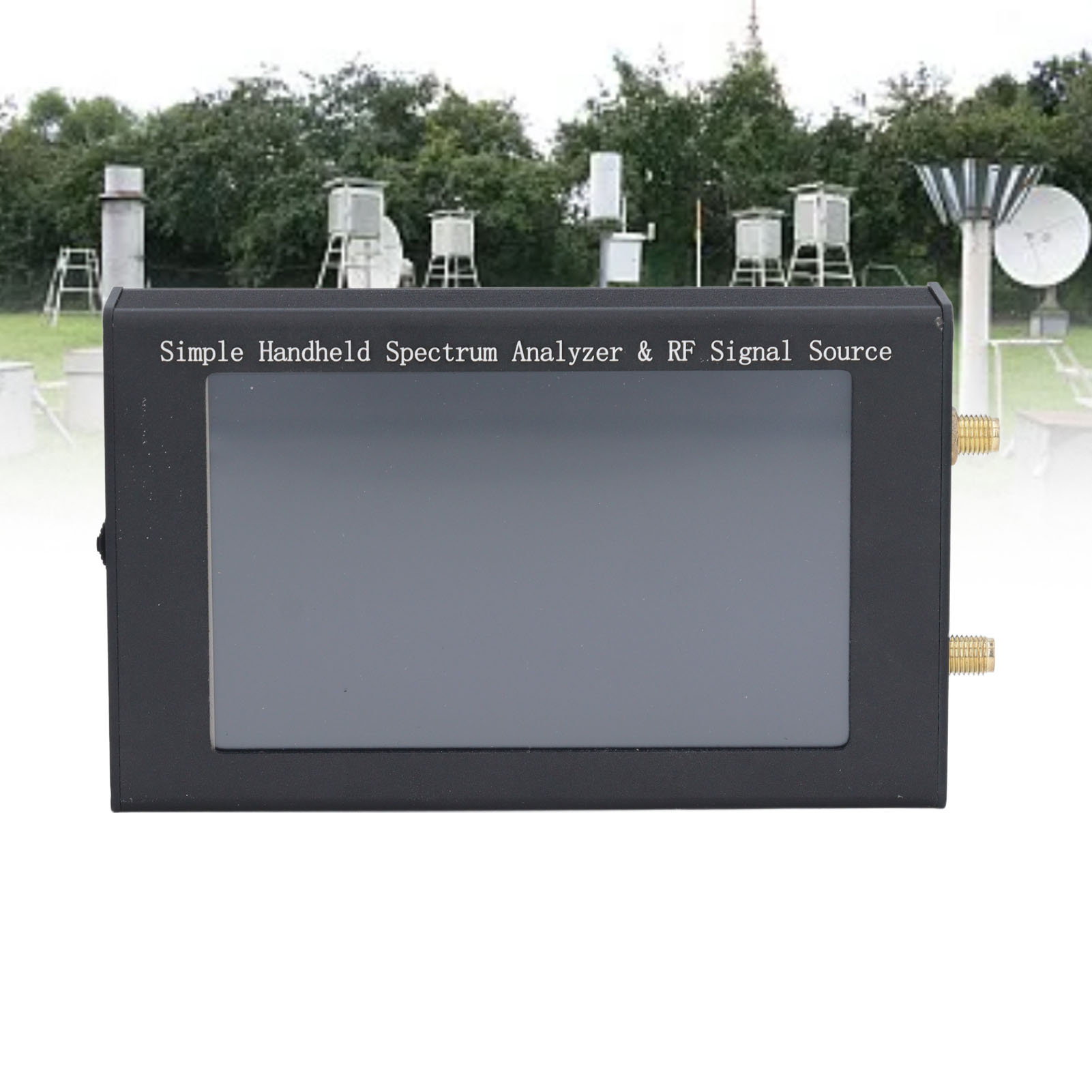

Feature:

1. [Wide Frequency Range] The spectrum analyzer covers a frequency range from 35MHz to 6000MHz, providing comprehensive analysis capabilities for various applications.

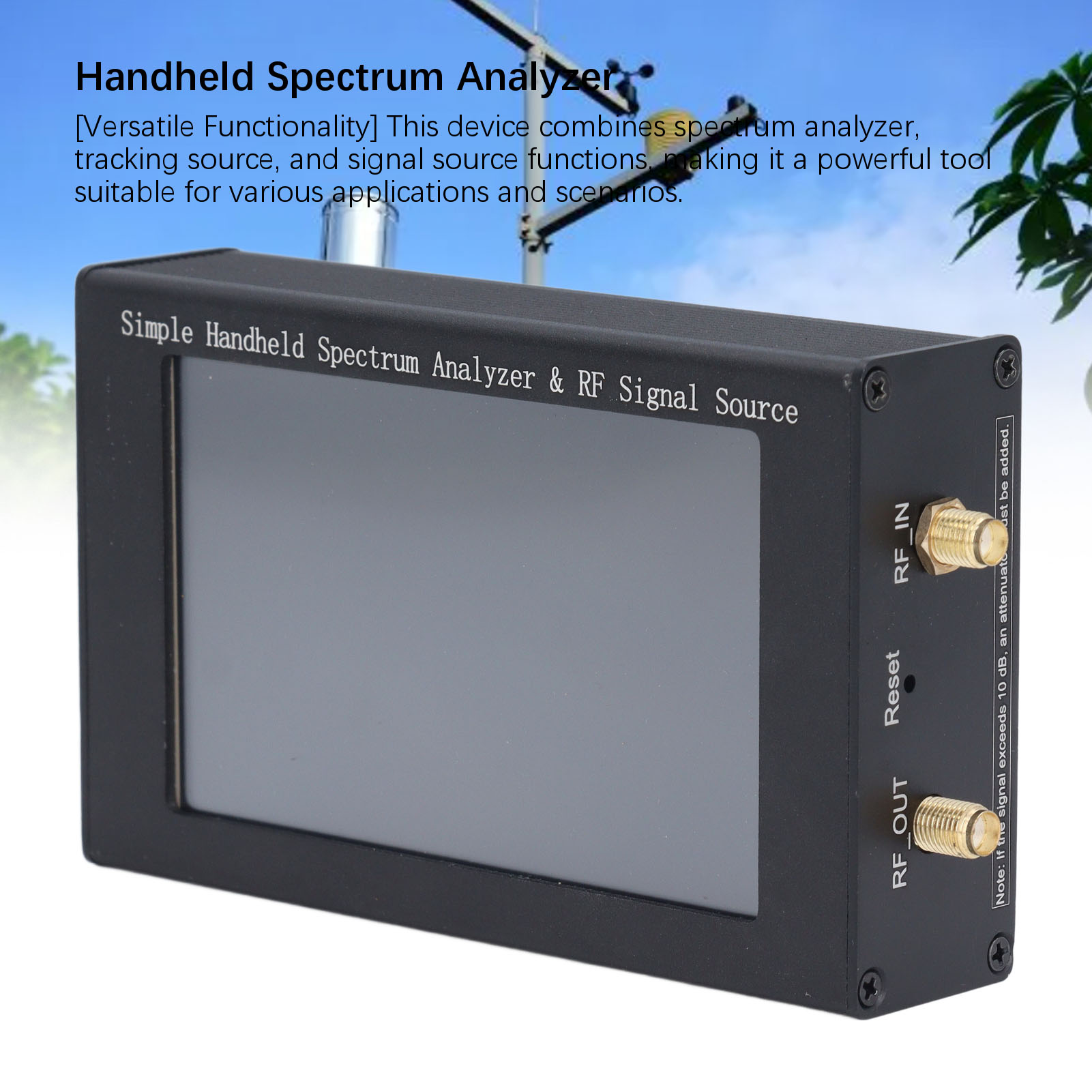

2. [Versatile Functionality] This device combines spectrum analyzer, tracking source, and signal source functions, making it a powerful tool suitable for various applications and scenarios.

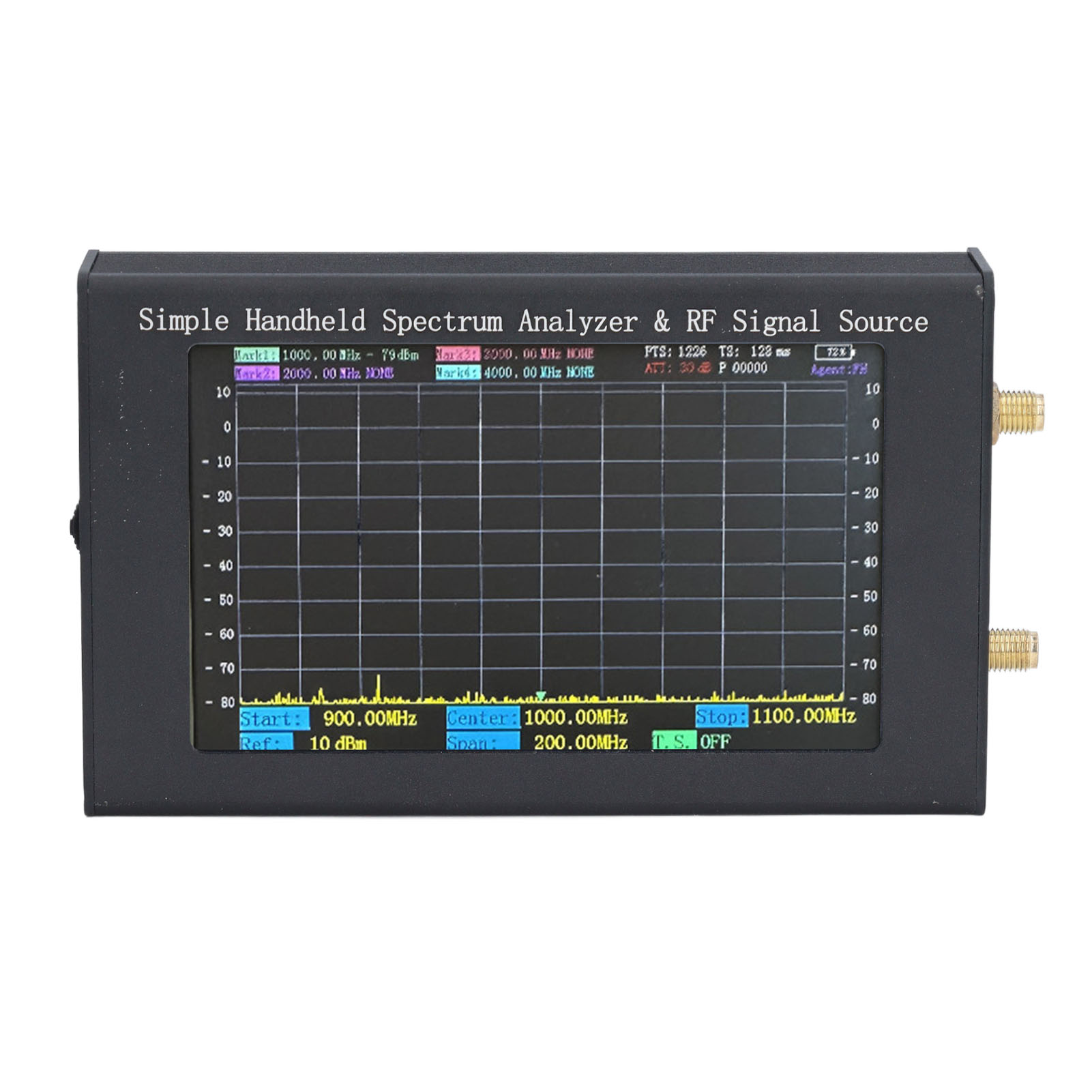

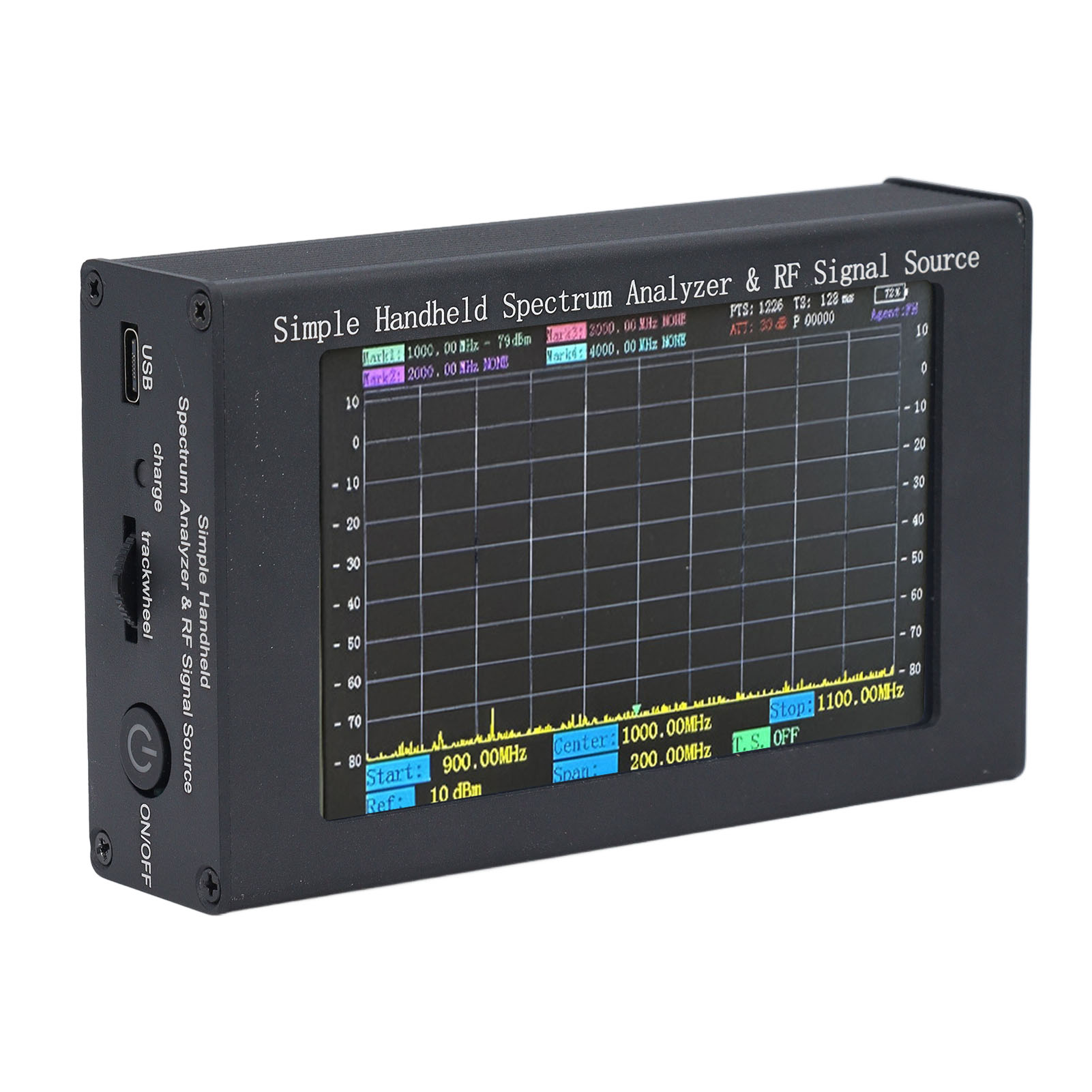

3. [4.3 Inch Display] Equipped with a 4.3 inch color screen, provides a clear and responsive display for real time data monitoring, comes with a stylus for convenient operation.

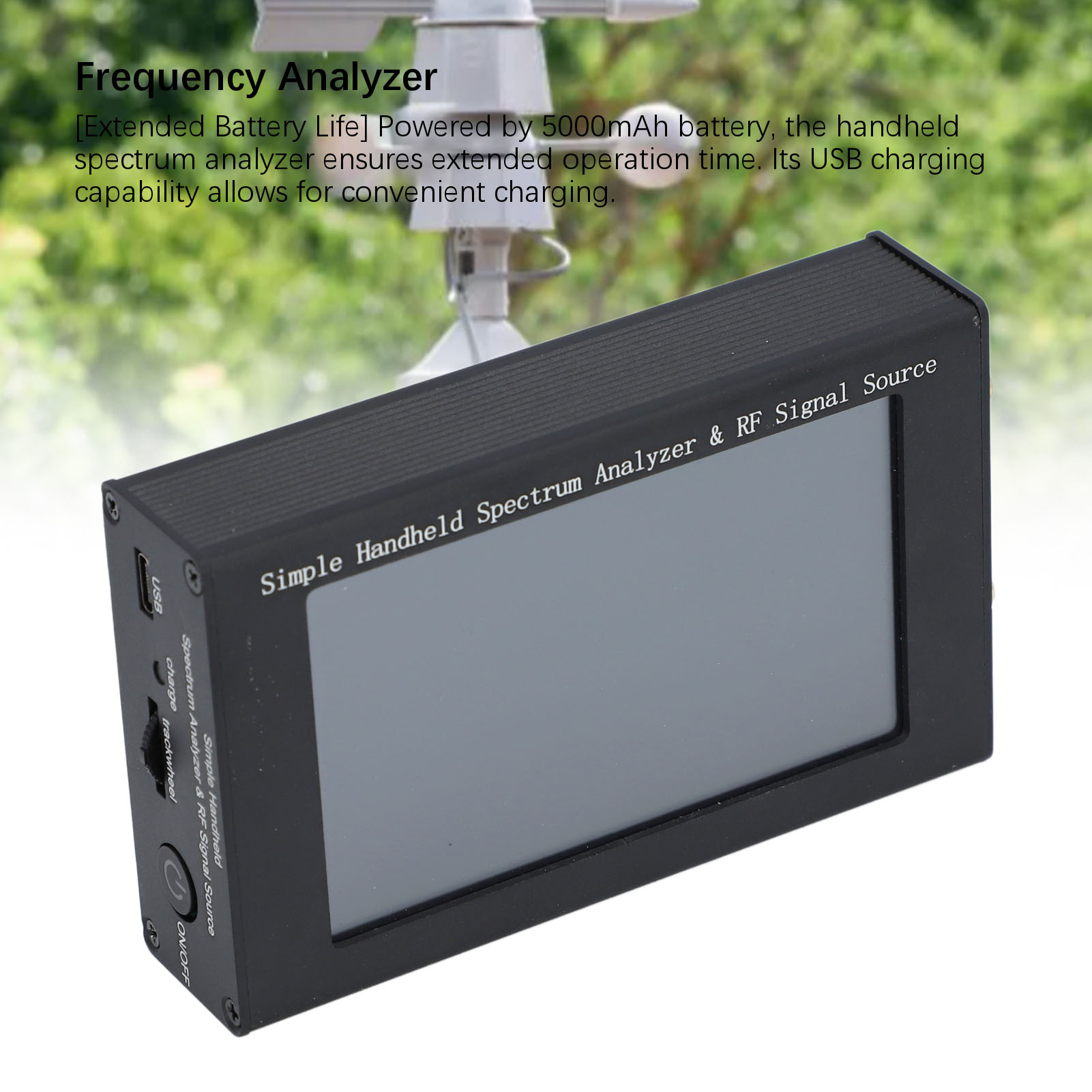

4. [Extended Battery Life] Powered by 5000mAh battery, the handheld spectrum analyzer ensures extended operation time. Its USB charging capability allows for convenient charging.

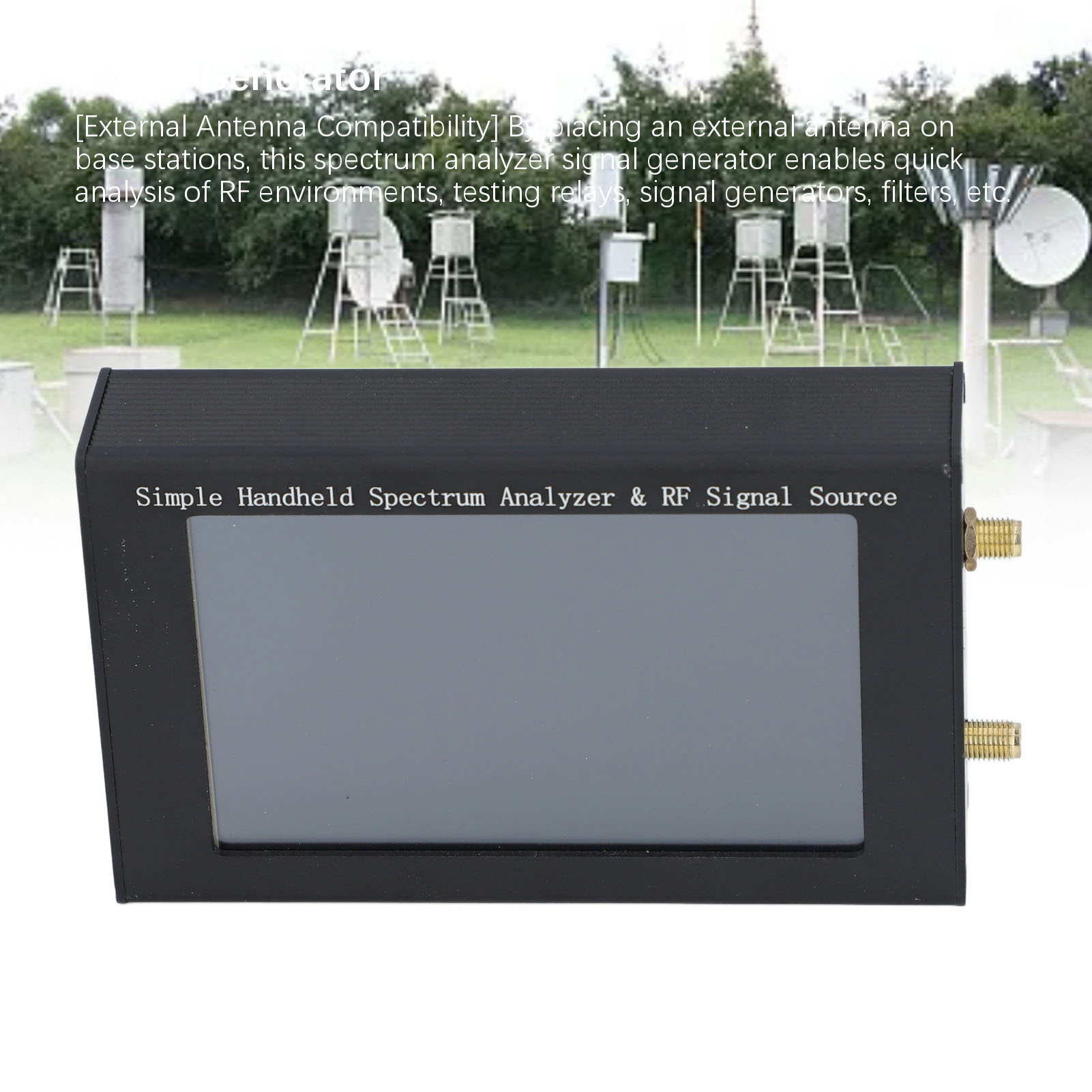

5. [External Antenna Compatibility] By placing an external antenna on base stations, this spectrum analyzer signal generator enables quick analysis of RF environments, testing relays, signal generators, filters, etc.

Specification:

Item Type: Spectrum Analyzer

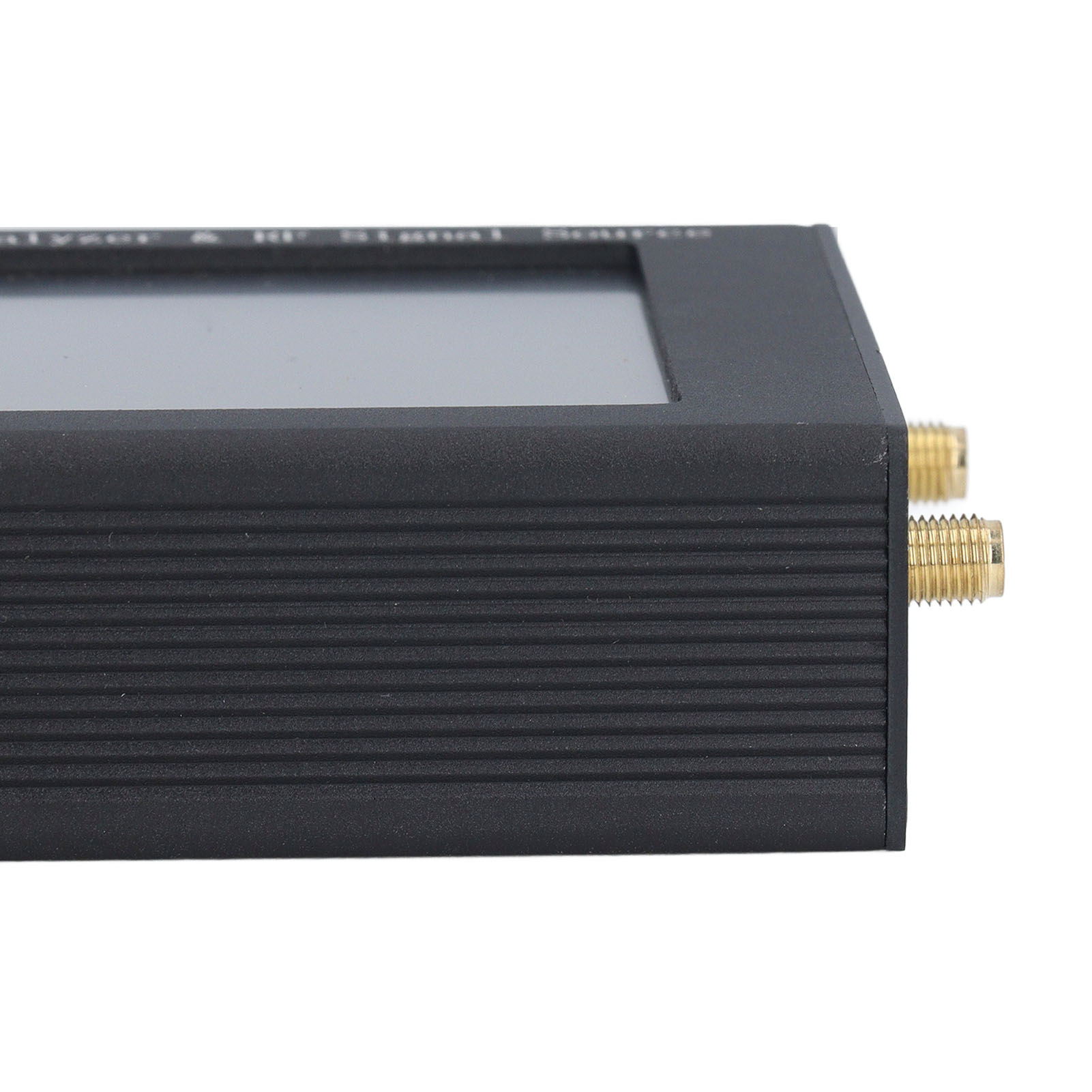

Material: Aluminum Alloy
Scanning Frequency Range: 35-6000MHz
Maximum Scanning Width: 5965MHz
Scanning Bandwidth: 200KHZ
100mhz Scanning Time: <150ms
Background Noise: -115dBm
Tracking Source Range: 35-6000MHz
Frequency Output Range (Point Frequency): 23.5-6000MHz
Frequency Accuracy (Point Frequency): 0.01MHz
Output Signal Strength (Point Frequency): -30dBm-0dBm
Output Signal Strength Adjustment Step (Point Frequency): 0.5dBm
Scanning Range (Frequency Sweep): 23.5-6000MHz
Sweep Frequency Point Minimum Step (Sweep Frequency): 0.01MHz
Frequency Interval Time (Sweep Frequency): 0.1-500ms
Sweep Frequency Time Minimum Step: 0.1ms
Battery Capacity: Rechargeable Lithium Battery 5000mAh x 1 (Built in)
Endurance: 5-6h

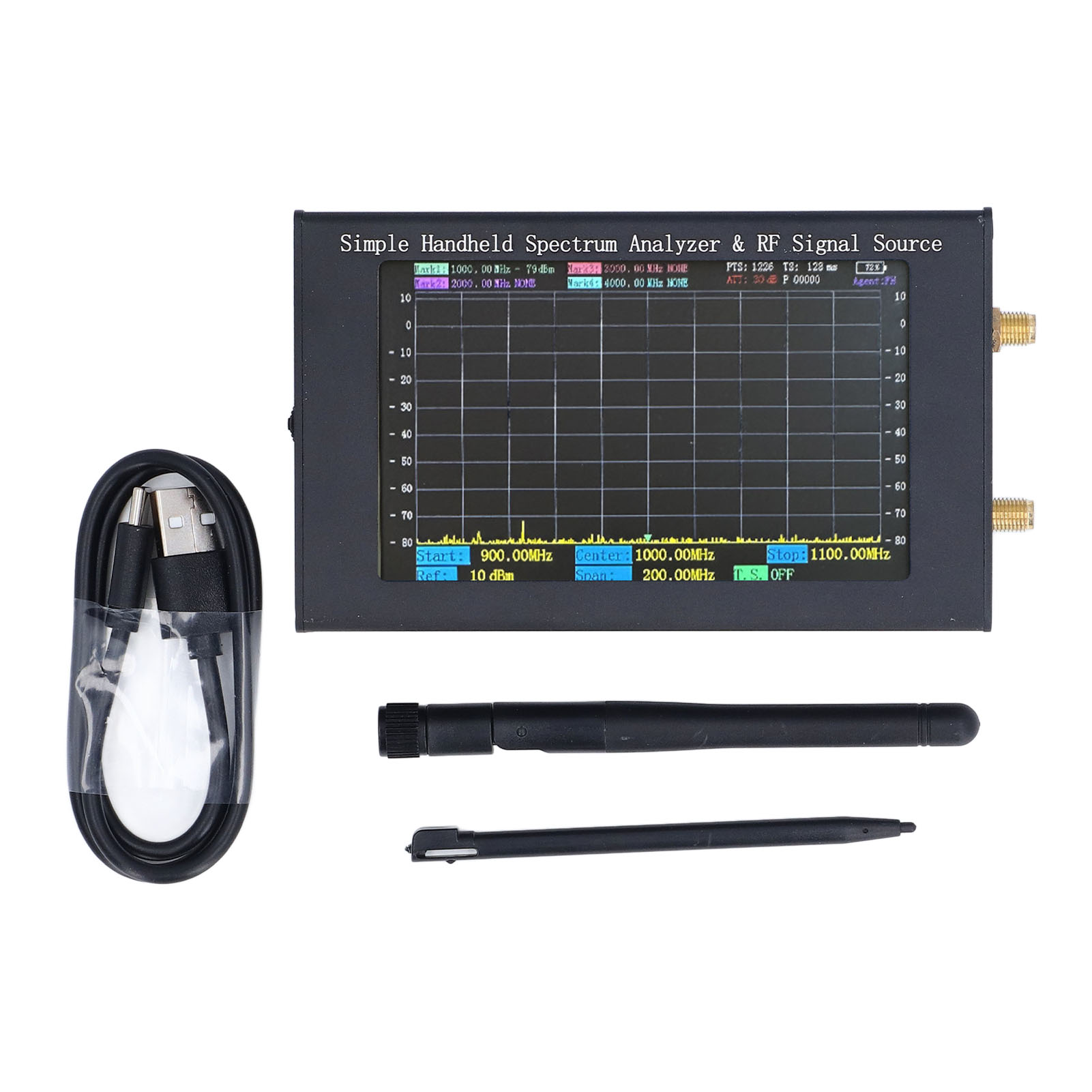

Package List:

1 x Spectrum Analyzer

1 x USB Cable

1 x Antenna

1 x Stylus Pen

1 x User Manual

Note:

1. During setup, please do not input a signal exceeding 10dBm.
2. During low battery, signal measurement and output may have large errors, try to avoid using the equipment under low battery.
3. During outdoor use, water, static electricity, high temperature, etc. will cause irreversible damage to the equipment.
