Growatt 5KW Single-phase On-grid Solar Inverter MIN 5000TL-X Dual MPPT Trackers
Key Features
1. Safety and Reliability
- Type II SPD on DC side
- AFCI function optional
2. High Yields
- Max. efficiency 98.4%
- Dual MPP trackers
- Wide MPPT voltage range
3. User Friendly
- Future proof battery ready
- Touch key and OLED display
- Compact design for one person installation
Specification:
MODEL: MIN 5000TL-X
INPUT DATA (DC)
MAX. RECOMMENDED PV POWER: 7000W
START VOLTAGE: 100V
Max. DC voltage: 500V
Nominal voltage: 360V
MPP voltage range: 80V-550V
No. of MPP trackers: 2
No. of PV strings per MPP tracker: 1
Max. input current per MPP tracker: 13.5A *
Max. short-circut current per MPP tracker: 16.9A
OUTPUT DATA(AC)
AC NOMINAL POWER: 5kW
MAX. AC APPARENT POWER: 5kVa
NOMINAL AC VOLTAGE: 230V (180-280V)
NOMINAL AC GRID FREQUENCY: 50/60 Hz (45-55Hz/55-65 Hz)
MAX. OUTPUT CURRENT: 22.7A
ADJUSTABLE POWER FACTOR: 0.8leading…0.8lagging.
THDI: <3%
AC GRID CONNECTION TYPE: Single phase
Efficiency
Max.efficiency: 98.4%
European efficiency: 97.5%
MPPT efficiency: 99.9%
Protection devices
DC reverse polarity protection: Yes
DC switch: Yes
AC/DC surge protection: Type III / Type III
Insulation resistance monitoring: Yes
AC short-circuit protection: Yes
Ground fault monitoring: Yes
Grid monitoring: Yes
Anti-islanding protection: Yes
Residual-current monitoring unit: Yes
AFCI protection: Optional
General data

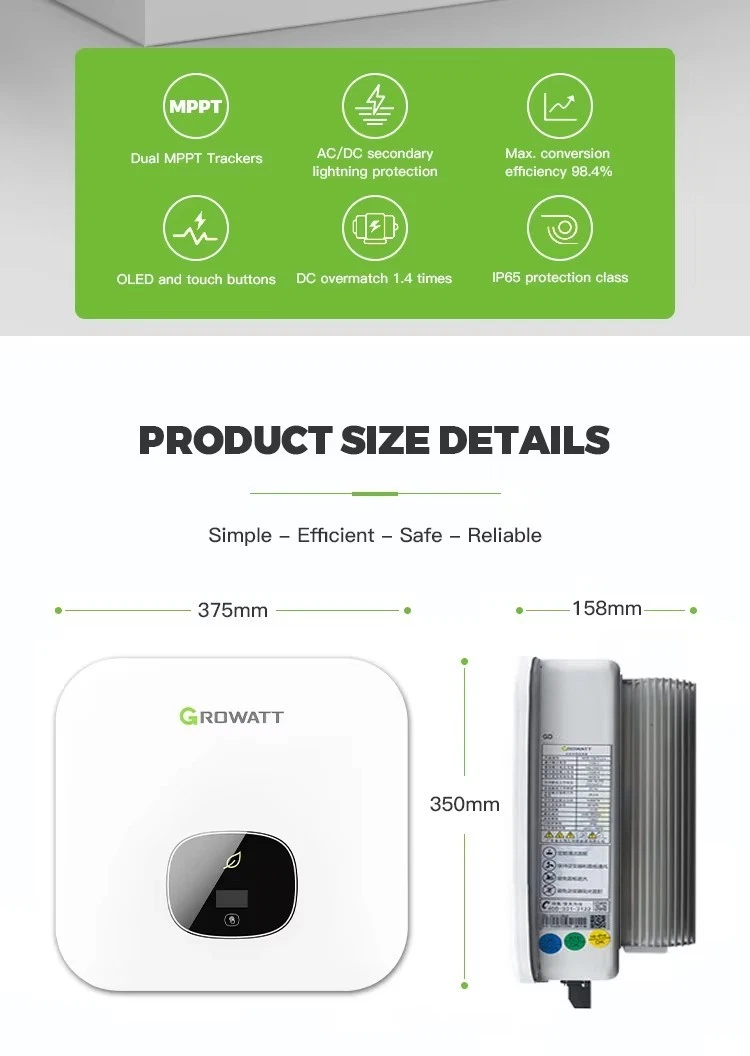

Dimensions (W / H / D): 375/350/160mm
Weight: 10.8kg
Operating temperature range: –25°C … +60°C
Nighttime power consumption: < 1W
Topology: Transformerless
Cooling: Natural convection
Protection degree: IP65
Relative humidity: 0-100%
Altitude: 4000m
DC connection: H4/MC4(Optional)
AC connection: Connector
Display: OLED+LED/WIFI+APP
Interfaces: RS485/USB/Wi-Fi/ GPRS/ RF/LAN: Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years/10 years: Yes/Optional
