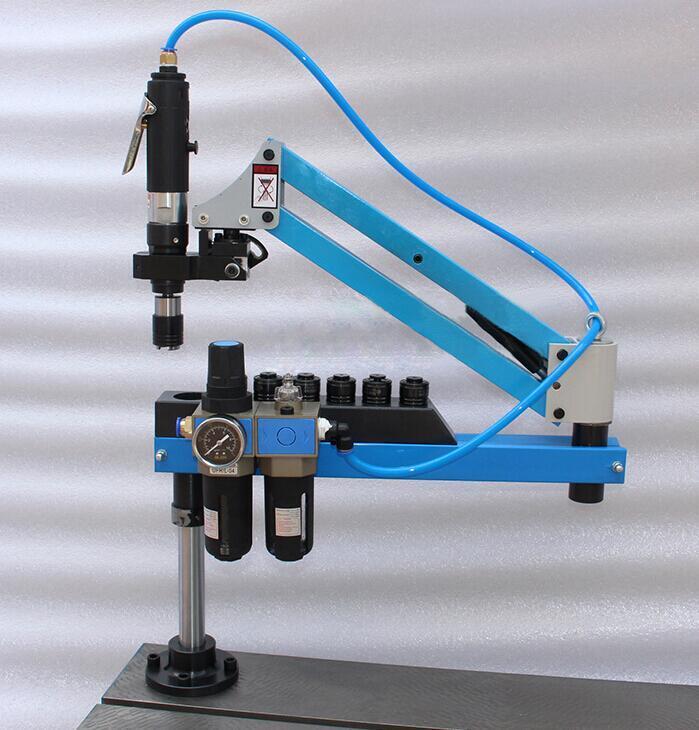

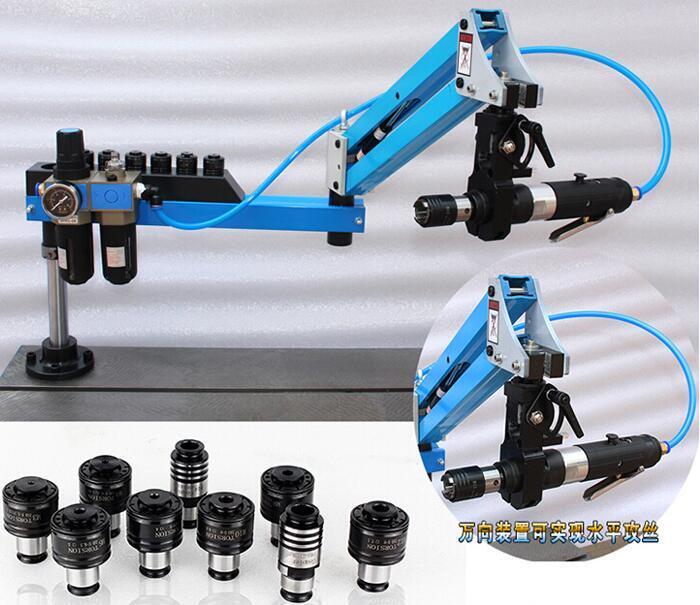

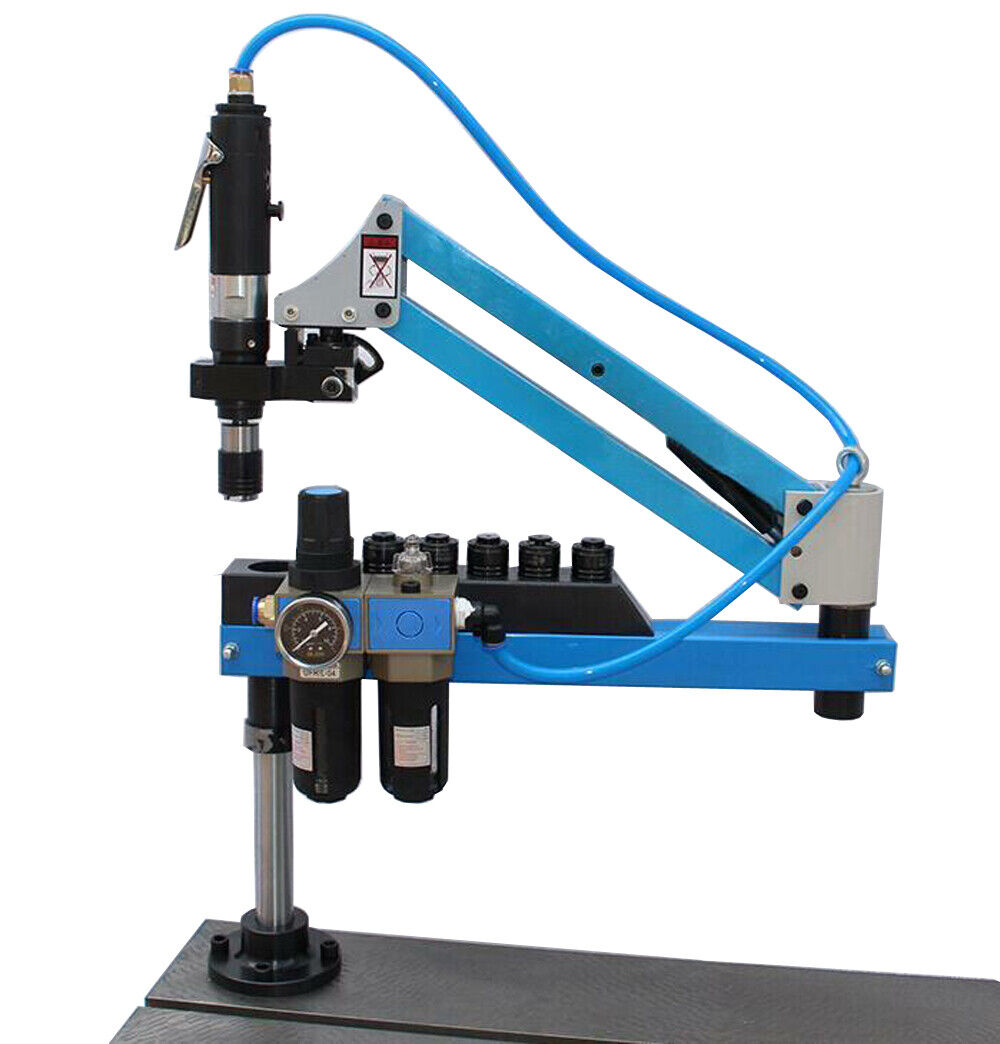

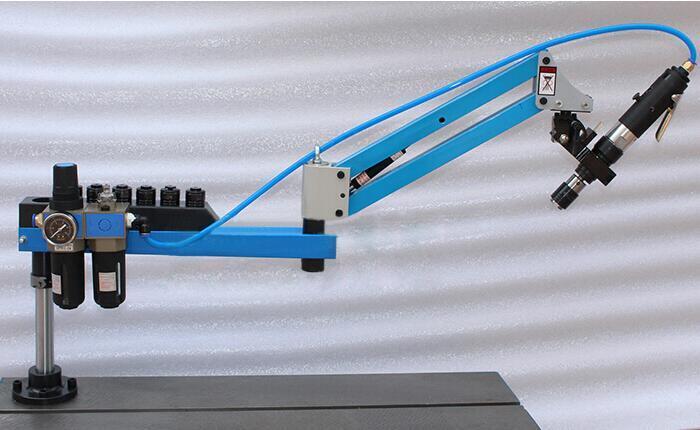

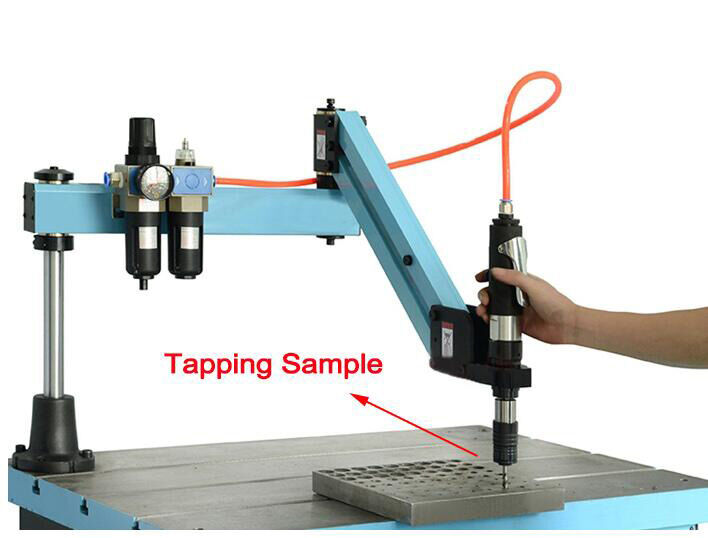

M3-M16 Flexible Arm Universal Pneumatic Tapping Machine Multi-direction Tapping
Feature:
Applicable Materials:
Tapping for copper, iron, aluminum, steel, stainless steel, plastic and wood, and other materials.
Applicable Industries:
Specially suits machine manufacture profession, the mold manufacturing industry, automotive industry and aircraft engine manufacture, ship manufacturing.
Air Power Tapping Machine Features:
1. Tapping the scope of M3 to M16
2. Re-positioning fast, machining speed, high accuracy thread, and increased production capacity.
3. Spindle working type: Universal (multi-direction)
4. Extraordinary load operation and will not damage main motor.
5. Adapt to any work environment.
6. Through-hole blind-hole unceasingly tool.
7. Pneumatic tools, torque, light weight, high efficiency.
Parameter:

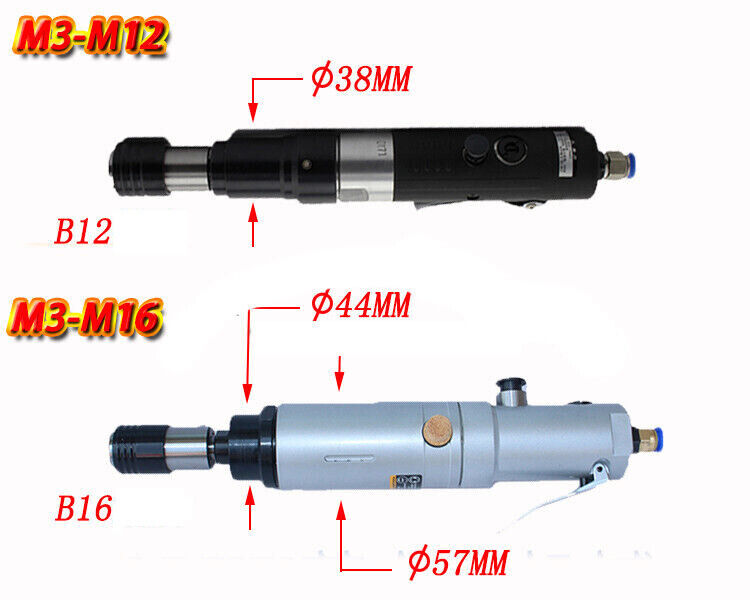

Motor diameter: 44mm
Motor speed: 250RPM
Working area: 100mm - 1000mm (in radius)
Tapping range: M3 to M16
Spindle working type: Universal (multi-direction)
Weight: 26kg

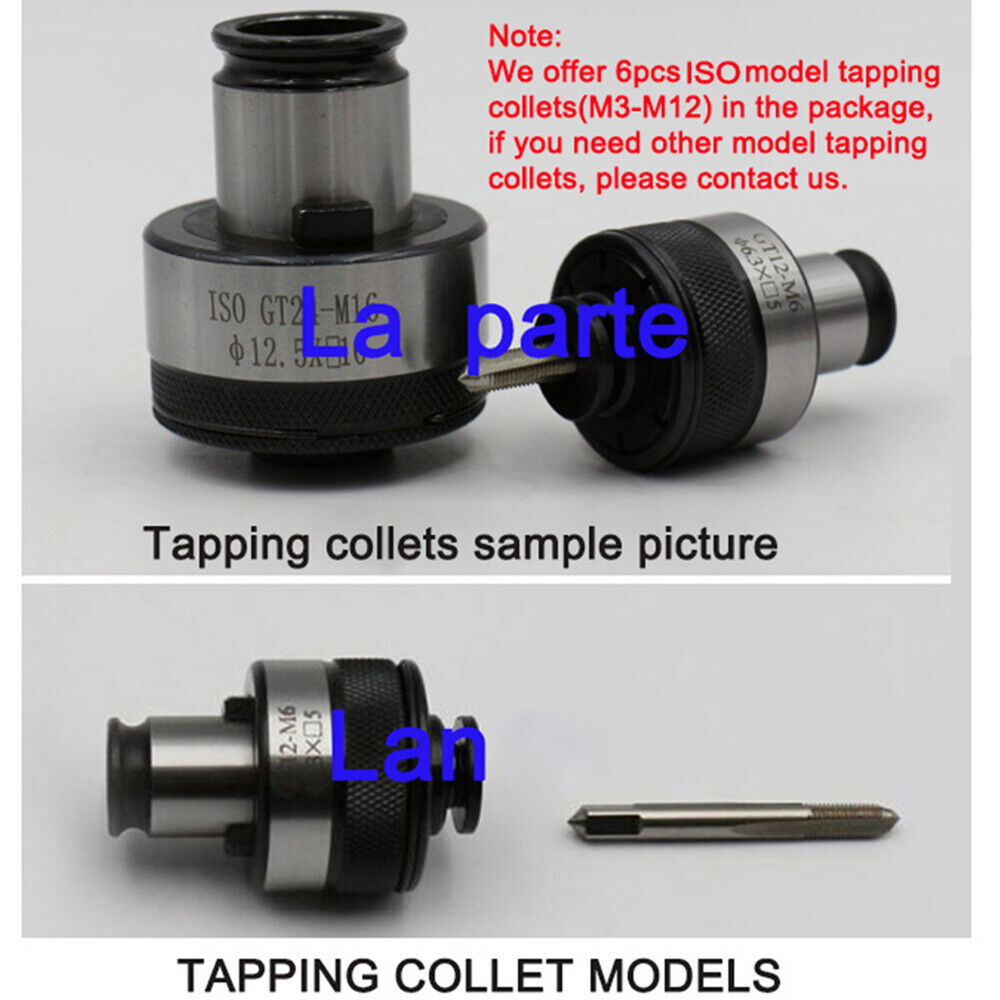

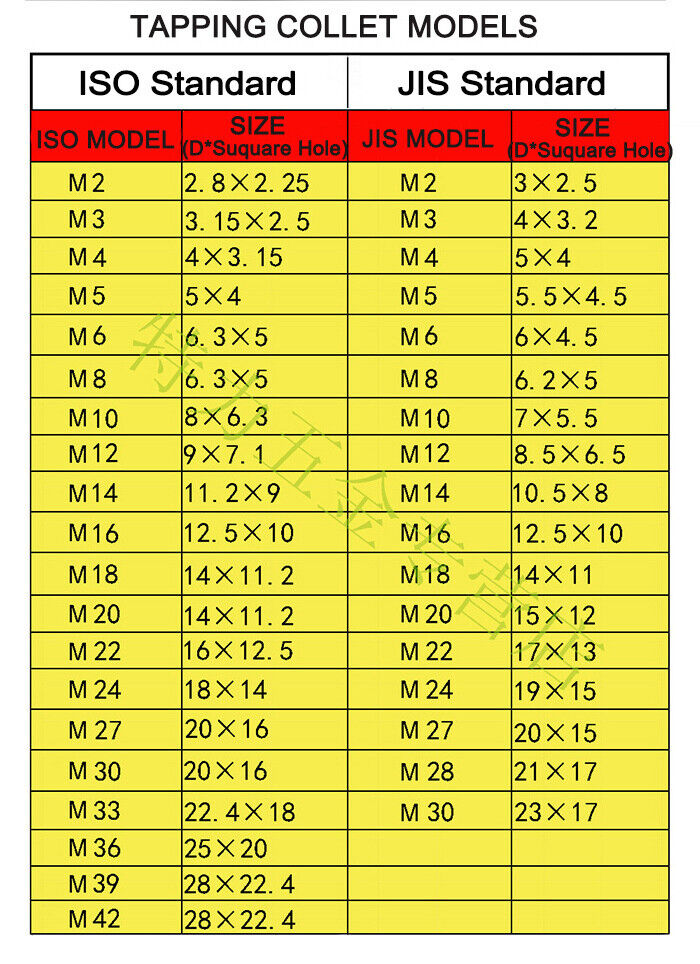

The size of the ISO tapping collets (If you need JIS standard tapping collets, pls let let's know):
M3：3.15 X 2.5
M4：4 X 3.15
M5 tap：5 X 4
M6：6.3 X 5
M10：8 X 6.3
M12：9 X 7.1
M14 :11.2 x 9
M16 :12.5 X 10
The package includes:
1PCS Pneumatic tapping machine
8PCS ISO standard tapping collets: M3-M16
