Supermicro X11DPI-N +2x Intel Xeon GOLD 6230 20 CORE 2.10GHZ CLGA3647

Product Description

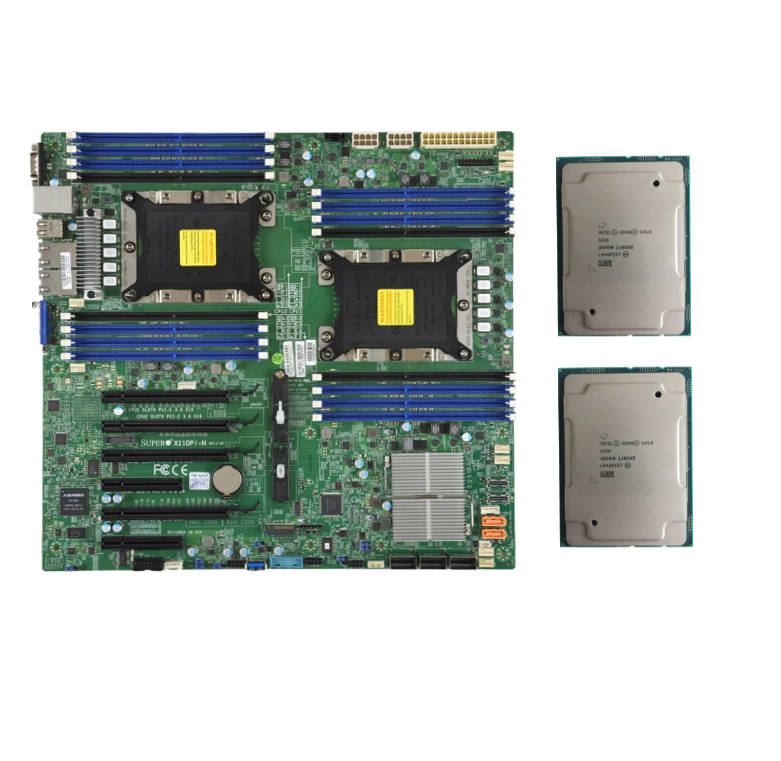

Package include:

1X Supermicro  X11DPI-N

2x INTEL XEON GOLD 6230

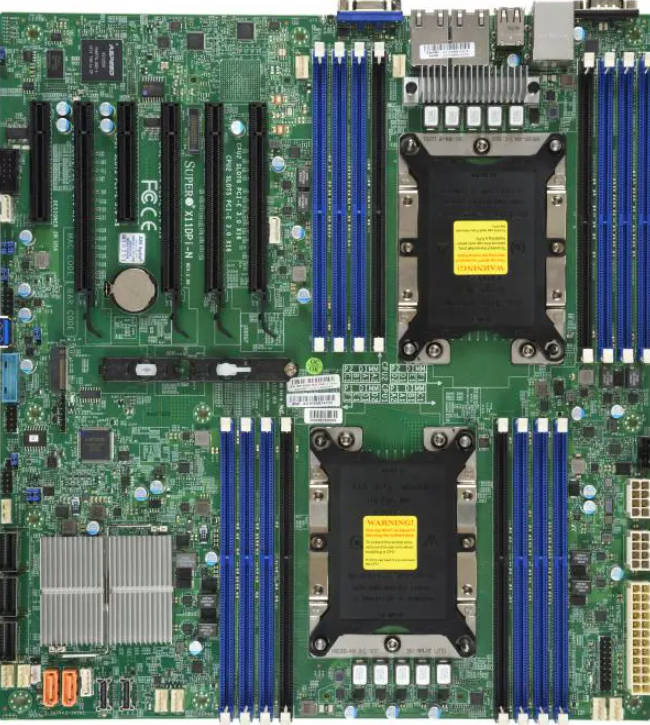

Mainboard

Parameter
Specification
Product SKU
MBD-X11DPI-N
Form Factor
E-ATX
Dimension
12" x 13" (30.48cm x 33.02cm)
Supported CPU
2nd Gen Intel® Xeon® Scalable Processors and 1st Gen Intel® Xeon® Scalable Processors, dual Socket P (LGA-3647) supported, max CPU TDP up to 205W, dual UPI up to 10.4 GT/s
Max CPU Core Count
Up to 28 cores
Memory Slots
16 DIMM slots
Maximum Memory Capacity
Up to 4TB 3DS ECC LRDIMM/RDIMM (DDR4-2933MT/s), up to 2TB Intel® Optane™ Persistent Memory
Supported Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Chipset
Intel® C621
SATA Interface
14 x SATA3 (6Gbps) ports, supports RAID 0/1/5/10
IPMI Controller
ASPEED AST2500
Network Controller
Dual 1GbE LAN powered by Intel® X722
I/O Ports
2 x RJ45 LAN ports, 1 x VGA port, 2 x COM ports, 2 x SuperDOM ports
PCIe Expansion Slots
4 x PCIe 3.0 x16, 2 x PCIe 3.0 x8
M.2 Interface
PCIe 3.0 x4, supports 22110/2280/2260 M-Key modules
BIOS Type
AMI UEFI
Supported Management Software
SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI 2.0, Watchdog
Fan Configuration
8 x 4-pin PWM fan headers, supports fan speed control
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)

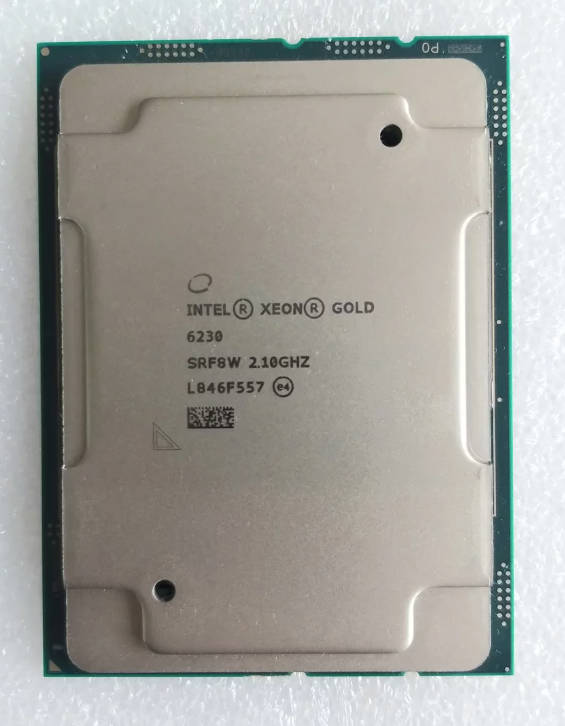

CPU




Essentials
Product Collection2nd Generation Intel® Xeon® Scalable Processors
Code NameProducts formerly Cascade Lake
Vertical SegmentServer
Processor Number6230
Marketing StatusLaunched
Launch DateQ2'19
Lithography14 nm
Use ConditionsServer/Enterprise


CPU Specifications
Total Cores20
Total Threads40
Max Turbo Frequency3.90 GHz
Processor Base Frequency2.10 GHz
Cache27.5 MB
Max # of UPI Links3
TDP125 W


Supplemental Information
Embedded Options AvailableYes
Product BriefView now


Memory Specifications
Max Memory Size (dependent on memory type)1 TB
Memory TypesDDR4-2933
Maximum Memory Speed2933 MHz
Max # of Memory Channels6
Intel® Optane™ Persistent Memory SupportedYes
ECC Memory Supported   ‡Yes


Expansion Options
Scalability4S
PCI Express Revision3
Max # of PCI Express Lanes48

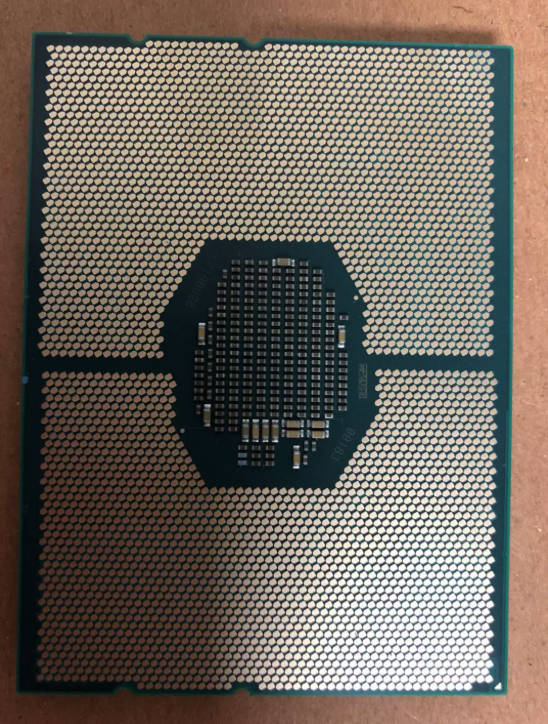

Package Specifications
Sockets SupportedFCLGA3647
TCASE87°C
Package Size76.0mm x 56.5mm


Advanced Technologies
Intel® Deep Learning Boost (Intel® DL Boost)Yes
Intel® Speed Select Technology - Performance ProfileNo
Intel® Speed Select Technology - Base FrequencyNo
Intel® Resource Director Technology (Intel® RDT)Yes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ‡No
Intel® Turbo Boost Technology ‡2
Intel® Hyper-Threading Technology ‡Yes
Intel® Transactional Synchronization ExtensionsYes
Intel® 64 ‡Yes
Instruction Set ExtensionsIntel® SSE4.2 |  Intel® AVX |  Intel® AVX2 |  Intel® AVX-512
# of AVX-512 FMA Units2
Enhanced Intel SpeedStep® TechnologyYes
Intel® Volume Management Device (VMD)Yes


Security & Reliability
Intel vPro® Eligibility ‡Intel vPro® Platform
Intel® AES New InstructionsYes
Intel® Trusted Execution Technology ‡Yes
Execute Disable Bit ‡Yes
Intel® Run Sure TechnologyYes
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
