_{Product Description：}

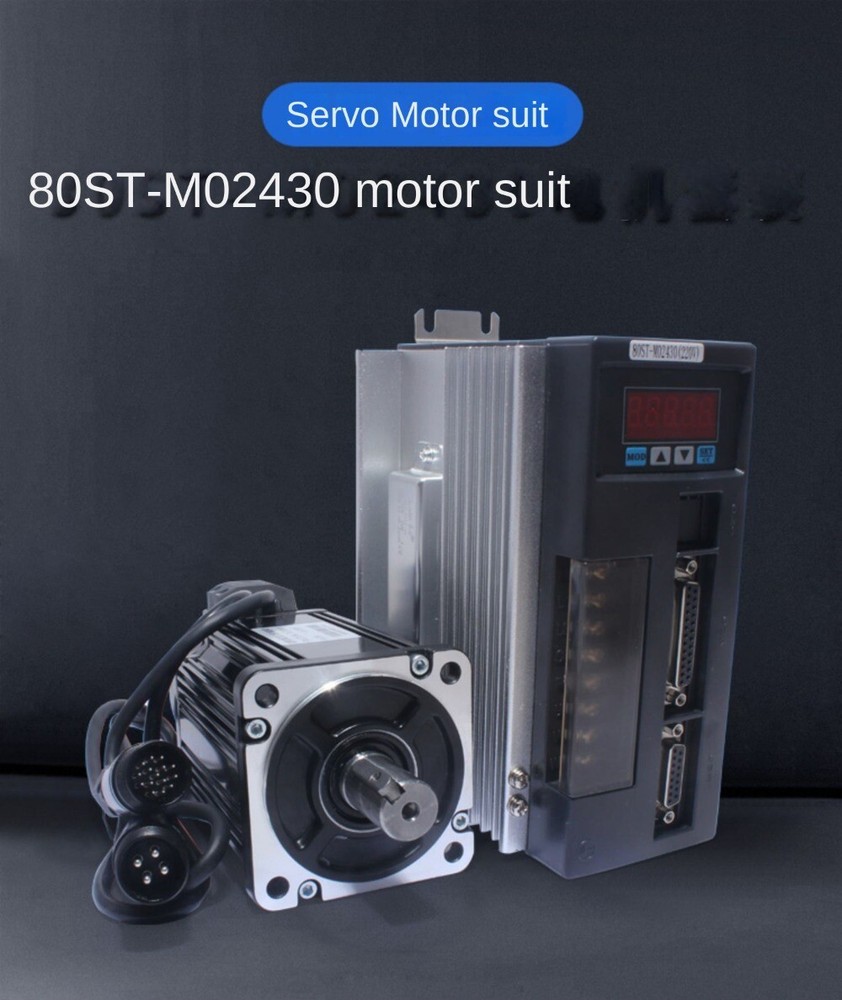

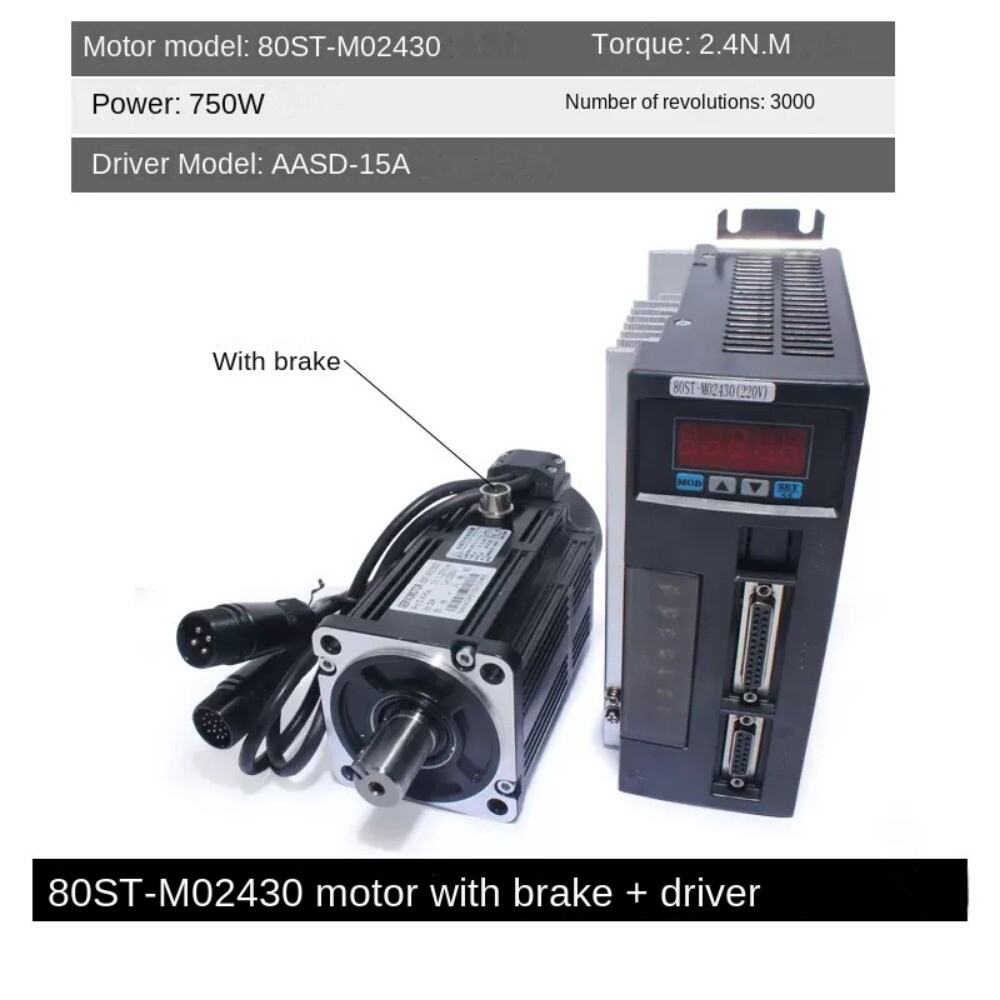

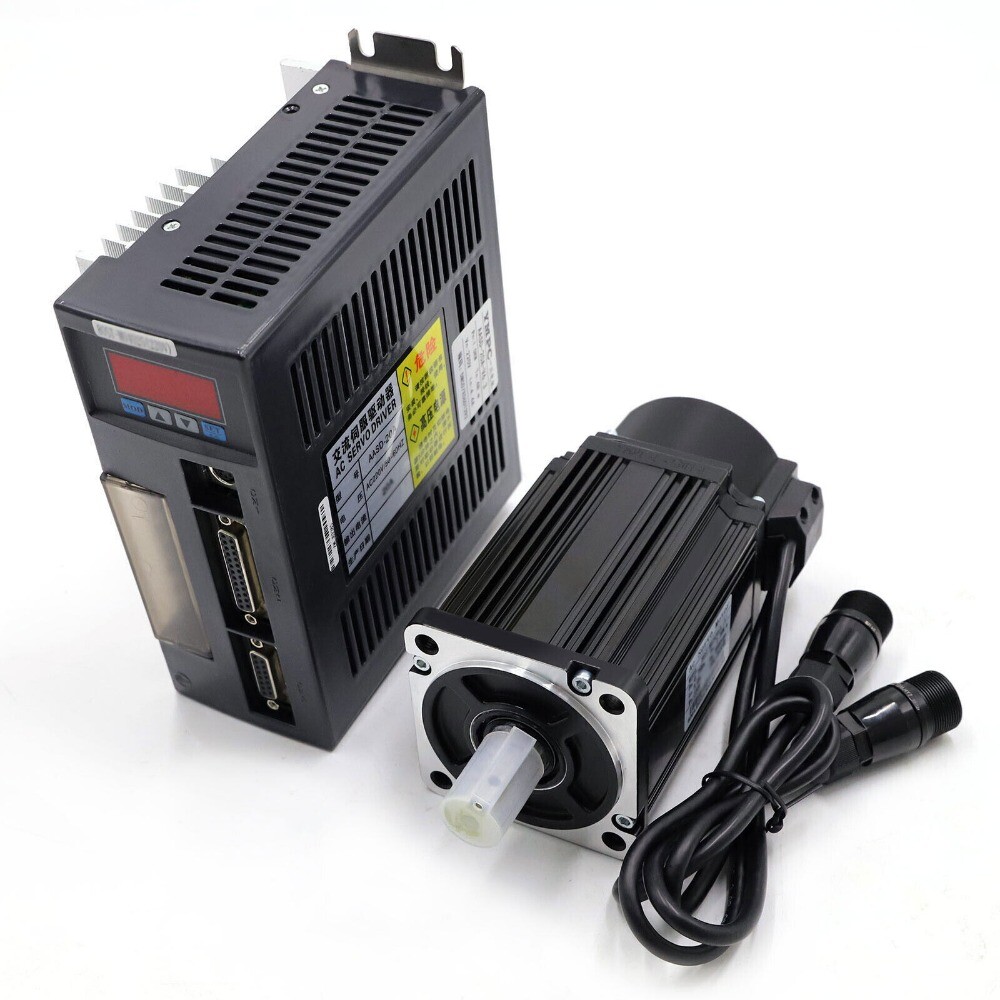

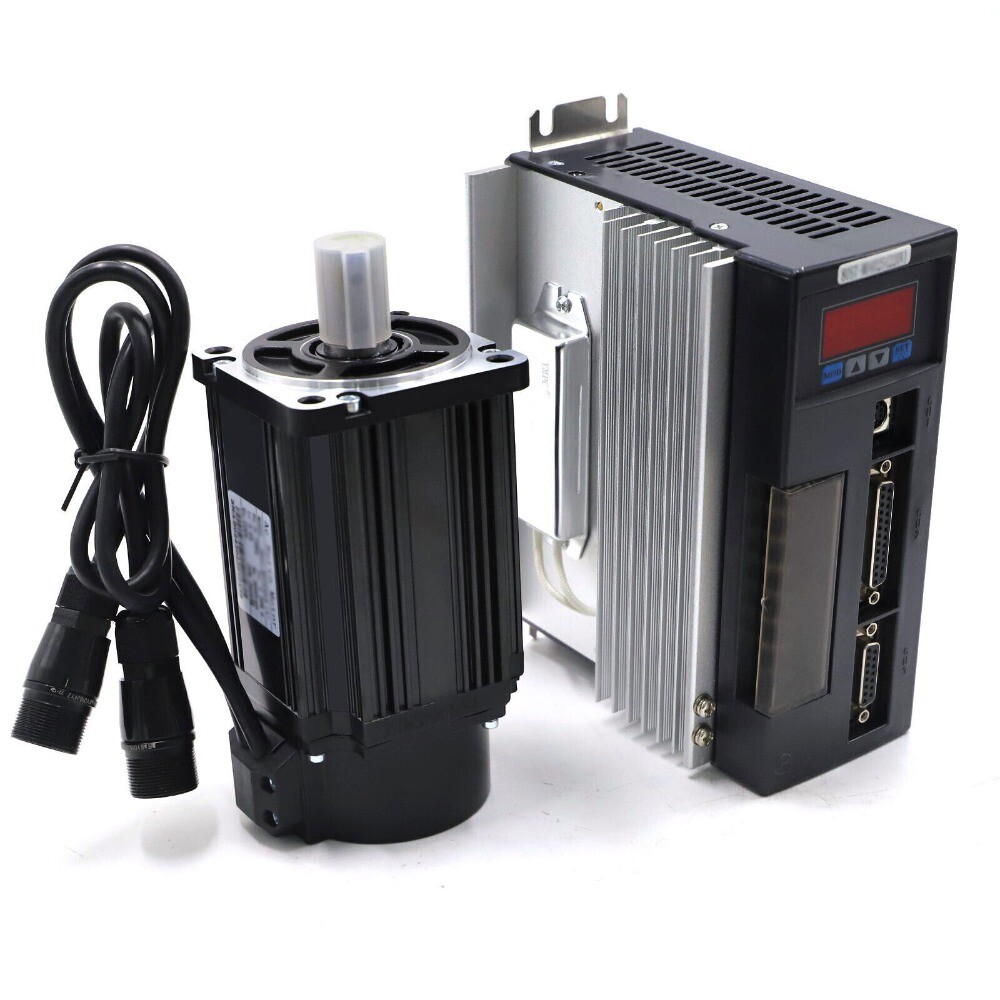

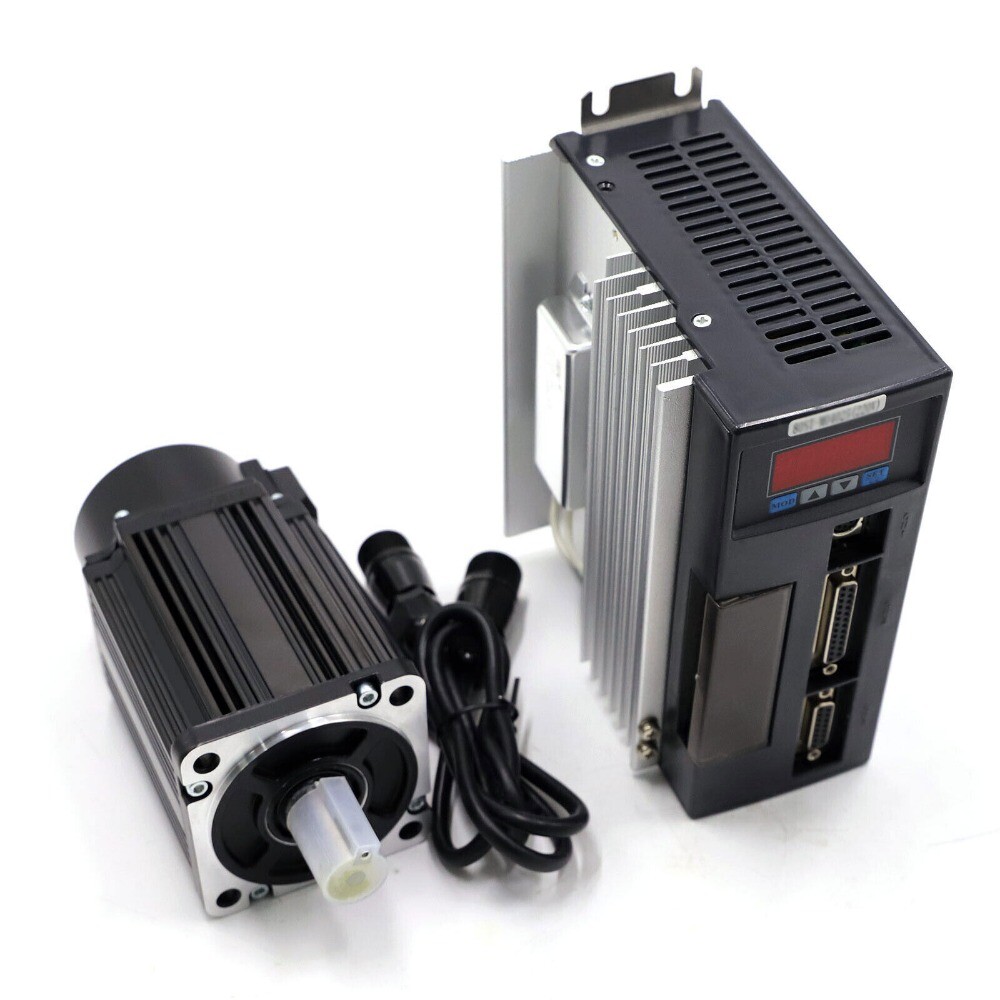

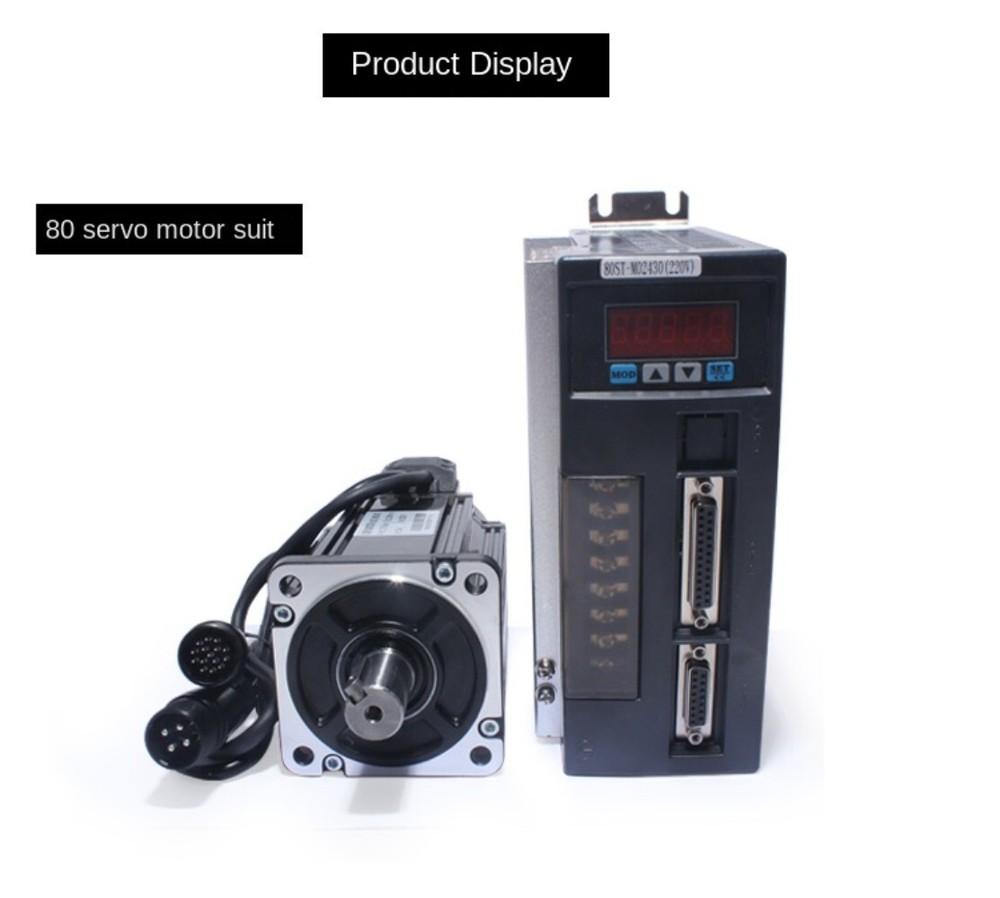

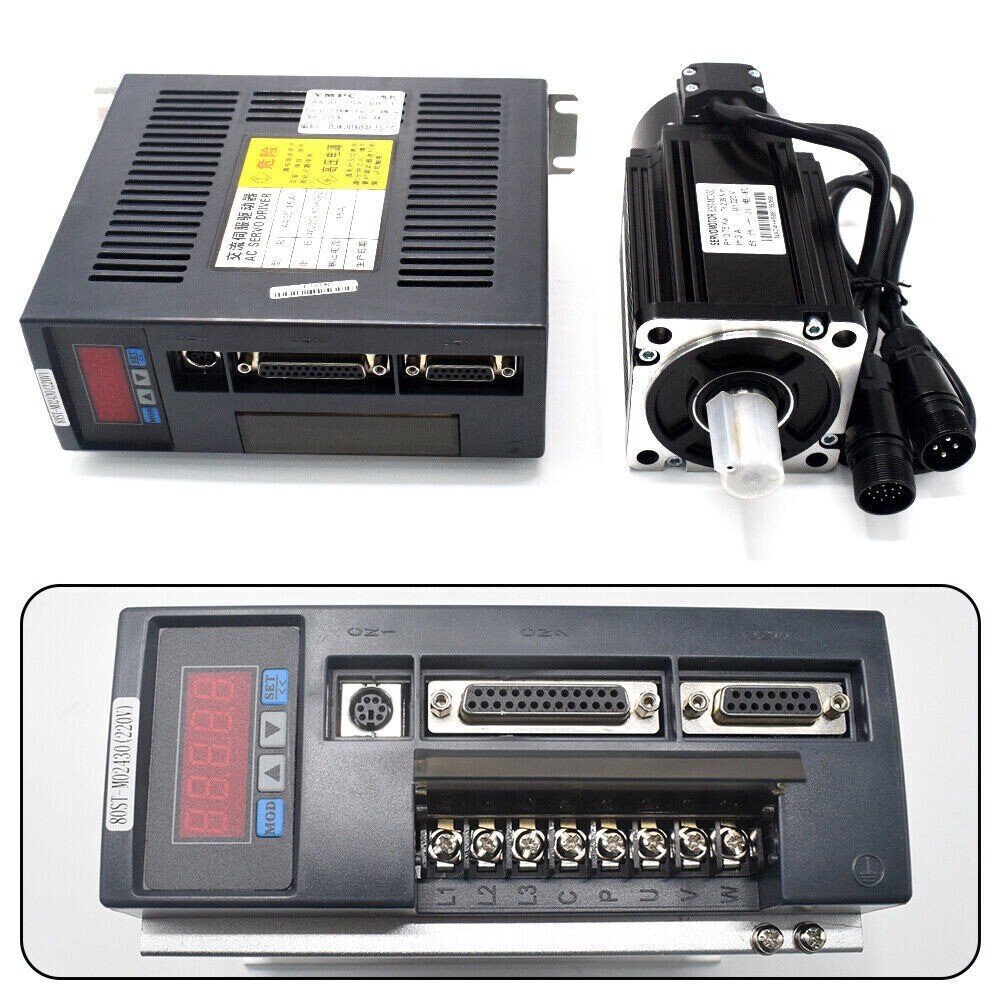

750W AC Servo Motor Driver Kit 2.39N.m 3000R/Min 3M Encoder Cable CNC Mill 220V

Applications:

This servo motor and servo driver kit can be widely used for CNC machining equipment, food processing machinery, material handling equipment, medical apparatus and instruments, textile machinery, etc.

· English manual can be offered as online documentation.

· Input voltage is 1HP/3PH 220V

· Product control mode: position mode, speed mode, torque mode.

· Drive support MODbus communication, standard support RS485 (RS232 is optional,please leave message before place order)

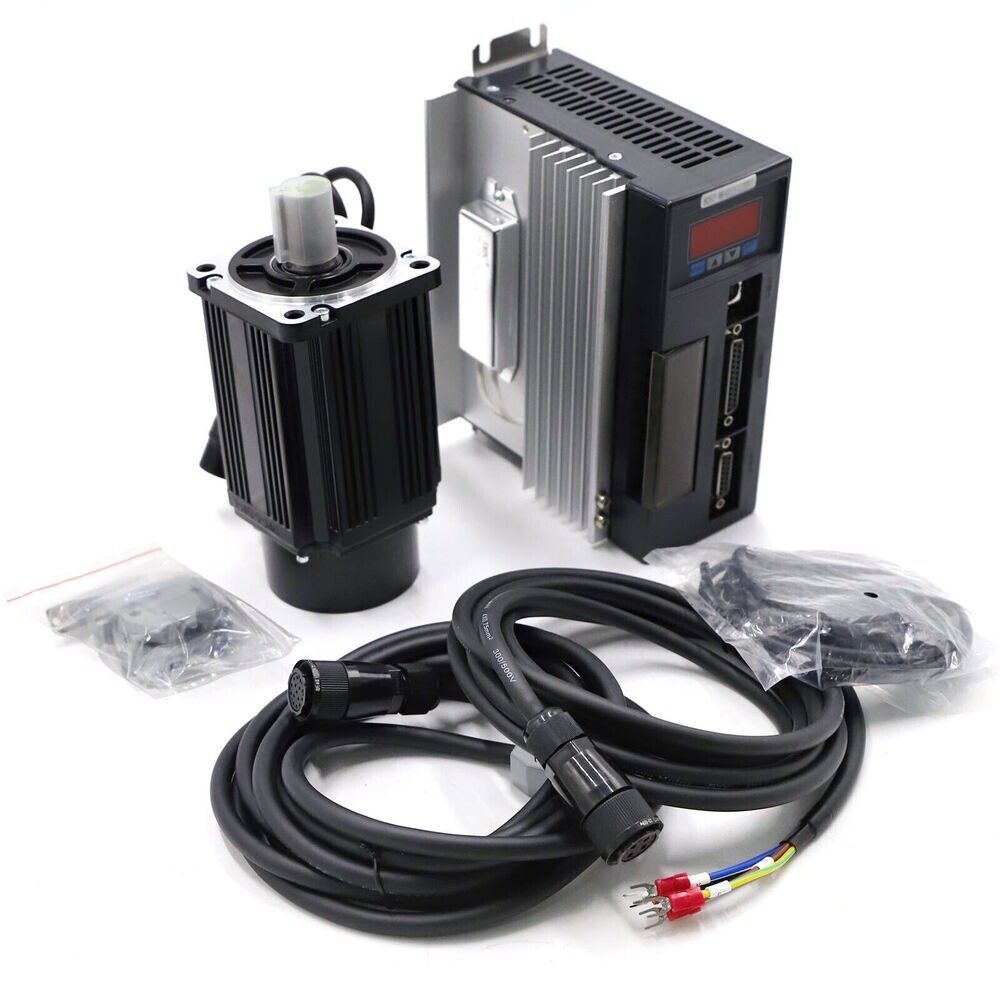

Standard offer 3 meters power cable + 3 meters encoder cable

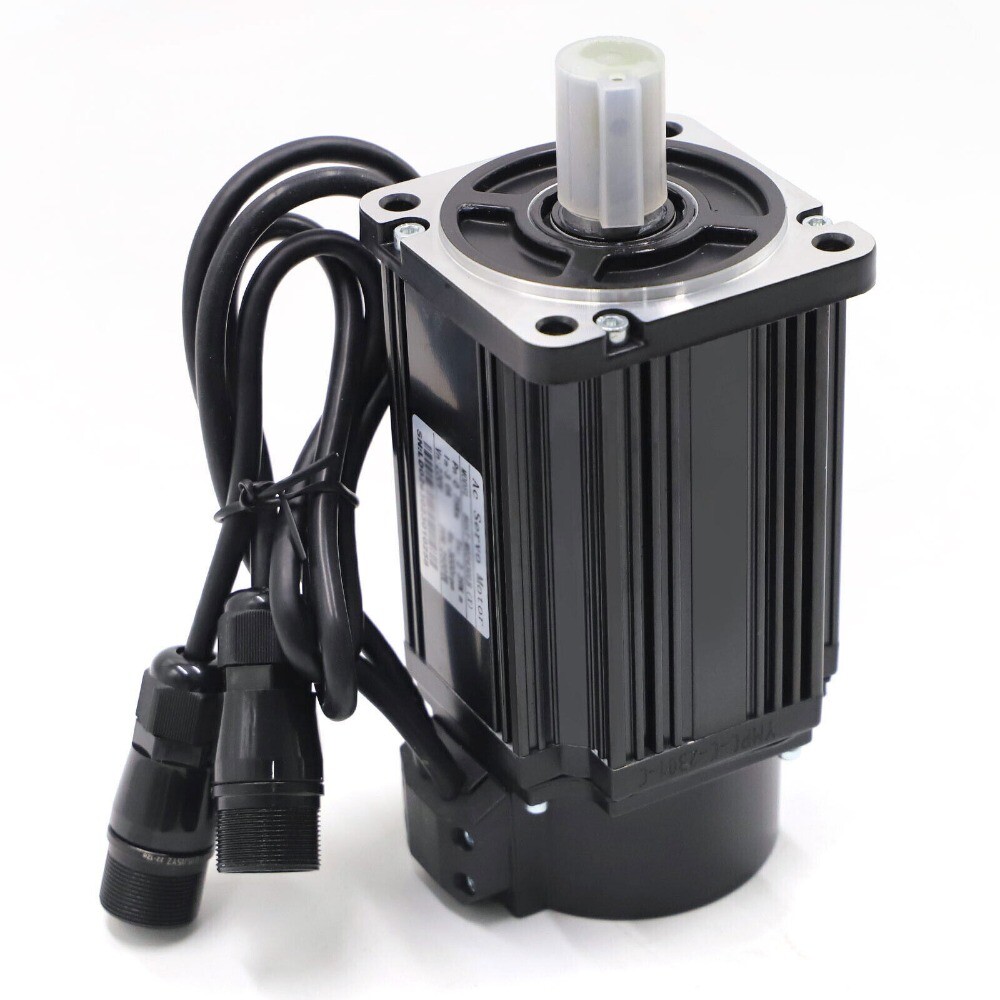

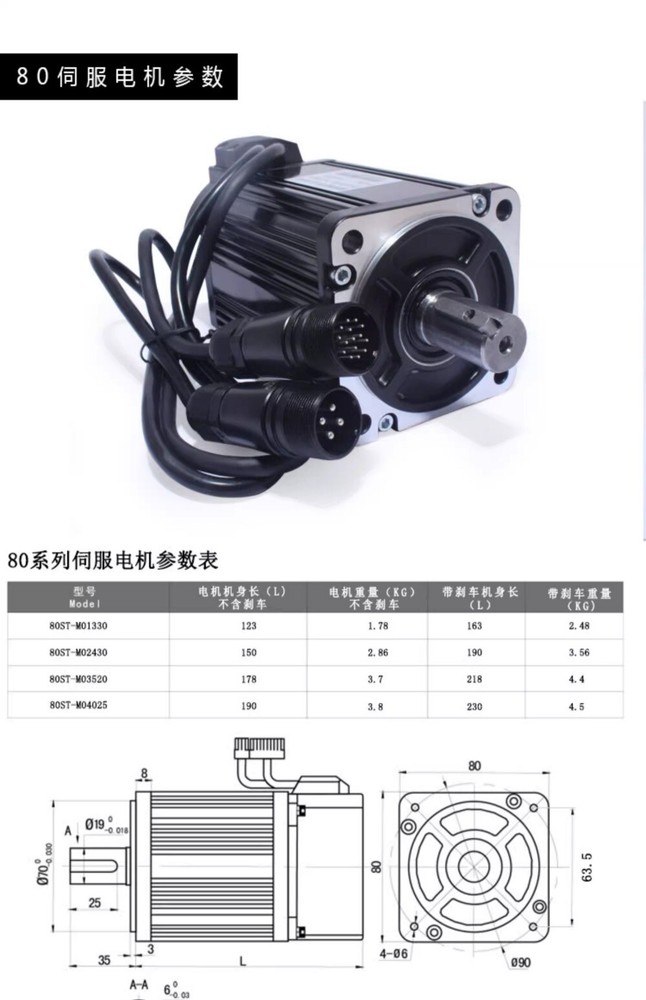

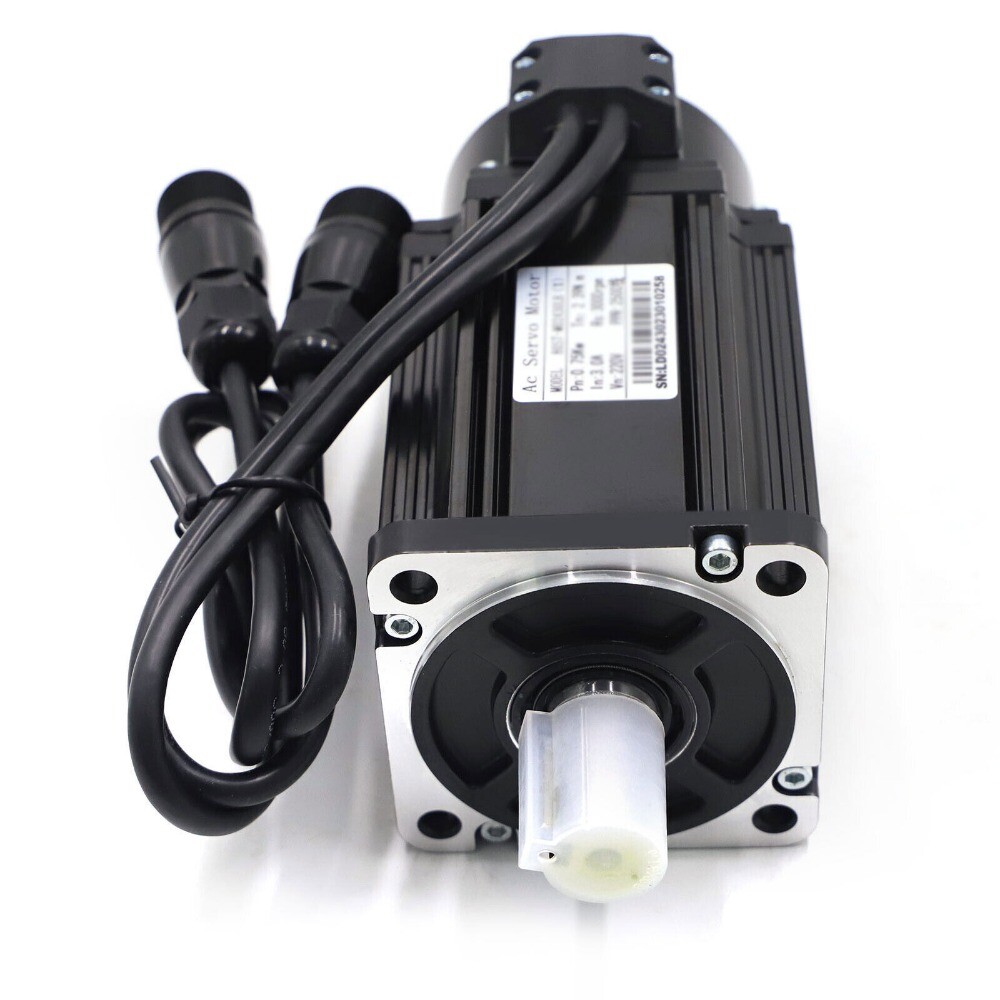

Servo Motor Specifications :

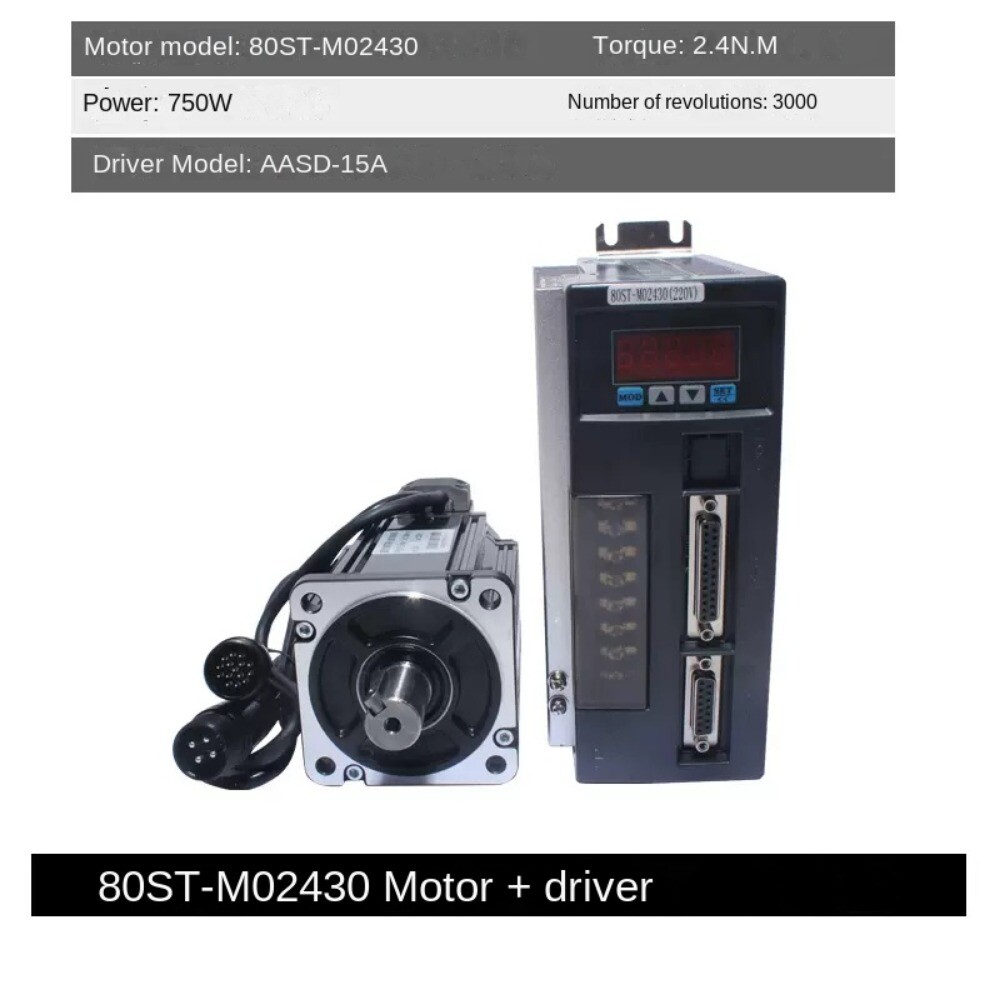

Motor Model:80ST-M02430 (Without Brake)
Rated Power(KW): 0.73
Rated voltage(V): 220
Rated current(A): 3
Rated speed(rpm): 2000
Rated torque(N.m): 2.39
Peak torque(N.m): 7.1
Voltage constant(V/1000r/min): 48
Torque coefficient(N.m/A): 0.8
Rotor inertia (kg.m2): 1.82*10-4
Line-Line Resistance( Ω): 2.88
Line-Line Inductance(m H): 6.4
Electrical time constant(MS): 2.22
Weight(Kg): 2.86
Encoder line number(PPR): 2500 (TAMAGAWA increment type Encoder)
Insulation Class: Class B (130 degree centigrade)
Safety Class: IP65

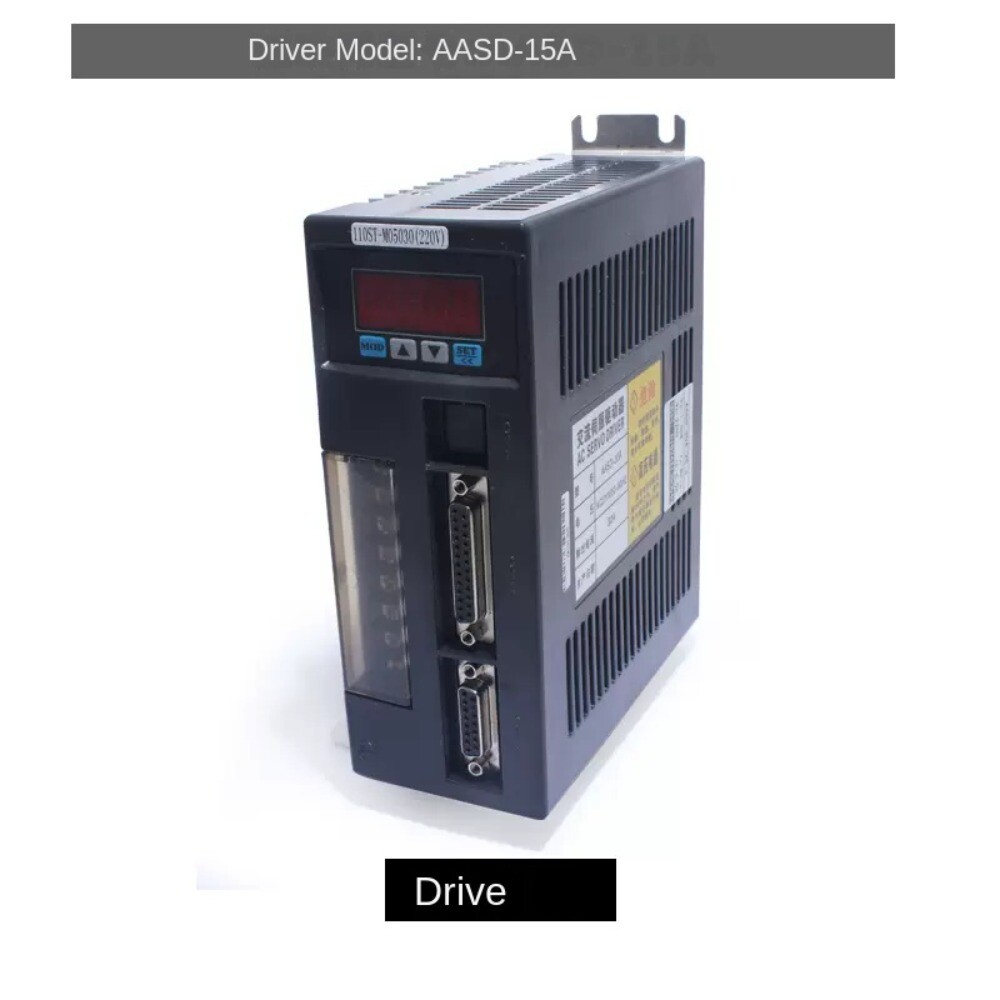

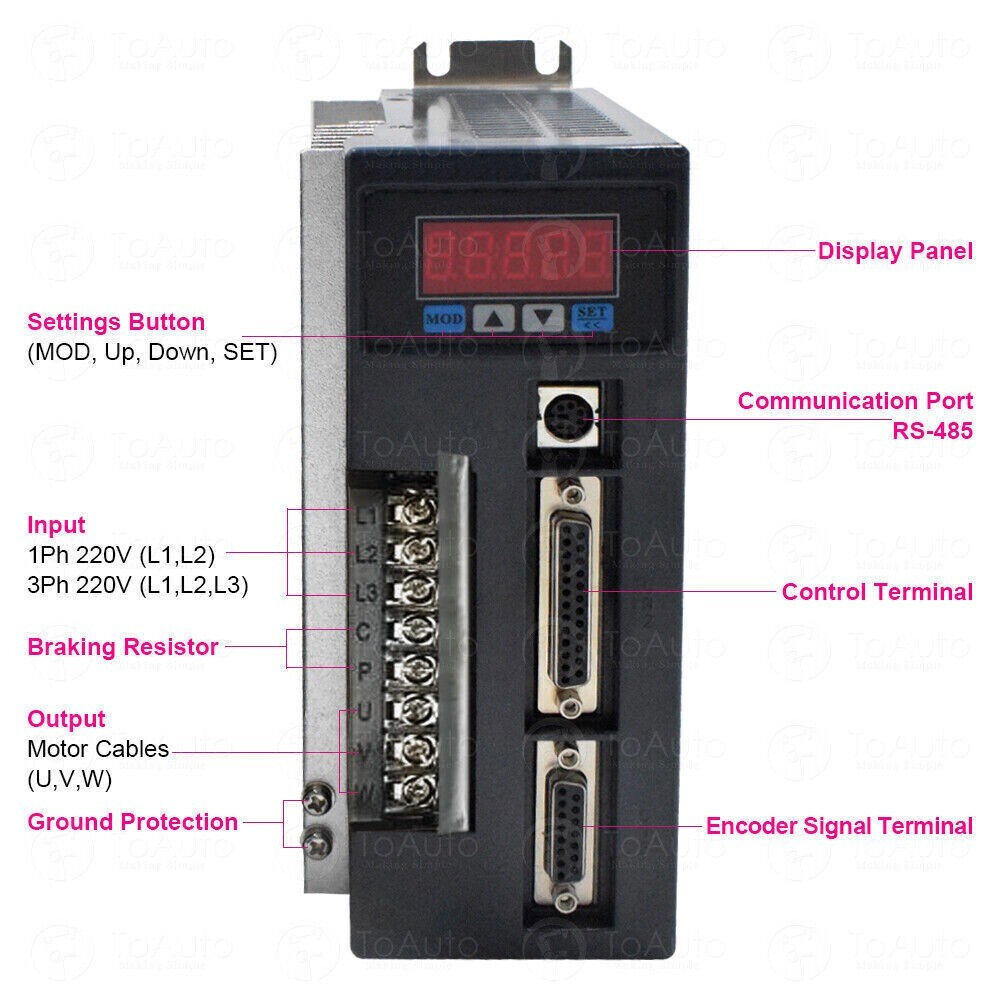

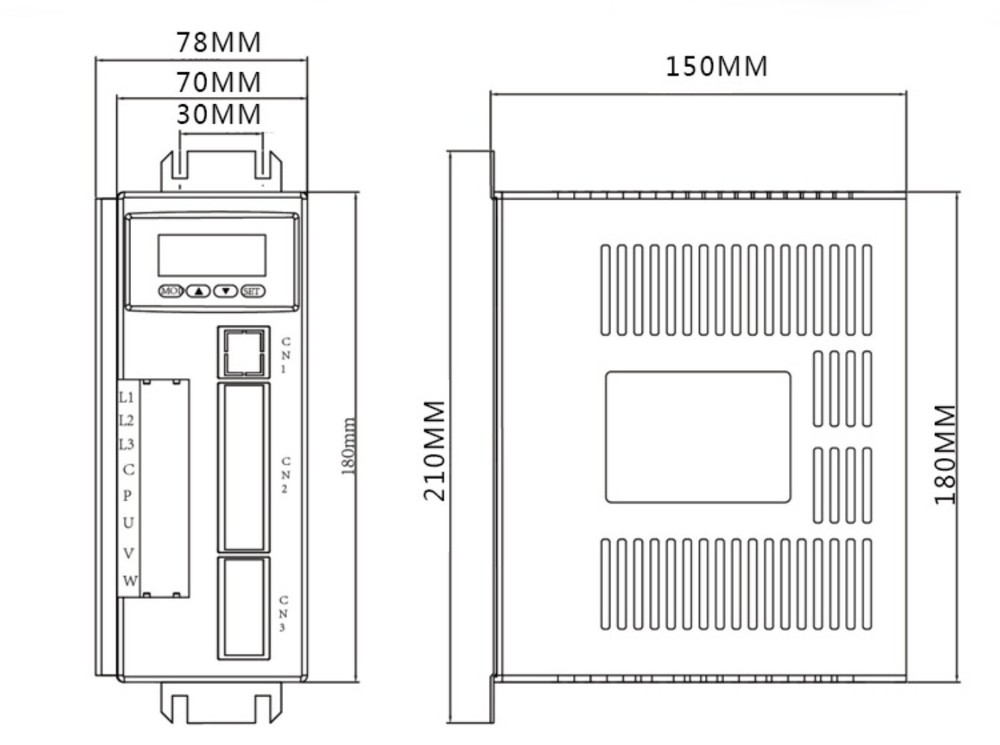

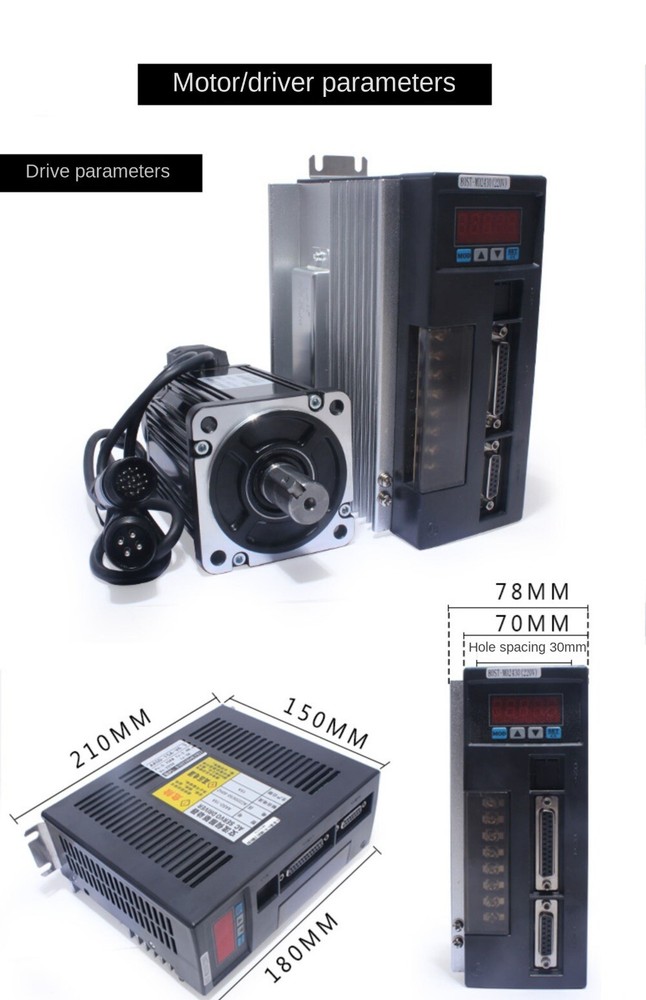

Servo Driver Specifications :
The input power		Single phase or three phase AC220V -15~+10%50/60Hz
Control mode		IGBT PWM sine wave control
Control mode		Torque mode (internal or external) speed mode (internal or external) Position mode (internal or external) Position/velocity model Position/torque model，Speed/torque mode
Control feature	Speed frequency response	<400HZ
	speed fluctuation ratio	<plusminus0.3(load0~100%);<plusminus0.2(power supply-15+10%) (Value corresponding to the rated speed)
	Speed ratio	1:5000
	Impulse frequency	≤ 500KHZ
The encoder feedback		2500line incremental encoder, 10000ppr
Display and operation		five LED display Four buttons
Braking way		Through the internal ,external braking resistance braking energy
Cooling way		Air cooled (heat transfer film , the strong cold wind fan)
Power range		≤7.5KW
