CE/SAA/ADR/E-mark/FSC/COC
APPROVED
Product Features:
• Material: High quality ABS. CE certified quality, environmental
anti-retardant materials ,ABS and copper for USB ,power socket and
voltmeter,including the switch panel ,wires and Stainless Steel Screw.

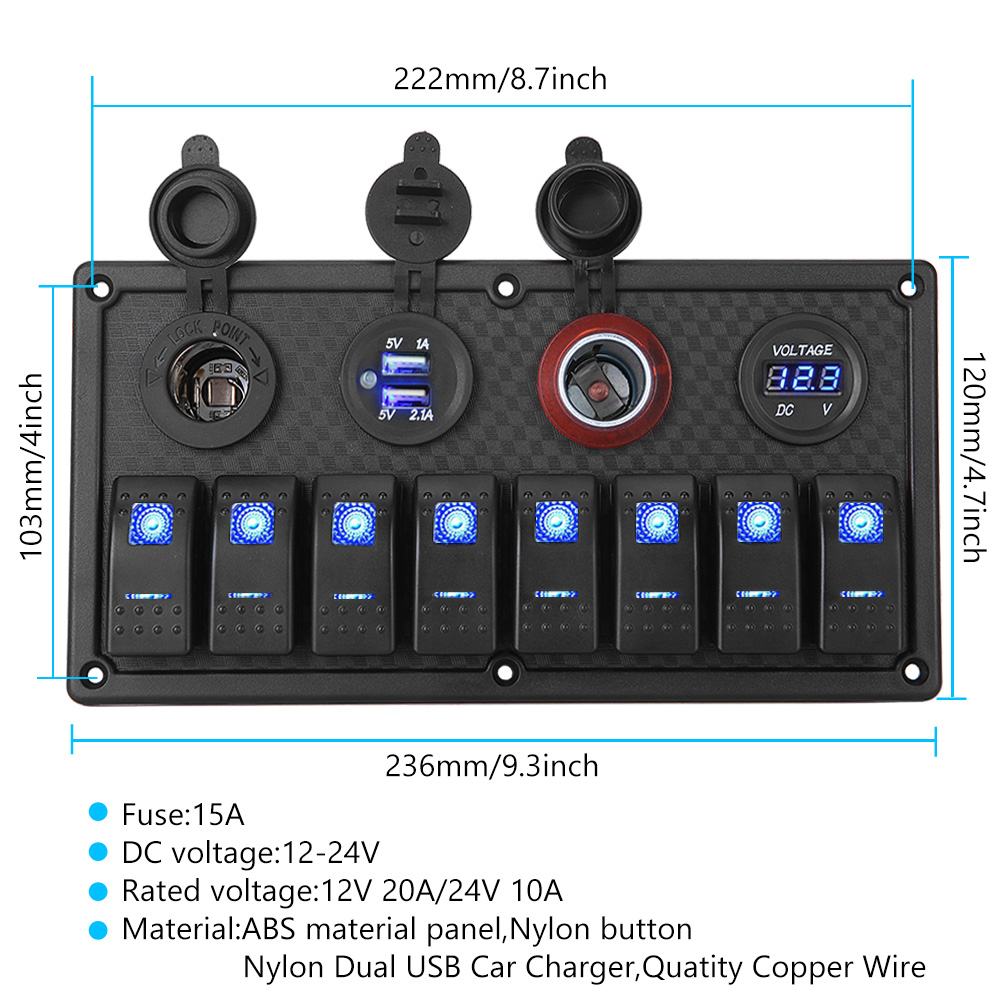

• panel size:panel size:230*120*80 mm(9.06"x4.72"x3.15")
• Short circuit / overheat protection for on-off rocker switch ,USB(2.1A
x1,1A x1)and DC voltmeter
• With rubber seal-cap to keep it water-tight,best for marine

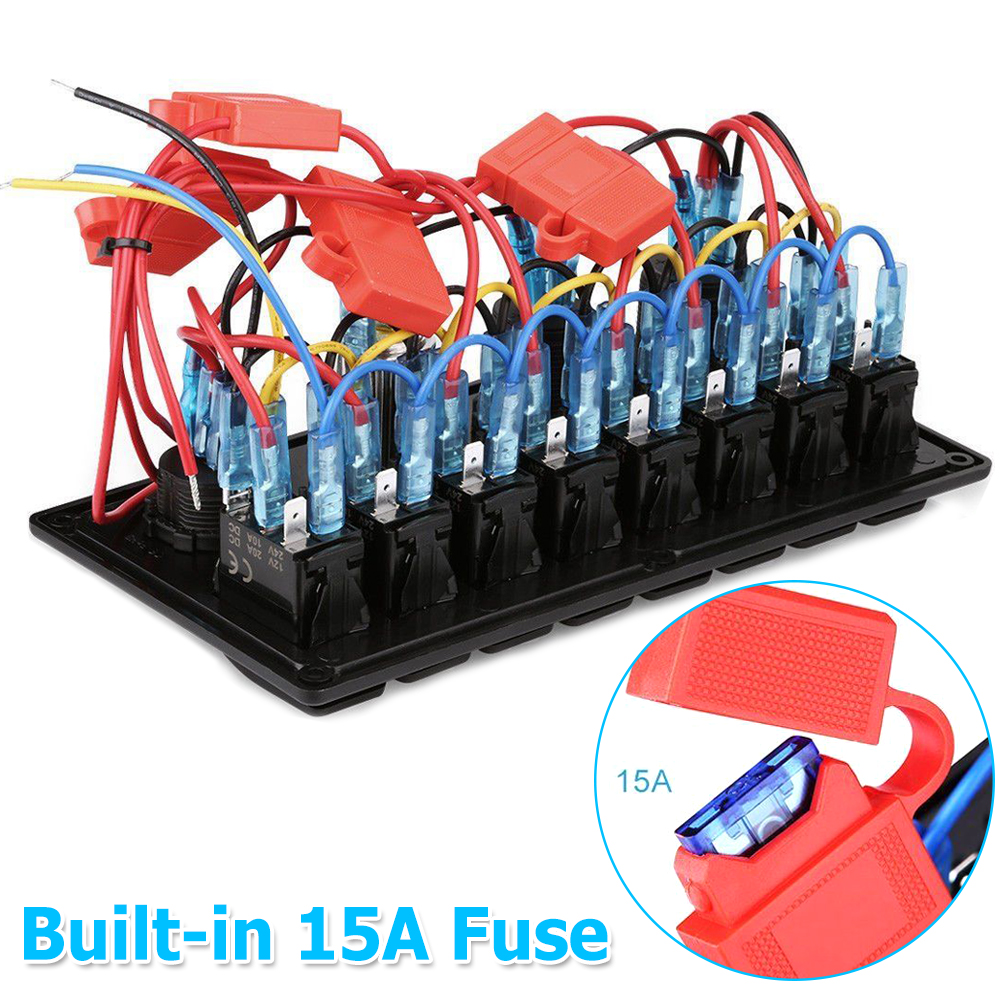

• Overload protection by Circuit breaker, splashproof,anti-corrosion.
• Easy to install,can be installed horizontally
• Suitable for both 12V and 24V systems Panel is pre-wired, Includes 6x
Stainless Steel Screw
• Easy to install and durable.With our strict quality control system, we
test each item and 100% ensure in good condition before we ship.
Product description:
100% brand new!!!

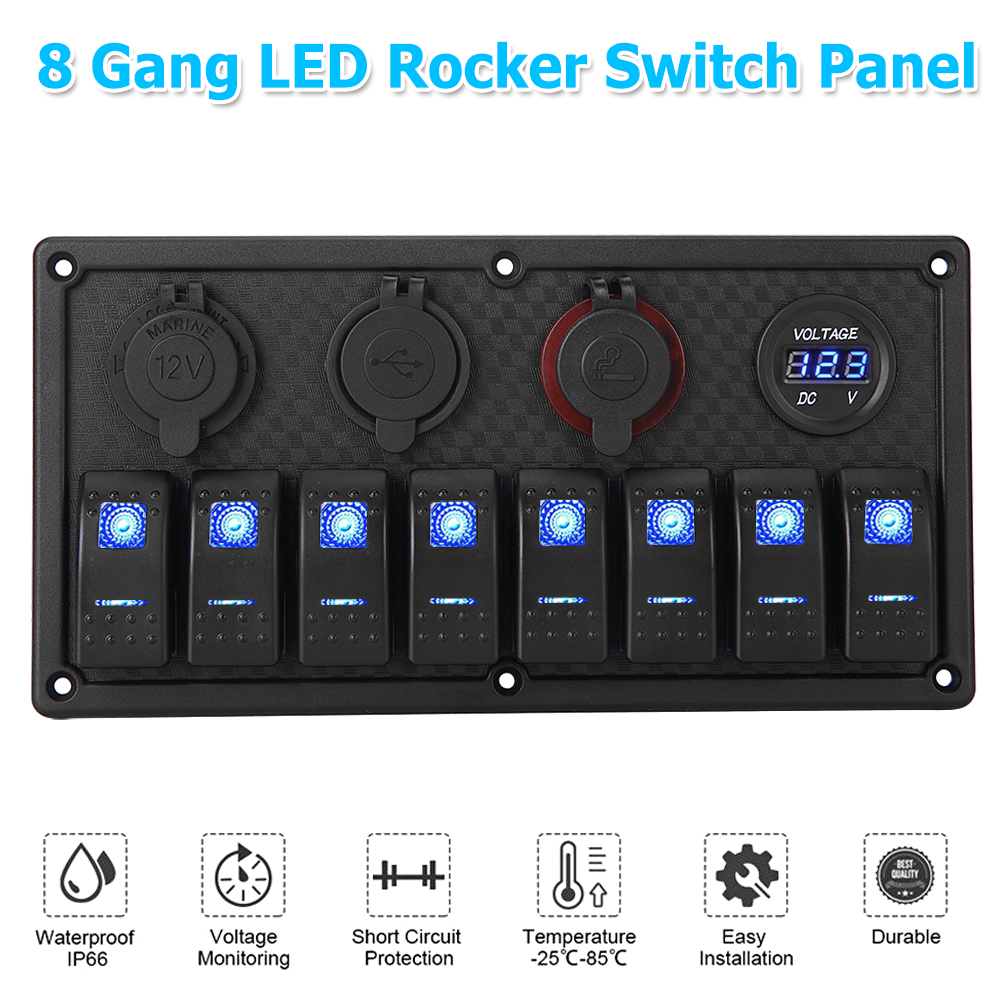

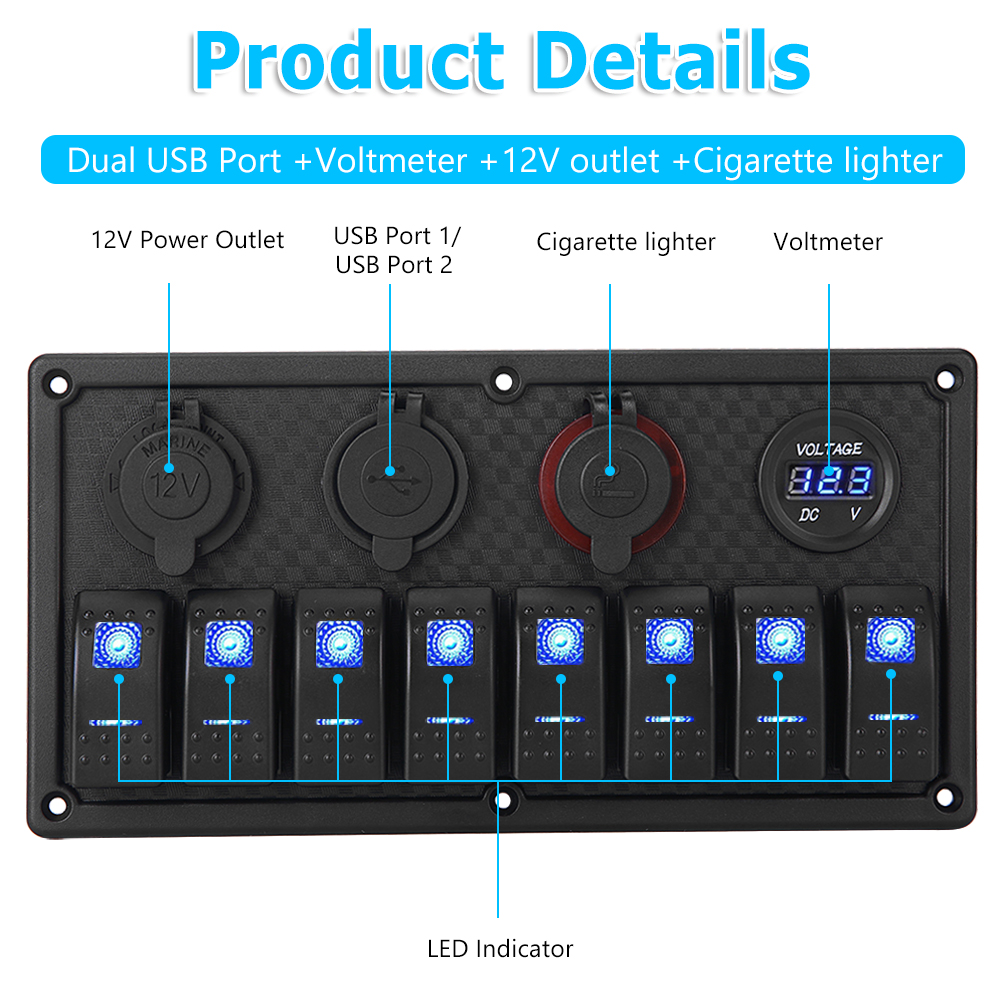

Rocker Switch:8(LED LIGHT BAR, SPOT LIGHTS, SIDE LIGHTS, ROOF LIGHTS,
ZOMBIE LIGHTS, DRIVING LIGHTS etc)
Loop Circuit: ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Rating: AC 125V 16A,250V 10A;DC 12V 20A,24V 10A
Input voltage: DC12V/24V
Maximum power: 240W
Operating Temperature: -25degree to 80degree
Electrical Life: 10000 make and break cycles at full load
IP Rating: IP67
Dual USB Charger Socket:
Input: DC 12-24V
Output: DC 5V 2.1A, 5V 1A

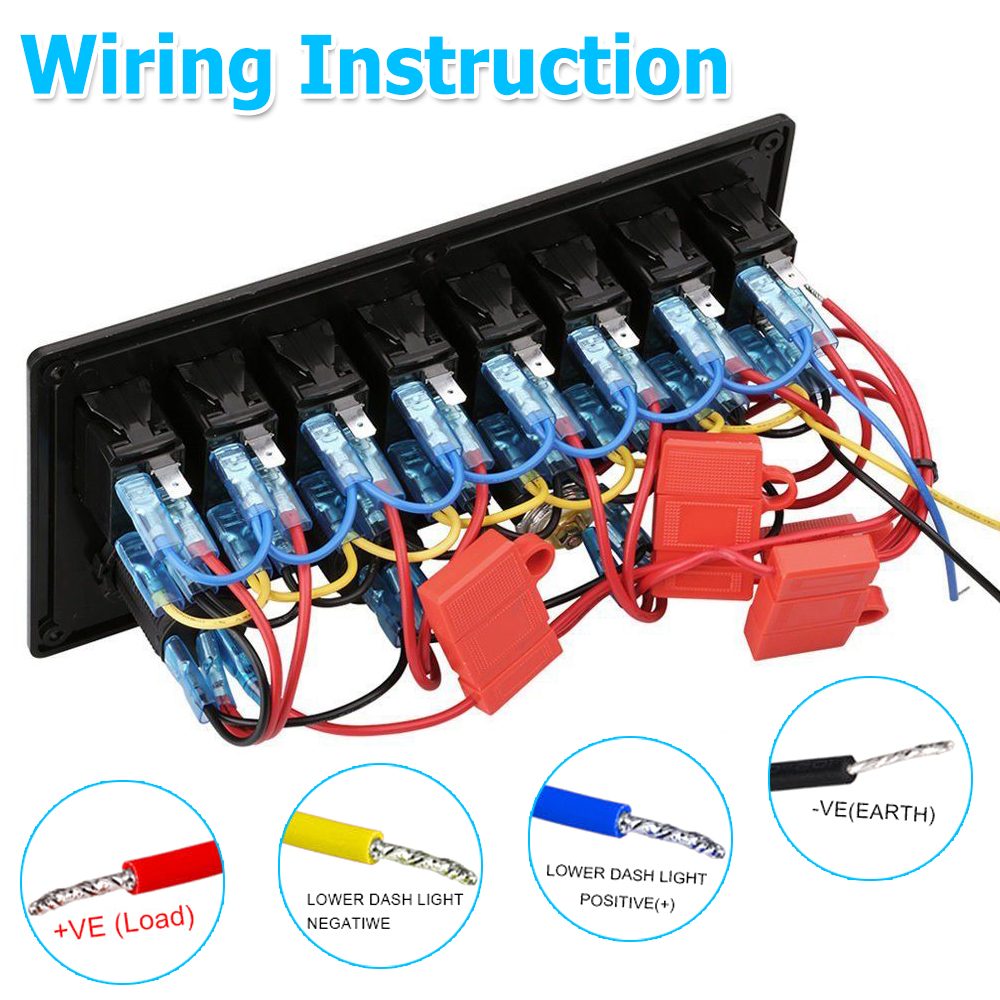

Wiring connection：
Installation:pre-wired
Can be horizontal mounted
The four red wires: connect the cathode of the storage battery.
The black wire: connect the anode of the storage battery.
The blue wire: connect the cathode of the storage battery.
The yellow wire: connect the anode of the storage battery.
Eight sheet coppers: the load generator positive connection.

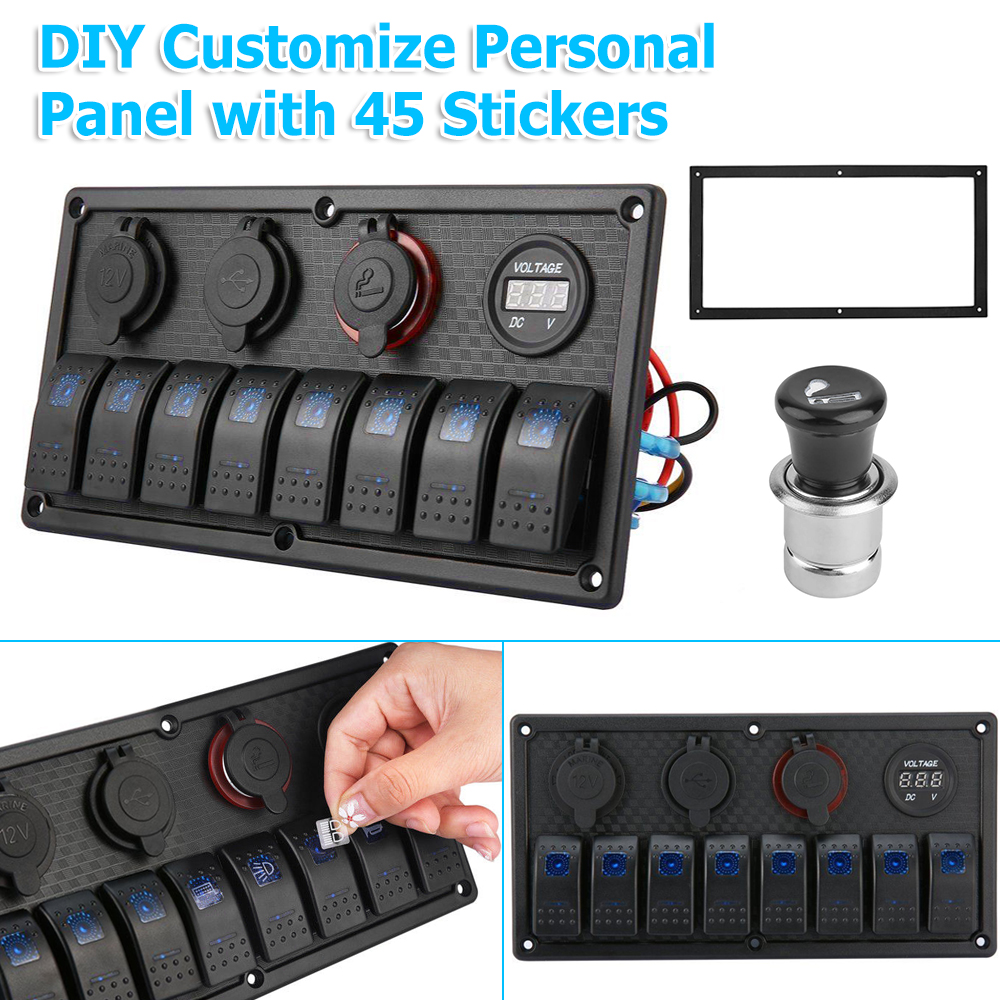

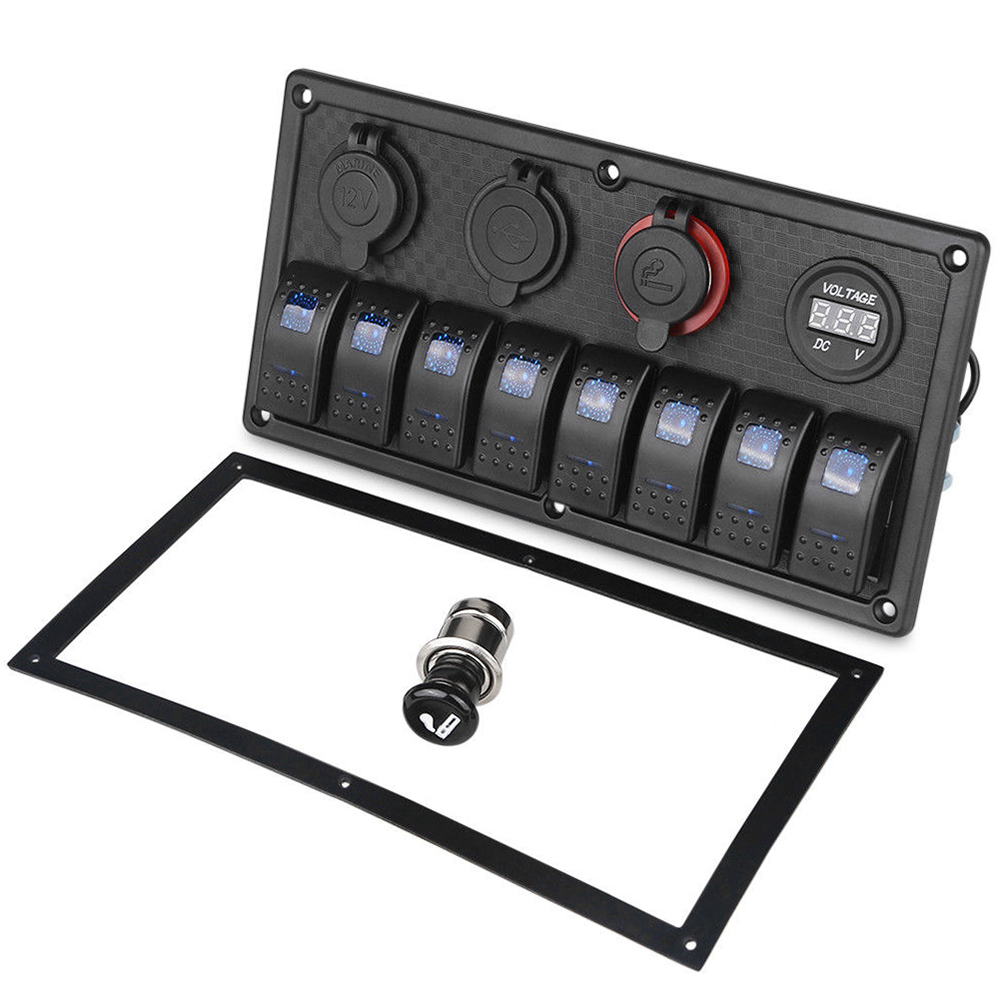

Pacakge Includes:
1x Switch panel
1x Pop out lighter
1x Rubber seal pad
1x User manual
2x Sticker label
6x Stainless Steel Screw
|
|
