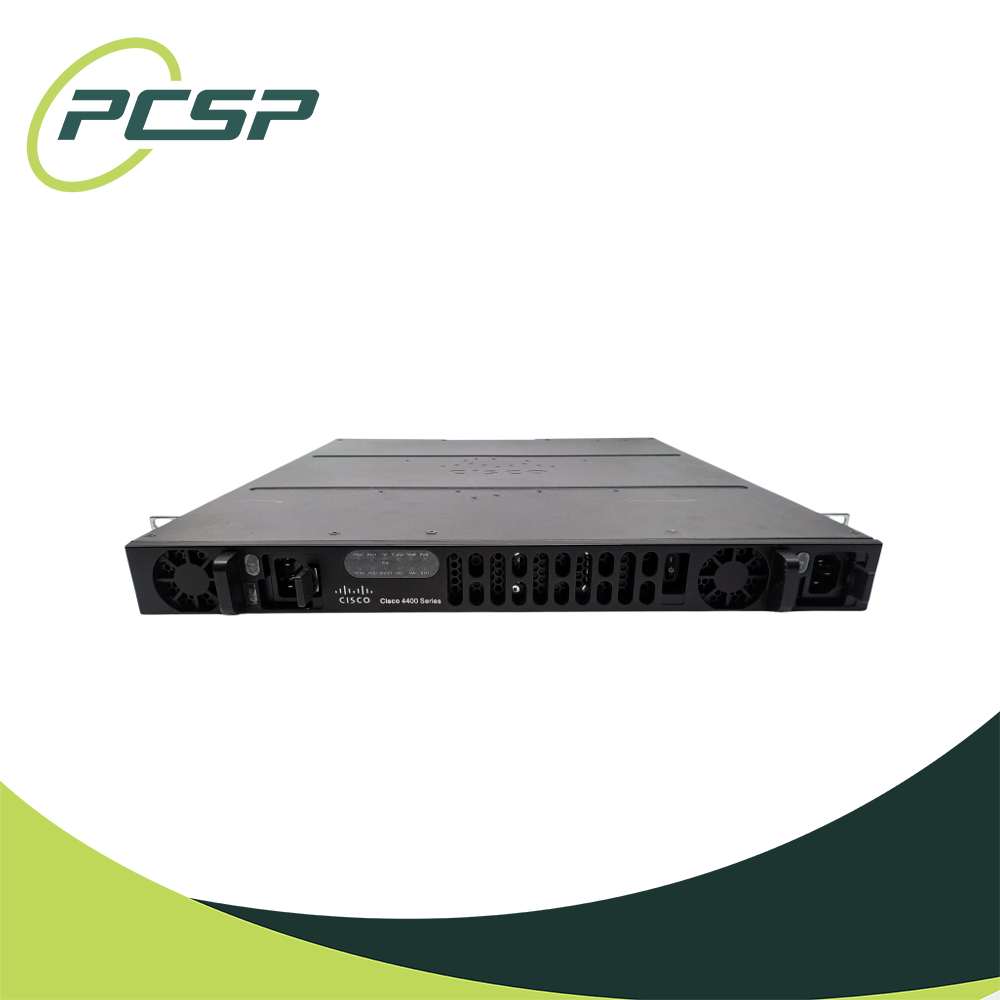

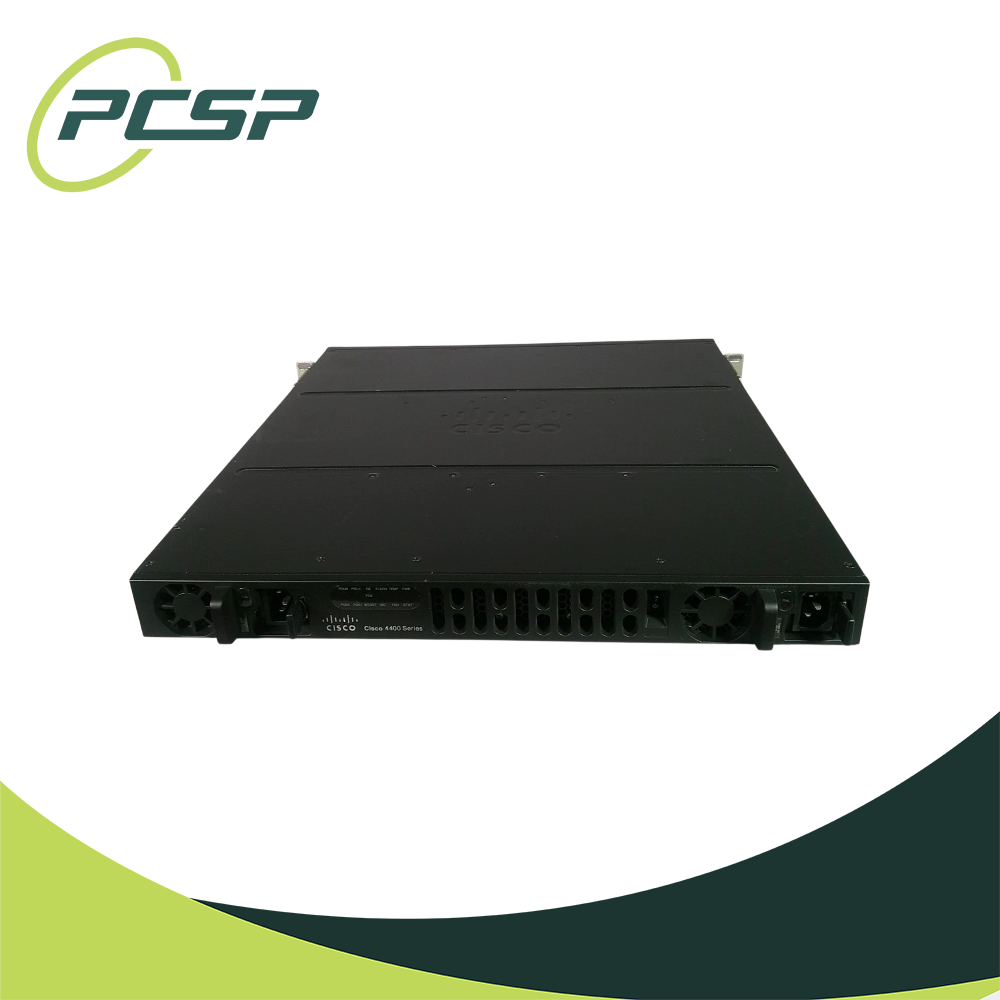

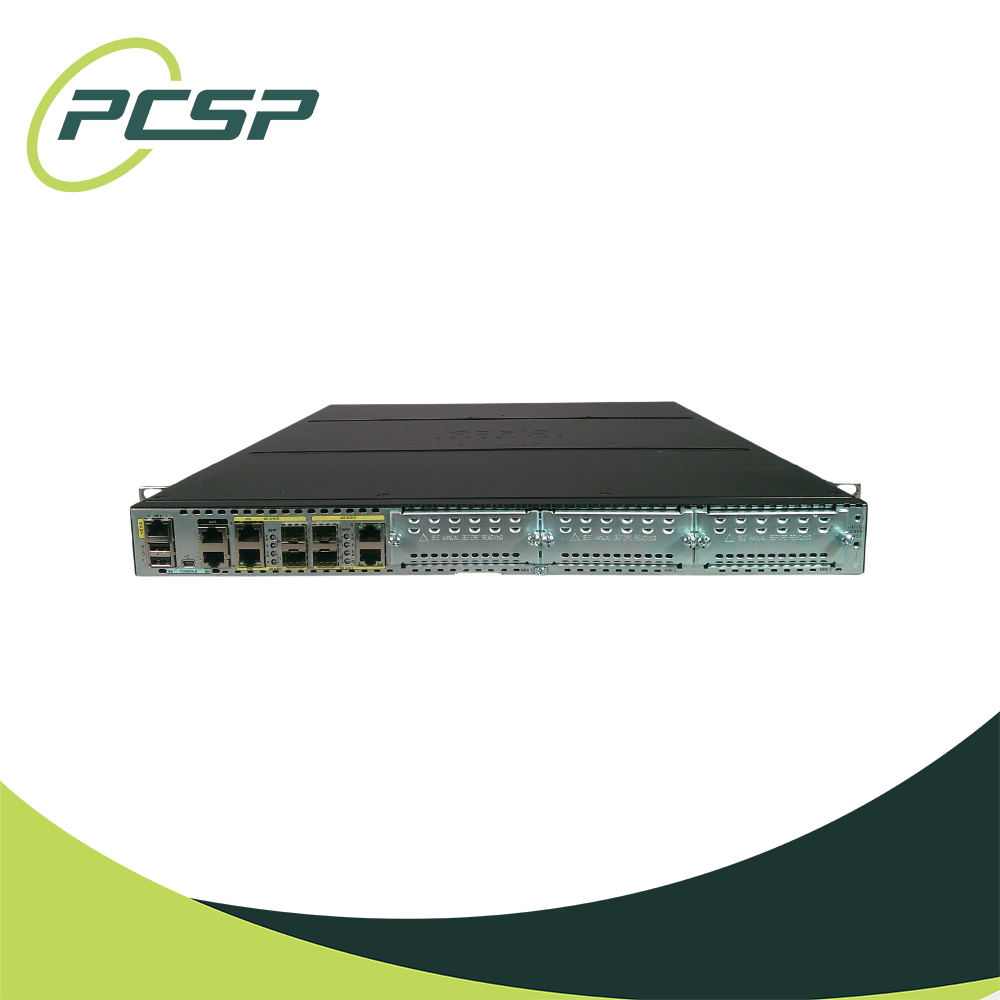

Cisco ISR4431/K9 500M-1G 400W PSU HSEC APPX SecurityK9 Router
Click Thumbnails to Enlarge
Specifications
| Server Type | |
| Lot Quantity | |
| Warranty | 30 Days |
| Brand | Cisco |
| Manufacturer Part Number | ISR4431/K9 |
| Identifier | ISR4431/K9 |
| Series | Cisco 4000 Series Integrated Services Routers |
| Model Number | ISR4431/K9 |
| Form Factor | 1U Rackmount |
| Form | 1U |
| Bracket Size | |
| Network Interface | Ethernet (RJ-45), SFP (Combo) |
| Interface | Ethernet, SFP, USB, Console (RJ-45 & Mini-USB), Aux |
| Watts | 1x 400W PWR-4430-AC |
| Chassis | |
| Battery | |
| AC Adapter | Internal Power Supply (100–240 VAC auto-ranging) |
| Motherboard Support | |
| Expansion Slots | 4x NIM slots, 1x SM, 1x Onboard ISC slot |
| Dimms per Channel | |
| Socket | |
| Processor | Multicore Processor Architecture |
| Processors Installed | 1 |
| Processor Speed | |
| Speed | N/A |
| Processor Max Speed (Turbo Boost) | |
| CPU Brand | Cisco (Proprietary Data Plane Engine + Control Processor) |
| Processor Cores | |
| Number of Threads | |
| Hyper Threading | |
| Cache Per Processor | |
| Processor Main Features | |
| CPU Installed | |
| Compatible RAM | |
| FSB | |
| CPU Cache | |
| CPU Cooling System | |
| CPU Cooling System Brand | |
| CPU Cooling System Details | |
| Number of Fans | N/A |
| Fan Model | |
| Fan Support | |
| Fan Speed | |
| Fan Airflow | |
| Fan Noise | |
| Memory (RAM) | |
| Memory Size | |
| RAM Details | |
| RAM Type | |
| RAM Type | |
| RAM Speed | |
| Ram Speed | |
| Maximum RAM | |
| RAM Brand | |
| RAM/Rank | |
| Rank | |
| Module Type | |
| Module QTY | |
| ECC/FF | |
| Speed & ECC | |
| RAM Installed | |
| 1.8" Drive Bays | |
| 2.5" Drive Bays | |
| 3.5" Drive Bays | |
| M.2 Slots | |
| Storage | |
| HDD | |
| HDD Installed | |
| SSD | N/A |
| SSD Installed | N/A |
| Storage Type | |
| Storage Capacity | |
| Hard Disk Rotational Speed | |
| Read Speed | |
| Storage Cache | |
| Sector Size | |
| Hard Drive Trays | |
| Drive Blanks | |
| In tray | |
| Graphics Card | |
| Graphics Coprocessor | |
| Graphics Card Brand | |
| Graphics Card Series | |
| Graphics Card Memory | |
| Graphics Card Memory Type | |
| Graphics Card Clock Speed | |
| Graphics Card Boost Clock Speed | |
| Graphics Card CUDA Cores | |
| Graphics Card Memory Bus Width | |
| Graphics Card Interface | |
| Graphics Card Video Outputs | |
| Power Connectors | IEC C14 |
| GPU Installed | |
| Cache | |
| Transfer Rate | |
| Power Supply | Internal |
| PSU Type | AC, DC, or PoE |
| PSU Brand | Cisco |
| PSU QTY | 1 |
| PSU Form Factor | Internal Plug-in Module |
| PSU Features | Hot-swappable, Redundant options, PoE support |
| PSU Installed | 1x 400W PWR-4430-AC |
| Operating System | Cisco IOS XE |
| Software | |
| Software Features | |
| COA | |
| Battery Installed | |
| Bluetooth Installed | |
| Cabling Installed | |
| Camera Installed | |
| Media Drive Installed | |
| Heatsinks Installed | |
| RAID Controller | |
| Raid Installed | |
| Network Controller | Integrated Multicore Data Plane Processor |
| Rail Kit | |
| Bezel | |
| Optical Drive | |
| Special Features | |
| Package Contents | |
| Onboard GPU | |
| Bluetooth | |
| Wifi Installed | |
| WLAN | |
| LAN Speed | |
| Case Material | |
| Colors | |
| Drive Bays | |
| Maximum CPUs | |
| Max CPU's | |
| Number of Memory Slots | |
| DIMM Slots | |
| Memory Channels | |
| I/O Slots | |
| Ports | 4 x GE (Onboard), 1 x Console, 1 x Aux, 2 x USB |
| Front USB | |
| Front Audio Ports | |
| Rear USB | |
| Rear Audio Ports | |
| Video Ports | |
| RJ45 | |
| Power Consumption | |
| Keyboard | |
| Mouse | |
| Monitor | Not Included |
| Refresh Rate | |
| Screen Size | |
| Ears Included | No |
| Feature Sets | IP Base (Security, UC, AppX Licenses Optional) |
| Fixed Uplinks | 4 x 10/100/1000 Onboard Ports |
| Total 10/100/1000 Ethernet Ports | 4 (Onboard) |
| Available PoE Power | N/A |
| Switching Capacity | N/A (Router throughput-based platform) |
| Stacking Bandwidth | N/A |
| Total number of MAC addresses | N/A |
| Total number of IPv4 routes | 800,000 - 1,000,000+ (DRAM dependent) |
| FNF entries | Supported |
| DRAM | 4 GB |
| Flash | 8 GB |
| VLAN IDs | 4094 |
| Total switched virtual interfaces (SVIs) | N/A (Router - uses routed subinterfaces) |
| Jumbo frame | 9216 Bytes |
| Total routed ports per stack | N/A |
| Number of access points per switch/stack | N/A |
| Number of wireless clients per switch | N/A |
| Total number of WLANs per switch | N/A |
| Wireless bandwidth per switch | N/A |
| Supported Aironet access point series | N/A |
| Forwarding Rate | 500 Mbps to 1 Gbps Aggregate |
| HSEC Appx Secruity9 License's | |
| ECC/FF | |
| Scalability | |
| Country of Origin | |
| PCSP SKU | NSB 443193 |
| Extended Warranty for this listing: | Click Here |
| Our other eBay listings: | Click Here |
Product Description
Cisco ISR4431/K9 Integrated Services Router w/ 400W PSU, HSEC, APPX & SecurityK9
The Cisco ISR4431/K9 is a modular 1U enterprise Integrated Services Router designed for WAN connectivity, branch networking, VPN, security, application services, and advanced routing deployments.
This configuration includes one Cisco PWR-4430-AC 400W AC power supply along with HSEC-K9, APPXK9, and SecurityK9 license functionality as specified for this unit.
The ISR4431 provides four onboard logical Gigabit Ethernet interfaces, three Network Interface Module slots, one Integrated Services Card slot, and Cisco IOS XE software architecture. The platform provides 500Mbps aggregate throughput at its base performance level and can be upgraded to 1Gbps with the appropriate Cisco Performance license.
Manufacturer: Cisco
Series: Cisco 4000 Series ISR
Model: ISR4431/K9
Product Type: Integrated Services Router
Onboard Ethernet: 4x Logical Gigabit Ethernet
Base Aggregate Throughput: 500Mbps
Performance Upgrade: Up to 1Gbps with FL-44-PERF-K9
Control-Plane DRAM: 4GB Default
Data-Plane DRAM: 2GB Default
Flash: 8GB Default
Power Supply: 1x PWR-4430-AC 400W AC
License Features: HSEC-K9, APPXK9, SecurityK9
Operating System: Cisco IOS XE
Form Factor: 1U Rackmount
Key Features
- Cisco ISR4431/K9 enterprise Integrated Services Router
- 4x onboard logical Gigabit Ethernet interfaces
- 500Mbps base aggregate system throughput
- Upgradeable to 1Gbps with FL-44-PERF-K9 Performance license
- 3x Network Interface Module slots
- 1x Integrated Services Card slot
- Dedicated Gigabit Ethernet management interface
- 4GB default control-plane DRAM
- 2GB default data-plane DRAM
- 8GB default flash memory
- HSEC-K9 high-security cryptographic functionality
- APPXK9 Application Experience functionality
- SecurityK9 security feature package
- 1x PWR-4430-AC 400W AC power supply installed
- Cisco IOS XE operating system
- 1U rackmount chassis
Network Interfaces
- 4x logical onboard Gigabit Ethernet interfaces
- RJ45 / SFP dual-media architecture on supported interfaces
- RJ45 and SFP connections associated with one logical interface are alternate media options
- 1x dedicated Gigabit Ethernet management interface
- SFP transceivers are not included unless specifically stated
Performance
- Base aggregate throughput: 500Mbps
- Performance-on-Demand throughput: 1Gbps
- FL-44-PERF-K9 is required for the 1Gbps performance tier
- HSEC-K9 does not itself upgrade the router from 500Mbps to 1Gbps
- Actual performance depends on licensing, IOS XE release, enabled services, and traffic profile
SecurityK9
- Security technology package
- IPsec VPN functionality
- DMVPN / FlexVPN support with compatible IOS XE software
- Zone-Based Firewall capabilities
- SSL / SSH security features
- Secure routing and VPN services
HSEC-K9
- High Security cryptographic feature license
- Works in conjunction with SecurityK9
- Enables expanded secure tunnel and cryptographic throughput capability
- Separate from the FL-44-PERF-K9 system Performance license
- Exact crypto limits depend on IOS XE release and licensing model
APPXK9
- Application Experience technology package
- MPLS functionality
- Performance Routing / PfR
- Layer 2 and Layer 3 VPN features
- Broadband features
- Application Visibility and Control functionality
- Exact features depend on IOS XE release
Memory & Storage
- 4GB default control-plane DRAM
- 2GB default data-plane DRAM
- 8GB default flash memory
- Control-plane DRAM supports up to 16GB
- Flash supports up to 32GB
- Actual installed memory should be verified from the individual unit
Expansion
- 3x Network Interface Module slots
- 1x Integrated Services Card slot
- No SM-X service module slots on the ISR4431 platform
- Supports compatible Cisco ISR 4000 Series NIM modules
Power
- 1x Cisco PWR-4430-AC 400W AC power supply installed
- ISR4431 chassis supports an optional secondary AC power supply
- This configuration contains one PSU and therefore does not currently provide PSU redundancy
- Power cord is not included unless specifically stated
Management
- Dedicated Gigabit Ethernet management interface
- RJ45 serial console interface
- USB console interface
- 2x USB Type-A interfaces
- Cisco IOS XE management platform
Included
- 1x Cisco ISR4431/K9 Integrated Services Router
- 1x Cisco PWR-4430-AC 400W AC Power Supply
- HSEC-K9 functionality as specified
- APPXK9 functionality as specified
- SecurityK9 functionality as specified
Important Notes
- Photos are for reference only.
- Only listed items are included.
- The ISR4431 has a 500Mbps base aggregate throughput and requires FL-44-PERF-K9 for the 1Gbps Performance tier.
- HSEC-K9 controls enhanced cryptographic capability and is separate from the system Performance license.
- This configuration includes one power supply and therefore does not currently provide power supply redundancy.
- Verify compatibility before purchase.
PC Server & Parts (PCSP) is a refurbisher and seller of OEM and surplus technology hardware.
We have been doing business from our location in Michigan for over 25 years, and have served over 100,000 customers worldwide.
We are proud to offer our customers high-end IT hardware priced 50% to 90% less than new retail cost. All equipment that leaves our facility
has been refurbished and undergone a 24-point inspection by our expert staff. With our super-fast delivery and exceptional customer service, we look forward to serving you.
If you have a question or concern please contact us here.
PCSP specializes in obtaining large volumes of refurbished IT hardware. If your business requires a large order of servers, workstations, or other gear – let PCSP find the IT hardware your business needs, so you can focus on doing what you do best.
 |
 |
 |
Forecast Needs |
Pricing Thresholds |
Dedicated Inventory |
| PCSP will develop a forecast of your needs to get your business ahead of the market. | Our pricing thresholds are designed to secure product within your timeframe. | All specified inventory goes towards fulfillment until your order is completed. |
- Payments must be from a verified PayPal account.
- We do not accept any other form of payment on eBay. No exceptions.
- If your payment is not from a verified PayPal account we reserve the right to void and cancel your order.
- No address changes after checkout: Due to Paypal policies we can not change shipping address after the purchase.
- In the case of an incorrect address or adress change, please contact us prior to purchase.
- For "Buy It Now Listings" payments are due immediately. Item must be paid within 3 business days or item will be relisted for sale.Ebay will be notified of any non-paying bidders.
- We provide free local pick up on all orders by appointment only. Orders must be prepaid before or at time of pickup. Contact us for pick up address.
- All Michigan and Ohio customers will be charged 6% sales tax (exceptions with proper tax documents only).
- We ship all orders using either USPS, FEDEX or UPS services. We will post tracking numbers directly on the Order Detail Page as well as email them to your eBay e-mail address.
- Customer is responsible for being home or arranging delivery. If package is returned, shipping charges will be deducted from any refund. If returned due to no one being home for delivery, shipping will have to be paid again prior to re-shipping the item.
- Please be aware as we use new shipping materials for every package you may notice a small handling fee added into each listing to cover costs of new boxes as well as any anti-static bags, bubble wrap, or foam packaging.
- Freight shipping available! Please contact us for freight quotes!
- We will only ship to the PayPal confirmed or verified address.
- International Buyers, please note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We understand that from time to time the need to return an item may occur. Please read below for a detailed overview of our return policy:
- We will exchange defective or damaged products within the warranty period. This is 30 days from the purchase date unless stated otherwise.
- For a small cost, you can extend your warranty period for up to five (5) years. You can purchase our extended warranties for products we sell by clicking here.
- Any problem with an item must be reported within warranty period.
- If items are damaged in transit, please notify us within 7 days of receiving the package in order to file a claim with shipper (please retain all shipping materials for claim pick-up).
- If returning a non-defective item by choice within the 30 day period, customer is responsible for shipping cost.
- Shipping costs are non-refundable.
- Customer is responsible for all shipping costs and any RMA shipping costs. Any replacement shipping costs will be covered by PC Server & Parts. Do not send any items back without a return merchandise authorization (RMA) number or the package will not be accepted - no exceptions.
- Please make sure this is the item you need. Product will be in good working condition but we cannot guarantee compatibility with your equipment or software.
If you have any questions, feel free to reach us: here
Our office hours are Monday through Friday - 9:00am to 5:00pm EST.
Copyright © 2022 PC Server & Parts. All rights reserved.
