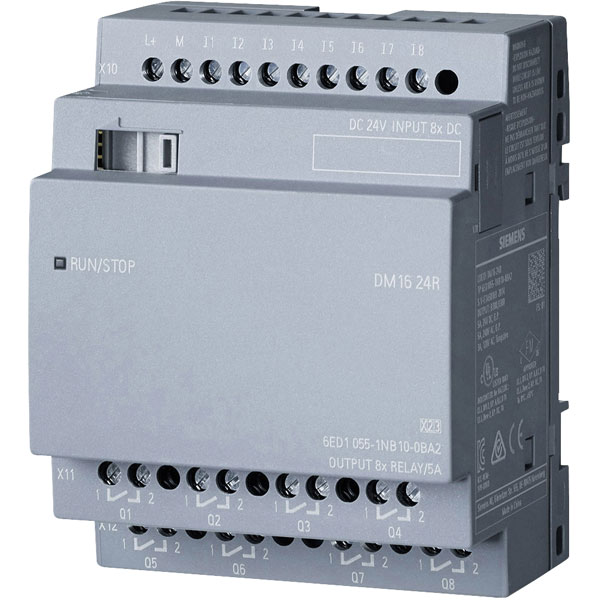

Siemens 6ED1055-1NB10-0BA2 LOGO! 8 SPS PLC Expansion Module DM16 24R

Product Details

The Siemens LOGO! 8 DM16 24R expansion module extends the LOGO! 8 programmable logic controllers with 8 x additional digital inputs and 8 x digital outputs. Each relay output is capable of carrying 3A continuous current with an inductive load or 5A with a resistive load.

Category: PLC (SPS) add-on module
Fitting: On 35mm DIN rail, 4HP wide
Display: No
No. of inputs (max.): 8
No. of outputs (max.): 8
No. of relay outputs (max.): 8
Operating voltage: 24V DC
Protection type: IP20
Interference suppression: Conforms to EN 55 011 (limit class B)
Certification: Acc. to VDE 0631, IEC 1131, FM class 1, div 2, cULus, C-Tick, marine approval
Operating temperature range: 0 to 55°C
Dimensions: 58 x 71.5mm
Manufacturer part No.: 6ED1055-1NB10-0BA2

Name	Value
Depth	58mm
Height	90mm
Input current at signal 1	2mA
Output Current	5A
Permitted voltage at input	0 - 28.8V
Permitted voltage at output	0 - 265V
Supply voltage DC	20.4 - 28.8V
Time delay at signal change	1.5 - 1.5ms
Width	71.5mm
Display	No
Number of Digital Inputs	None
Number of analogue inputs	None
Number of Digital Outputs	8
Number of Analogue Outputs	None
Type	Add-on
