Package include:

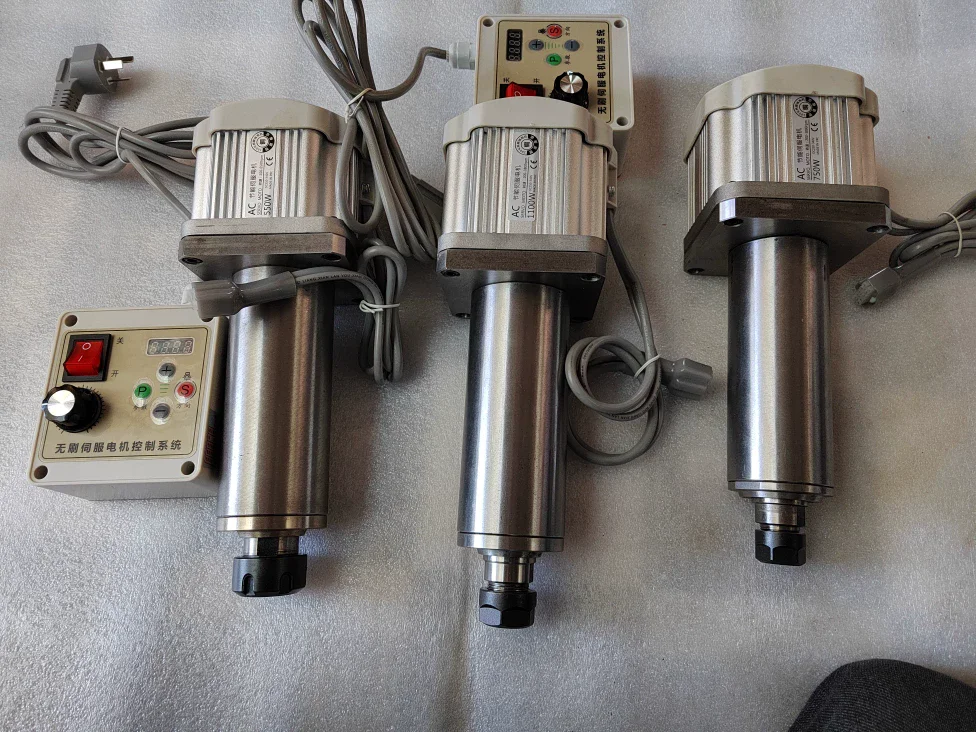

1 x motor 750W 110V / 220V

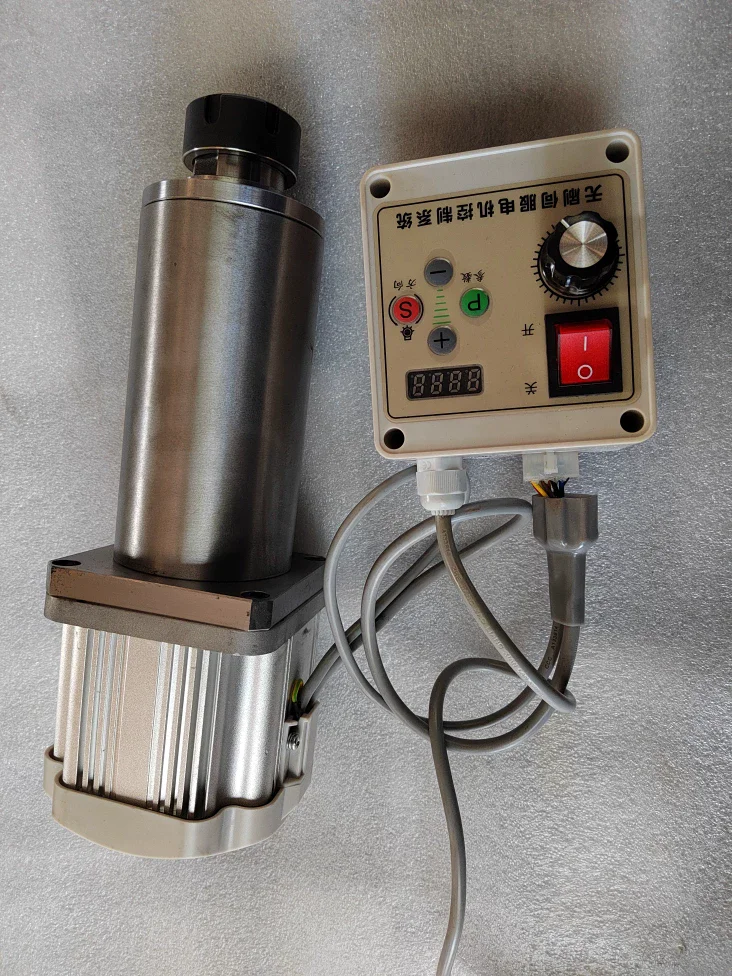

1 x speed controller

1 x spindle ER20 or ER25 (no power)

If it is 110V, the default configuration is a US plug

If it is 220V, EU plug is equipped by default

D62/D65/D80 represent the diameter of the spindle

If you need to equip with 550W or 1100W servo motors or ER16 spindle models

Please contact customer service for customized links

Thank you

Product description:

Parameters:
1. Rated power: 550W/750W/1100W/1500W/2200W
2. Rated voltage: AC 220V/110V 50-60Hz
3. Speed range (RPM): 200-7000 (550W); 200-6500 (750W); 200-6000 (1100W); 200-5000 (1500W); 200-4500 (2200W)
4. Rated torque (Nm): 1.85 (550W); 2.62 (750W); 3.55 (1100W); 5.02 (1500W)
5. Installation size: 69mm
6. Shaft diameter: 15mm
7. Out shaft length: 27+15mm
8. Mounting thread: M6 through hole
9. Key slot: 5520mm

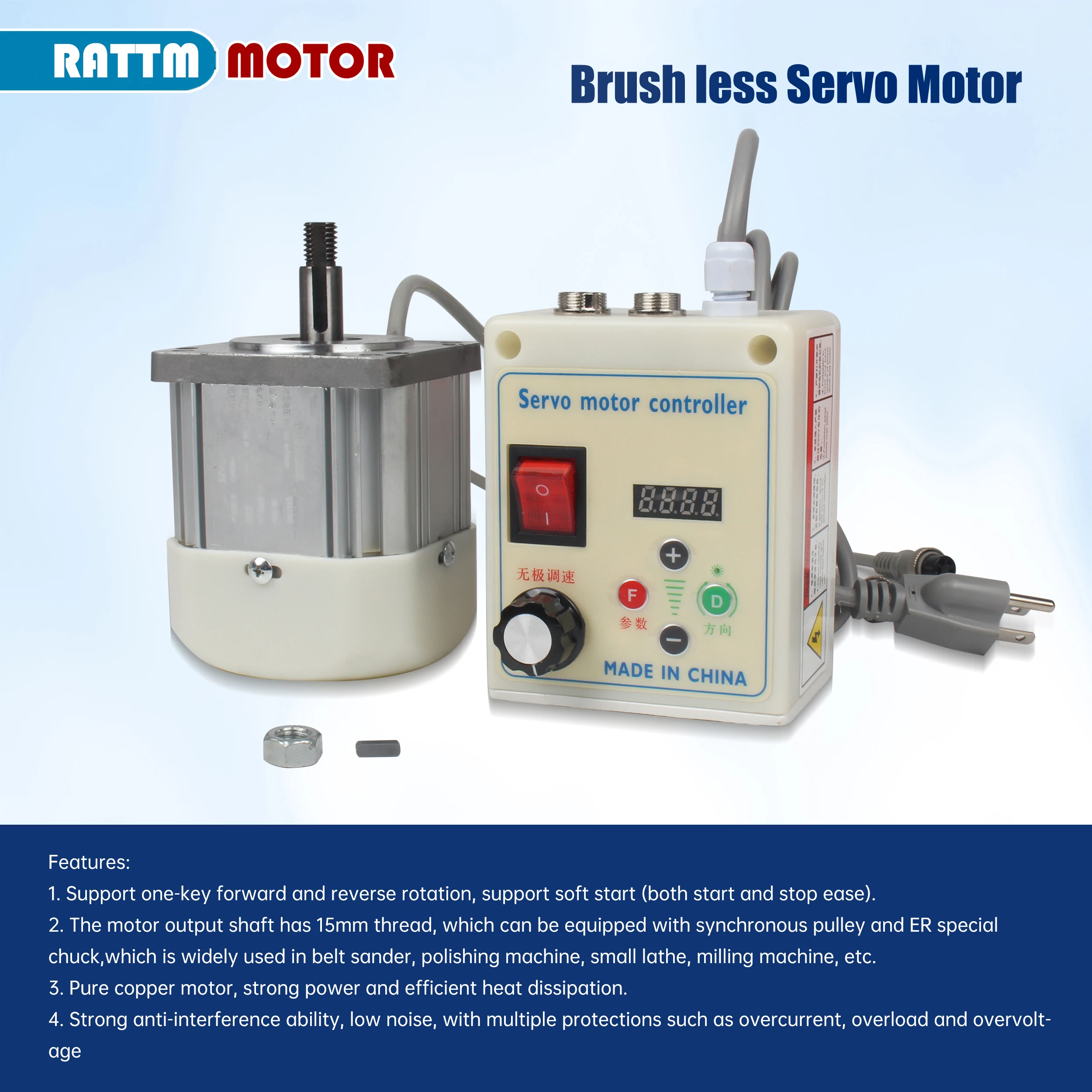

Features:
1. Support one-key forward and reverse rotation, support soft start (both start and stop ease).
2. The motor output shaft has 15mm thread, which can be equipped with synchronous pulley and ER special chuck, which is widely used in belt sander, polishing machine, small lathe, milling machine, etc.
3. Pure copper motor, strong power and efficient heat dissipation.
4. Strong anti-interference ability, low noise, with multiple protections such as overcurrent, overload and overvoltage

Power range: 550w
Model: Brushless Servo Motor Control System
Motor torque: ≦3N.M
Voltage range: 200-240v
Motor pole pairs: 8 pairs
Input frequency: 50-60hz
Motor category: permanent magnet brushless servo motor
Insulation class: F class
Speed range: 200-6500 rpm
Control method: turn on the power, adjust the speed with the knob
Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection

Power range: 750w
Model: Brushless Servo Motor Control System
Motor torque: ≦4N.M
Voltage range: 200-240v
Motor pole pairs: 8 pairs
Input frequency: 50-60hz
Motor category: permanent magnet brushless servo motor
Insulation class: F class
Speed range: 200-5000 rpm
Control method: turn on the power, adjust the speed with the knob
Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection

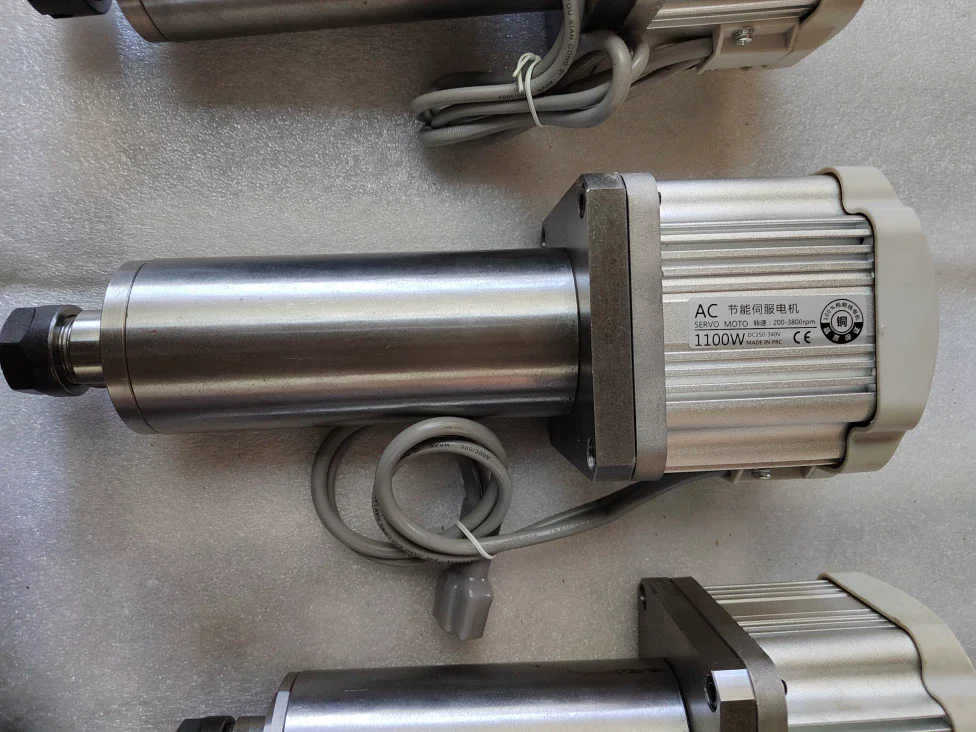

Power range: 1100w
Model: Brushless Servo Motor Control System
Motor torque: ≦5N.M
Voltage range: 200-240v
Motor pole pairs: 8 pairs
Input frequency: 50-60hz
Motor category: permanent magnet brushless servo motor
Insulation class: F class
Speed range: 200-3500 rpm
Control method: turn on the power, adjust the speed with the knob
Protection mode: overcurrent, overvoltage, short circuit protection, locked rotor protection
