Top 4 Reasons to Get for GM Tech2 Scanner: 1. Multi-langauge: English, Italian, French, Portuguese, German, Spainish, Korean, Japanese, Thai, Chinese 2. Update: via 32MB Software Card, when there is newer version, you can just buy new card to update 3. Support Car Models: for GM, SAAB, Opel, Suzuki, Isuzu, Holden ( you should select the software which you need before make order) 4. Year Coverage of Diagnosis: From 1992 to 2014, With Help of Tis2000 Software, It Can Do Programming for Cars Before Year 2007
Tech2 Notice : 1. It Can Only Support 12V Cars, No Trucks 2. It supports GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/ HOLDEN Expert/ Australia Holden if you select it with all software before you place order.
TECH2 Software Listing : For GM For GM-English 33.004 1991-2014 For GM-Spanish 33.002 1991-2014 For GM-Germany 32.007 1991-2013 For GM-Japanese 32.006 1991-2013 For GM-French 32.007 1991-2013 For GM-Italiana 32.007 1991-2013 For GM-Portuguese 32.002 1991-2013 For GM-Korean 32.002 1991-2013 For GM-China 32.002 1991-2013 OPEL OPEL-English Newly Update to V180 1997-2014 OPEL-Italian Newly Update to V180 1997-2014 OPEL- Polski Newly Update to V180 1997-2014 OPEL- German Newly Update to V180 1997-2014 OPEL- Turkish Newly Update to V180 1997-2014 For GM Tech2 Card Opel Software Update to V180 Support Cars from the Year 1997 to 2014 SUZUKI SUZUKI-English V01.210.020 SAAB SAAB-English V148.000 ISUZU ISUZU-English CAN-BUS V180 2006-2015 (CAN-BUS support car models after 2010) ISUZU-English K-Line V11.680 1996-2014 (K-line support car models from 1996 to 2014) Holden Holden-English　 V149.000 1999-2013 (For North American Area Only) Holden-English V147.000 1999-2012 (For Australia)
Tech2 Specification: 1) Authentic software for GM in the Tech 2 Flash means the most comprehensive diagnostic software available for latest model vehicles for GM. 2) Support for on-board diagnostics on all systems 1992 thru current year for GM. 3) Removable hardware modules provide insurance against scan tool obsolescence. 4) Large, easy-to-read backlit screen. 5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash. 6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review. 7) Ability to view the status of vehicle diagnostic tests as they run. 8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics. 9) Vetronix Tech 2 Specifications 10) Dimensions: 12 11) Microprocessor: 32 bit,16 MHz 12) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion. 13) Communications: Integral RS232 communication port. 14) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

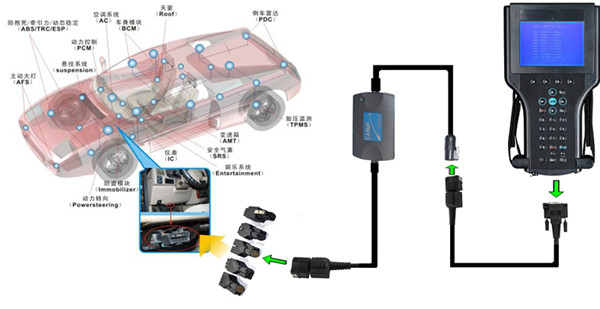

GM Tech2 Connection with Candi interface Picture

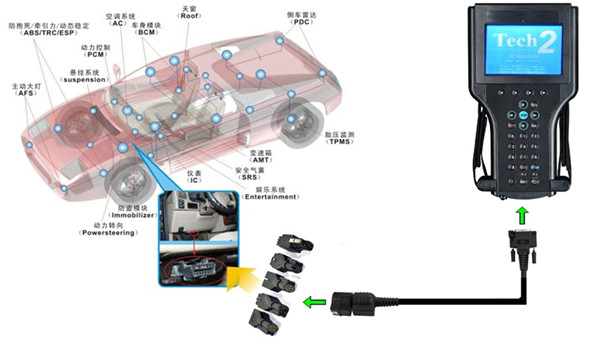

GM Tech 2 Connection without Candi interface picture
For GM Tech2 Features 1) Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles. 2) Support for on-board diagnostics on all GM systems 1992 thru 2011. 3) Removable hardware modules provide insurance against scan tool obsolescence. 4) Large, easy-to-read backlit screen. 5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash. 6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review. 7) Ability to view the status of vehicle diagnostic tests as they run. 8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.
An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.
The Following For GM Vehicles Utilize The CAN Interface 05 Buick Allure (3.6L) 05 Buick LaCrosse (3.6L) 05 Buick Rainier (5.3L) 04-05 Buick Rendezvous (3.6L) 04-05 Cadillac CTS (3.6L) 04-05 Cadillac SRX (3.6L / 4.6L) 04-05 Cadillac XLR (4.6L) 05 Cadillac STS (3.6L / 4.6L) 05 Chevrolet Cobalt (2.2L) 05 Chevrolet Corvette (6.0L) 05 Chevrolet Equinox (3.4L) 05 Chevrolet TrailBlazer (5.3L) 05 Chevrolet SSR (6.0L) 04 Chevrolet Malibu (Body/Chassis only) 05 Chevrolet Malibu (3.5L) 05 GMC Envoy (5.3L) 05 Pontiac G6 (3.5L) 05 Pontiac GTO (6.0L) 05 Pontiac Pursuit (2.2L)
For GM Tech2 Package List: 1.Tech-2 Flash Tester 2.32 MB PCMCIA Card with Applications (We will send the card as your selection ) 3.CAN diagnostic interface module(Candi) and instruction sheet download (199.2 kb) 4.RS232 cable and user manual 5.RS232-DB9 adapter 6.DLC Cable, DLC Loopback Adapter 7.12V Cigarette Lighter Power Cable 8.SAE 16/19 Adapter 9.NAO 12/19 Adapter 10.Battery Power Cable 11.TIS 2000 CD
