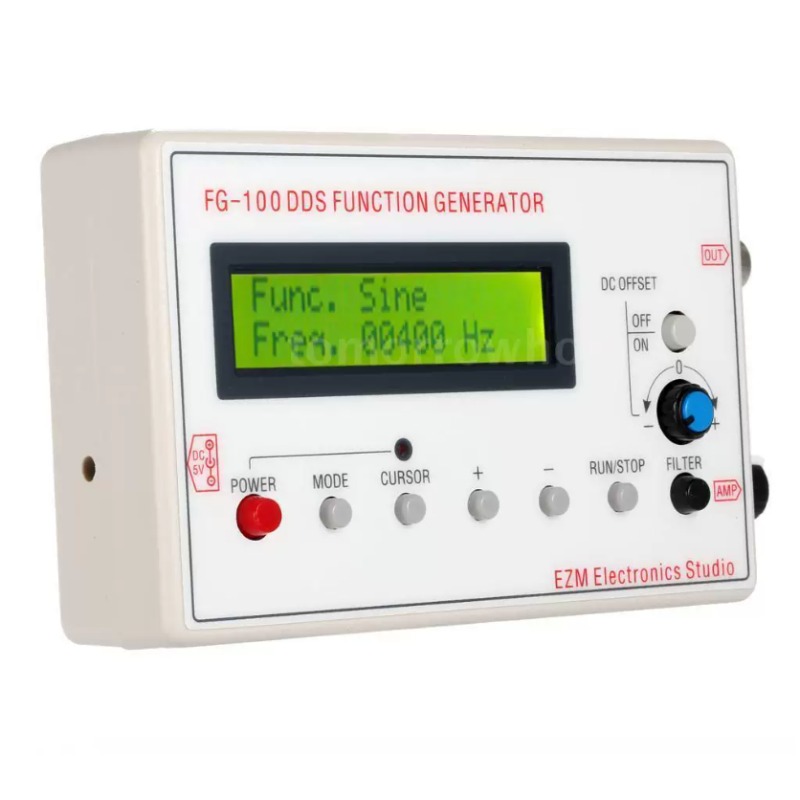

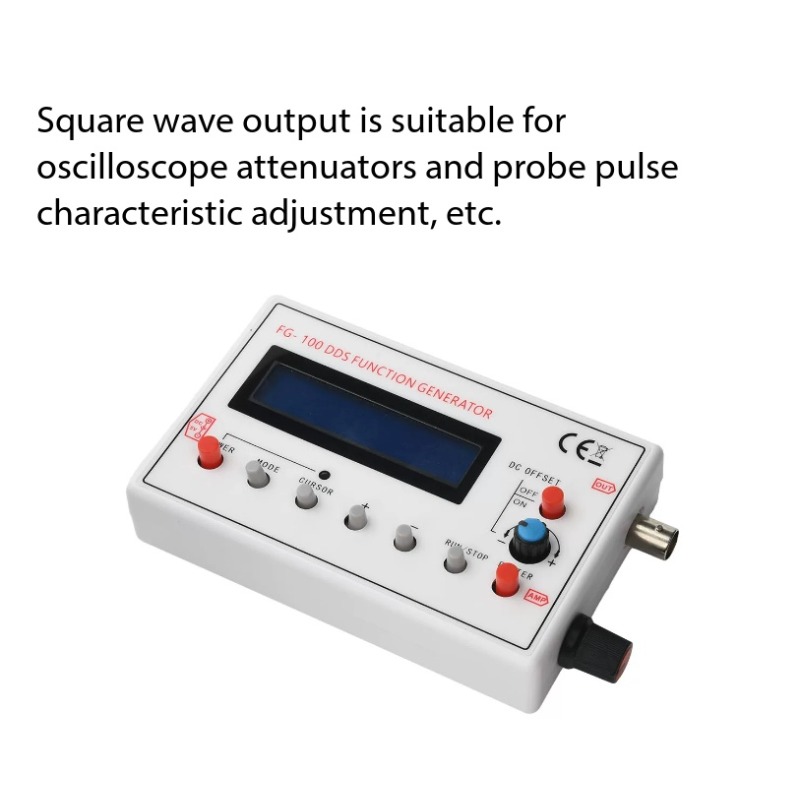

DC 3.7–10 V DDS Function and Arbitrary Waveform Signal Generator, Signal Source/Frequency Counter, 1 Hz–500 kHz

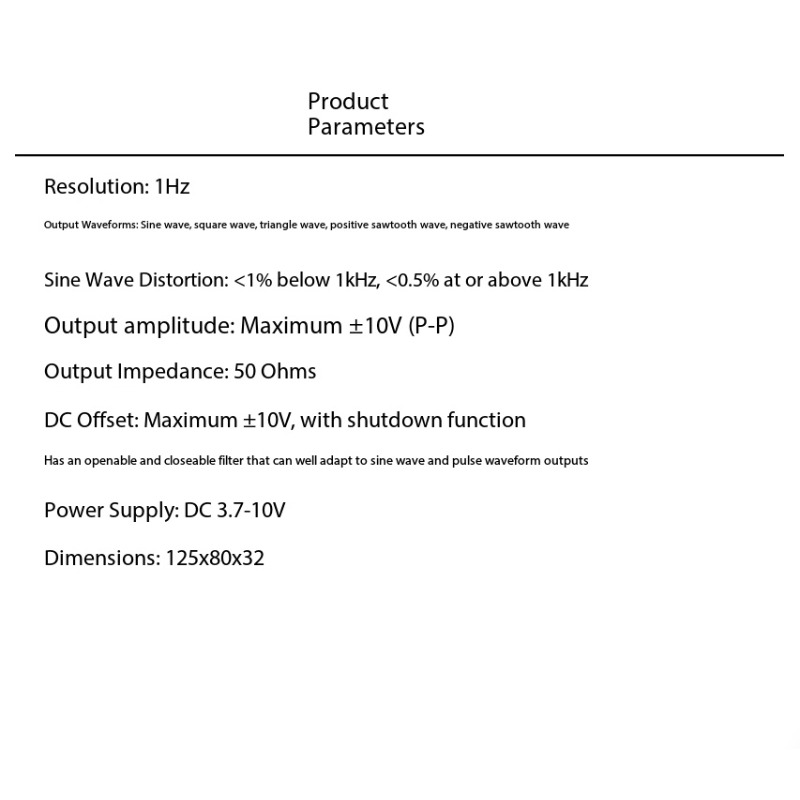

Resolution: 1 Hz
Output Waveforms: Sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave
Sine Wave Distortion: <1% below 1 kHz, <0.5% at 1 kHz and above
Output Amplitude: Max. ±10 V (P-P)
Output Impedance: 50 ohms
DC Offset: Max. ±10 V, with disable function
Filter: Can be enabled or disabled; compatible with sine and pulse waveform outputs

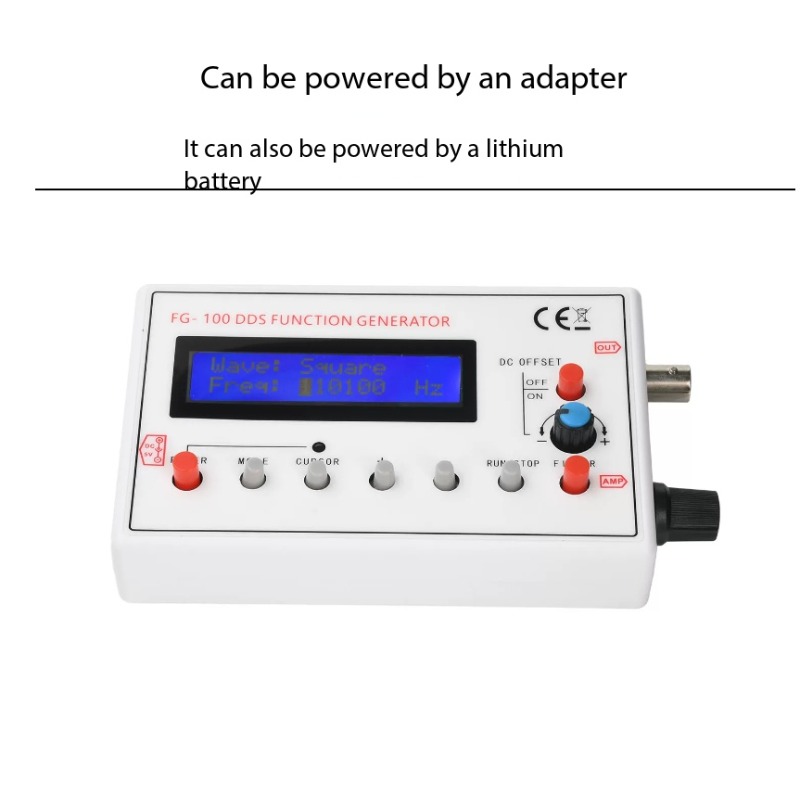

Power Supply: 3.7–10 V DC

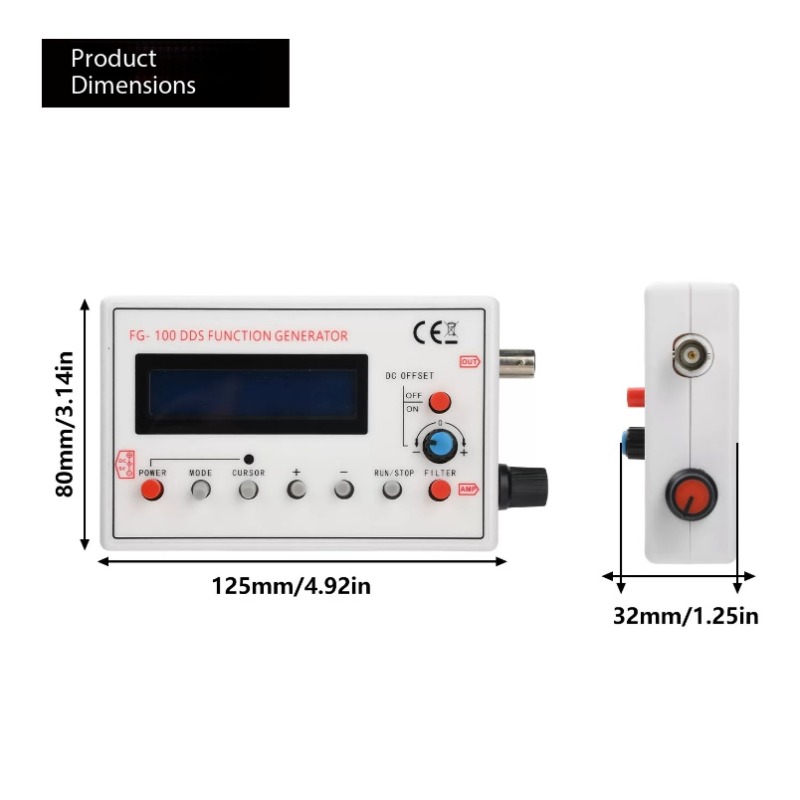

Dimensions: 125 × 80 × 32 mm
