Product Model: GDZ80X73‑1.5
Rated Power: 1.5 kW
Product Voltage: 220 V/380 V
Product Current: 5 A/4 A
Product Frequency: 400 Hz
Product Speed: 24,000 RPM
Product Torque: 0.59 NM
Chuck Nut: ER11
Tool Clamping Range: 1–7 mm

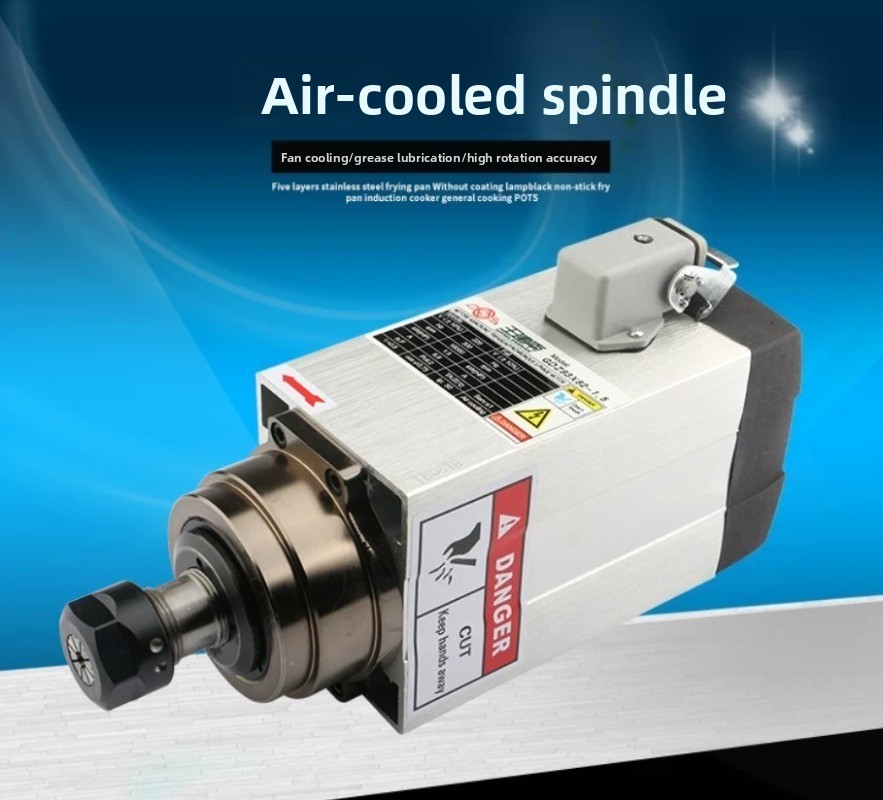

Cooling Method: Fan-cooled
Lubrication Method: Grease lubrication
Power Connection: Connect wires 1, 2, and 3 to the inverter’s U, V, and W terminals; wire 4 is the ground wire
Product Model: GDZ80X73‑2.2
Rated Power: 2.2 kW
Product Voltage: 220 V/380 V
Product Current: 6 A/5 A
Product Frequency: 400 Hz
RPM: 24,000
Torque: 0.87 Nm
Chuck Nut: ER20
Tool Clamping Range: 1–13 mm
Cooling Method: Fan-cooled
Lubrication Method: Grease-lubricated
Power Connection: Wires 1, 2, and 3 connect to the inverter’s U, V, and W terminals; wire 4 connects to ground
Product Model: GDZ105X102‑3.5
Rated Power: 3.5 kW
Product Voltage: 220 V/380 V
Product Current: 15 A/7 A
Product Frequency: 300 Hz
Rotational Speed: 18,000 RPM
Torque: 1.85 Nm
Chuck Nut: ER20
Tool Clamping Range: 1–13 mm
Cooling Method: Fan cooling
Lubrication Method: Grease lubrication
Power Connection: Connect wires 1, 2, and 3 to the inverter’s U, V, and W terminals; wire 4 to ground
