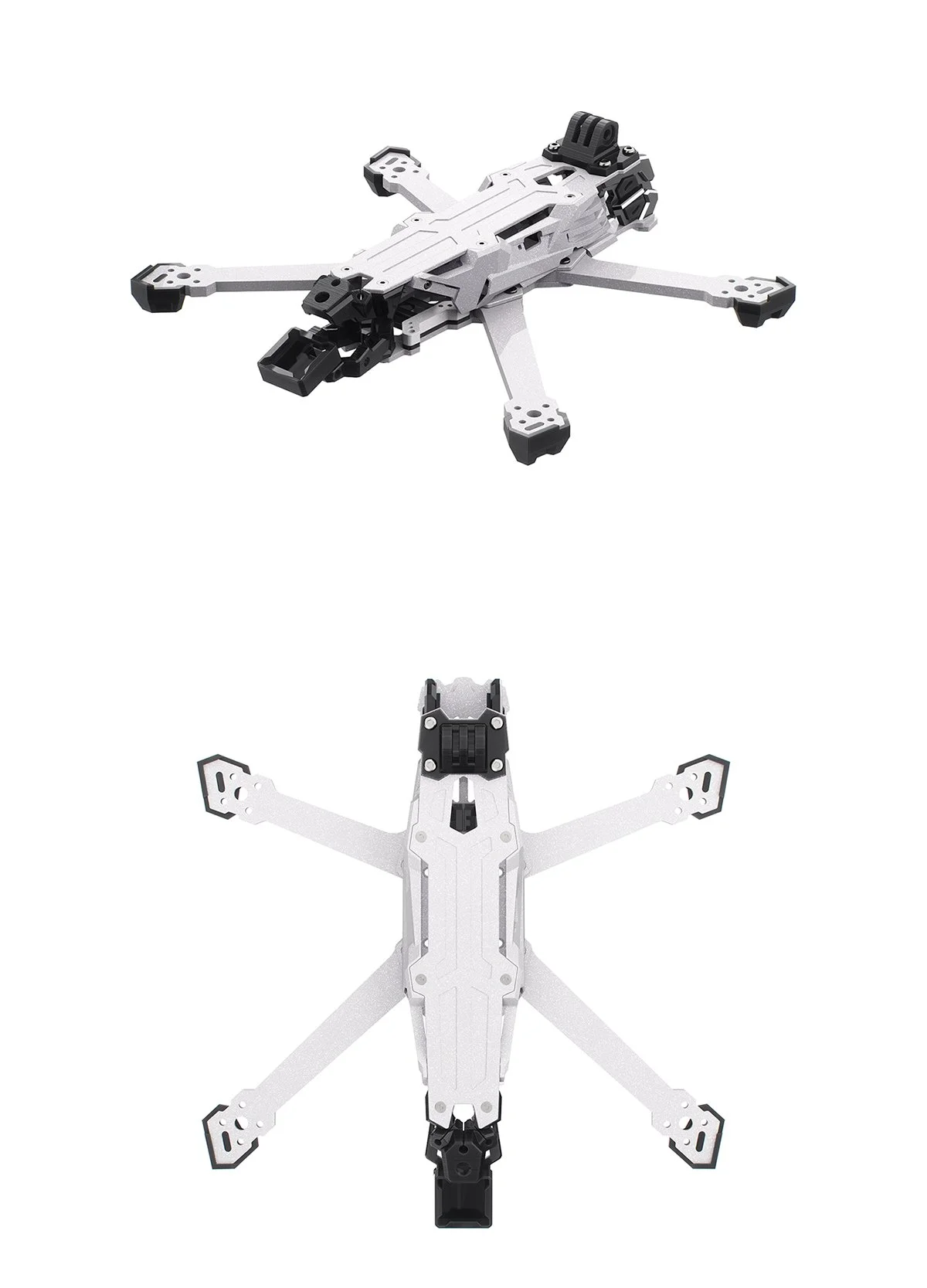

The Vapor O4 Pro Chameleon White Frame retains the proven structure that made the original Vapor series a favorite among FPV pilots.
It now features a premium chameleon-effect coating process, delivering a unique color-shifting finish.

A high-hardness clear coat improves corrosion resistance, scratch resistance, and wear resistance.
This not only enhances the visual texture but also provides stronger protection for the frame.

Features
5mm widened carbon fiber arms provide excellent overall rigidity.
Camera side plates and front lip design offer dual protection for stronger impact resistance.
Quick-release structure makes maintenance and repairs more convenient.
Redesigned aluminum camera mount perfectly fits the O4 Air Unit Pro system.
New mecha-style side plates feature sharp lines and a distinctive look.
Rear VTX antenna mount supports both the original O4 Pro antenna and SMA adapters.
Retains the classic Vapor frame geometry—new look, same flying soul.
Specifications
Vapor-D5 O4 Pro Frame

Model: GEP-Vapor-D5 O4 Pro Holographic White Frame
Wheelbase: 238.4mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

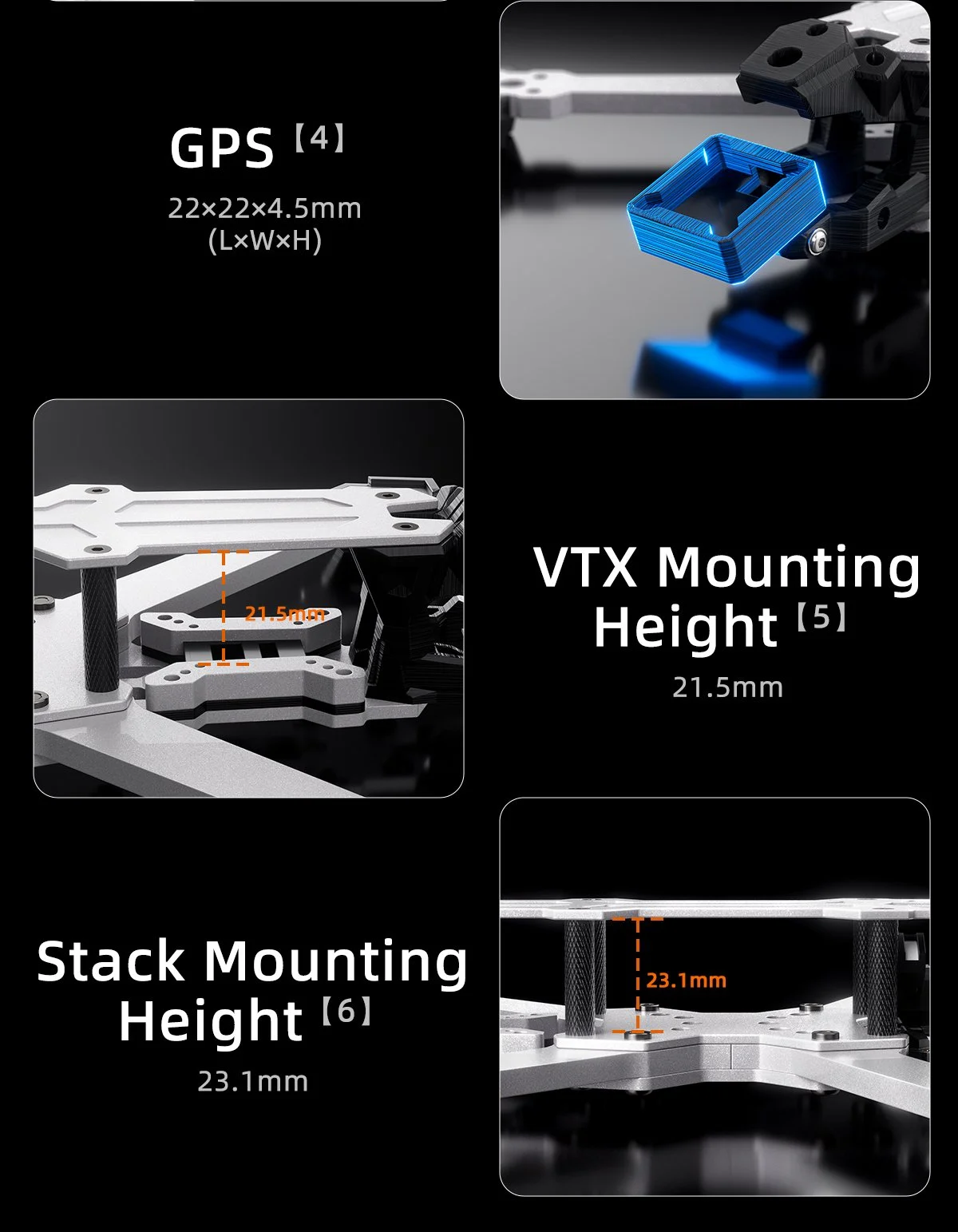

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 5-inch
Weight: 219.8±5g
Vapor-X5 O4 Pro Frame

Model: GEP-Vapor-X5 O4 Pro Holographic White Frame
Wheelbase: 230mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 5-inch
Weight: 213.6±5g
Vapor-X6 O4 Pro Frame

Model: GEP-Vapor-X6 O4 Pro Holographic White Frame
Wheelbase: 254.5mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 6-inch
Weight: 222±5g

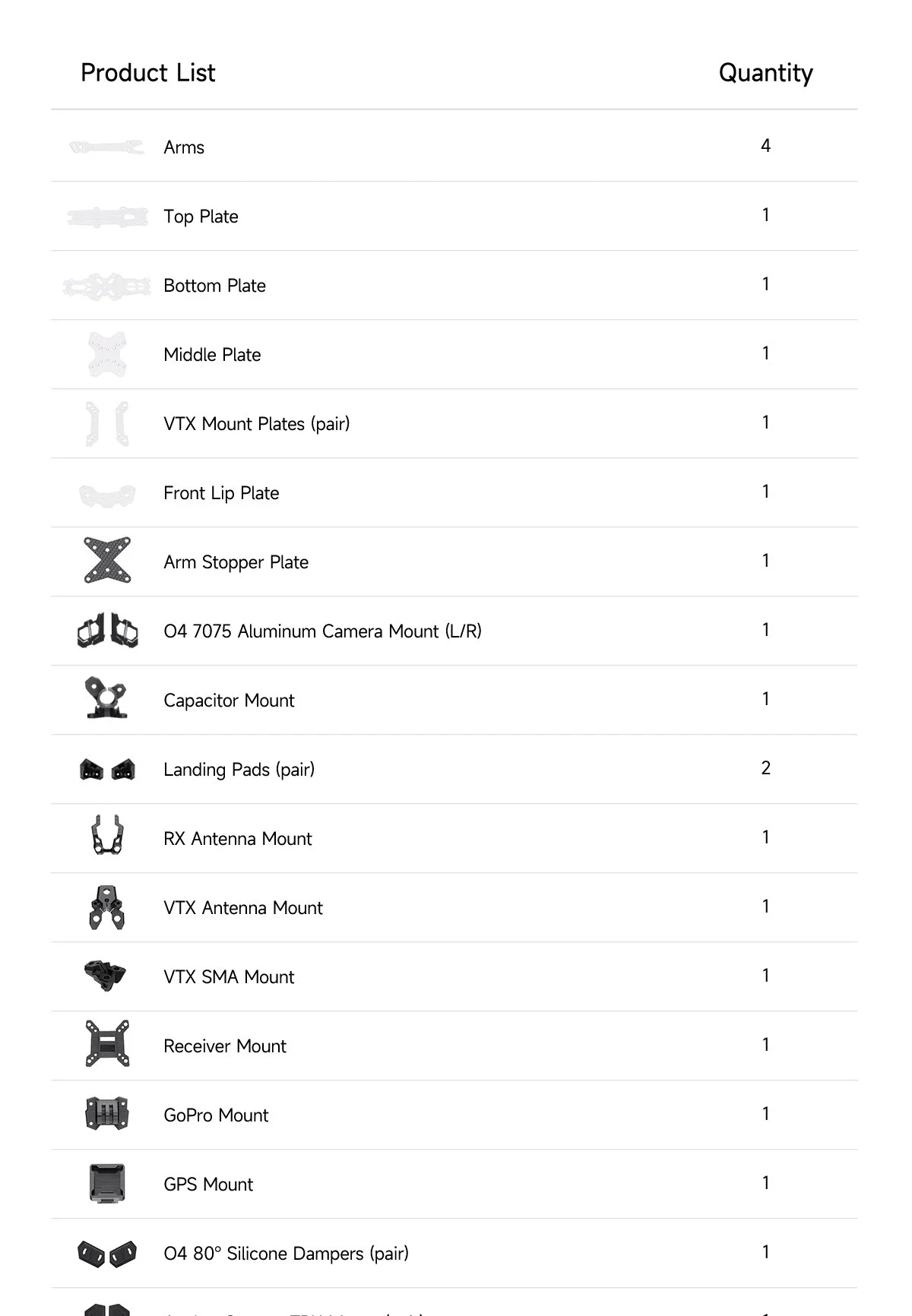

Includes
1 × GEP-Vapor O4 Pro Holographic White Frame
2 × M20*250mm Battery Straps
2 × Battery Anti-Slip Pads
1 × Spare Screw Kit
1 × 3D Printed Parts Kit
1 × Hex 4-in-1 Screwdriver
1 × M8 Ratchet Socket Wrench
