Description

grinding machine electronic ultrasonic polishing machine 6

Working principle:

The complete series of our ultrasonic mould polishing machines have the function of power automation compensation, the frequency automation tracking lock, and it can use

the various tip implements at more than 20,000 times per second. Maximal amplitude is 50 um, high speed. Brute force and stable grinding work piece surface can ensure that

the implement is in the best syntony state at any time, and ensure stable power size on certain job requests. Deploying varieties tip implement head can complete rapidly

different hardness materials of complicate cavity such as plastic injection mould, casting mould, forged mould.

Main Specialties：

1.Elctricity circuit adopts electrical souce design with up-to-date green energy-saving switch.It has many specialties as follows:small volume、llight weight energy-saving and environment-protecting、high source power transfer efficiency、eletricity web applys AC110V(AC80C-150V)and AC220V(180V-240V).switch is very convenient and extension is very wide.

2.Ultrasonic circuit control adopts mirco-computer single chip control technology design.Its lock efficiency cincture is wider and more precise.And for work pieces with different shape,it has a fine adaptability to make

sure that it works on the best working frequency range and biggest ultrasonic amplitude,especially fibre stone and so on material-consuming fitting ,whose grinding effect is best.

3.The panel operating part uses high-qulity PVC panel、intelligent adjustment 、full light tough electronic switch and has characteristies of dust proof、water proof、comfortable handle and good-looking、simple operation、difficult to aging and difficult to damage.

4.The control panel adopts two-number display,separately show regulating power and output power;When opening the machine,it has the displaying function of work time accumulative total,the most

accumulative total shows 99 months,which makes enterprise follow and manage users’using condition very efficienly

5. The spark circuit adopts presently international most advanced digit spark corrosion circuit, changes from three levels to four levels,which more adapts to coarseness

machine original coarseness surface after machining presently market popular machine-machining equipment(such as electrical impulse、line cutting、milling machineand lathe) It has characteristies of wide range、high precision、quicjly cutting 、big peeling-off electrical corrosion.It also machines complex cavity which is not machined by handcraft,such as deep channel、narrow groove、blind hole、circle slot and acute angle.

When the machine polishs with ultrasonic it can finish whole polishing andand grinding process from coarsenessly polishing,extractly polishing to mirror surface for original

surface roughness Ra>50um

Application scope:metal workpiece’grinding and polishing,such as the note mode、the die-casting mode、the pressing mode、the forging mode、hardwear product

parameter introduce and compare of each type machine:

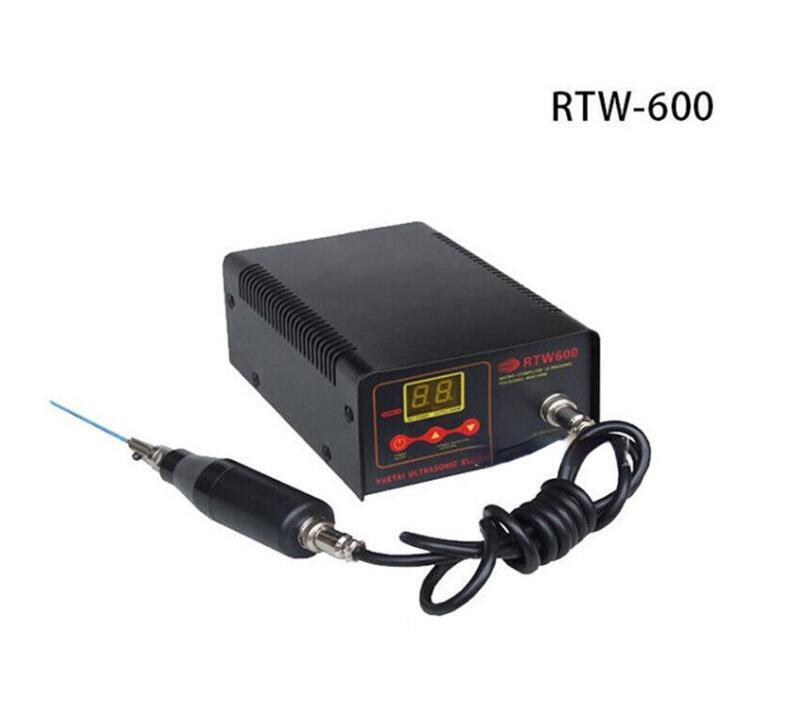

Machine No.	RTW600	RTW1200	RTW1400	RTW1600	RTW1800
Voltage	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V
Ultrasonic power	45W	50W	100W	50W	50W
Spark power	............	............	............	250W	250W
Power supply	High frequency swich	High frequency swich/transformation	High frequency swich	High frequency swich	High frequency swich
Working time	Have	............	Have	Have	Have
Operating man/set	Only one	Only one	Two	Only one	Only one
Mainframe size(mm)	21013590	22915590	315120185	315120185	300180140
Mainframe net weight(mm)	1.6kg	3.2kg	3.3kg	3.5kg	3.4kg
package	250200177	350230200	330285140	330285140	330285140
Whole machine weight	4kg	5.5kg	6.2kg	5.9kg	5.5kg
