Description
ANCEL V5 HD All In One Option Scan Tool——Designed For Trucks Commercial Cars

Ancel V5 HD is an Android based brand new-generation overall diagnostic tool for heavy duty trucks and commercial vehicles and machineries. With 7 -inch high-qualified industrial diagnostic tablet, in which software covering more trucks, buses, machineries from home and abroad with extensive diagnostic functions. Featuring new diagnostic experience and cost performance, it can be a better choice for all users.

Ancel V5 HD Main Selling Points:

1. OE-Level full-systems fit for Heavy Duty Truck:To diagnose Engine,Airbag,Transmission, ECU/BCU, VCS, ABS, SRS System...ect. (read and clear fault codes, live data, read vehicels information).
2. Supporting 40+ Reset Functions:Oil,EPB,BMS,DPF,TPMS,IMMO Key Programming,ABS Bleeding,Injector Coding Reset...
3. Support Multi-languages:English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Czech, Swedish.
4. Support ECU Coding & Action Test for some car models.
5. Support Lifetime Free Update:Connect the internet by WIFI
5. Powerful A33 ARM Cortex-A7,Quad Core at 1.3G Ghz processor with faster 1G LPDDR3 and reliable 32GB On-board memory
6.Unique ergonomic design with rubberized outer protection and a rugged internal housing.

ANCEL V5 HD Auto Code Reader Supports 40+ Special Function

1.Oil Lamp Reset Service:
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Service:
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BMS Battery Service:
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Service:
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.TPMS Service:
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

6.IMMO Key Programming:
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

7.ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

8.Injector Coding:
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off

9.SAS Steering Angle Sensor Service:
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

10.TPS Throttle Adaptation:
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount o fair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

And many more...

ANCEL V5 HD SUPPORT BIDIRECTIONAL FUNCTION

This bidirectional obd2 scanner sends commands to the vehicle's ECU for active testing, enabling users to accurately and quickly locate faulty components such as injectors, coolant pumps, windows, wipers, headlights, mirrors, etc. The bidirectional control scanner is the ideal choice for workshops/automotive repair shops as it significantly reduces mechanic's diagnostic time.

ECU Coding

Match / leam /code /
Program the newly replaced ECUS;
Program VINinto replacement PCM;
Write a VIN to new ECU;
Program a new TCU after replacement;
Recode replacement parts to the car;
Perform a transmission quick relearn;
Unlock hidden high-level features;
Disable the annoying functions

ANCEL V5 HD Support Full OBDII 10 Modes:
1. Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

ANCEL V5 HD Scanner Supported language:

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Czech, Swedish

Protocols

ISO 9141-2, ISO 14230-2, ISO 15765-4, K/L-Line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlespeed CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN etc.

OE-Level All System Diagnostics for All Truck

Help You Pinpoint the Problems in Minutes with A Greater Degree of Accuracy!

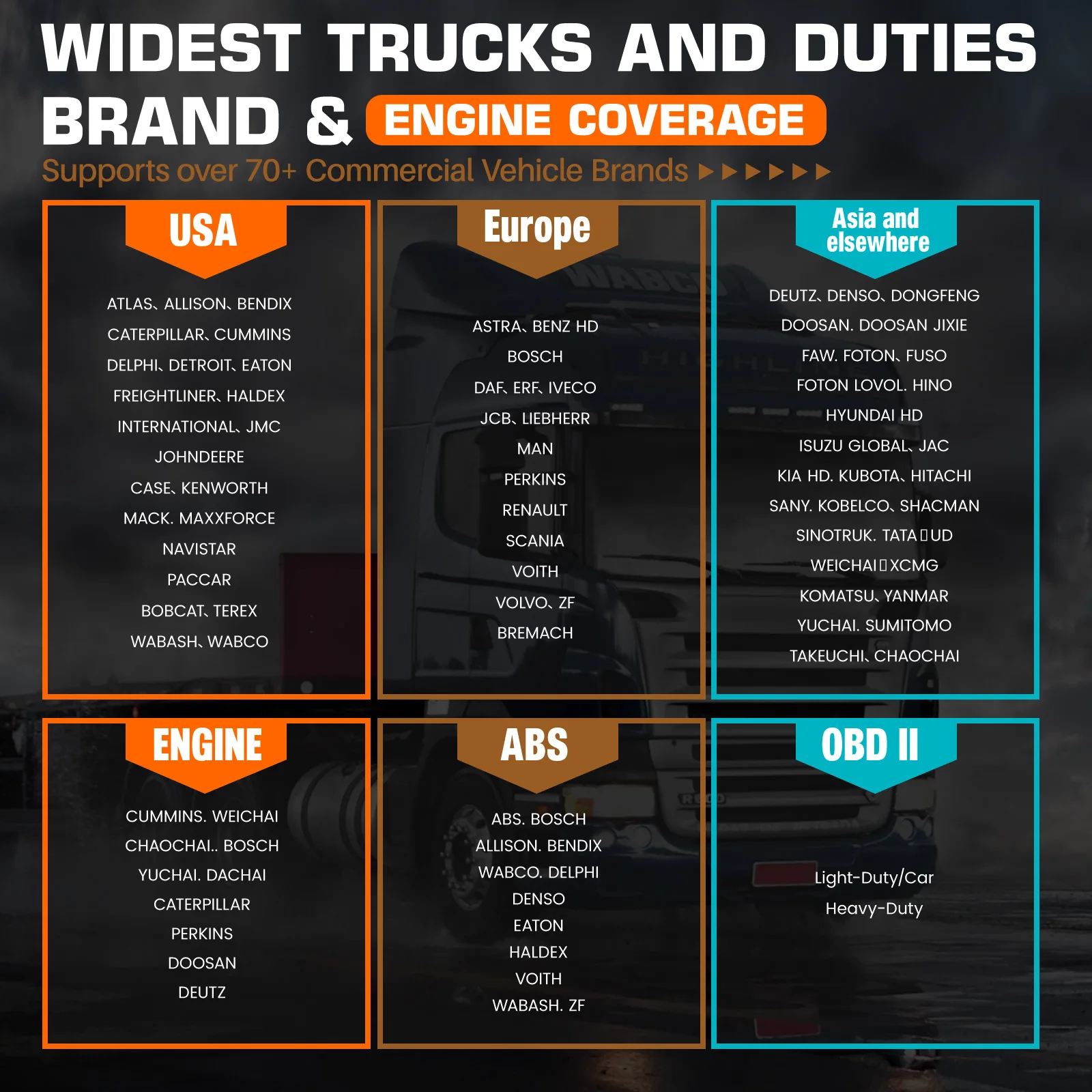

Widest Trucks And Duties Brand & Engine Coverage

USA：
FIT FOR ATLAS、FIT FOR ALLISON、FIT FOR BENDIX、FIT FOR CATERPILLAR、FIT FOR CUMMINS、FIT FOR DELPHI、FIT FOR DETROIT、FIT FOR EATON、FIT FOR FREIGHTLINER、FIT FOR HALDEX、FIT FOR INTERNATIONAL、FIT FOR JMC、FIT FOR JOHNDEERE、FIT FOR CASE、V KENWORTH、MFIT FOR ACK.MAXXFORCE、FIT FOR NAVISTAR、FIT FOR PACCAR、FIT FOR BOBCAT、FIT FOR TEREX、FIT FOR WABASH、FIT FOR WABCO

Europe：
FIT FOR ASTRA、FIT FOR BENZ HD、FIT FOR BOSCH、FIT FOR DAF、FIT FOR ERF、FIT FOR IVECO、FIT FOR JCB、FIT FOR LIEBHERR、FIT FOR MAN、FIT FOR PERKINS、FIT FOR RENAULT、FIT FOR SCANIA、FIT FOR VOITH、FIT FOR VOLVO、FIT FOR ZF、FIT FOR BREMACH

Asia and elsewhere：
FIT FOR DEUTZ、FIT FOR DENSO、FIT FOR DONGFENG、FIT FOR FAW. FOTON、FIT FOR FUSO、FIT FOR FOTON LOVOL.HINC、FIT FOR HYUNDAI HD、FIT FOR ISUZU GLOBAL、FIT FOR JAC、FIT FOR KIA HD. FIT FOR KUBOTA、FIT FOR HITACHI、FIT FOR SANY. FIT FOR KOBELCO、FIT FOR SHACMAN、FIT FOR SINOTRUK. FIT FOR TATADUD、FIT FOR WEICHAIDXCMG、FIT FOR KOMATSU、FIT FOR YANMAR、FIT FOR YUCHAI.SUMITOMO、FIT FOR TAKEUCHI、FIT FOR CHAOCHAI

ENGINE
FIT FOR CUMMINS.WEICHAI、FIT FOR CHAOCHAI.BOSCH、FIT FOR YUCHAI.DACHAI、FIT FOR CATERPILLAR、FIT FOR PERKINS、FIT FOR DOOSAN、FIT FOR DEUTZ

Advanced Hardware & Software Configuration

Display screen: 7”G+G capacitance screen,1024*600
System: Android 5.1,multi language
CPU: A33 ARM Cortex-A7,Quad Core at 1.3G Ghz
GPU: Mali 400 MP2,400 MHz
ROM: 32 GB
RAM: 1G LPDDR3
Battery: Polymer lithiumion battery;3.7V/5000 mA,Battery life:5H
Speaker: Double speakers 8Ω/1W
Interface: Type-C,TF card slot(support SDHC/SDXC)
Network: WIFI 802.11b/g/n
Bluetooth: Bluetooth 2.1/4.0
Input voltage: 5V/2A

Ancel V5 HD Kit Packing List:

1pc User Manual
1pc V5 HD
1pc Storage Box
1pc OBD Extension Cable
1pc USB Cable
1pc BENZ-14
1pc CAT-9
1pc DIESEL-9
1pc CUMMINS-6
1pc VOLVO-8
1pc OBD-R16
