Board Size

E-ATX
304.8W x 335.2D mm

Processor Supported

AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128-core, 256 threads per processor
cTDP up to 400W

Socket

2 x LGA 6096
Socket SP5

Chipset Description

System on Chip

Memory Type

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz

Integrated Network

2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416)
NCSI function supported

1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0
2 x SlimSAS 8i with 4 x Gen4 NVMe or 16 x SATA ports, from CPU_1

Support RAID Function

N/A

Expansion Slot

Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot. from CPU_0
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

2 x SlimSAS 8i with 4 x Gen4 NVMe or 16 x SATA ports, from CPU_1

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x SlimSAS 8i connectors
1 x M.2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

Rear I/O Connectors

2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

· Dashboard

· HTML5 KVM

· Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

· Sensor Reading History Data

· FRU Information

· SEL Log in Linear Storage / Circular Storage Policy

· Hardware Inventory

· Fan Profile

· System Firewall

· Power Consumption

· Power Control

· LDAP / AD / RADIUS Support

· Backup & Restore Configuration

· Remote BIOS/BMC/CPLD Update

· Event Log Filter

· User Management

· Media Redirection Settings

· PAM Order Settings

· SSL Settings

· SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

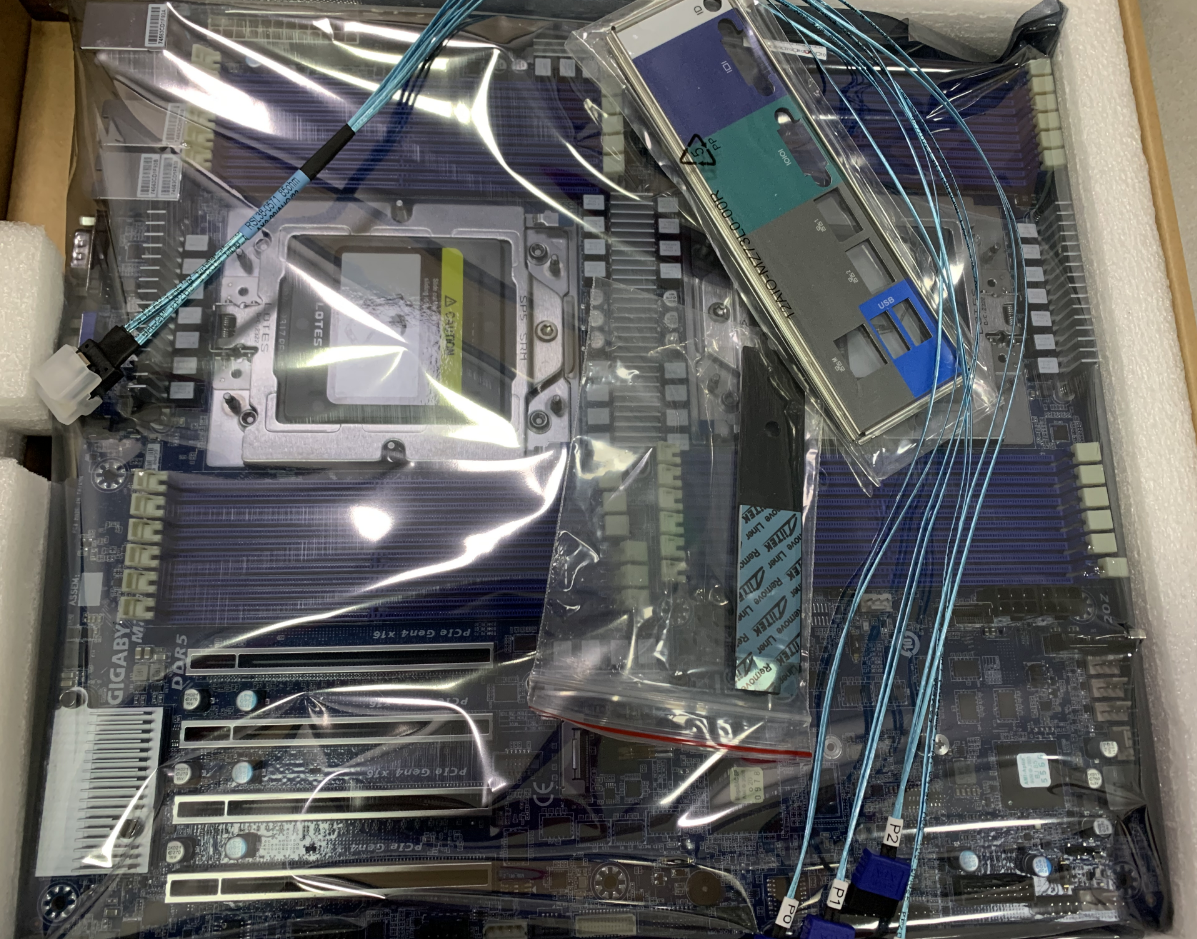

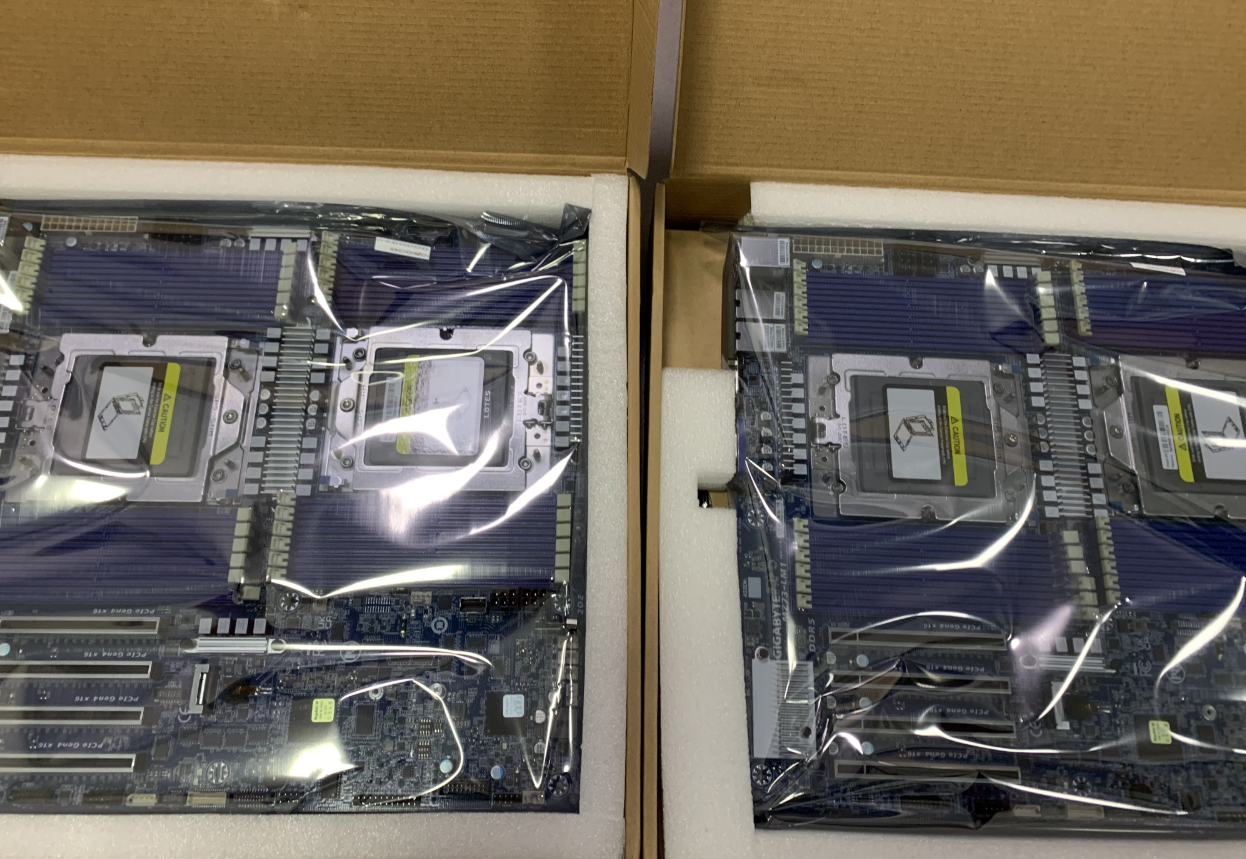

Packaging Bundle

1 x MZ73-LM1
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Ordering Information

Retail: 9MZ73LM1MR-000-10*
Bulk: 9MZ73LM1NR-000-10*
Part Numbers:
- I/O shield: 12AIO-MZ73L0-00R
- CPU cooler: 25ST0-0Z6022-C1R (optional)
- SlimSAS 4i to 4 x SATA 6Gb/s cable: 25CFM-600800-A4R
