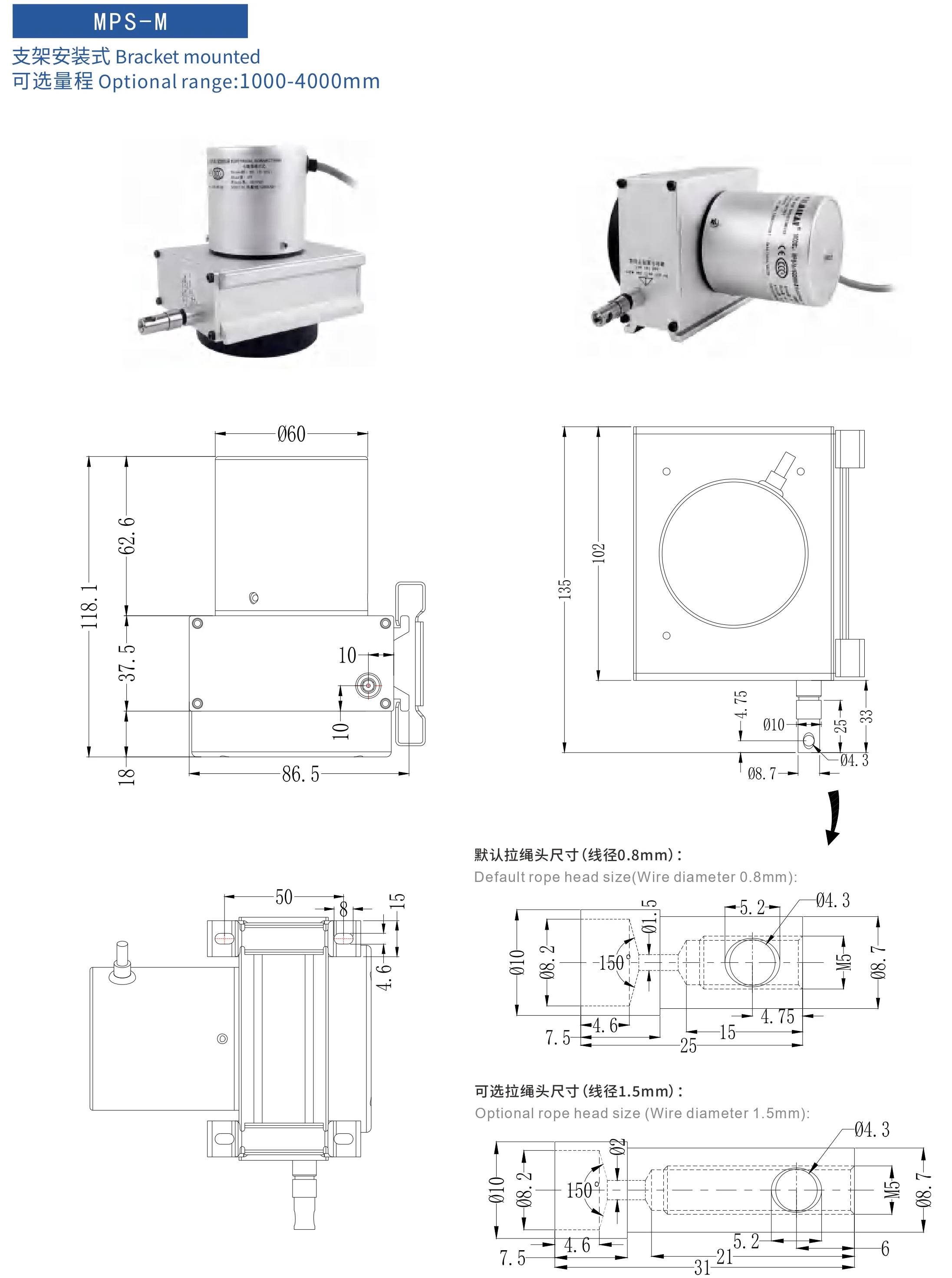

MPS-M Pull-Wire Displacement Sensor, Cable-Type Displacement Sensor, Pull-Wire Crack Displacement Sensor

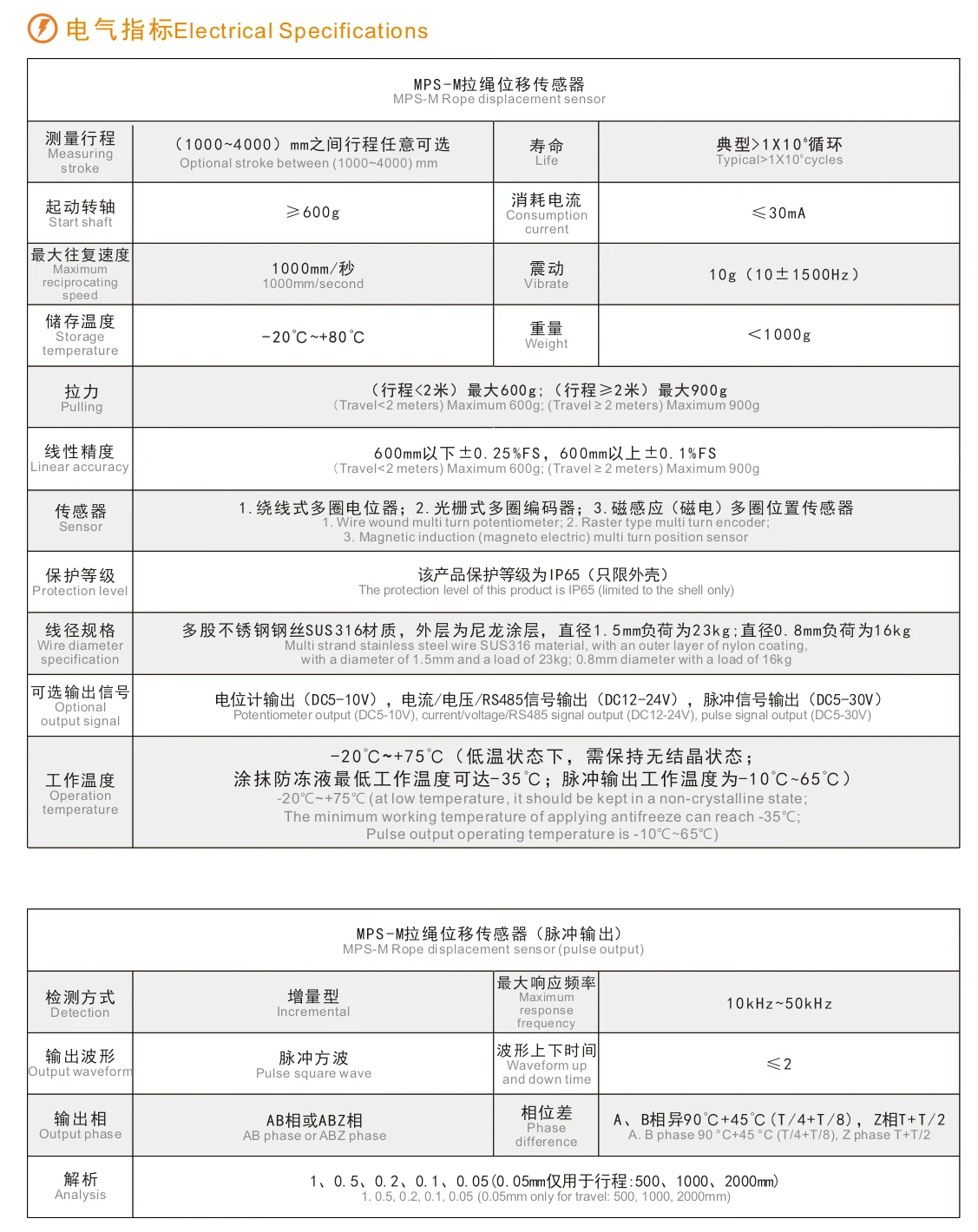

Measuring Range: 1000 mm–4000 mm

Supply Voltage: 5 V DC–10 V DC (Resistance Output Type)

Supply Voltage: 12 V DC–24 V DC (Voltage/Current/RS485)

Supply Voltage: 8 V DC–30 V DC (Pulse Signal Output)

Output Signal: Resistive Output Type: 5 kΩ, 10 kΩ

Output Signal: Voltage Output Type: 0–5 V, 0–10 V

Output Signal: Current Output Type: 4–20 mA (2-wire/3-wire/4-wire)

Output Signal: Digital Output Type: RS485

Output Signal: Pulse Output Type: A, B, Z

Linearity: ±0.1% FS to ±0.25% FS

Repeatability: ±0.05% FS

Resolution: Analog: Continuous resolution

Resolution: Digital signal (RS485): Default 12-bit, optional 16-bit

Wire diameter: 0.8 mm (XXXS/XXS/XS/S/M mounting frames)

Wire Diameter: 1.5 mm (L/XL Mounts)

Sensor: 1. (Default) Wound-wire multi-turn potentiometer

Sensor: 2. (Optional) Optical multi-turn encoder

Sensor: 3. (Optional) Magnetic induction (magnetoelectric) multi-turn position sensor

Operating Temperature Range: -20°C to +75°C

Operating Temperature Range: (Minimum operating temperature can reach -35°C when antifreeze is applied; pulse output operating temperature range is -10°C to 65°C)

Storage Temperature Range: -20°C to +80°C

Vibration: 10 Hz to 2000 Hz

Protection Rating: IP65 (housing only)
