Stability, Safety, Simplicity:

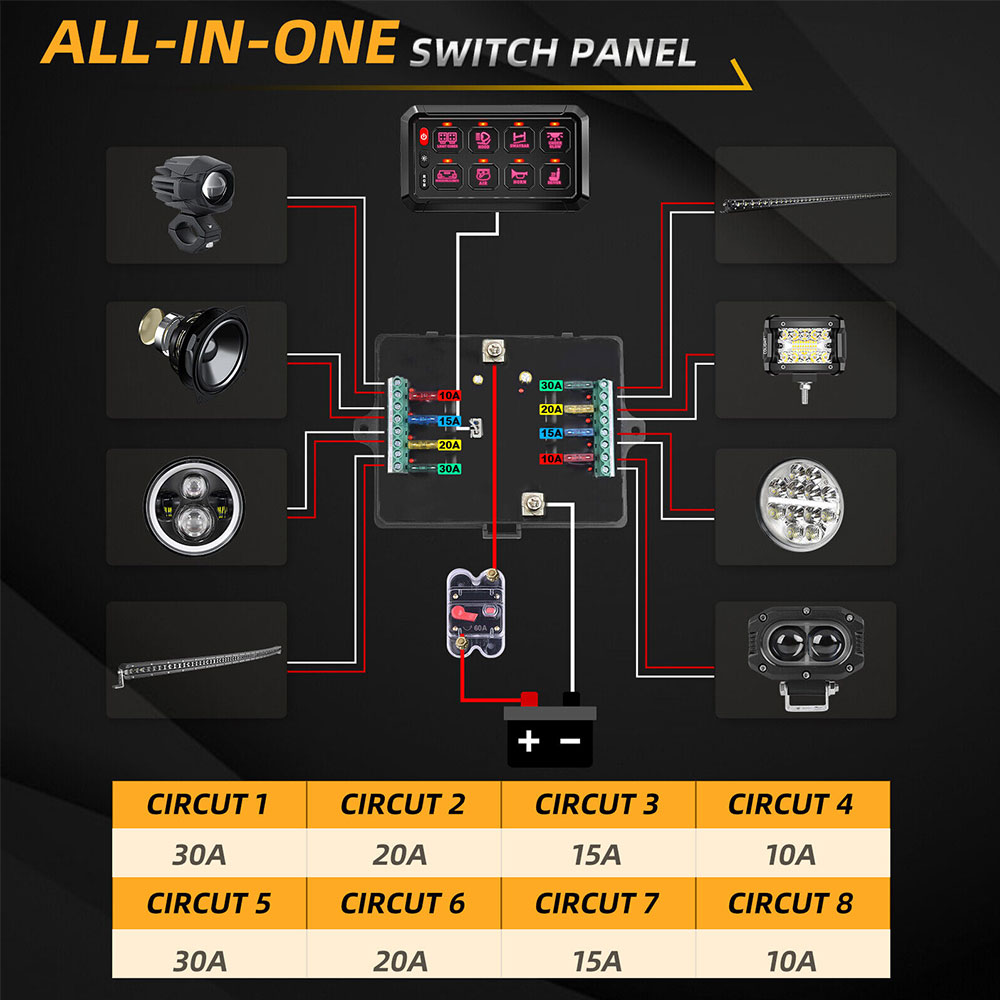

Crafted from robust brushed aluminum, this universal switch panel is designed to endure the rigors of off-road adventures. The updated circuit design accommodates two 30A circuits, two 20A circuits, two 15A circuits, and two 10A circuits, catering to various lighting applications. Control up to eight lighting devices, such as LED light bars, round driving lights, rock lights, whips, and horns. Safety features include a circuit breaker that automatically stops lighting when exceeding the maximum 60A current to prevent faults. Built-in fuse, reverse polarity protection, overvoltage protection, and overcurrent protection ensure stability and safety. The fuse adapter allows easy connection to the vehicle's fuse box without cutting, splicing, or damaging the original wiring. The smartest switch panel comes with two different mounting brackets and necessary hardware, preparing you for future adventures.
Description

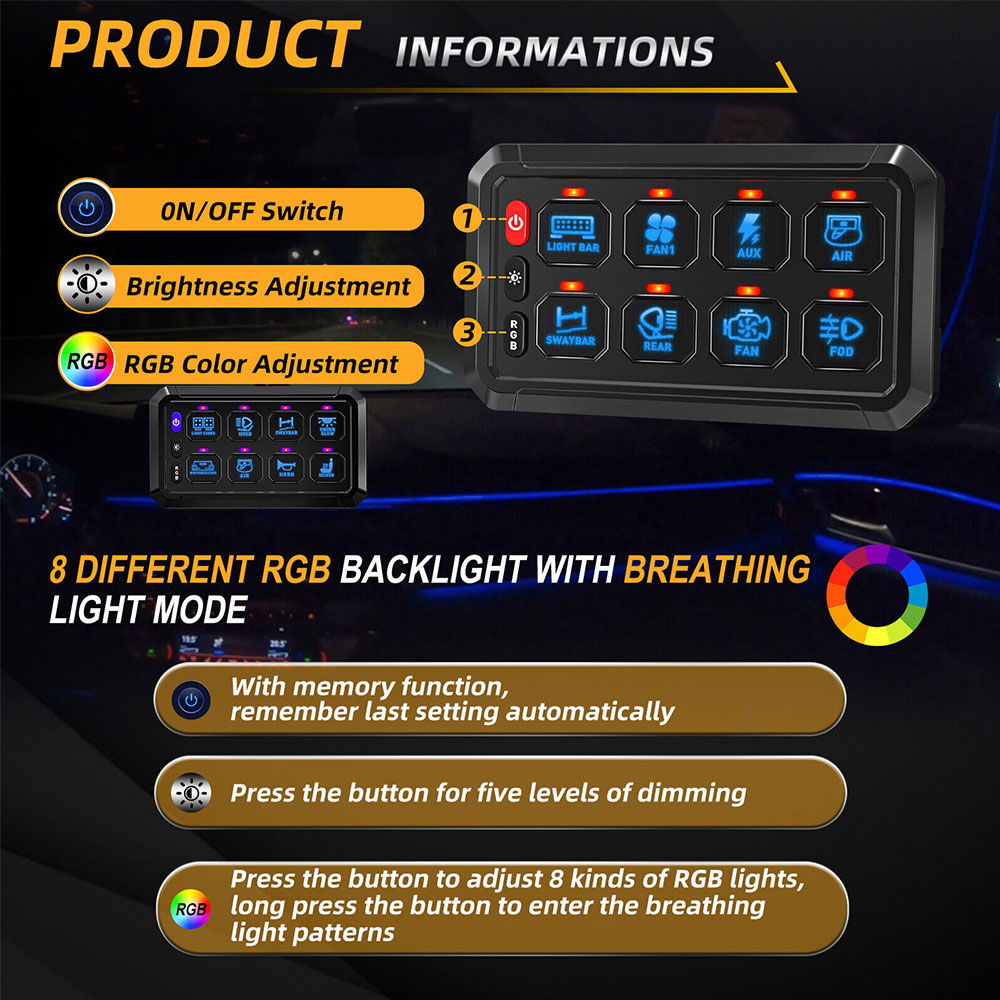

3 Silicone Function Buttons - RGB 8 Gang Switch Panel designed with 3 silicone button which have a comfortable touch and are highly responsive, allow for blind operation. Including ON/OFF switch with memory function, Brightness Adjustment Button, RGB Color Adjustment Button
Upgraded 4 Control Modes - This upgraded multifunction switch panel has 4 modes: 1.Toggle (Red Lamp), Constant Light mode; 2.Momentary ignition power (Blue Lamp) , press and hold to turn on, release to turn off; 3.Flash Light Mode (Purple Lamp), flashing at a lower speed which can be used for turn signal; 4.Strobe Mode(Green Lamp), used for emergency light or warning light. You can easily switch between modes in different situation
Backlight OFF & 5-Level Brightness - Features a manual backlight off function, turn off backlight for a more comfortable visual experience and energy conservation. Also, there are 5-level backlight brightness (100%, 75%, 50%, 25%, 10%) to adjust according to the environment. Unlimited RGB backlight colors to match your vehicle's ambiance

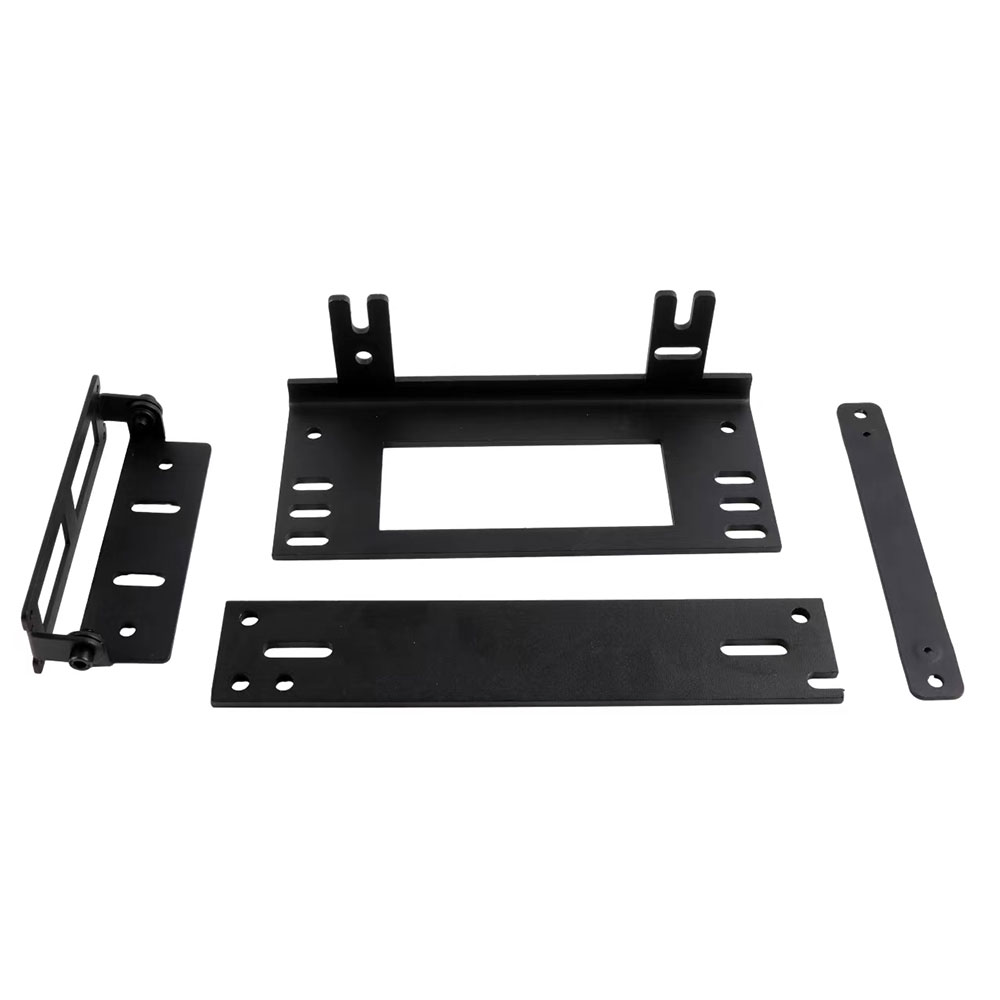

Two ways for Power Source - The control box switch provides two ways to obtain power: connect ACC or Battery. Different mounting brackets for flexible and quick installation. Bonus 140pcs labeling stickers included to customize your switch panel buttons. And fuse to well protect your car circuit
Specification:

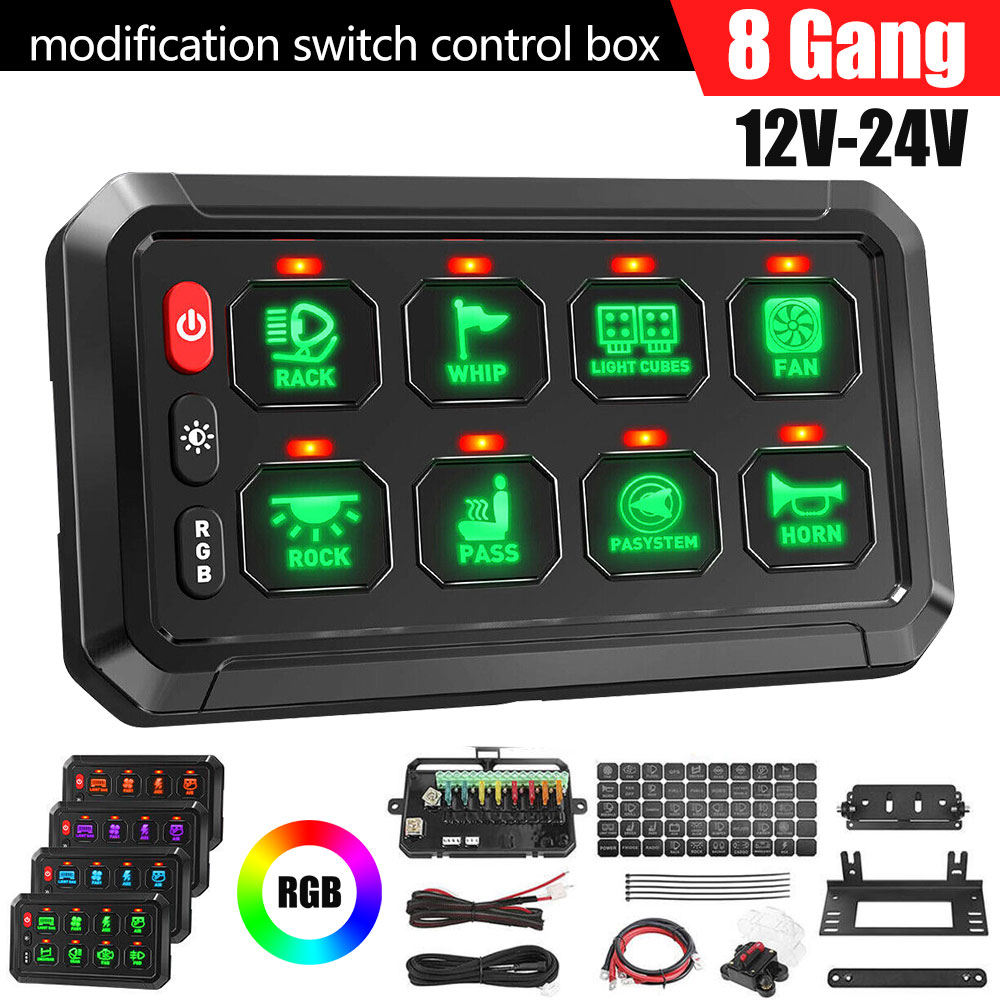

Product Name:8 Gang Switch Panel
Voltage:12V, 24V
Maximum Total Current:60A
Maximum Power:720W@12V/1440W@24V

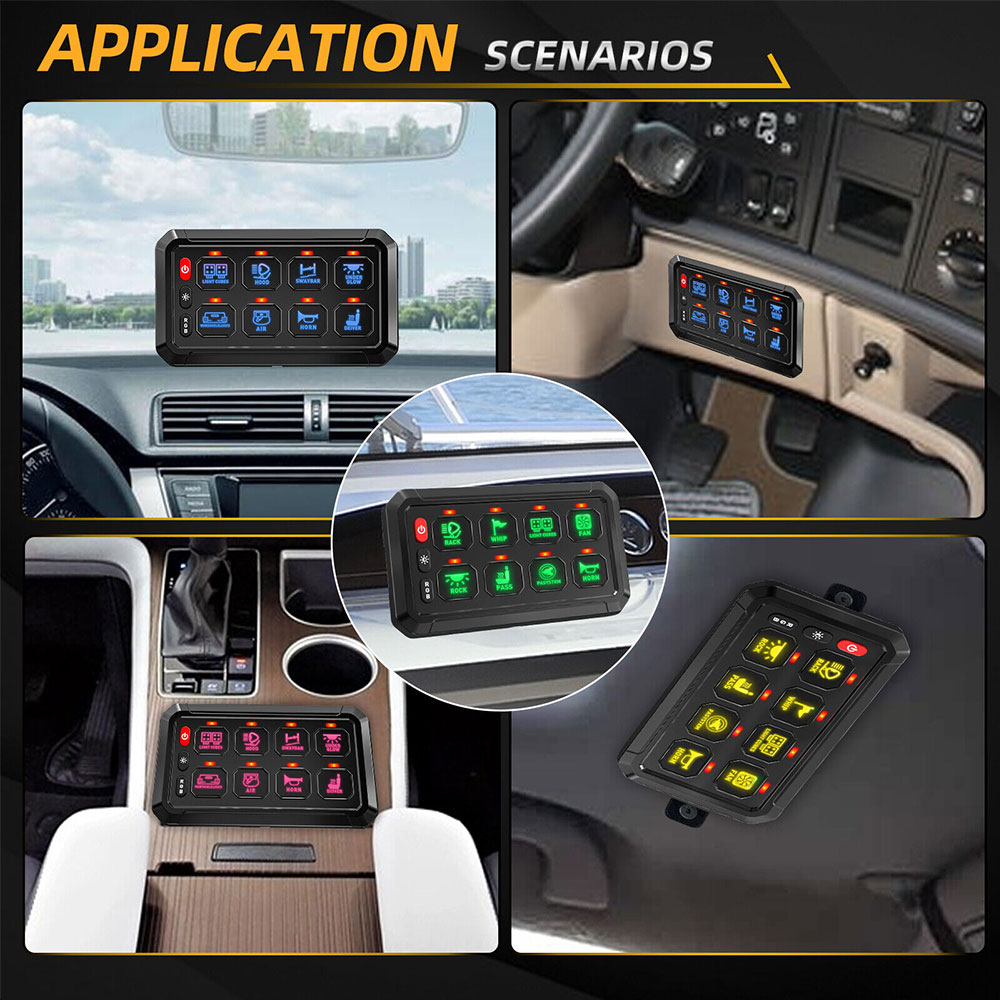

Suit for:12V/24V RV, marine, car, truck, off-road, ATV/UTV, boat, yachts, Caravans, etc.
Material:Aluminum Alloy
Lifespan:Over 50, 000 hours
Warranty:2 Years

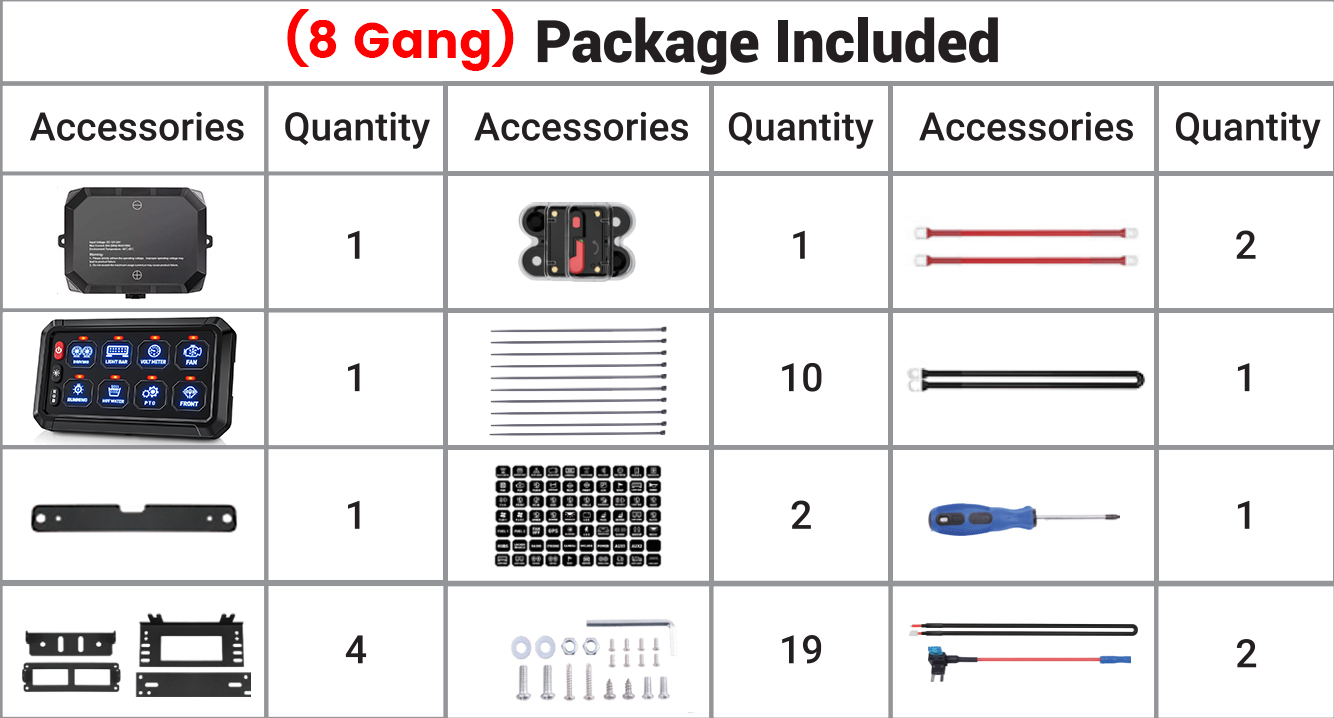

Package includes:
FREQUENTLY ASKED QUESTIONS
Q1: How does a normal switch panel control 2 or more lights at the same time with one button?A1: Connect the wires from both accessories to the same positive and negative outputs of thecontrol box. Ensure that the accessories connected to a single circuit will not draw morepower than the maximum for that control box circuit and the fuse for that circuit
Q2: Can l connect negative wire to the common cathode?
A2: Yes.
Q3: What is the maximum running current?
A3: The 6-gang or 8-gang switch panel is rated for 60A, and the 12-gang is 80A.
Q4: When connecting the battery, the power indicator is always on, will it cause battery loss?
A4: No. The standby current of this product is less than 3mA. A 60AH battery provides 833days of standby power for the switch panel without charging it.
Q5: How do l know if the wiring is correct?
A5: lf the power indicator is red on, it means the connection is correct.
Q6: What is the function of the control box switch?
A6: The Control Box Switch provides two ways to obtain power: Connect ACC or Battery. it issuggested to obtain power from battery.
Q7: What is the typed of Add-a-Circuit Fuse Tap?
A7: Small fuse tap.

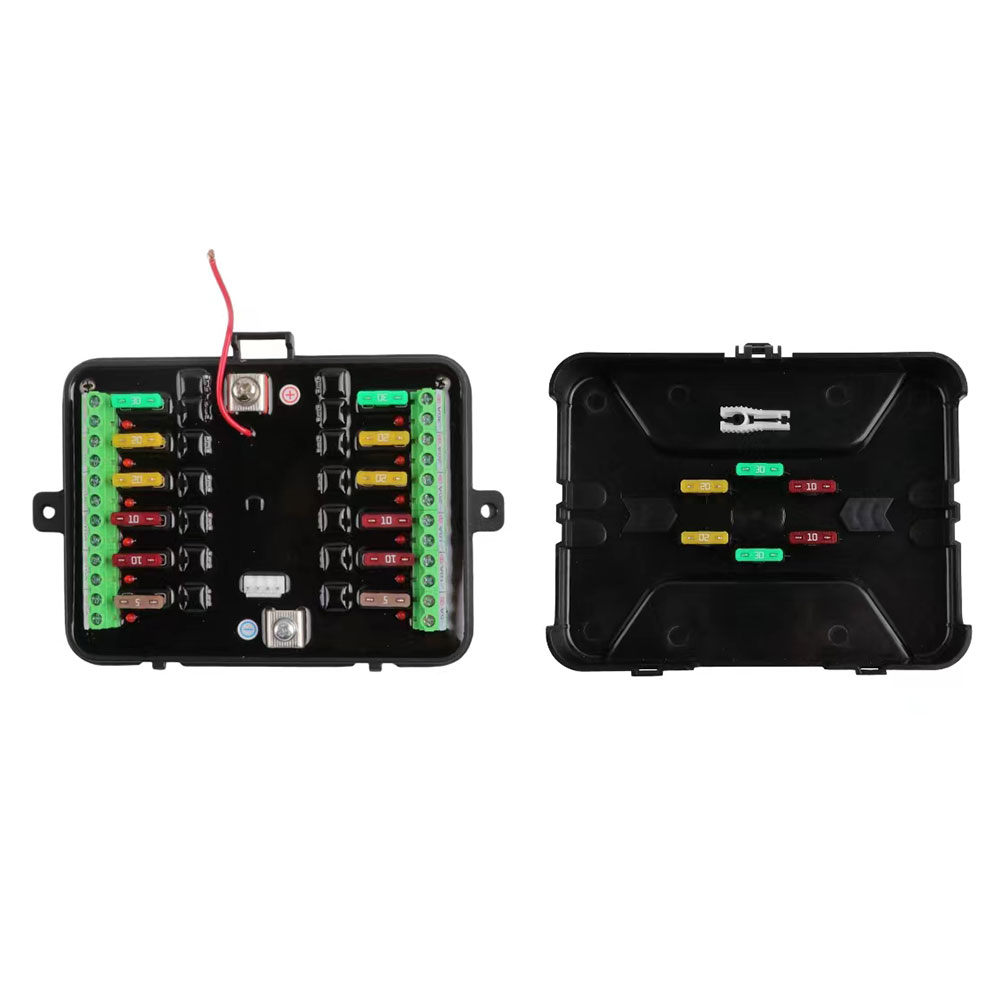

Q8: Can l replace the fuses in the control box?
A8: Yes, BUT always use a new fuse with the SAME or LOWER amperage as the old one. Forinstance, replace a 30A fuse with another 30A or less; to replace a 5A fuse, do NOT usea 10A fuse.
