The Beha Amprobe ACD-14-PRO-EUR Clamp Meter is a digital handheld multimeter designed for precise voltage and current measurements. It features a CAT III 600 V rating and a 6000-count display, making it suitable for professional electrical testing environments. Common uses include acting as a voltmeter, ammeter, and frequency tester for a wide range of electrical and electronic applications.
Please note: This item has a longer lead time for dispatch then normal as it's a non-stocked item that is ordered in, please see the estimated delivery date by eBay. We will of course ship the item sooner if possible.

Responsive image

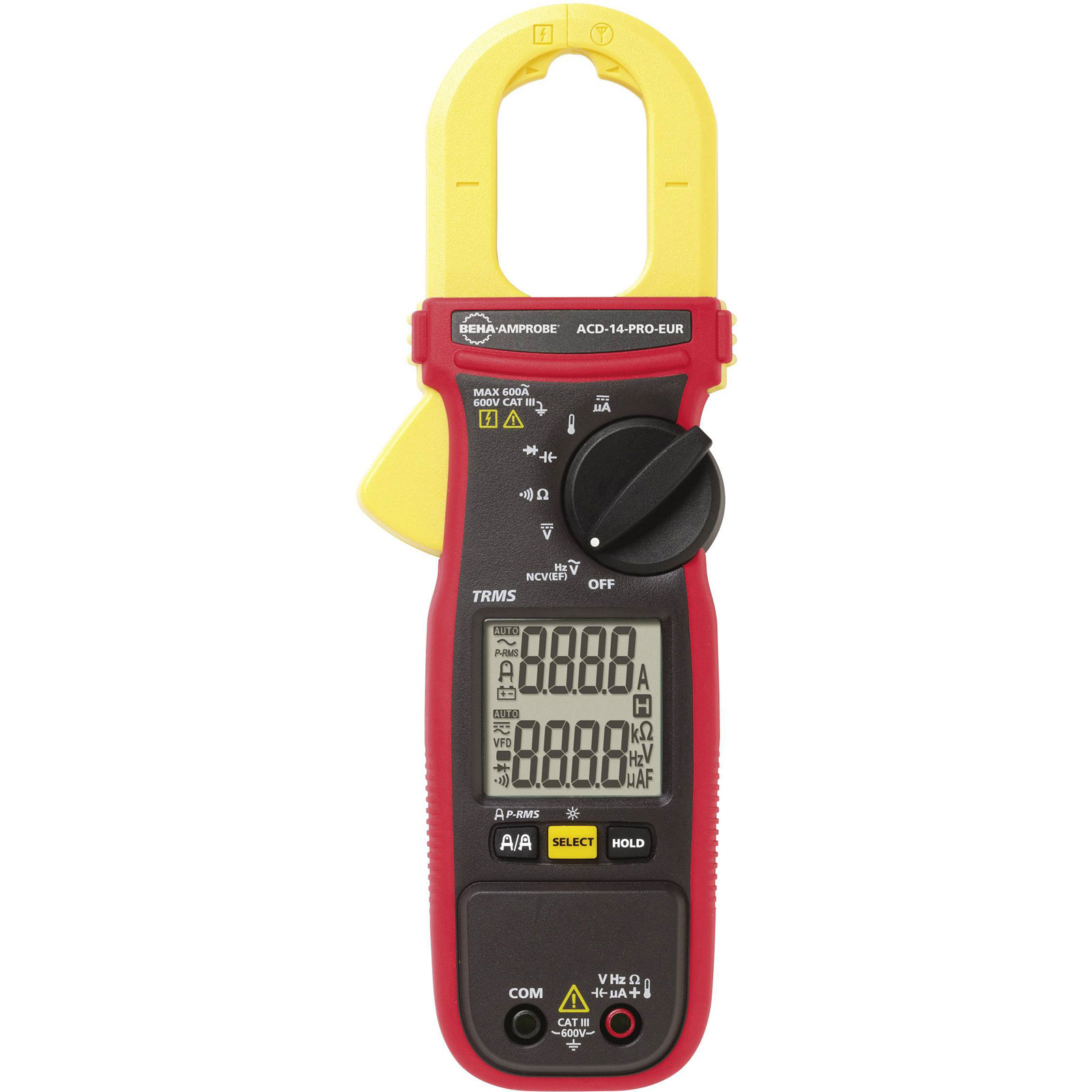

Beha Amprobe 4718989 ACD-14-PRO-EUR Clamp Meter Digital CAT III 600V 6000

Product Details

The Beha Amprobe ACD-14-PRO-EUR Clamp Meter is a digital handheld multimeter designed for precise voltage and current measurements. It features a CAT III 600 V rating and a 6000-count display, making it suitable for professional electrical testing environments. Common uses include acting as a voltmeter, ammeter, and frequency tester for a wide range of electrical and electronic applications.
NameValue
A AC reading range (min.)0.1A
Maximum DC Current Measurement2000µA
AC resistance10MΩ
Maximum AC Current Measurement600A
Amperage reading range DC (min.)1µA
Basic Accuracy1%
Calibrated toManufacturer's standards (no certificate)
Current readingAC
Dc Resistance10MΩ
Dimensions(L x W x H) 37 x 77 x 219 mm
DisplayDigital
Display Count6000
Frequency reading range5 Hz - 999.9Hz
Height219mm
Length37mm
Measurement type (details)True RMS
Misc AttributeACD-14-PRO-EUR
Opening range of current clamps30mm
Power supply (details)2x AAA battery
CategoryCAT III 600 V
Reading range - capacity1 µF - 2500µF
Reading range - resistance0.1 Ω - 6000kΩ
Temperature reading range (max.)+400°C
Temperature reading range (min.)-40°C
TypeClamp meter
V AC reading range (min.)0.1V
Voltage meteringAC/DC
Voltage reading range DC (min.)0.1V
Weight208g
Width77mm
