Video DisplaySpecification：
Input Voltage: AC100V-240V 50/60Hz
Rated Power: 345W
Actual Total Power: 345W
Light Source: 345W HID
Beam Angle: 2°
Beam Aperture: 145mm
Color Temperature: 8000K
CRI: Ra≥80
Luminous Flux: 11,490lm
Optimal Projection Distance: 5-20m
Illuminance: 300,000Lux@10m
Bullet Life: 1500h
Focus: 0-100% Linear Focus Adjustment
Flicker: 1-25Hz
Color Wheel: 14+1 Color Wheel
Fixed Pattern Wheel: 13+1
7Colors Effect: An independent wheel with 6 colors, which can create a rainbow effect on the gobos.
Effects: Frost-adjustable Wash effects Prism 1: 8-prism
Prism 2: 48-prism
Focusing Angle: 2°～8° continuous electric focusing
X-axis: 540°, fine-tuning accuracy: 16-bit precision control
Y-axis: 270°, fine-tuning accuracy: 16-bit precision control
Operating Modes: Auto-running, voice-activated, master-slave, DMX
Control Channels: 16CH
Protocols: Standard DMX512 protocol, RDM protocol
Data Connection: Three-pin XLR input/output
Display: LCD screen display
Protection Rating: IP20
Operating Environment: -10℃-40℃
Material: Sheet metal structure + plastic housing
Product Size: 31.6x21.6x52.9cm/12.4x8.5x20.8in
Net Weight: 12.5kg/27.6lb
Rated Power: 345W
Actual Total Power: 345W
Light Source: 345W HID
Beam Angle: 2°
Beam Aperture: 145mm
Color Temperature: 8000K
CRI: Ra≥80
Luminous Flux: 11,490lm
Optimal Projection Distance: 5-20m
Illuminance: 300,000Lux@10m
Bullet Life: 1500h
Focus: 0-100% Linear Focus Adjustment
Flicker: 1-25Hz
Color Wheel: 14+1 Color Wheel
Fixed Pattern Wheel: 13+1
7Colors Effect: An independent wheel with 6 colors, which can create a rainbow effect on the gobos.
Effects: Frost-adjustable Wash effects Prism 1: 8-prism
Prism 2: 48-prism
Focusing Angle: 2°～8° continuous electric focusing
X-axis: 540°, fine-tuning accuracy: 16-bit precision control
Y-axis: 270°, fine-tuning accuracy: 16-bit precision control
Operating Modes: Auto-running, voice-activated, master-slave, DMX
Control Channels: 16CH
Protocols: Standard DMX512 protocol, RDM protocol
Data Connection: Three-pin XLR input/output
Display: LCD screen display
Protection Rating: IP20
Operating Environment: -10℃-40℃
Material: Sheet metal structure + plastic housing
Product Size: 31.6x21.6x52.9cm/12.4x8.5x20.8in
Net Weight: 12.5kg/27.6lb
Features:
1. Ultra-Narrow 2° Beam & High-Intensity Output
Featuring a 145mm large-aperture precision optical lens with a minimum beam angle of just 2°, delivering extremely concentrated light. Powered by a 345W HID professional light source (11,490 lumens), it produces up to 300,000 Lux at 10 meters and excels in a 5-20m projection range. The 8000K cool white light with Ra≥80 ensures vivid color rendering and powerful beam penetration for stunning visual effects.
Featuring a 145mm large-aperture precision optical lens with a minimum beam angle of just 2°, delivering extremely concentrated light. Powered by a 345W HID professional light source (11,490 lumens), it produces up to 300,000 Lux at 10 meters and excels in a 5-20m projection range. The 8000K cool white light with Ra≥80 ensures vivid color rendering and powerful beam penetration for stunning visual effects.

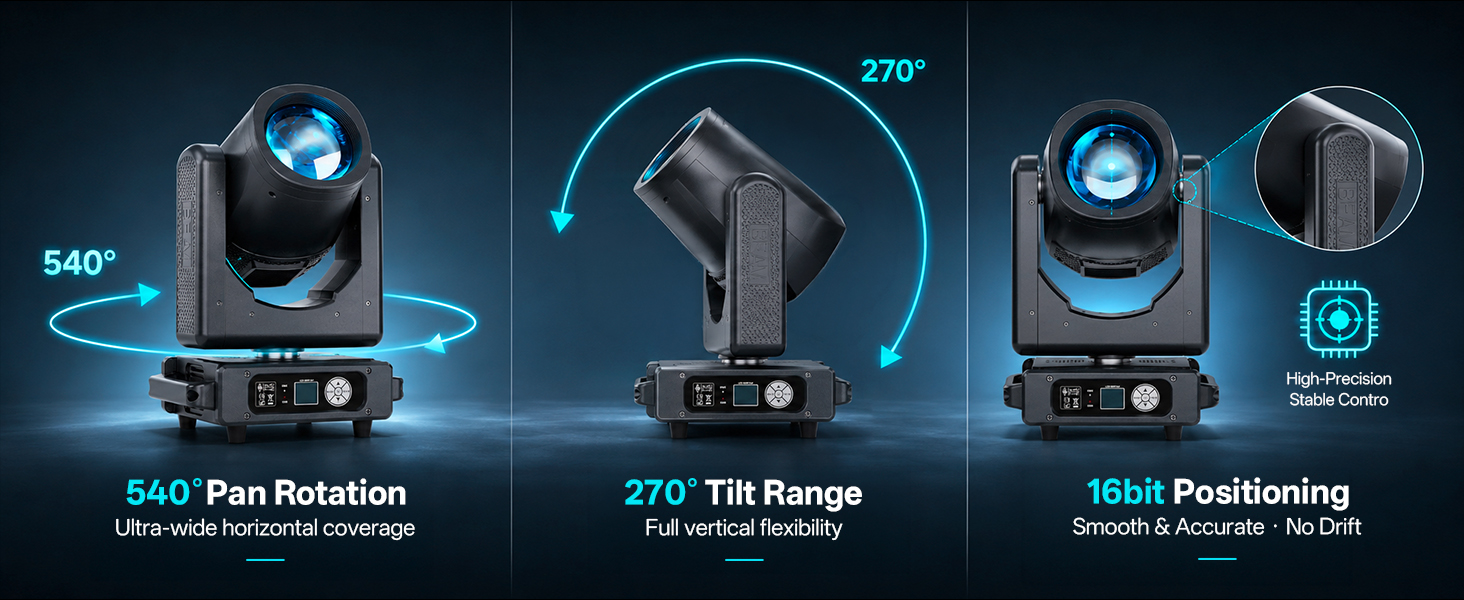

2. Smooth 0-100% Linear Focus & Wide-Angle Pan/Tilt Movement
Supports stepless 0-100% linear focus adjustment for seamless brightness and spot transitions. Continuous motorized zoom from 2° to 8° gives you full control over beam size. Enjoy 540° pan and 270° tilt range with 16-bit high-precision positioning for stable, drift-free operation. Built-in 1-25Hz strobe function easily creates dynamic light rhythms for any high-energy performance.
Supports stepless 0-100% linear focus adjustment for seamless brightness and spot transitions. Continuous motorized zoom from 2° to 8° gives you full control over beam size. Enjoy 540° pan and 270° tilt range with 16-bit high-precision positioning for stable, drift-free operation. Built-in 1-25Hz strobe function easily creates dynamic light rhythms for any high-energy performance.
3. Versatile Color Wheel, Rainbow Effects & Interchangeable Patterns
Comes with a 14-color + white color wheel and a dedicated 6-color wheel for stunning rainbow effects and macro color changes, offering unlimited color combinations. Includes 13 classic gobo patterns plus adjustable frost/fog effect, allowing seamless switching between beam, pattern, and wash modes to build rich, three-dimensional stage lighting.
Comes with a 14-color + white color wheel and a dedicated 6-color wheel for stunning rainbow effects and macro color changes, offering unlimited color combinations. Includes 13 classic gobo patterns plus adjustable frost/fog effect, allowing seamless switching between beam, pattern, and wash modes to build rich, three-dimensional stage lighting.
4. Dual-Prism System for Dynamic & Immersive Effects
Equipped with both an 8-prism and a 48-prism structure—each independently rotatable in both directions and stackable for endless combinations. This dual-prism system produces a variety of moving, dynamic light effects with high visual impact, instantly elevating the atmosphere and energy of any event.
Equipped with both an 8-prism and a 48-prism structure—each independently rotatable in both directions and stackable for endless combinations. This dual-prism system produces a variety of moving, dynamic light effects with high visual impact, instantly elevating the atmosphere and energy of any event.

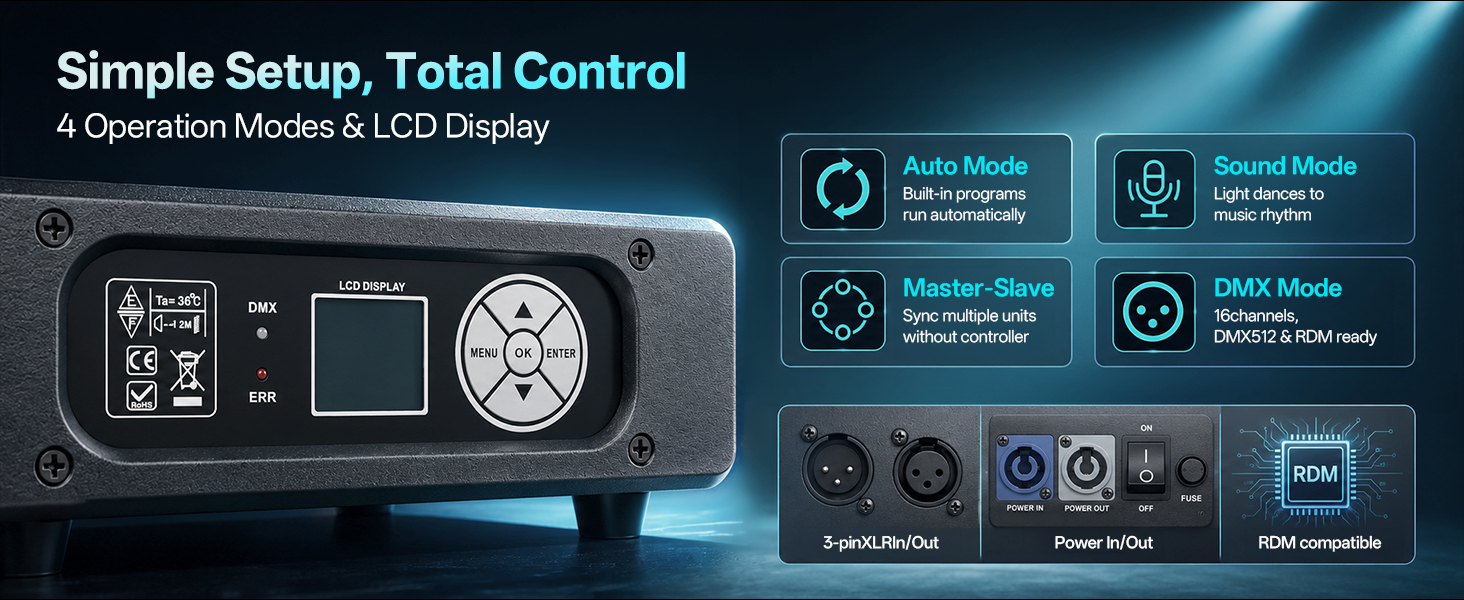

5. All-in-One Functionality with Flexible Control Modes
Integrates beam, pattern, and wash functions into a compact, cost-effective design. Supports four operating modes: auto, sound-active, master/slave, and DMX (16 standard channels). Compatible with DMX512 and RDM protocols via stable 3-pin XLR connections. Features an easy-to-use LCD display for quick setup. Perfect for stage performances, fashion shows, and small-to-medium commercial events.
Integrates beam, pattern, and wash functions into a compact, cost-effective design. Supports four operating modes: auto, sound-active, master/slave, and DMX (16 standard channels). Compatible with DMX512 and RDM protocols via stable 3-pin XLR connections. Features an easy-to-use LCD display for quick setup. Perfect for stage performances, fashion shows, and small-to-medium commercial events.

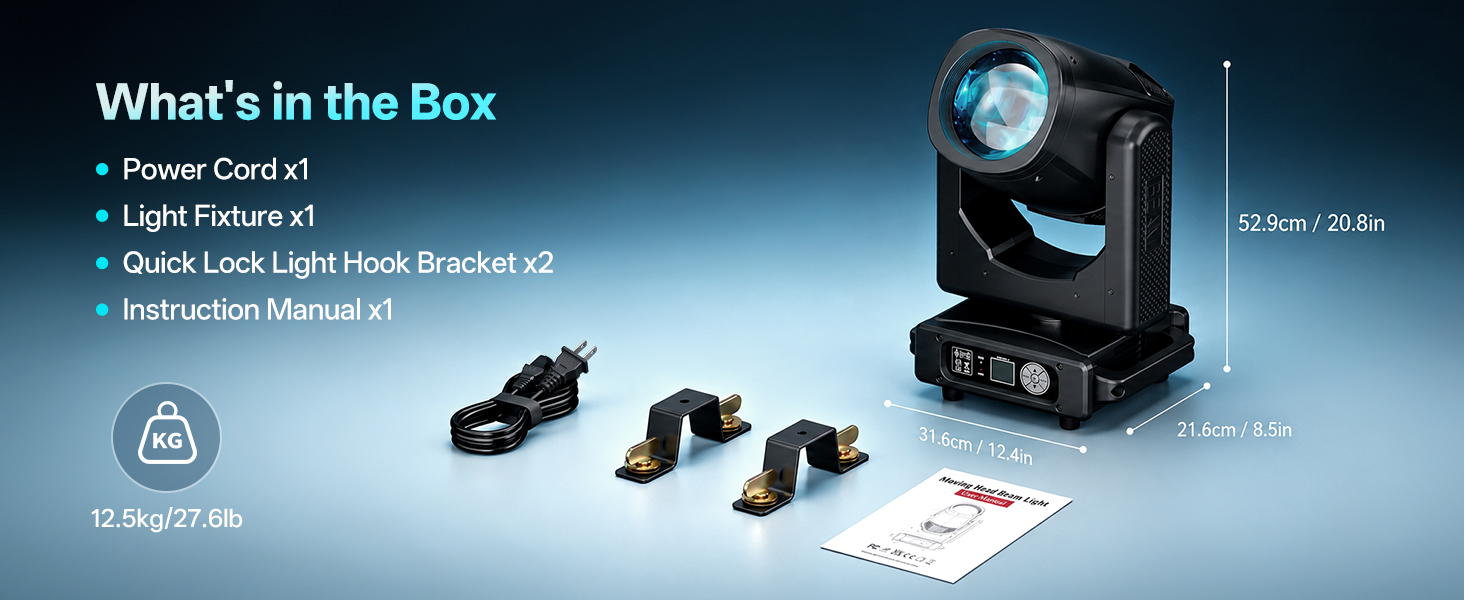

Packing Lists:
Power Cord x1
Light Fixture x1
Quick Lock Light Hook Bracket x2
Instruction Manual x1
Light Fixture x1
Quick Lock Light Hook Bracket x2
Instruction Manual x1
