HAKRCF723OV2 Flight Control Specification
Product Features:
1.PCB adopts high-end 6-layer 1oZ thick copper skin, strong anti-interference ability.
2. Using double gyroscope design to reduce the error of one gyroscope.
3. Industrial grade LDO, high temperature resistance.
4. Use in-line connector, easy to install, no solder,
5. Onboard with 4 programmable LED lights, you can freely switch the LED lighting effect
5. Reserve the external LED light with 10V power supply, you can customize the remote control channel for the switch control of the light belt.
7. Diagram transmission power supply, you can set the switch channel through the ground station, freely open or close the group diagram transmission power, easy to adjust the ground.
8. High quality Japanese Murayu capacitor, strong filtering performance.

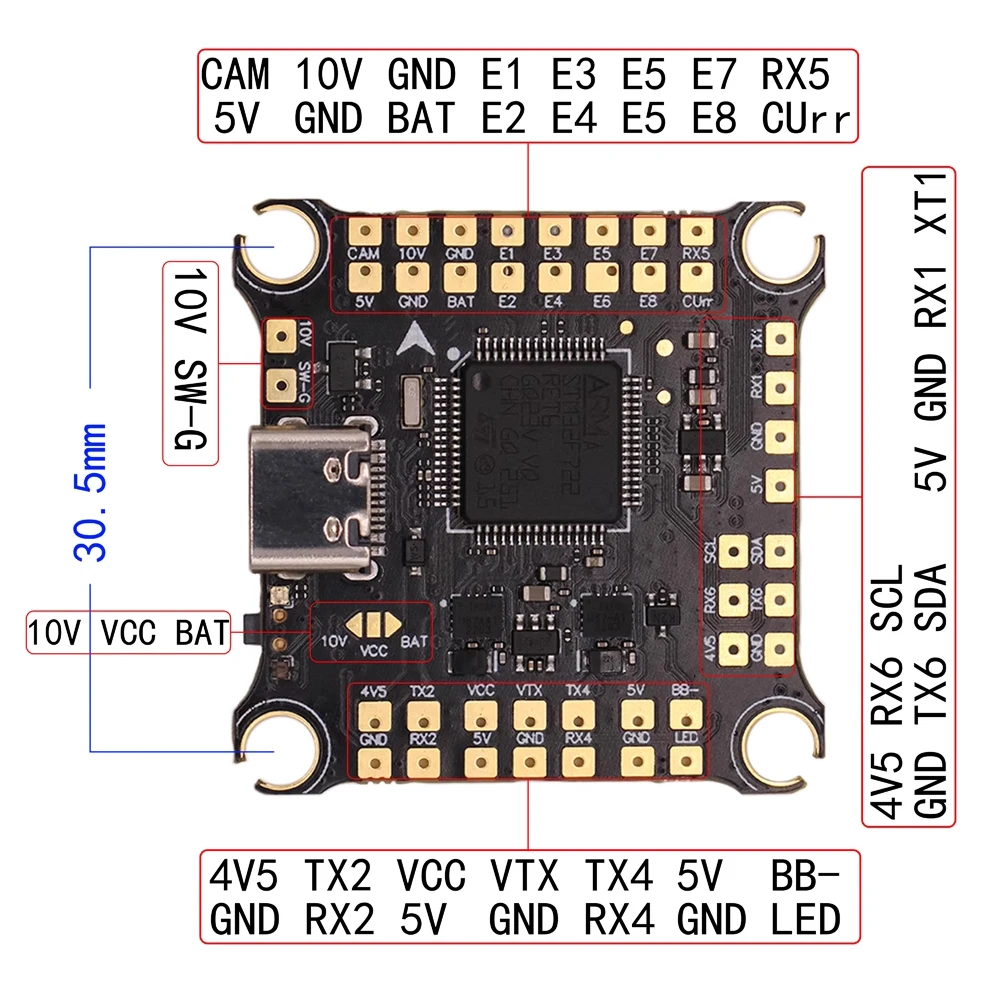

Size: 36*36mm (30.5mm-30.5mm mounting hole)
Packing size: 64*64*35mm
Net weight: 8.5g
Packing weight: 38.5g
Flight Control Parameters:
CPU:STM32F722RET6
IMU:ICM42688 dual gyroscope
OSD:AT7456E
Barometer: Integrated
Black cherry: 16M
BEC:5V/3A
BEC: 10 v / 2.5 A
LED: Adjustable LED light
Sensor: Built-in current sensor
Firmware version: HAKRCF722V2
Receiver: Frsky Futaba/Flysky/TBSCrossfire/DSMX: DSM2 receiver
