NOTICE: THIS TOOL IS A HAND TOOL, PLEASE DO NOT USE POWER
TOOL,AIR TOOL AND IMPACT TOOL!
Product Description:
Heavy Duty Coil Spring Compressor Strut Suspension
Clamp With Safety Bracket Set quickly and safely compresses the spring for easy
replacement or repair struts, shock absorbers and spring sets in your car.

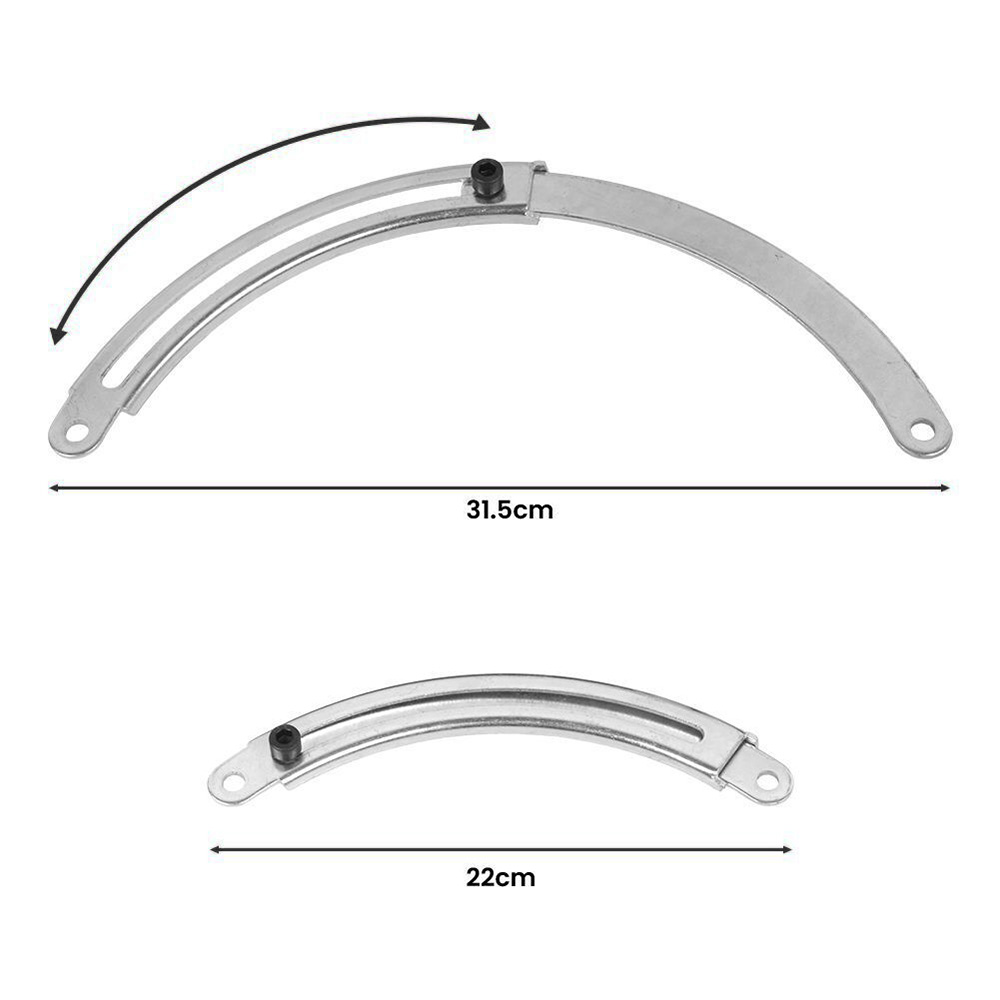

This coil spring compressor set has a telescopically adjustable
protection bracket that reduces tool deflection, bending and warping even at
high tension, ensures stable parallel compression and prevents accidental
release of the spring at high tension.

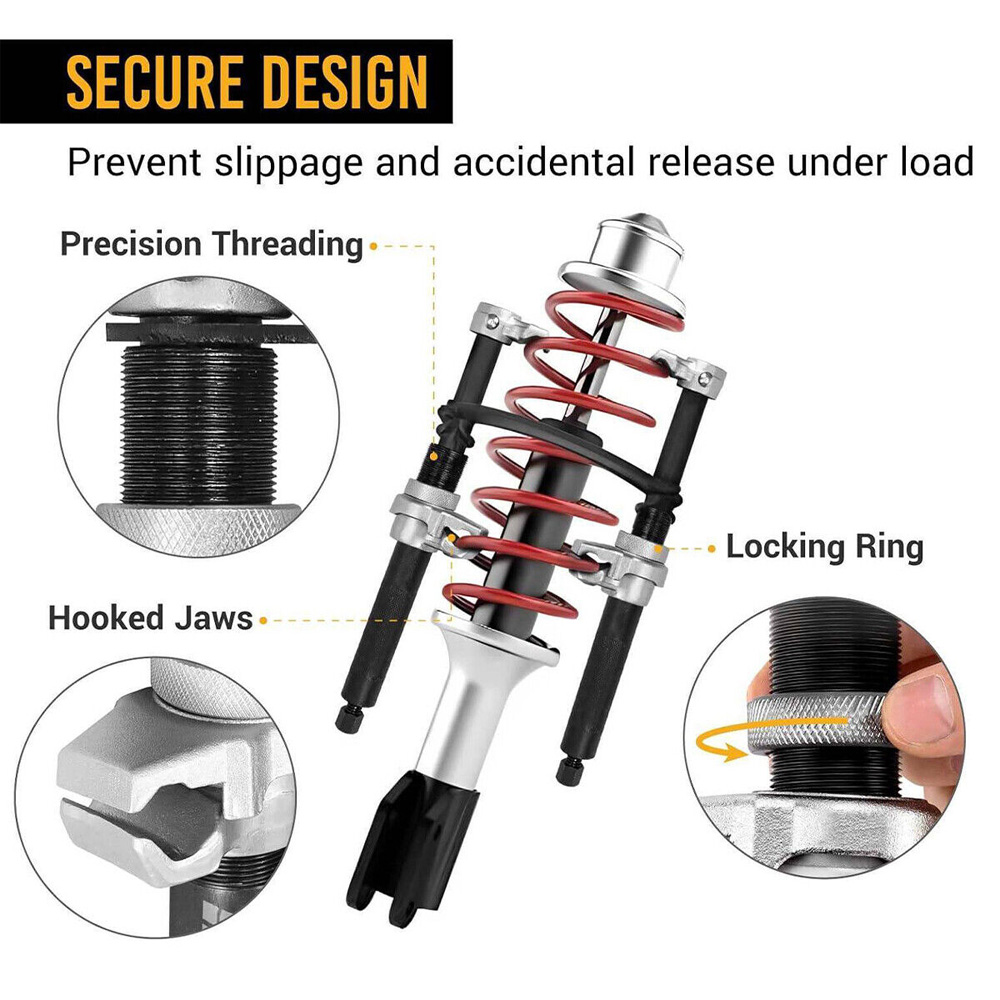

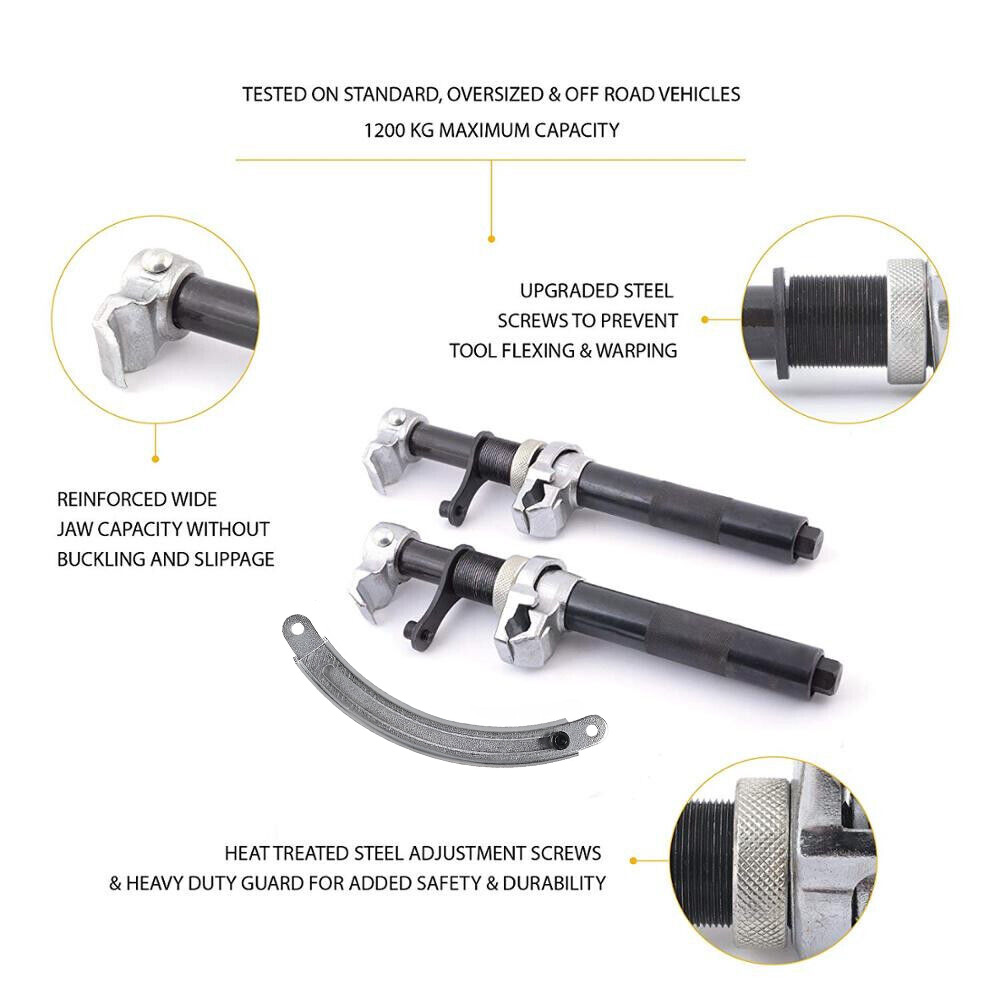

Anti-skid design on the hooked jaws provides a large contact area for
superior handling and stability during compression. The metal locking ring
design enables the metal ring to lock the jaws securely, avoiding slippage and
increasing safety.

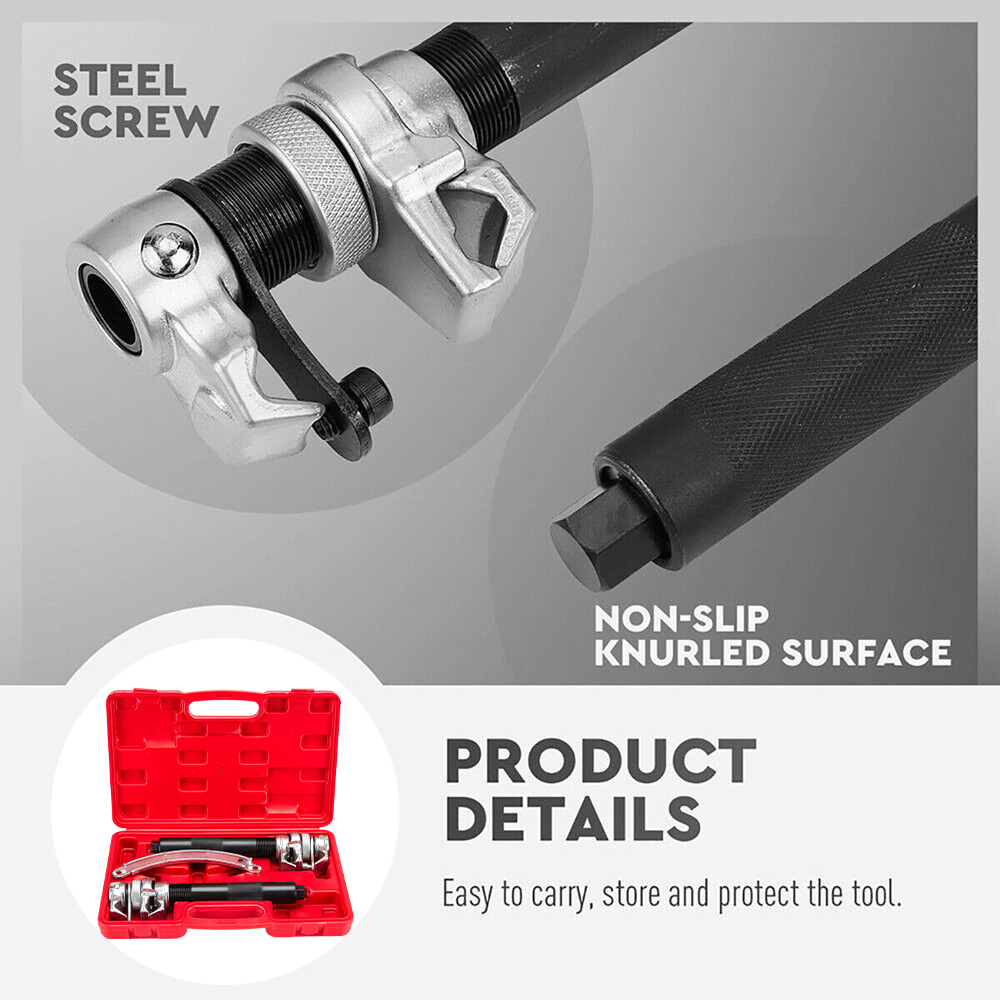

The knurled texture ensures a sure and safe grip as well as superior stability
as you work. The screw compressor can hold the spring tightly by rotating the
easy to use hexagonal nut. Use 19 mm hex socket or wrench.

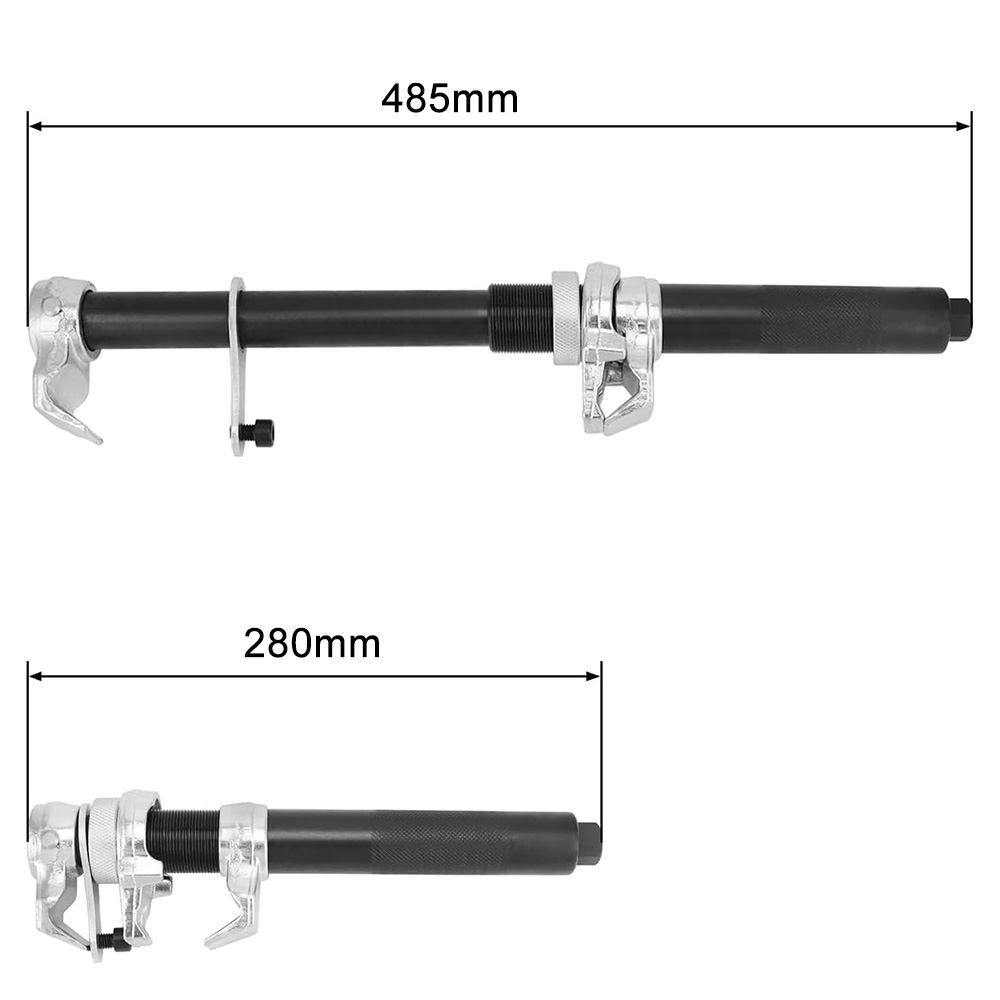

This tool has a wide jaw capacity of approximately 2" -11" (51 - 280 mm) and an
adjustable holder suitable for approximately 8.5" - 12" (216-305 mm) diameters
coil. Each pair of the spring compressor tool can withstand a load of up to
approximately 2200lbs(1000 kg).

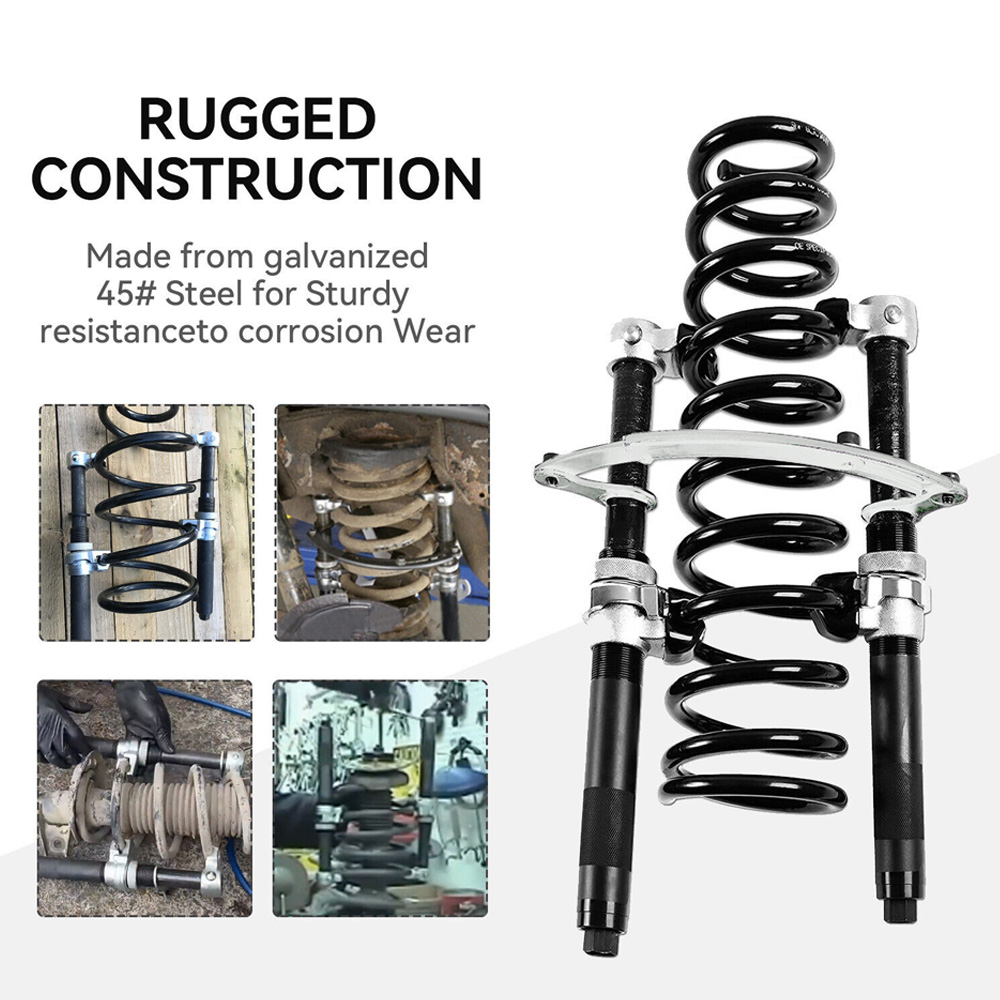

The coil spring compressor is constructed from heat-treated steel, screw and
premium galvanized finish for high durability and corrosion resistance.
Product Specification:

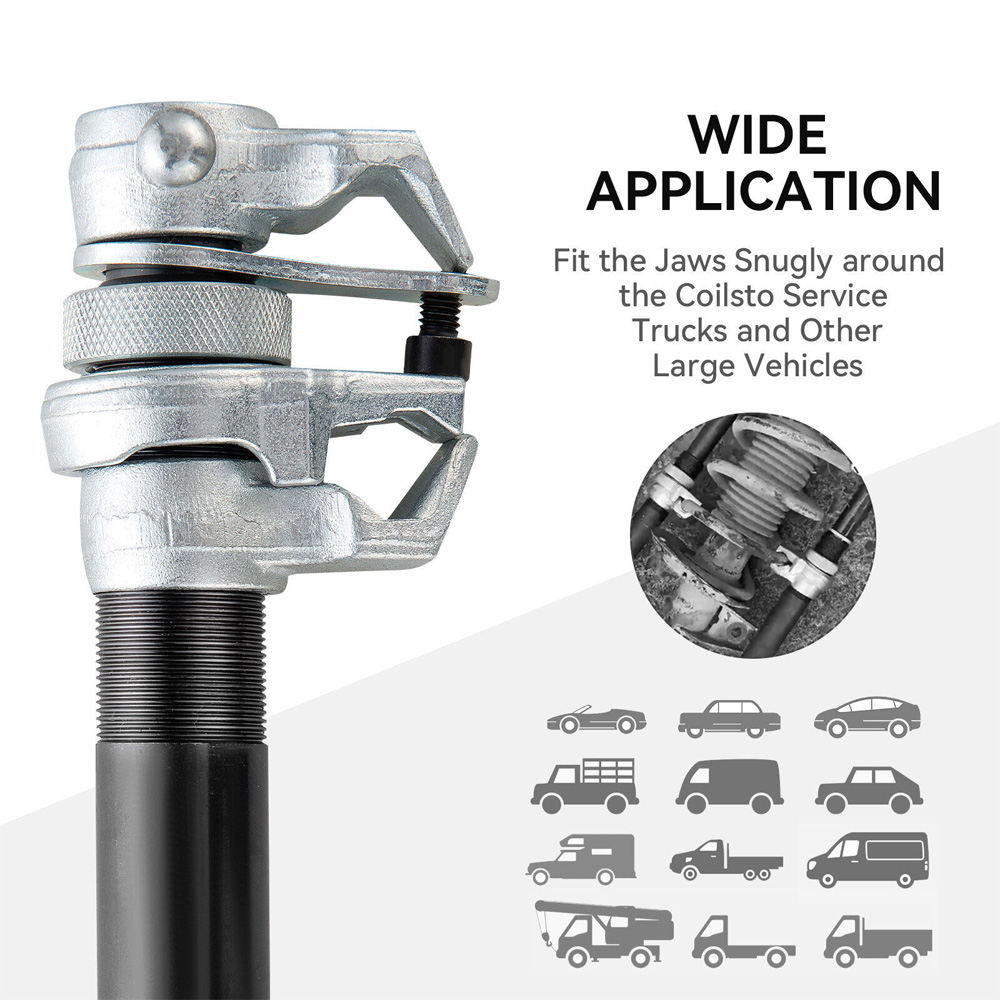

Applicableļ¼Ideal solution for a variety of
vehicles, including trucks and large sedans.
Material: 45# Carbon steel
Maximum load: 1000Kg/2200lbs
Jaw opening: Approx. 2" -11"/51 - 280mm
Fixer length: Approx. 8.5" - 12"/216-305mm
Use with 19 mm socket or spanner.
Installation and use:

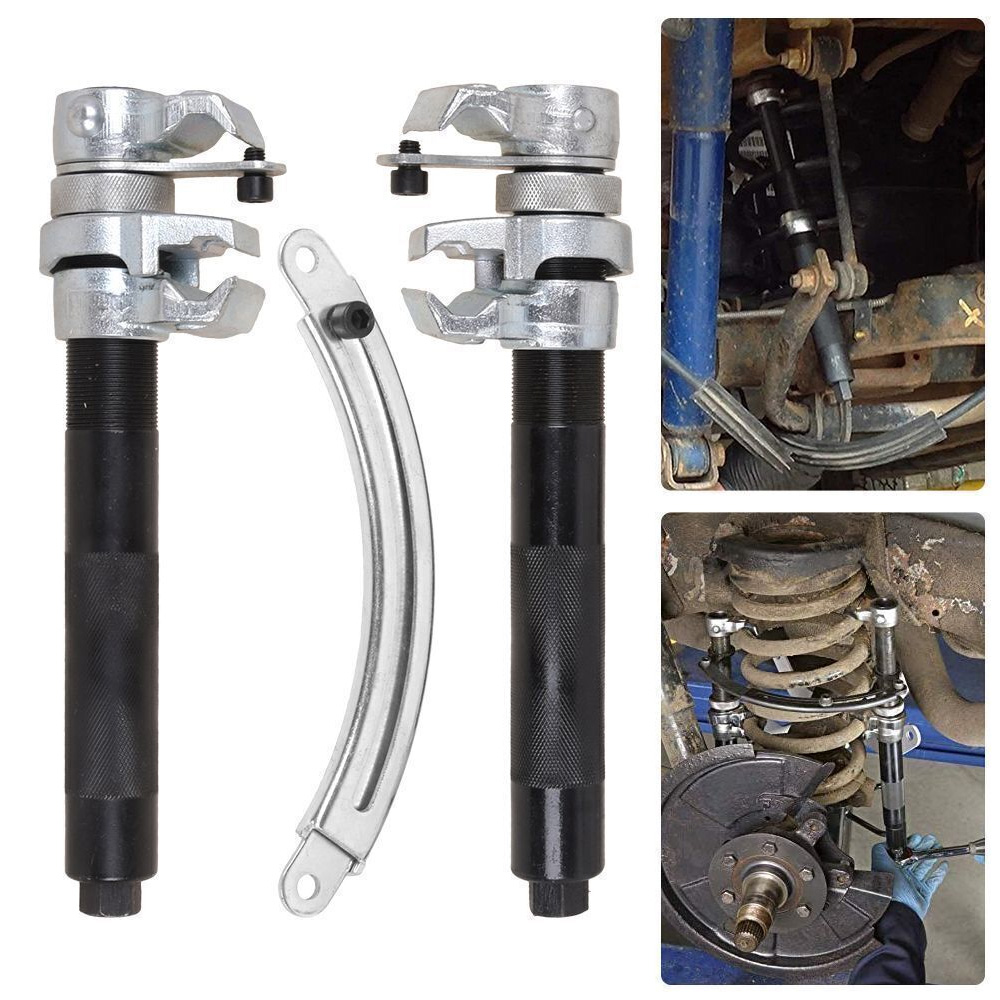

1. Extend internally threaded rod to full length and attach the bracket
jaws onto the spring.
2. Adjust safeguard and tighten locking nut to secure in place.
3. There are two dowels on the fork for the safety guard to be inserted
and the middle nut is kept loose to adjust the guard to the correct length
around the spring.
4. With a hand ratchet or wrench, slowly and evenly crank the hex socket
to compress the spring.

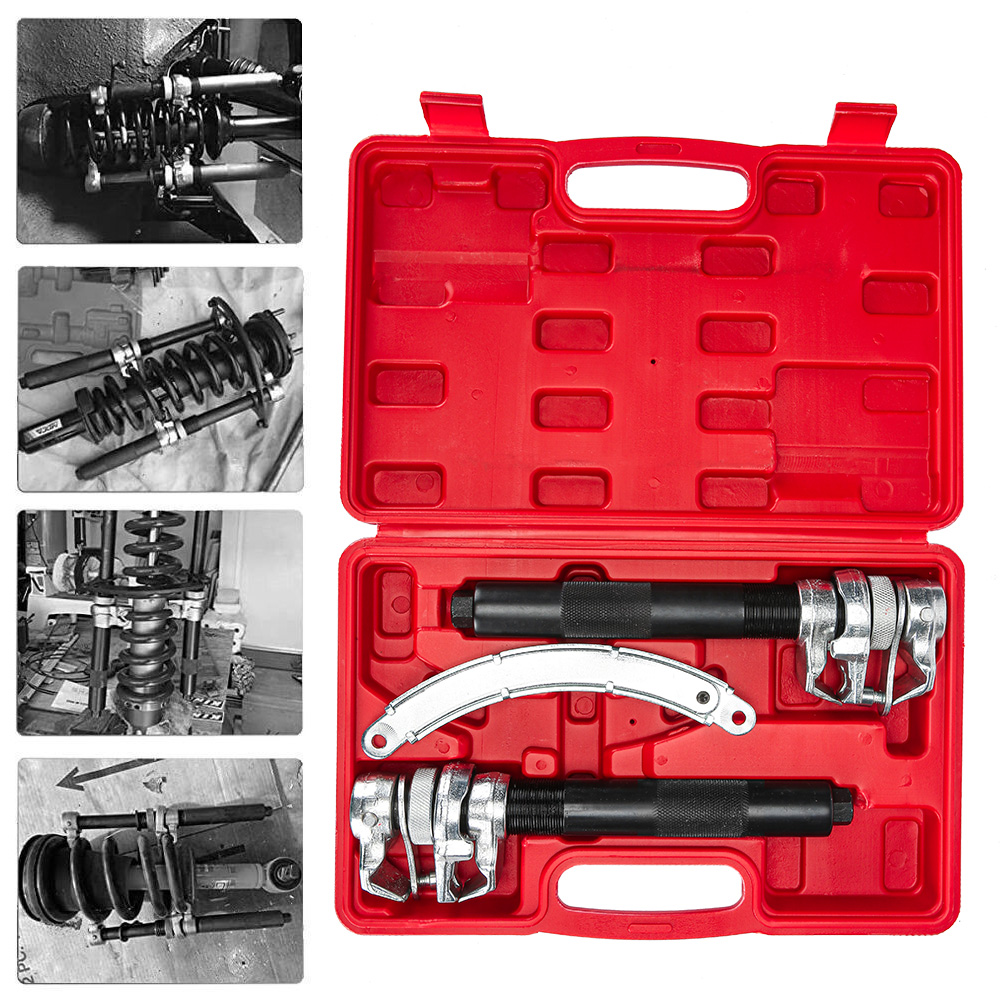

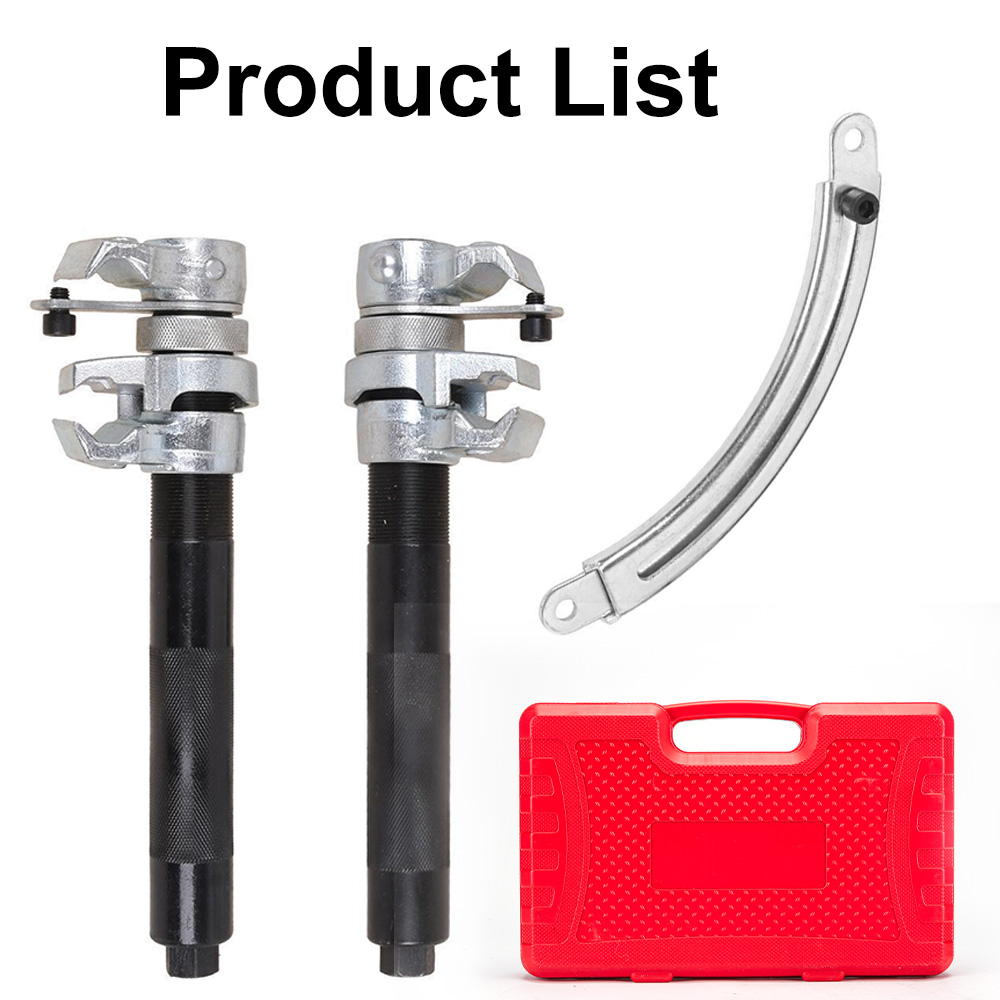

Pacakge Includes:
2pc x Coil spring compressors
1pc x Safety fixed bracket

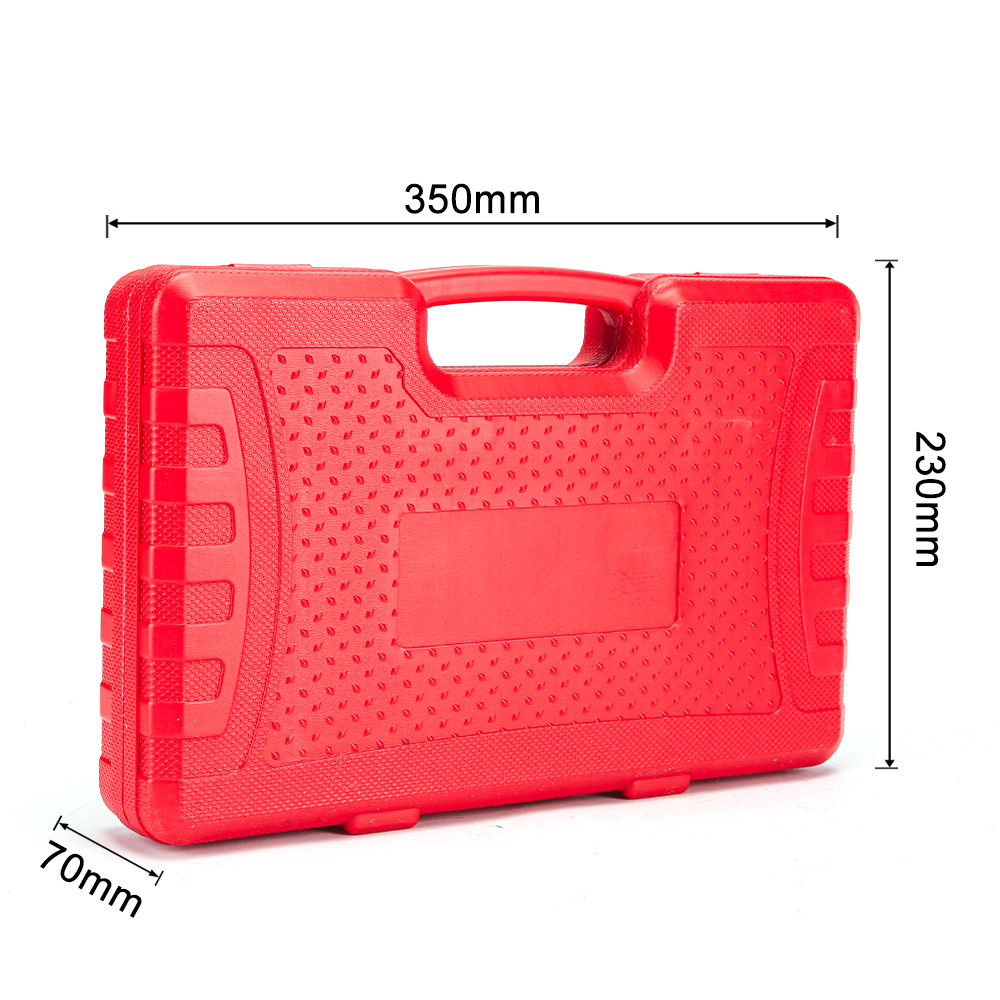

1pc x Blow Moulded Case
Notes:
1.Please allow 1-2mm differs due to manual measurement.
2. Due to the difference between different displays, the picture may not reflect
the actual color of the item. thank you very much!
|
