Description
Type :Scale : 1/8th & 1/10th
Brushed/Brushless : Brushed

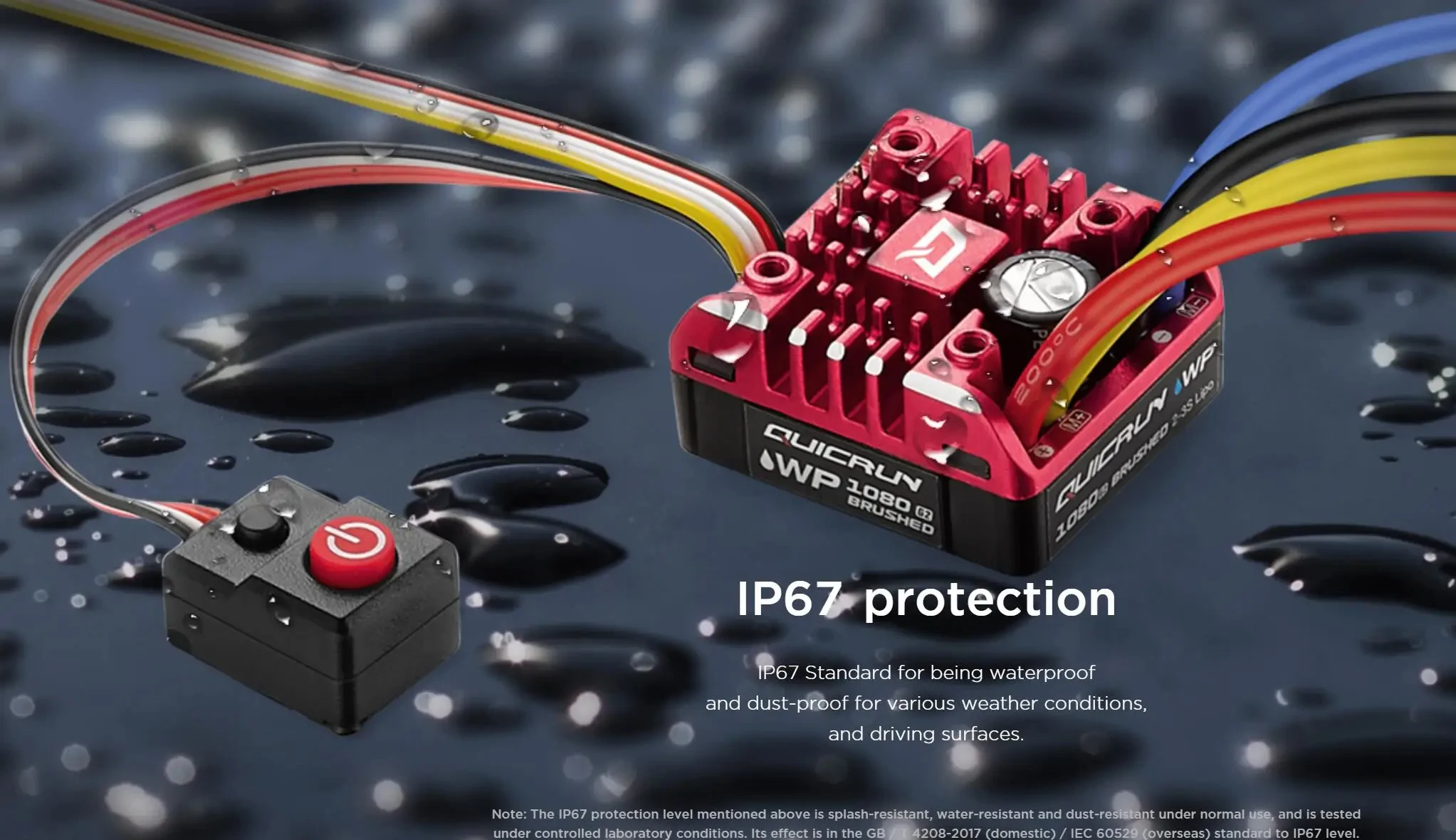

Waterproof : Waterproof

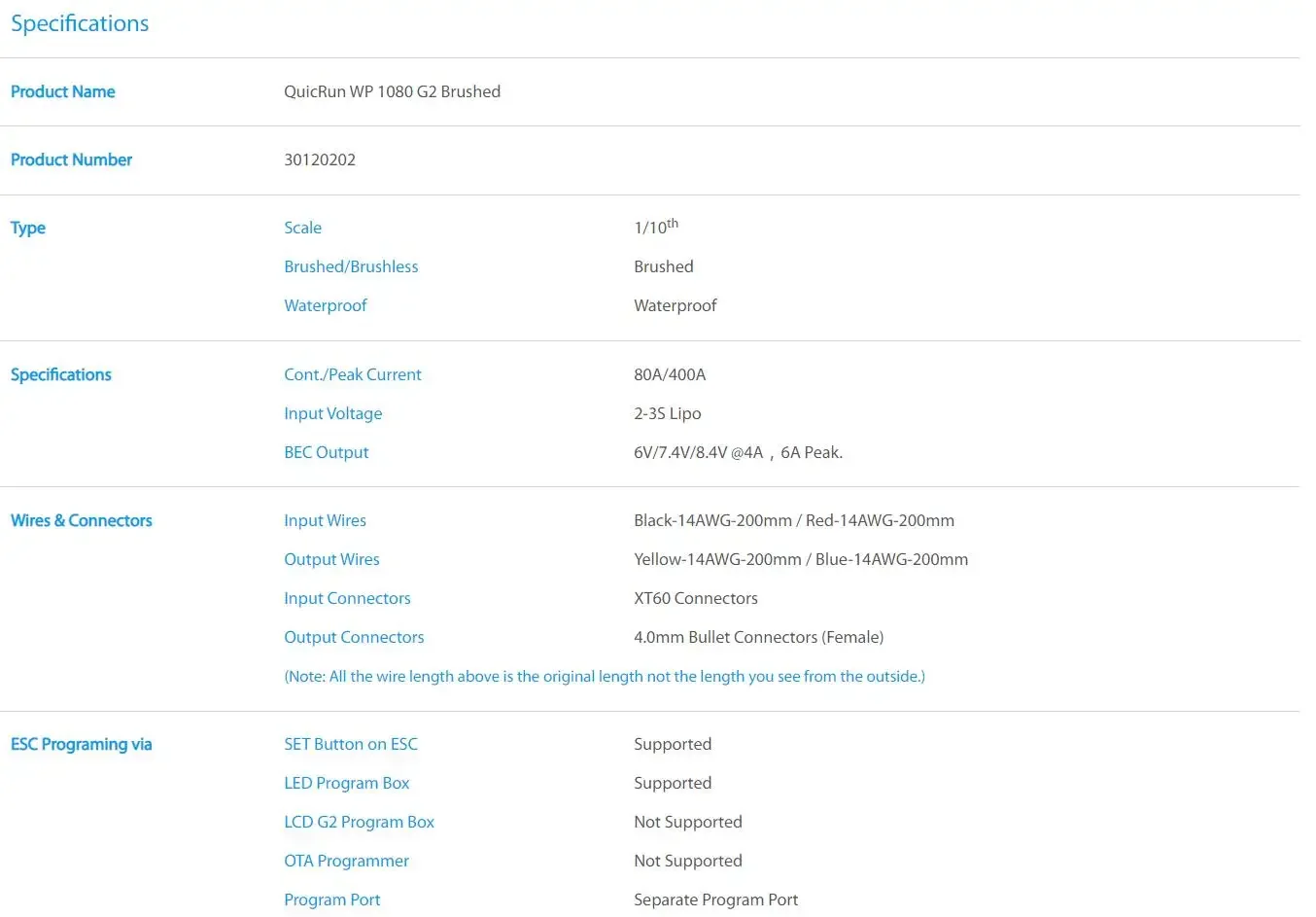

Specifications :
Cont./Peak Current : 80A/400A
Input Voltage : 2-3S Lipo

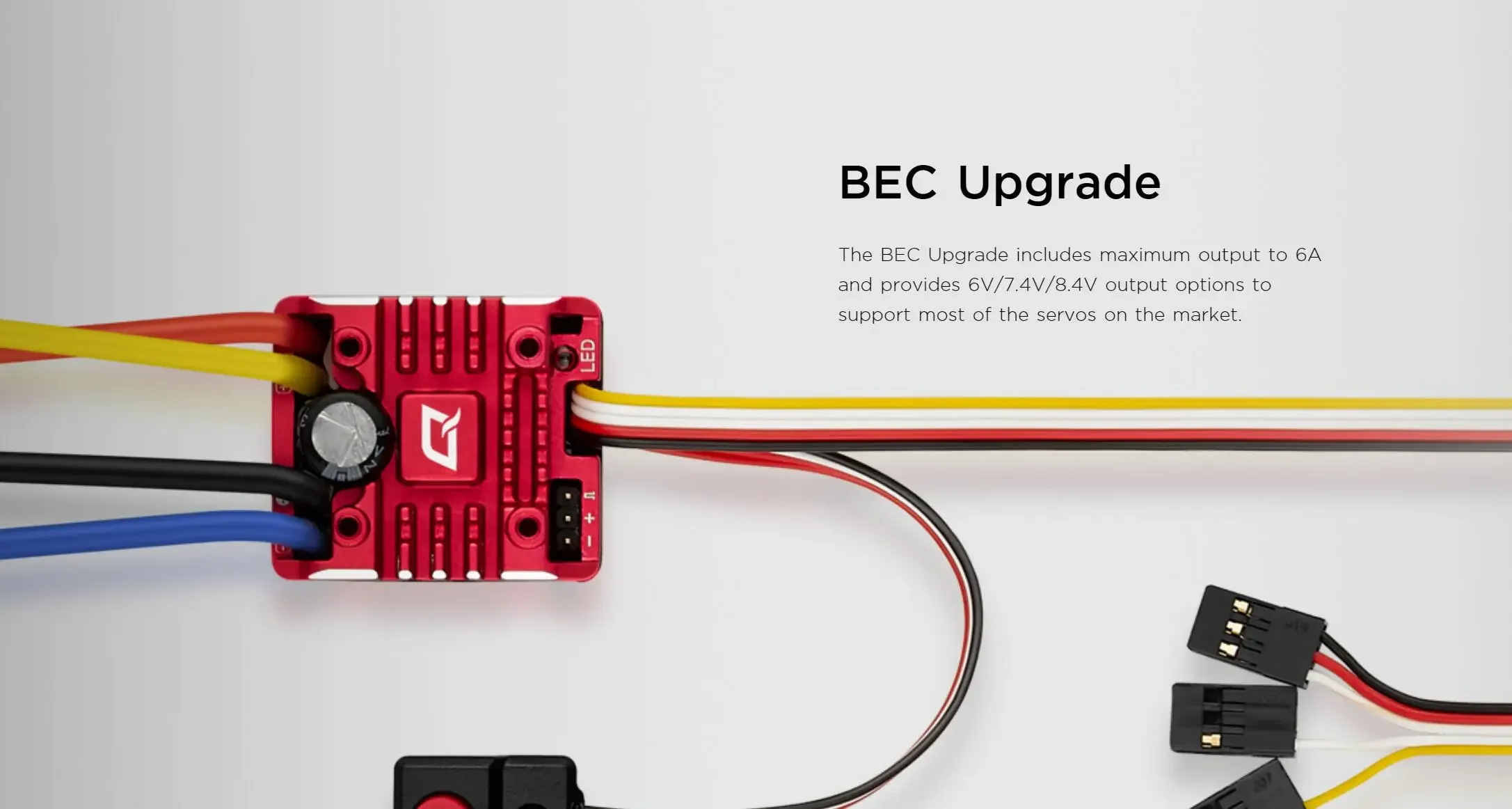

BEC Output : 6V/7.4V/8.4V @4A,6A Peak.
Wires & Connectors :
Input Wires : Black-14AWG-200mm / Red-14AWG-200mm
Output Wires : Yellow-14AWG-200mm / Blue-14AWG-200mm
Input Connectors : XT60 Connectors/ T Connectors
Output Connectors : 4.0mm Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via :
SET Button on ESC : Supported

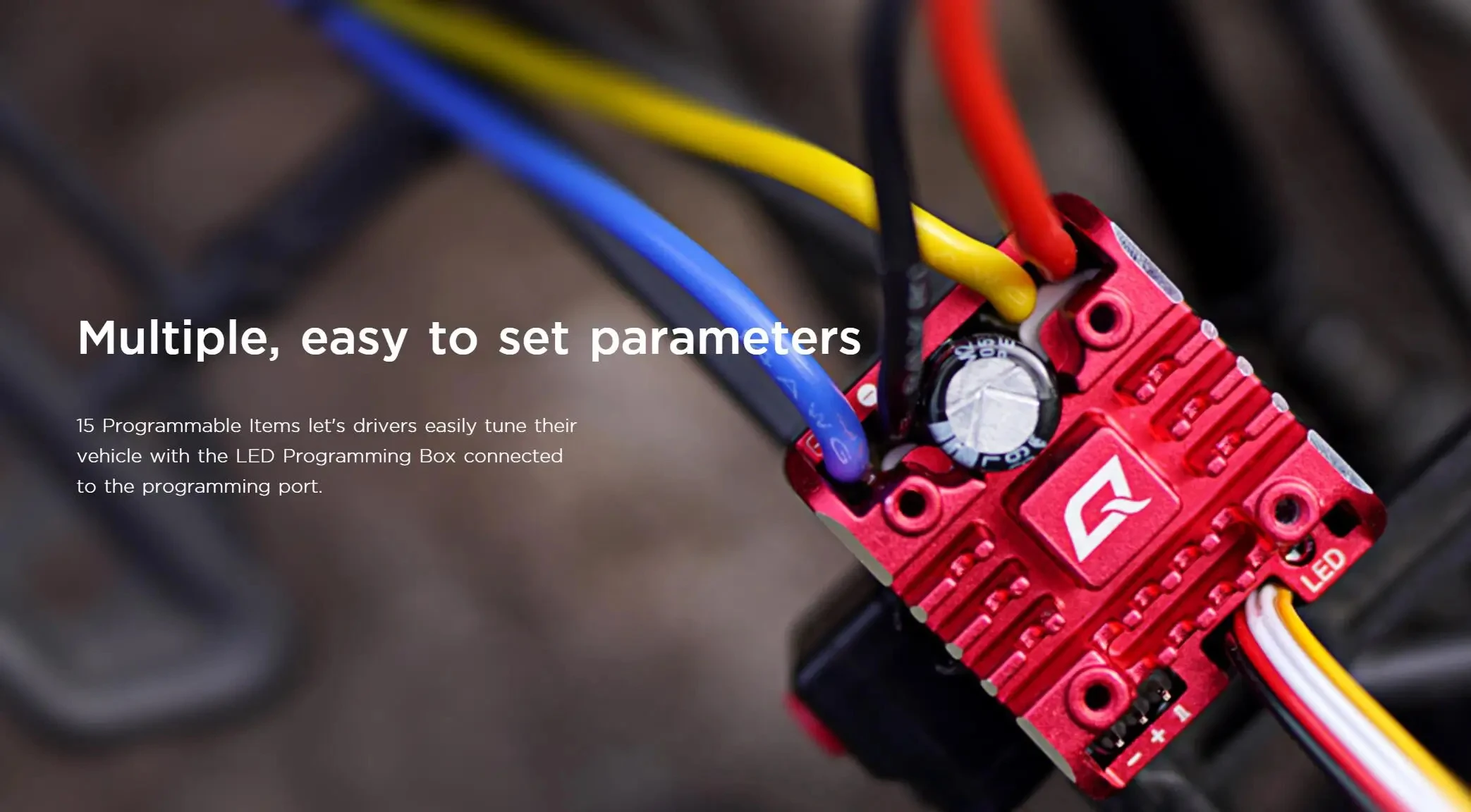

LED Program Box : Supported
LCD G2 Program Box : Not Supported
OTA Programmer : Not Supported
Program Port : Separate Program Port
Firmware :
Firmware Upgrade : Not Supported
Size & Weight :
Size : 37.2X31.9X18.4mm
Weight : 70.2g (w/Wires)
Applications :
Motors : 540&550 Size Brushed Motors
Vehicles : 1/8th,1/10th Rock Crawlers
Package List:
1 * 80A 1080 G2 ESC
