Summary

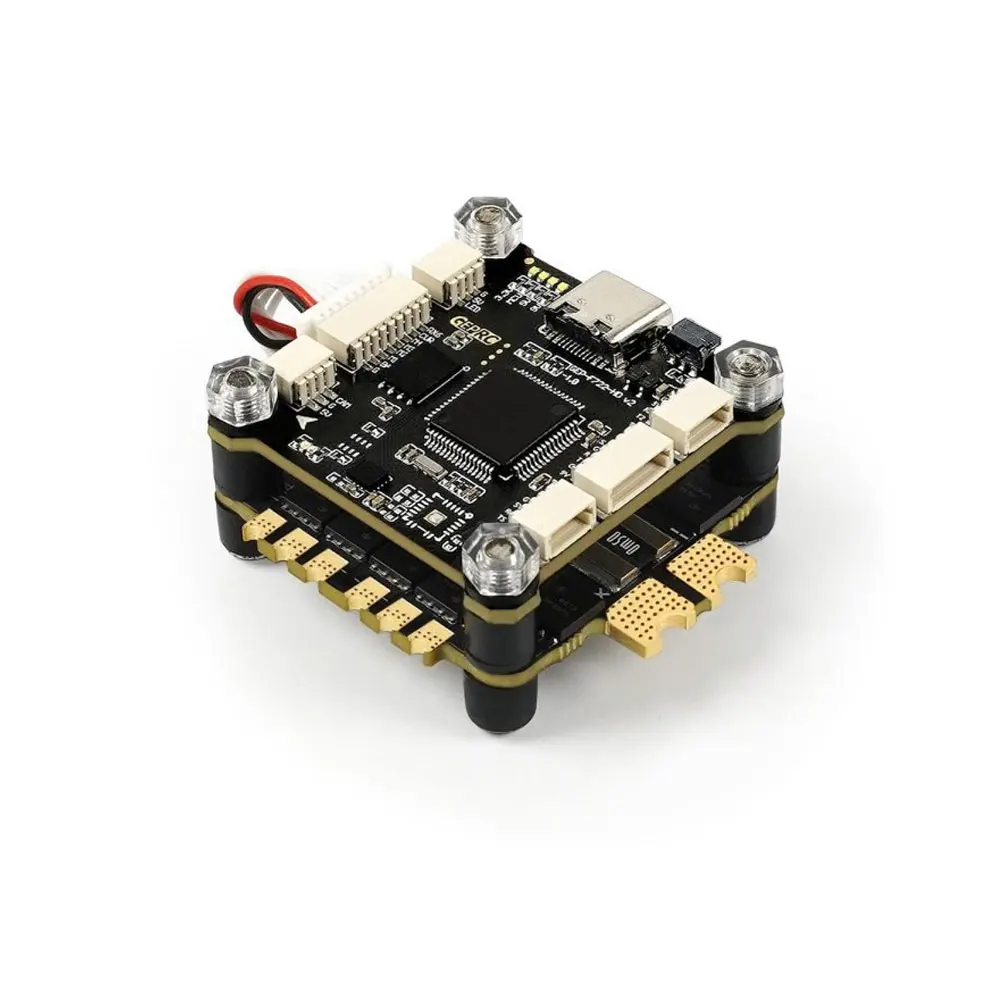

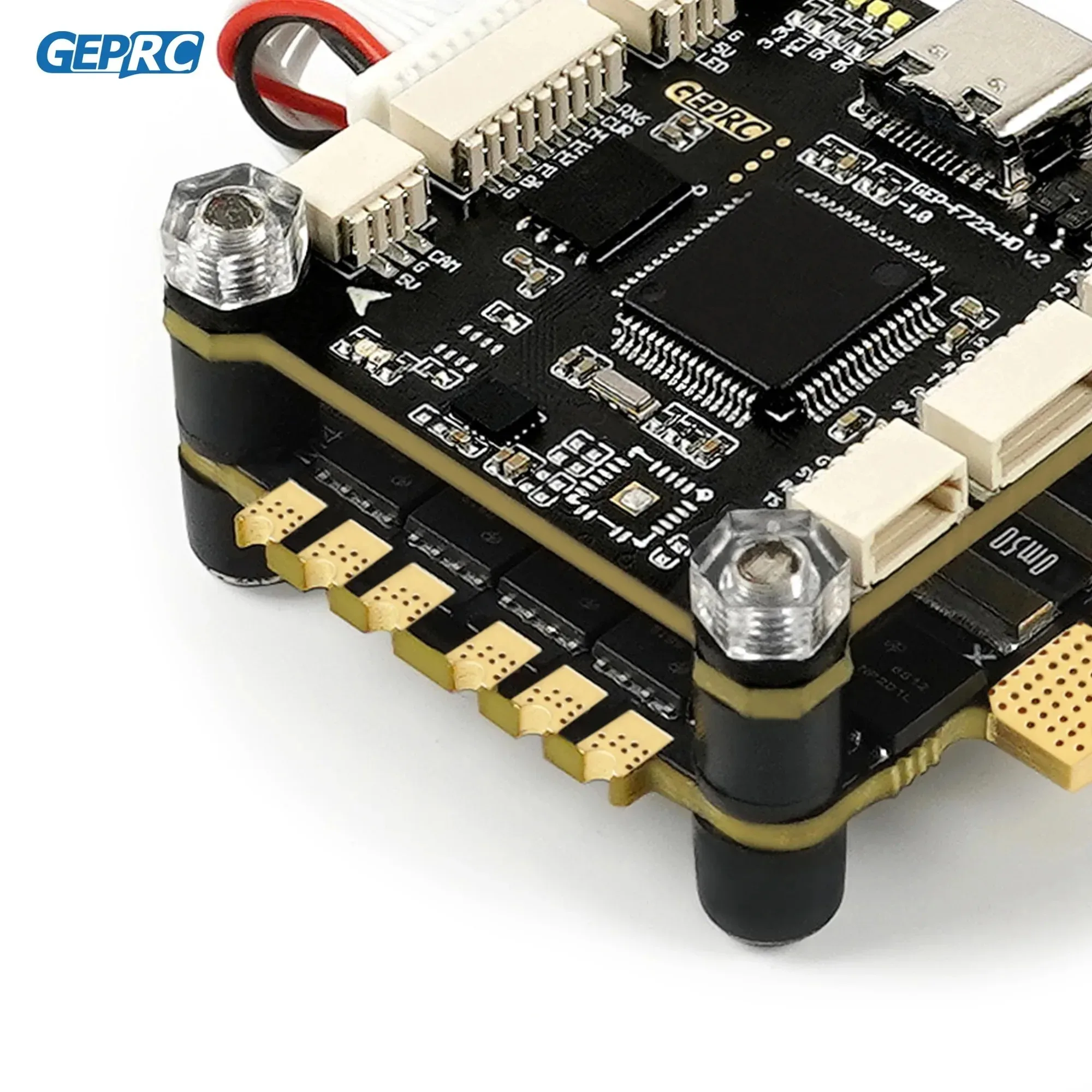

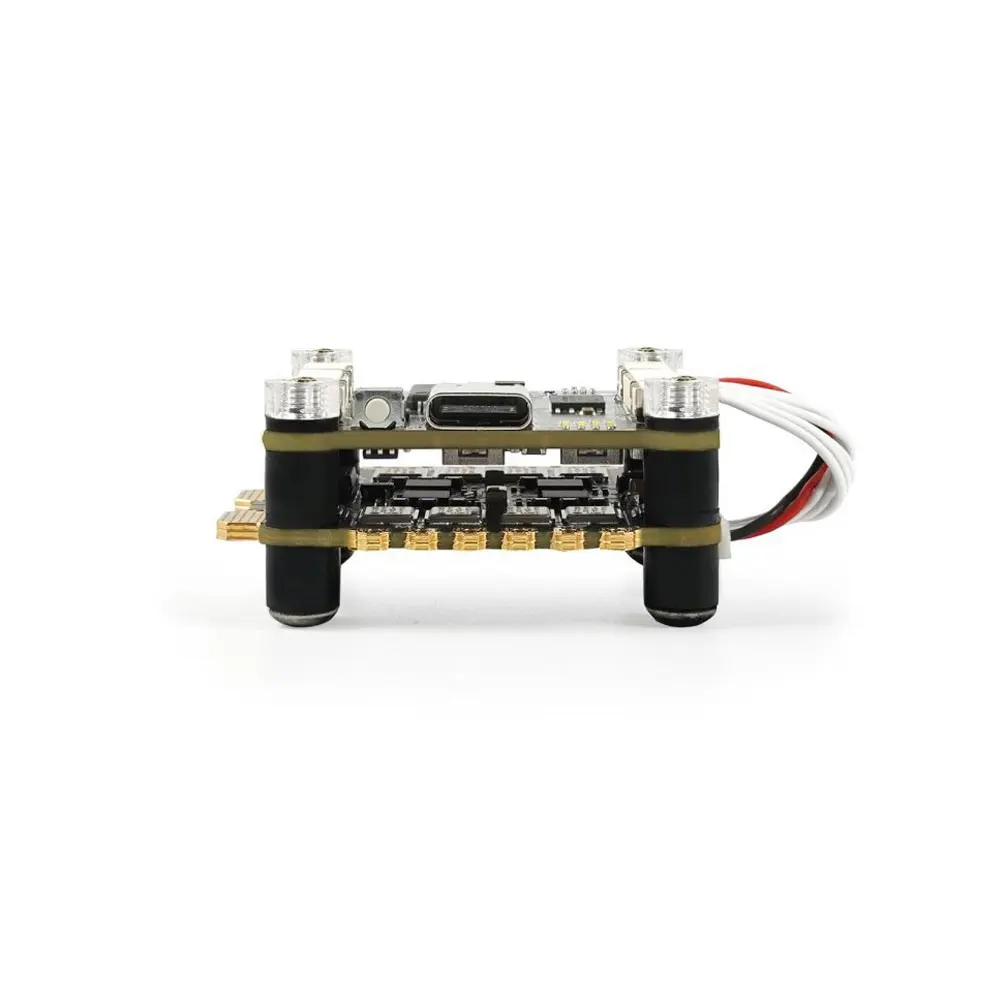

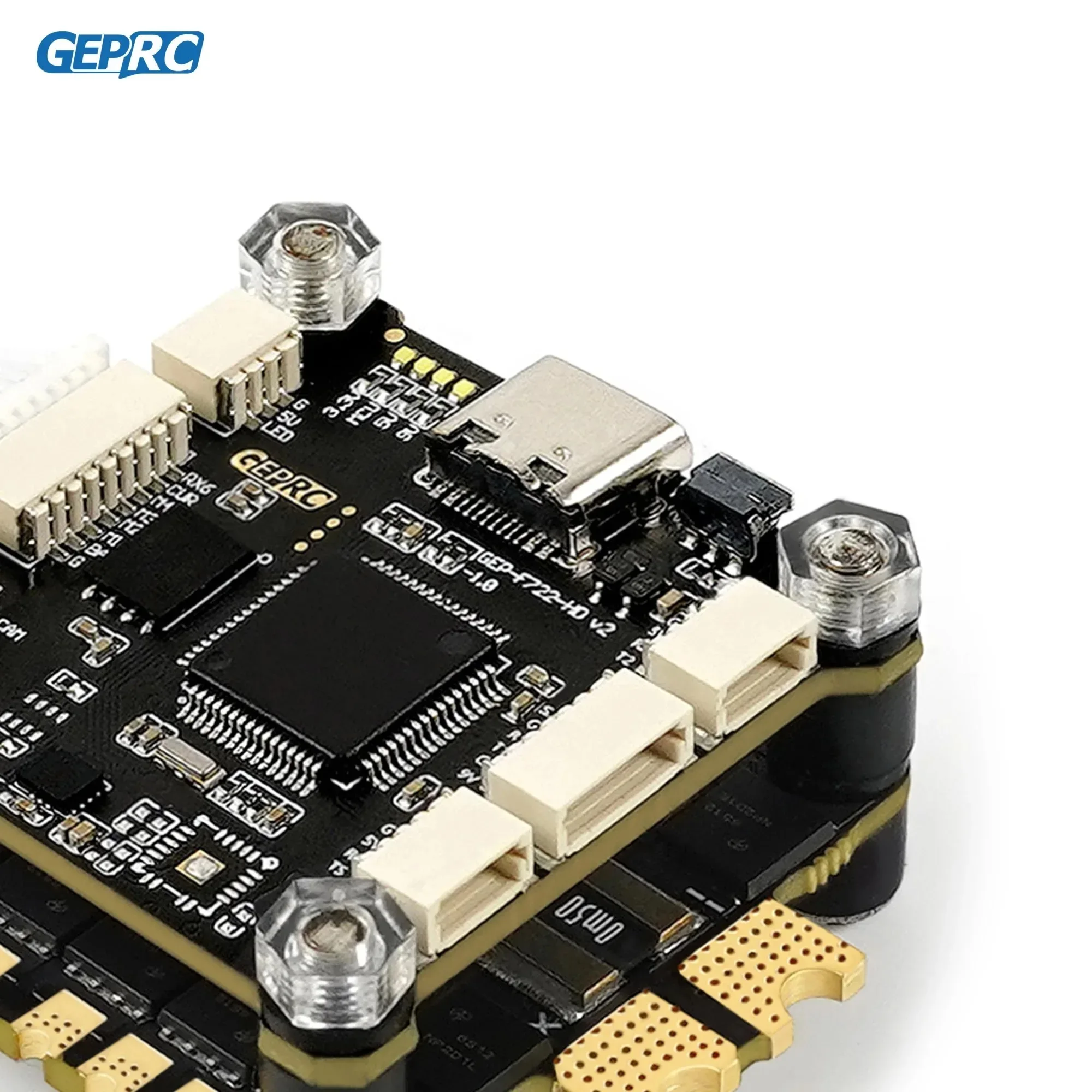

GEPRC TAKER F722 BLS 50A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit. Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.

The GEPRC TAKER F722 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding.  Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact.  9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices.

Features
Use mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With GEP-BLS50A-4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V@2.5A + 5V@3A dual independent BEC

Specifications

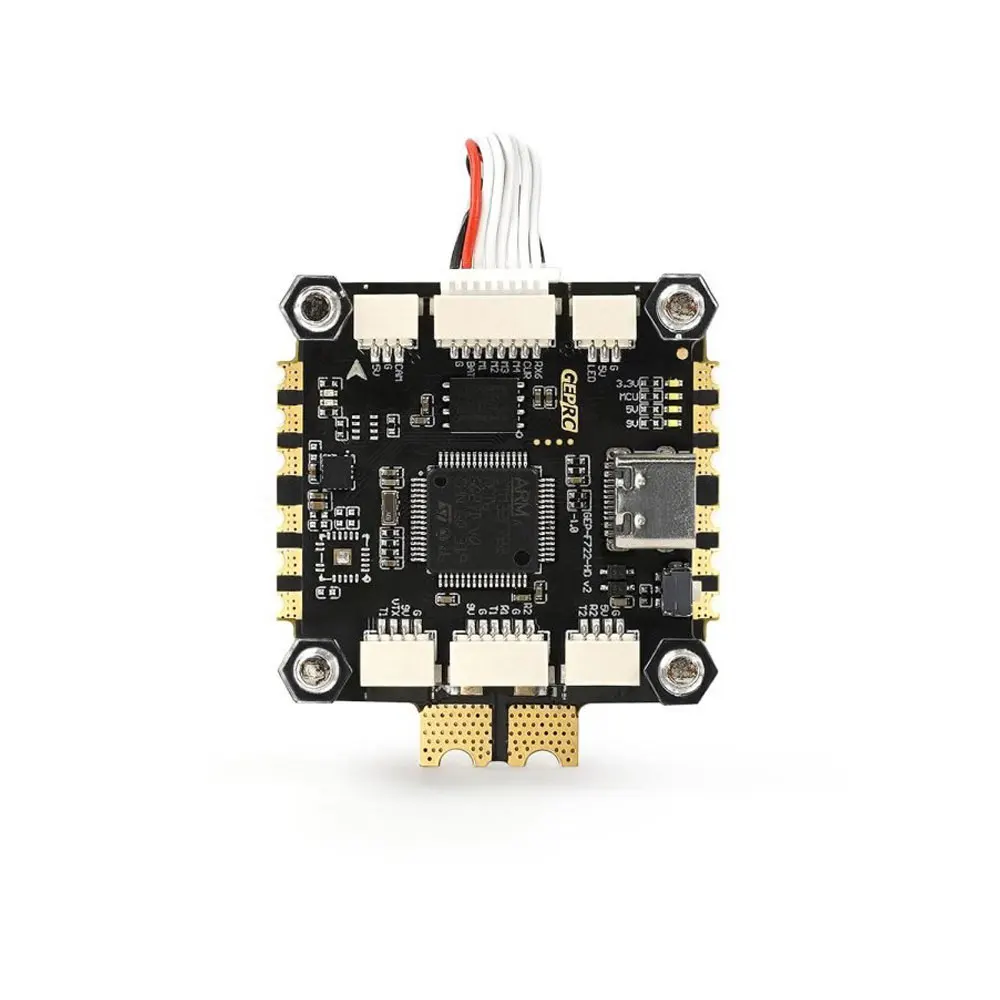

GEP-F722-HD v2 Flight Controller
MCU：STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target：GEPRCF722
Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g

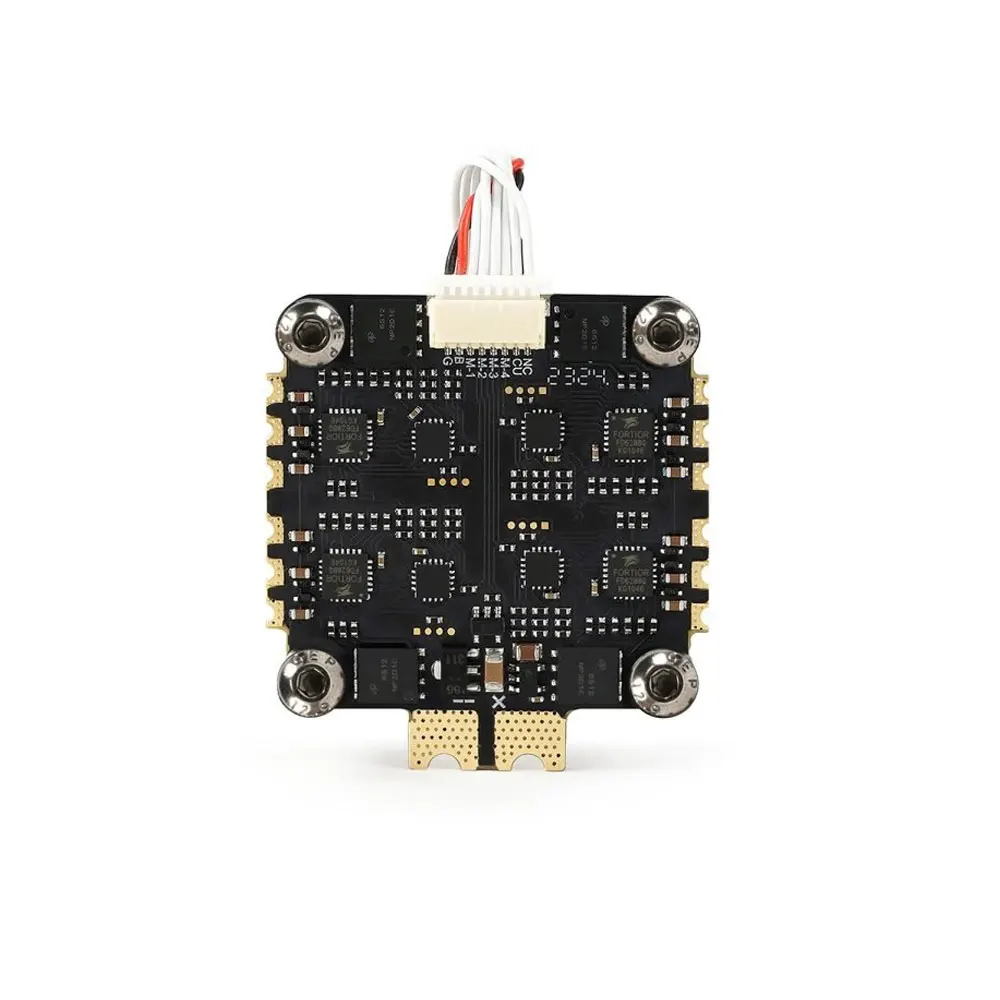

GEP-BLS50A-4IN1 ESC
Input Voltage：3-6S Lipo
Galvanometer：Support
Continue Current：50A
Burst Current：55A（5 second）
Support Protocol：Dshot 150/300/600
Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
Weight：13.7g
Target：G_H_30

Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
