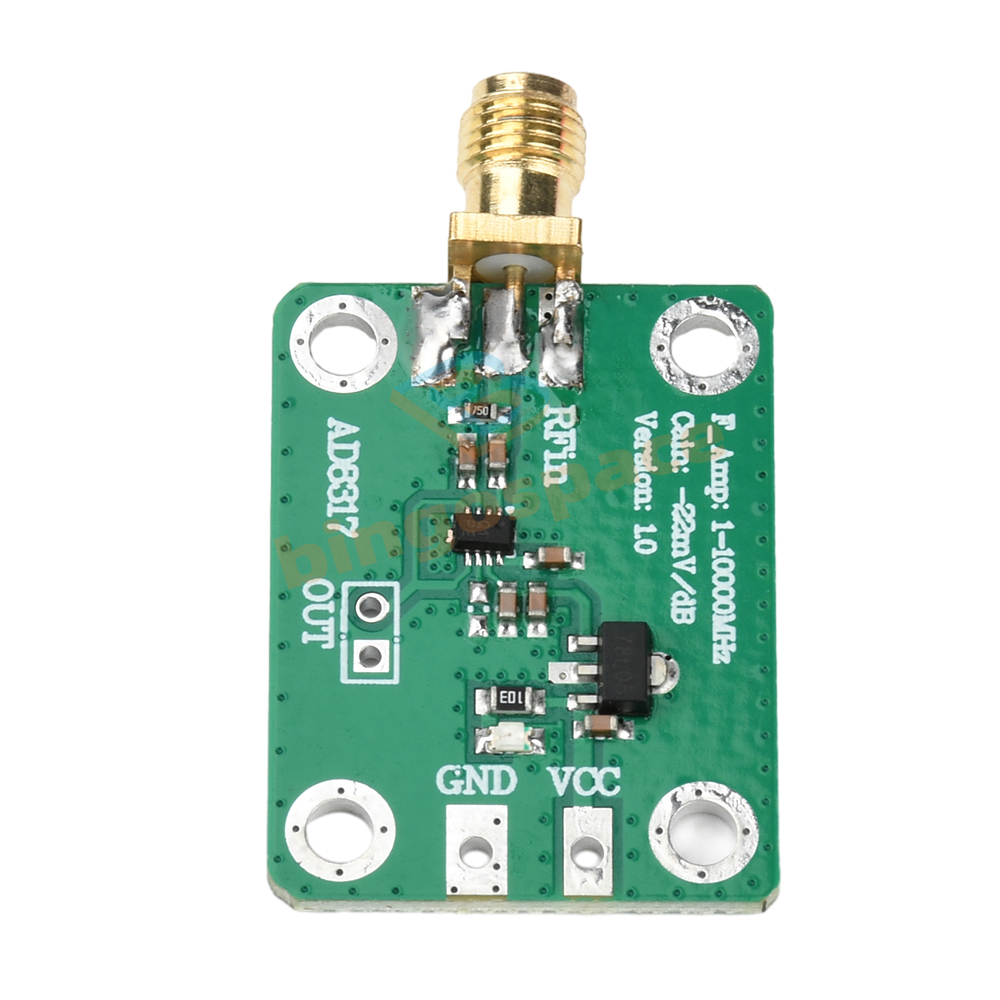

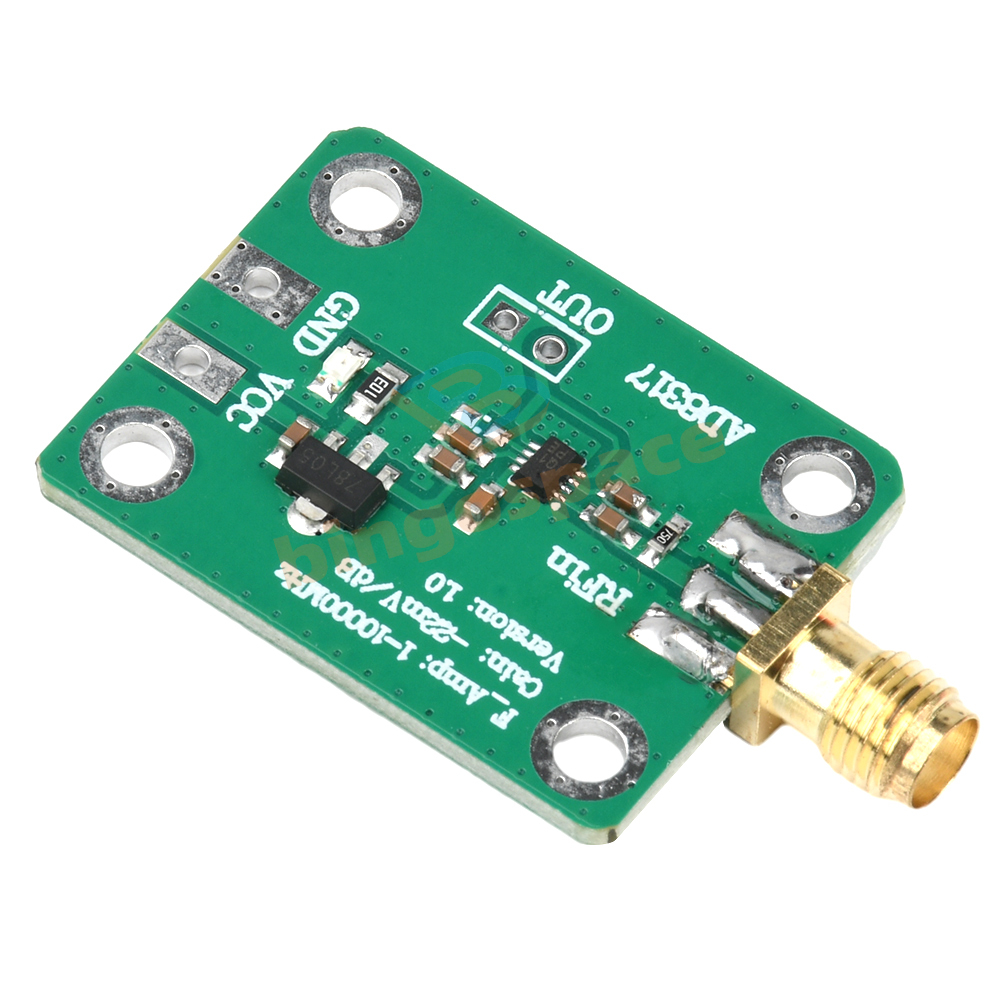

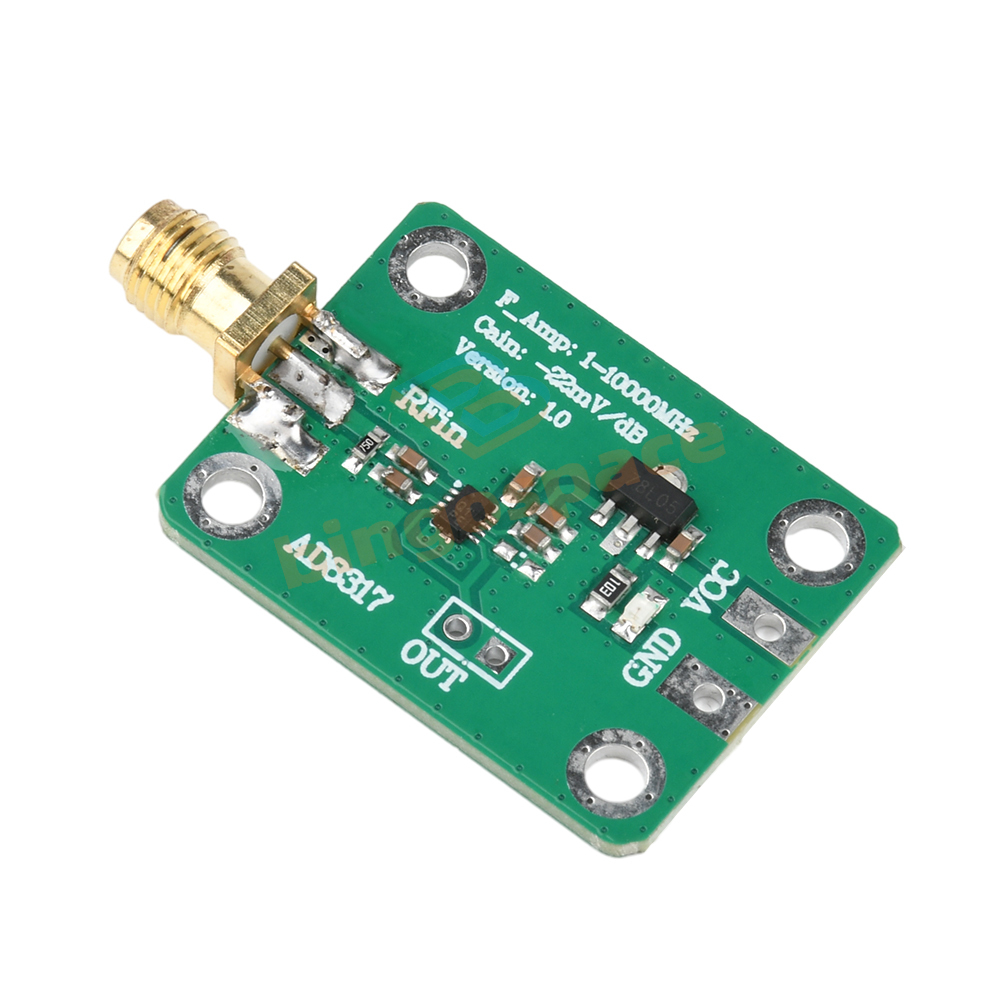

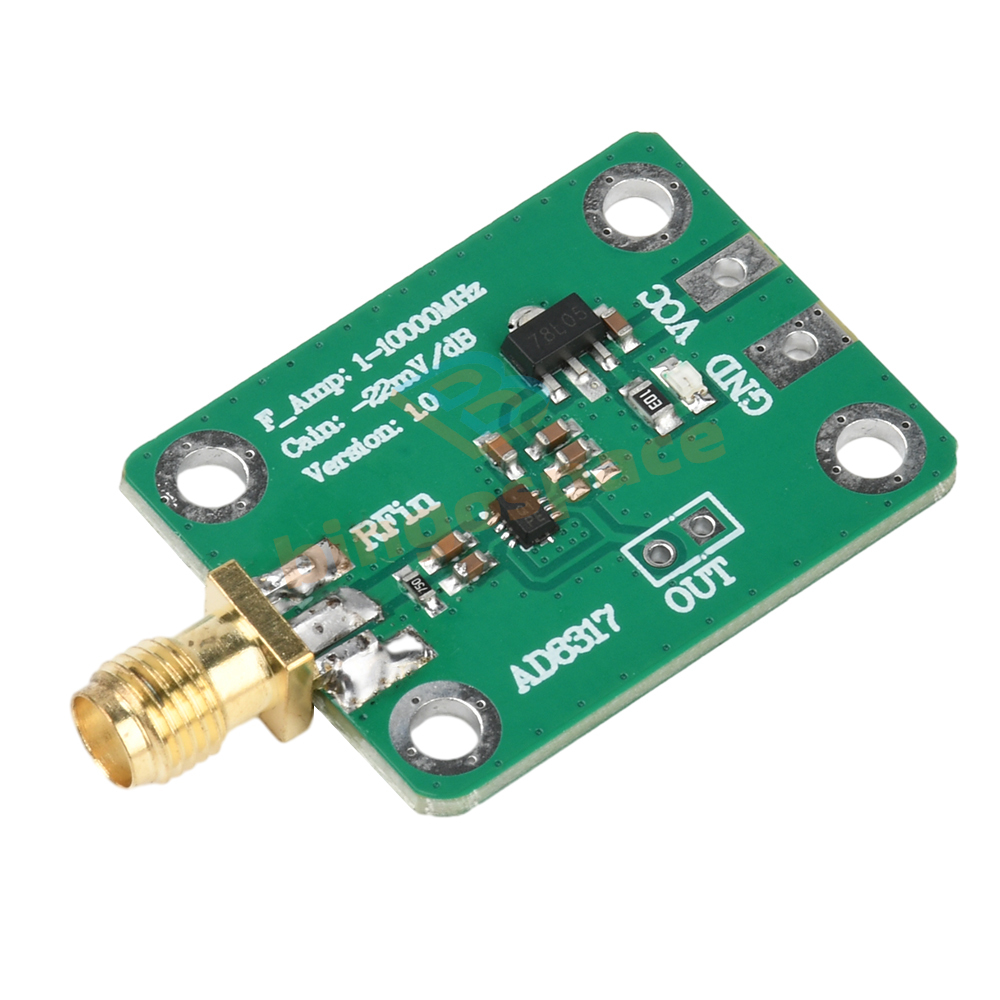

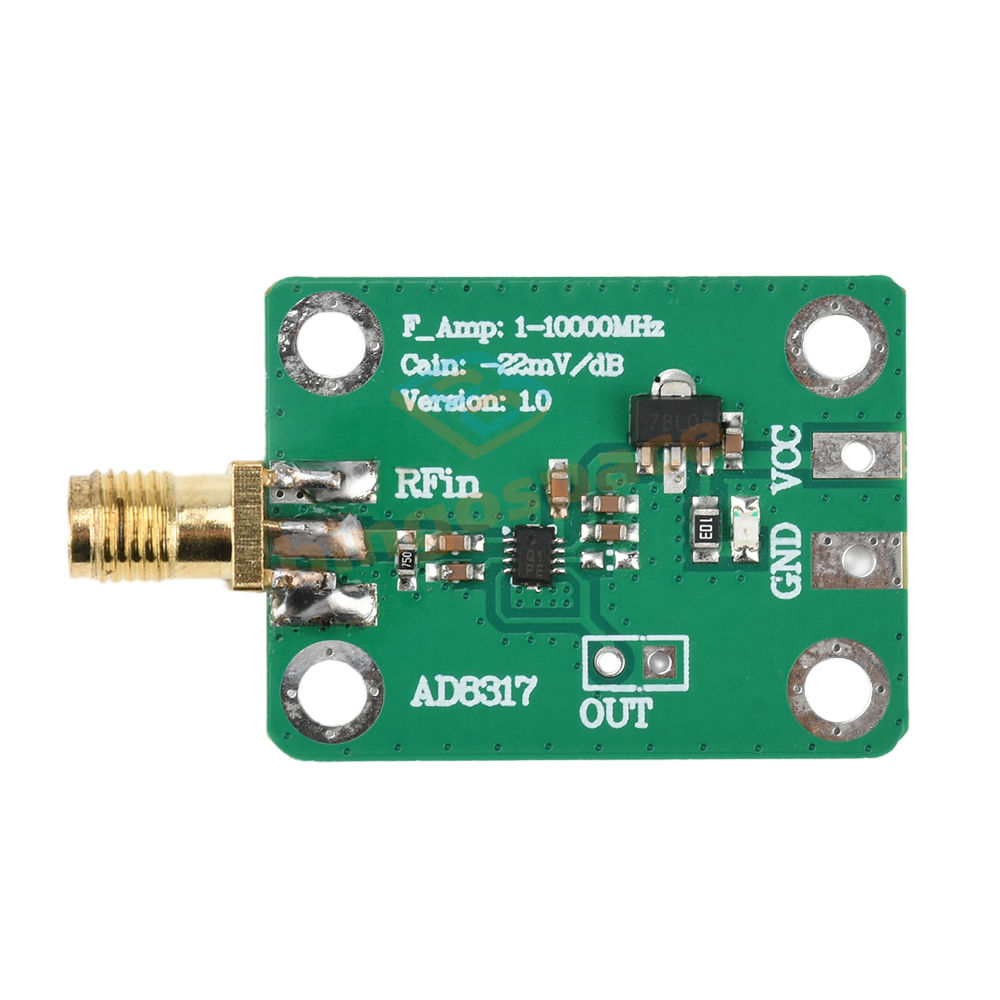

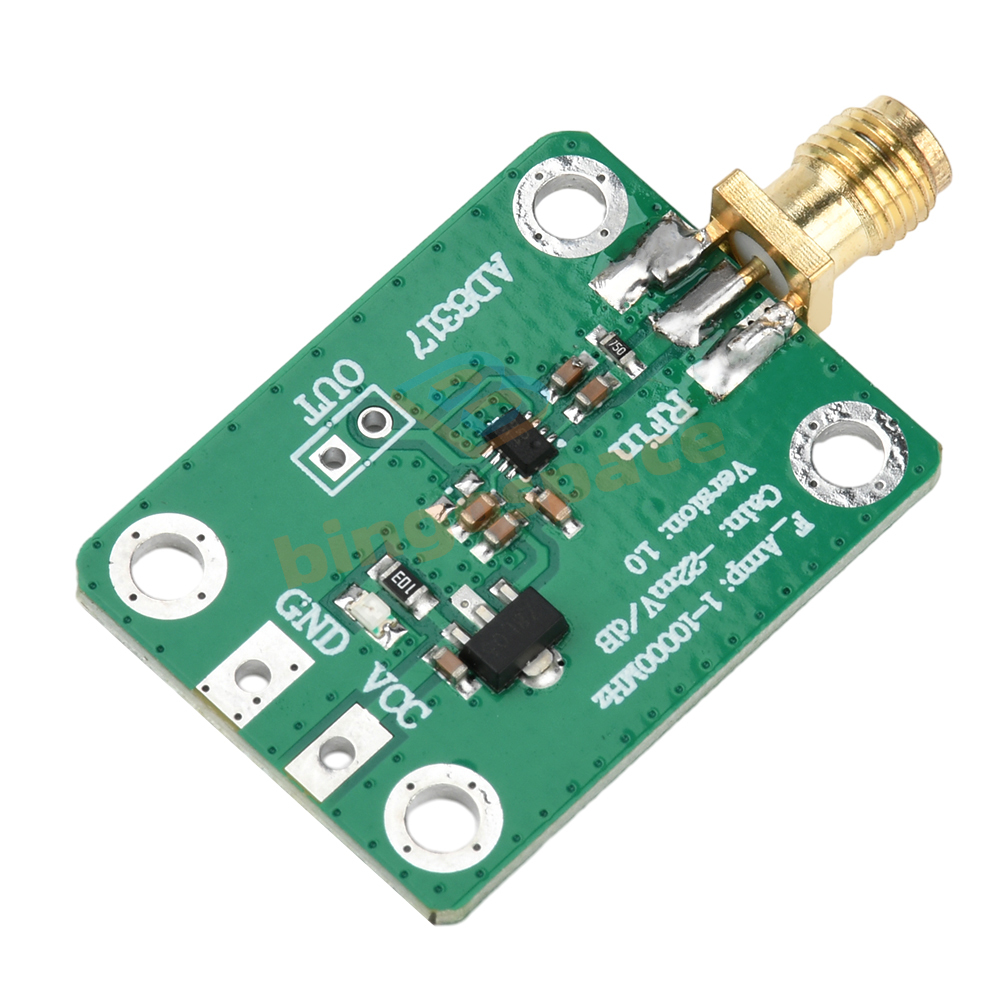

AD8317 RF Logarithmic Detector Power Meter RF Signal Power Detection 1M~10000MHZ
DESCRIPTION
Features
1.Adopt AD8317 chip design, used for RF signal power detection
2. Widely used in RF signal detection, signal power measurement, environmental field strength detection
3. It can be used as a component of automatic gain control and automatic level control.
4. Detection frequency range of 1M-10000MHz, can detect the power in -55dBm to -0dBm of an RF signal

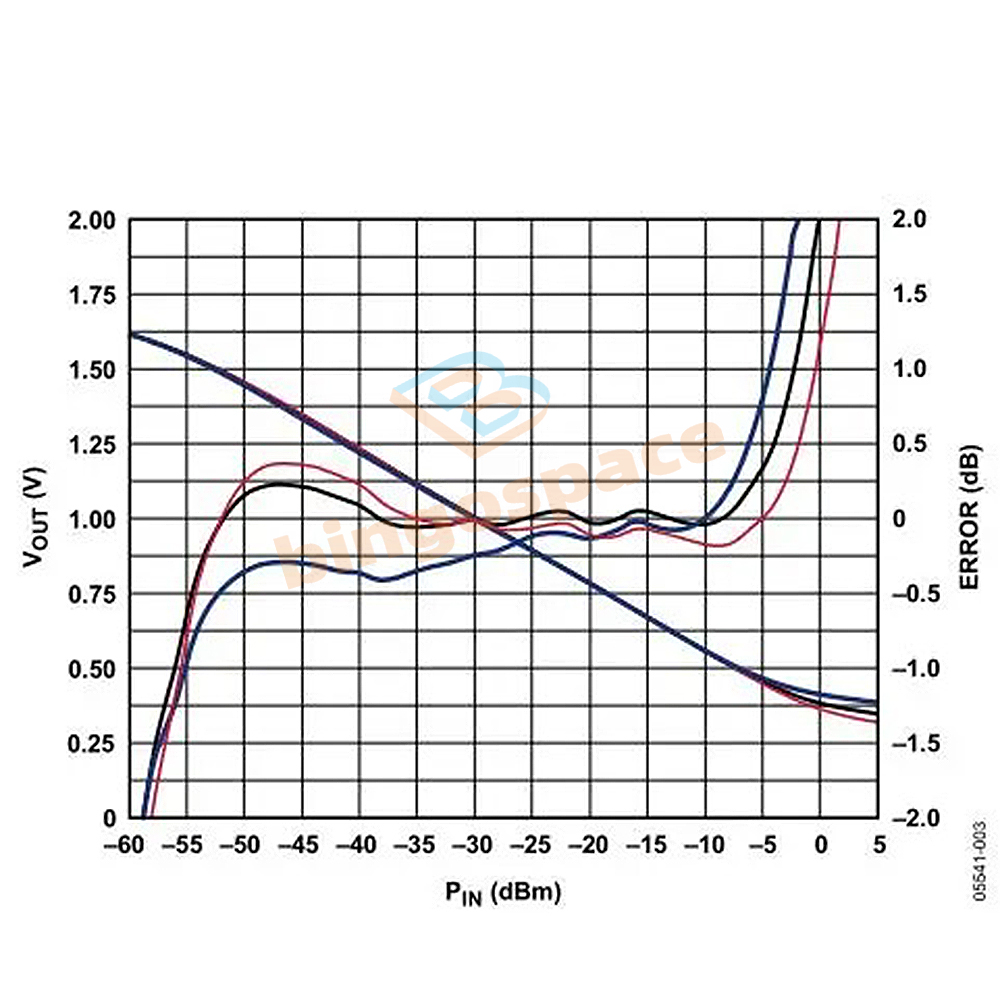

5. The larger the RF signal amplitude or power the higher the output voltage, the output voltage is proportional to the logarithm of the input signal amplitude, and the detection range is up to 55dB.
1.Adopt AD8317 chip design, used for RF signal power detection
2. Widely used in RF signal detection, signal power measurement, environmental field strength detection
3. It can be used as a component of automatic gain control and automatic level control.
4. Detection frequency range of 1M-10000MHz, can detect the power in -55dBm to -0dBm of an RF signal
5. The larger the RF signal amplitude or power the higher the output voltage, the output voltage is proportional to the logarithm of the input signal amplitude, and the detection range is up to 55dB.
Specification
Operating frequency: 1M - 10000MHZ
Measured power: -55dBm to -0dBm
Output voltage: 0.33-1.65V
Detection slope: -22mV/dBm (typical)
Input impedance: 50 ohms
Supply voltage: DC 7-15V
Product size: 42.6*24.3*6.6mm
Operating frequency: 1M - 10000MHZ
Measured power: -55dBm to -0dBm
Output voltage: 0.33-1.65V
Detection slope: -22mV/dBm (typical)
Input impedance: 50 ohms
Supply voltage: DC 7-15V
Product size: 42.6*24.3*6.6mm
Package Includes
1 x Module
1 x Module
