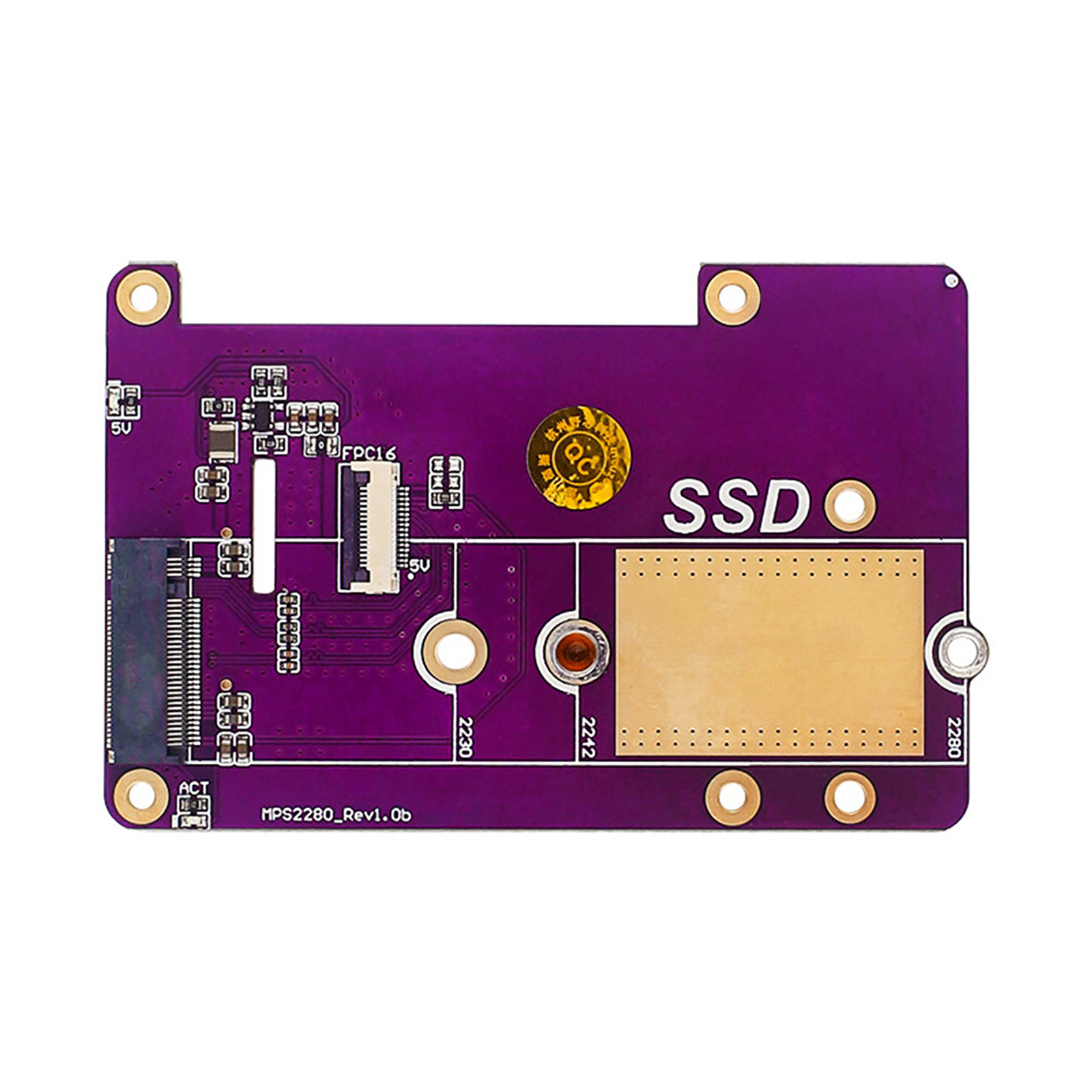

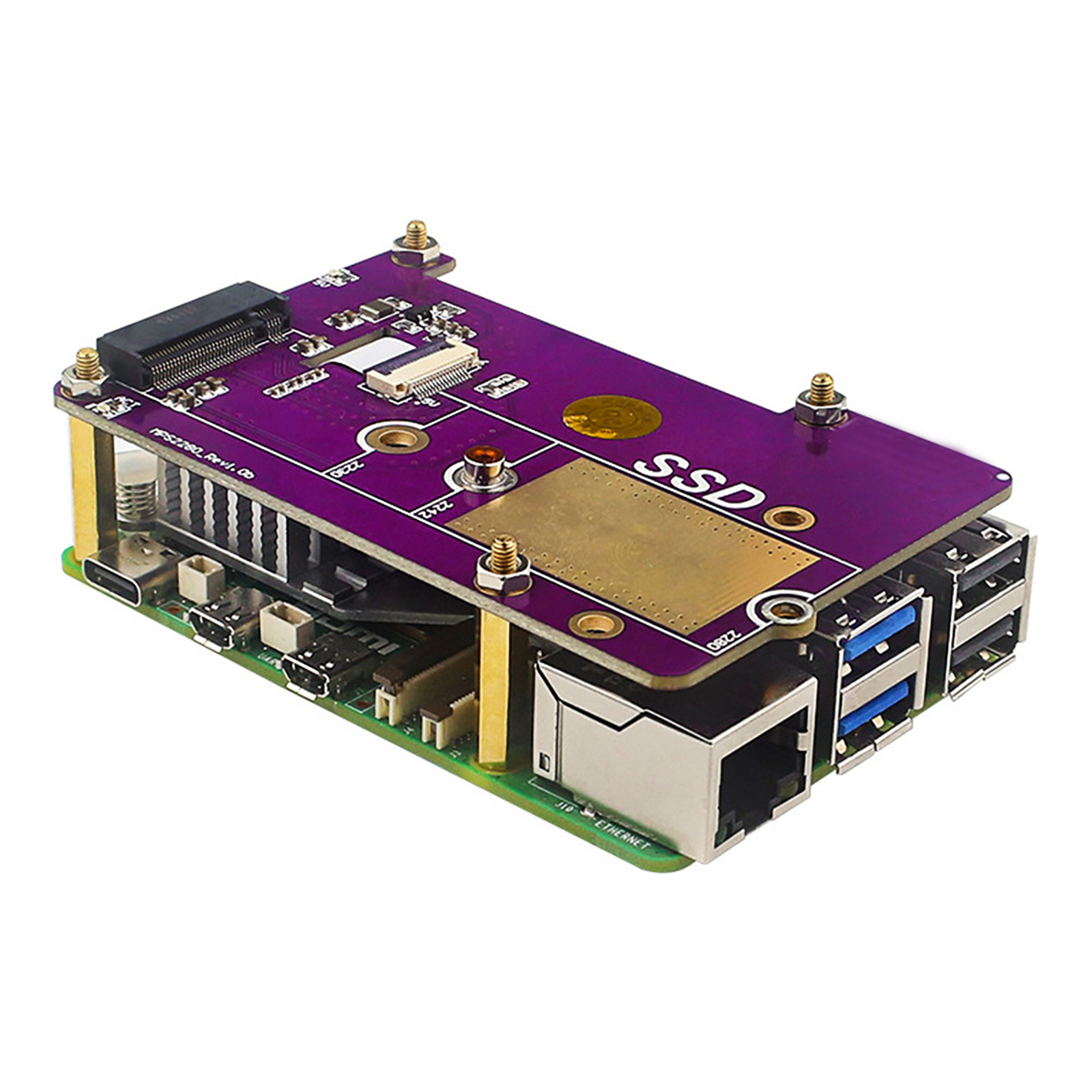

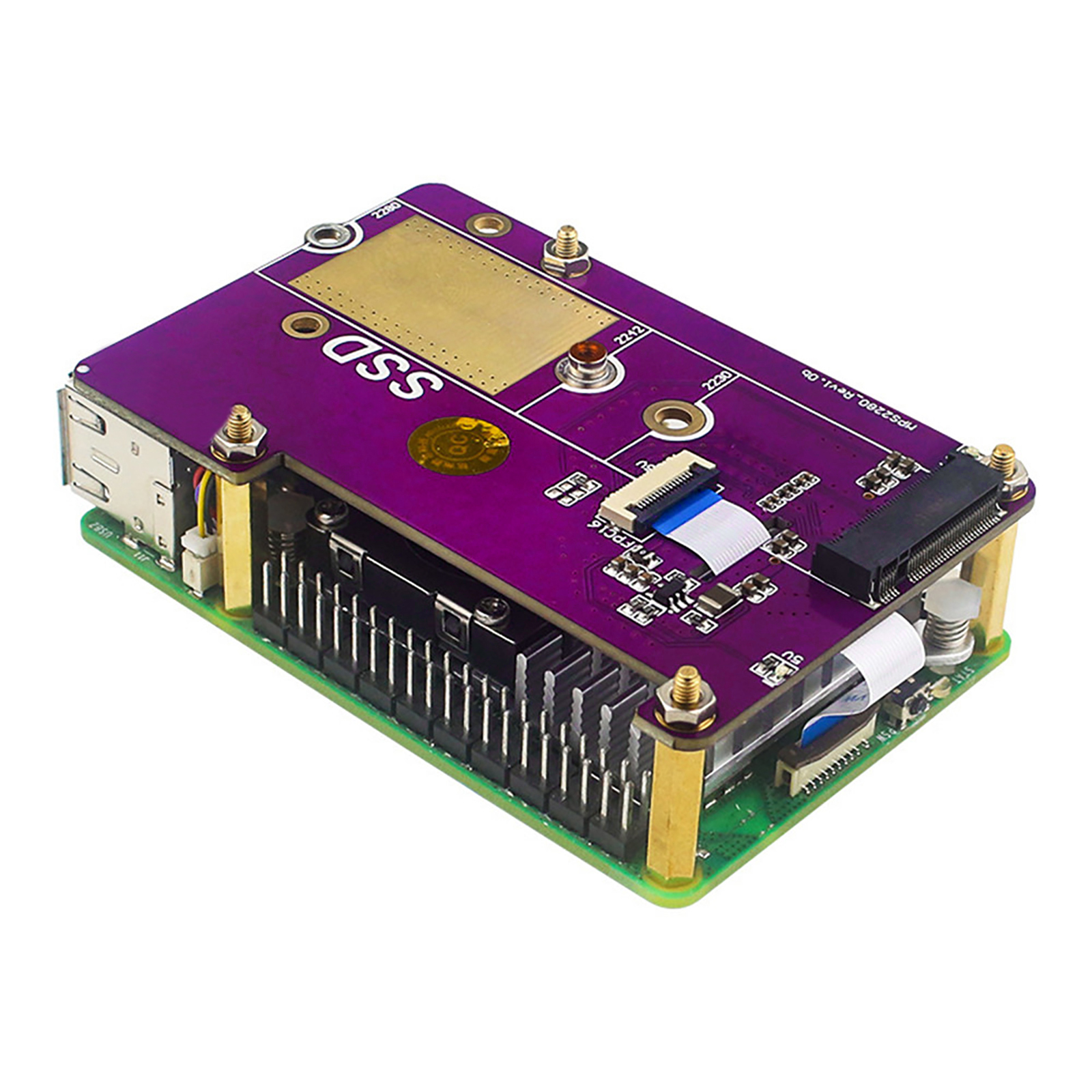

Features:
PCIE interface, support PCIE X1, Gen2 and Gen3.

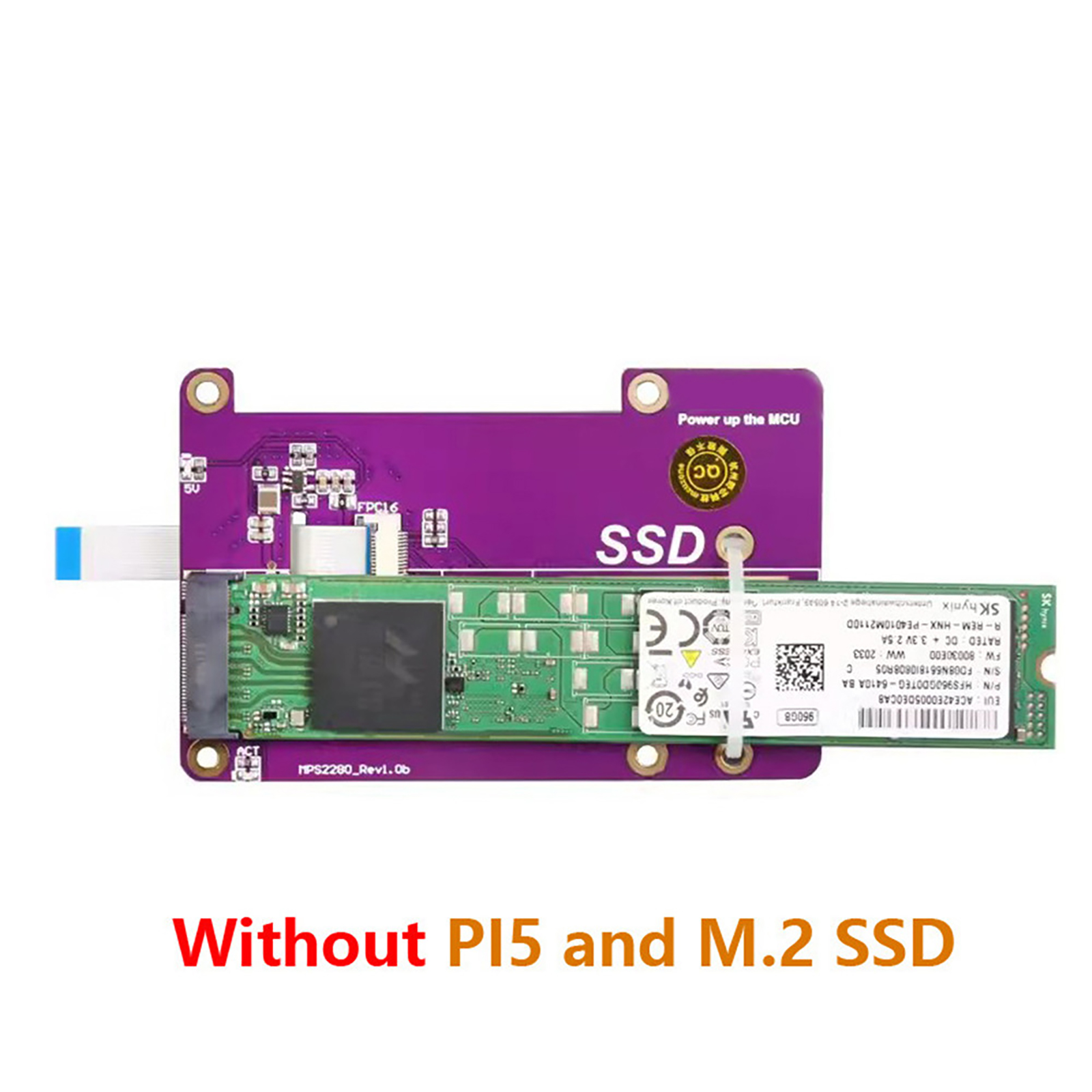

M.2 M-key interfaces, support NVMe SSD.

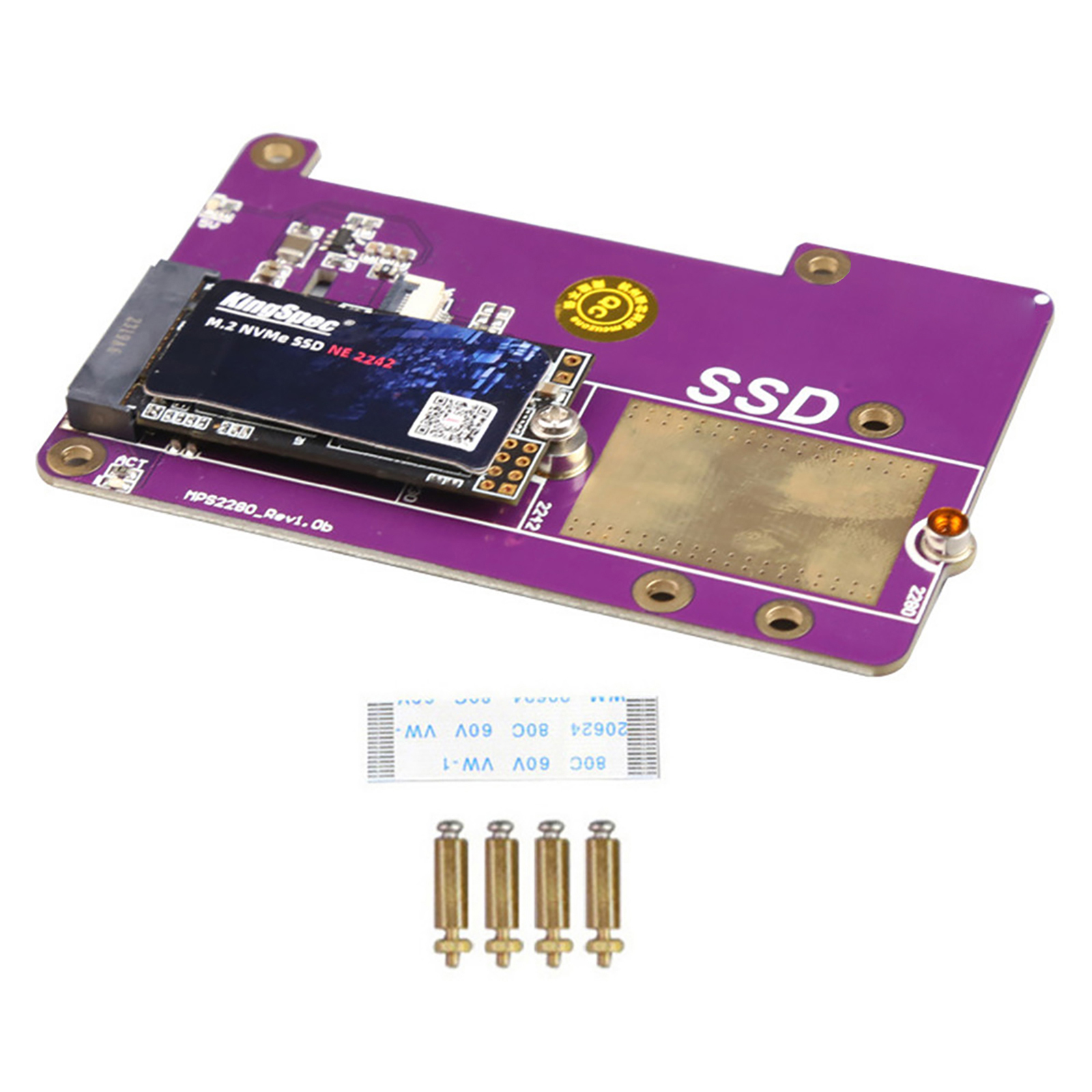

Supports SSDs of size 2280/2242/2230.
Support booting the system from NVME SSD hard drive and storage expansion. SSD can also be used only for storage expansion and the system can be booted from TF.
M.2 Power supply system,The power circuit of the expansion board adopts a 2A current design, which is limited by the current limit of the Raspberry Pi 5's PCIE interface (5V1A) and can provide an output capacity of 3.3V/1.5A or above to the solid-state drive.
On board power indicator light ("PWR") and M.2 hard drive operation indicator light ("ACT")
Notes: The color of the board will be random, due to the production batch.

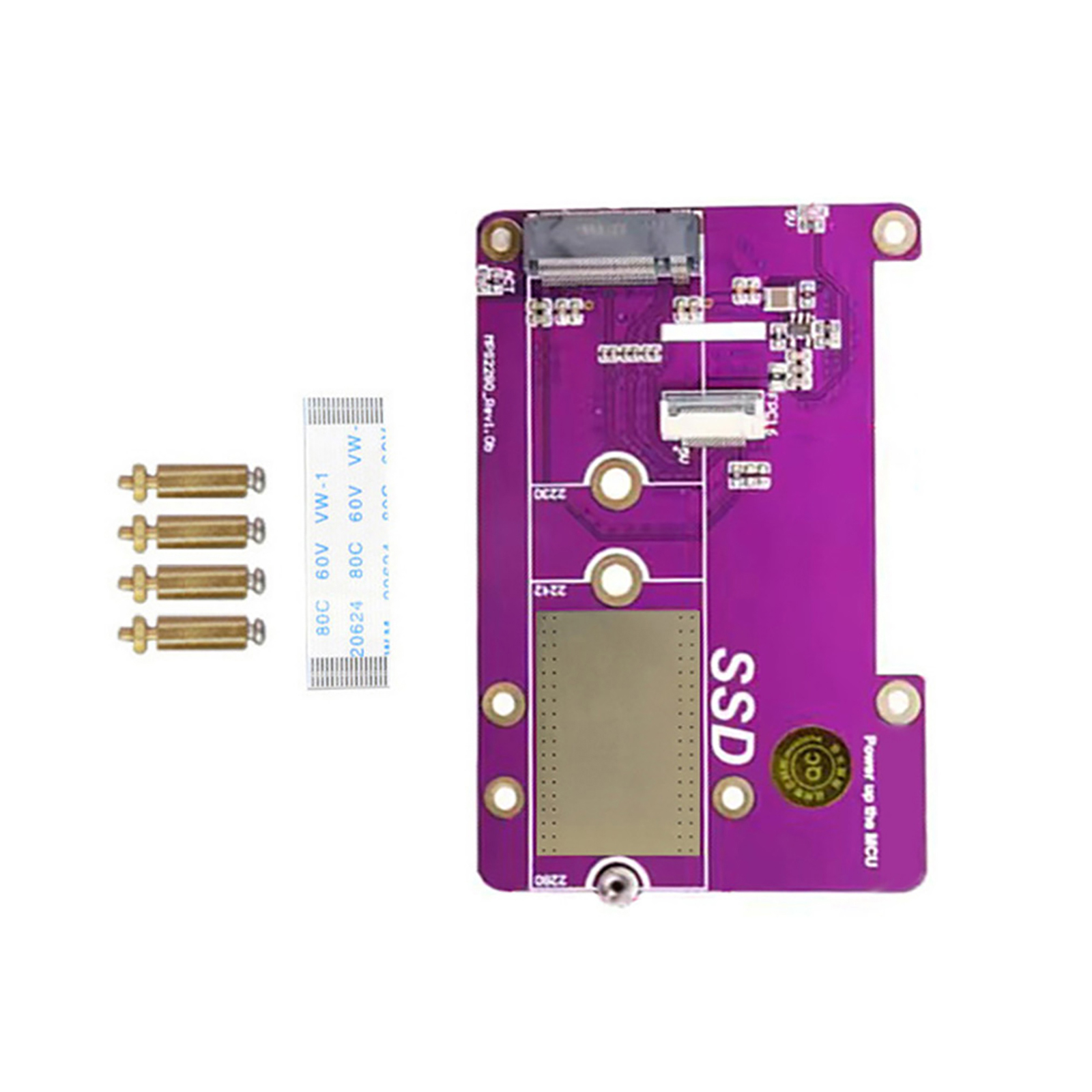

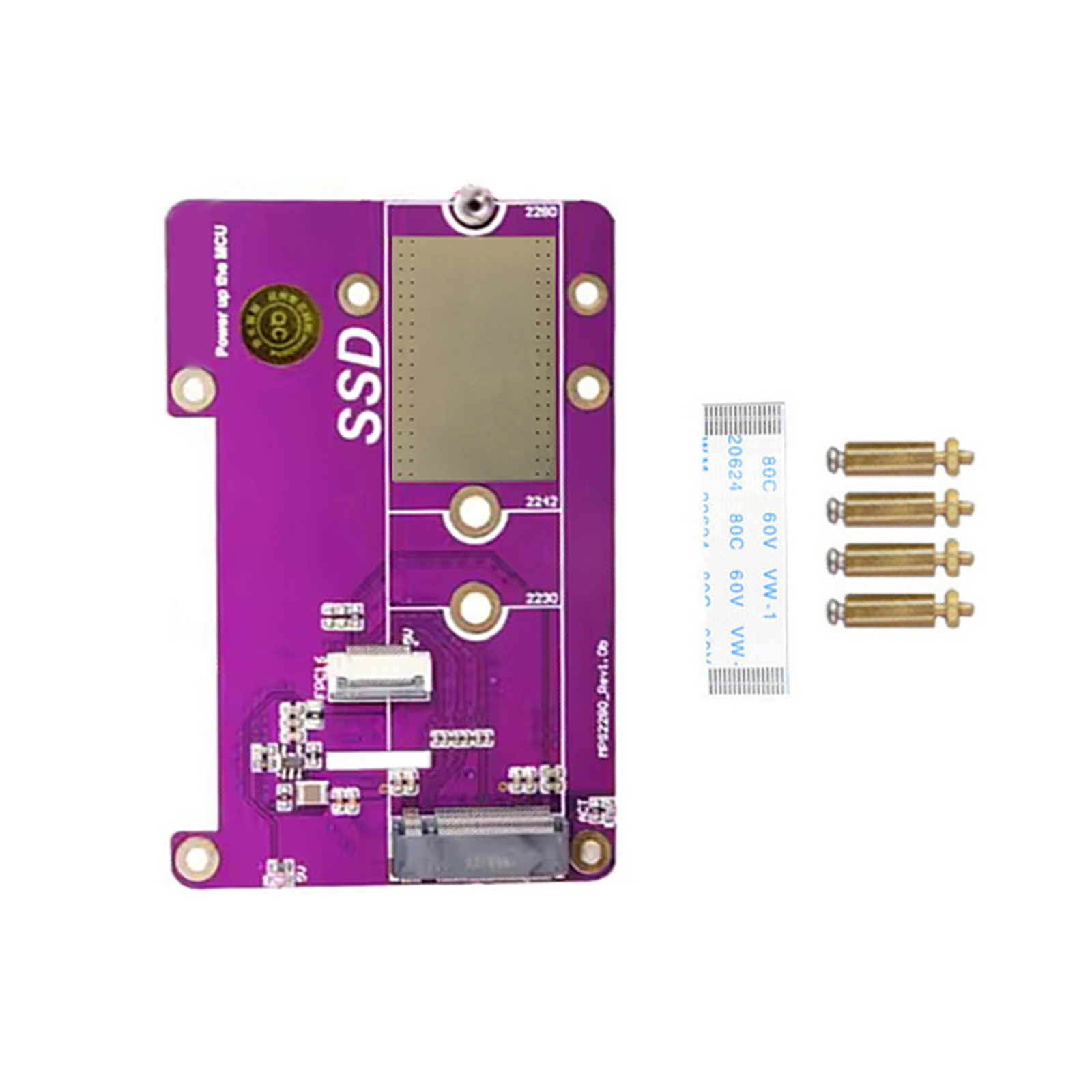

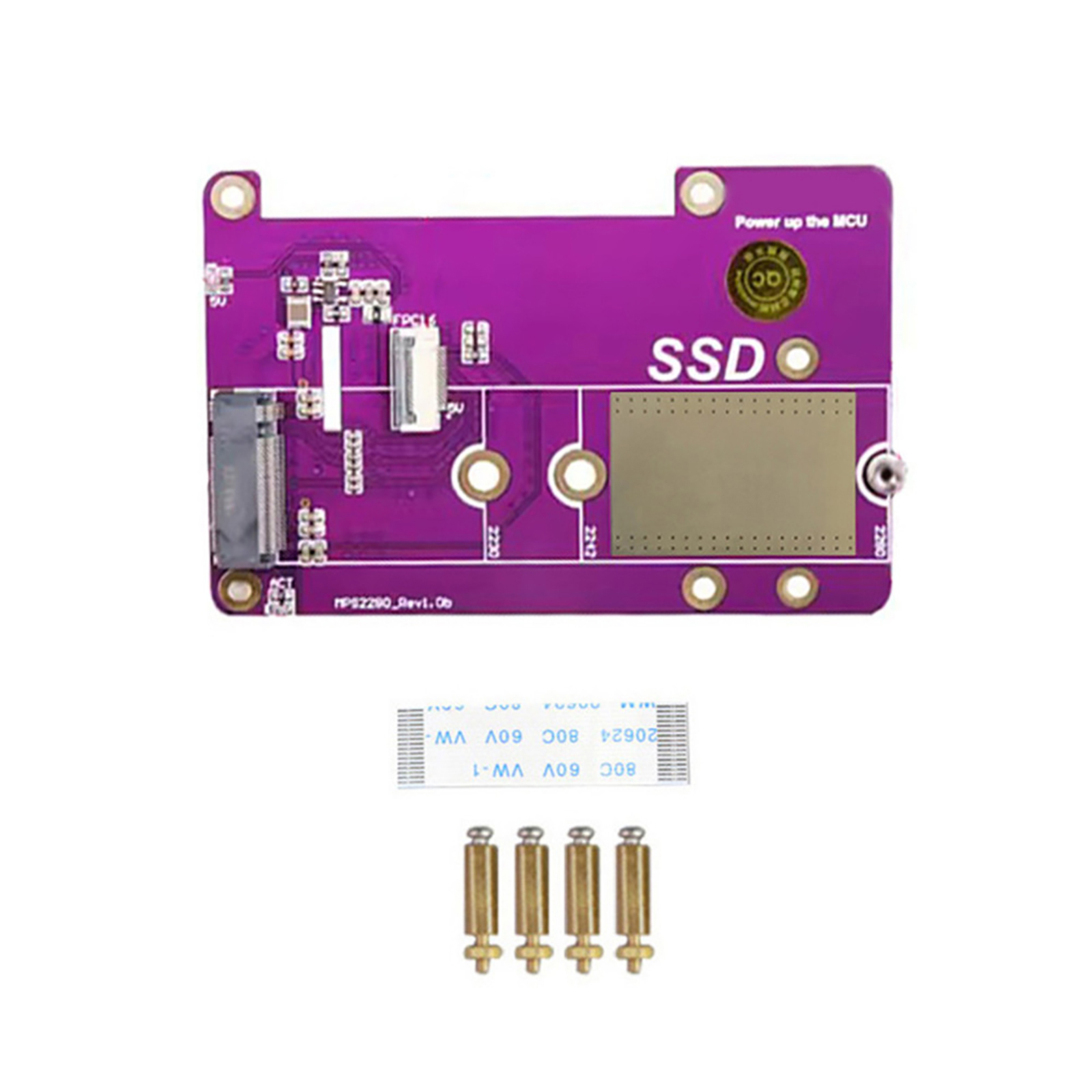

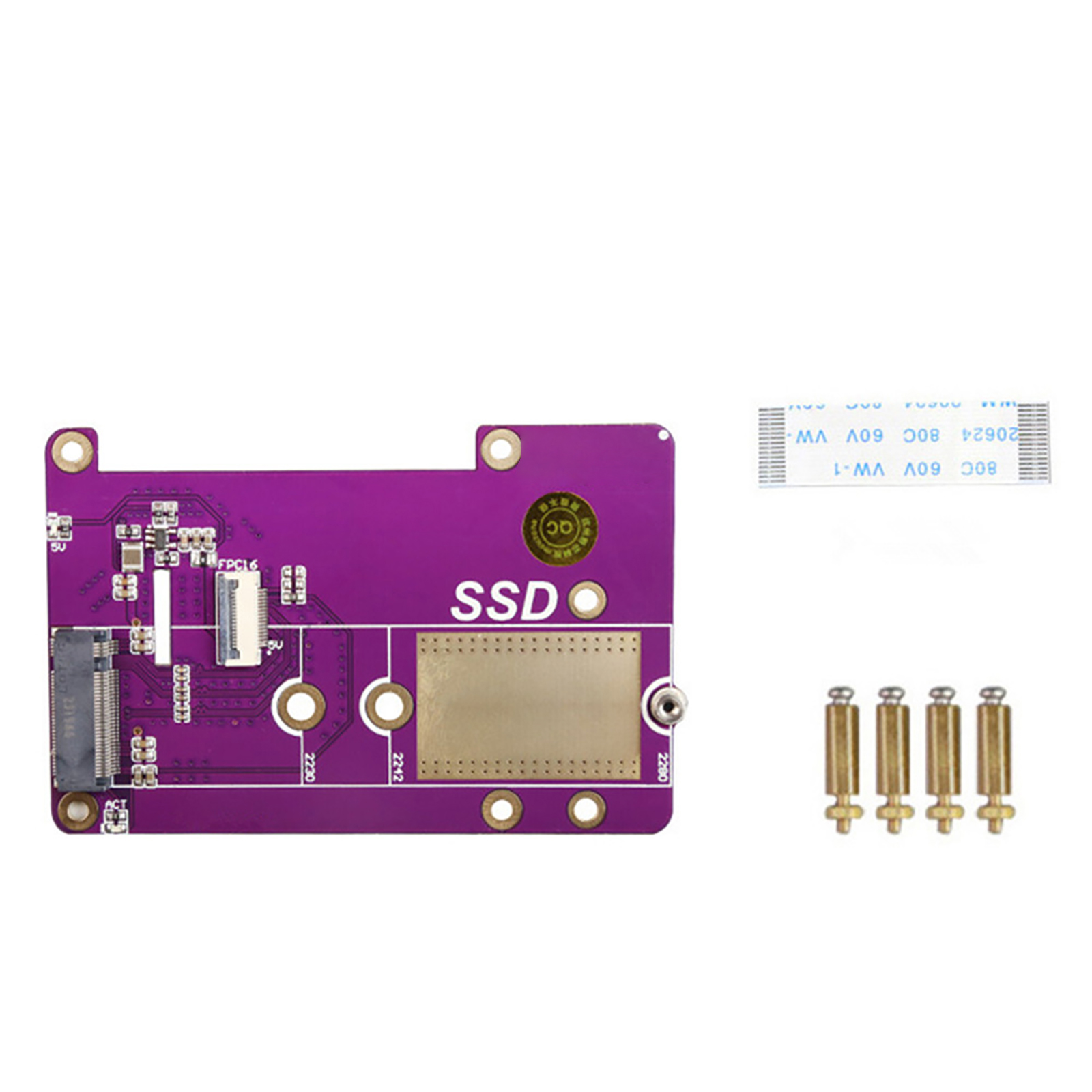

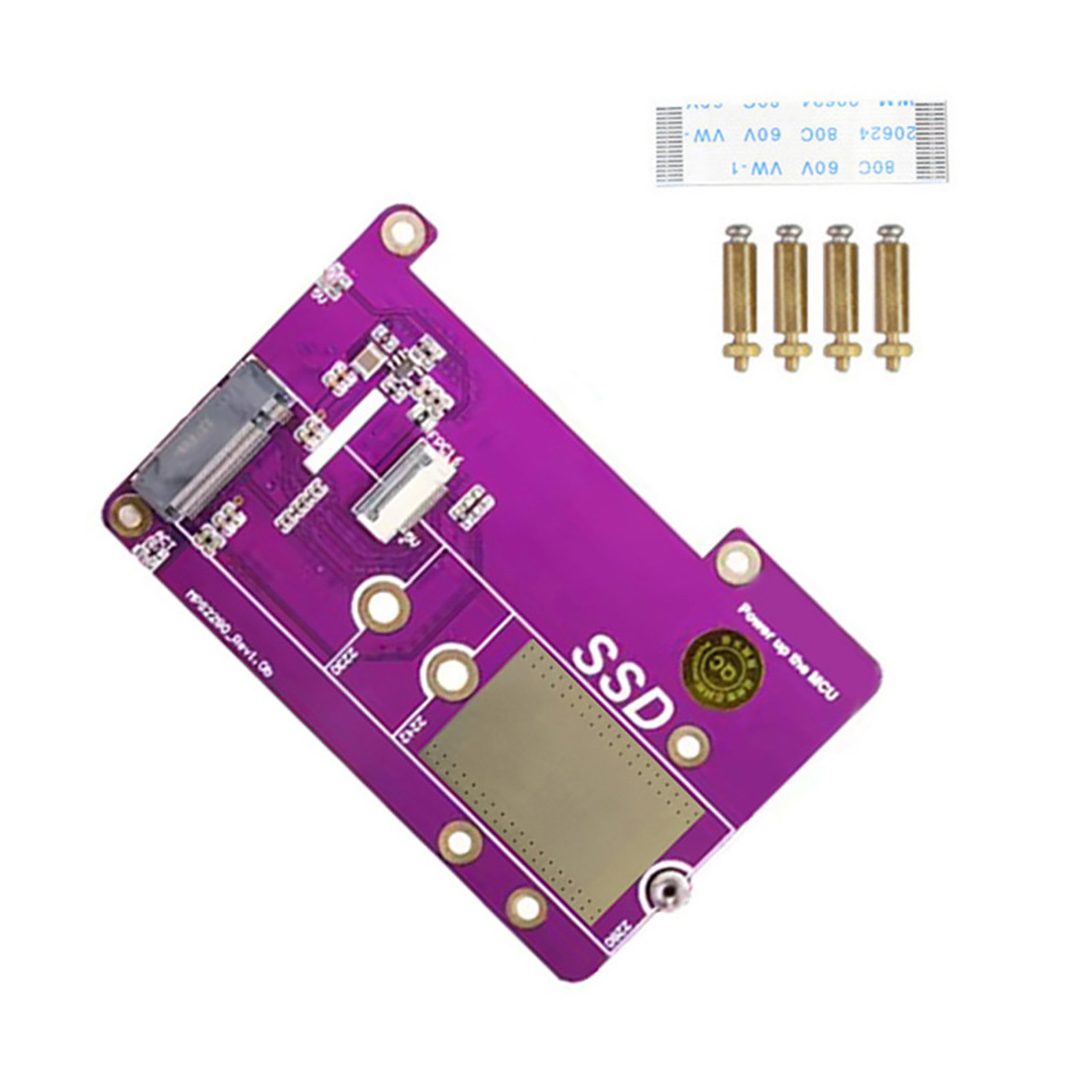

Package includes:
1 * Expansion board
4 * Copper pillar
1 * Flex Cable
