Features:

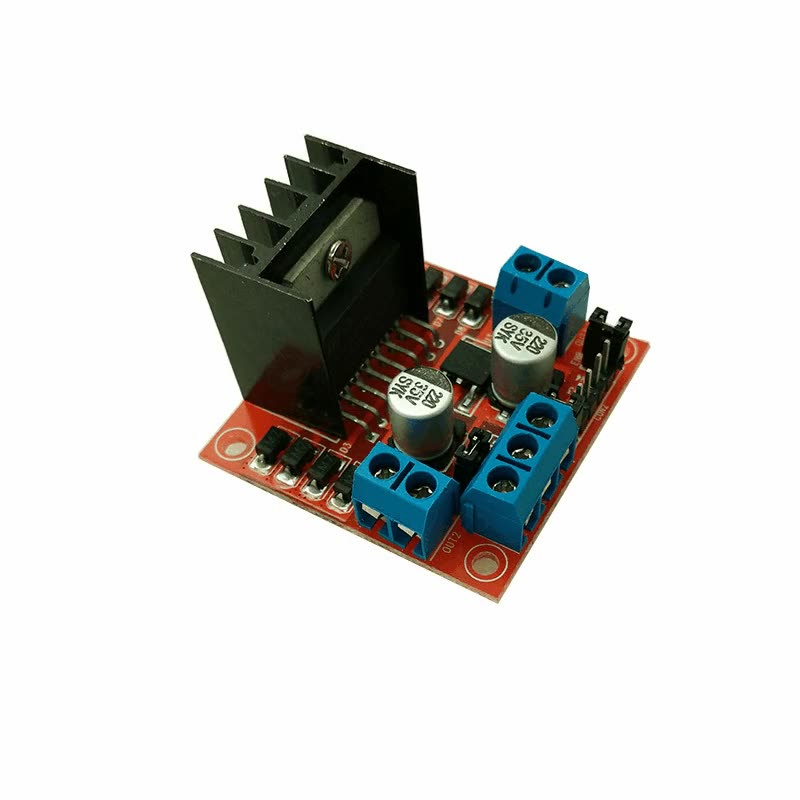

The L298N driver module, using ST L298N chip can directly drive two3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control you can easily contro the DC motor speed and directionyou can also control the 2-phase stepper motor smart car essential.
Specifications:
Driver chip: L298N dual H-bridge driver chip
Terminal driver part of the supply areaVMS: +5V~+35V
Drive part of the peakcurrentlo: 2A/Bridge
Logical part of the terminal power supply rangeVss: 4.5-5.5V
Logical part of the operating currentrange: 0~36mA
The control signal input voltage range: 4.5-5.5Vlow 0V high
Maximum power consumption: 20W Storage temperature:-25~+130
Driver Board Size: 55mm*60mm*30mm
Driver board Weight: 33g

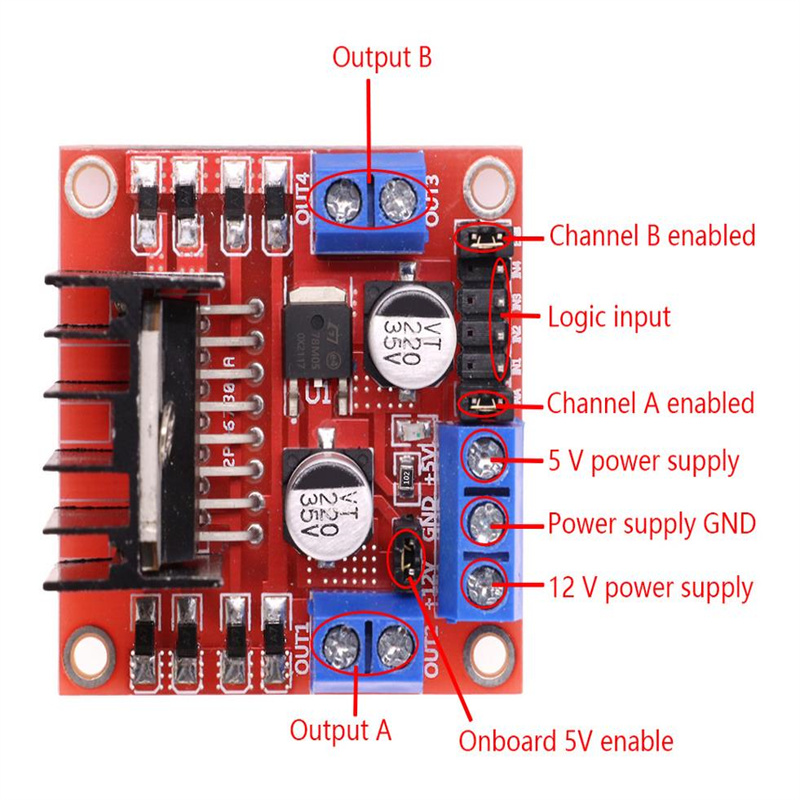

Other features: control direction indicatorpowerindicatorcurrent detection, logical part of the plate to take power interface.
Package Included:
1pcs X L298N Module
