Description



Functions:
- Can assist in evaluating detailed information such as the thickness, depth, curvature, length, bifurcation, and venous valve of blood vessels.
- It can observe the degree of blood filling in blood vessels, detect blood flow status, and determine whether there are abnormal conditions such as hematoma after intravenous injection.
- Can visually observe the direction of blood flow, qualitatively evaluate the rate of blood flow, and assess the degree of blood filling.
- It can intuitively monitor the flow of medication in blood vessels, and medical staff can intuitively judge whether there is leakage of medication, especially in the monitoring of tumor drug injection process, to avoid tissue damage caused by medication leakage.
- During varicose vein surgery, the use of vascular imaging devices can shorten the time required to locate blood vessels, improve the accuracy of diagnosis, make the surgical site more precise, and ultimately enhance the overall and postoperative aesthetic of the surgery.

Working Principle:

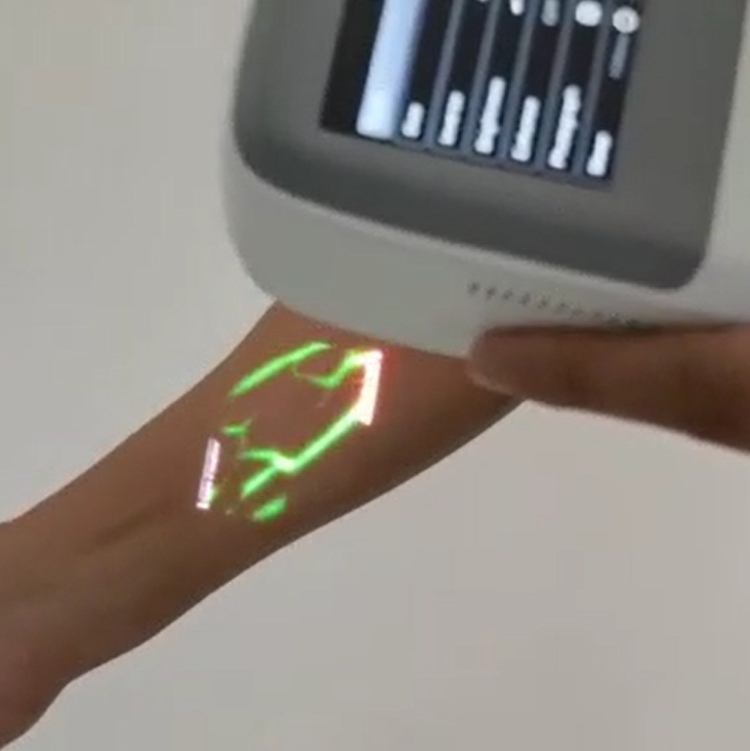

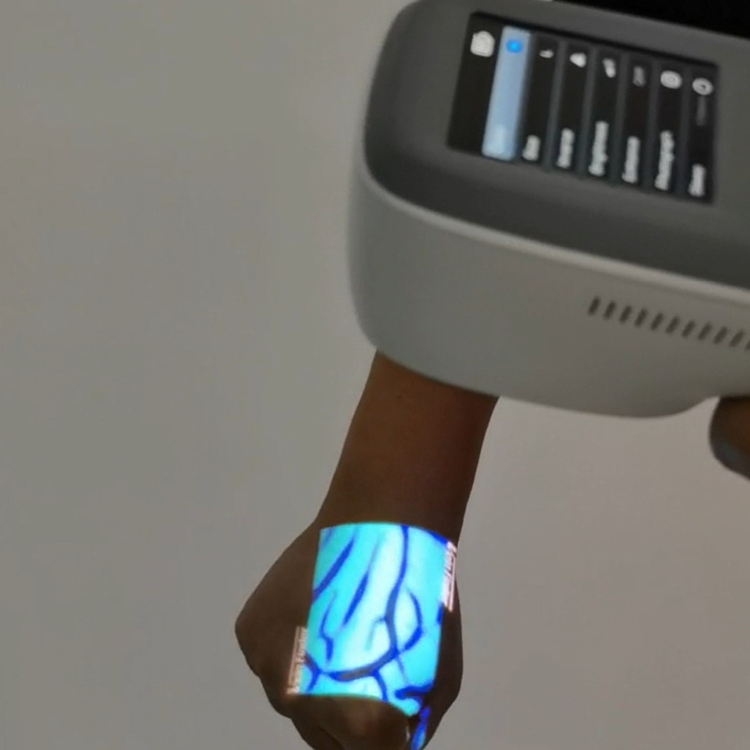

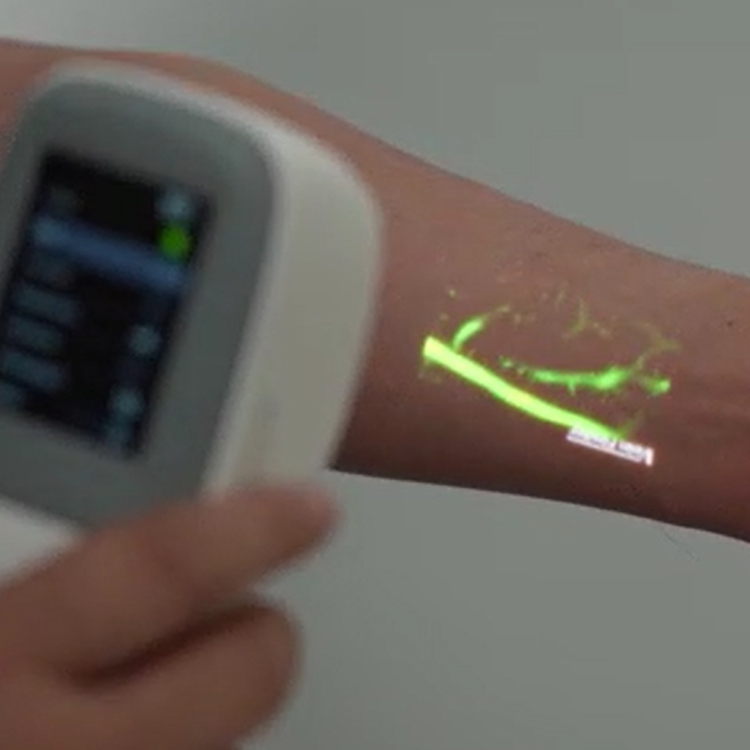

- By using specific wavelengths of near-infrared radiation to irradiate the skin, blood vessels absorb the light due to the presence of hemoglobin, while other tissues produce strong scattering and weak absorption of the light. Near infrared photography devices are used to collect reflected or scattered near-infrared light, and the collected information is subjected to photoelectric conversion and image processing to project the specific location of the blood vessel onto the corresponding area for real-time observation by medical staff.

Hardware Features:
- Designed to be lightweight, agile, and mobile.
- Using invisible near-infrared light source, it is harmful to human body and has no visible light pollution to the environment.
- Easy to operate, one click power on/off.
- Equipped with a built-in battery design, it can work continuously for 2 hours after charging and supports long-term power-off operation.
- Adopt AC/DC power supply, which can be flexibly selected according to the environment. At the same time, there is a battery level indicator for convenient and timely charging.
- For FPGA platform development with powerful back-end processing capabilities.

Software Features:
- Independent software development to ensure the independent research and development of the product.
- Professional application software with 13 color switches (including color mixing) and three sizes for projection.
- The projection light intensity can be adjusted using software according to user needs.

Product Advantages:
- The exterior design conforms to ergonomics and is compact and exquisite.
- Real time acquisition of vascular location.
- Point to point skin surface imaging with high alignment accuracy and a system resolution of 0.3mm.
- Multi lens combination eliminates visible light interference, resulting in clear image formation without artifacts.

Applications:
- Can be used by medical units to observe and search for superficial subcutaneous blood vessels, serving as an auxiliary puncture tool. It can be applied to the whole body within the human body.

Applicable Departments:
- Pediatrics, Emergency, Injection Department, Inpatient Department, Plastic Surgery Department (Micro Plastic Surgery)

Package Included:
- 1 x Vein Finder
