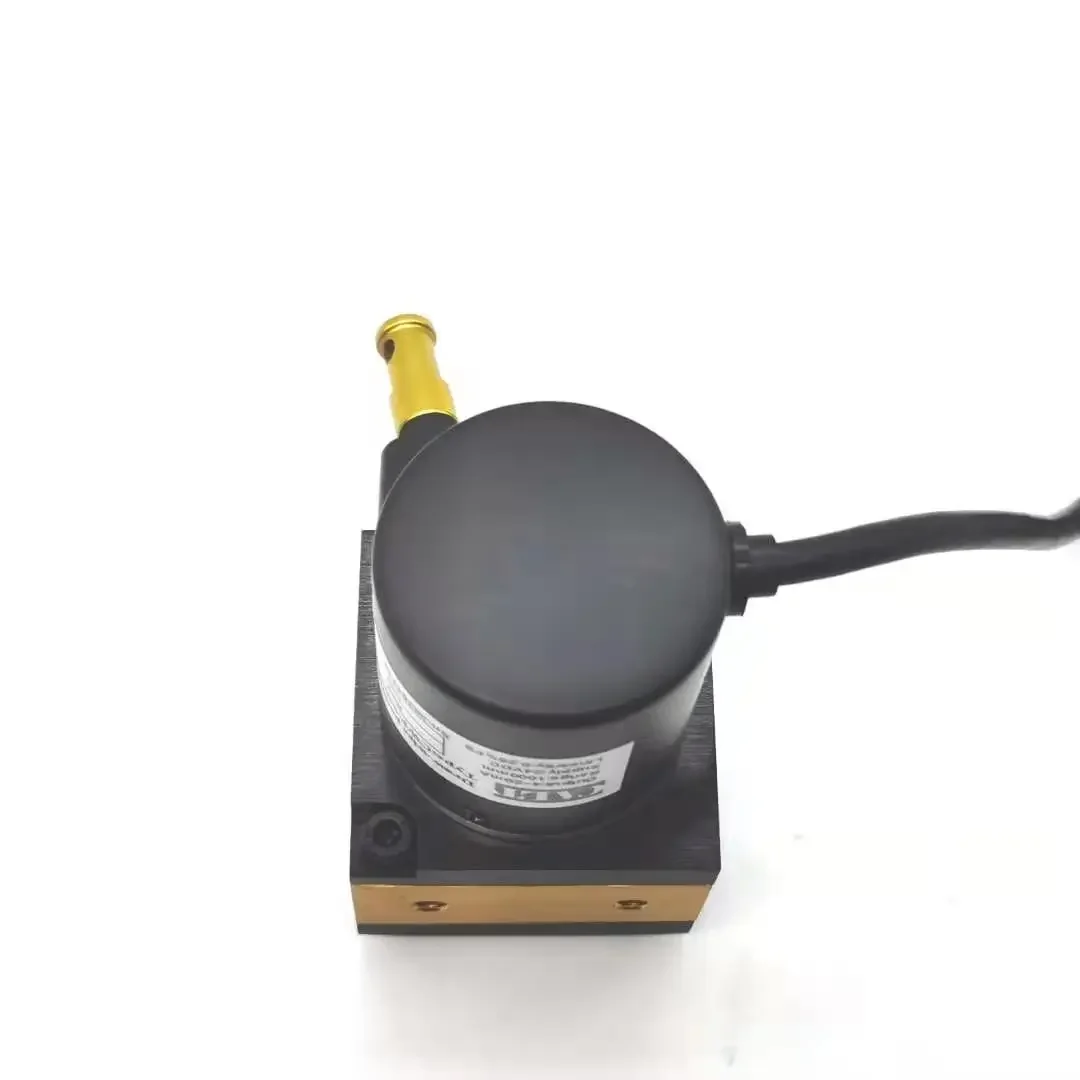

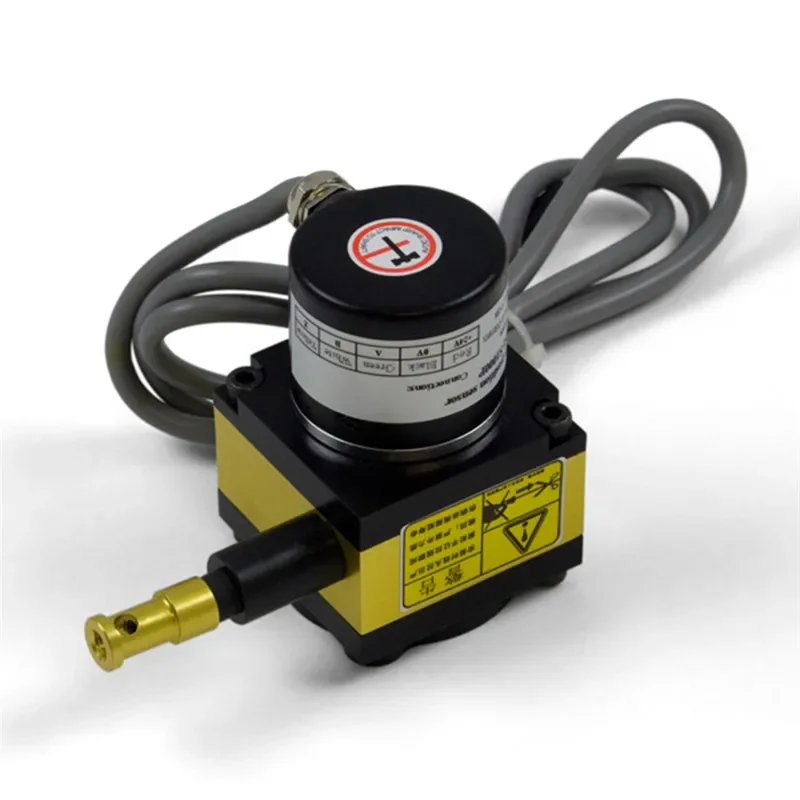

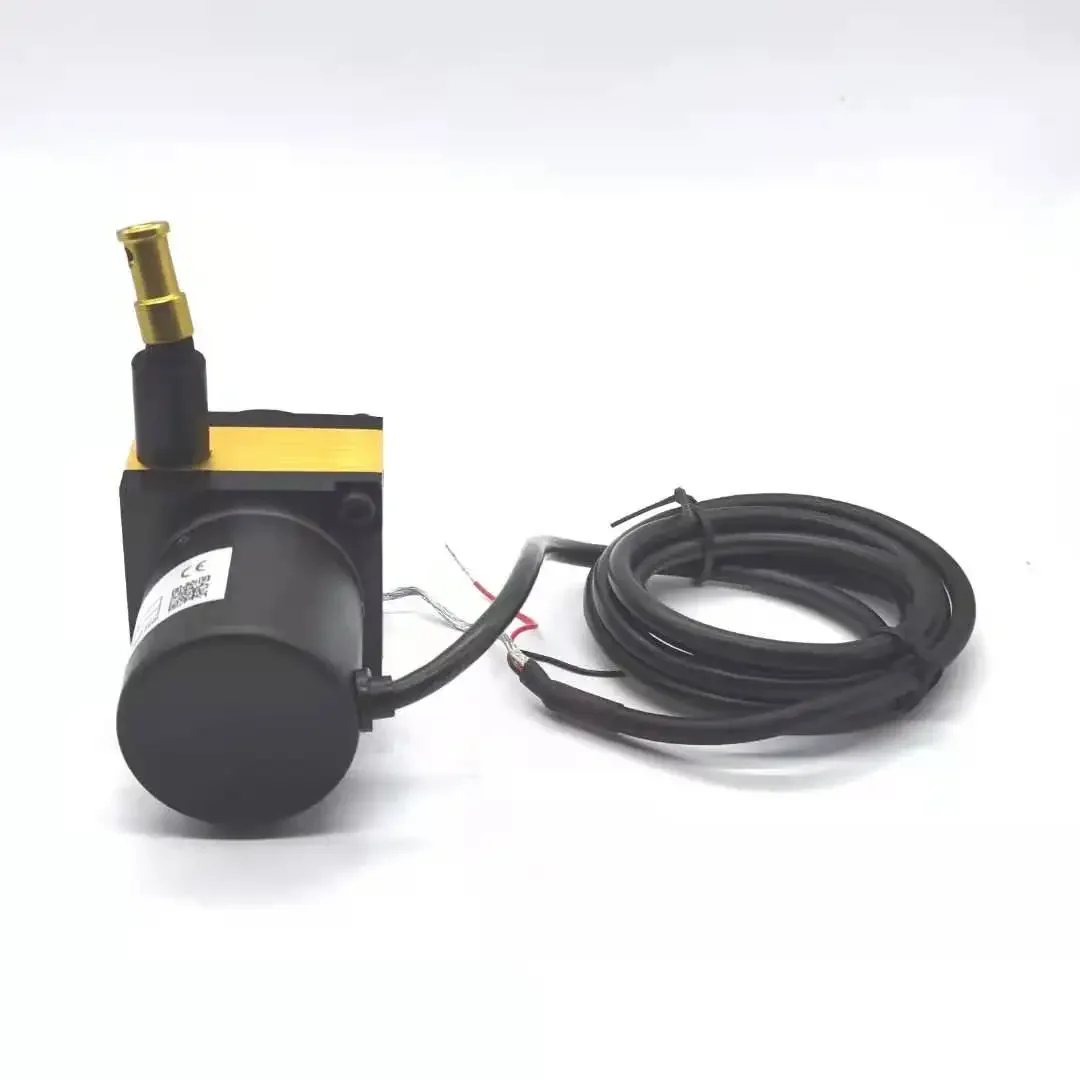

CWP-S1000 Cable Displacement Sensor
Price
Hydraulic Cylinder Positioning Measurement Special 1000mm
# Te
chnical Parameters ## Electrical Parameters Detection Method Imported High Precision Potentiometer Output Circuit 4-20mA (2-wire), 4-20mA (4-wire), 0-10V, 0-5V, 10kΩ and other resistance values Linearity 0.25%FS Accuracy 0.02%FS Resolution Infinite Inherent Resolution Supply Voltage 12Vdc, 24Vdc Zero / Full Scale Adjustable ## Mechanical Parameters Measuring Range Max 1000mm Measuring Wheel Circumference 100mm Cable Spec 0.6mm High Flexibility 304 Stainless Steel Wire Rope Allowable Pulling Speed Max 0.6m/s Vibration Resistance 10Hz to 2000Hz Pull Rope Tension 3N Service Life 2,000,000 Cycles Housing Material Aluminum Alloy Operating Temperature -25℃~80℃ Storage Temperature -40℃~80℃ Protection Class IP54 Weight ＜0.5KG
