Product View
Details
*Works for oil,fuel,diesel,gas,water,air pressure.
*Can be used in oil tank,gas tank,diesel tank etc.
*It's an advance pressure sender than traditional mechanical pressure sender.
*Works for oil,fuel,diesel,gas,water,air pressure.Can be used in oil tank,gas tank,diesel tank etc.
*Accuracy: +/-(0.5-1%FS);
*Thread: 1/8” or 1/4" NPT(choose the one you want);
*Wiring Connector: Packard plug-in unit is included;

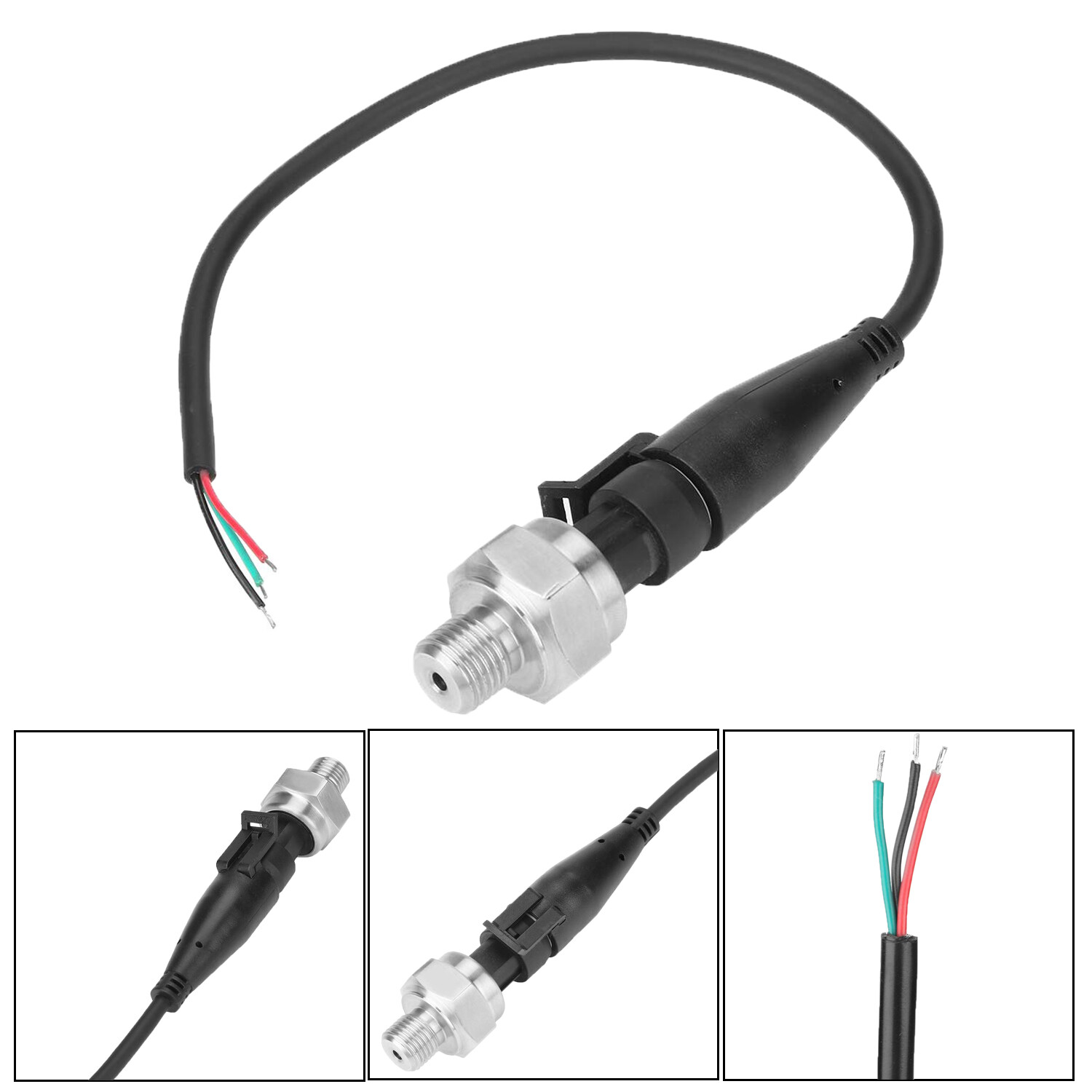

*Wiring: Red: +5V/+12VDC(choose the one you want); Black: ground; Green: signal output;
*Overload Capacity: 2 times;
*Working Temperature: -40—+85ºC;
*Compensation Temperature: -20—+80ºC;
*Protection Class: IP65;
*Pressure Medium: The gas and liquid which is compatible with 304 stainless steel;
*Load Resistance: ≤(supply power-6.5V/0.02A)Ω;
*Long-term stability: Less than 0.1%FS/year;
*Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
*Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC;
*Shock Resistance: 1000g;
*Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g);
*Response Time: ≤1ms;
*Insulation Resistance: >100mΩ 500VDC;
*Electromagnetism Compatibility: EN50051-1.
Input: 0-5 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 2.5 psi outputs 2.5V, 5 psi outputs 4.5V.
Input: 0-15 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 7.5 psi outputs 2.5V, 15 psi outputs 4.5V.
Input: 0-30 psi(gauge pressure);
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Input: 0-60 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 30 psi outputs 2.5V, 60 psi outputs 4.5V.
Input: 0-80 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 40 psi outputs 2.5V, 80 psi outputs 4.5V.
Input: 0-100 psi(Gauge Pressure);
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Input: 0-150 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V.
Input: 0-200 psi(Gauge Pressure);
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, 200 psi outputs 4.5V.
Input: 0-300 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V.
Input: 0-500 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, 500 psi outputs 4.5V.
Input: 0-1000 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 500 psi outputs 2.5V, 1000 psi outputs 4.5V.
Input: 0-1600 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 800 psi outputs 2.5V, 1600 psi outputs 4.5V.
Input: 0-2500 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 1250 psi outputs 2.5V, 2500 psi outputs 4.5V.
Input: 0-3000 psi(Gauge Pressure);
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 1500 psi outputs 2.5V, 3000 psi outputs 4.5V.
Input: -14.5 psi (-1.0 bars) to 30 psi (2.0 bars).
Output: 0.5V – 4.5V linear voltage output.
Works for boost vacuum chamber, oil, fuel, water or air pressure. Can be used in oil tank, gas tank, etc.
Input: 0-10bar(Gauge Pressure);
Output: 1-5V linear voltage output. 0bar outputs 1V,10bar outputs 5V.
