Rebuilt Carburetors

for

Honda
CB900C '80
also
ALL CB900C '80-'82 With DOHC Motors

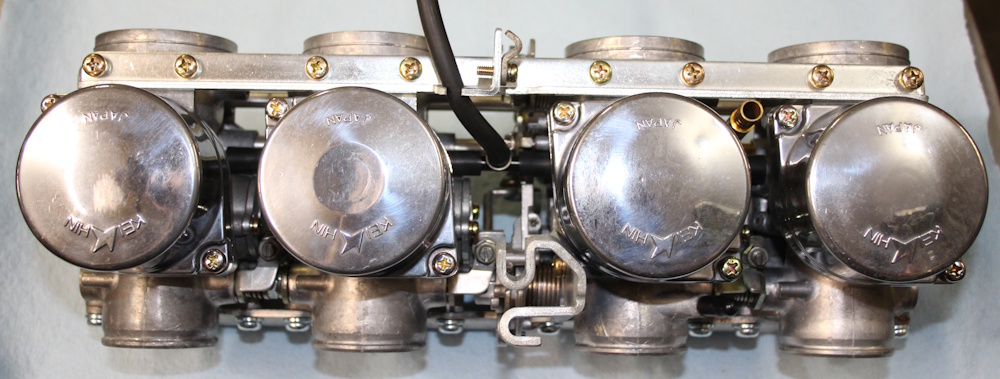

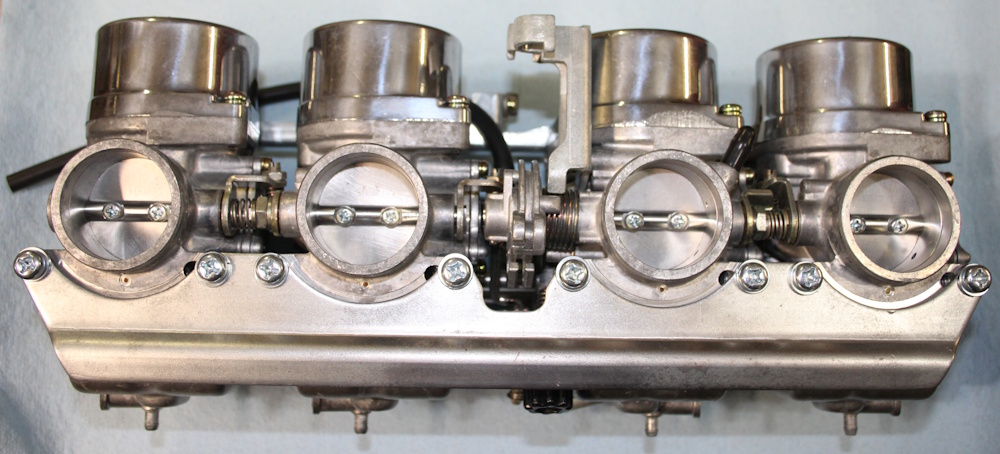

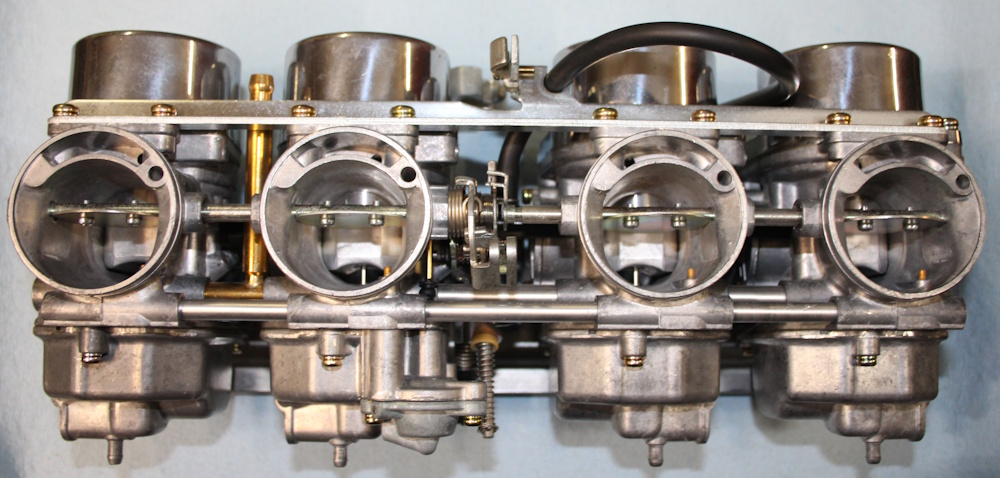

Rebuilt Kei Hin VB43AB carb pulled from a '80 CB900C. NO EXCHANGE NEEDED. The only thing not stock is I used the larger fuel inlet tee so they could easily work on later years with the 5/16 line. The carbs use factory Honda Jet needles and needle jets and are set-up for a stock bike that still has the factory air box. Great shape and ready to run. All parts of the carb ultrasonic cleaned other than the list of new parts installed (see list below) Ready to mount and use. Full replacement parts list is below, along with a specs list.

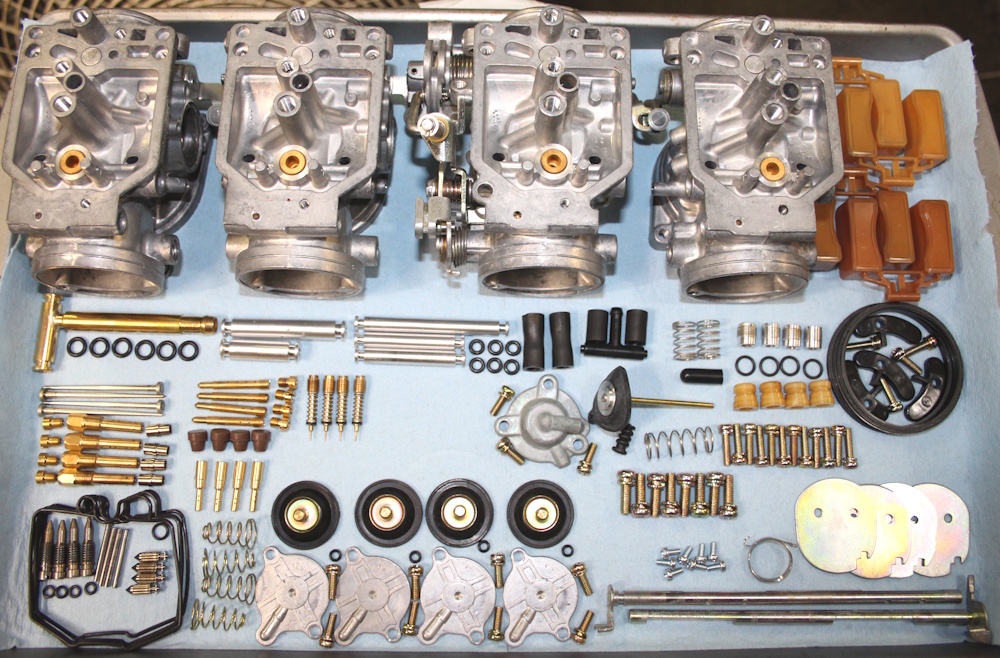

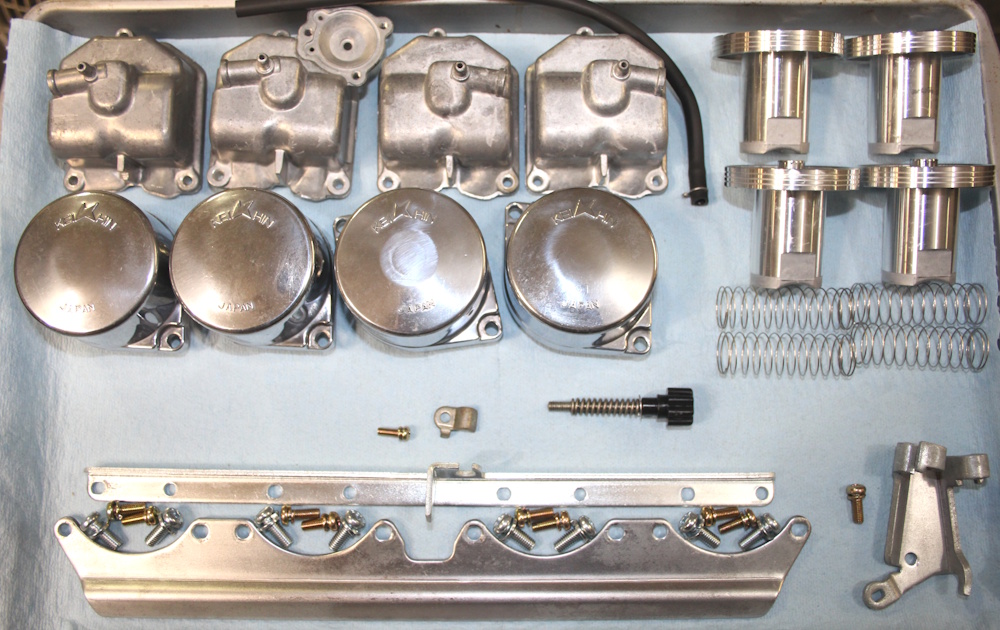

We replaced all the following parts with NEW parts.

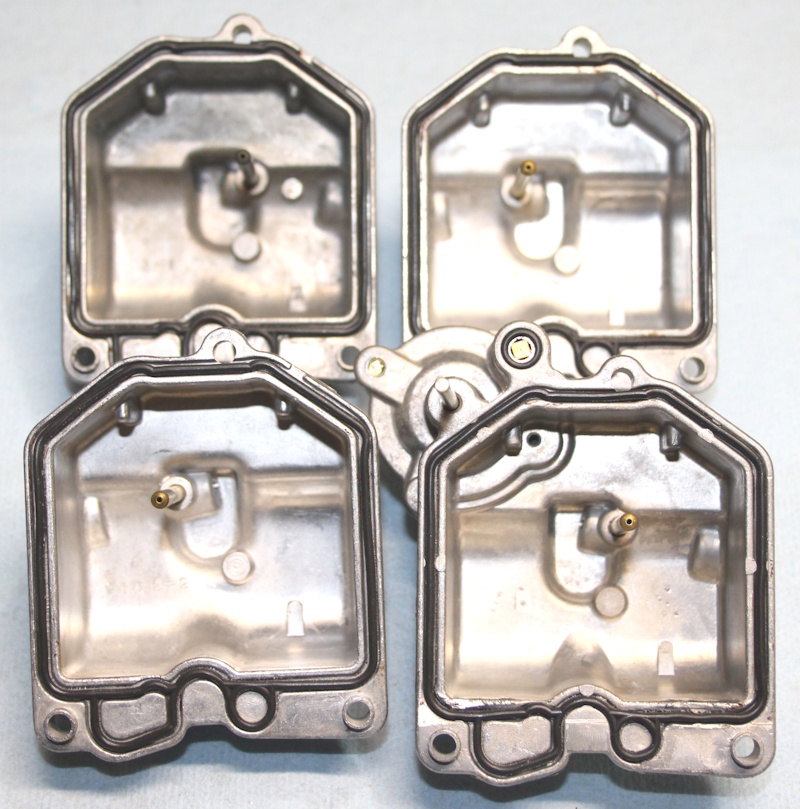

4 - Float Bowl gaskets
4 - Bowl drain screws and o-rings
1 - Accel pump bowl o-ring #1 carb
6 - Fuel crossover o-rings
6 - Accel crossover o-rings

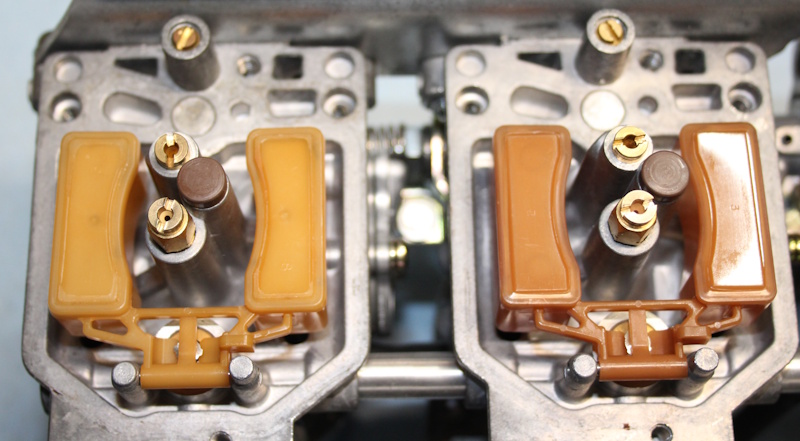

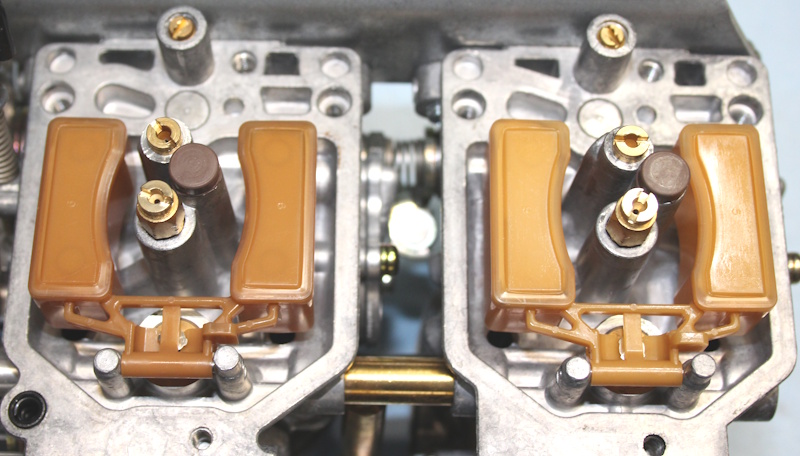

4 - Float needle (Viton tip)
4 - Primary jets 68
1 - Idle jet 35
4 - Fuel passage plugs
6 - Felt throttle butterfly shaft seals
8 - Throttle butterfly screws
4 - Air screws, springs, washers and o-rings
4 - Air cut-off valves , springs, and u-rings
1 - Accel pump diaphragm, boot and spring
8 - Air cut-off cap screws
3 - Accel pump cap screws
12 - Float bowl screws
8 - Top cap screws
8 - Main bracket screws
8 - Secondary bracket screws
1 - Choke cable clamp screw
4 - Slide top limiter cap o-rings
4 - Jet needle cap screws
4 - Air jet cover screws
8 - Choke butterfly screws

The specs are as follows

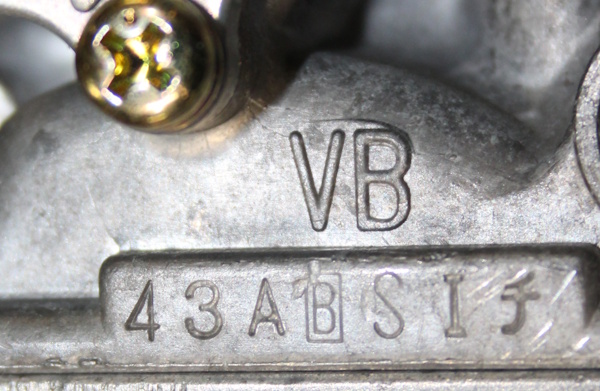

KeiHin VB43AB
Secondary jets 105
Primary jets 68
Idle Jets 35
Jet Needle 53J
Float Height 15.5mm
Air Screws 1.5 turns

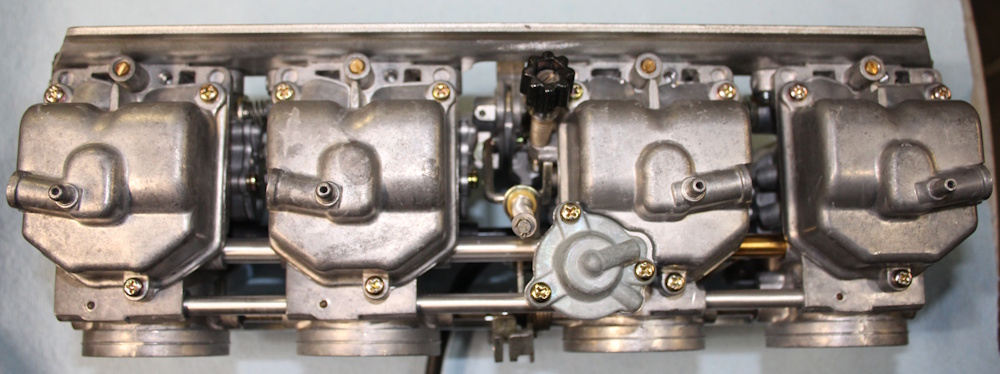

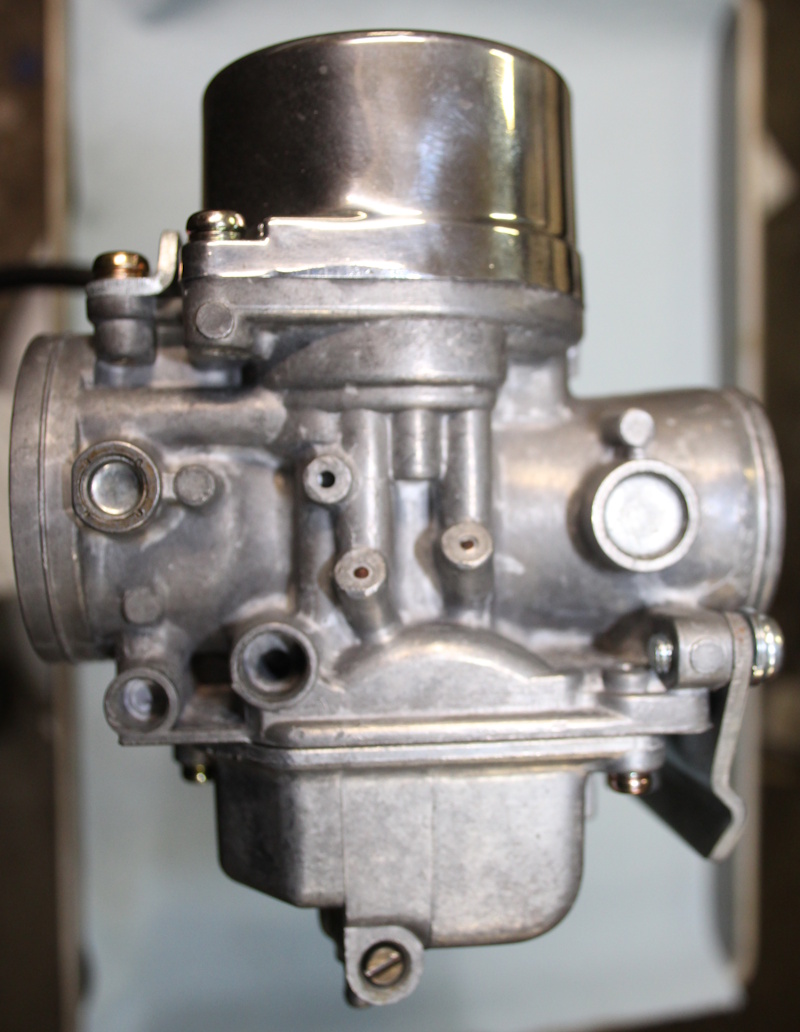

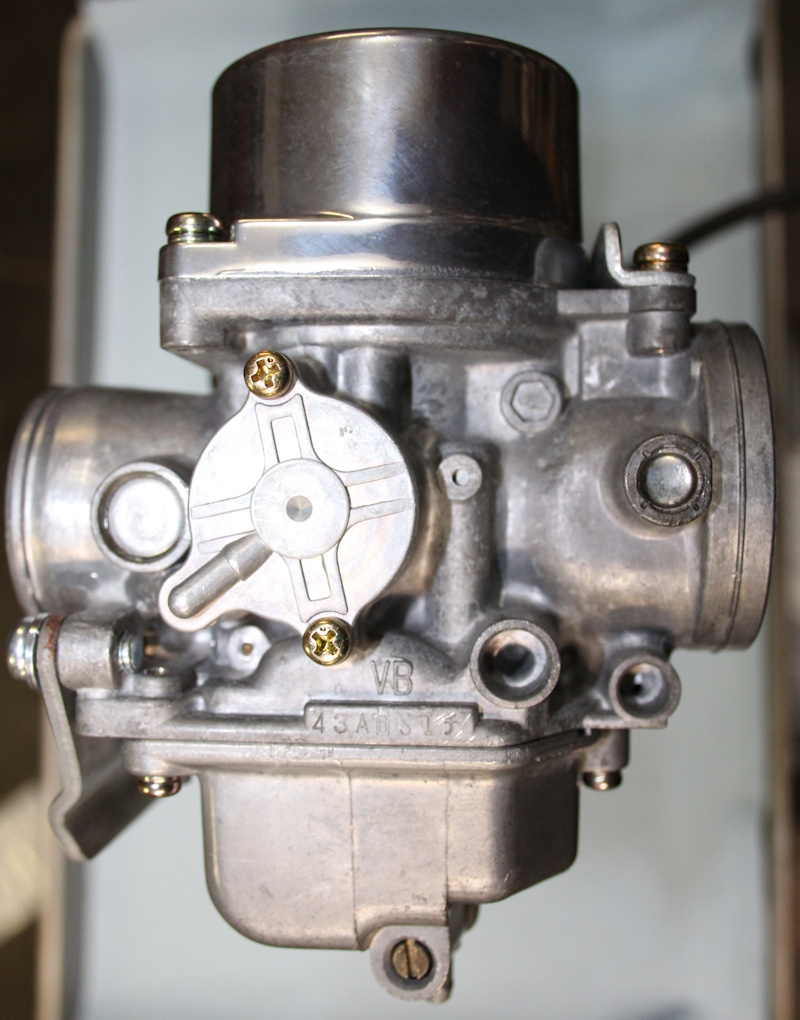

Each of the rebuilt carb sets we sell are completely done in house by the same person. 40+ years experience specific to Japanese street bikes. EVERY part of the carbs is scrutinized and if not in excellent or better condition, replaced with factory or better replacement part. We only use OEM or better O-rings and sealing parts. Most made with rubber to withstand new fuels containing alcohol content. Carbs will come with factory jet sizes and parts. They are bench-synked, but may need to be synchronized after mounted on the motorcycle by an experienced mechanic. Air screw settings are all set to factory specs. We do not show example pictures, the carb or carb set you see below is the carb or carb set you will get and they are ready to ship. See pictures below.

The part pictured is the part or parts you get. Includes all items shown unless otherwise stated above.
