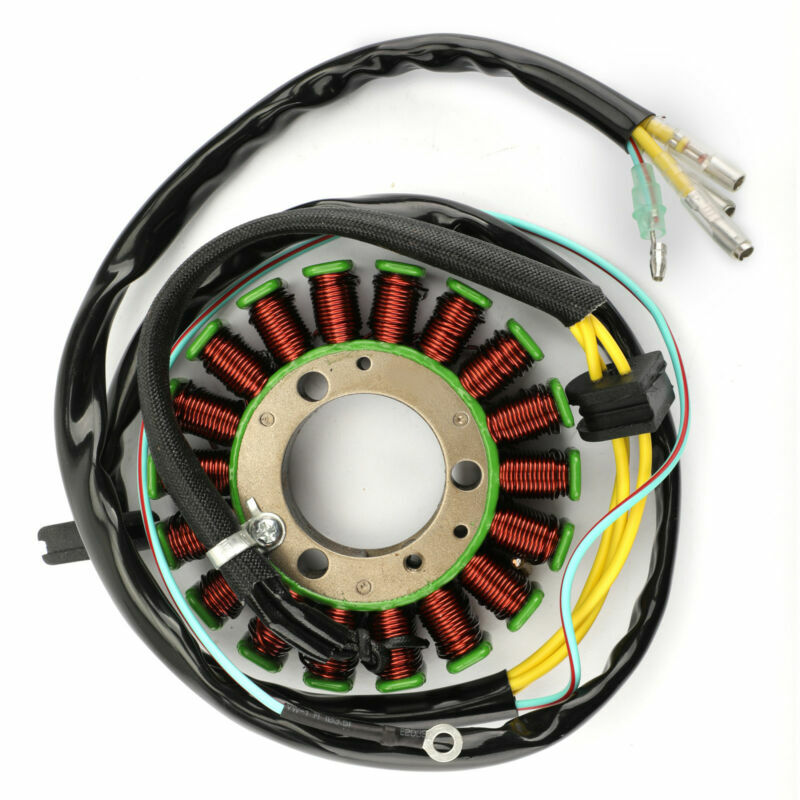

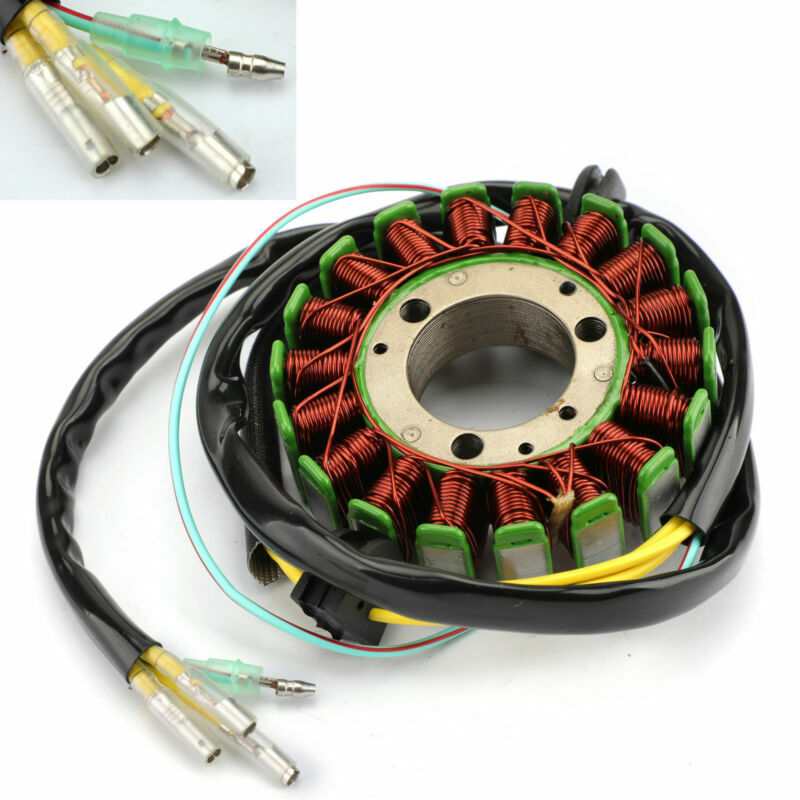

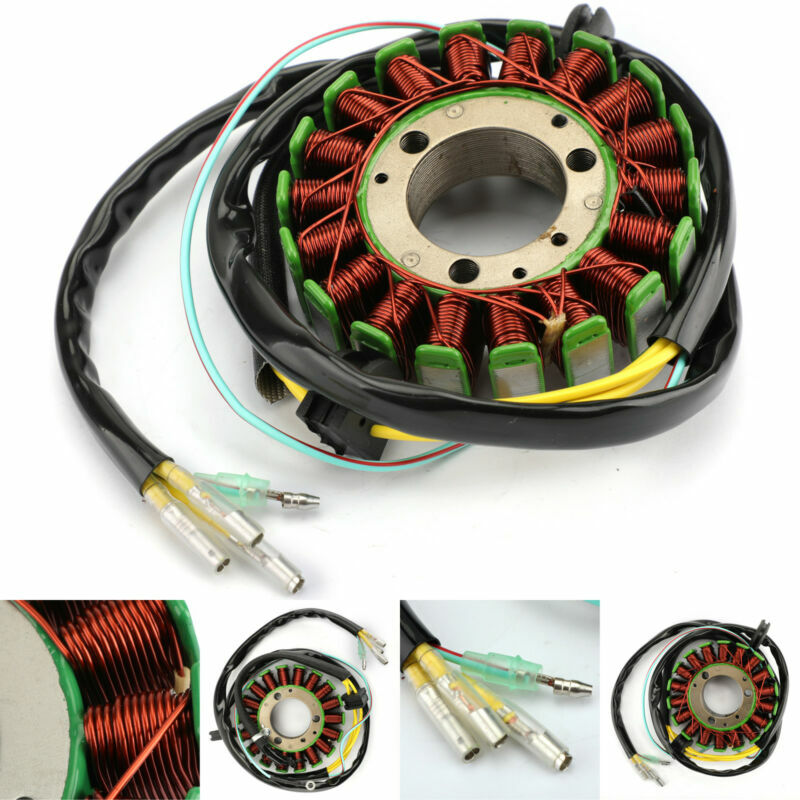

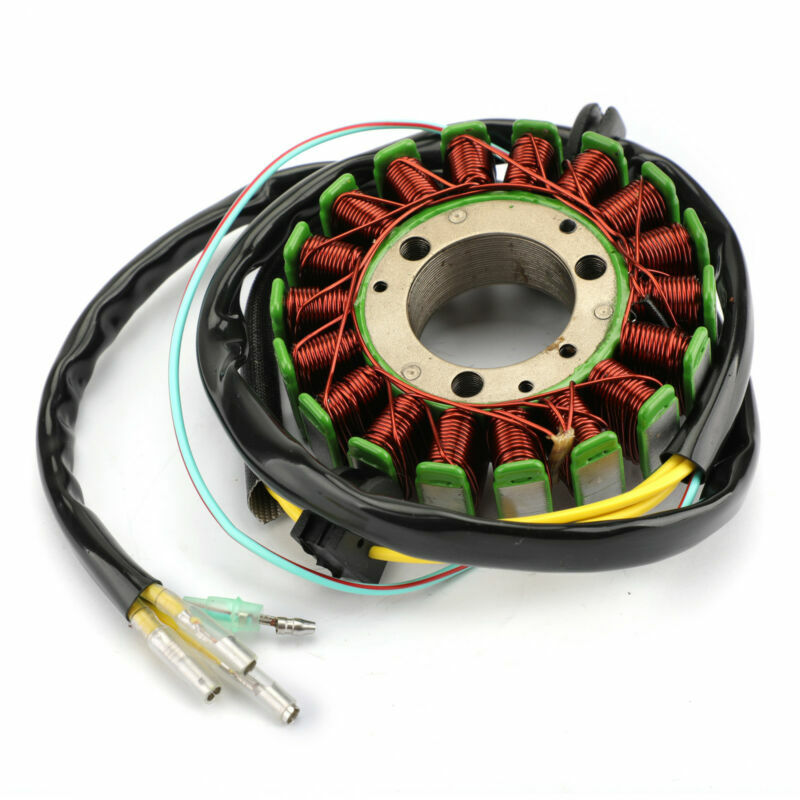

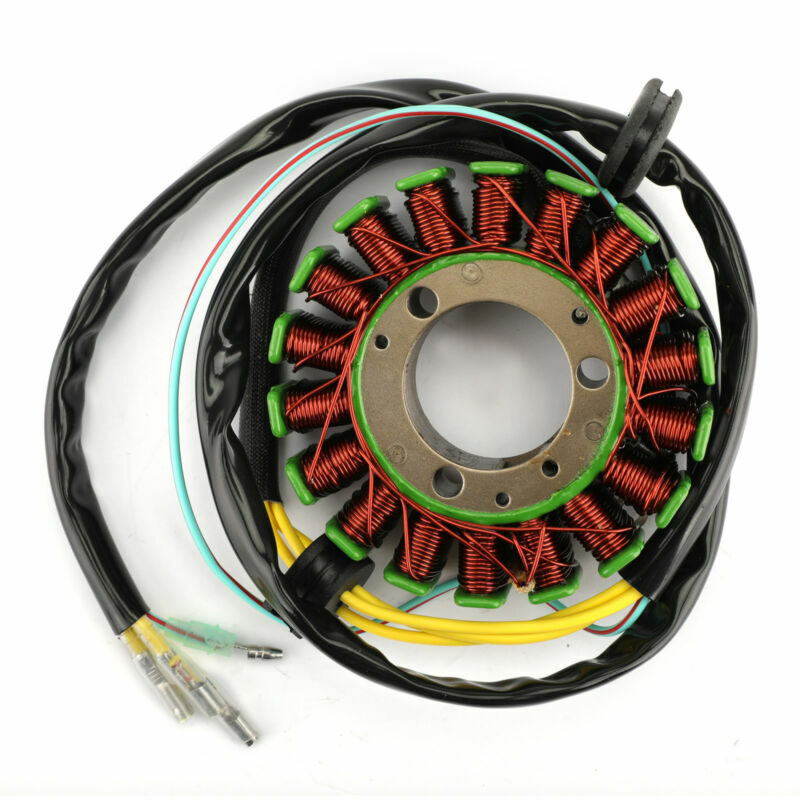

Magneto Generator Engine Stator Coil For Honda XR250L XR 250 L 1991 1992 1993 1994 1995 1996 31120-KV6-671
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

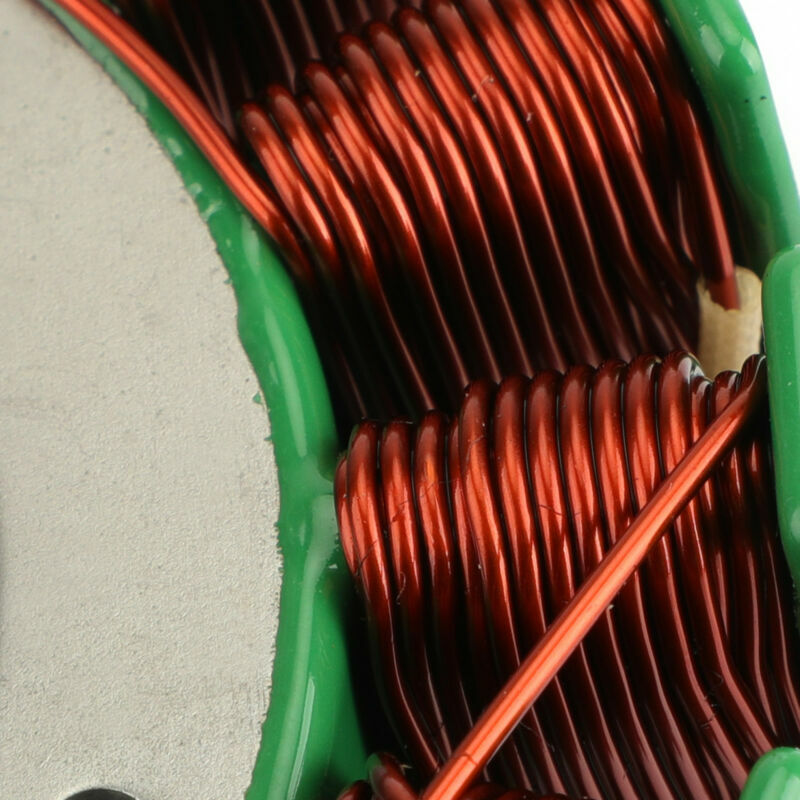

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

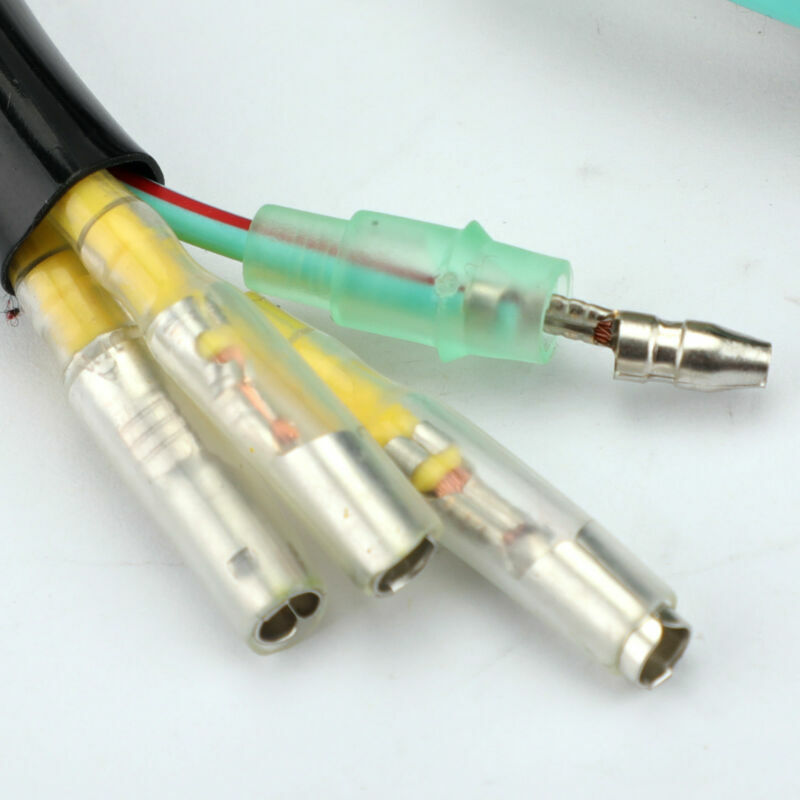

Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-KV6-671
Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 92mm / 3.65"
Thickness : 10mm / 0.39"
Other specifications :
Number of wires: 4
Number of pins: 5
Number of plugs: 5
Number of fixation holes: 3(+1)
FITMENT:
For Honda XR250L 1991-1996
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
✅ COMPATIBILITY CHECKLIST
✓ Check description and vehicle compatibility chart
✓ Compare OEM numbers
✓ Review connector photos
✅ Free verification: Message us first
1：OEM number
2：Old part photos
3：Vehicle Year/Make/Model/Engine Size
