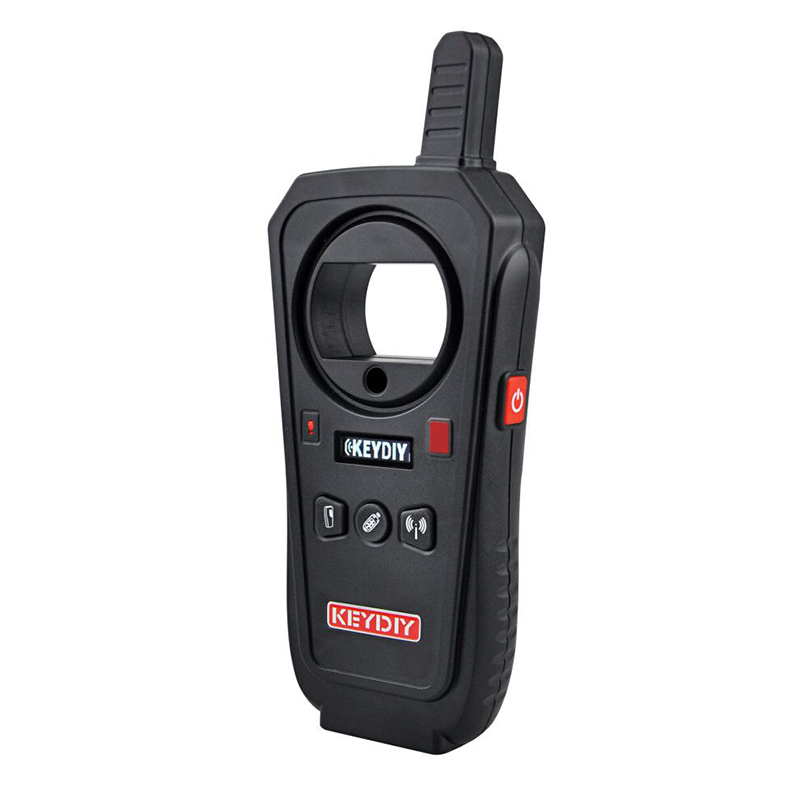

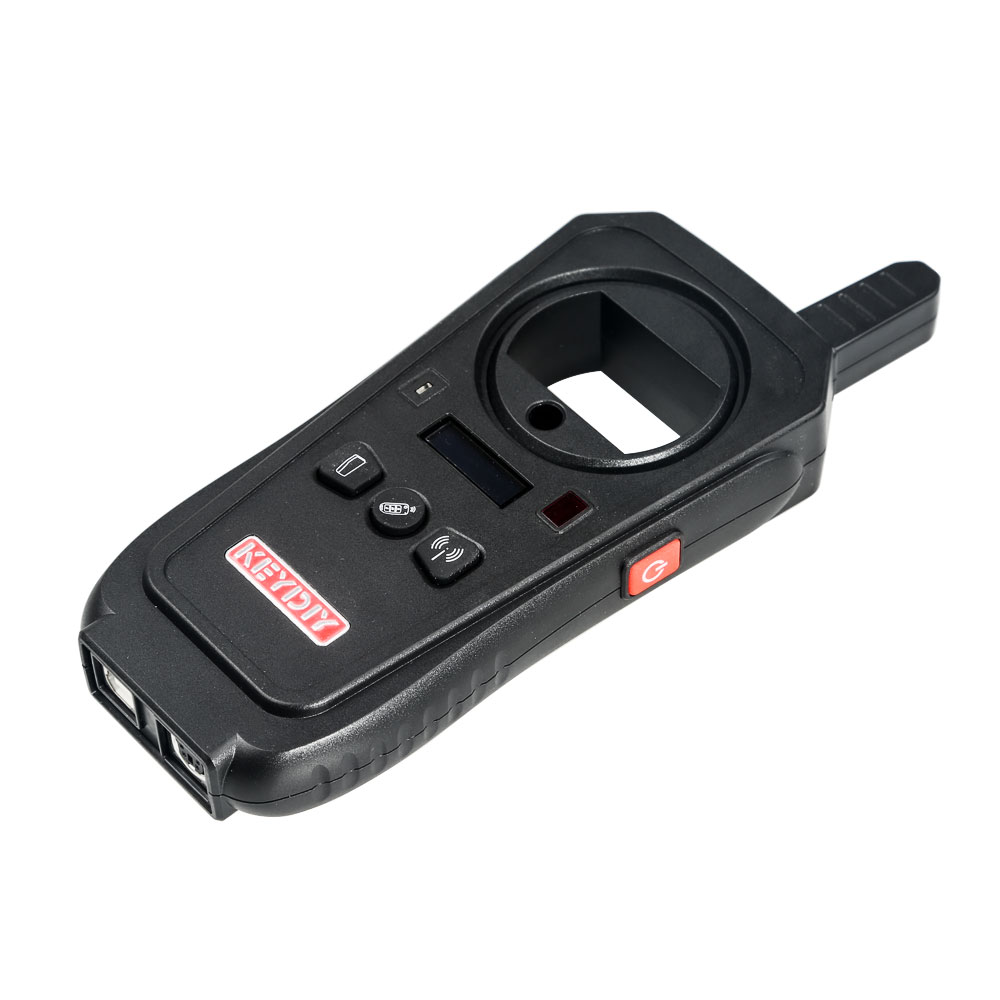

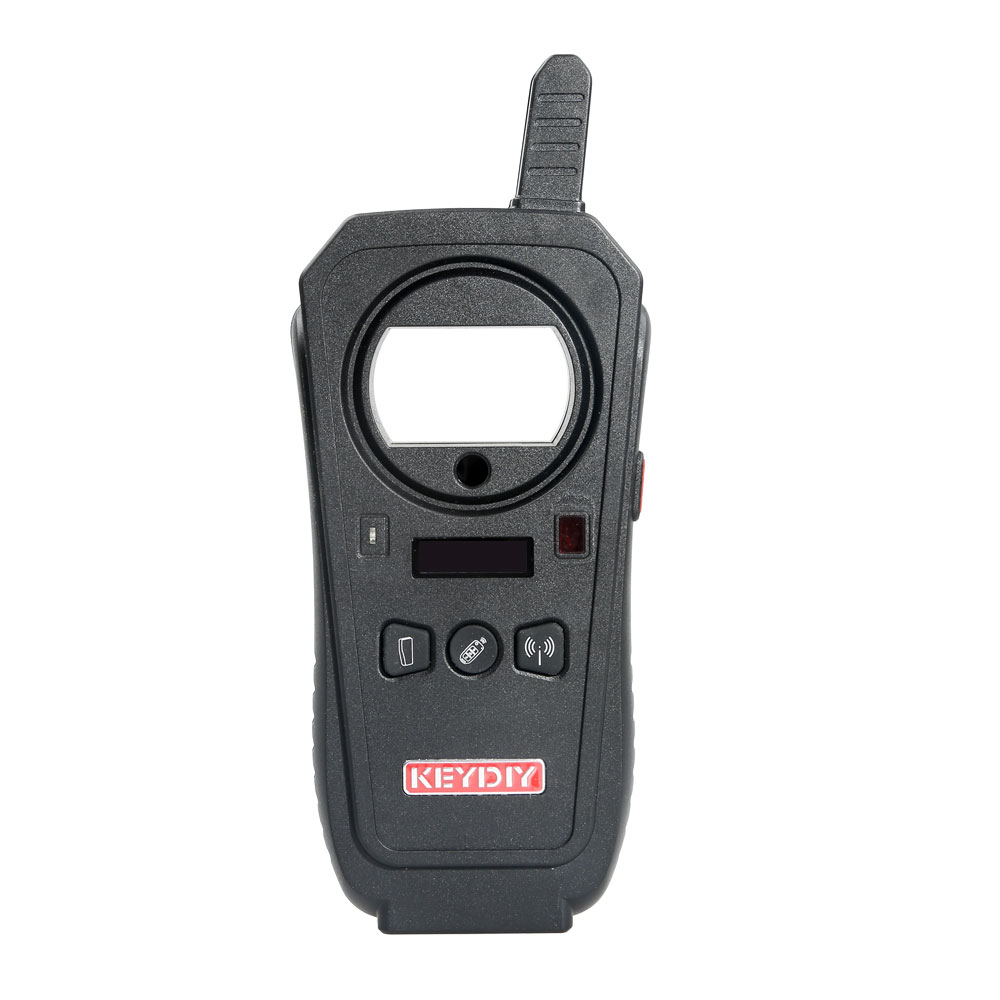

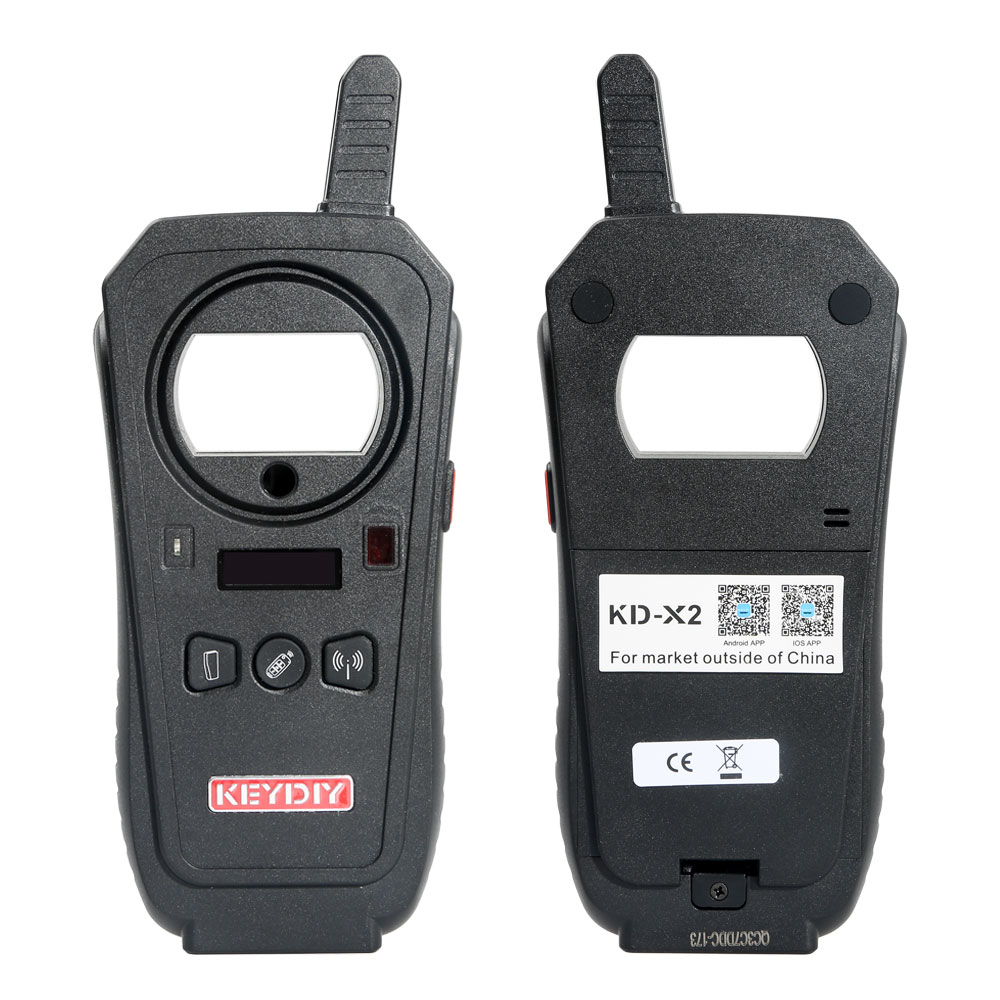

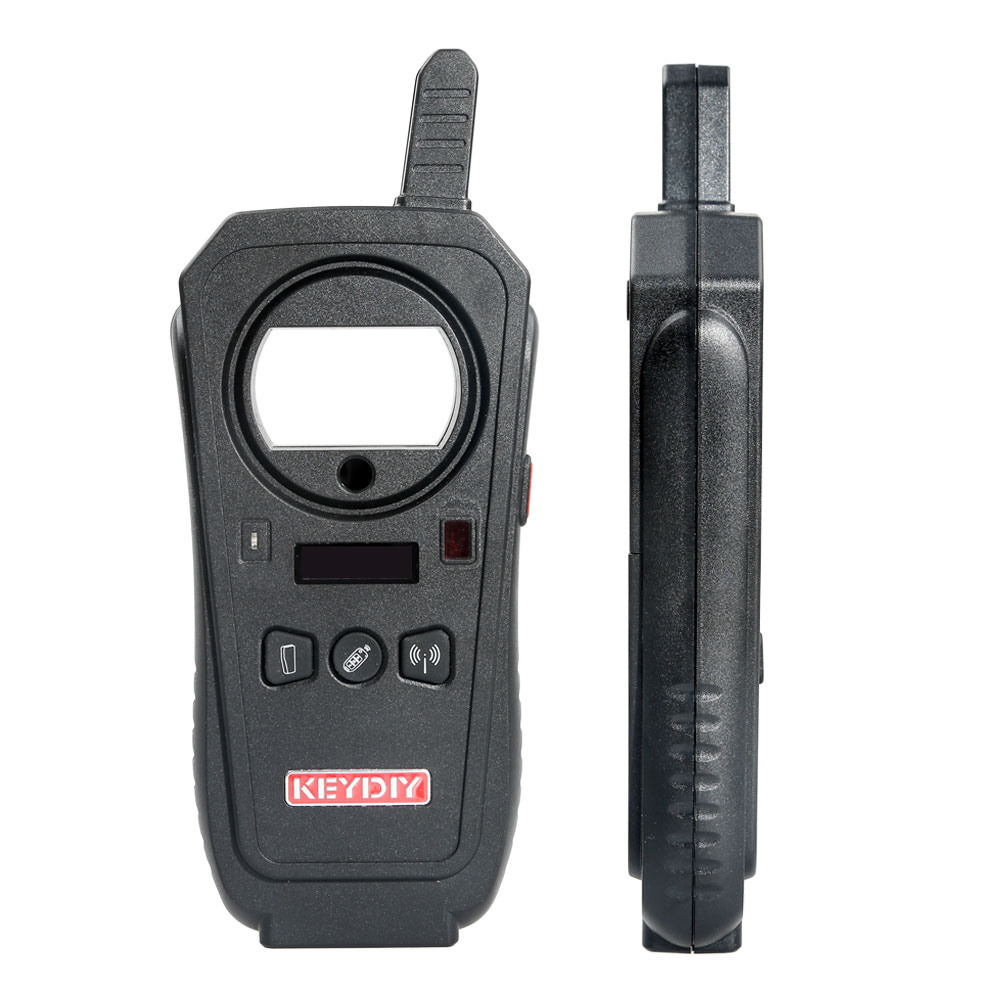

KEYDIY KD-X2 Remote Maker Unl-o/c-ker and Generator-Transponder Cloning Device
The KDX2, is a multi-function auto key progarmmer which is very popular among l-o-c/ksmiths thanks to its small body and powerful functions.The KDX2 is more than just a cloner, it is also capable of copying transponders, read and write from / to transponders, execute a frequency test and generate type transponders, all in just a few simple steps.
The KDX2 also benefits from a built-in snoop device which notifies you when you have gathered the necessary snoop data on ID46 and ID48.
This key cloner is as small as a phone, meaning that you can simply put it in your pocket and take it with you. And in order to avoid the problem of power supply the KDX2, has been designed with a 1600mAh lithium battery, allowing you to decode hundreds of times when fully charged.
KEYDIY KD-X2 Introduction:
1. Power supply: 2600mAh lithium battery; Charge method: USB 5V/1A
2. With 0.91inch OLED display screen.
3. Bluetooth BLE4.0 inside, work with mobile KD app by bluetooth connection

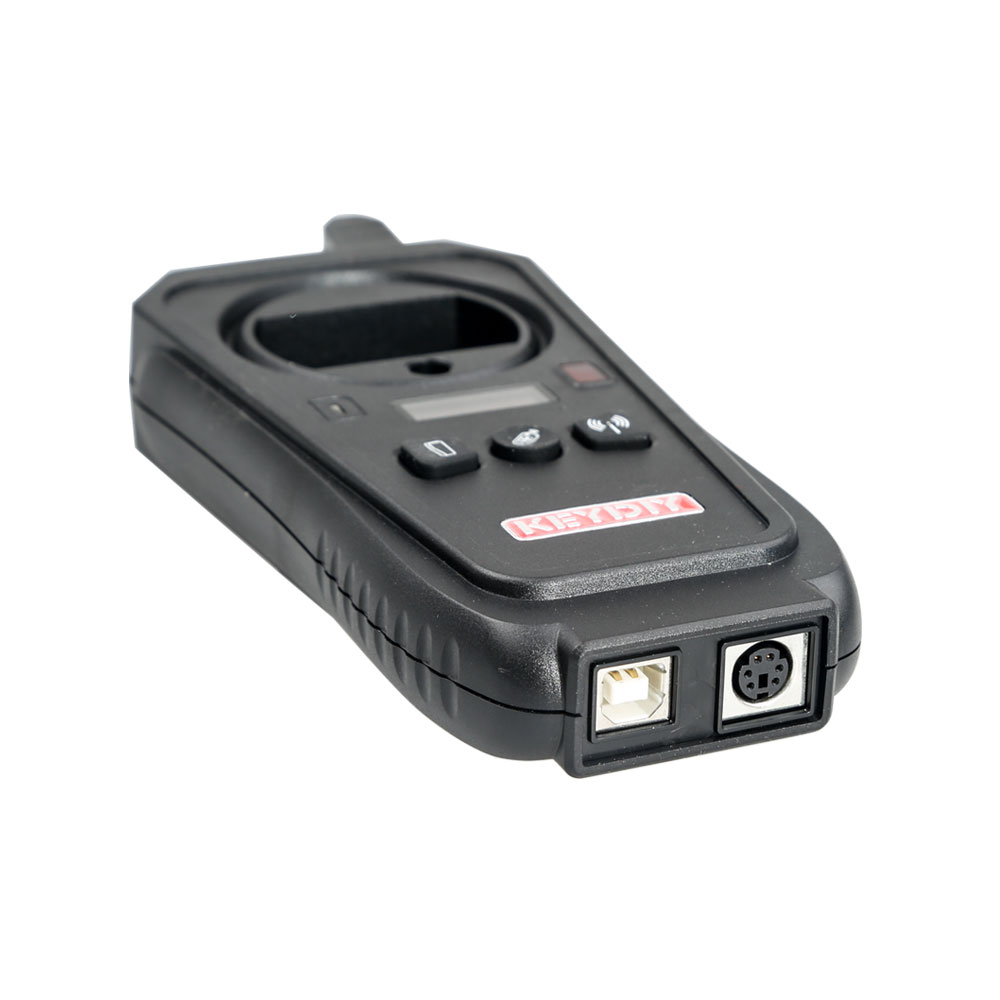

4. Can work with PC software by USB-B connection, and work with IOS Android phone or tablet by OTG connection.
5. With PS-2 interface for connecting remotes to generate.
6. Three functional shortcut buttons: chip identification, remote identification and frequency detection.
7. Free Activation of 96 Bits 48 Transponder Copy (No Token Required)
Please refer to our official blog How to get KEYDIY KD-X2 ID48 96bit clone coins
KEYDIY KD-X2 Features:
1.No Tokens required for use
2.Continue free updates
3.Compatible with most manufactures chips on the market,such as Handy Baby,JMD,CN,VVDI etc.
4.Copies 96 bit (only) ID48 chips (Not the full range as per Keyoline Mini/884 are able to)
5.Works with a PC software connected via USB for Online only fucntions
6.Eliminates the need to purchase many other devices
7.Transponder Chip identification/to help choose the correct chip to program
8.Remote identification to help take the guess work out of the choice to program
9.Frequency detection,can also be used to check remote buttons are functioning correctly
10.Ignition coil detection,check if the car itself is sending out a signal so to fault test
11.Plus many more additions and updates coming soon
KEYDIY KD-X2 Basic Functions:
1) Wired Generation.
2) Wireless Generation.
3) Mobile Phone Simulation.
4) Garage Door Generation.
5) Proximity Key Unl-o/c-k.
6) Frequency Detection.
7) Infrared Detection.
8) Access Card Copy.
9) Fixed Code Remote Copy
10) Online HCS Remote Copy.
11) Online Chip Copy ( 96 bit 48chip, 46chip, 4Dchip, for Toyota chip etc. )
12) Chip Generation.
13) Chip Editing.
14) Chip Simulation.
15) lgnition Coil detection.
16) Remote Data Backup.
17) Additional Functions Will be Available in Succession.
KEYDIY KD-X2 new version 5.0.0 with more new options:
1. Upgrade remote data service;
2. Improve the stability of remote upgraded;
3. Improve downloading speed and stability of the third party remote;
4. Generate the remote can get the kd-coins;
5. Use KD NB remotes to copy chips can get KD-coins;
6. Support to generate garage door remote.
KEYDIY KD-X2 Support Car List:
Fit For Audi ,Fit For Baojun ,Fit For Bcahy ,Fit For Benjin Auto, Fit For Benz , Fit For Besturn , Fit For BMW , Fit For BYD , Fit For Cadillac , Fit For Chang an , Fit For Changfeng Motors , Fit For Changhe, Fit For Chevrolet , Fit For Chrysler , Fit For Citroen , Fit For Daihatsu , Fit For Dongfeng , Fit For Faw , Fit For Fiat , Fit For Ford , Fit For Garage , Fit For Geely , Fit For GMC ,Fit For Great Wall Automobile , Fit For HaiMa , Fit For Hawtai Motor , Fit For Honda , Fit For Hyundai , Fit For Isuzu Iveco , Fit For Jaguar , Fit For Jianghua , Fit For Kia , Fit For Land Rover , Fit For Lincoln , Fit For Mahindra,Fit For Mazda,Fit For MG,Fit For Mitsubishi,Fit For Nissan,Fit For Opel,Fit For Peugeot Citroen DS,Fit For Porsche,Fit For Proton, Fit For Renault , Fit For Saipa,Fit For Samand,Fit For Seat,Fit For Skoda,Fit For Ssangyong,Fit For Subaru,Fit For Fit For TATA ,Fit For Toyota, for Lexus,Fit For V0lvo, Fit For V.W, Fit For Zhongxing
The current coverage of the KDX2 includes:
Transponder Identification
The KDX2 can read and identify the following transponder types:
• Fixed code ID 11, 12, 13, 33 and 4C
• Fit For Philips Crypto 40, 41, 42, 44, 45, 46, 47, 49 and 4A
• Fit For Megamos 48, 48 Canbus
• Fit For Texas Crypto 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C and 8E
• Most smart keys
Transponder Cloning
The KDX2 offers an extensive cloning range with the built-in snoop for ID46 and ID48 cloning.
Currently, the KDX2 can clone keys for:
• 4D/ 4C / 46 / 11 / 12 / 13 / 33 transponder clone
• ID48 (96 Bit) Only
• Fit For Fixed code (T5) – ID 11, 12, 13 & 33 using a carbon T5 chip
• Fit For Texas TX 4C
• Fit For Texas Crypto TX/CR 4D
• Fit For Philips Crypto PH/CR 46
• Fit For Toyota 80 Bit
• Fit For Megamos Crypto
Transponder Production
The KDX2 also has a good range of transponder production (image generator functions) included.
The transponder production coverage includes:
• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G 4C transponder
• ID48 type: Fit For Seat TP22 / Fit For V-A-G TP23 / Fit For Skoda TP24 / Fit For Audi TP25 / Fit For Seat TA22 / Fit For V-A-G TA23 / Fit For Skoda
• TA24 / Fit For Audi TA25 / Fit For Fiat ID48 / Fit For Jetta ID48
• ID46 type: Fit For Great Wall (STEC) / Fit For Zotye (STEC) / Fit For Ha/ma (STEC) / Fit For Maple (STEC) / Fit For Geely (SETC) /
• Fit For Cherry (STEC) / Fit For Zhonghua230 / Fit For Zhonghua530 / Fit For V.W46 (2007-2008) / Fit For X-Trail (2008-2009)
• Fit For Renault (Maste.II) / Fit For Renault (Trafic II) / Fit For Opel (Vivaro) / Fit For Opel (Movano) / Fit For Renault (Espace IV)
• Fit For Renault (Laguna II) / Fit For Renault (Velsatis) / Fit For Renault (Twingo) / Fit For Citroen / Fit For Fiat / Fit For Lancia / Fit For Peugeot (206/307)
Transponder Production coverage continued…
• Fit For Mitsubishi / Fit For Cruze / Fit For Siemens / Fit For Changhe / Fit For Suzuki / Fit For GM / Fit For Beidouxing
• T5 type: 11 / 12 / 13 / 33
• ID47 type: Fit For Honda
• Id63 ford 80 bit
Signal Test
The KDX2 can check a remote's frequency as well as identify type (i.e. ask or FSK), including:
• Frequency Test (remote, ASK/FSK)
• E-C-U signal test (check if the coil works or not)
Simulator
The KDX2 allows you to simulate the key before you clone it, to ensure working correctly prior to cloning a chip on:
• ID46
• ID4D
Transponder Edit
The KDX2 allows you to read, write and edit chip data on 4D / 46 / 48 / 47 / 4D DST/8A etc
ID48 Activation is FREE Ready to use on your New KD-X2 Machine
To use the ‘Copy’ function, this is FREE* Or Packs can be Ordered**
FREE* (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
To use the ‘Copy’ ID48 (96bit) function for FREE you will need to use KD COINS, which are obtained every time you use the machine to generate.
• The more you use the machine – the more FREE KD Coins you received to Copy ID48 (96bit)
• Every 1st time you Generate a “ B “ Remote you receive Free 20 KD Coins
• Every 1st time you Generate a “ NB “ Remote you receive Free 10 KD Coins
o Example 1, for every 7 x “NB” plus 1 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
o Example 2, for every 8 x “NB” 1st time generation you receive 160 FREE Coins equal to 1 x FREE to Copy ID48 (96bit) with 10 spare KD Coins
o Example 3, for every 15 x “B” 1st time generation you receive 150 FREE Coins equal to 1 x FREE to Copy ID48 (96bit)
Packs can be Ordered** (150 Key DIY Coins are needed for use to clone 1 x ID48 chip)
If you need to use this function in cases where you cannot wait to generate remotes to receive your FREE to use Copy ID48 (96bit) function, you can look to purchase KD Coins.
• Purchase x1 use Copy ID48 (96bit) for £9.99 each +VAT (equal to 150 Key DIY Coins)
• For more info on KDX2 Coins, please contact the office on 01902 366 448.
How to Use KEYDIY KD-X2 to Identify Chip Type?
Put the chip you want to identify into the chip slot,then press the "Chip Identification" button.
Customer Feedback:
I just updated to version 4.6.2 and the REMOTE UNLOCK option is now available. Unl-o-c/k key means in this case unl-o-c/king used keys so they can be reused , thus cutting costs on new keys by unl-o-c-king and using 2nd hand keys.

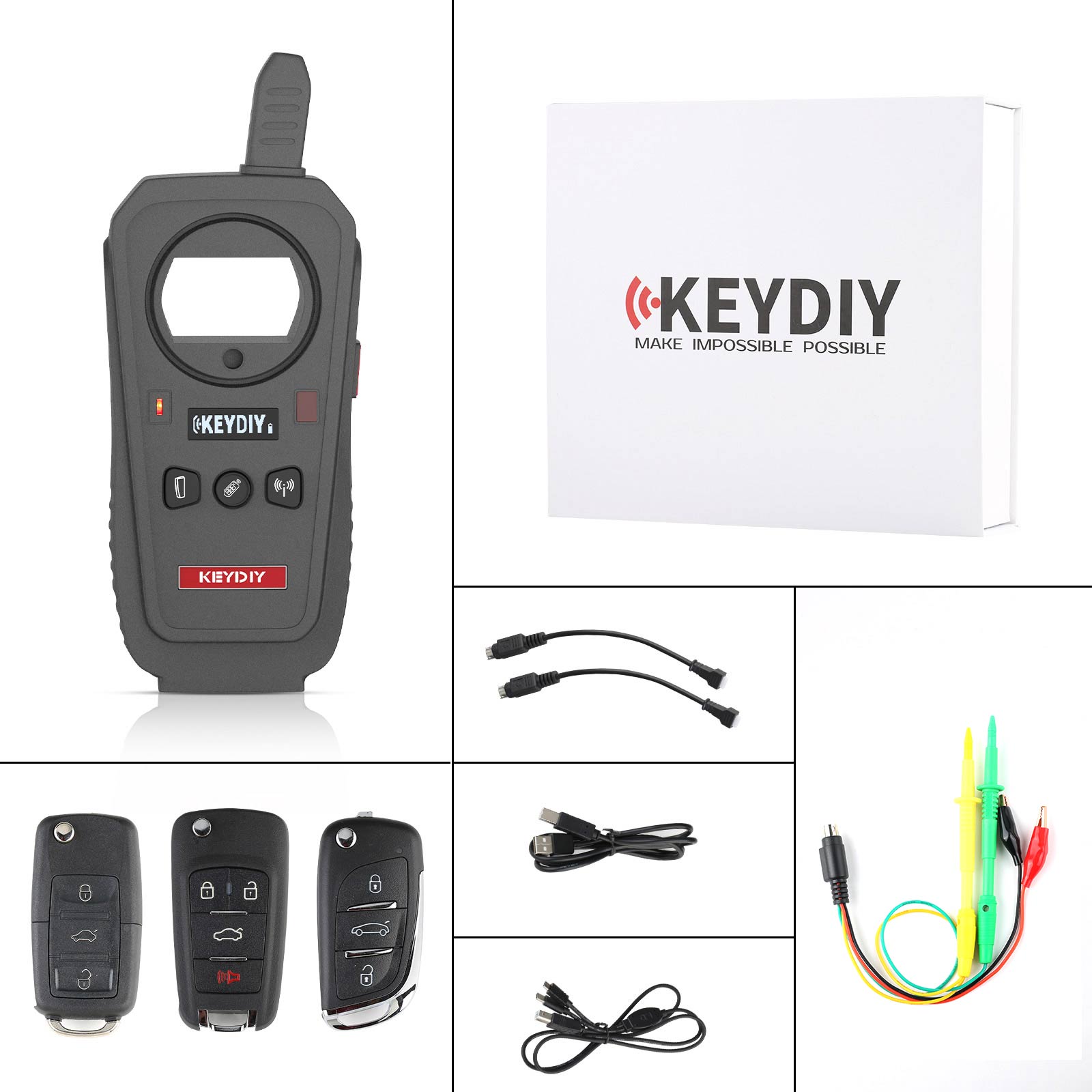

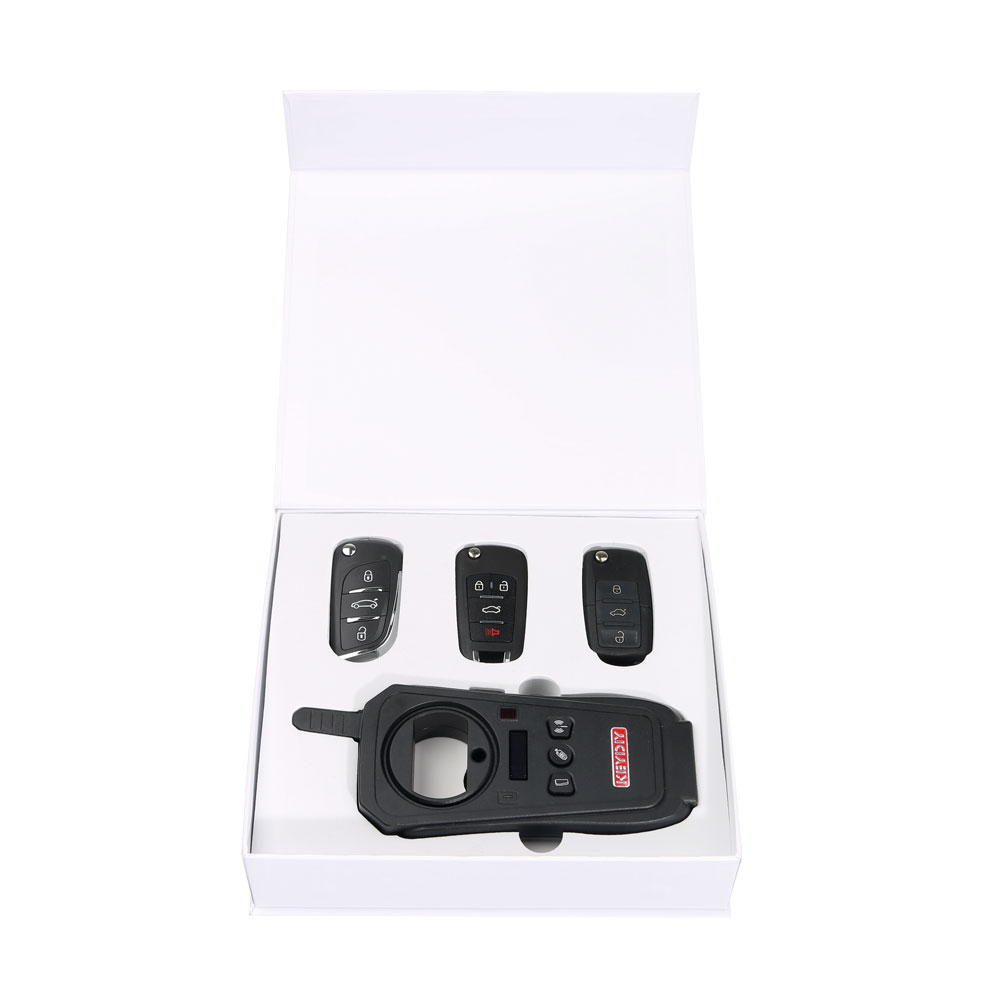

KEYDIY KD-X2 Remote Maker Package List:
1pc x KEYDIY KD-X2 Main Unit

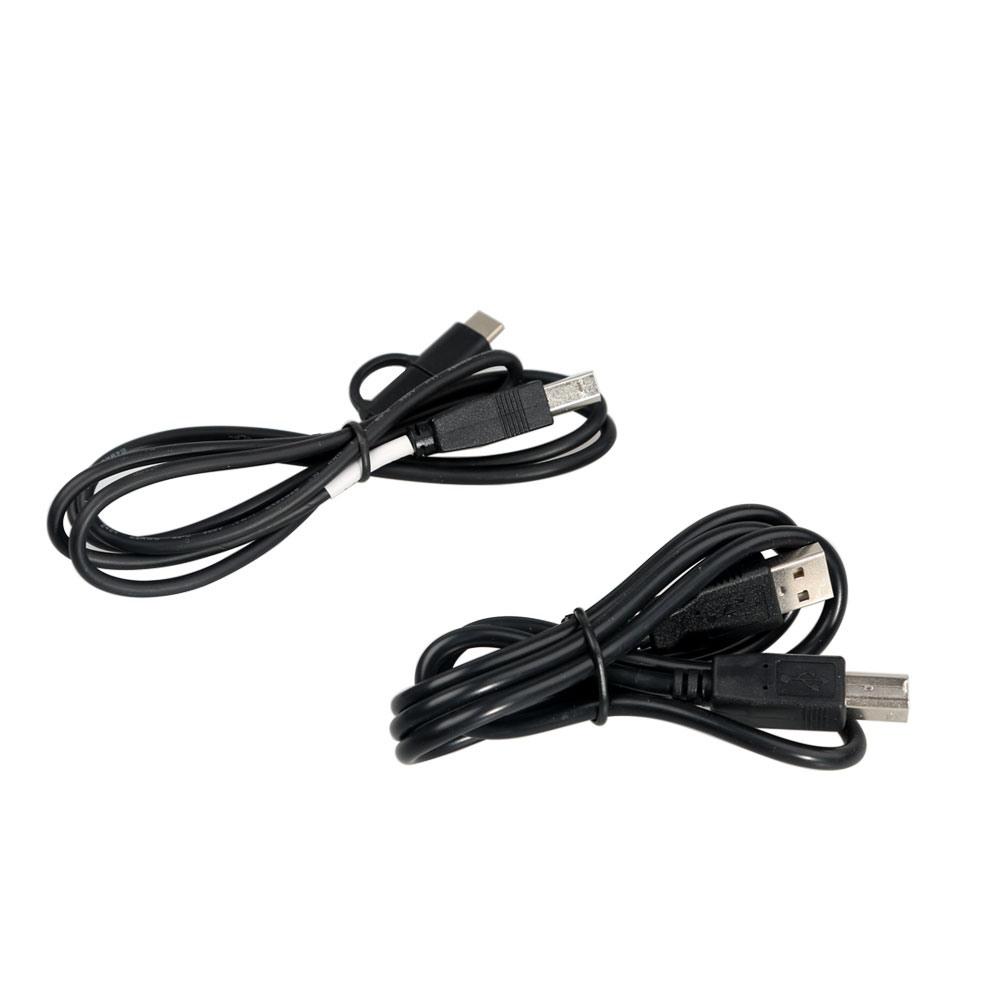

1pc x PC Data Cable

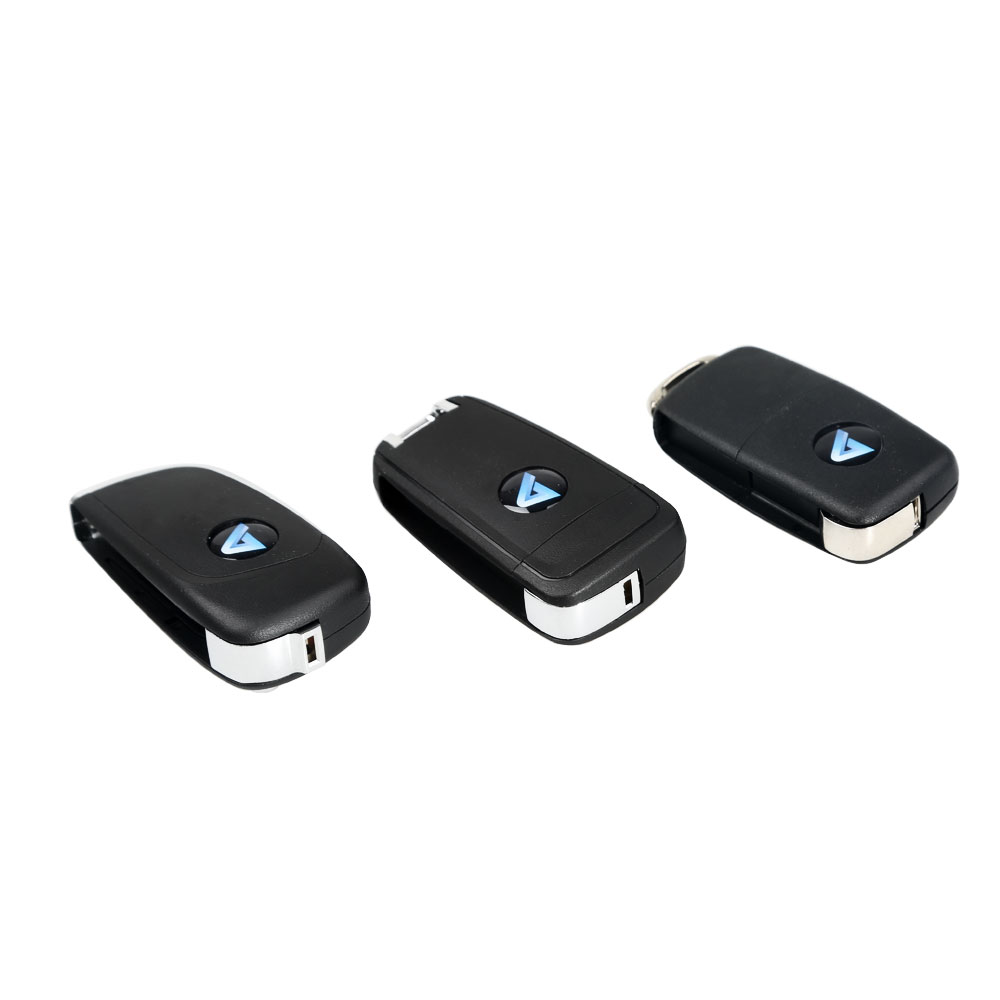

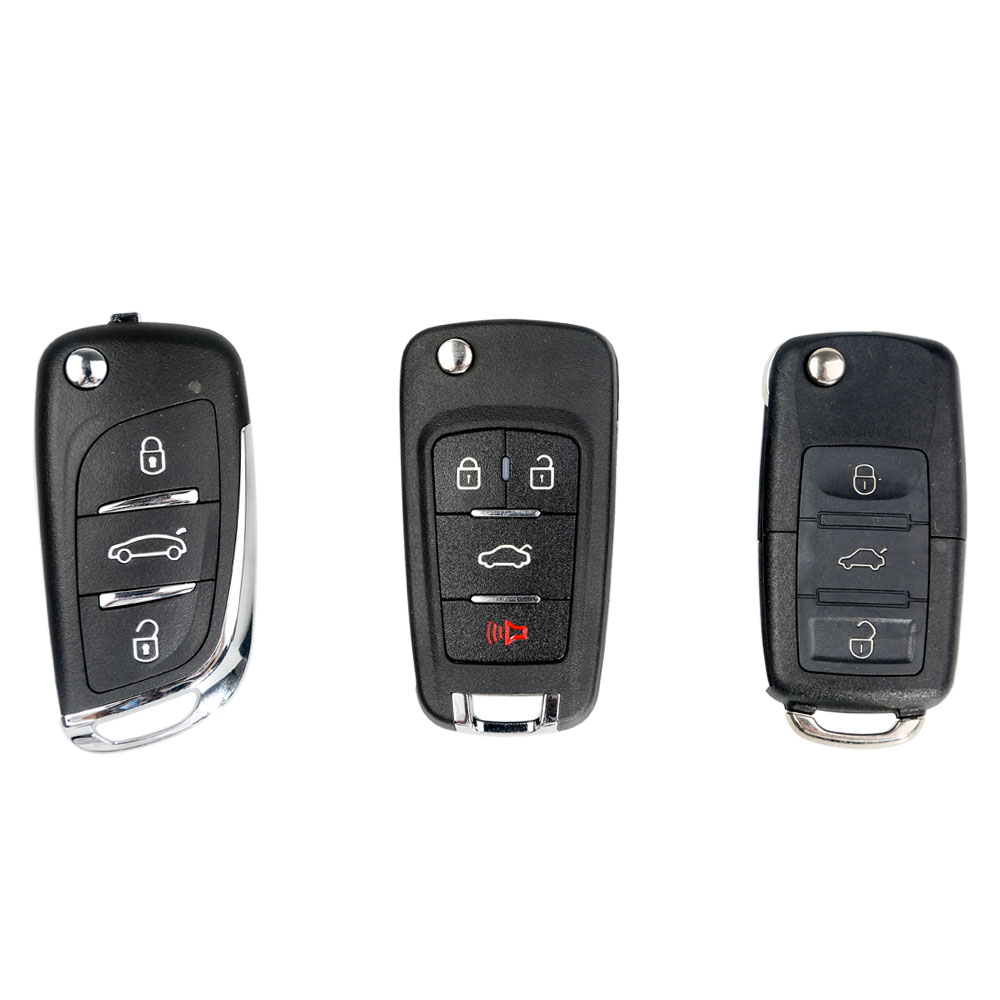

1pc x 3 Commonly Remotes

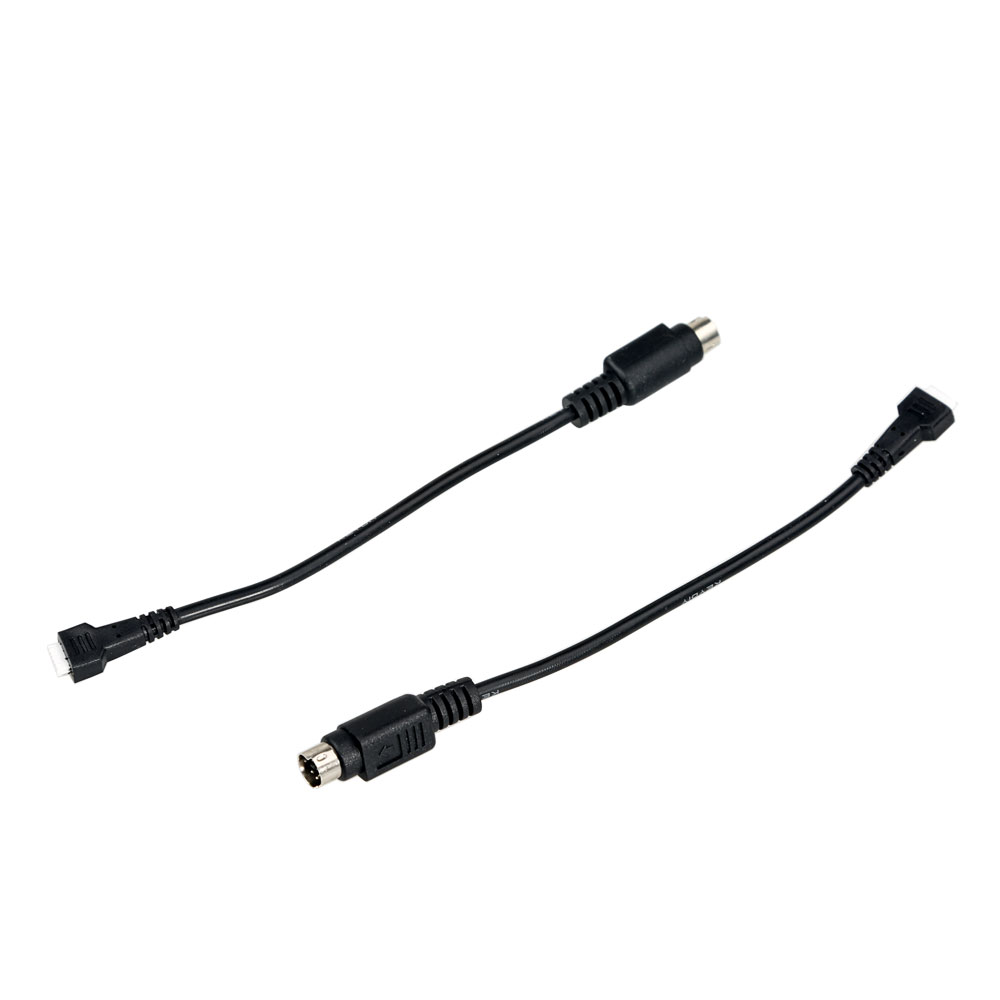

1pc x Remote Data Cable
1pc x Spare Remote Data Cable
