Xhorse VVDI Key Tool Plus Full Configuration Advance Version GL

• Multi-language: English; Thailand, Francais, Polski, Hindi, Chinese (Need to get from local dealer)

• Update online free lifetime.

• ID48 and read MB Key password online will need token or xhorse bonus points. Key Tool Plus bind with Xhorse key machine (Condor XC-MINI, MINI Plus, MINI Plus ii, Dolphin XP-005L, Condor XC-002, Dolphin XP005, Dolphin XP-007) to get free BGA token everyday. Or you can buy BGA Token, ID48 Token.

• KTP newly support MQB49 5C and 5D key adding functions (New)

NOTE:
1. VVDI PAD is GL Global Version, just different Power Adapter for EU/UK/US Plug.
2. for BMW Motor OBD, for BMW Bench Read ISN, M-QB48, BDC2/BDC3 these 4 licenses need purchase to activate!



Key Tool Plus Full Advantages:
1. VVDI Key Tool Plus provides an all-in-one security solution for lo-cks-miths. Much easier to complete various automotive programming anywhere, no need to take your laptop, mobile phone.
2. Support IMMO programming for luxury cars like for BMW, for BENZ, for AUDI, and for V-W etc.
3. Available to control the key machines developed by Xhorse. Greatly saving cost and facilitating the work process. Bind with Xhorse key machine to get one free BGA token everyday.

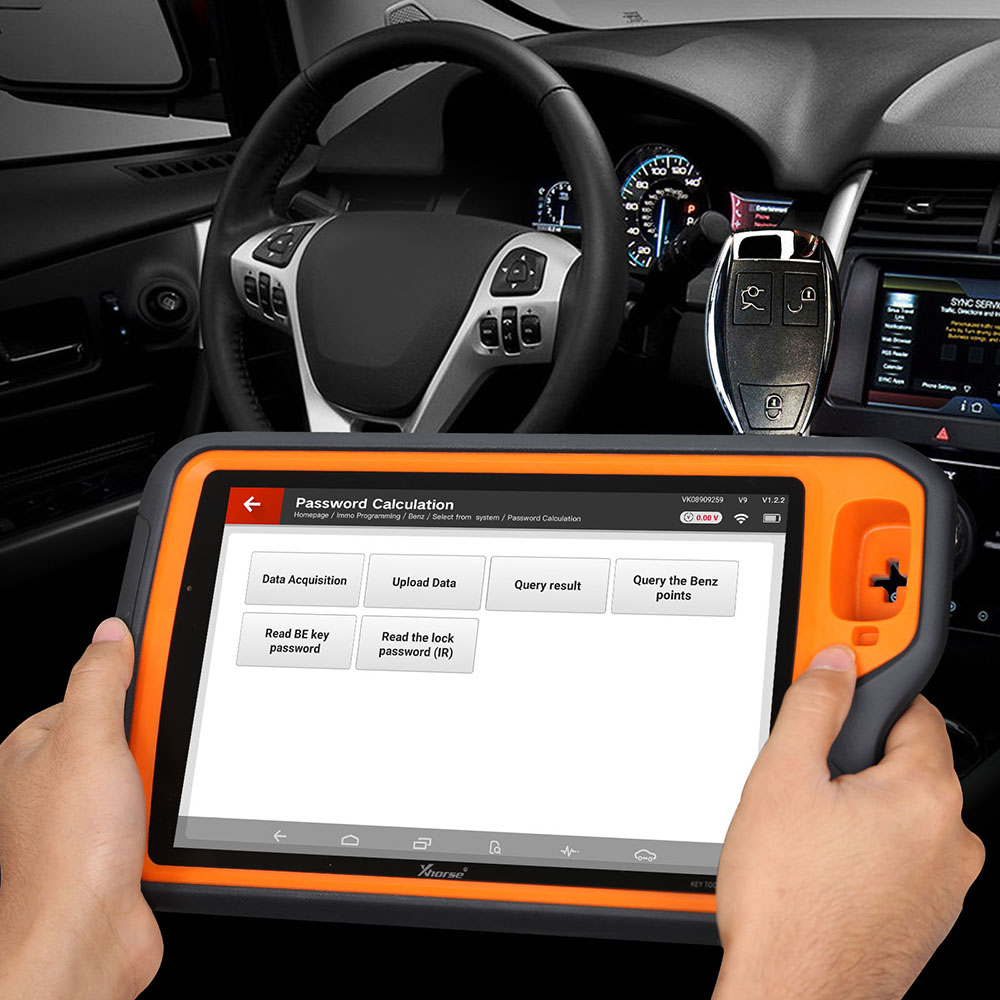

4. ID48 96bit and read MB Key password online will need token, but both can read xhorse bonus points. Read Xhorse bonus points for copy 48 96 bit (100 points) and Mercedes calculation (200 points).
5. The most advanced application processor of VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.
6. Work with New Solder-Free Adapter Set for Audi Add Key and All Key Lost.
7. Newest Update on Sep 2021, Support Ford All Key Lost to year 2020 While Alarm On with Extra Ford All Key Lost Cable. No need to power off over and over again.
8. Support 8A Smart key programming, needs to work with Xhorse Toyota 8A Smart Key Adapter
9. Released the new repair function for Porsche 12V lithium battery. This function supports Porsche models from 2018 to 2020.



New - IMMO Programming Elevated Capability

For MQB49 5C and 5D key adding function

Update your VVDI Key Tool Plus IMMO database to V142 and PROG database to V187 and newer to update V-A-G 5C and 5D function:

1. Support for V-o-lks-wagen / for Dismantle and read key to obtaindata / MQB49 (5C)Key Disassembly

2. Support for V-ol-ks-wagen / for Dismantle and read key to obtaindata / MQB49 (5D) Key Disassembly

3. Support for Skoda / for Dismantle and read key to obtain data /MQB49 (5C) Key Disassembly

4. Support for Skoda / for Dismantle and read key to obtain data /MQB49 (5D) Key Disassembly

Support Fiat Viaggio, Ottimo 3 Button Smart Key
Generate Dealer Key
Add Key and All Key Lost

Support Jeep Renegade Flip Key MQB48
Add Key and All Key Lost

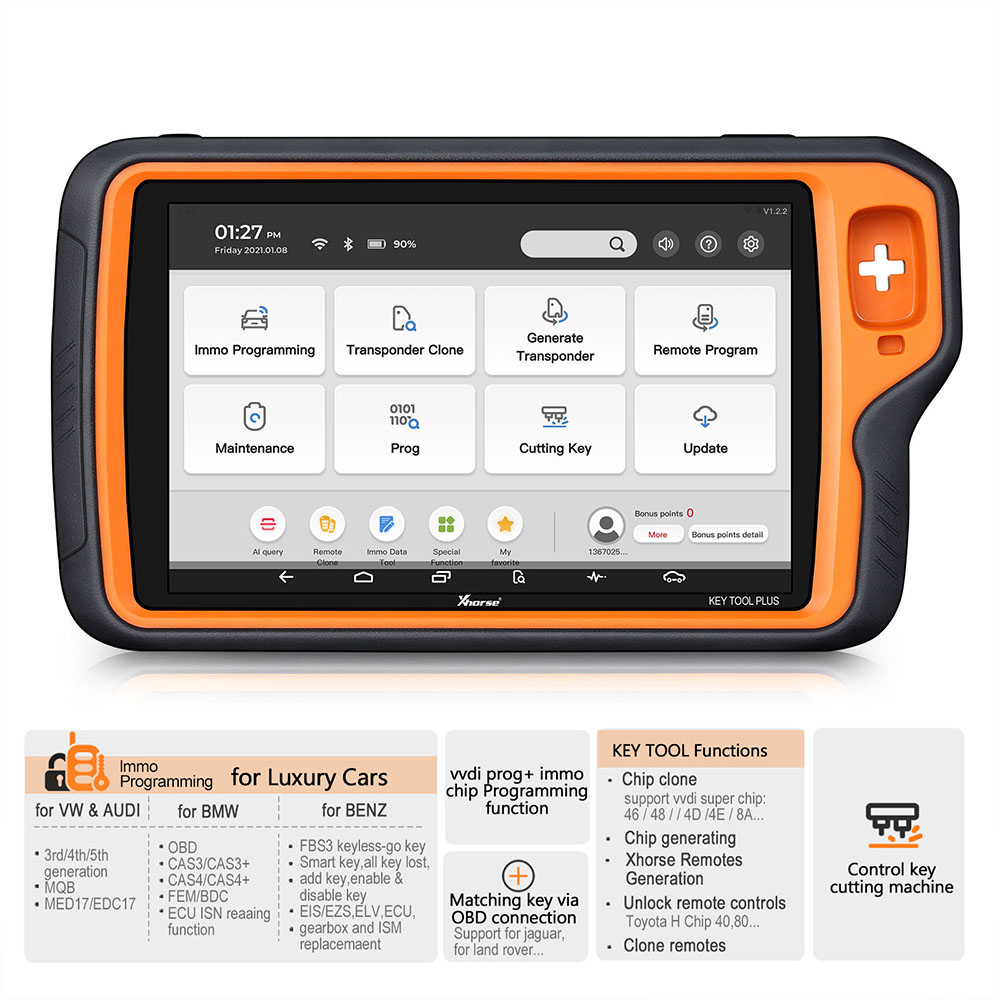

Key Tool Plus Functions:
1. IMMO Programming

Support for Benz, for BMW, for Audi, for V-W and common car brands - for Toyota, for Honda, for Mazda, for Ford, etc.

KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

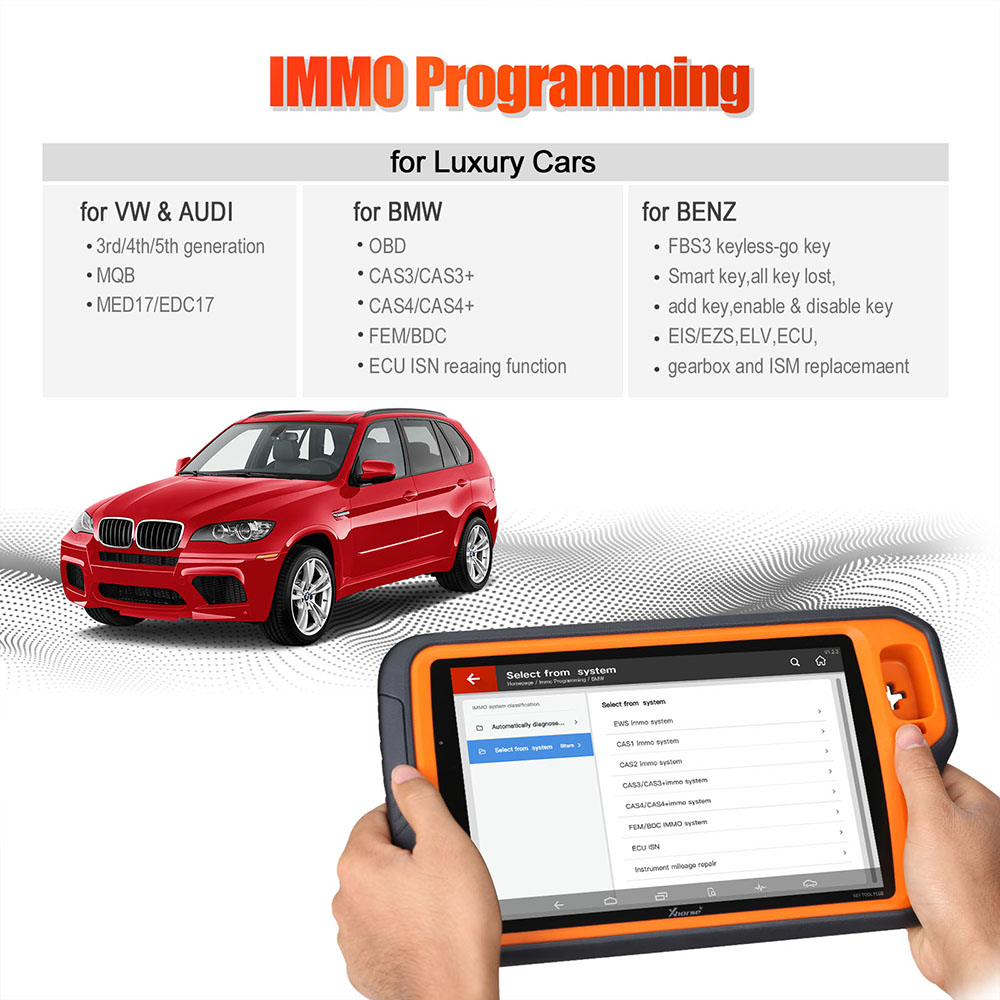

Especially for IMMO programming on luxury car brands - for Benz, for BMW, for Audi, for V-W

For V-W & Audi:
√3rd / 4th / 5th generation √MQB √MED17/EDC17
VVDI Key Tool Plus Pad Newest Update: Support VVDI V-W 5C (MQB48)

KEY TOOL PLUS provides users with functions including key programming, key learning, etc. to best resolve most problems, they met in I MMO programming for Volkswagen and AUDI cars.

For BMW IMMO Programming

KEY TOOL PLUS can achieve BMW CAS1/ CAS2 /CAS3 /CAS3+ /CAS4 /CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, E-CU ISN reading, E-CU and CAS synchronization, etc. Getting work done has never been easier.

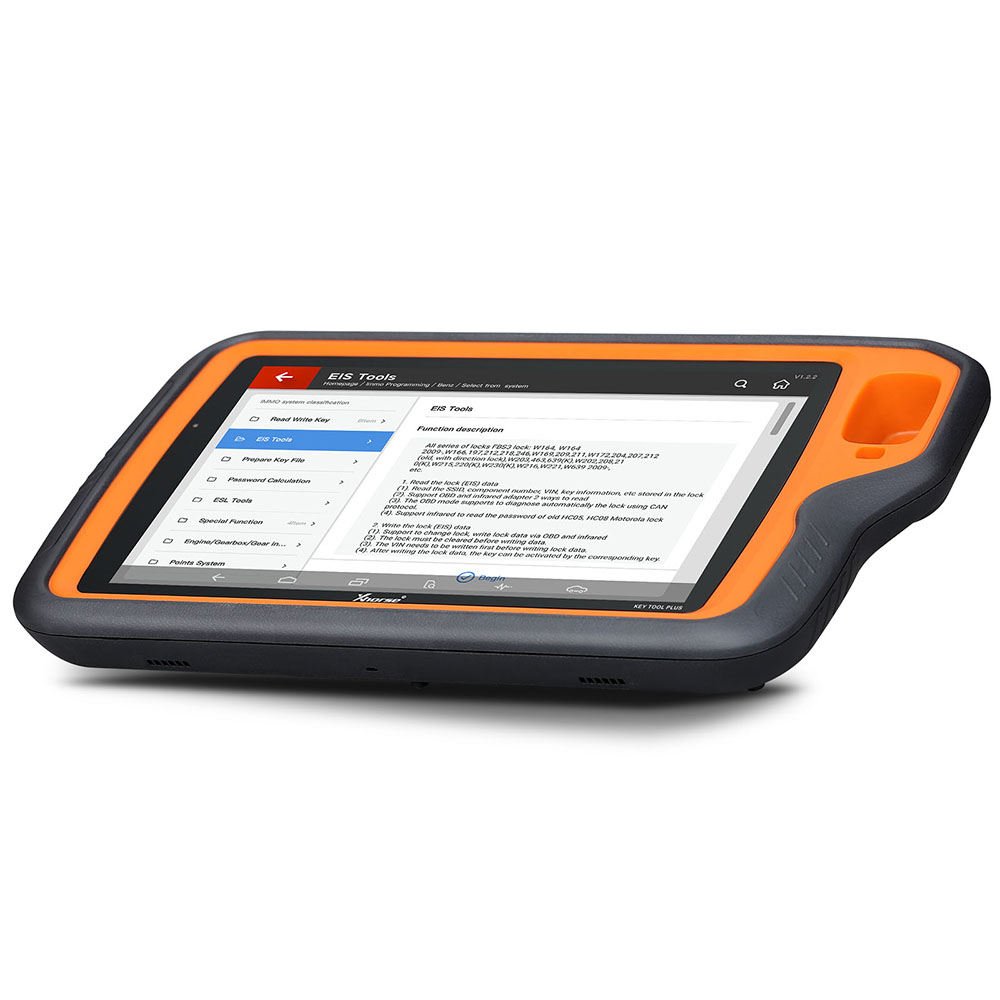

For Benz IMMO Programming

√FBS3 standard keys and FBS3 keyless-go keys
√Smart keys, all keys lost, add keys, enable & disable keys
√EIS/EZS, ELV, E-CU, gearbox, and ISM replacement

KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and EIS/EZS，ELV, E-CU, gearbox, ISM replacing.

Other Car Models Supported
For Toyota
For Honda
For Mazda
For Ford
For Cadillac
For Landrover
For Peugeot
For Kia
For Buick
For Chevrolet
For Volvo
For Mitsubishi
For Nissan
For Suzuki

2. Prog Function:
Support for BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support for Land Rover RFA module reading and immo programming.
Support for Porsche BCM programming.
Support read E-CU with CAN on for AUDI, for BMW, and for V-O-LKS-WAGEN.
Support Instrument programming on for HONDA, for KIA, and for HYUNDAI.
Support EEPROM reading and writing: support reading & writing most types of transponders in the market. Such as: ATMEL, Mitsubishi, Winbond, Catalyst, ST, XICOR, Microchip, SEIKO, Xhorse, MXIC, Toshiba

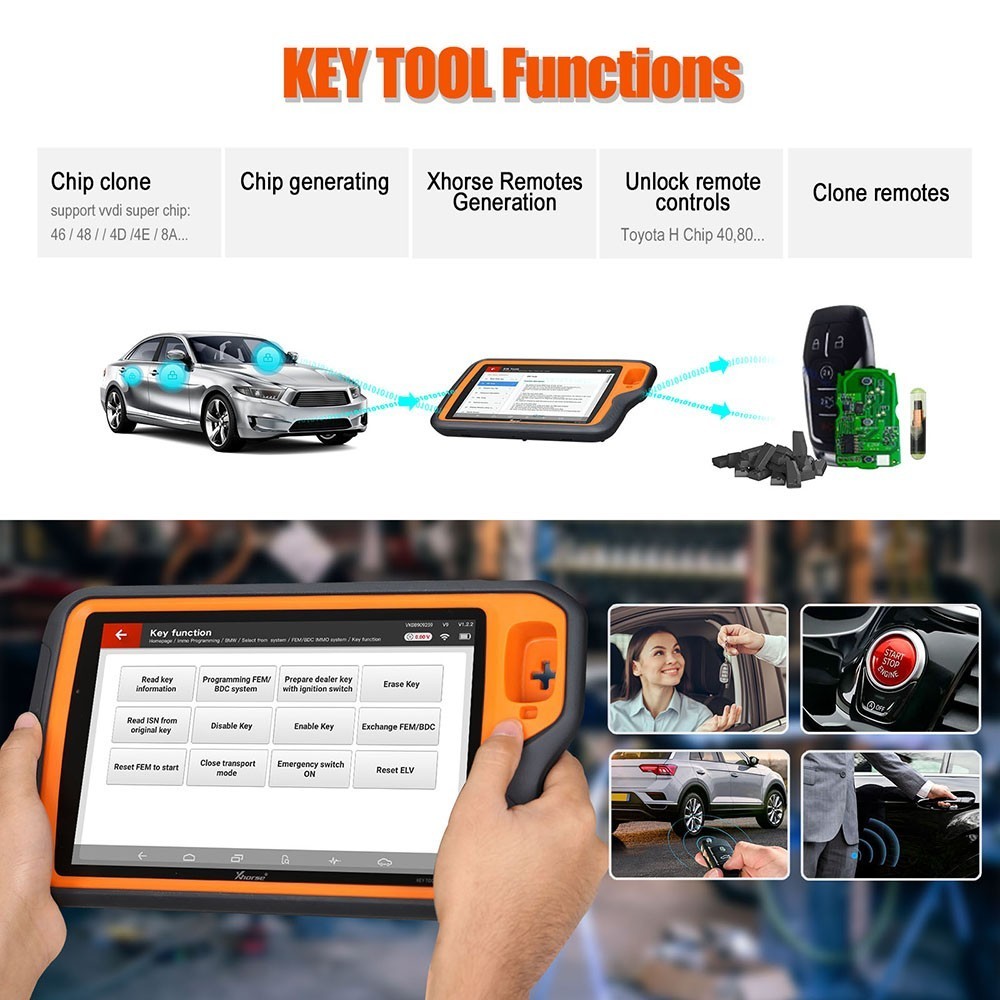

3. Transponder & Remote Function:
The Foremost Comprehensive Database of Vehicles Ever.

Transponders
Id46 Online Calculation
Id48 (96 Bit) Online Calculation
Toyota H(8a) Online Calculation
Transponder Generation and Cloning Of Over 850 Car Models
Special Transponders and Special Cars and Old Car Models

Remotes
Support Remote Generation, Smart Key Generation, Frequency Detection, Remote Clone for a Spread of Car Models
Hcs/fix Code Clone, Non-hcs Rolling Code Clone, Fix Code Editing
Pt22xx, Lx918, Ht6p20, Vd5026, Ax5326, Ht12x Fix Code Editing

Special Functions
Remote Renew, Set Sort Of VVDI Super Chip, VVDI Special Tp, Unlo-ck Toyota Smart Key, Detect Remote, VVDI Remote Repair Calibration, VVDI Smart Key Clone, VVDI Smart Key Customization, Remote Charge Battery, Honda Cycle Key Renew, 8e Remote Upgrade/unlo-ck, Xm Smart Key Customization, Toyota Smart Key Frequency Setting

4. IMMO DATA TOOL (FILE MAKE KEY) Function Improved

Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car. (Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

KEY TOOL PLUS supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

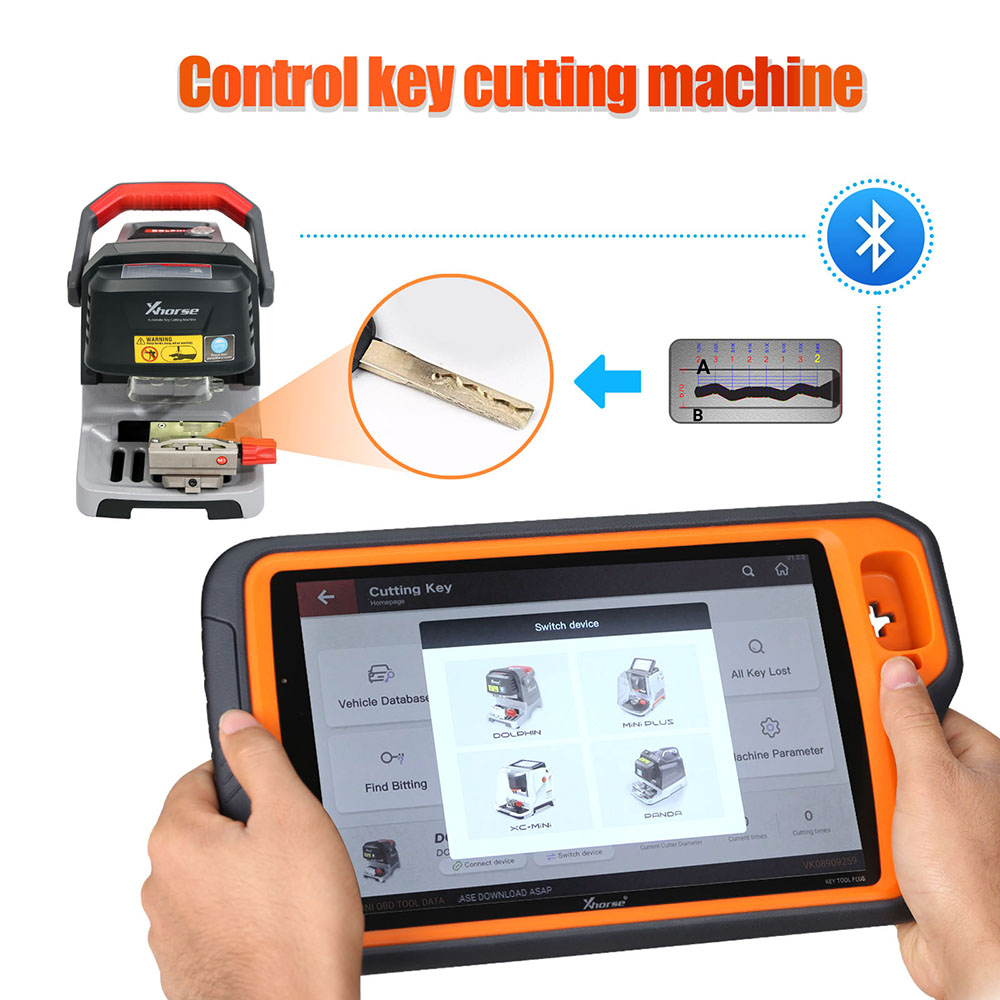

5. Control Xhorse Key Machine
KEY TOOL PLUS is available to control the key machines (CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.


6. KEY TOOL PLUS - Maintenance Function.
Meet your working demands in every way. (It's projected to release more diagnostic functions. Stay tuned!)
Supports Oil Reset, EPB, TPMS, BMS, Trans adaptation, Throttle, Injector, SAS, TEC Learn, Heanlamp ...


7. Cloud Diagnosis Mode-c:
After The Key Tool Plus Start The C Mode Of Cloud Diagnosis, It'll Generate The Local C-terminal Id And Send The C-terminal Id To The Customer Who Provides Remote Service. Customers Use A Cloud Diagnosis B-terminal Xhorse Device, After Inputting C Id And Hook Up With The Plus Pad For Remote Diagnosis, Programming, Coding, Matching, Maintenance, And Other Functions. (Please use with Cloud Samrt, not available yet.)

Key Tool Plus Features:

OBD matrix switch
Radiofrequency simulator
Smart key simulator
integrated key identification coil
for BENZ infrared reading head

Xhorse Key Tool Plus Processor:
4xCortex-A53 up to 2.3Ghz
4xCortex-A53 up to 1.8Ghz
Memory 4G+ Storage 128G
Resolution up to FHD+ (2,400*1,080)

VVDI Pad Parameters

CPU: 8-core 2GHz
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare; Anti-fingerprint
Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4G/5G

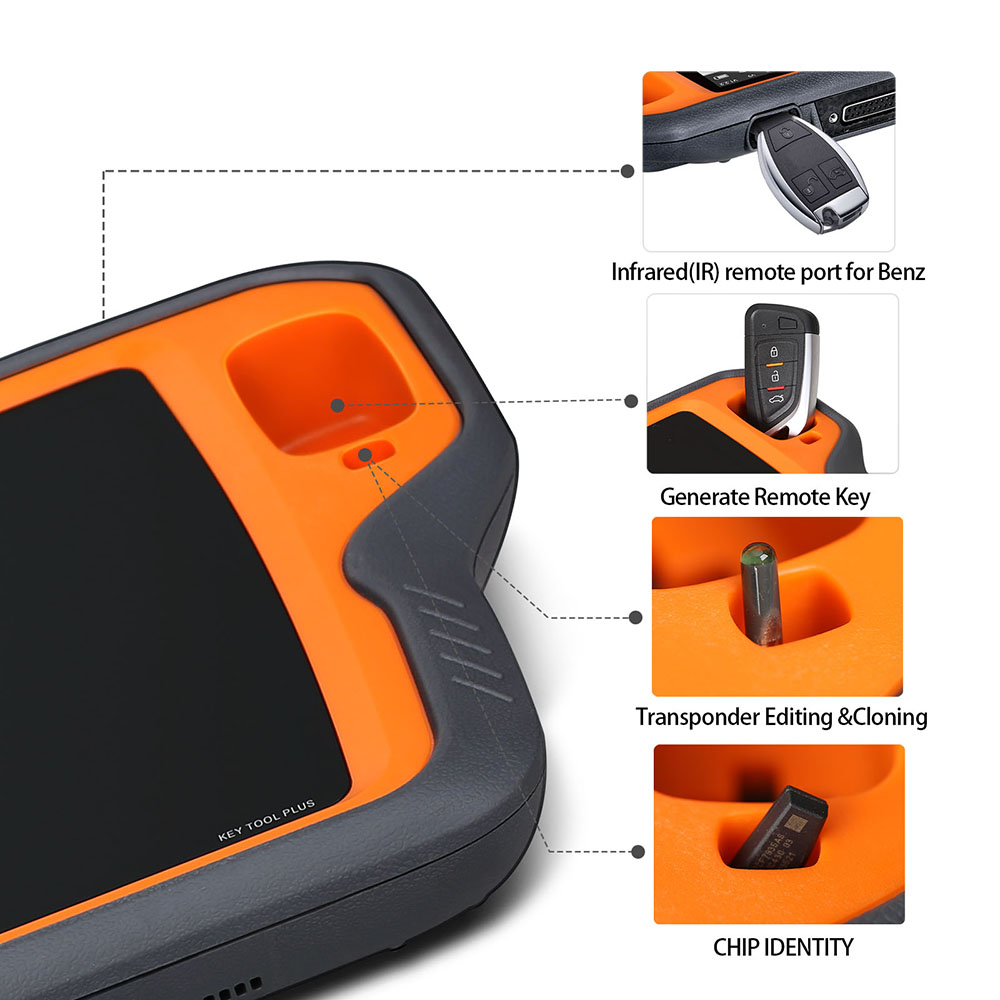

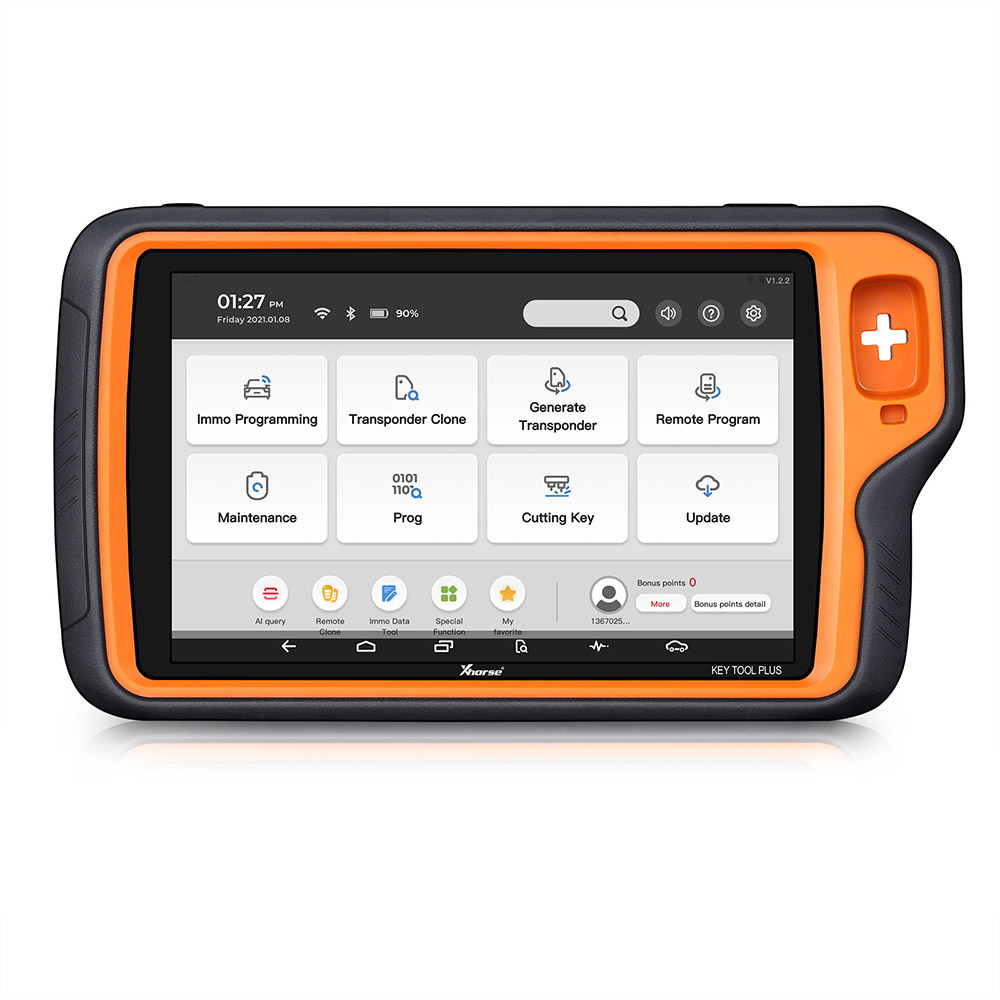

Key Tool Tablet Structure Display:

Light sensor: detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

• Support reading, writing, and cloning common immo transponders

• Support reading common ID transponders

• Support reading common IC transponders

• Support frequency detection of common vehicle remotes

Immo transponder placement hole for vehicle immo transponders
USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
PS2 port for remote programming
DB15 port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
for Benz Infrared (IR) port: support IR read for Benz FBS3 & FBS4 smart key and support Benz IR reader

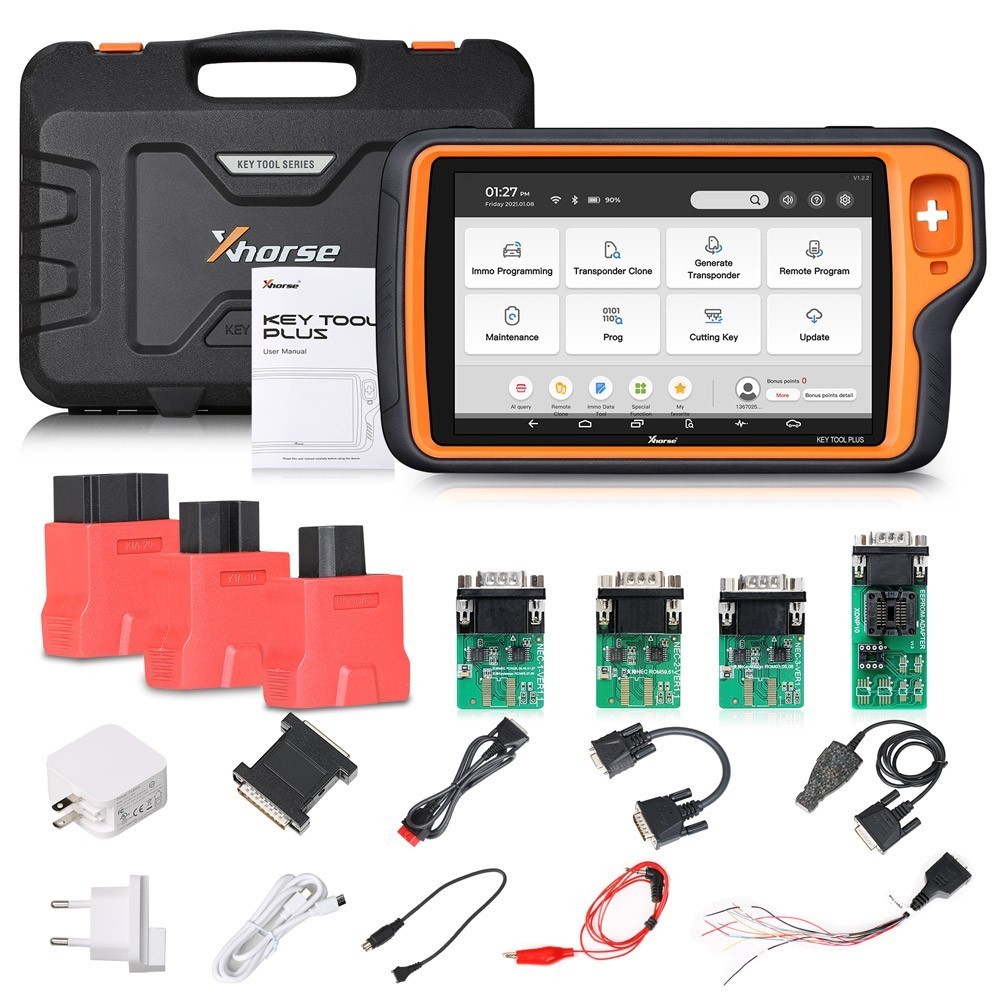

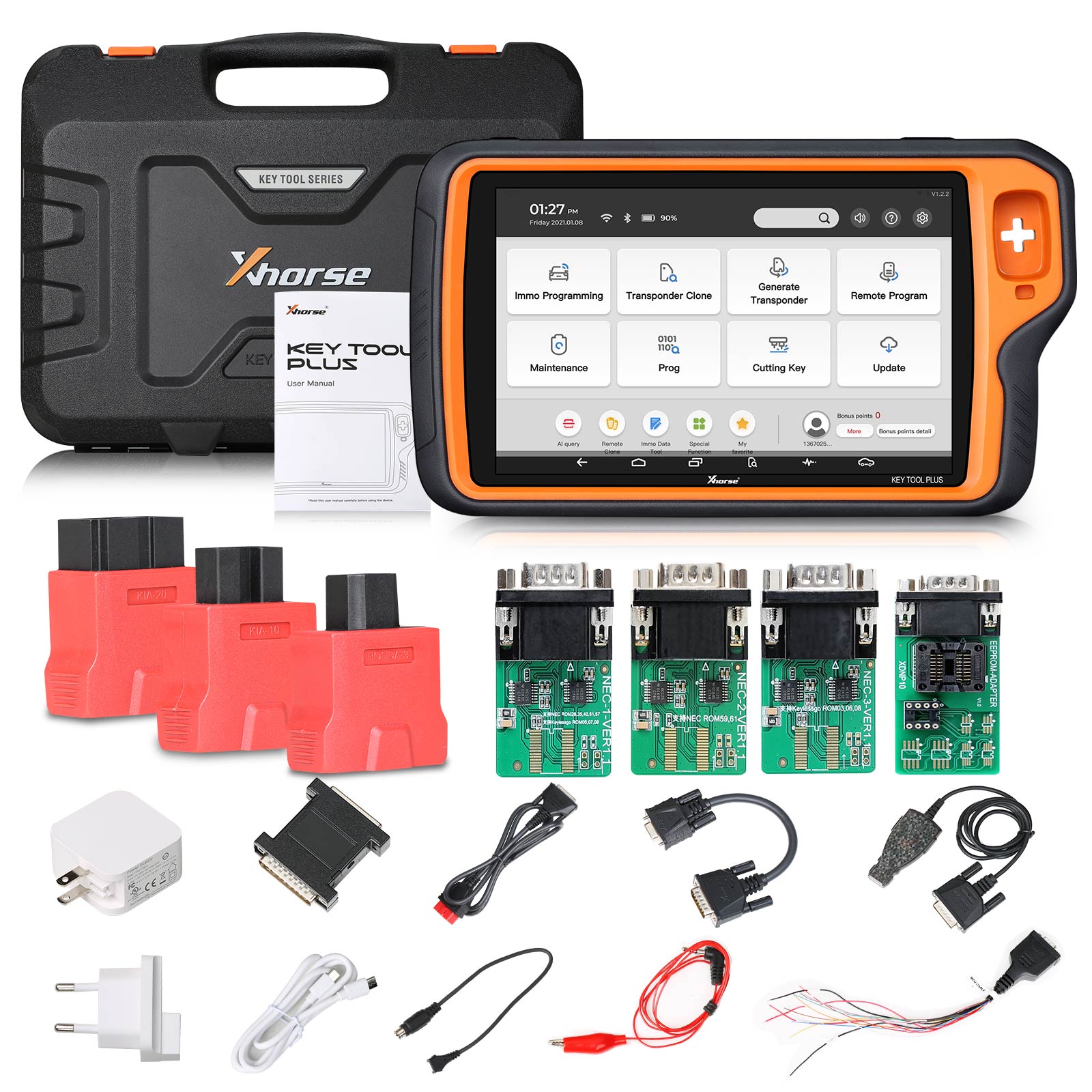

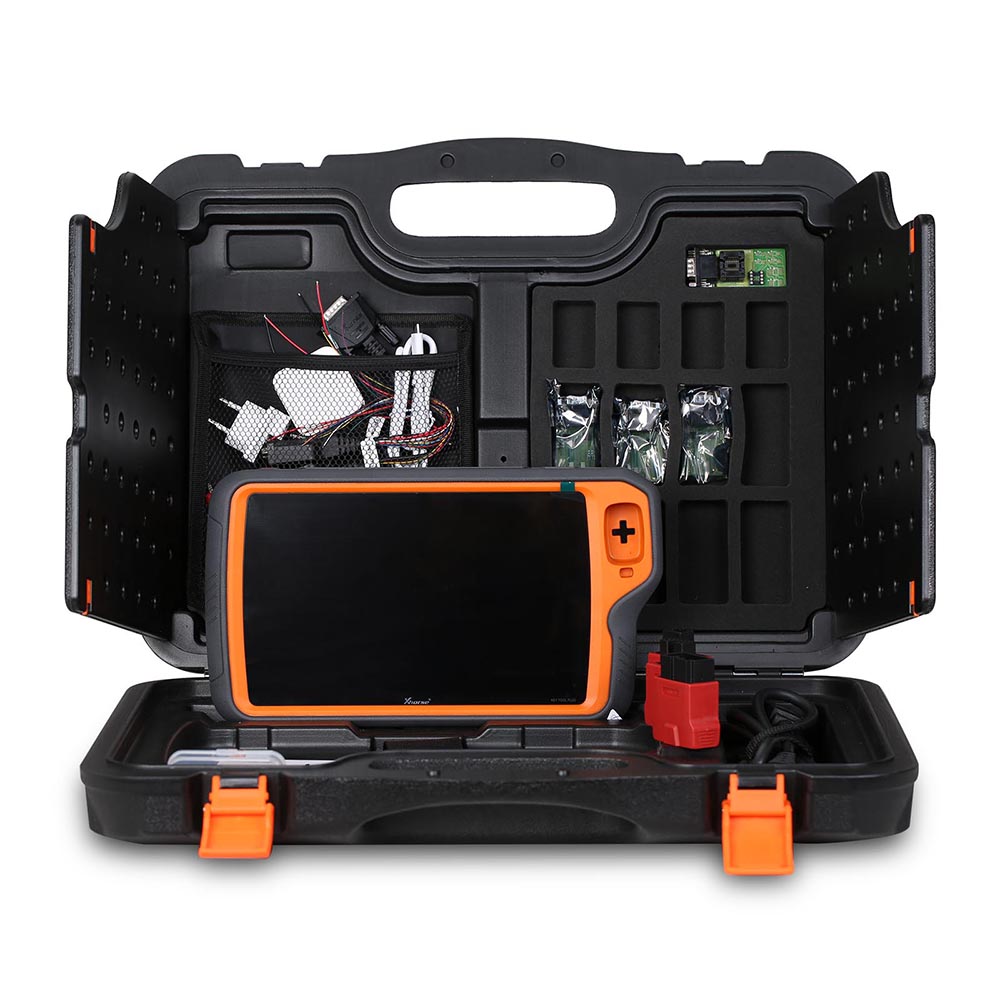

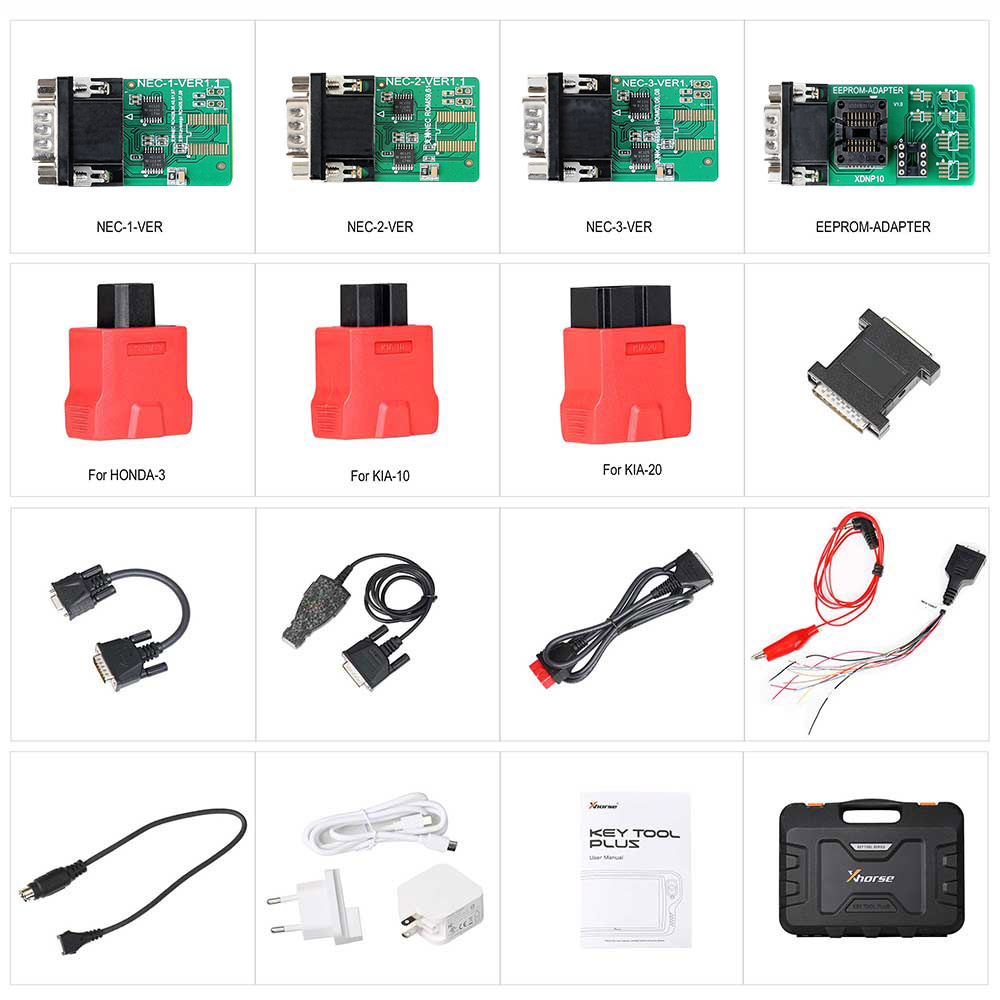

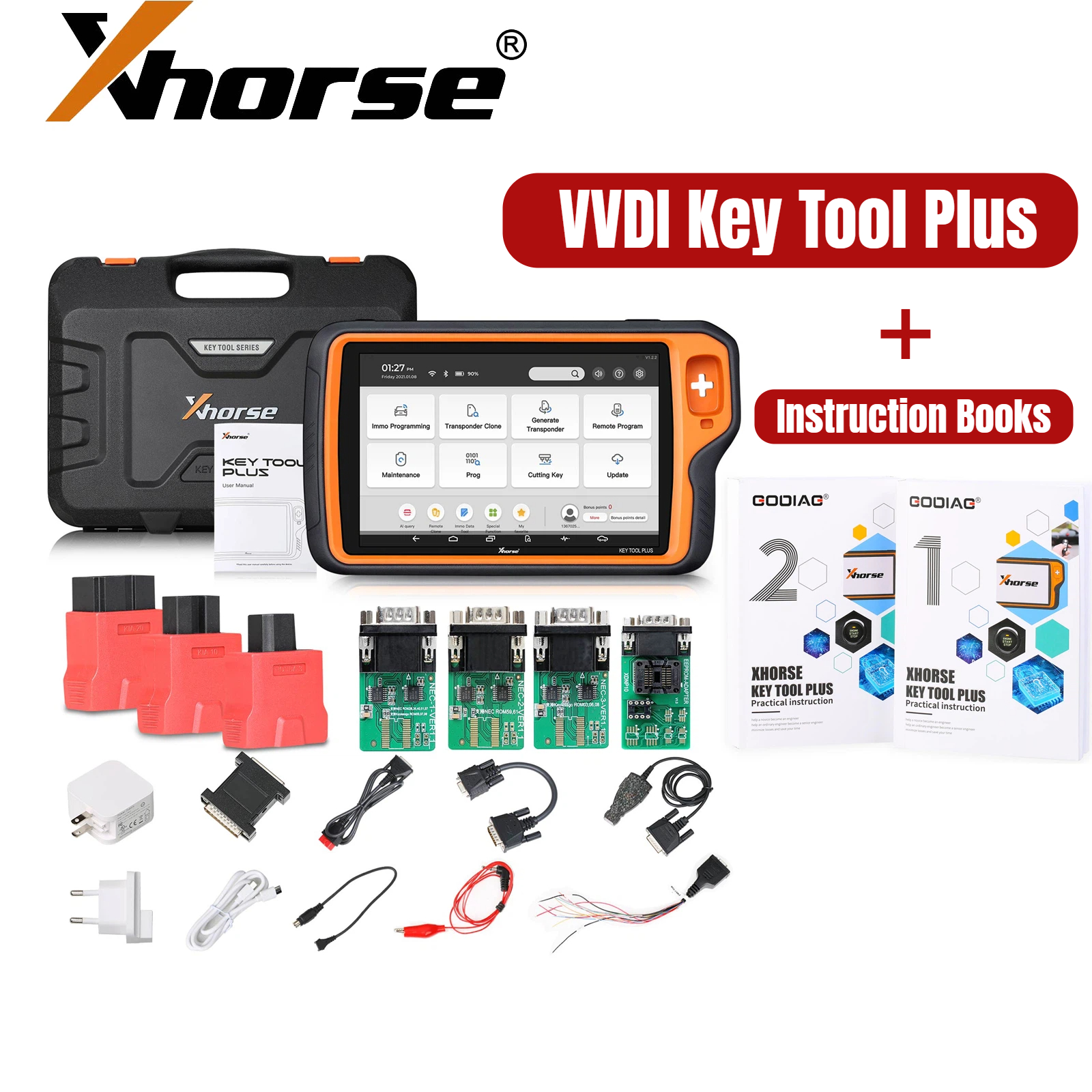

Package List:
1pc x VVDI Pad Main Unit
1pc x User Manual
1pc x Power Adapter
1pc x USB Cable 3.0 Type C
1pc x OBD DB25 Cable
1pc x OBD to Kia 10 Pin Connector
1pc x OBD to Honda 3 Pin Connector
1pc x Remote Programming Cable
1pc x Chip Storage Container
1pc x Prog DB15 Cable
1pc x Prog EEPROM Adapter
1pc x MB IR Adapter
1pc x MB NEC1 Adapter
1pc x MB NEC2 Adapter
1pc x MB NEC3 Adapter
1pc x MB Power Adapter
1pc x MC9S12 Reflash Cable
1pc x E-CU Cable
