OBDSTAR ECU Master A+B+C+D Full Config. E.CU Flasher for Car, EV, Motorcycle,HD

International Buyers – Please Note:

1. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

2. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

OBDSTAR E.C.U MASTER A+B+C+D Full Version for Passenger Car & EV & Motorcycle & HD

E.C.U MASTER is the first professional PC-based E.C.U Flasher for OBDSTAR and supports Passenger Car, EV, Motorcycle, and HD (E-CM/TCM/BCM) clone functions. It is compatible with E-C-Us from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!

Burst Points:

PC-based E-C-U flasher

Supports passenger car, EV, motorcycle, HD ECM/BCM/TCM

Supports A-i.rb.a.g/ BMS/ SAS reset (same as P50)

With built-in CAN FD, P003+ and MP001 adapter

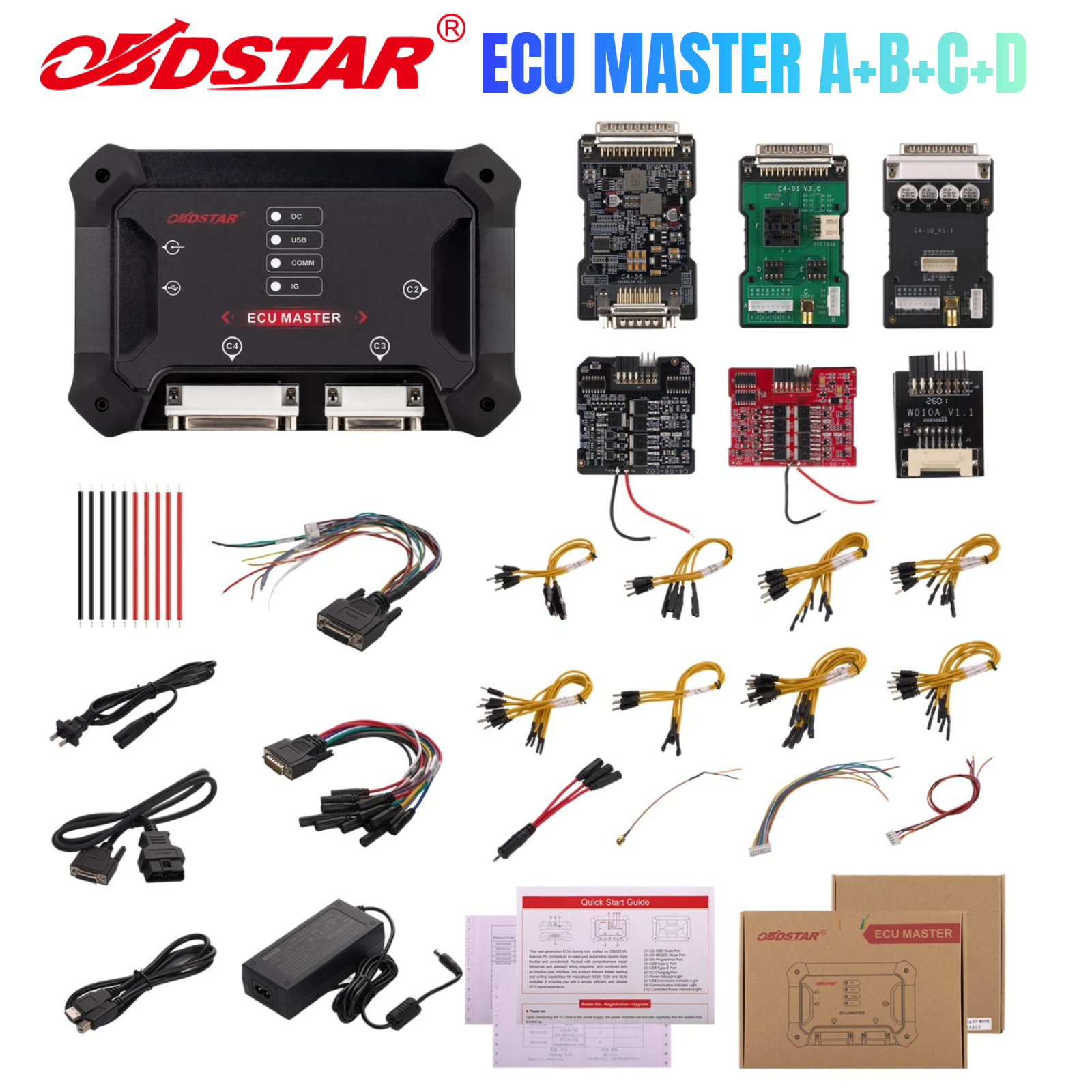

OBDSTAR E.C.U MASTER A+B+C+D:

OBDSTAR E-C-U MASTER Configuration A: For Passenger Car TCM ECI Body/Chassis/Other EV BMS/VCU /Other
OBDSTAR E-CU MASTER Configuration B: For Motorcycle ECM
OBDSTAR E-C-U Master Configuration C:For HD ECM/TCM/BCM Cloning
OBDSTAR E-C-U Master Configuration D:For A.I.R.B.A.G/OTHER/BATTERY/SAS RESET

Models	Software functions	EC.U MASTER A Configuration	EC.U MASTER B Configuration	EC.U MASTER C Configuration	EC.U MASTER D Configuration	EC.U MASTER A+B+C Configuration	EC.U MASTER A+B+C+D Configuration
Passenger Car	TCM	√				√	√
	ECM	√				√	√
	BODY/CHASSIS/OTHER	√				√	√
EV	BMS/VCU/OTHER	√				√	√
Motorcycle	ECM		√			√	√
HD	TCM			√		√	√
	ECM			√		√	√
	BODY/CHASSIS/OTHER			√		√	√
Air.bag Reset	Airb.ag/Battery/SAS Reset				√		√

E-C-U Master Functions:

1. Passenger Car E-CM / TCM / BCM Cloning:

1). Support Reading and Writing E-C-U units of thousands of car models:

B-O-S-C-H MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units etc.

2). Supports E-C-U advanced functions:

CheckSum, IMMO Data Convert, IMMO Data Decryption, IMMO OFF/ON, Coolant Temperature Sensor Calibration, Mileage Calibration, E-C-U RunTime Calibration, V-l-N Read/Write, V-irg-in Reset etc.

2. HD E-CM/TCM/BCM Cloning:

1). Supports major global commercial vehicle brands:

TRUCK:

For MERCEDES-BENZ, For V-OLVO, For SCANIA, For MAN, For IVECO, For ISUZU, For MITSUBISHI FUSO, For FAW, For FORD etc.

TRACTOR/OHW(OFF-HIGHWAY VEHICLES/MACHINERY):

For JOHN DEERE, For CNH INDUSTRIAL, For KUBOTA, For YANMAR etc.

2). Support global HD ECU brands:

B-O-S-C-H, DENSO, CONTINENTAL, DELPHI, SIEMENS, CUMMINS, WABCO, ZF etc.

3). Supports E-C-U Advanced functions:

V-l-N Read/Write , V-ir-g-in Reset, M-il-e-ag-e Calibration, CheckSum, MAPS Read/Write, E-C-U L-o-c-k/Unl-o-c-k, IMMO OFF/ON etc.

3. Motorcycle E-CM Cloning:

1). Supports 100+ motorcycle brands and 300+ motorcycle E-C-U types.
2). Supports E-C-U advanced functions:

V-l-N Read/Write, Data Read/Write , ISN Read/Write, V-ir-g-in Reset, Data Buffer Reset, M-ile-a-ge Calibration, CheckSum etc.

4. A.i.r.b.a.g Reset

1). Cover 102 Brands and Over 16000 E-C-U Part No. by OBD/ BENCH (same as P50)

5. Battery Reset

6. SAS Reset

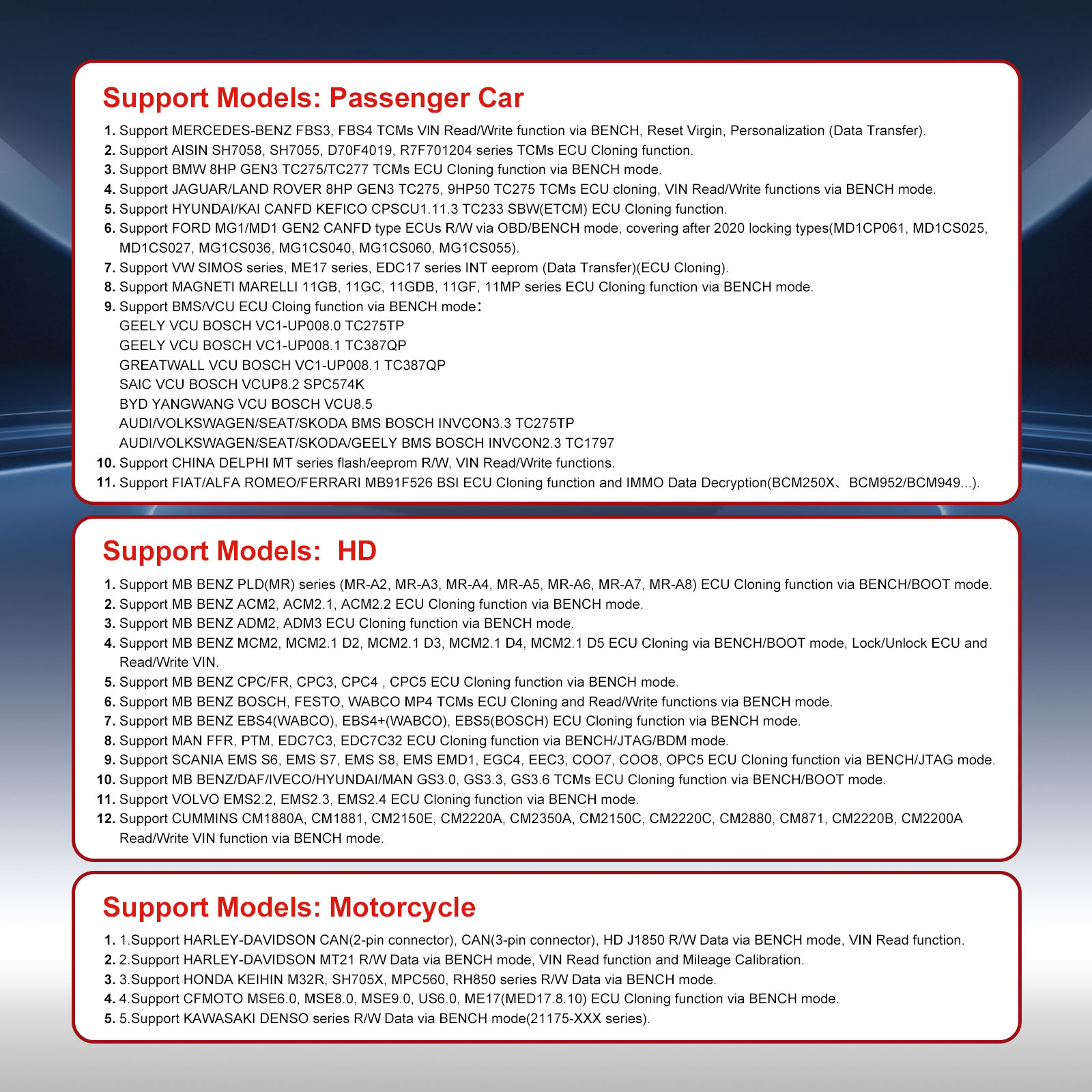

E-C-U Master Support Models:

1) HD：

1. Support MB For BENZ PLD(MR) series (MR-A2, MR-A3, MR-A4, MR-A5, MR-A6, MR-A7, MR-A8) E-C-U Cloning function via BENCH/BOOT mode.

2. Support MB For BENZ ACM2, ACM2.1, ACM2.2 E-C-U Cloning function via BENCH mode.

3. Support MB For BENZ ADM2, ADM3 E-C-U Cloning function via BENCH mode.

4. Support MB For BENZ MCM2, MCM2.1 D2, MCM2.1 D3, MCM2.1 D4, MCM2.1 D5 E-C-U Cloning via BENCH/BOOT mode, L-o-c-k/Unl-o-c-k E-C-U and Read/Write V-I-N.

5. Support MB For BENZ CPC/FR, CPC3, CPC4 , CPC5 E-C-U Cloning function via BENCH mode.

6. Support MB For BENZ BOSCH, FESTO, WABCO MP4 TCMs E-C-U Cloning and Read/Write functions via BENCH mode.

7. Support MB For BENZ EBS4(WABCO), EBS4+(WABCO), EBS5(BOSCH) E-C-U Cloning function via BENCH mode.

8. Support For MAN FFR, PTM, EDC7C3, EDC7C32 E-C-U Cloning function via BENCH/JTAG/BDM mode.

9. Support For SCANIA EMS S6, EMS S7, EMS S8, EMS EMD1, EGC4, EEC3, COO7, COO8, OPC5 E-C-U Cloning function via BENCH/JTAG mode.

10. Support For MB BENZ/DAF/IVECO/HYUNDAI/MAN GS3.0, GS3.3, GS3.6 TCMs E-C-U Cloning function via BENCH/BOOT mode.

11. Support For VO-LVO EMS2.2, EMS2.3, EMS2.4 E-C-U Cloning function via BENCH mode.

12. Support For CUMMINS CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B, CM2200A Read/Write V-I-N function via BENCH mode.

2) Passenger Car：

1.Support For MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset V.irg.in, Personalization (Data Transfer).

2.Support For AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs E-C-U Cloning function.

3.Support For BMW 8HP GEN3 TC275/TC277 TCMs E-C-U Cloning function via BENCH mode.

4.Support For JAGUAR/For LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs E-C-U cloning, V-I-N Read/Write functions via BENCH mode.

5.Support For HYUNDAI/For KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) E-C-U Cloning function.

6.Support For FORD MG1/MD1 GEN2 CANFD type E-C-Us R/W via OBD/BENCH mode, covering after 2020 lo-cking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).

7.Support For V-W SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(E-C-U Cloning).

8.Support For MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series E-C-U Cloning function via BENCH mode.

9.Support For BMS/VCU E-C-U Cloing function via BENCH mode：

For GEELY VCU BOSCH VC1-UP008.0 TC275TP

For GEELY VCU BOSCH VC1-UP008.1 TC387QP

For GREATWALL VCU BOSCH VC1-UP008.1 TC387QP

For SAIC VCU BOSCH VCUP8.2 SPC574K

For BYD YANGWANG VCU BOSCH VCU8.5

For AUDI/For VO.L.KSW.A.GEN/For SEAT/For SKODA BMS B-O-S-C-H INVCON3.3 TC275TP

For AUDI/For VO.LK.S.WA.G.E.N/For SEAT/For SKODA/For GEELY BMS B-O-S-CH INVCON2.3 TC1797

10.Support For CHINA DELPHI MT series flash/eeprom R/W, V-I-N Read/Write functions.

11.Support For FIAT/For ALFA ROMEO/For FERRARI MB91F526 BSI E-C-U Cloning function and IMMO Data Decryption(BCM250X、BCM952/BCM949...).

3) Motorcycle：

1.Support For HARLEY-DAVIDSON CAN(2-pin connector), CAN(3-pin connector), HD J1850 R/W Data via BENCH mode, V-I-N Read function.

2.Support For HARLEY-DAVIDSON MT21 R/W Data via BENCH mode, V-I-N Read function and Mileage Calibration.

3.Support For HONDA KEIHIN M32R, SH705X, MPC560, RH850 series R/W Data via BENCH mode.

4.Support For CFMOTO MSE6.0, MSE8.0, MSE9.0, US6.0, ME17(MED17.8.10) E-C-U Cloning function via BENCH mode.

5.Support For KAWASAKI DENSO series R/W Data via BENCH mode(21175-XXX series).

Highlights:

1. Comprehensive Protocol & Mode Compatibility

Support Read/ Write via OBD, BENCH, BOOT, JTAG, BDM and other modes, focus on safe open-free E-C-U operation, compatible with various E-C-Us for all vehicle models.

2. All-in-One Functional Coverage

Compatible with E-C-Us from all major global brands, supporting full-process operations including E-CM/TCM/BCM Read/Write and CS, Reset V-irg-in, immobilizer decryption and matching, V-I-N modification, and mileage correction—a one-stop solution for all daily repair needs.

3. Intuitive Design for Instant Mastery

User-friendly interface with a clear menu structure and complete documentation,equips with anti-misoperation reminders, even beginners can get started quickly.

4. Targeted Solutions for Critical Industry Challenges

Precise maintenance for popular car modules: Non-Destructive B-CM Cloning for FORD/For V-OLVO, IMMO Progarmming for V.W/For AUDI, DSG TCM Progarmming & Calibration, and used units adaptation for MB FBS4.

5. Market-Driven & Regularly Updated

Keeping pace with automotive electronics repair trends, we deliver monthly updates with continuous feature improvements, ensuring tools and functions meet the latest repair and diagnostics needs.

6. Professional After-Sales Support

Our senior technical team, with direct manufacturer expertise, provides fast troubleshooting, expert guidance, and complete solutions to ensure smooth and efficient repair operations.

7. One year update for free. Annual update costs 500 USD. (There is a 20% off promotion, 400 USD for annual renewal if you renew it before it expires)

8. Software supports English only, can't add other languages.

Comparison Between E-C-U MASTER Full Version and DC706 Full Version

1. E-C-U MASTER built-in P003+, MP001,CAN FD adapters, while DC706 need to buy P003+, MP001, CAN FD adapters to work together.

2. E-C-U MASTER supports trucks, tractors and off-highway vehicles, while DC706 doesn't

3. E-C-U MASTER supports airbag reset, battery reset and steering angle repair, while DC706 doesn't.

Comparison Between ECU MASTER Full Version and X300 Classic G3 Full Version

1. Functionality:
X300 Classic G3 full version supports k.e.y progarmming, airbag reset, battery reset and SRA reset, cluster calibration, E-C-U Clone and Test Platform functions.
E-C-U MASTER FULL version supports E-C-U Clone and airbag resett, battery reset and SRA reset, E-C-U MASTER doesn't support k-e-y progarmming, cl-u-ster calibration and Test Platform functions;

E-C-U MASTER can't add functions of ke-y progarmming, cluster calibration and Test Platform later.

2. Supported Models:
As for airbag reset, battery reset and SRA reset, they supported the same models.
As for E-C-U clone, they supported same models for passenger car and motorcycles; but the E-C-U MASTER full version supports HD vehicles such as trucks, tractors and OHW, while the X300 Classic G3 full version doesn't support them.

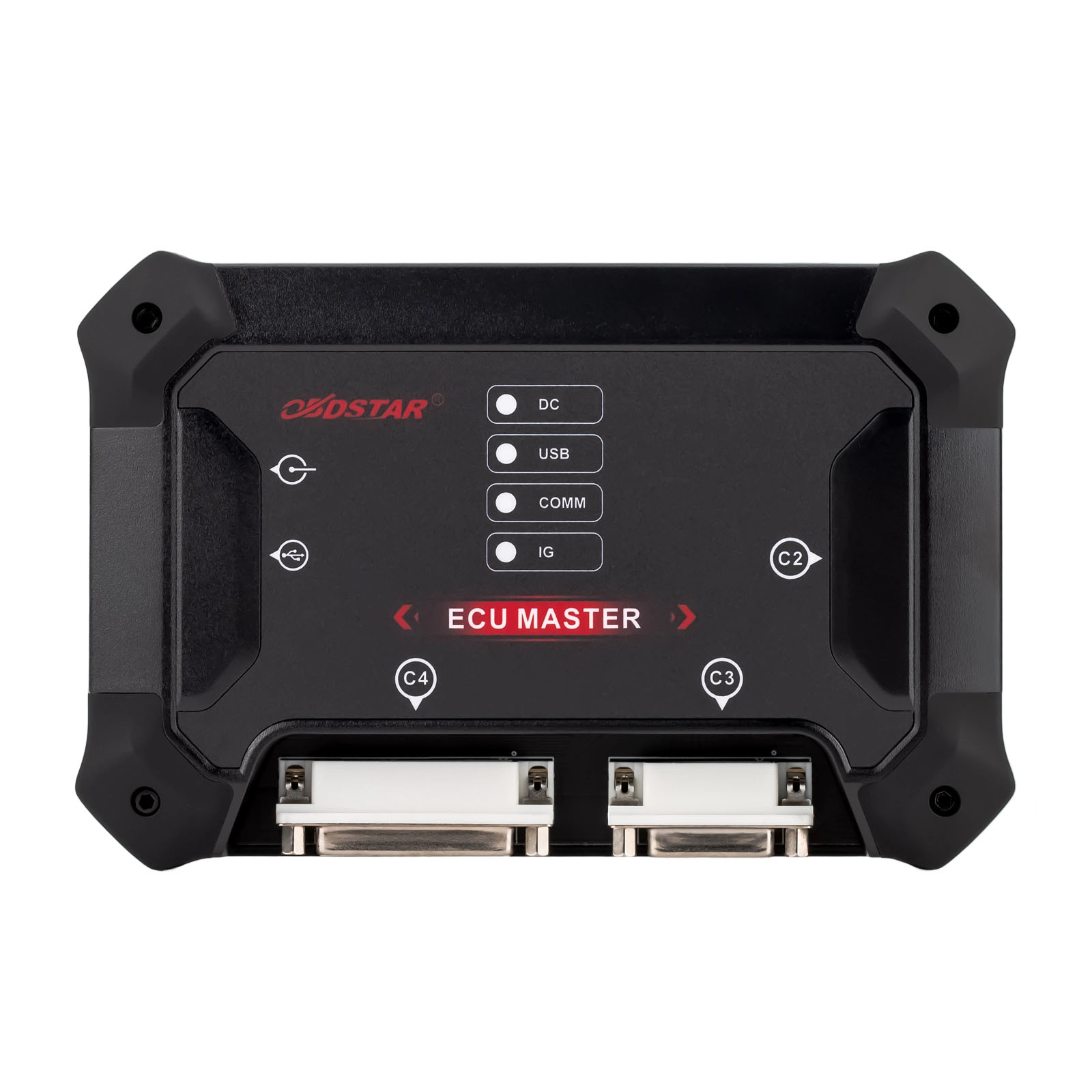

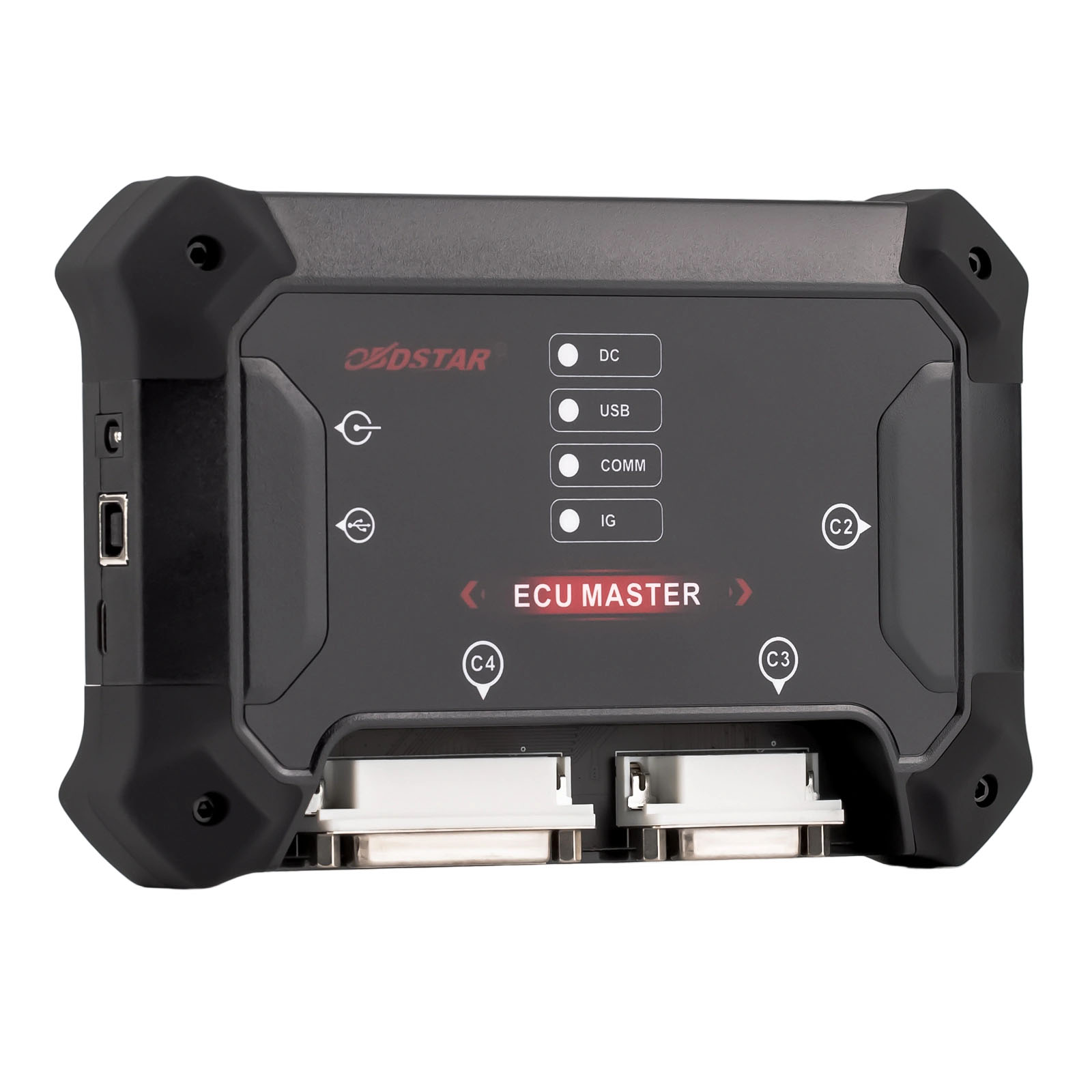

OBDSTAR ECU MASTER

Specifications:

Operation system	Windows 10 or above
CPU	STM32H723, STM32F407
Working Voltage	DC14V
Working temperature	-10℃~55℃（14℉~131℉）
Storage temperature	-20℃~70℃（-4℉~158℉）
Weight	About 0.7kg
Dimension	176mm115mm31.7mm
Warranty	1-year hardware warranty; software updates start from the date of manufacture (duration TBD)
