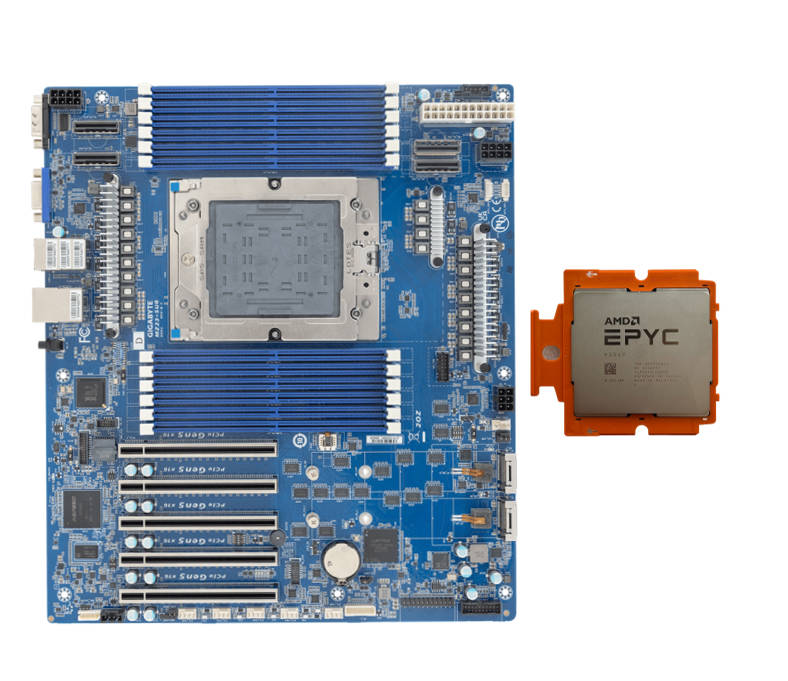

Gigabyte MZ23-SU0 +AMD EPYC 9845 QS 160 cores 2.0 up to 3.7ghz 3.25ghz CPU

Product Description

Package include:

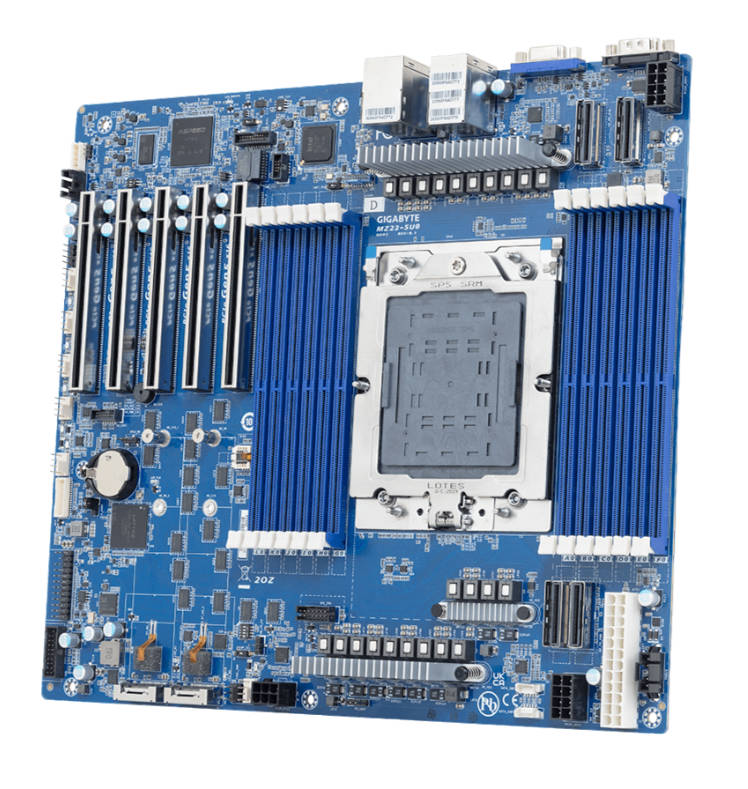

1X GIGABYTE MZ23-SU0  MB

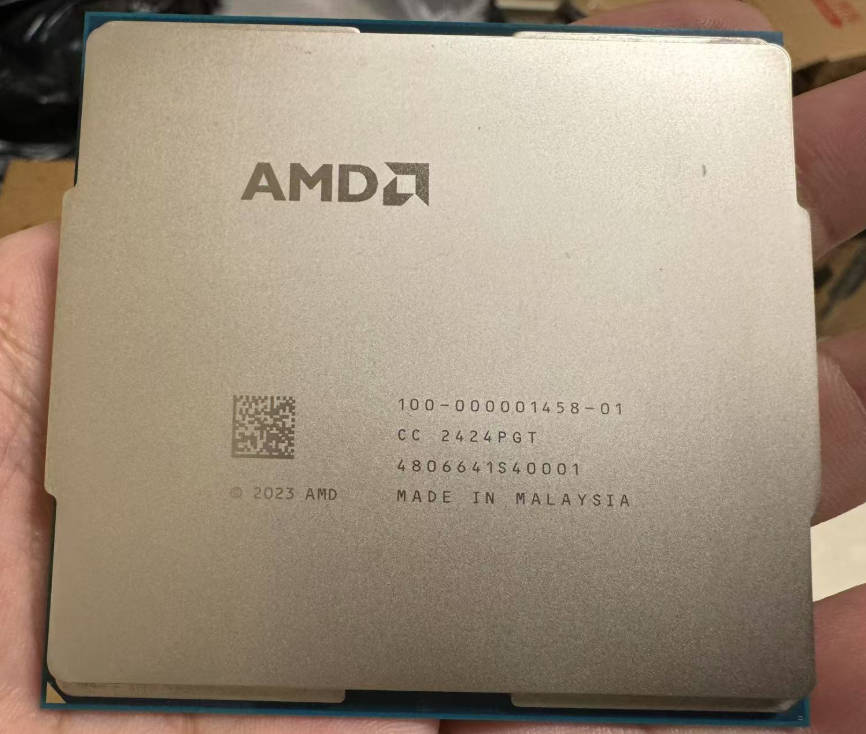

1x AMD EPYC 9845 QS 160 cores 320 threadS

Motherboard

Parameter
Details
Form Factor (WxD, mm)
CEB: 304.8 x 266.7
Processor Supported
AMD EPYC™ 9005 Series Processors, AMD EPYC™ 9004 Series Processors. Single processor, cTDP up to 500 W
Socket
1 x LGA 6096, Socket SP5
Chipset Description
System on Chip
Memory Type
12 x DIMM slots, Support DDR5 RDIMM, 12 - Channel memory per processor. AMD EPYC™ 9005: Up to 6400 MT/s; AMD EPYC™ 9004: Up to 4800 MT/s
Integrated Network
2 x 1 Gb/s LAN (1 x Intel® I350 - AM2), Support NCSI function. 1 x 10/100/1000 Mb/s Management LAN
Integrated Video Controller
Integrated in ASPEED® AST2600, 1 x VGA port
Storage Interface
MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, 2 x MCIO 8i for 4 x Gen5 NVMe. M.2: 2 x M.2 (2280/22110), PCIe Gen3 x2
PCIe Expansion Slots
Slot_5: PCIe x16 (Gen5 x16); Slot_4: PCIe x16 (Gen5 x16); Slot_3: PCIe x16 (Gen5 x16); Slot_2: PCIe x16 (Gen5 x16); Slot_1: PCIe x16 (Gen5 x16). 2 x MCIO 8i (Gen5 x8 or SATA), 2 x MCIO 8i (Gen5 x8)
On - Board Connector
1 x 24 - pin ATX main power connector, 2 x 8 - pin ATX 12V power connectors, 1 x 6 - pin ATX 12V power connector, 1 x CPU fan header, 5 x System fan headers, 1 x USB 3.2 Gen1 x2 header, 2 x M.2 slots, 4 x MCIO 8i connectors, 1 x Front panel header, 1 x Backplane board header, 1 x PMBus connector, 1 x IPMB connector, 1 x TPM header

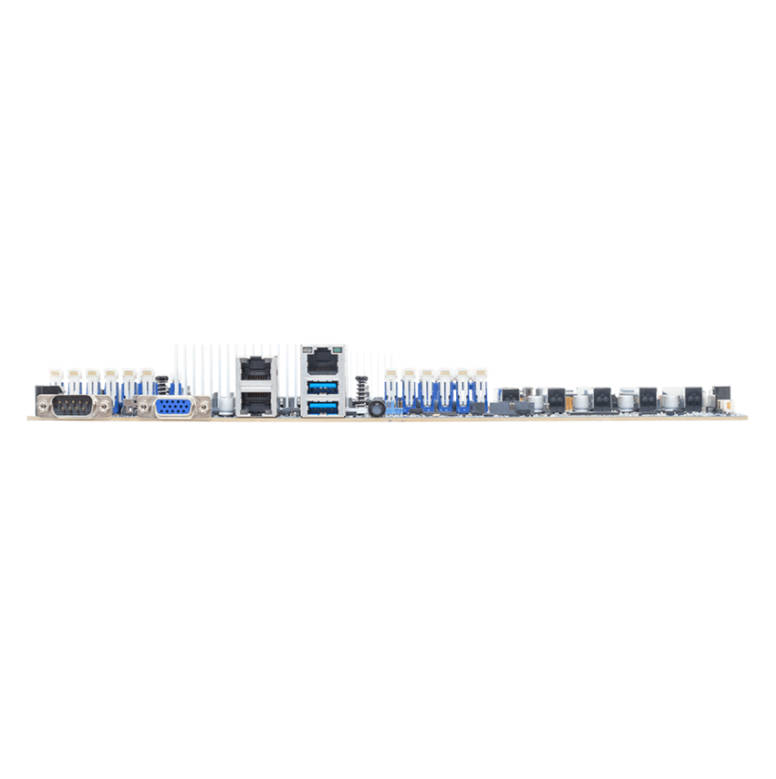

Rear I/O Connectors
2 x USB 3.2 Gen1 ports (Type - A), 1 x VGA port, 1 x Serial port, 2 x RJ45 ports, 1 x MLAN port, 1 x ID button with LED
Security Modules
1 x TPM header with SPI interface, Optional TPM 2.0 kit: CTM012
Server Management
ASPEED® AST2600 Baseboard Management Controller, GIGABYTE Management Console web interface
PSU Connector
1 x 24 - pin ATX main power connector, 2 x 8 - pin ATX 12V power connectors, 1 x 6 - pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C; Operating humidity: 8% to 80% (non - condensing); Non - operating temperature: - 40°C to 60°C; Non - operating humidity: 20% to 95% (non - condensing)
Packaging Bundle
1 x MZ23 - SU0, 1 x I/O shield, 1 x MCIO 8i to 8 x SATA cable (600mm). Single Box dimensions: 360 x 330 x 80 mm; Carton dimensions: 674 x 424 x 385 mm; Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ23 - SU0, 10 x I/O shields. Carton dimensions: 600 x 473 x 495 mm
Ordering Information
Retail: 9MZ23SU0MR - 000 - 3*; Bulk: 9MZ23SU0NR - 000 - 3*
Part Numbers
I/O shield: 12AIO - MZ23SU - 00R; MCIO 8i to 8 x SATA cable (600mm): 25CF9 - 6007A7 - A4R
Optional parts
MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9 - 550700 - A4R
