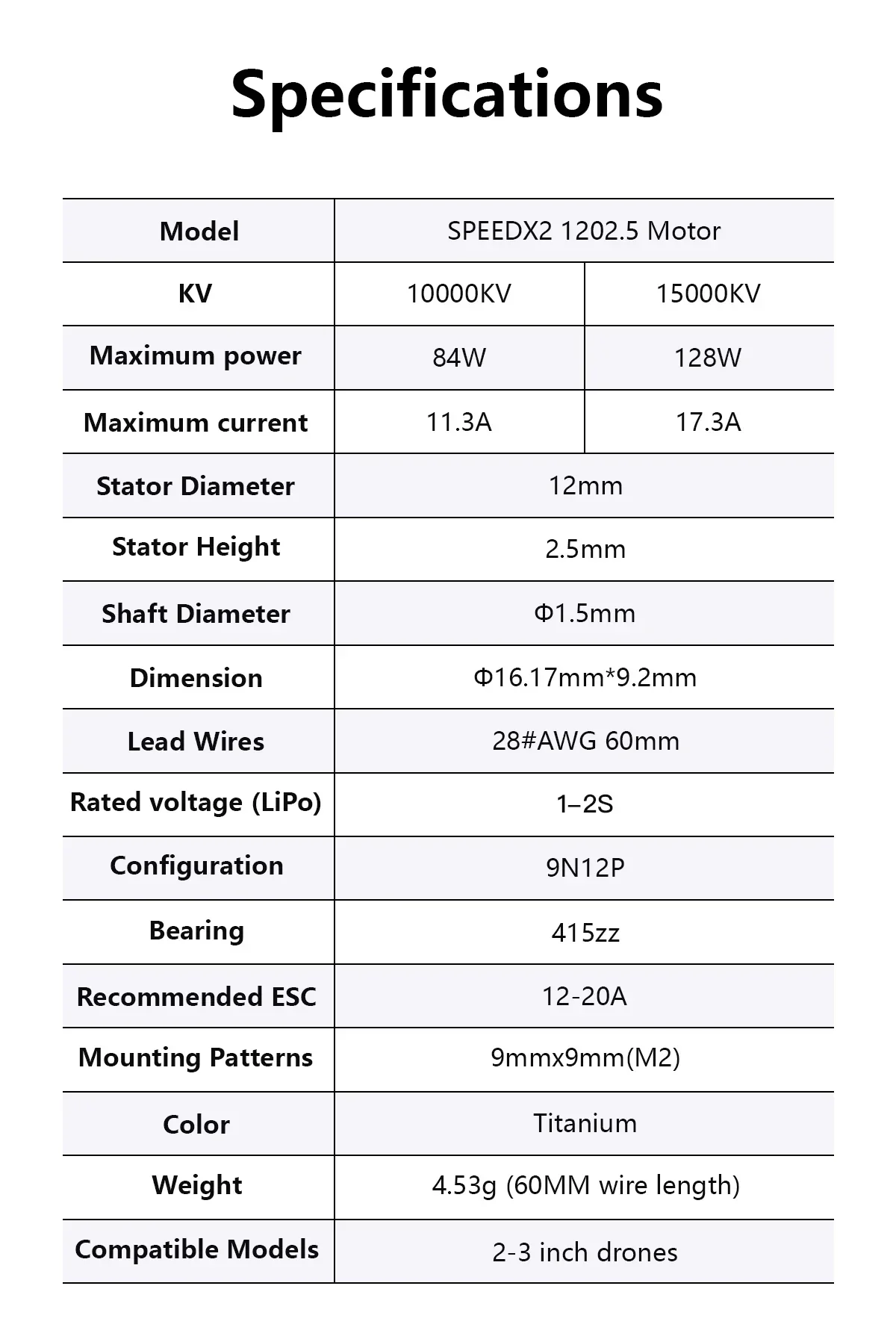

Specifications--1202.5-10000KV
Configuration：9N12P
Bearing: 415zz
Stator Diameter: 12mm
Stator Height: 2.5mm
Shaft Diameter: Φ1.5mm

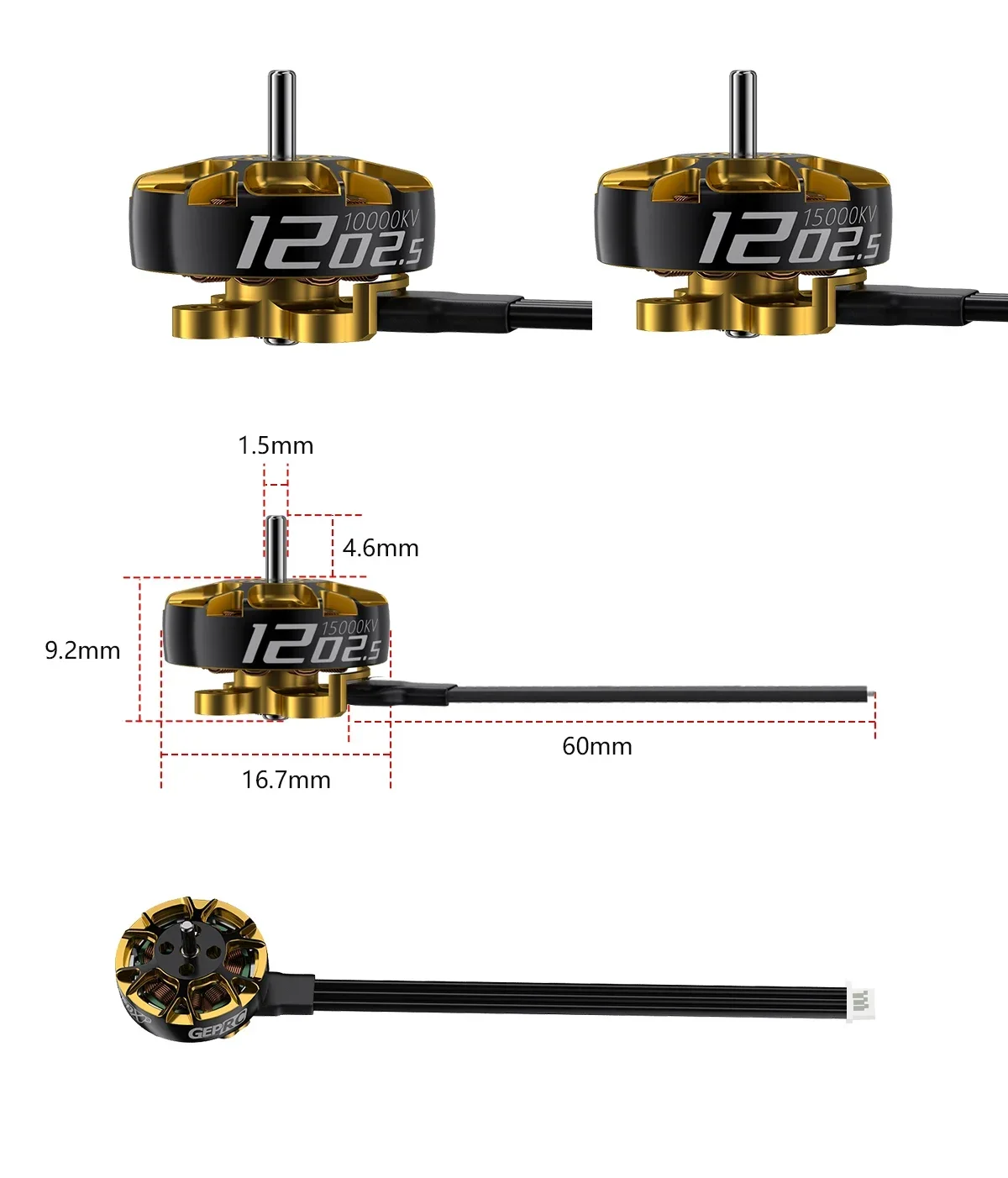

Dimension: Φ16.17mm*9.2mm
Lead Wires: 28#AWG 60mm
Rated Voltage (LiPo): 1-2S
Maximum Power: 84W
Maximum Current: 11.3A
Recommended ESC: 12-20A
Mounting Patterns: 9mmx9mm(M2)
Color: titanium gold
Weight: 4.53g (60MM wire length)
Compatible Models: 2-3 inch drones

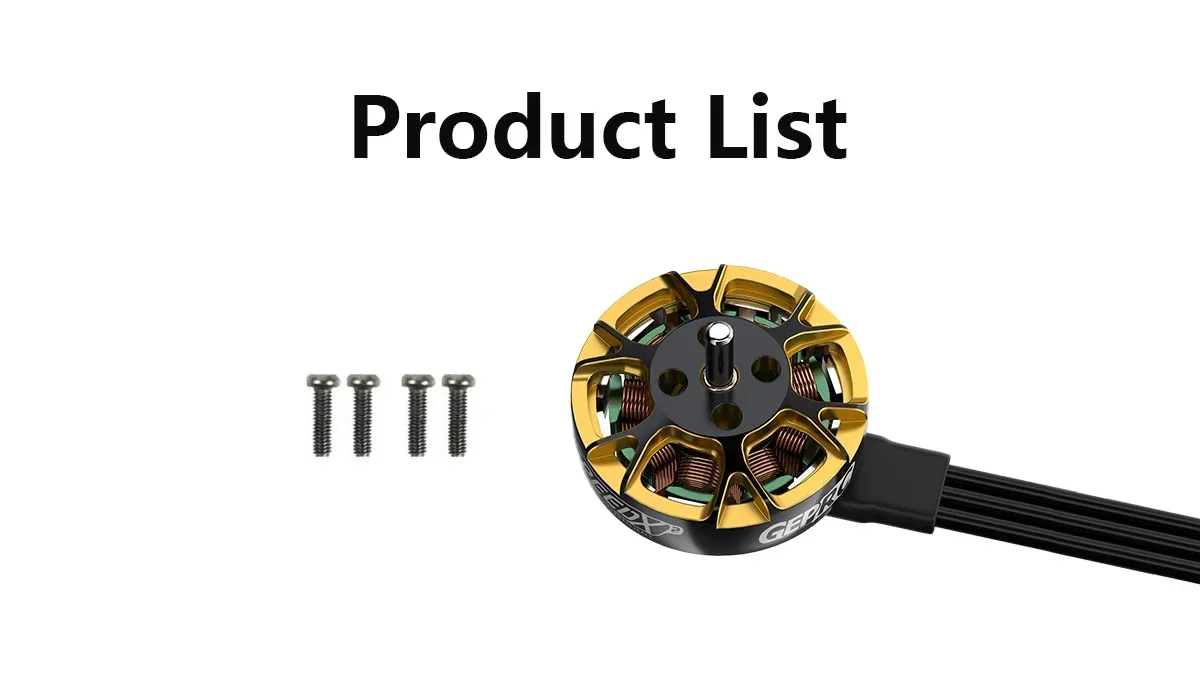

Product List
1 x GEPRC SPEEDX2 1202.5 10000KV motor
6 x M2*4mm screws
Specifications----1202.5-15000KV
Configuration：9N12P
Bearing: 415zz
Stator Diameter: 12mm
Stator Height: 2.5mm
Shaft Diameter: Φ2mm
Dimension: Φ16.17mm*9.2mm
Lead Wires: 28#AWG 60mm
Rated Voltage (LiPo): 1-2S
Maximum Power: 128W
Maximum Current: 17.3A
Recommended ESC: 12-20A
Mounting Patterns: 9mmx9mm(M2)
Weight: 4.53g (60MM wire length)
Compatible Models: 2-3 inch drones
Product List
1 x GEPRC SPEEDX2 1202.5 15000KV motor
6 x M2*4mm screws
Configuration：9N12P
Bearing: 415zz
Stator Diameter: 12mm
Stator Height: 2.5mm
Shaft Diameter: Φ1.5mm
Dimension: Φ16.17mm*9.2mm
Lead Wires: 28#AWG 60mm
Rated Voltage (LiPo): 1-2S
Maximum Power: 84W
Maximum Current: 11.3A
Recommended ESC: 12-20A
Mounting Patterns: 9mmx9mm(M2)
Color: titanium gold
Weight: 4.53g (60MM wire length)
Compatible Models: 2-3 inch drones
Product List
1 x GEPRC SPEEDX2 1202.5 10000KV motor
6 x M2*4mm screws
Specifications----1202.5-15000KV
Configuration：9N12P
Bearing: 415zz
Stator Diameter: 12mm
Stator Height: 2.5mm
Shaft Diameter: Φ2mm
Dimension: Φ16.17mm*9.2mm
Lead Wires: 28#AWG 60mm
Rated Voltage (LiPo): 1-2S
Maximum Power: 128W
Maximum Current: 17.3A
Recommended ESC: 12-20A
Mounting Patterns: 9mmx9mm(M2)
Weight: 4.53g (60MM wire length)
Compatible Models: 2-3 inch drones
Product List
1 x GEPRC SPEEDX2 1202.5 15000KV motor
6 x M2*4mm screws
