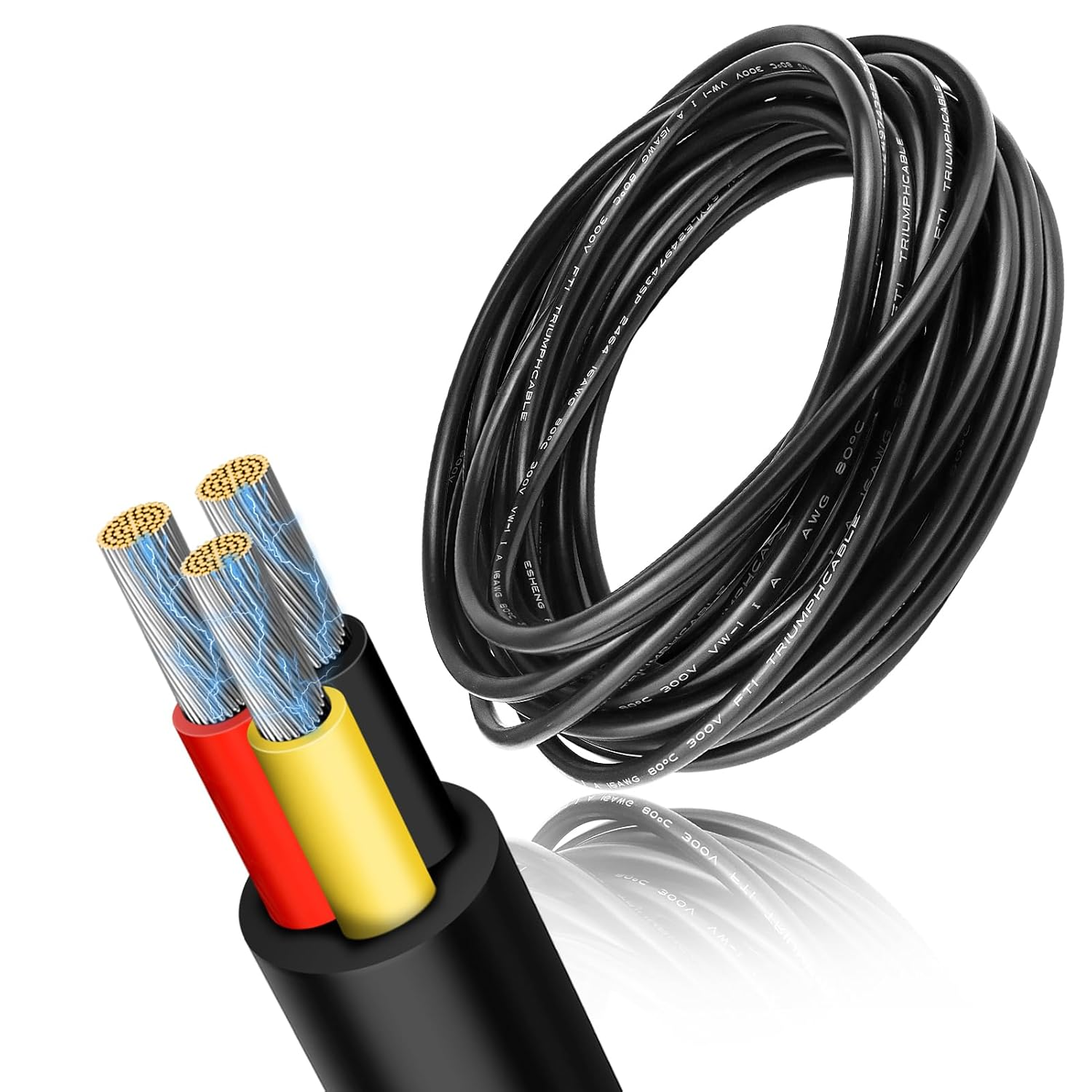

RESHAKE 22 Gauge 3 Conductor Electrical Wire, 16.4FT Low Voltage 22/3 Tinned
Description
| Part Number | KB-DX-22AWG-3C-5M-CA |
| Style | 22 AWG-3C |
| Number of Cable Strands | 17 |
| Brand Name | RESHAKE |
| Unit Count | 16.4 Feet |
| Color | Black |
| Brand | RESHAKE |
| Material | Tinned Copper |
| Material Type | Tinned Copper |
| Number Of Wires | 3 |
| Voltage | 300 Volts |
| Manufacturer | KB |
| Strands | 17 |
| Size | 16.4FT/5M |
- 【22 Gauge 3 Conductor Electrical Wire】RESHAKE this 3 conductor electric wires is 16.4ft / 5 meters long; They consist of 17 strands of tinned copper conductors with a diameter of 0.14 mm twisted. They are perfectly insulated with PVC jacket, which provides its high flexibility and its resistance to water, oil, solvents, and other chemicals.Good performance even in the face of changing outdoor environments
- 【Tinned Copper 22AWG 3 Wire Cable】This RESHAKE 22/3 wire is made of high precision oxygen free copper surface tinned. Tinned copper wire has the characteristics of soft material, low resistance, energy saving and good electrical conductivity. Compared with bare copper wire, its manufacturing process is more complicated, the finished product has better corrosion resistance and oxidation resistance, and the service life of the wire is much longer than that of bare copper wire
- 【Wide Range of Uses】The electric wire easy to strip and solder. It is widely used for extension cables of low voltage led light strip, bulb, lamp, electronic, electrical appliance and equipment, transformer, speaker, automotive, marine wiring, motor connection, speaker, audio power cable, automotive wire, duplex receptacle wiring, 3 way switching, power strip, extension cord and outdoor landscape lighting products
- 【Product Specification】Rated Voltage:300V. Max Current: 4.5A. Rated working temperature. Stand operating temperature up to 80℃/176℉. Jacket diameter: 3.5 mm
- 【Good Workmanship】Ultra-Low Eccentricity. Exquisite craftsmanship results in ultra-low eccentricity. Uniform thickness, effectively prevent current breakdown and ignition.Our wires are made of high-strength PVC Material , which has good performance in corrosion resistance and oxidation resistance.It can be self-extinguishing after leaving the fire, which is more secure
Product description
-
Waterproof
Waterproof material, can adapt to various outdoor low-voltage environments. It can be powered normally even in rainy days.
-
Resistant to High and Low Temperatures
It has flame retardant and insulating properties.High temperature resistance 176℉.leave the fire to extinguish itself.In the extremely cold - 4℉ also can work, doesn’ t affect the conductivity
-
Good Flexibility and Easy to Bend
The cable can be bent at will, soft and resistant to folding. Stable output current, less prone to short circuit and open circuit.More assured to use.
Why choose tinned copper as conductor?
Good Solderability: The low melting point of the tinned layer makes it easy to solder, improving the efficiency and quality of the wire installation High Conductivity: Multiple strands of tinned copper are stranded together to form a copper wire, which is more conductive than aluminum wire
Reduce heat:Tin plating layer can reduce the resistance change of the wire due to temperature increase, thus ensuring the stable work of the wire Long lifespan:Tin coating prevents copper wires from oxidizing/corrosion upon contact with the external environment, thus extending wire lifespan.
-
For automotive, switches, speakers, marine wiring, computer power cords, TVs,freezers
-
Electronic equipment, transformers, outlet power strips, duplex outlet wiring, switching electronic
-
Model airplanes, model cars, model ships, sprinkler system connections,thermostat wires, 3D printing
-
Low-voltage LED strips, bulbs, tubes, outdoor wiring, garden lights, outdoor landscape lighting
-
Rewiring for Motorcycles, Trailers, Boats, RV's and Vehicles
Application Scenarios
Various Specifications for Your Choice
| Customer Reviews | 4.4 out of 5 stars 81 | 4.8 out of 5 stars 13 | 4.4 out of 5 stars 6 | 4.4 out of 5 stars 28 | 4.5 out of 5 stars 25 |
| Price | $7.99$7.99 | $8.99$8.99 | $9.99$9.99 | $12.99$12.99 | $14.95$14.95 |
| Gauge | 22 Gauge | 22 Gauge | 20 Gauge | 18 Gauge | 16 Gauge |
| Number of Conductors | 4 Conductor | 4 Conductor | 3 Conductor | 3 Conductor | 3 Conductor |
| Max Voltage | 300V | 300V | 300V | 300V | 300V |
| Max Current | 4.5A | 4.5A | 5A | 7.5A | 11A |
| Material | PVC+Tinned Copper | PVC+Tinned Copper | PVC+Tinned Copper | PVC+Tinned Copper | PVC+Tinned Copper |
