Product Description
If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic swing gate opener as a crucial addition to your security measures.

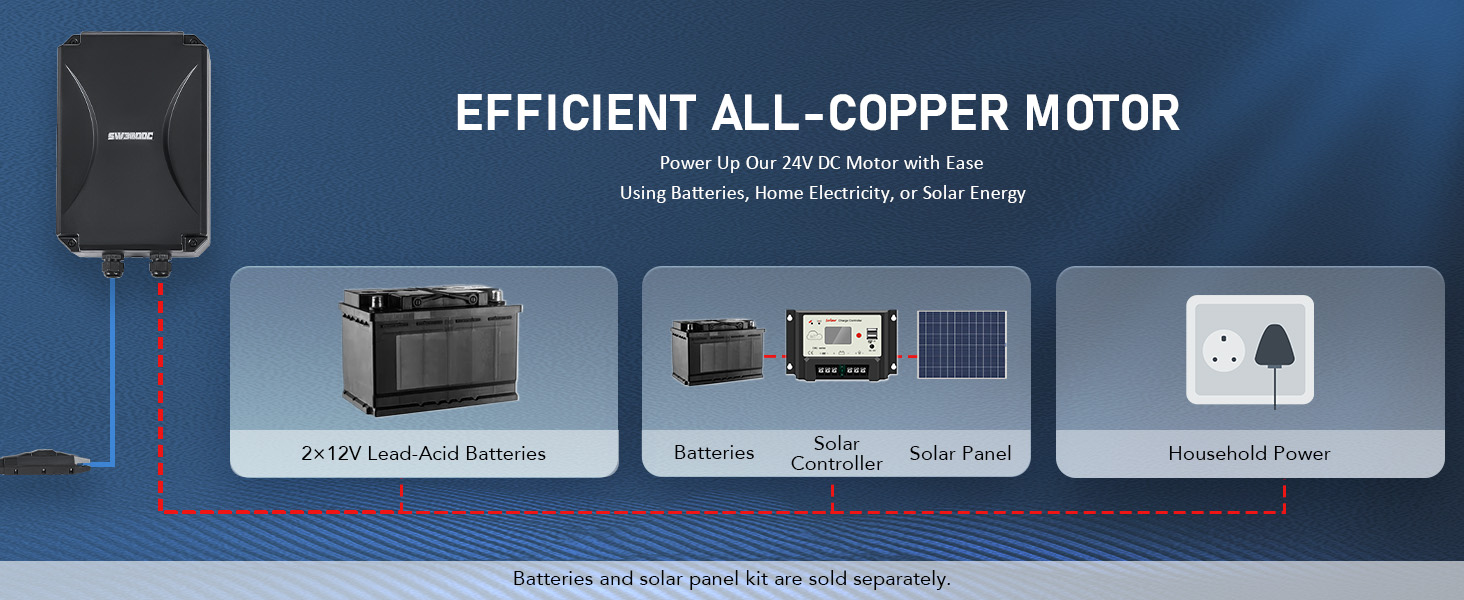

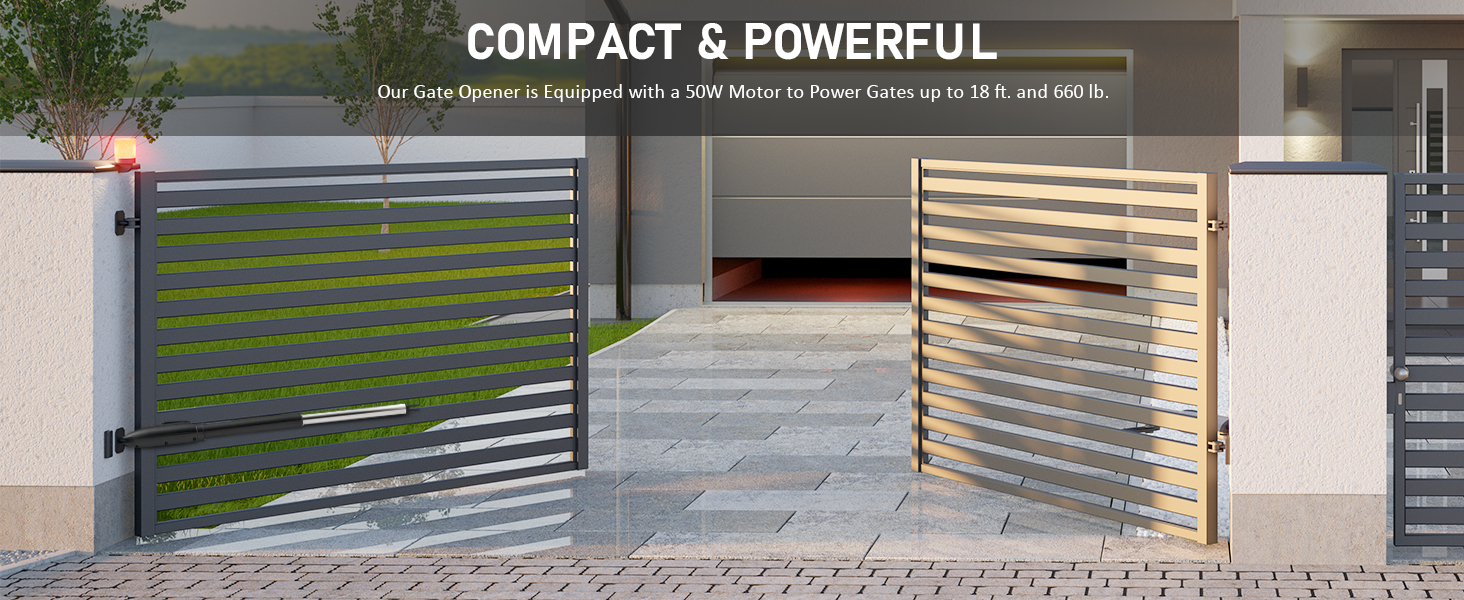

Working with gates up to 660 pounds and 18 feet in length, this electric gate opener is a must have for your property. The electric swing gate opener operates smoothly and quietly with its energy efficient 50W all-copper motor, opening and closing your swing gate at 3 feet per minute. Once open, the gate will automatically close behind you after a custom set time of 15, 30, 60 or 90 seconds. The remote controls are effective up to 98 feet while the manual release keys serve as reliable backups.
Features
Open & Close Gates with Ease: With energy-efficient 50W motor, this automatic swing gate opener from CO-Z smoothly opens gates up to 660 lb. and 18 ft. at 3 ft. per minute
Customizable Closing Times: Take complete control over your gate with our electric gate opener, allowing you to set custom closing times of 15, 30, 60, or 90 seconds once the gate is open
Built to Withstand Any Weather: Our gate opening system is engineered to resist rain, dust, and dirt with its solid construction and IP44 casing, and can withstand extreme weather conditions from -4°F to 158°
Safe and Reliable Gate Operation: Our electric gate opener kit ensures maximum safety by stopping and reversing your gate's direction if people or vehicles are detected

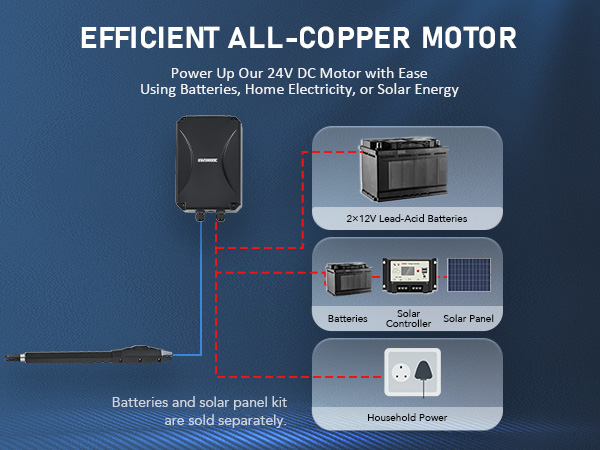

Designed for Lasting Service: Featuring a powerful all-copper motor, an aluminum actuator, and a durable ABS casing, our gate opener complete kit provides years of dependable service without jamming
All-Weather Durability
From 4° below to 158° above, CO-Z gate opener will keep opening and closing just the way you need, its IP44 casing preventing damage from rain, dirt.
Added Convenience
Our gate opener comes with a convenient manual release key that provides you easy access to your gate with just a simple turn.
Aluminum Actuator
The actuator is made of premium aluminum alloy to stay lightweight and corrosion resistant for long-lasting use.

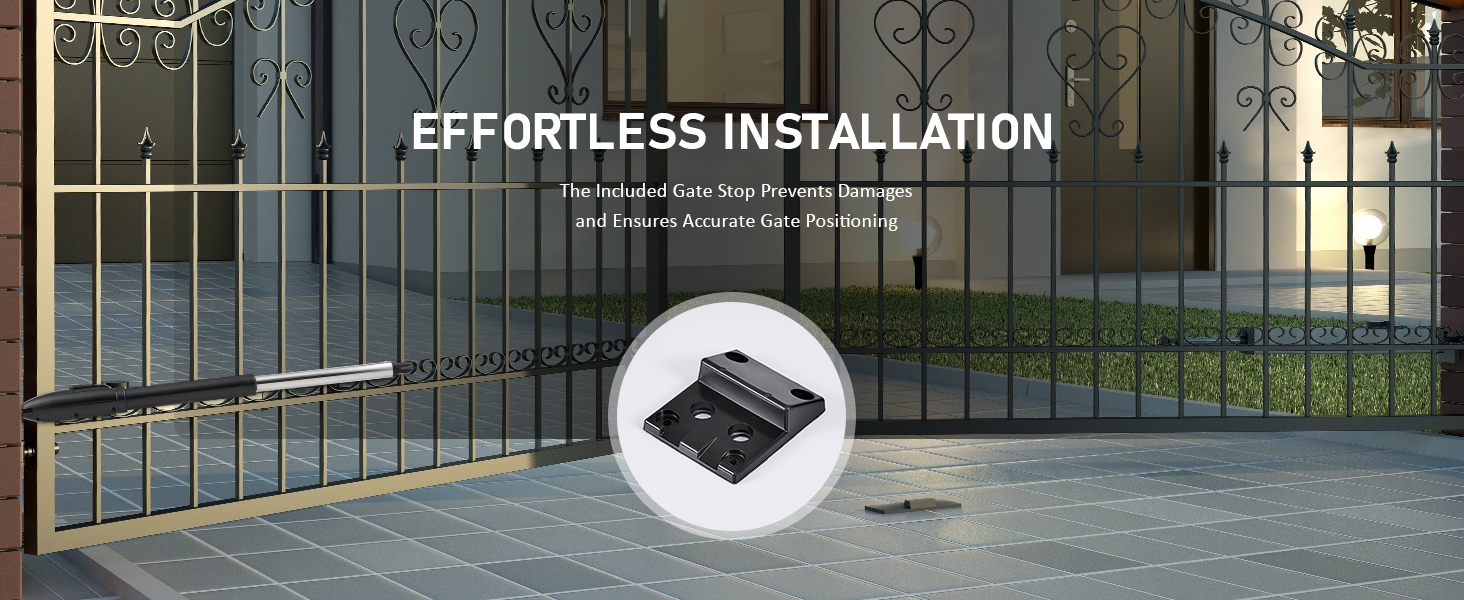

Convenient Limit Stop
Our included gate stop ensures proper gate positioning and prevents accidental damages for safe operation.
Specifications
Material
Steel, Copper, Plastic, Aluminum
Color
Black
Rated Power
0.07 hp (50W)
Max. Torque
390 lb.-ft. (523 N·m)
Max. Capacity
660 lb. (300 kg)
Max. Piston Speed
3 fpm (0.9 m/min.)
Max. Stroke Length
13 in. (33 cm)
Max. Noise
58 dB
Operating Temp. Range
-4 to 158°F (-20 to 70°C)
Weatherproof Rating
IP44
Max. Remotes
32
Remote Range
98 ft. (30 m)
Remote Frequency
433.92 MHz
Power Cord Length
4 ft. 11 in. (1.5 m)
Dimensions
28 x 3.9 x 3.4 in. (71x10x8.6 cm)
Package List
1x Arm Actuator
2x Manual Release Keys
2x Remote Controls
1x Control Box with Casing
2x Post Base Brackets
1x Post Pivot Bracket
1x Gate End Bracket
2x Gate Tube Brackets & M8 Nuts
4x M10x200 Bolts, Nuts, & Washers
4x M8x70 Bolts, Nuts, & Washers
2x M8x25 Bolts, Nuts, & Washers
1x Mounting Bolt, M8 Nut
1x 8x40 Clevis Pin & Cotter
2x 6.3x25 Self-Drilling Screws
1x Limit Stop
1x Warning Sign
1x Instruction Manual
