Product Description

Xhorse VVDI BE Key Pro with Smart Key Shell 3 Buttons for Benz for VVDI MB Tool

International Buyers – Please Note:

1.  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

2.  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

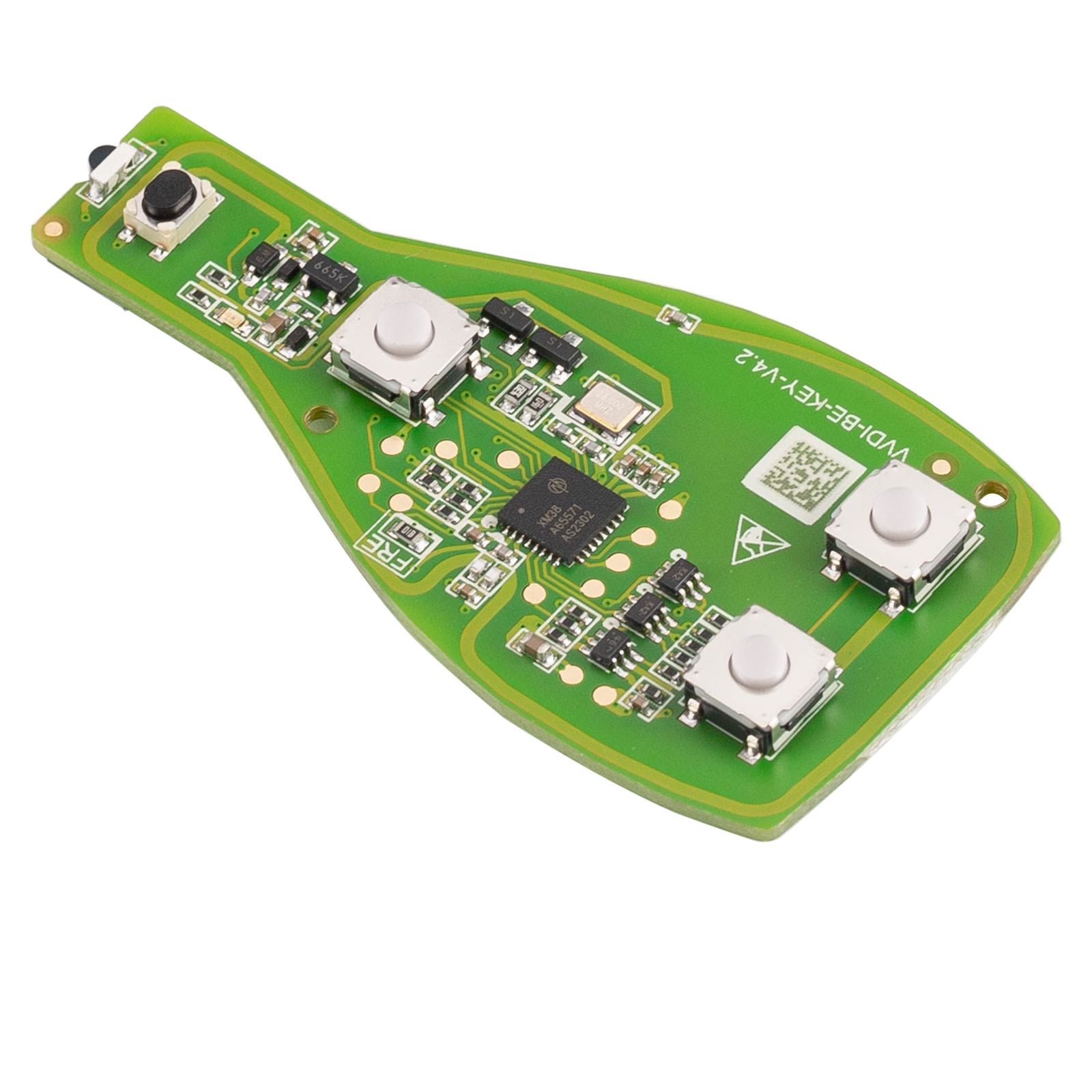

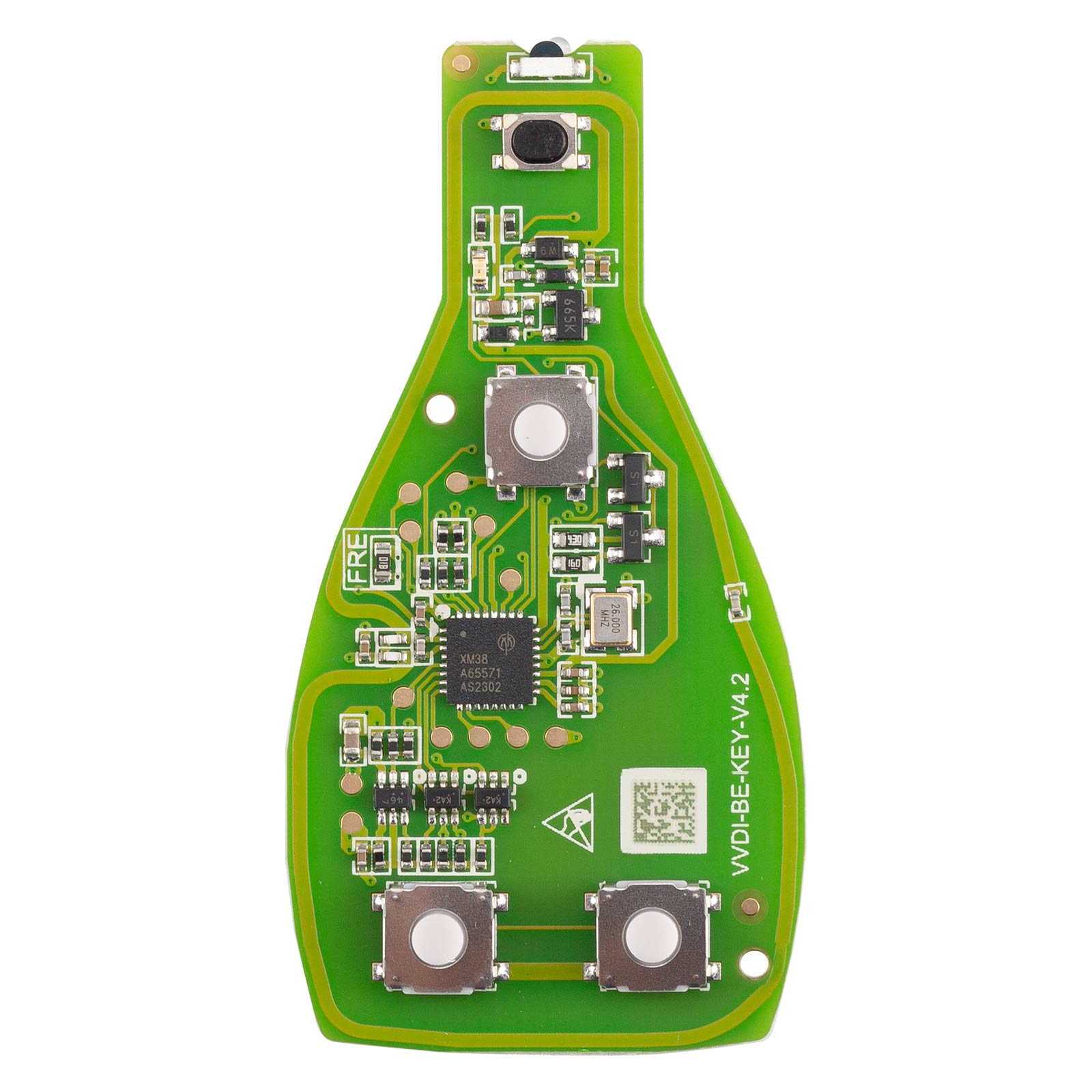

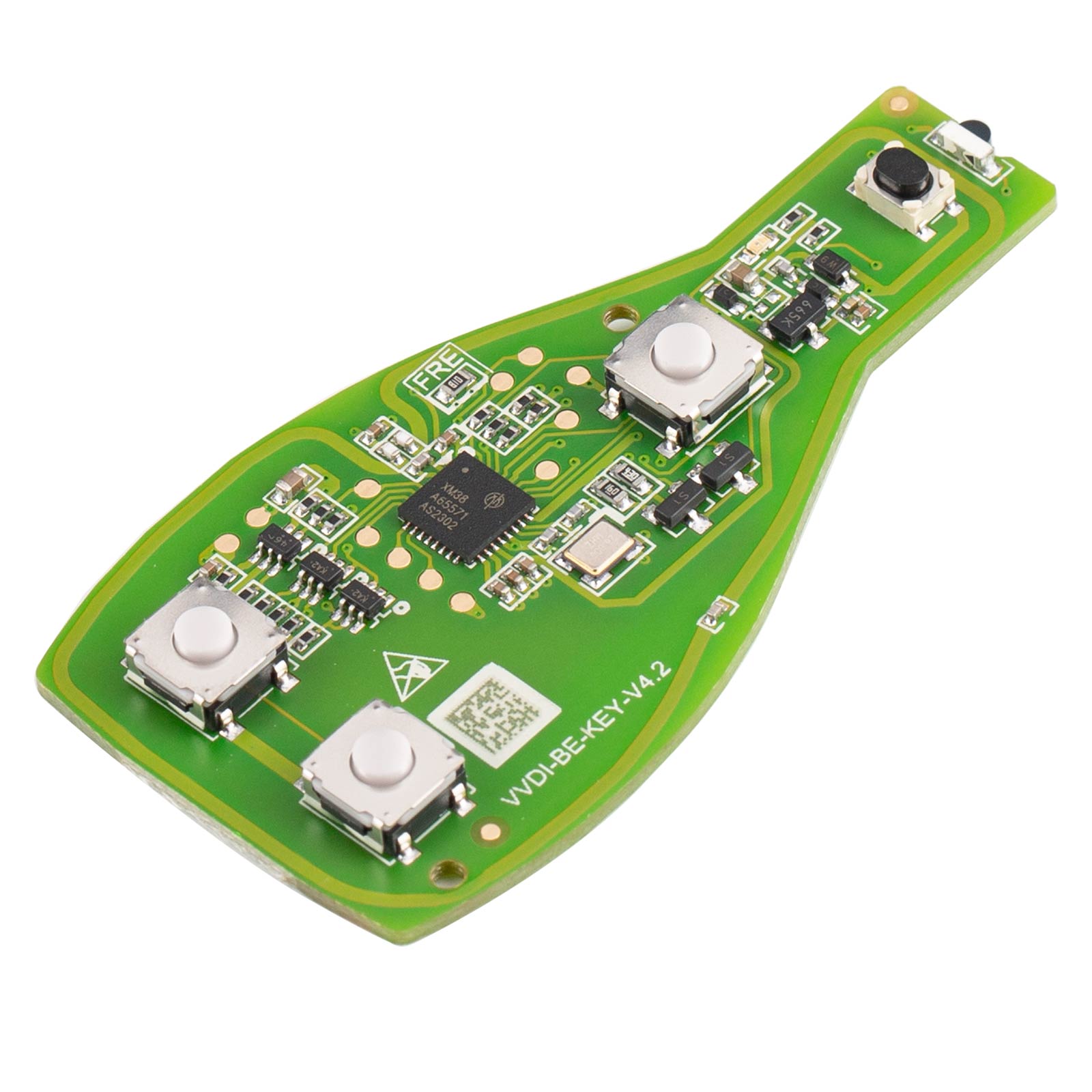

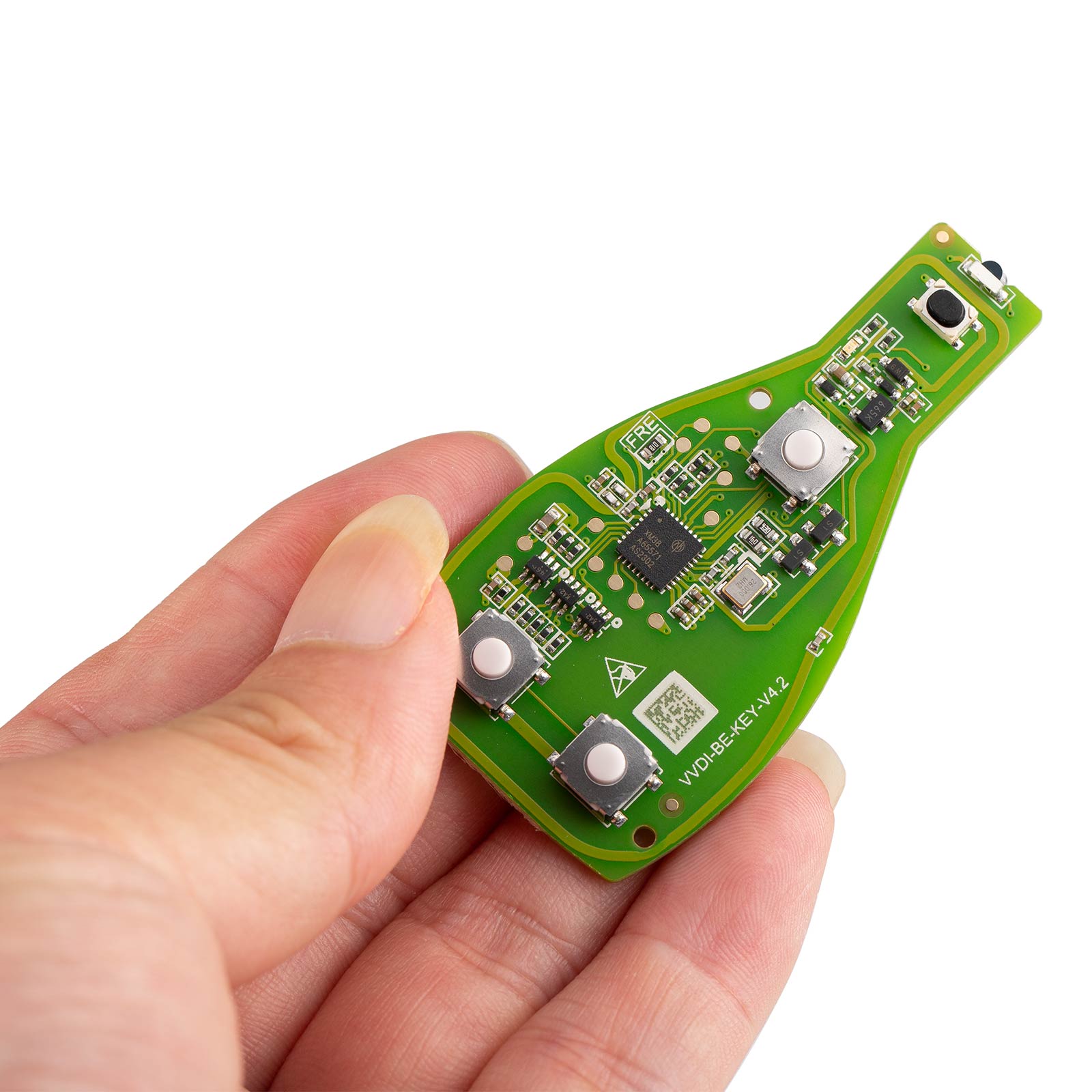

Xhorse XNBZ01GL VVDI BE Key Pro Improved V4.1 Version With 3 Buttons Smart Key Shell (without Logo) Fit For Mercedes Benz


1 VVDI BE Key Pro Improved Version = 200 VVDI MB BGA Tool Points= 1 VVDI MB BGA Token, please get the token yourself in APP.


Xhorse VVDI BE Key Pro Features:

More compatibility

New design

High Stability

High reliability

Digital Signature


VVDI BE key Pro improvements:

1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.

2. Fix the bug/fault that the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/EZS for example with work on diagnostic...switch IGN OFF---ON for erase faults...then car not start

3. Fix the bug/fault of trunk remote open on cars where power lifts on trunk door mainly...

4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.

5. Modify the rolling algorithm, fix some errors of BE key.

6. Add pre-roll algorithm: the HASH value can roll ahead.

7 Adopt car-grade quartz crystal, improve infrared communication stability.

8. Boost the infrared signal when you press the button.

9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor


Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.

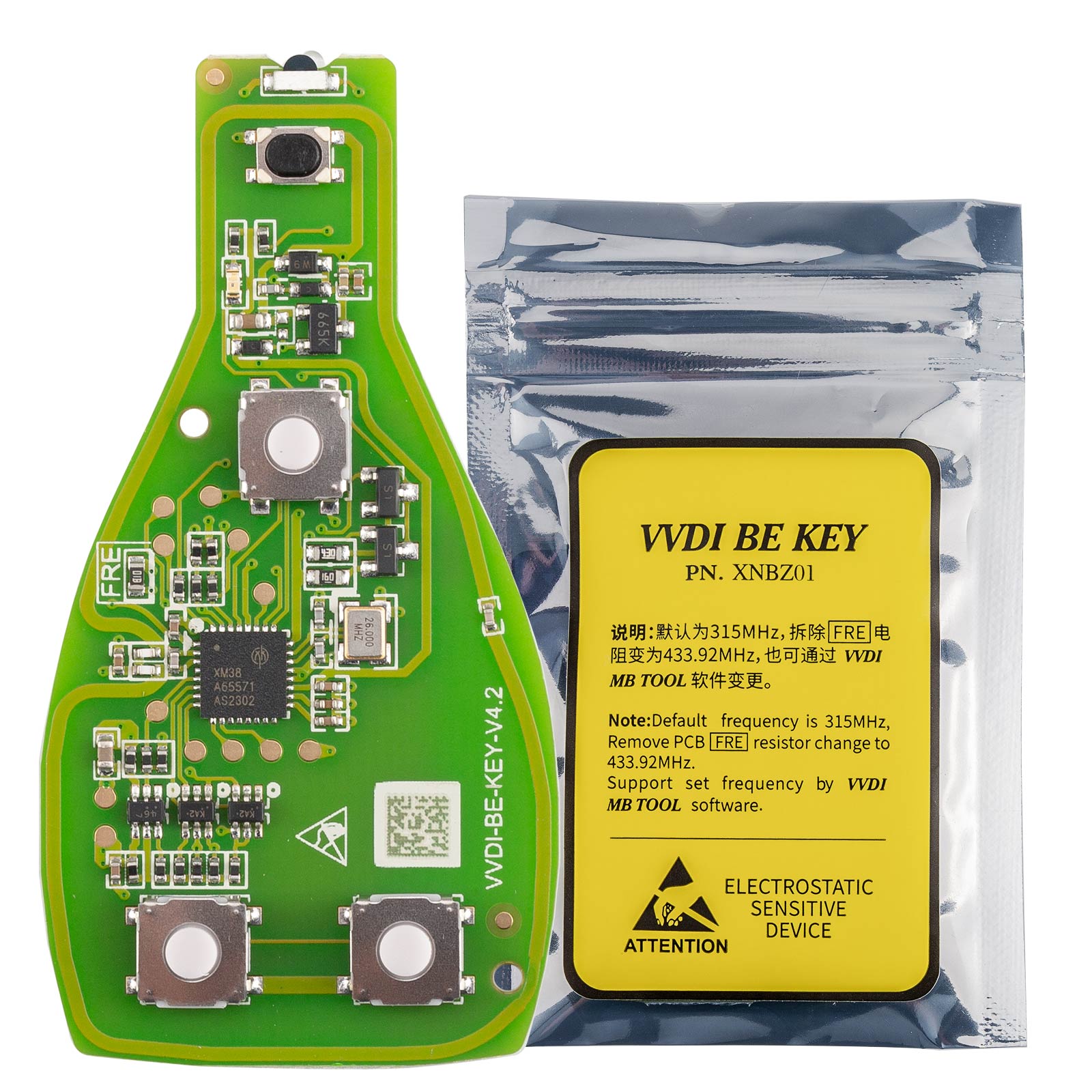

The way to reset the frequency with the PCB SMD resistor:

Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.

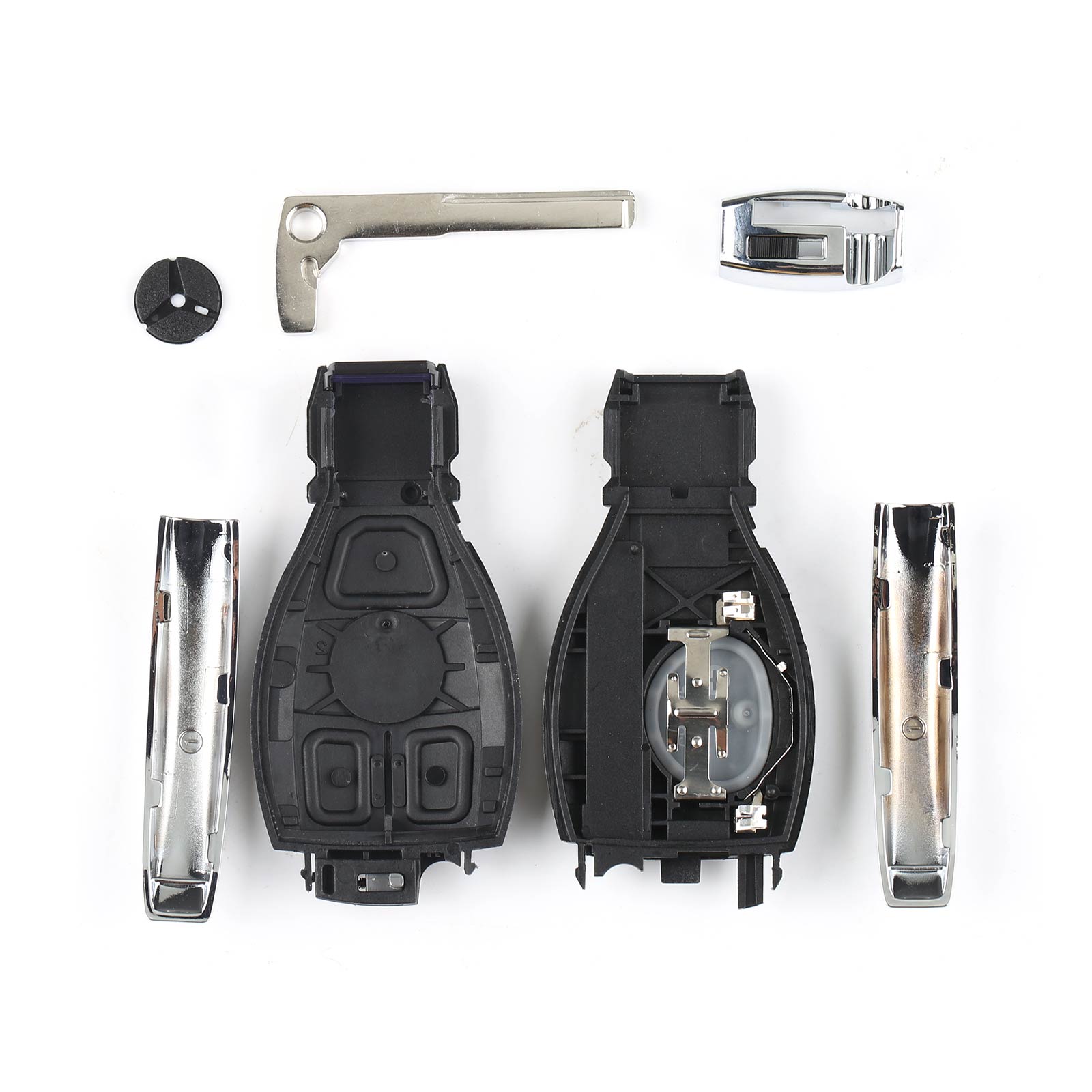

How to assemble the case with VVDI BE key Pro improved version board?

This post shows the general guide on how to assemble VVDI BE Key Pro imrpoved version with the Smart Key Shell 3 Button for Mercedes Benz.


1.Put the VVDI BE key Pro improved version PCB into the case.

vvdi be key assamble- 1


2.Cover the bottom case.

vvdi be key assamble- 2

3.Insert the battery and cover the case.

vvdi be key assamble- 3

4.Push the metal strips on both sides into the right position.

vvdi be key assamble- 4

If the rear metal component is first assembled, then the metal strips on both sides won't be able to pushed into the right position.

5.Here rearmetal button.

vvdi be key assamble- 5

6.Put into the small key and start button.

vvdi be key assamble- 6

If you want to disassemble the case, please do it from the last step to the first step.
vvdi be key assamble- 7

Note: If the rear metal component is firstly assembled, then the metal strips on both sides won't be able to put into the right position.


Package List:

1pcs x Xhorse VVDI BE Key Pro Improved Version

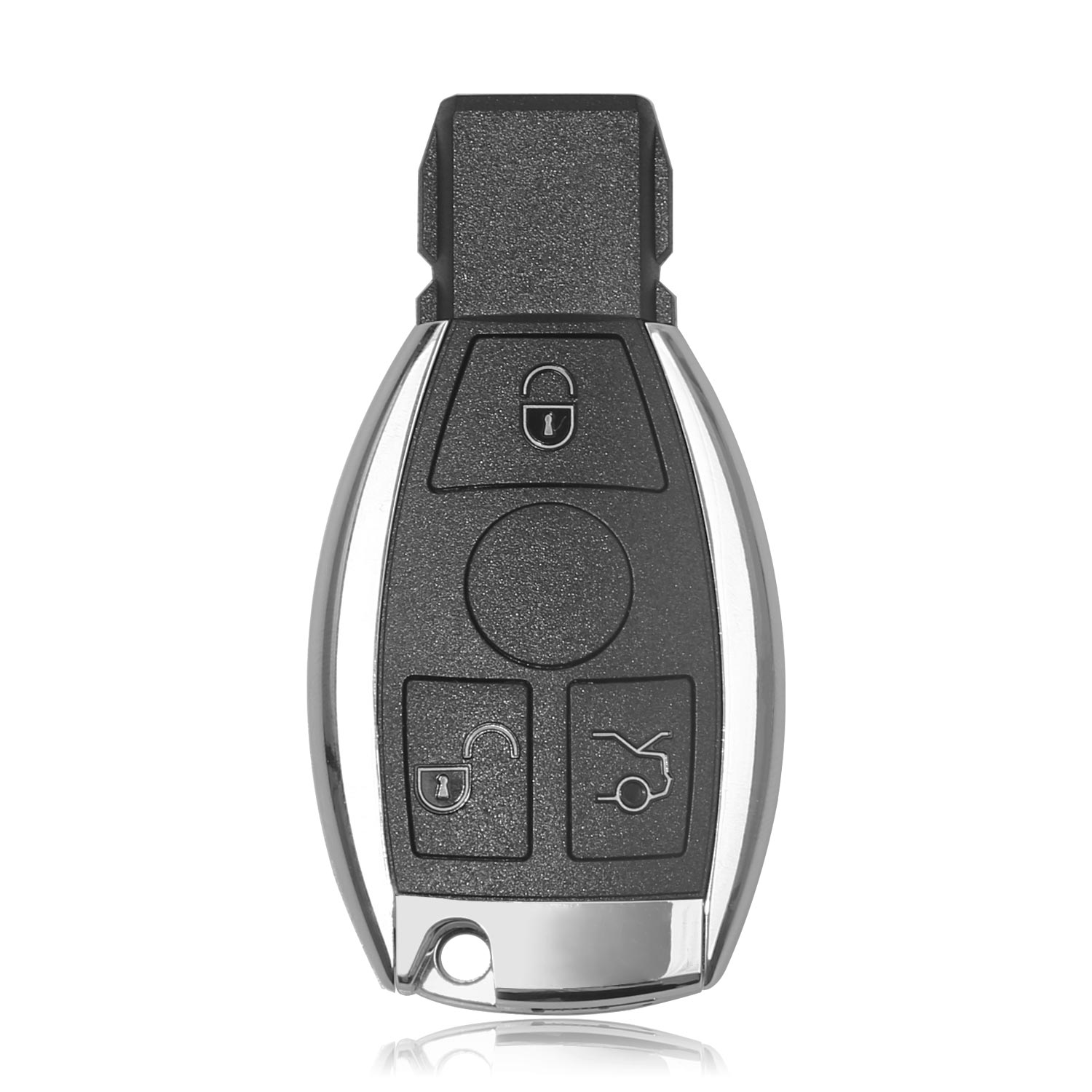

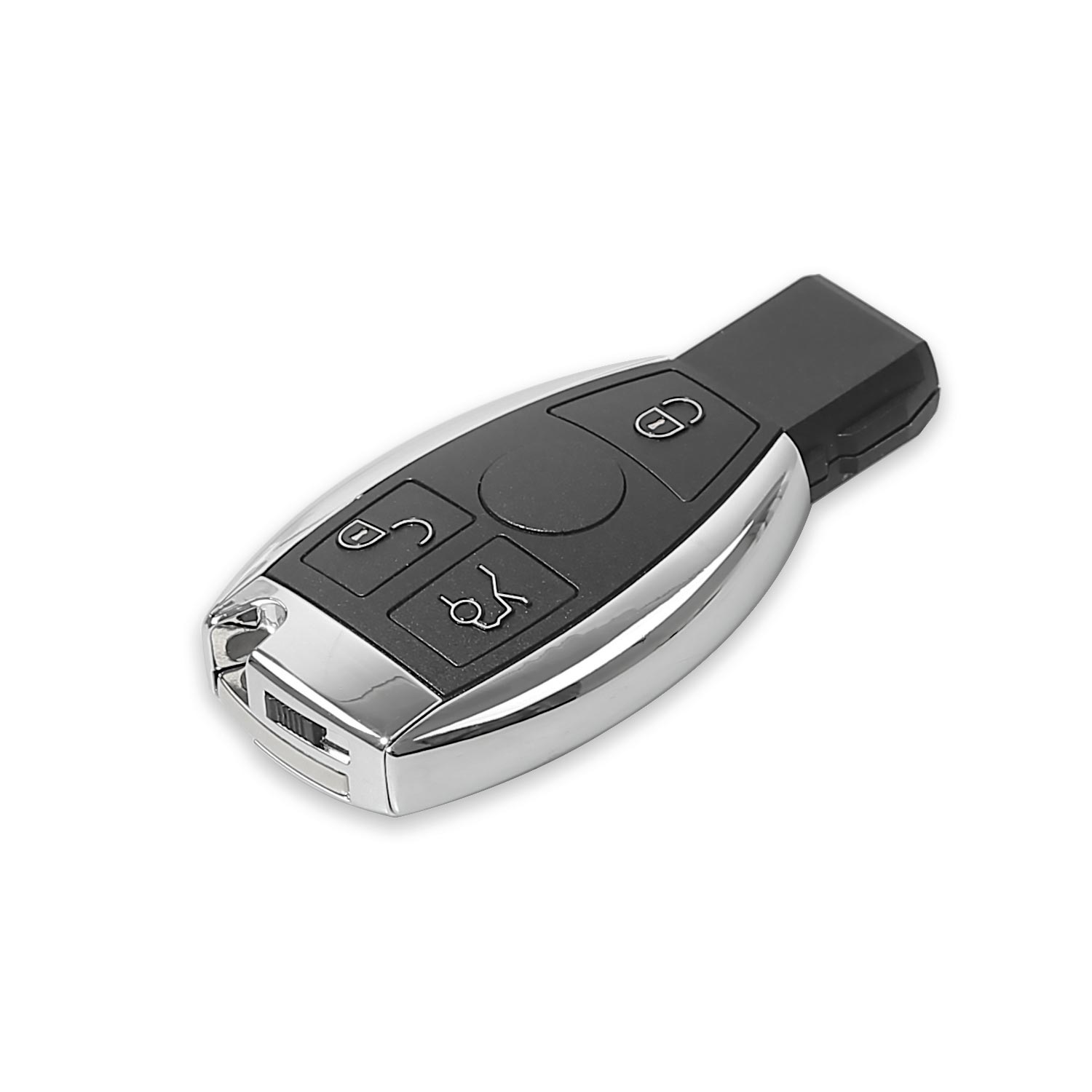

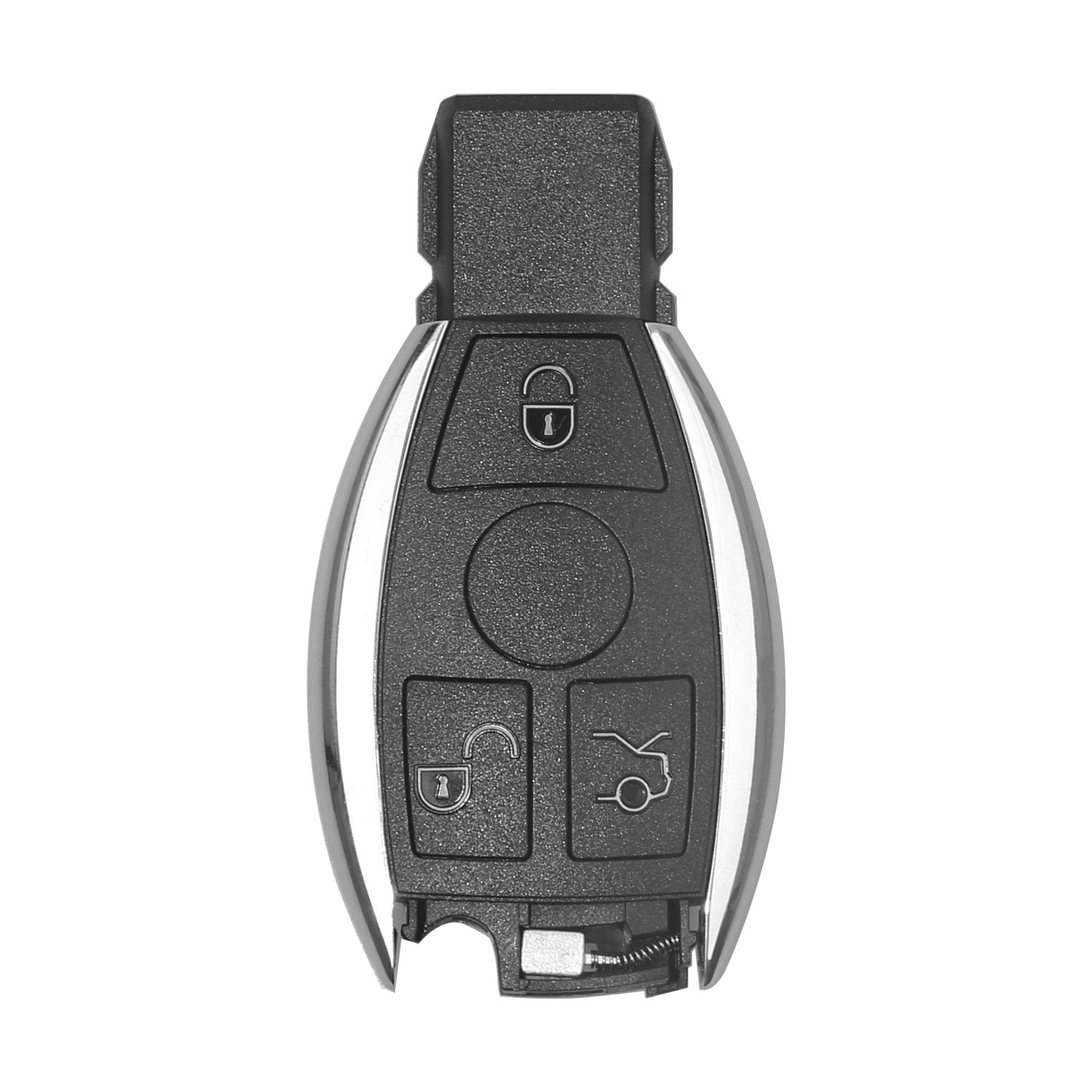

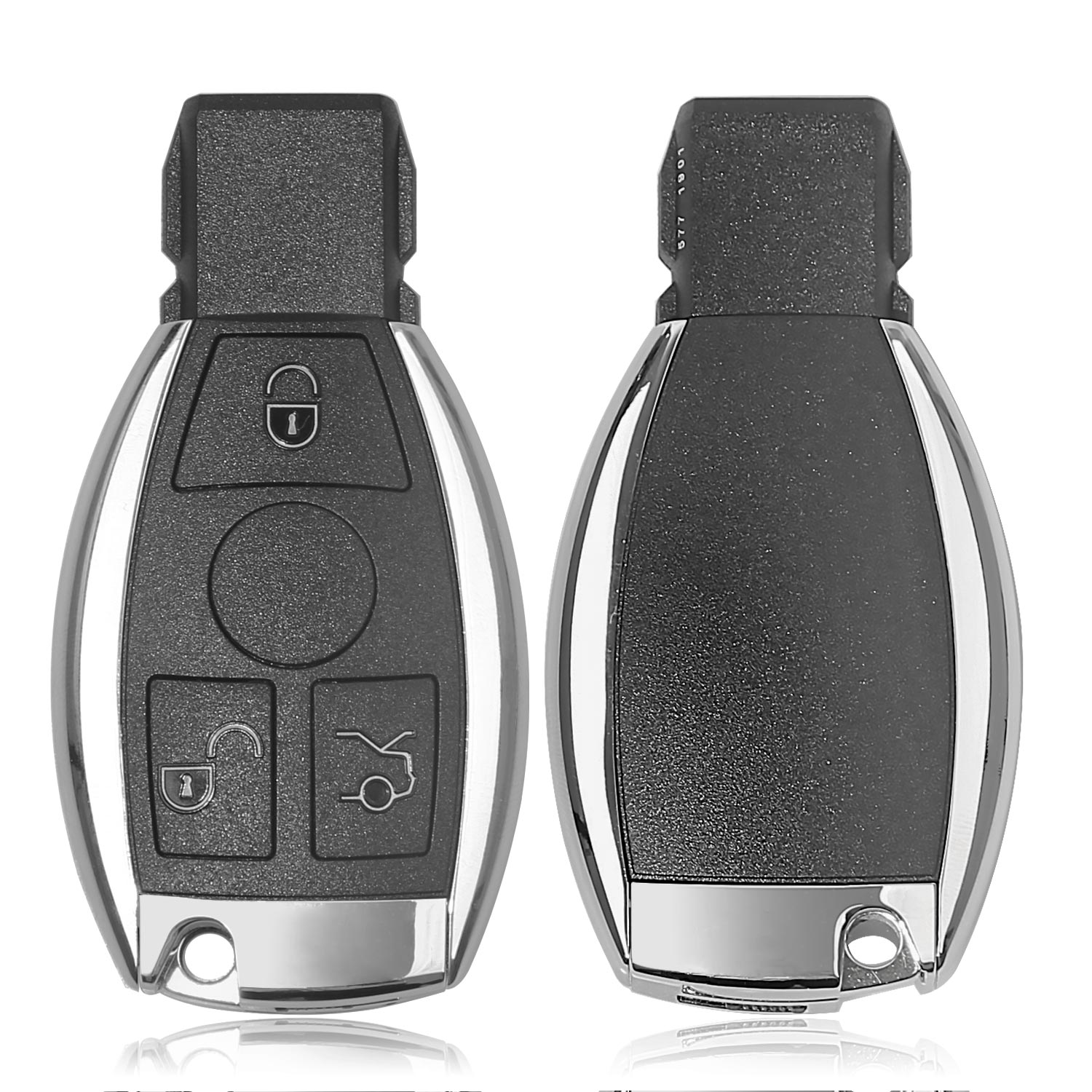

1pcs x Smart Key Shell 3 Button for Mercedes Benz (without Logo)


Xhorse XNBZT1GL VVDI BE Key Pro Fit For Benz Yellow Color Verion No Points with 3 Buttons Key Shell (without Logo)

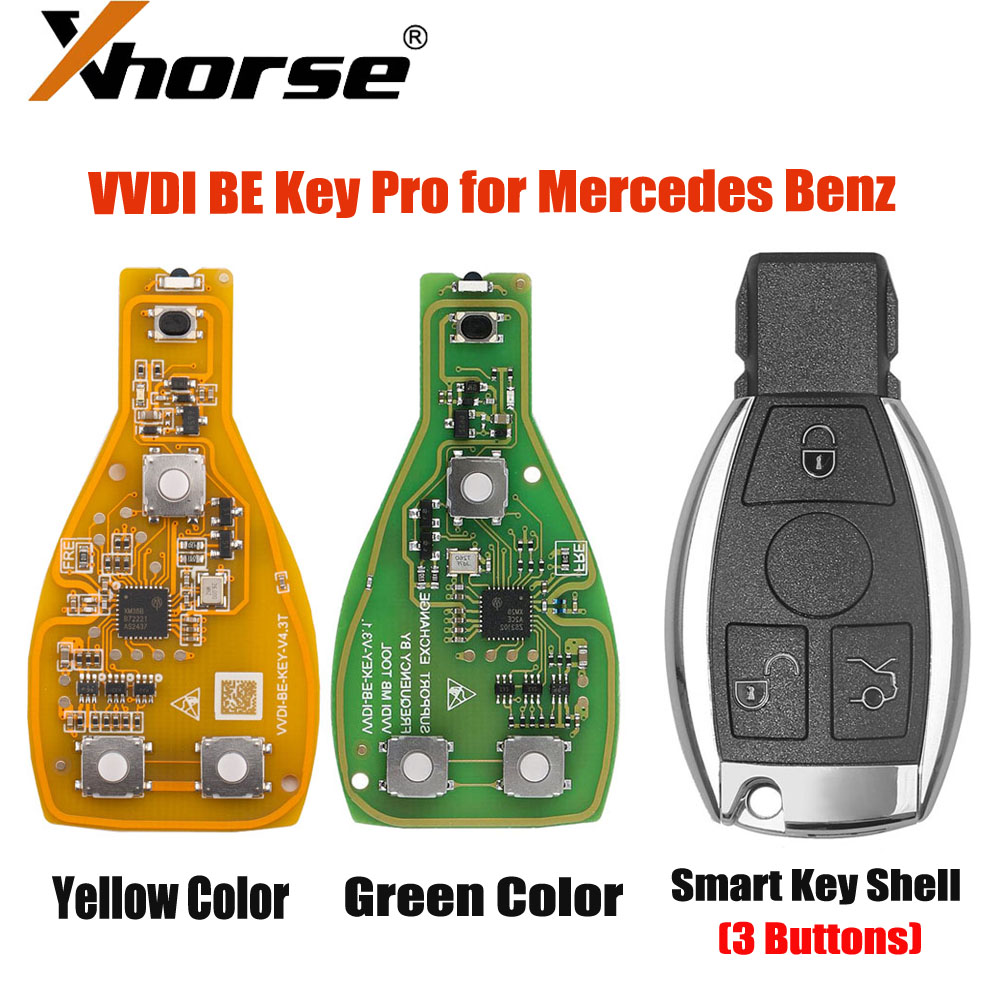

BE Key Pro Green vs BE key yellow :

1. PCB color difference.

2. Yellow PCB is without 200 bonus points(which is equal to 1 BGA token)


VVDI BE Key Pro For Benz Features:

1. VVDI BE key support both 315mhz and 433mhz, you can change frequency via VVDI MB Tool software or remove resistor.

2. Xhorse brand, superior quality.

3. Compatible with key shells we sell

4. Applicable chip models:705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011).

5. Progarmmed by :All kinds of MB key progarmmer.


VVDI BE Key Pro version features:

More compatibility

New design

High Stability

High reliability

Digital Signature

High quality with a reasonable price

No points will be accumulated


VVDI BE Key Pro improvements:

1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.

2. Fix the bug that the BE key fails to turn on the ignition after repeat try.

3. Fix the bug of trunk remote open

4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.

5. Modify the rolling algorithm, fix some errors of BE key.

6. Add pre-roll algorithm: the HASH value can roll ahead.

7. Adopt car-grade quartz crystal, improve infrared communication stability.

8. Boost the infrared signal when you press the button.

9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor

Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.


The way to reset the frequency with the PCB SMD resistor:

Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.


Package includes:

1pcs x VVDI BE Key Pro + Key Shell 3 Buttons (without Logo)
