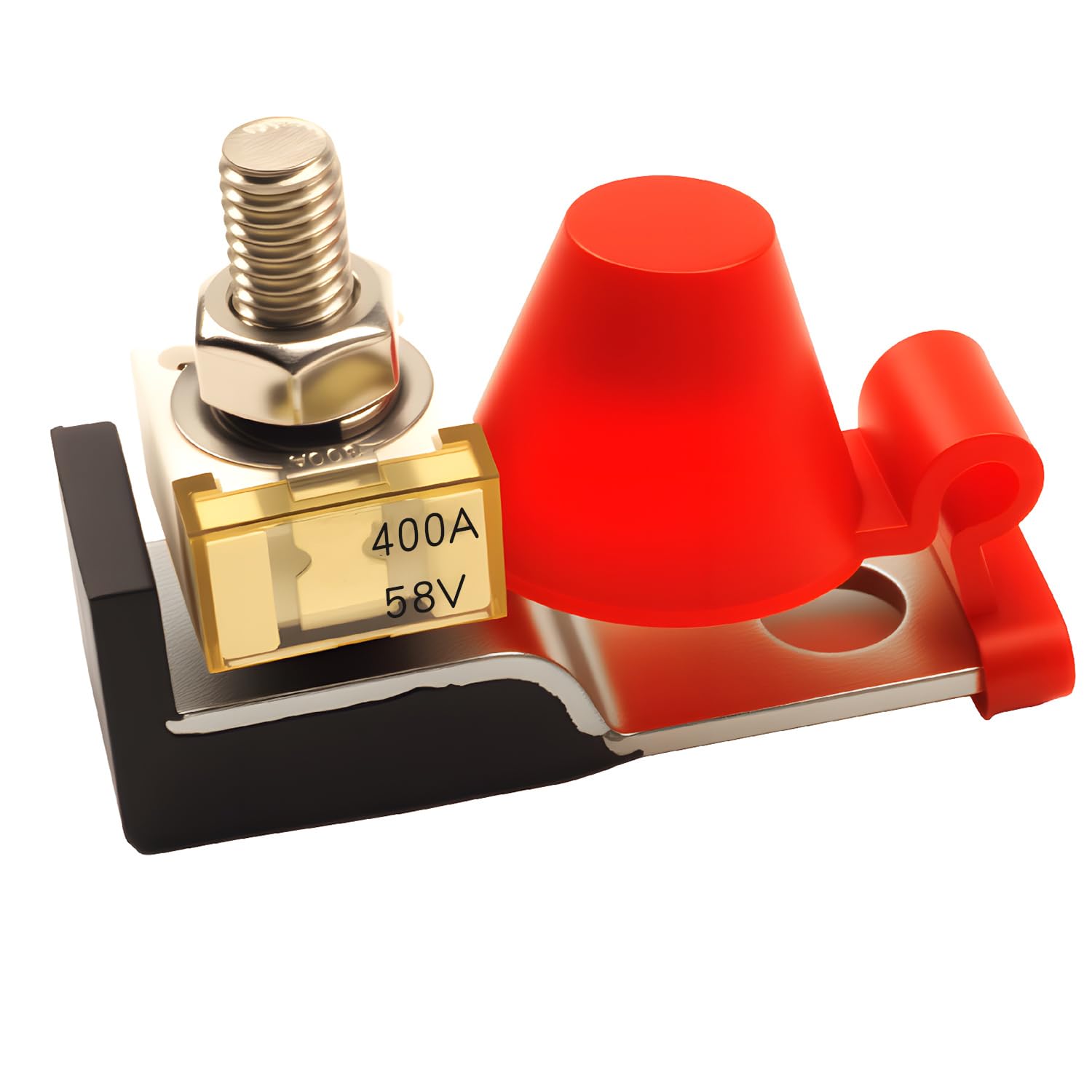

400A Marine Rated Battery Fuse Block Kit 58V for Boat RV Car Truck
Features
- Fuse Specifications: Rated current of fuse: 400A, maximum rated voltage: 58V, terminal mounting hole: 3/8 "(M10), stud size: 5/16" (M8)
- Durable Material: The stud nut is made of stainless steel, and the terminal mounting fuse box is mainly made of thermoplastic PPS, which is resistant to high temperature and good conductivity, and is durable
- Perfect Performance: Provide high current protection in small spaces, and the attached insulating cap can prevent short circuits, providing waterproof and dustproof effects
- Easy to Install: The fuse holder is installed on the M8 terminal post. During installation, it is necessary to tighten the fixing screws to avoid loosening and falling, which may cause abnormal use status
- Wide Application: This Terminal Mount Fuse Block Kit can be widely used in new energy vehicles, RVs, cruise ships, cranes, batteries, charging piles and other DC main power.
Item Description
Specifications:
Body Material: PPS UL.94-V0, Thermoplastic, Black
Fuse rated current: 400A
Maximum rated voltage: 58V
Stud Size: 5/16"(M8)
Terminal mounting hole: 3/8"(M10)
Protection class: IP66
Maximum Torque: 75 In-lb
Temperature Control Range: - 20-220 ℃
Stud Material: Stainless Steel
Insulation Material: Ceramic Fuse Material: Copper Alloy (Nickel Plated)
Ignition Protection:Safe to install on gasoline powered boats
IP66 : Protected against powerful water jets
10,000 AIC at 14V DC satisfies ABYC requirements for DC Main circuit protection on large battery banks
Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection
Warning:
1. Do not install fuses directly on battery terminals.Must be used with terminal fuse box
2. The normal working current of Terminal Fuse Block is 100A.It is normal for metal to heat up and cause discoloration
Products Include:
1 x fuse holder
1 x matching 400A ceramic square fuse
