1. Long service life
Excellent aluminum material enhances the performance of the product
2. Refueling is simple and clear
Transparent oil level display, open the oil filler plug, add enough lubricating oil to the specified specifications of the machine, and the oil level to 1/2-2/3 of the oil mark
Specifications:
1.Model: 2055
Pressure:8kg
Cylinder diameter:55mm(2.17")*2
Speed:1100r/min
Air displacement:170L/min
Air outlet:18.5mm(0.73")
Matching power:1.5kw(2HP)
Installation hole spacing:12*12.8cm(4.7"*5")
External dimensions:29*26.5*32.5cm(11.4*10.4*12.8in)
2.Model: 2065
Pressure:8kg
Cylinder diameter:65mm(2.6")*2
Speed:1100r/min
Air displacement:250L/min
Air outlet:18.5mm(0.73")
Matching power:2.2kw(2.95HP)
Installation hole spacing:13.6*14.2cm(5.4"*5.6")
External dimensions:31*26.5*34cm(12.2*10.4*13.4in)
3.Model:2070
Pressure:8kg
Cylinder diameter:70mm(2.8")*2
Speed:1100r/min
Air displacement:250L/min
Air outlet:18.5mm(0.73")
Matching power:2.2kw(2.95HP)
Installation hole spacing:13.6*14.2cm(5.4"*5.6")
External dimensions:31*26.5*34cm(12.2*10.4*13.4in)

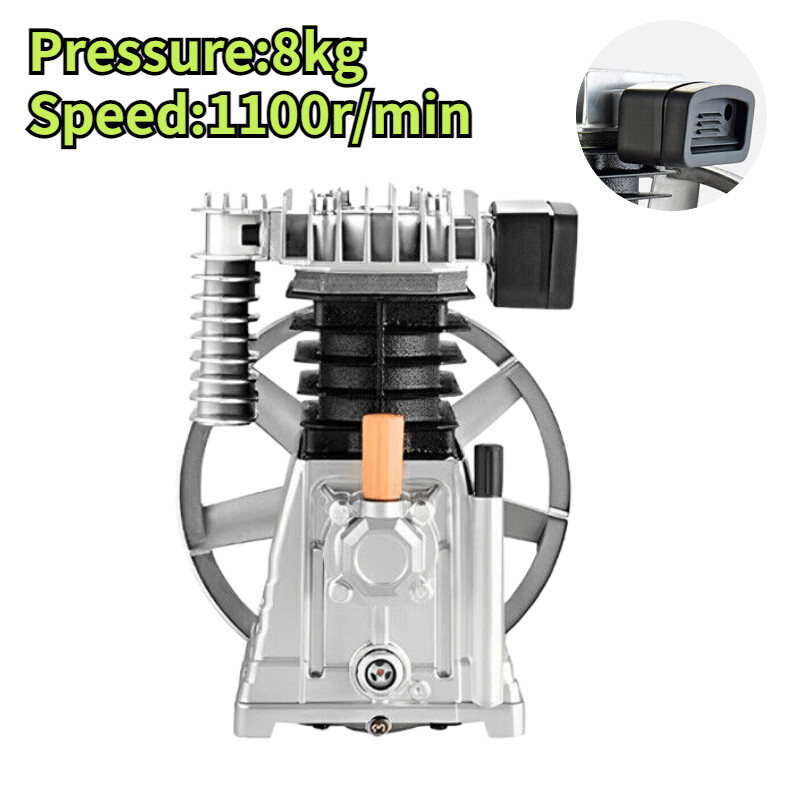

1* Air compressor head
Note:
1. The air filter should be cleaned once a month and replaced after working for 500 hours
2. The oil in the crankcase should be stopped and replaced. The oil should be replaced once in the first week of the new machine, and every 500 hours (after shutdown) thereafter.
3. Regularly inspect all components to prevent oil and gas leakage.
4. Conduct comprehensive maintenance on the machine once a year, clean the air valve, remove oil and carbon deposits, and inspect the valve plate.
5. If the machine has been shut down for more than a year, it should be cleaned and the oil level checked before use for rust prevention and blowing.
