Details
Feature:
1. The product adopts silicone buttons, which have a comfortable feel, and each button is equipped with a cool indicator light
2. Through rigorous performance testing and aging testing, ensure the reliability and stability of the product
3. Supports a maximum output power of 180W to meet the power supply needs of high-power devices
4. The product is equipped with a built-in buzzer, button prompts, and alarm prompts, making it safer and more reassuring to use

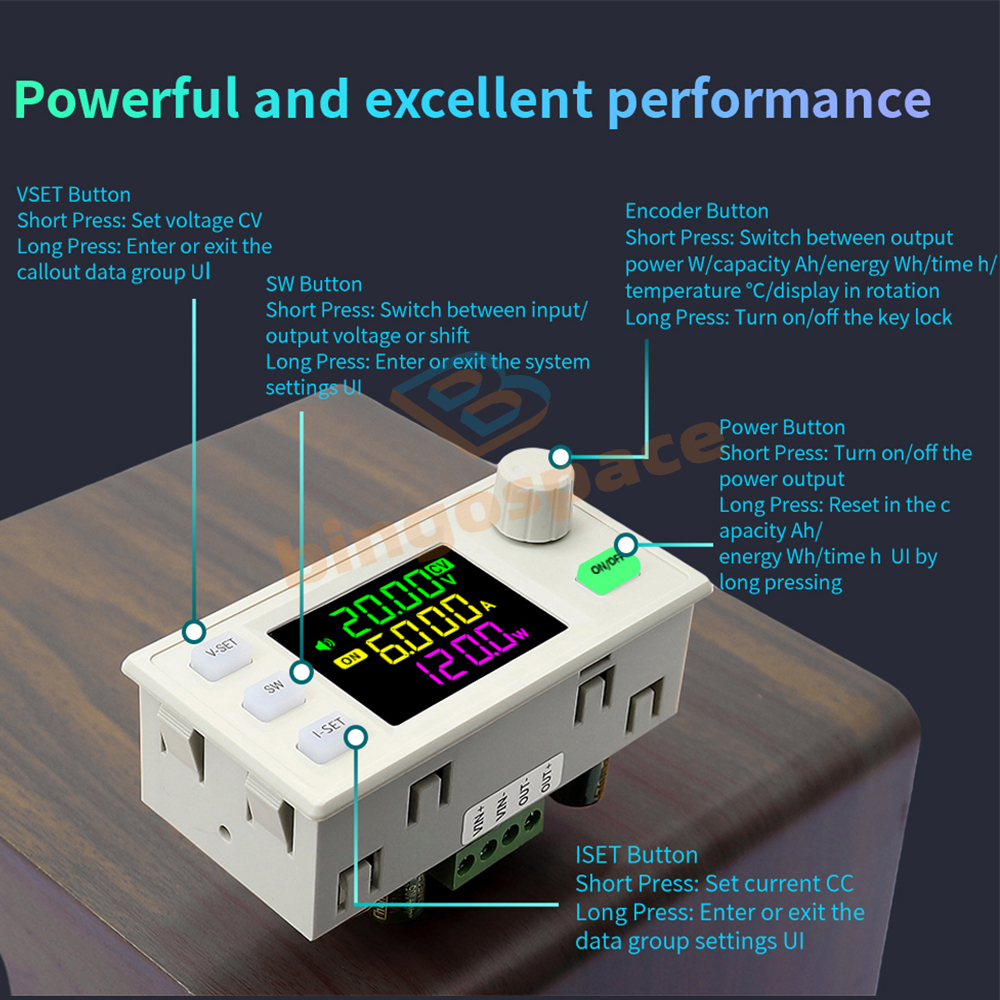

5. Accurate voltage and current regulation can be achieved through button control, with an adjustment accuracy of up to 0.01V/0.001A
6. The product has a wide range of applications, supports MPPT solar charging, can be connected to external temperature probes, and supports over temperature protection

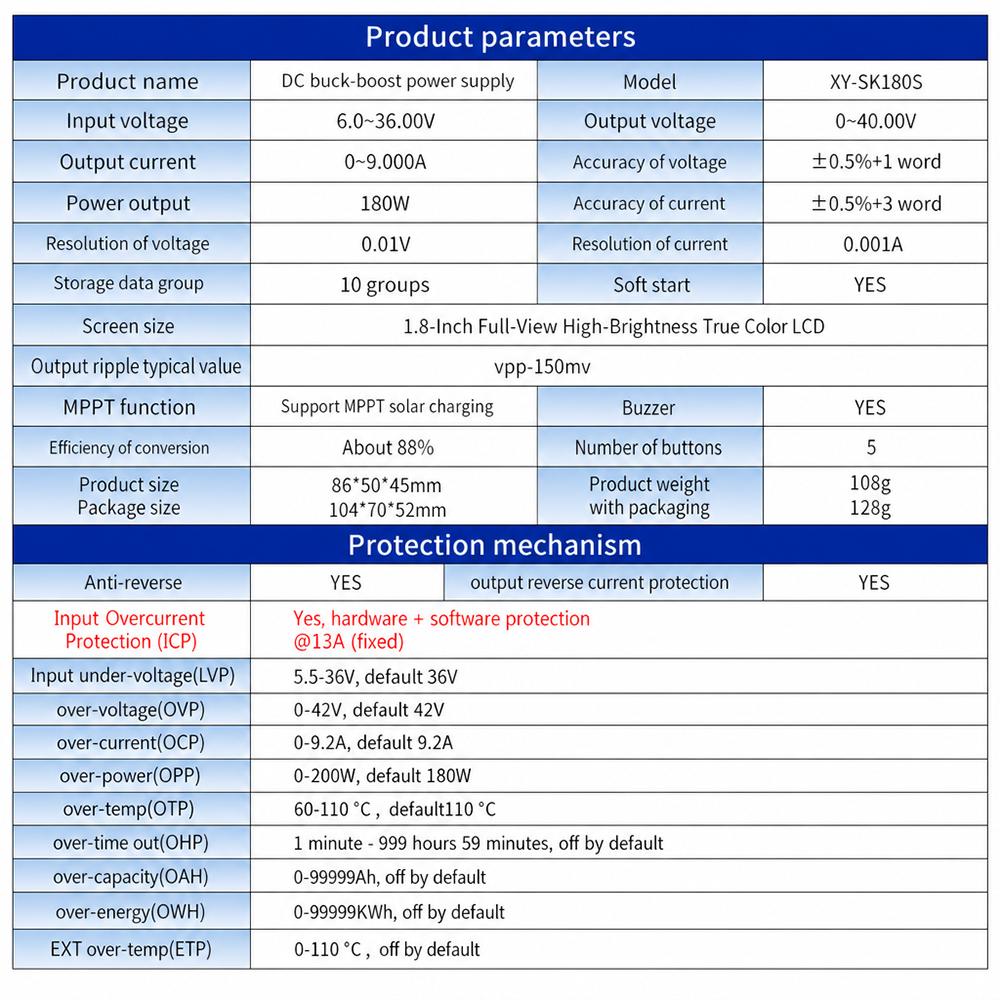

Parameters:
Input voltage: 6.0~36V
Output current: 0~9.000A
Output power: 180W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0~40V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes
Protection mechanism:
Input anti reverse connection: Yes
Output anti backflow: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V output
Overvoltage protection: 0-42V adjustable, default 42V output
Overcurrent protection: adjustable from 0 to 9.2A, default output of 9.2A
Overpower protection: adjustable from 0 to 200W, default 180W
Over temperature protection: adjustable from 60-110 ℃, default to 110 ° C
Timeout protection: 1 minute -99 hours and 59 minutes, default turned off
Overcapacity protection: adjustable from 0 to 9999AH, default off
Super energy protection: adjustable from 0 to 4500KWH, default off
Probe high temperature protection: adjustable from 0-110 ℃, default off
Package Included
Adjustable voltage Boost-Buck module * 1

Copyright©2018 datacaciques

 Top & Fast Shipping！

Get The Right At The Right Price！

SK180S SK180X CNC DC Buck-Boost Power Supply MPPT Solar Charging Module 9A180W
DESCRIPTION
Feature:
1. The product adopts silicone buttons, which have a comfortable feel, and each button is equipped with a cool indicator light
2. Through rigorous performance testing and aging testing, ensure the reliability and stability of the product
3. Supports a maximum output power of 180W to meet the power supply needs of high-power devices
4. The product is equipped with a built-in buzzer, button prompts, and alarm prompts, making it safer and more reassuring to use
5. Accurate voltage and current regulation can be achieved through button control, with an adjustment accuracy of up to 0.01V/0.001A
6. The product has a wide range of applications, supports MPPT solar charging, can be connected to external temperature probes, and supports over temperature protection

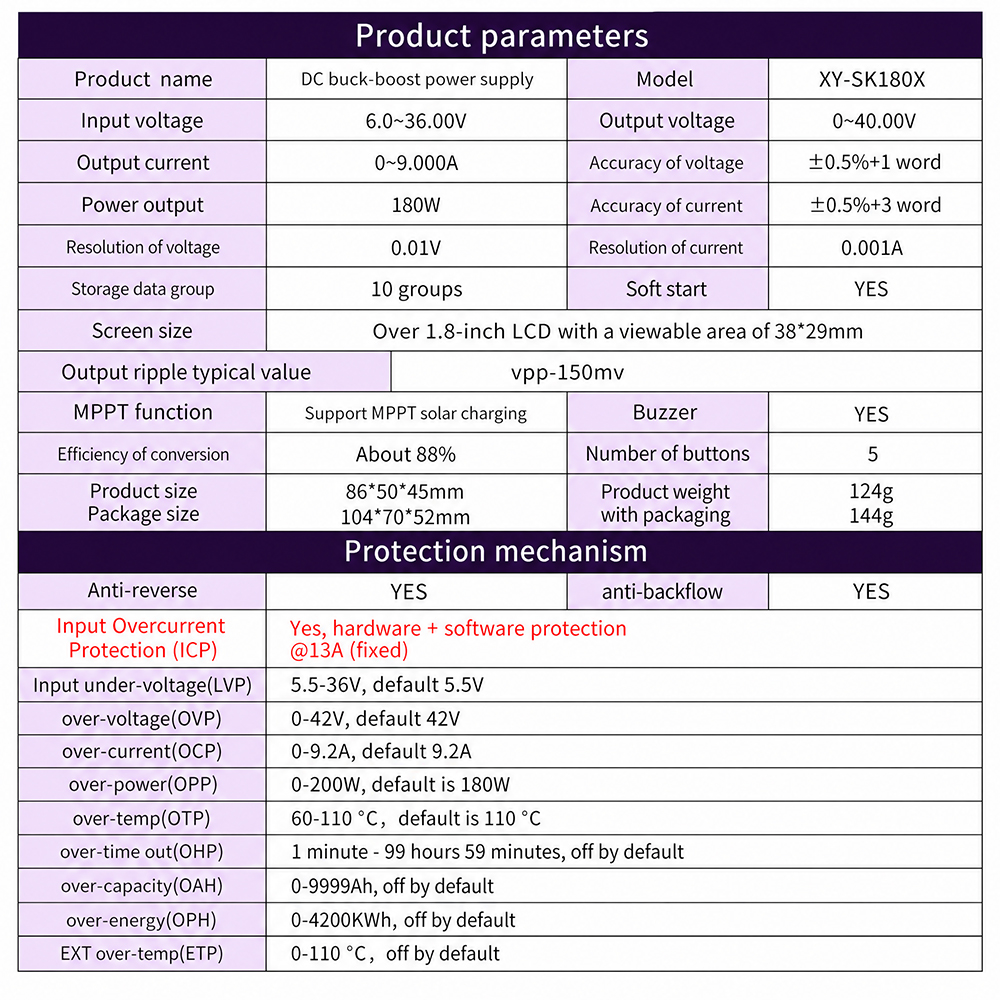

Parameters:
Input voltage: 6.0~36V
Output current: 0~9.000A
Output power: 180W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0~40V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes
Protection mechanism:
Input anti reverse connection: Yes
Output anti backflow: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V output
Overvoltage protection: 0-42V adjustable, default 42V output
Overcurrent protection: adjustable from 0 to 9.2A, default output of 9.2A
Overpower protection: adjustable from 0 to 200W, default 180W
Over temperature protection: adjustable from 60-110 ℃, default to 110 ° C
Timeout protection: 1 minute -99 hours and 59 minutes, default turned off
Overcapacity protection: adjustable from 0 to 9999AH, default off
Super energy protection: adjustable from 0 to 4500KWH, default off
Probe high temperature protection: adjustable from 0-110 ℃, default off
Package Included
Adjustable voltage Boost-Buck module * 1
