Feature:

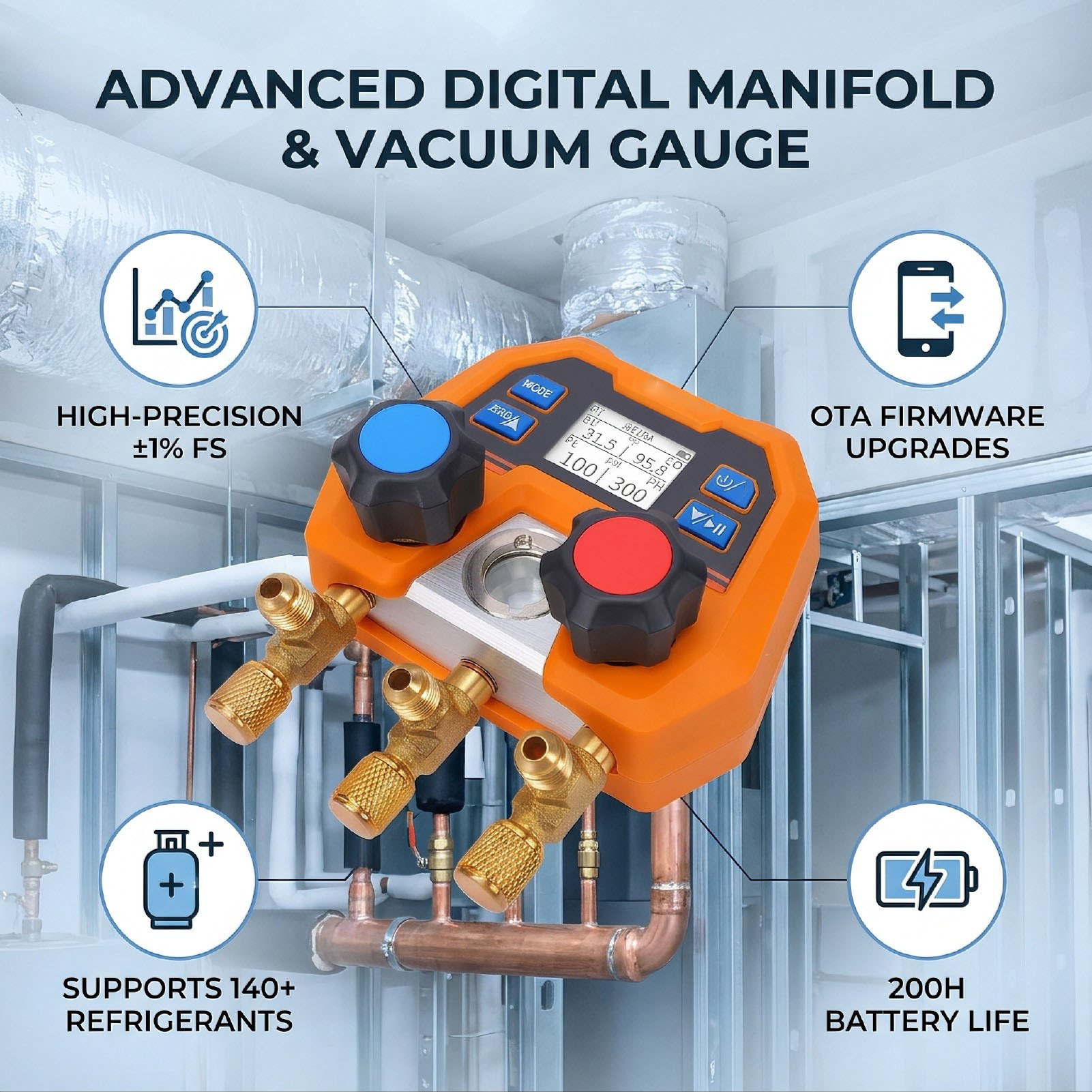

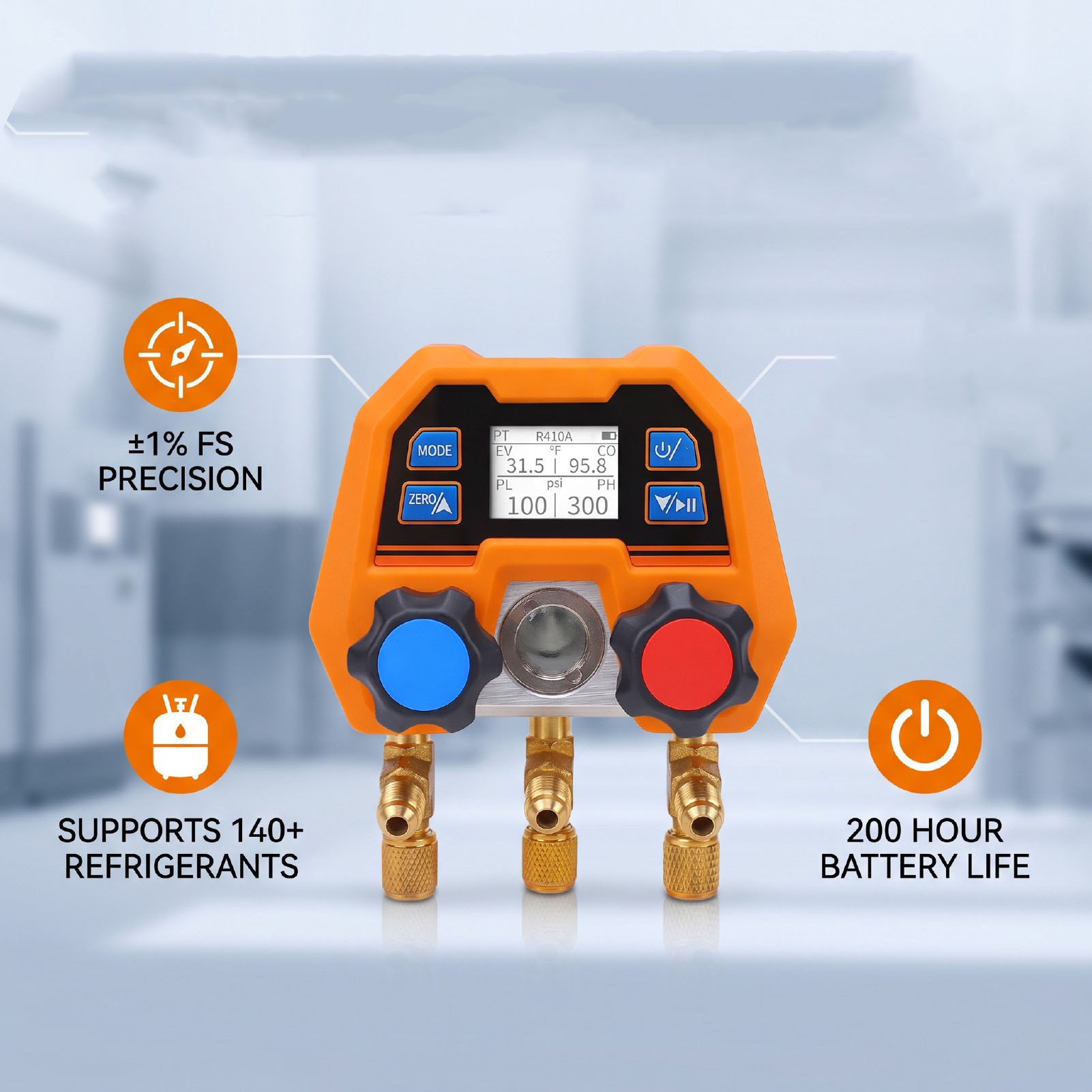

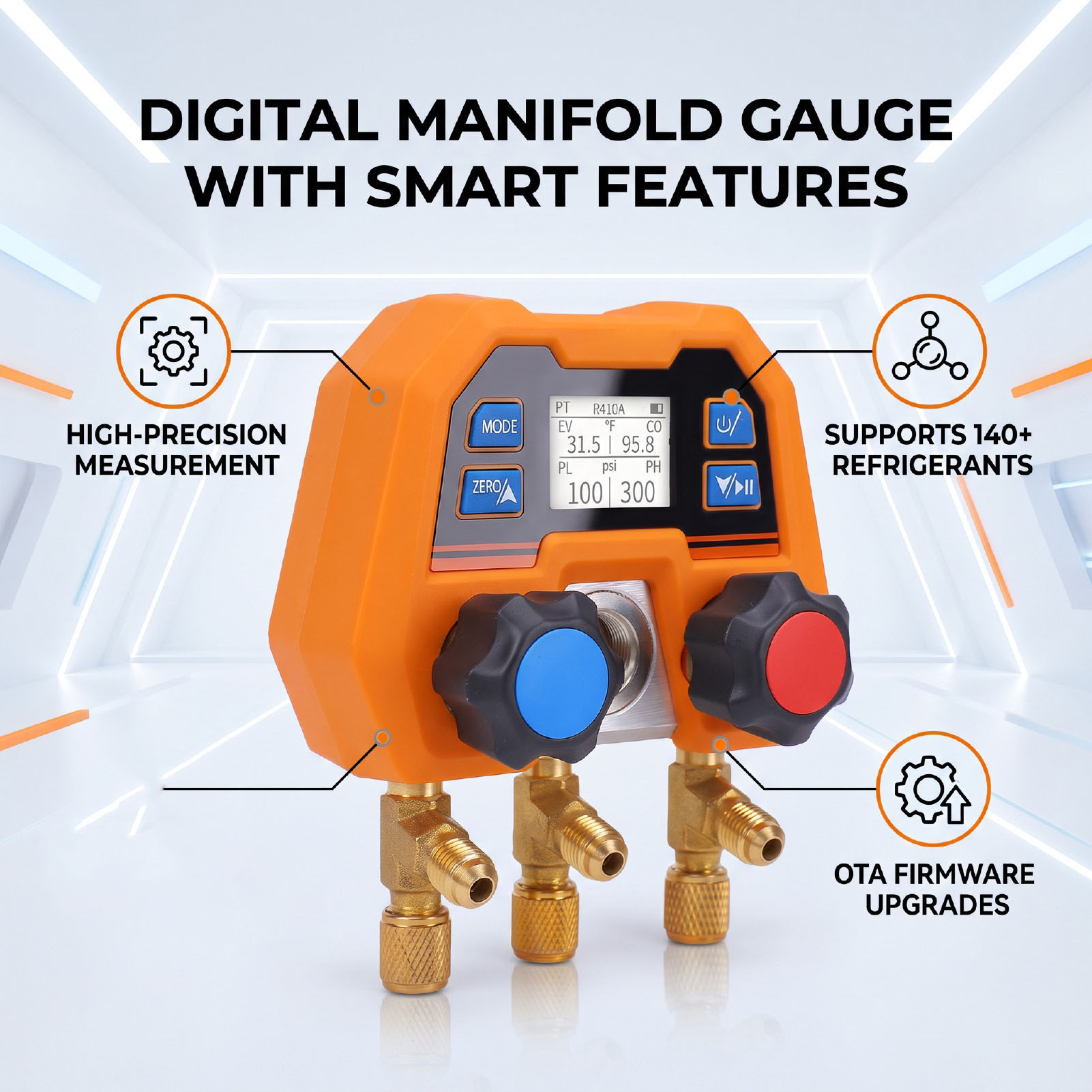

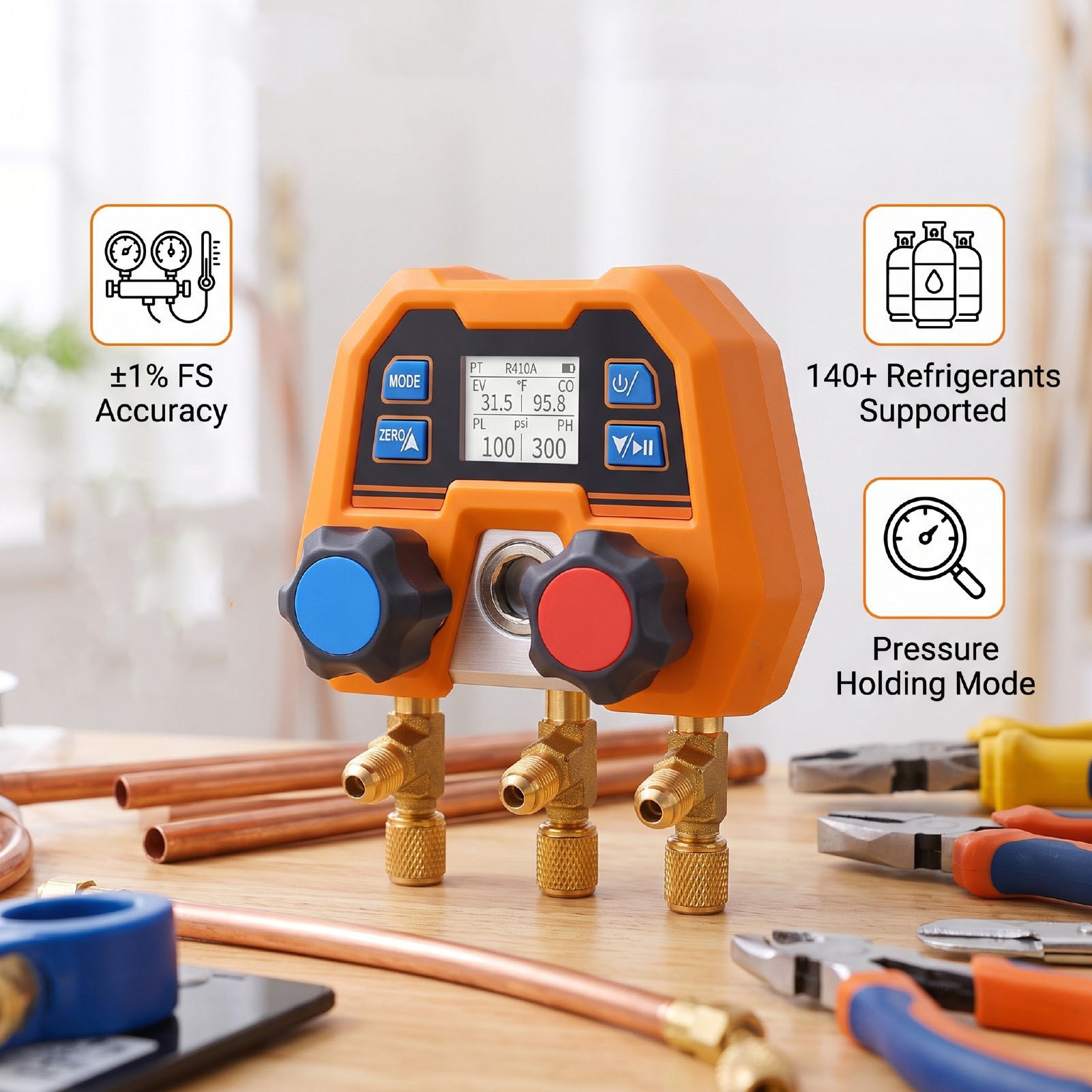

1. High Precise Measurement: Within the range of -14 to 800 psi, the accuracy reaches ±1% FS, providing professional level measurement accuracy. The built in pressure temperature (PT) mode can display evaporation and condensation temperature readings on the high and low pressure sides in real time.
2. 140+ Refrigerants: The gauge has built in 18 refrigerants including R410A, R134a, and R22. It can update and sync over 140 custom refrigerants types to your device using support for Elitech Tools APP for quick, calculation free maintenance services.
3. OTA Remote Firmware Upgrade: With OTA technology, keep your tool at the forefront. By connecting to the APP via Bluetooth, you can remotely upgrade the device firmware, ensuring that you always have the latest features and a better user experience.

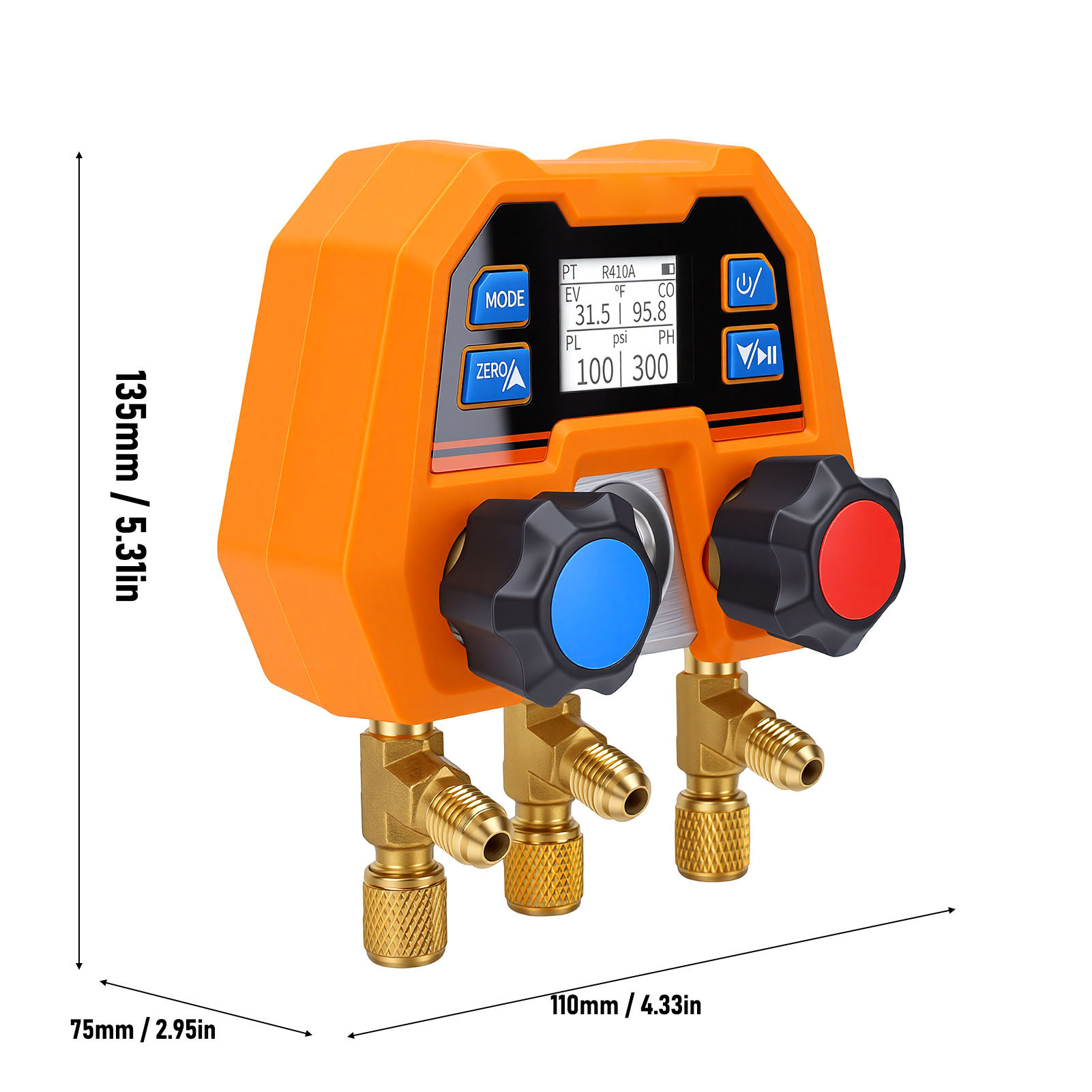

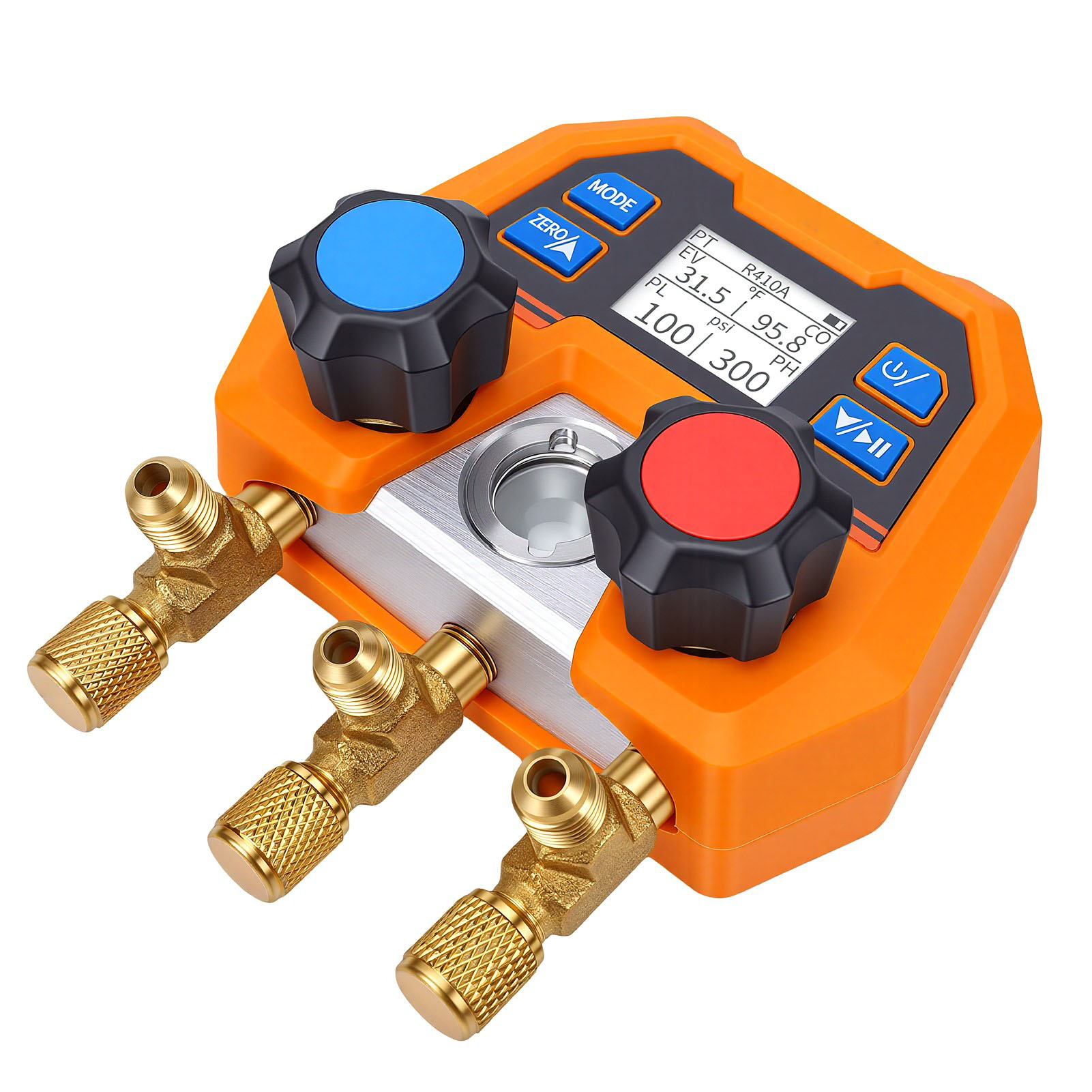

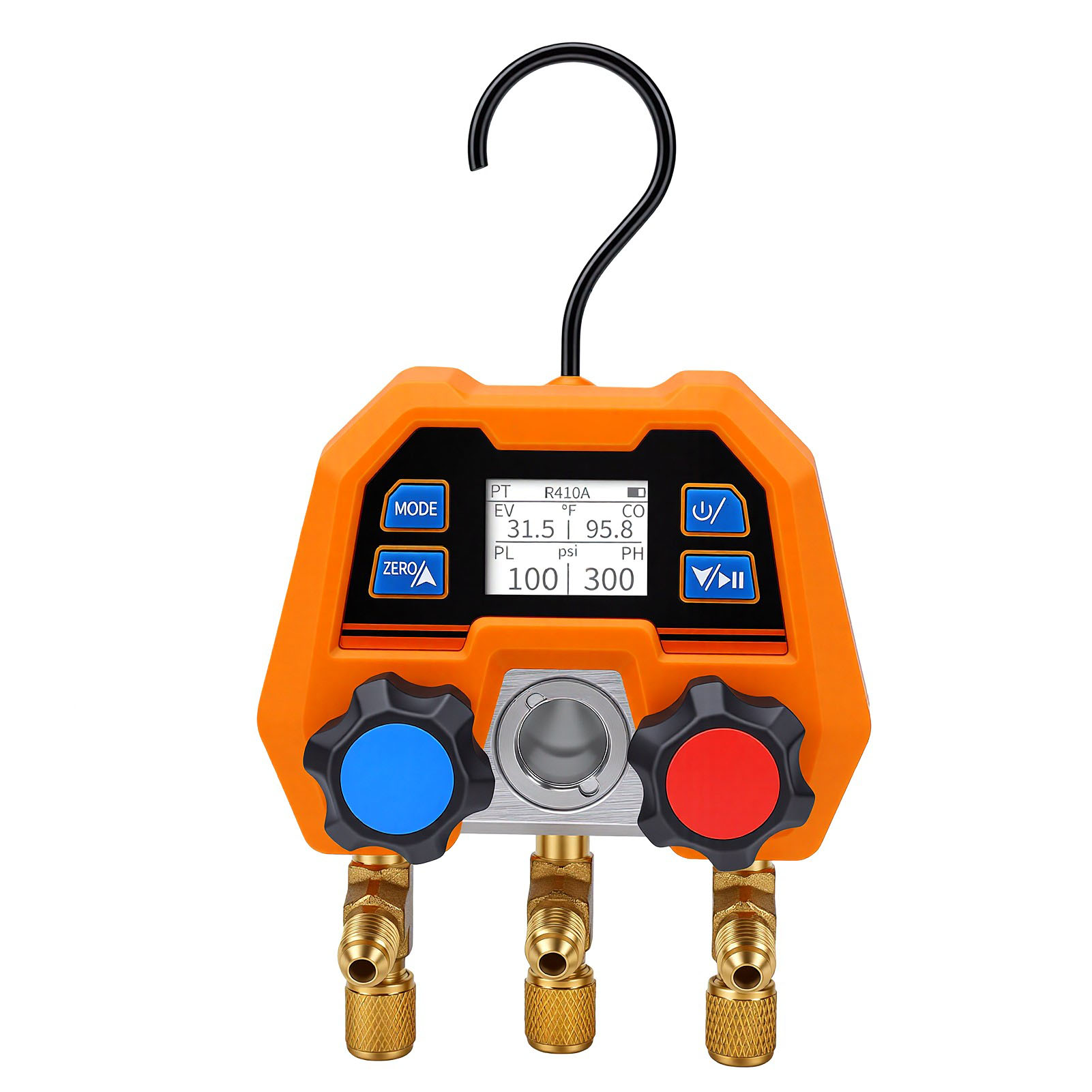

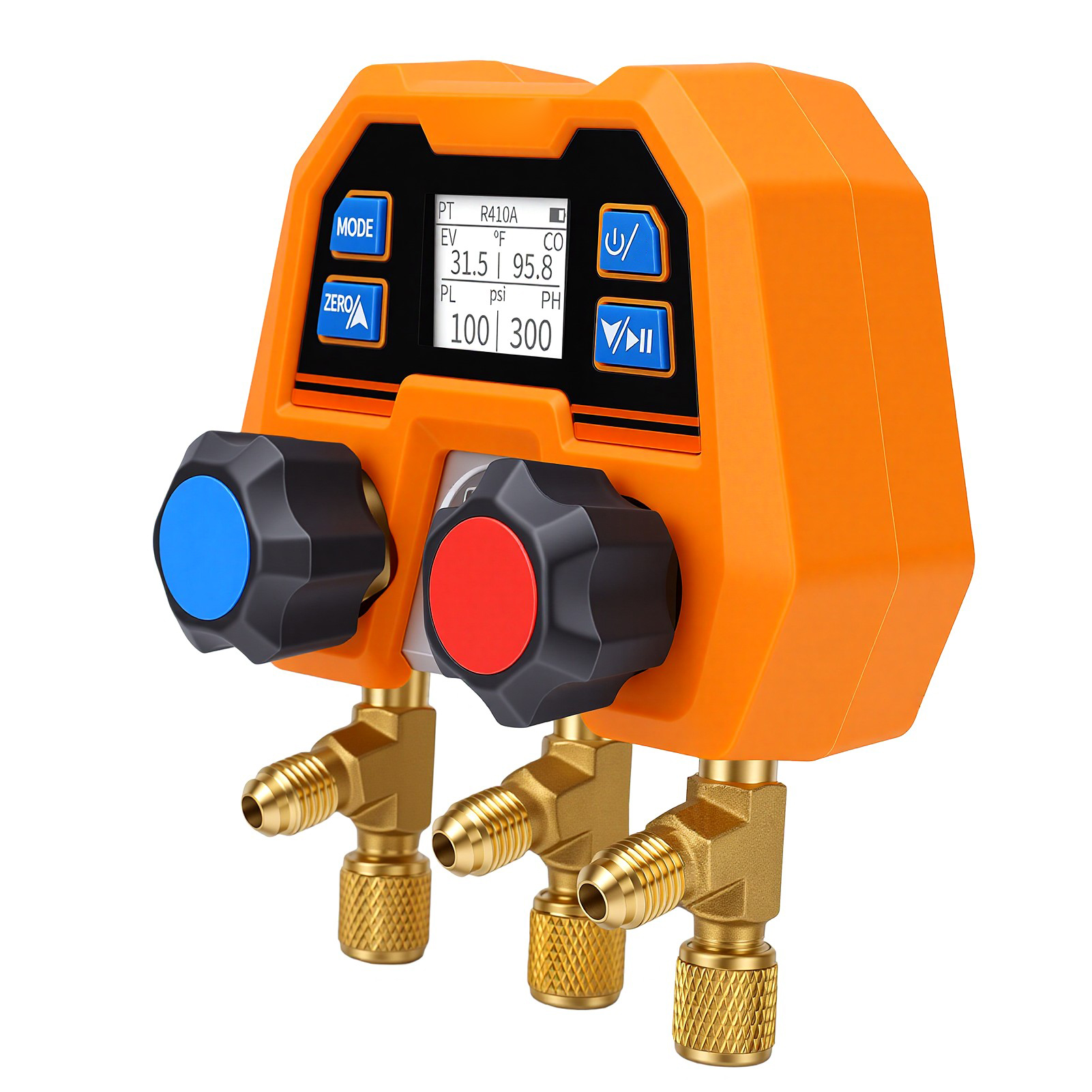

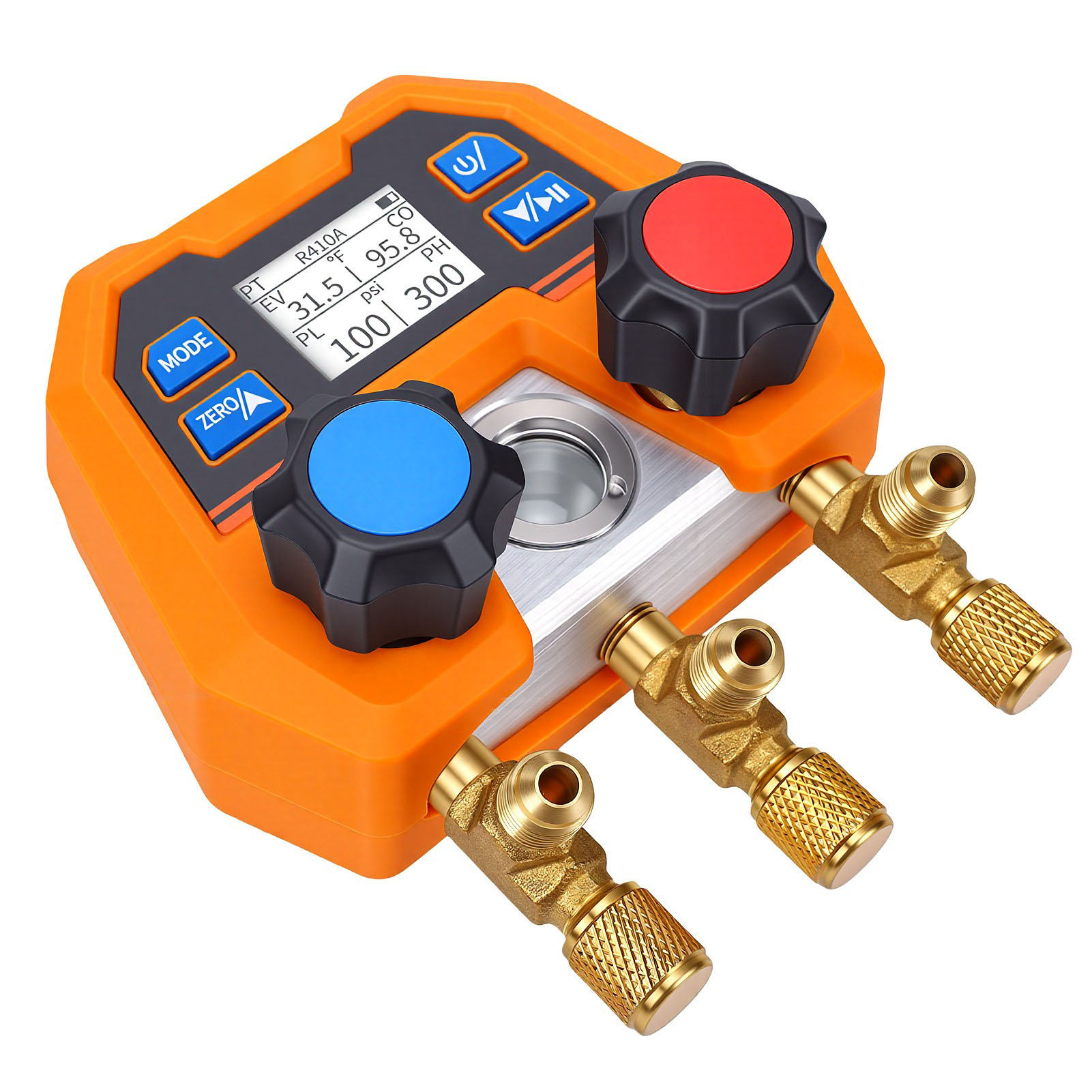

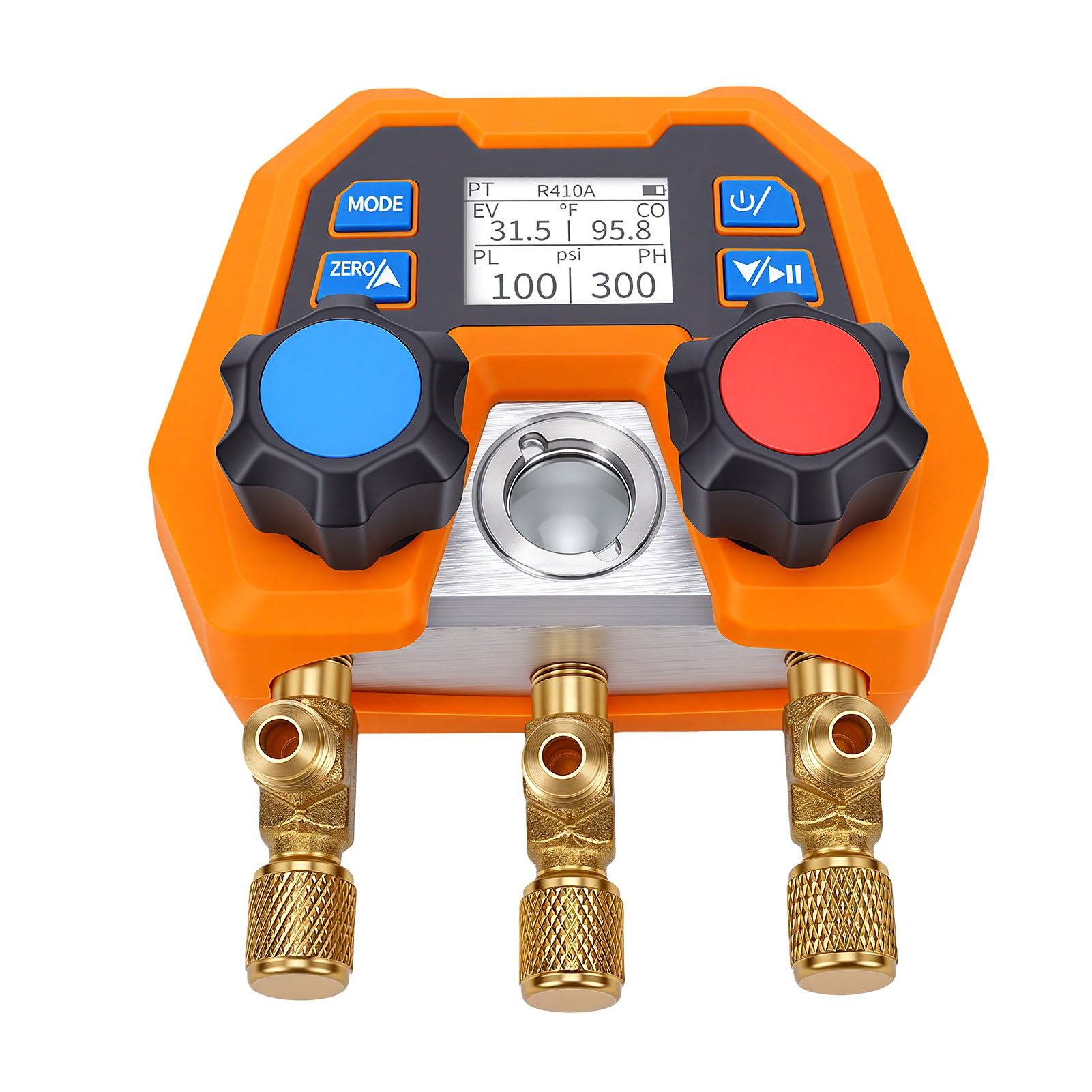

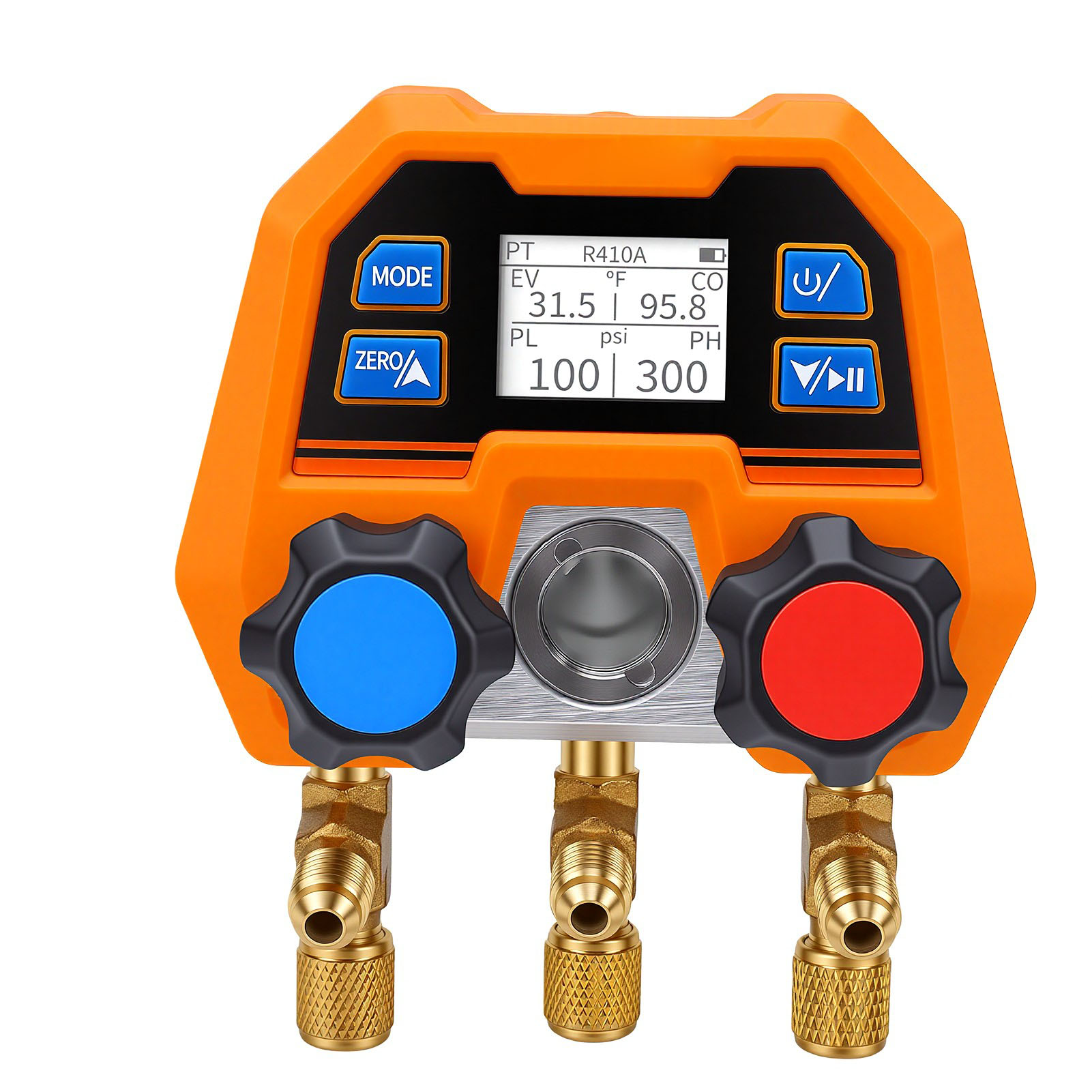

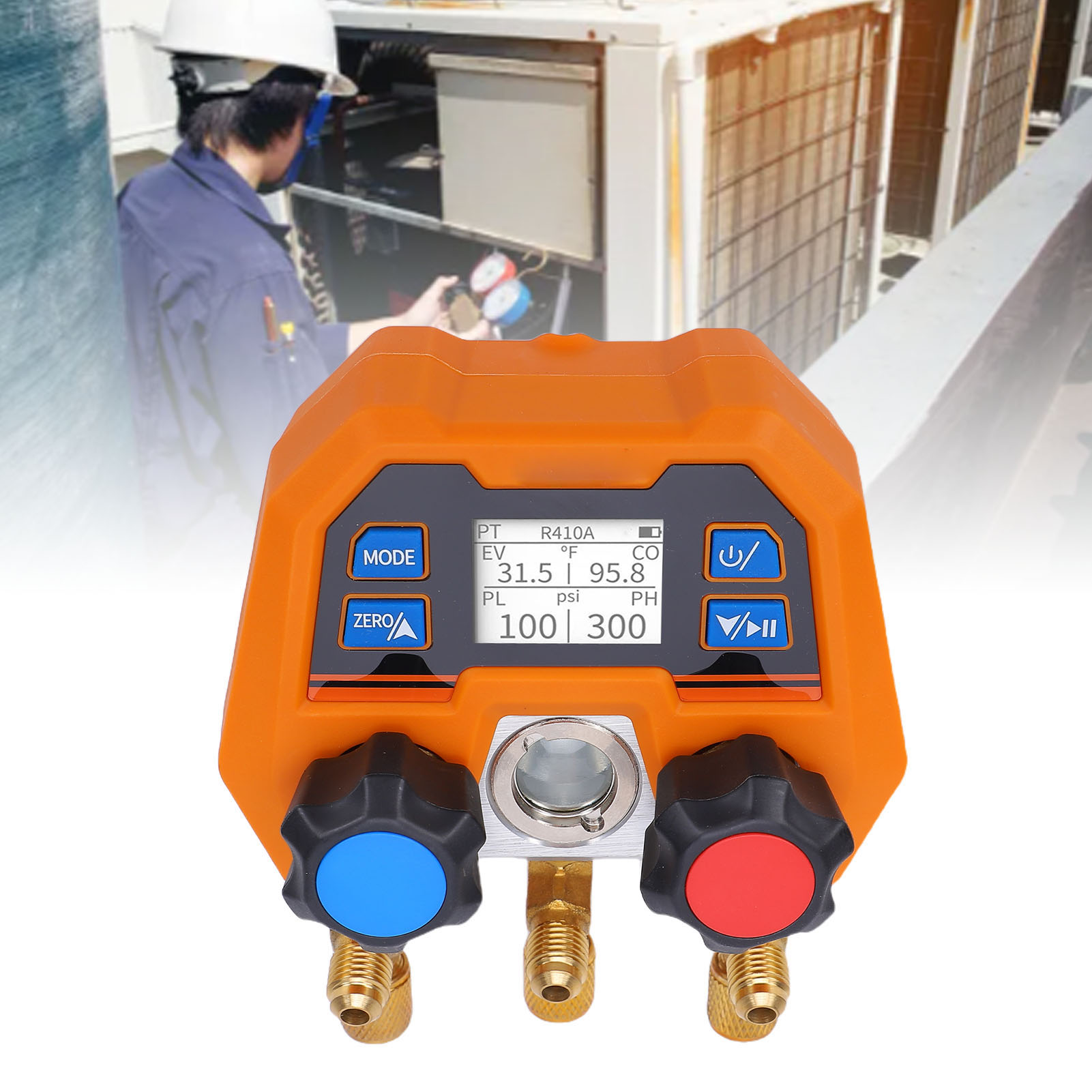

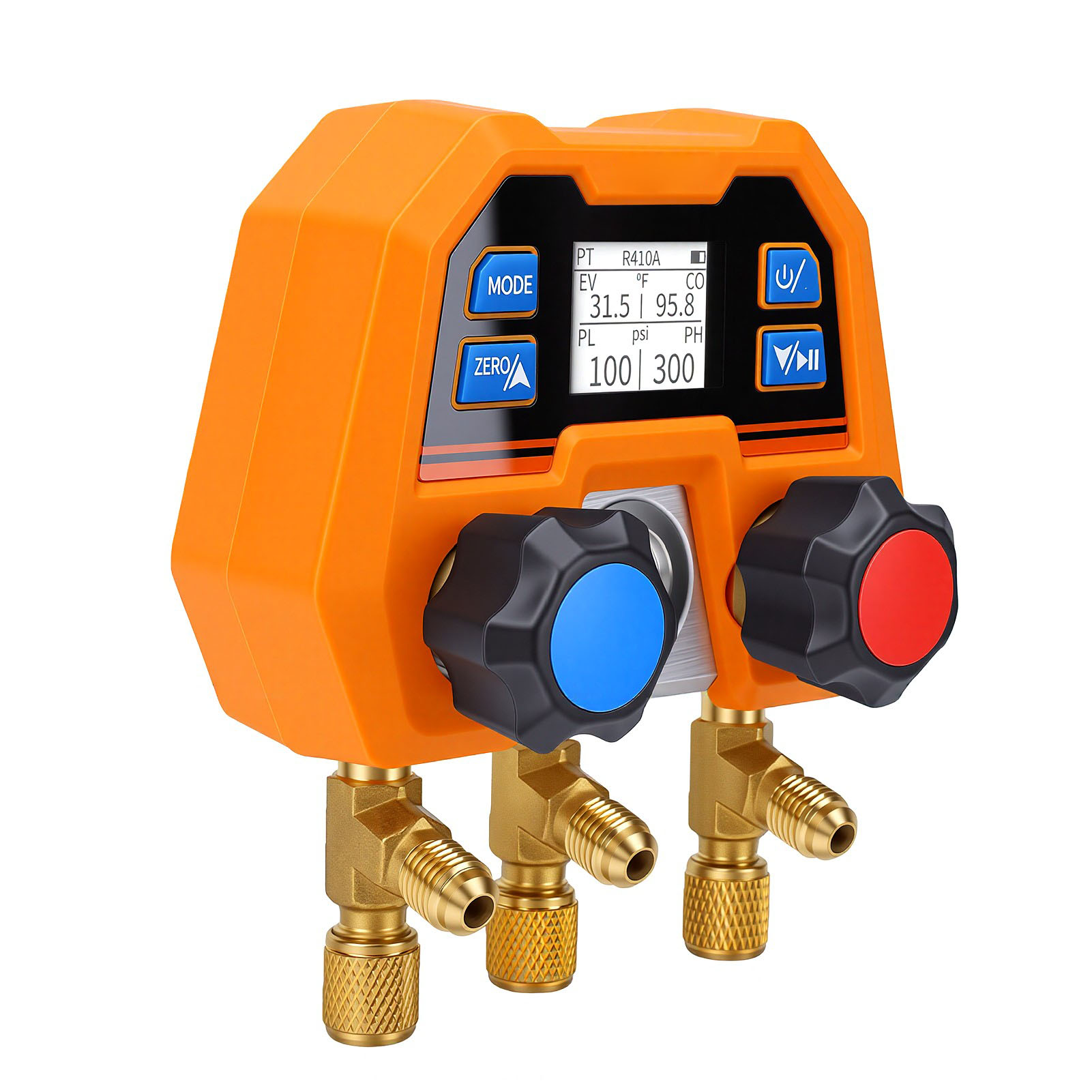

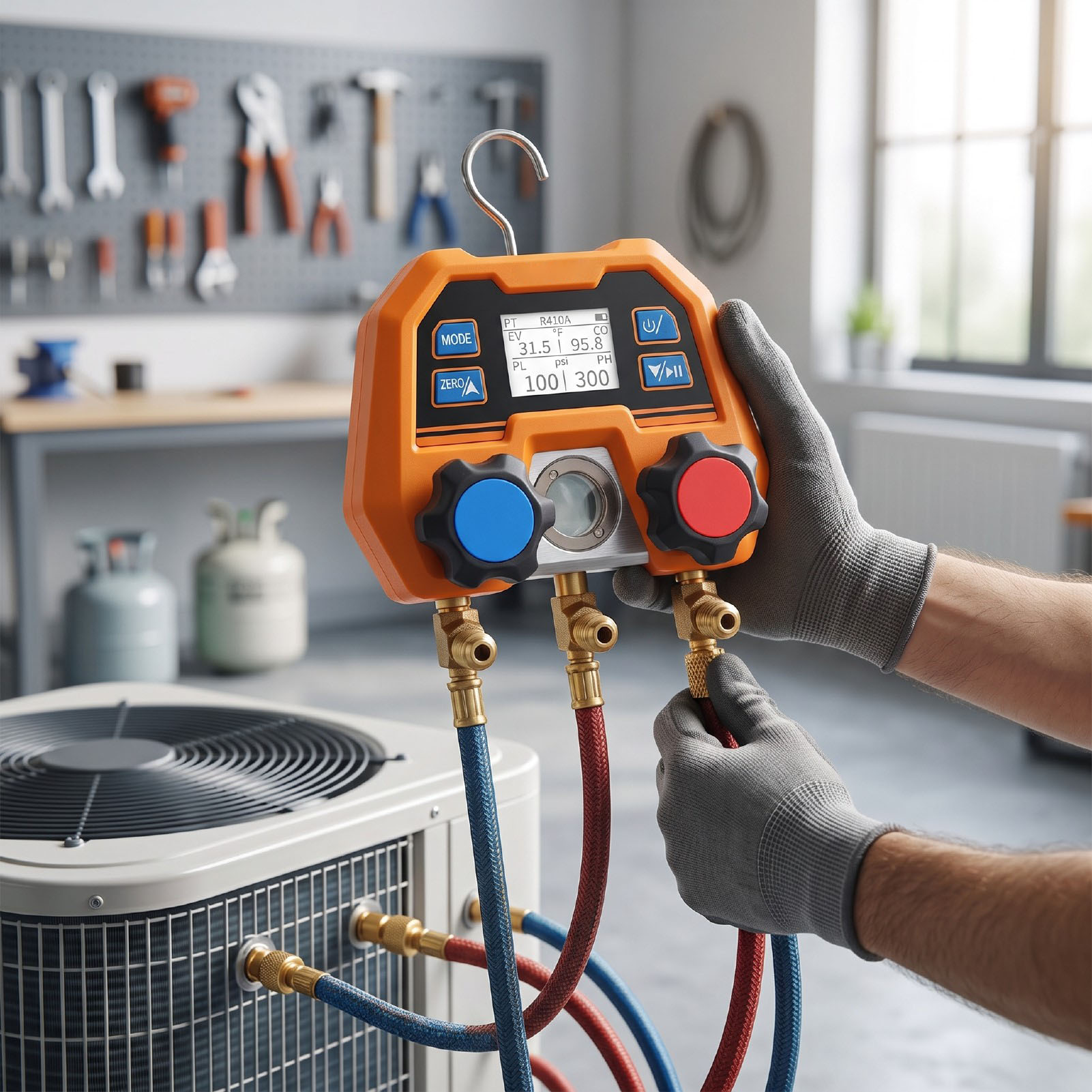

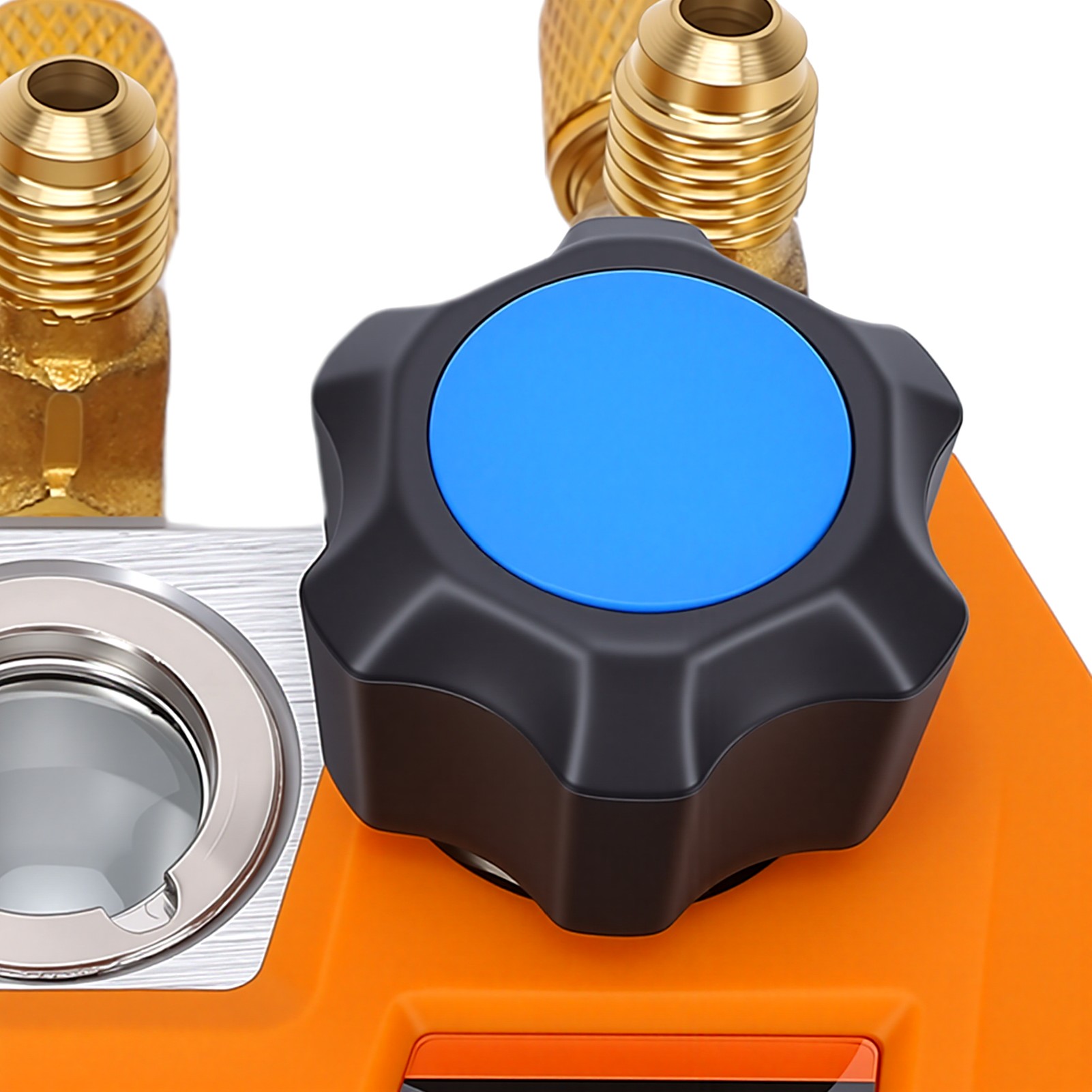

4. Robust Design: The digital manifold gauge is designed for on site operations, with high visibility LCD screen, built in sight glass, and 1/4 SAE interface. Powered by 2 replaceable AAA batteries (not included), providing up to 200 hours of battery life.
5. Multi Function: The manifold gauge is equipped with PT mode, can be used directly. Advanced modes (holding pressure, vacuum, and data recording) require one time purchase unlocking through the APP. Pair with wireless temperature clamp (purchased separately) for real time SH/SC diagnostics.
Specification:
Material: ABS
Measurement Range: -14~800psi
Accuracy: ±1% of full scale
Resolution: 1psi
Units:
Pressure: psi, kg/cm², kPa, MPa, bar, inHg
Temperature: ℃/℉
Interface: 1/4 SAE x 3
Battery: AAA battery x 2 (not included)
Battery Life: 200 hours (screen backlit off)
Display: LCD
Environmental Requirements:
Operating Temperature: -10~50℃/14~122℉
Storage Temperature: -20~60℃/4~140℉
Refrigerants Types: The device defaults to 18 types, optional refrigerants can be updated through the APP
Default Device Type: R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600
APP Supported Types: R113, R114, R115, R116, R12, R123, R1233ZD, R1234ZE, R1234YF, R124, R125, R13, R134A, R14, R141b, R142b, R143A, R152A, R170, R22, R23, R236FA, R245FA, R290, R32, R401A, R401b, R401C, R402A, R402b, R403b, R404A, R406A, R407A, R407b, R407C, R407d, R407F, R408A, R409A, R410A, R410b, R412A, R413A, R414A, R414b, R416A, R417A, R417C, R420A, R421A, R421b, R422A, R422b, R422C, R422d, R424A, R426A, R427A, R428A, R429A, R434A, R437A, R438A, R441A, R443A, R448A, R449A, R450A, R452A, R452b, R453A, R454A, R454b, R455A, R458A, R500, R502, R503, R507A, R508A, R508b, R514A, R500, R600A, R601A, R718, R744
Note: The actual supported refrigerants types are subject to the APP
Package List:

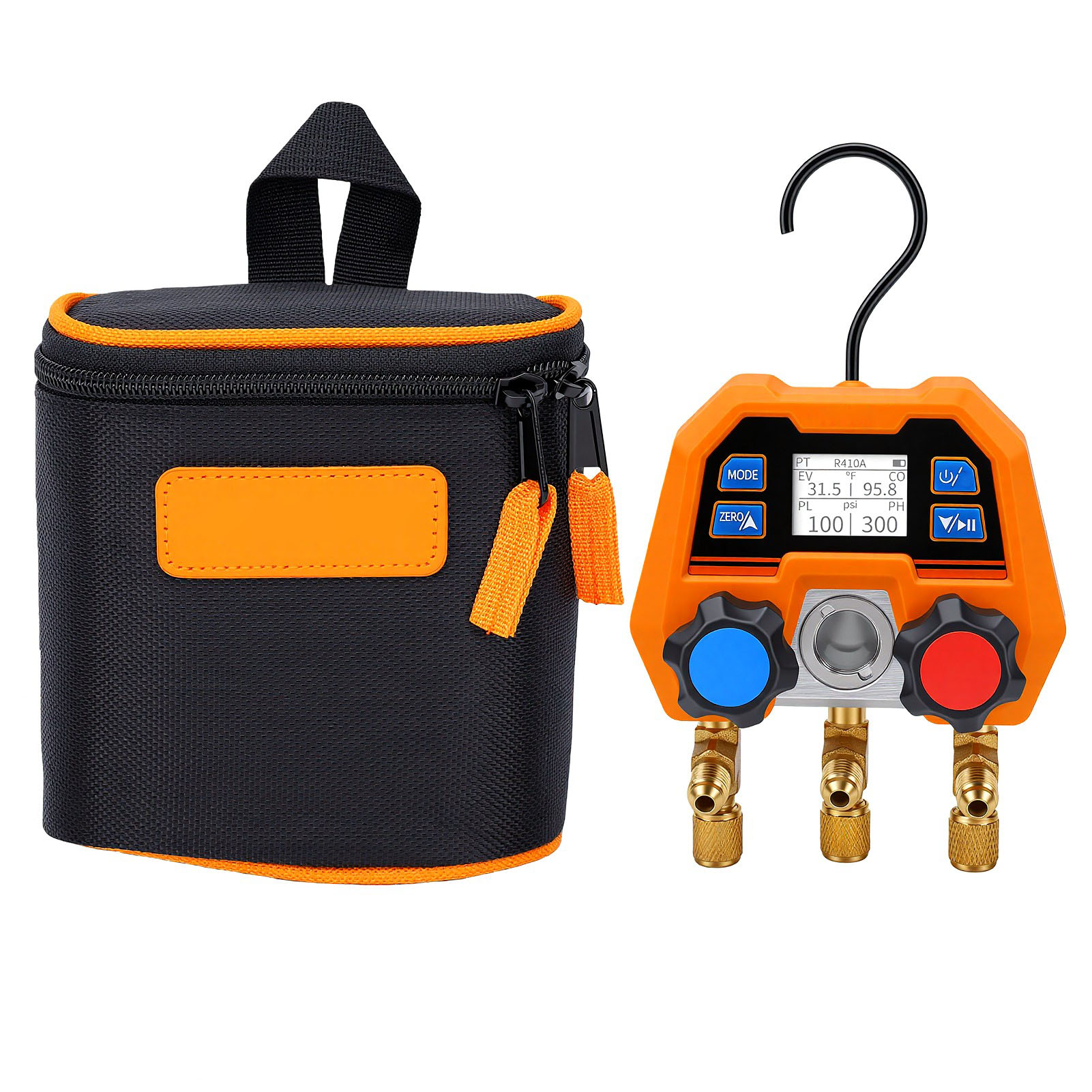

1 x Digital Manifold Gauge

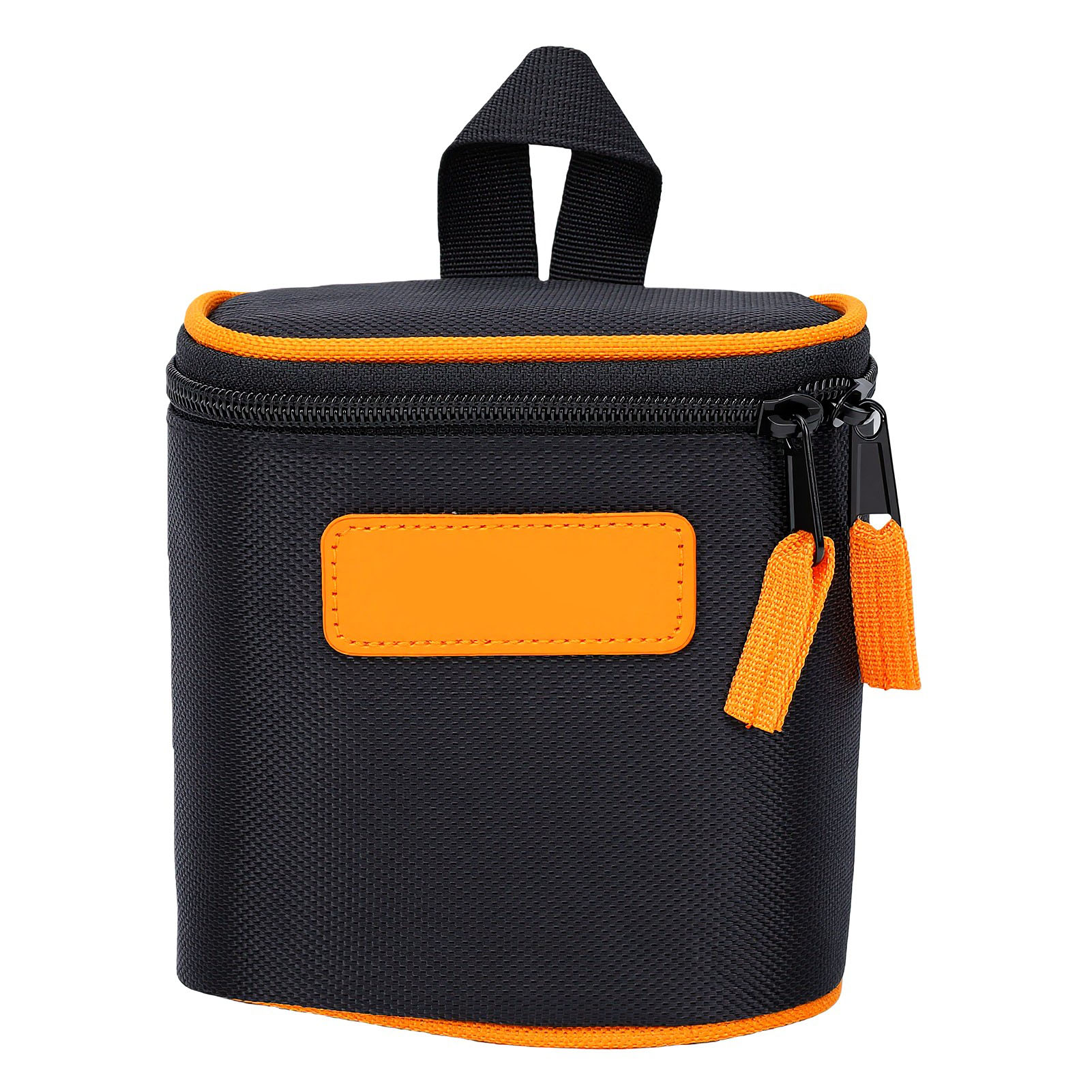

1 x Storage Bag
1 x Instruction Manual
