Features:

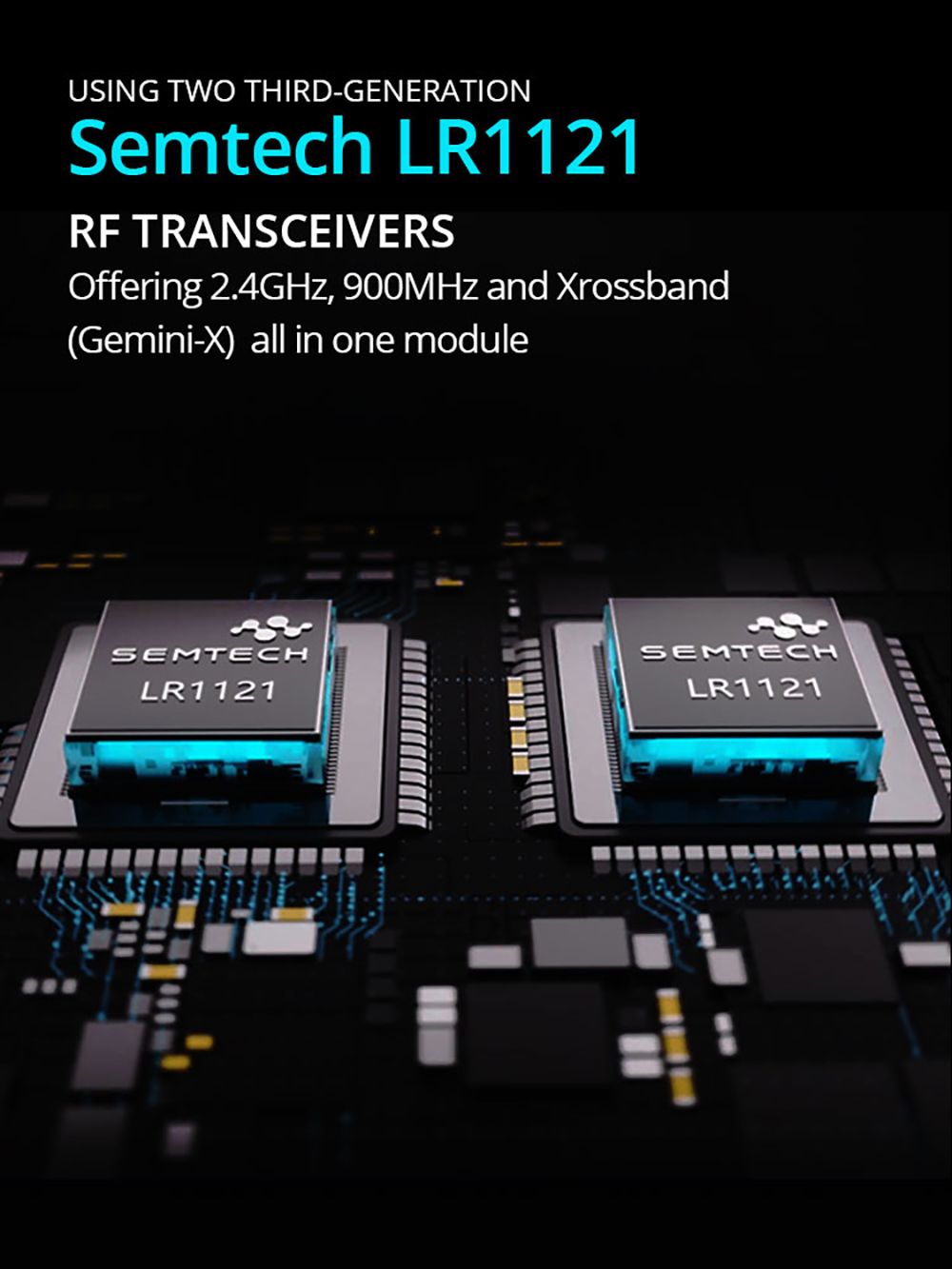

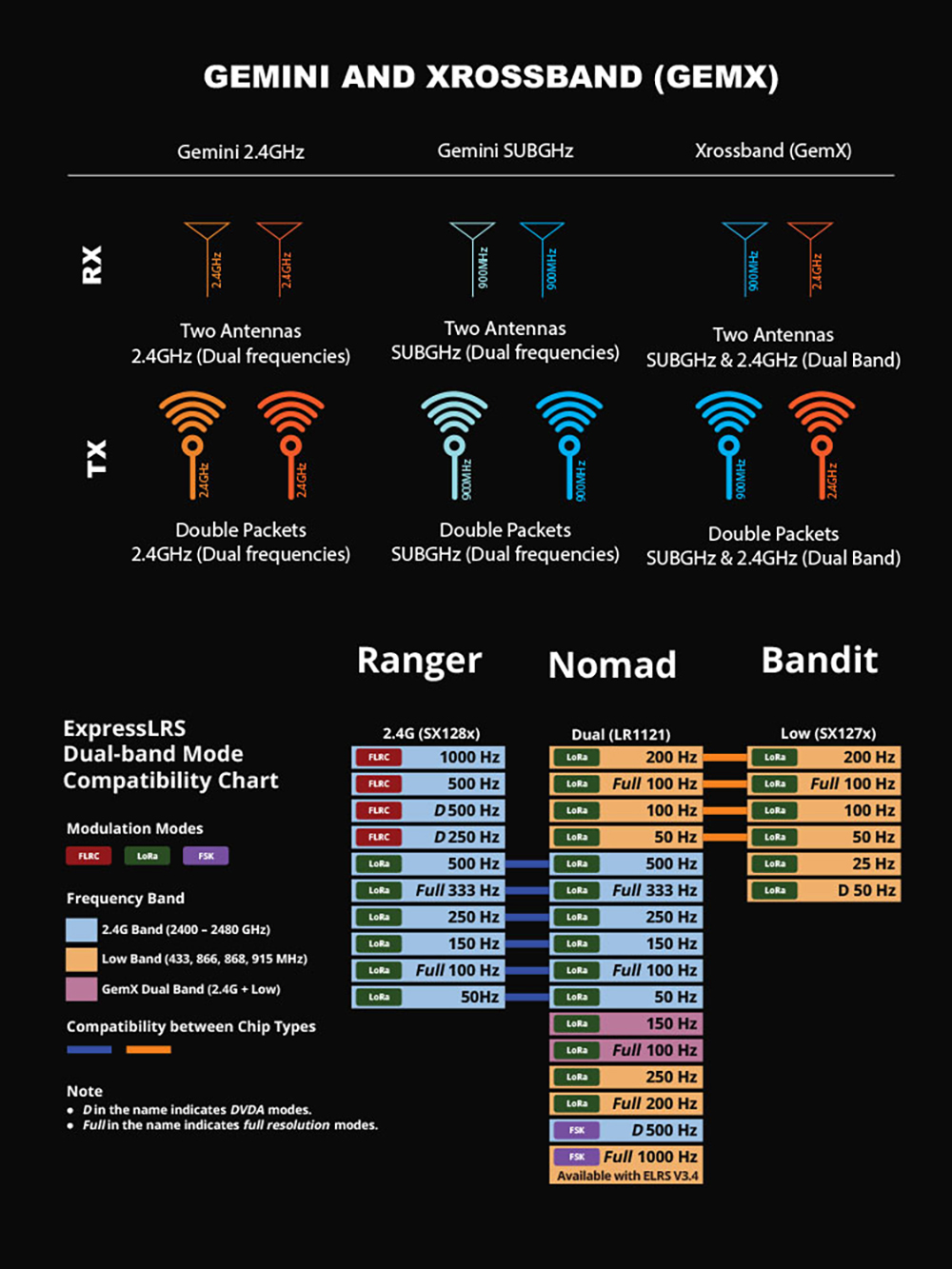

1. Powered by dual Semtech LR1121 RF chips, supports Gemini & Xrossband dual-band mode, receives 2.4GHz and 900MHz signals simultaneously for strong anti-interference performance

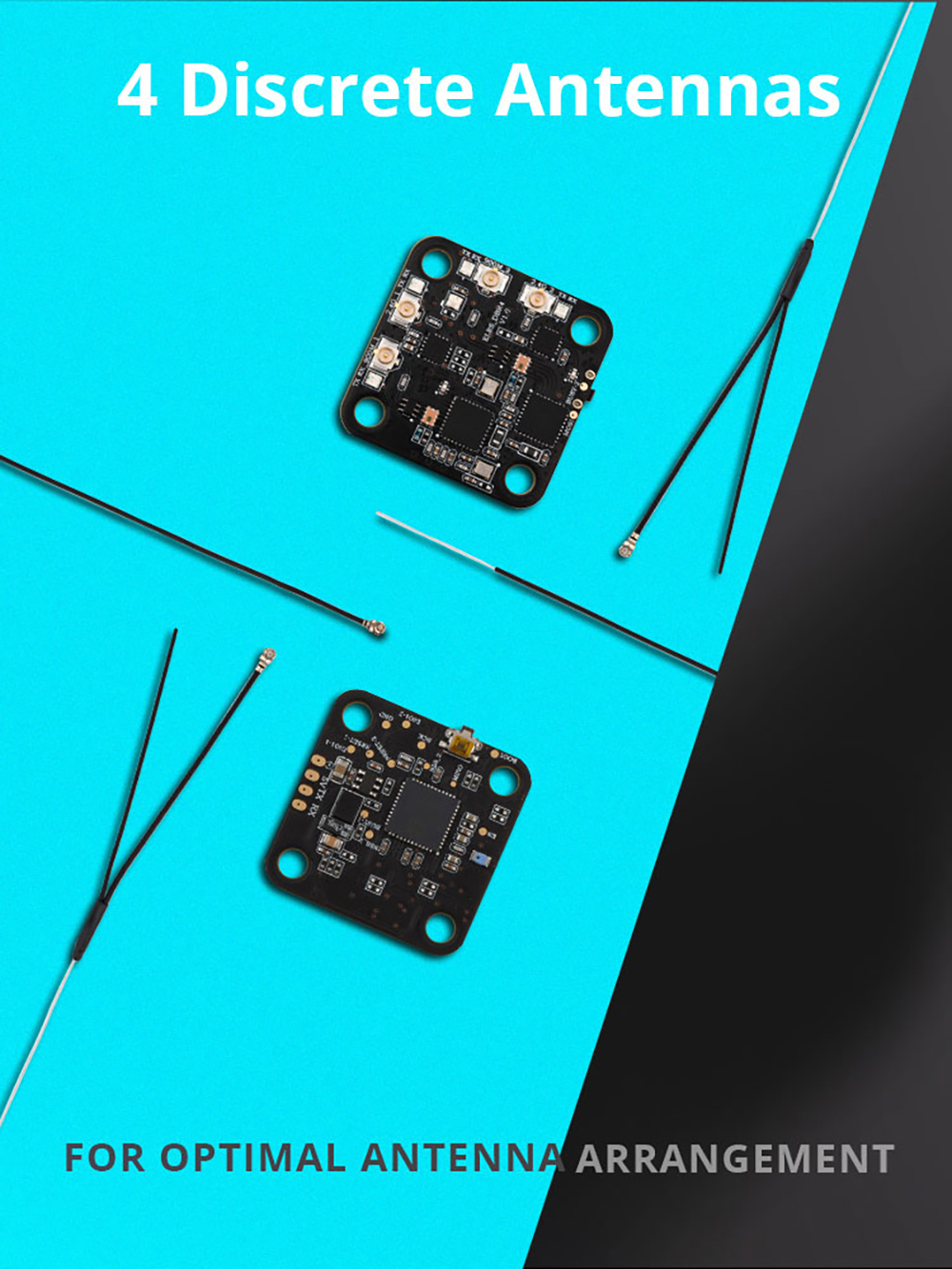

2. 4 discrete antenna ports, quad antenna design optimizes signal arrangement, effectively reduces packet loss for long range FPV flight

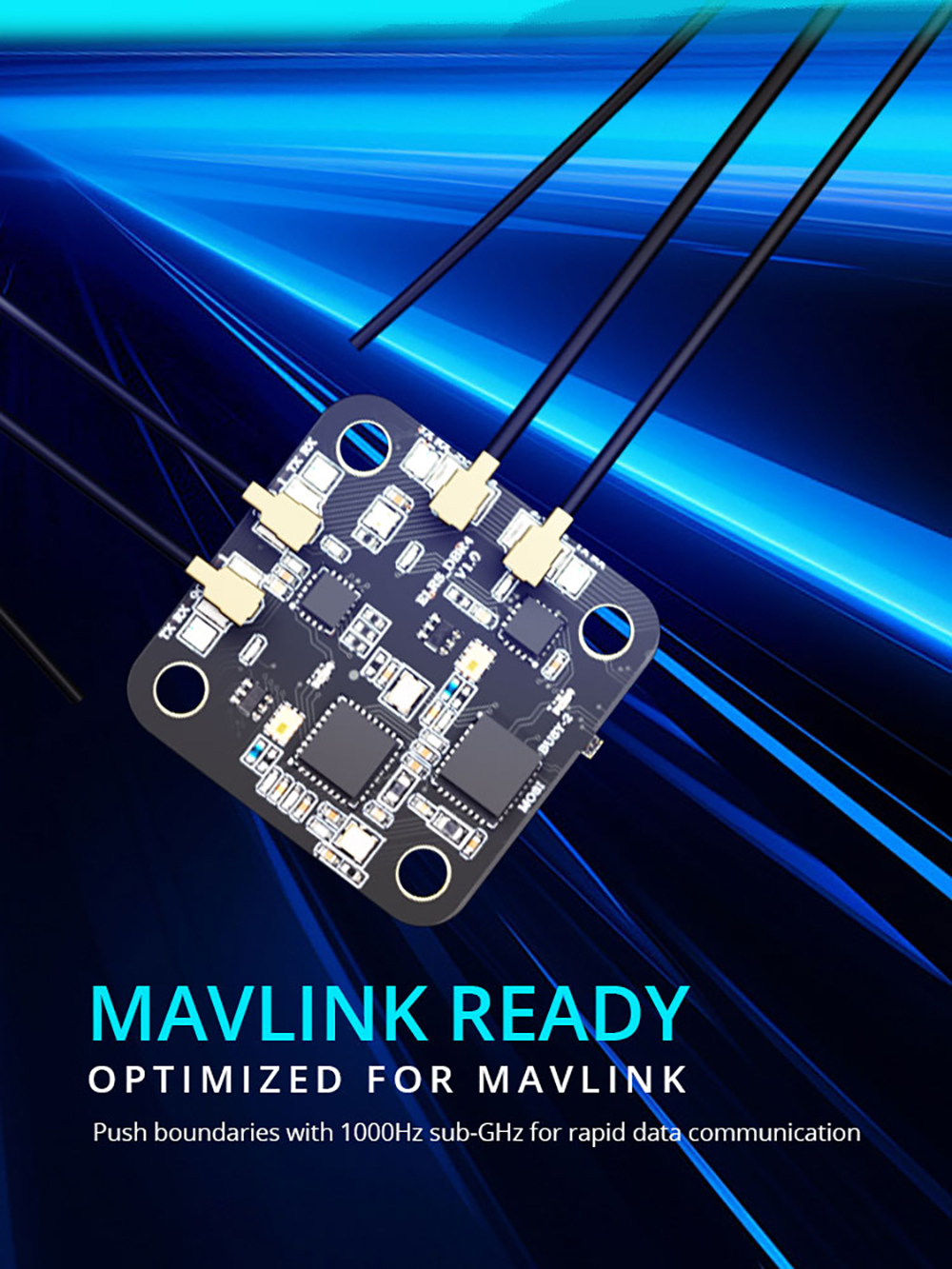

3. Max 100mW telemetry RF power, up to 500Hz refresh rate, pre-flashed ExpressLRS V3.3.2 firmware, adopts CRSF bus protocol, MAVLINK ready

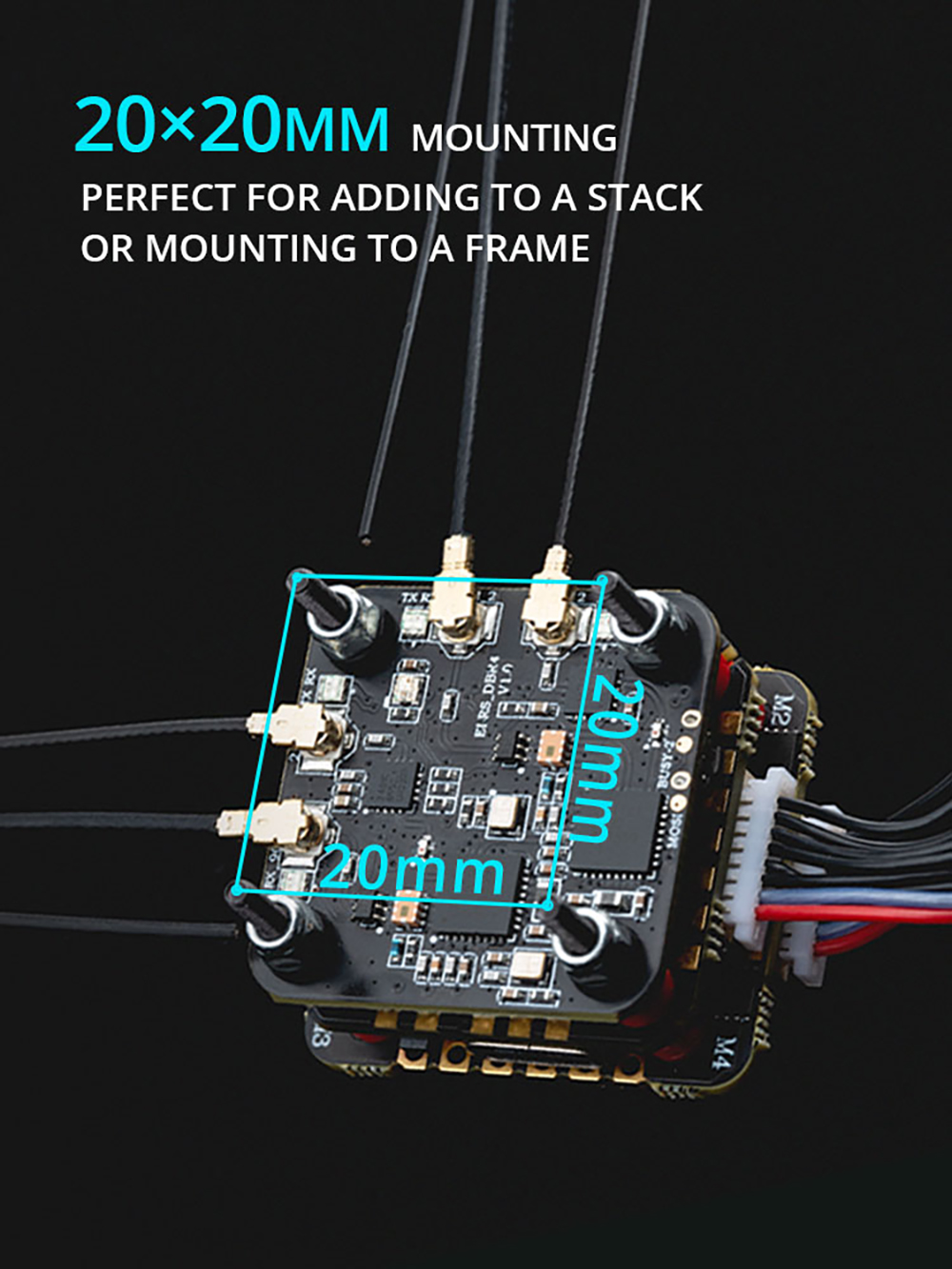

4. 20×20mm mounting hole layout, compact size 27.2×27.2mm, lightweight at 2.7g (without antennas), easy to install on drone stack
5. Wide input voltage DC 4.5-8.4V, compatible with 2-3S battery, complete accessories included for quick setup
Description:

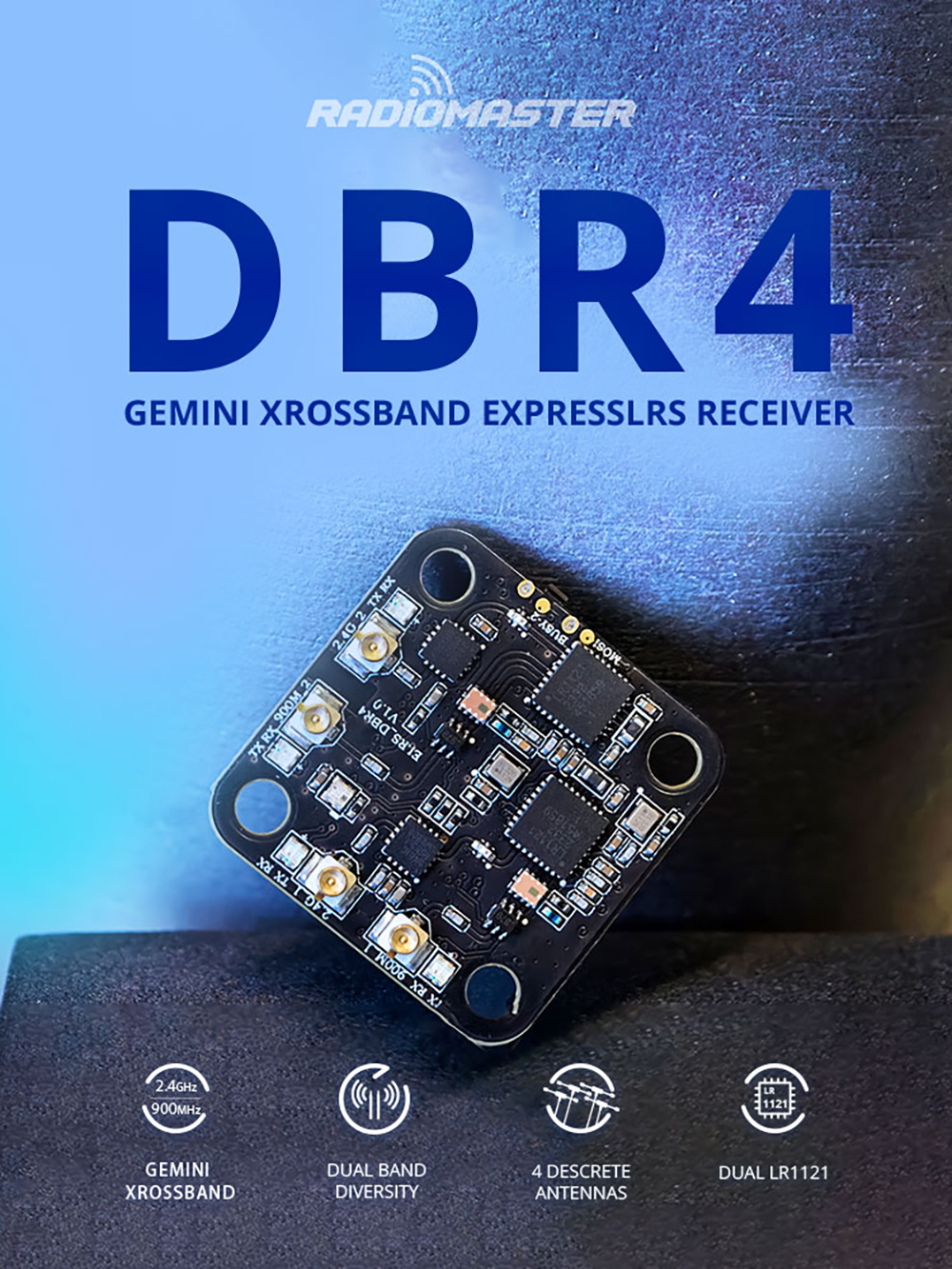

RadioMaster DBR4 is a Gemini Xrossband ExpressLRS receiver with dual LR1121 chips, supporting simultaneous 2.4GHz and 900MHz reception, four?antenna diversity, MAVLink support for long-range FPV, fixed-wing ,drones.

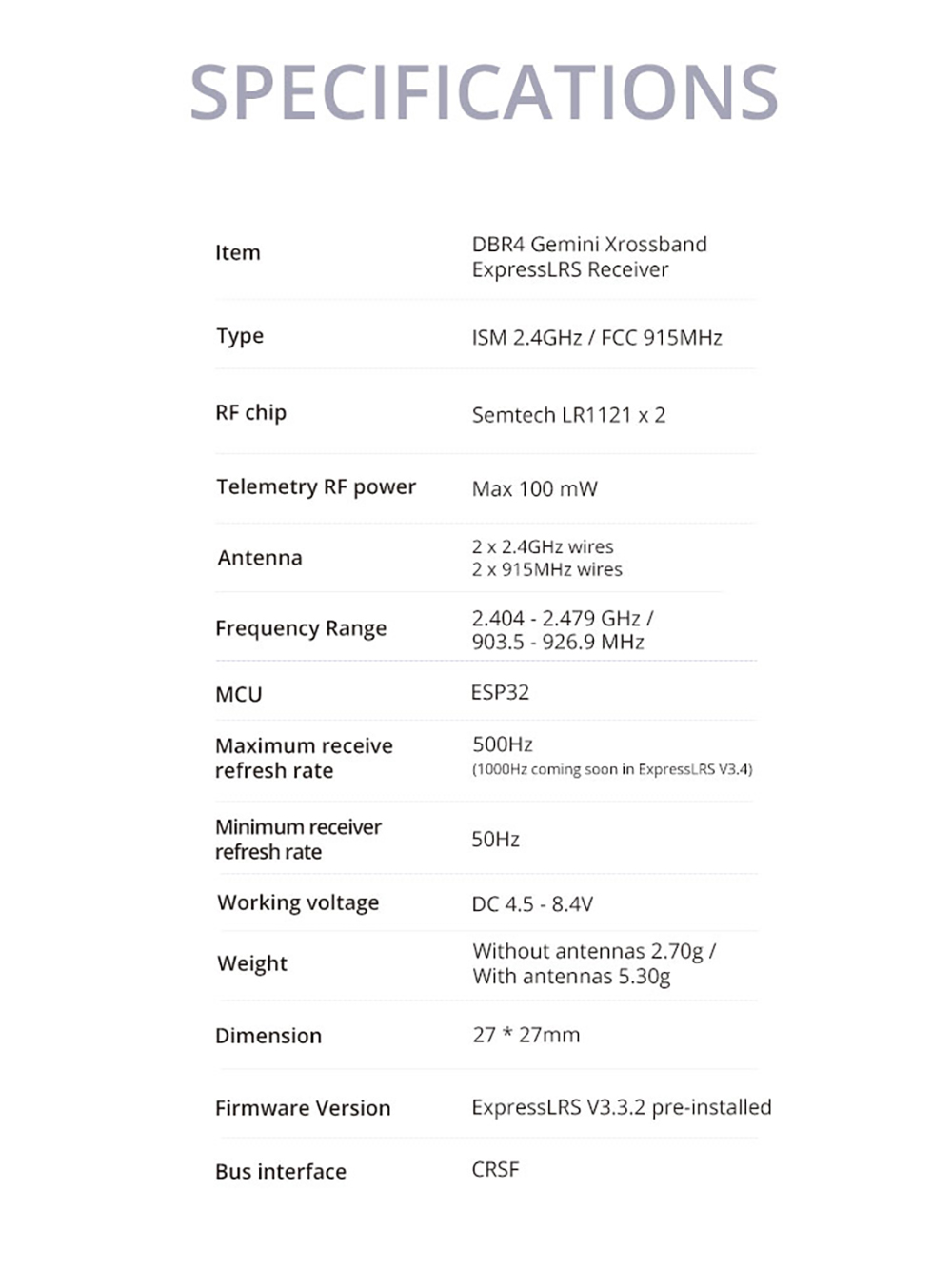

Specifications:
Model: RadioMaster DBR4
RF Chip: Semtech LR1121 ×2
MCU: ESP32
Frequency: 2.404-2.479GHz / 903.5-926.9MHz
Max Telemetry RF Power: 100mW
Refresh Rate: 50~500Hz
Firmware: ExpressLRS V3.3.2 pre-installed
Protocol: CRSF, MAVLINK Ready

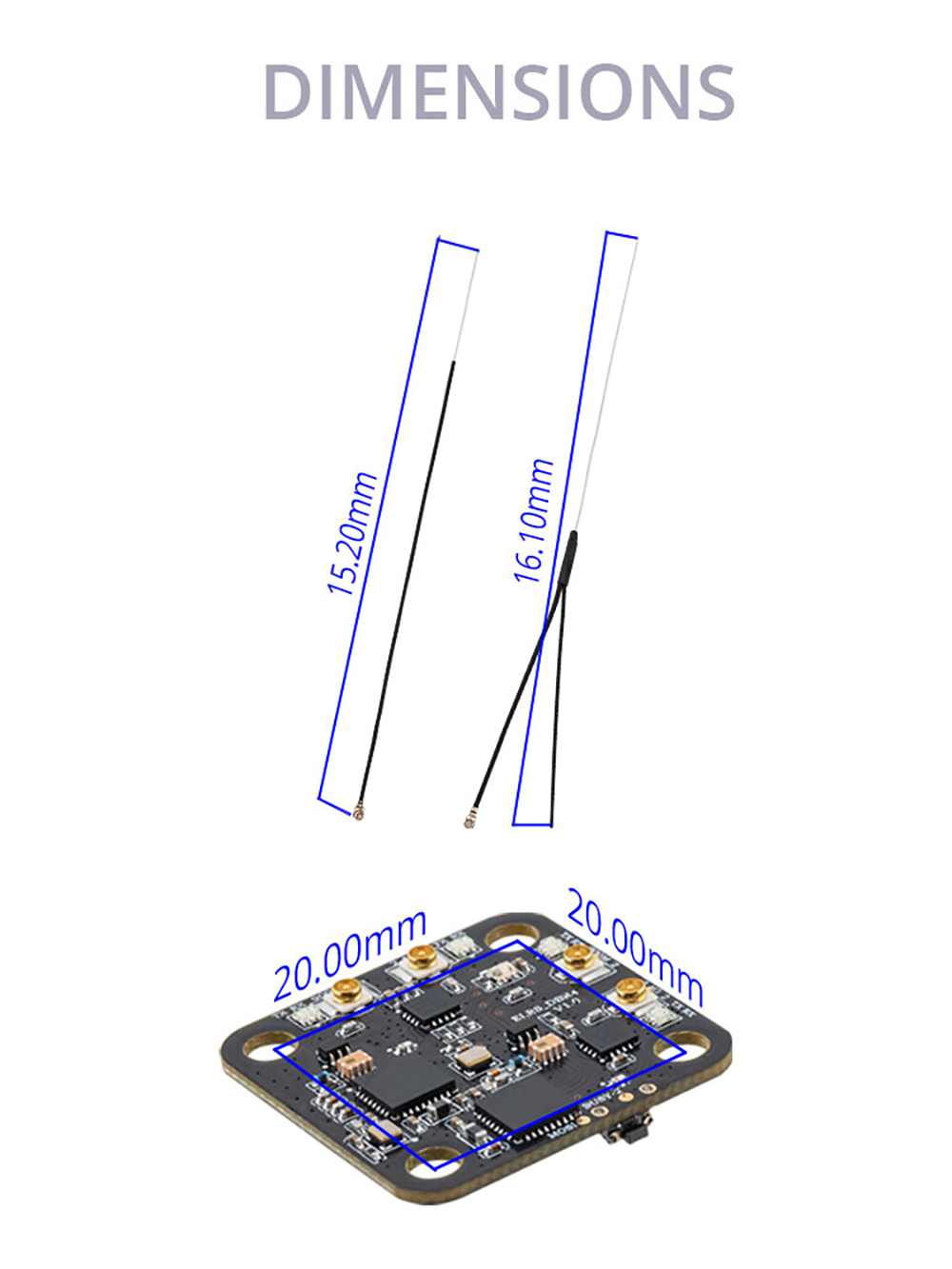

Mounting Hole: 20×20mm
Dimension: 27.2×27.2mm
Weight: 2.7g (without antennas)
Input Voltage: DC 4.5-8.4V (2~3S)

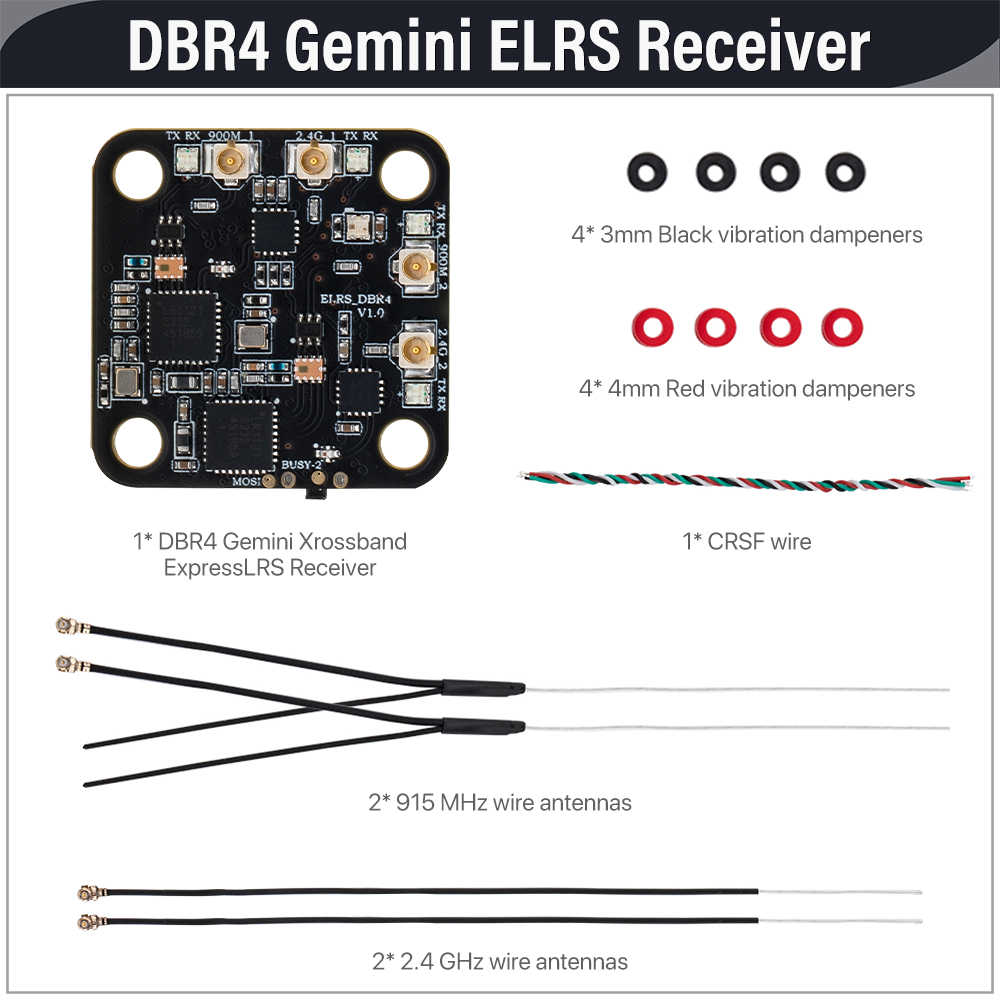

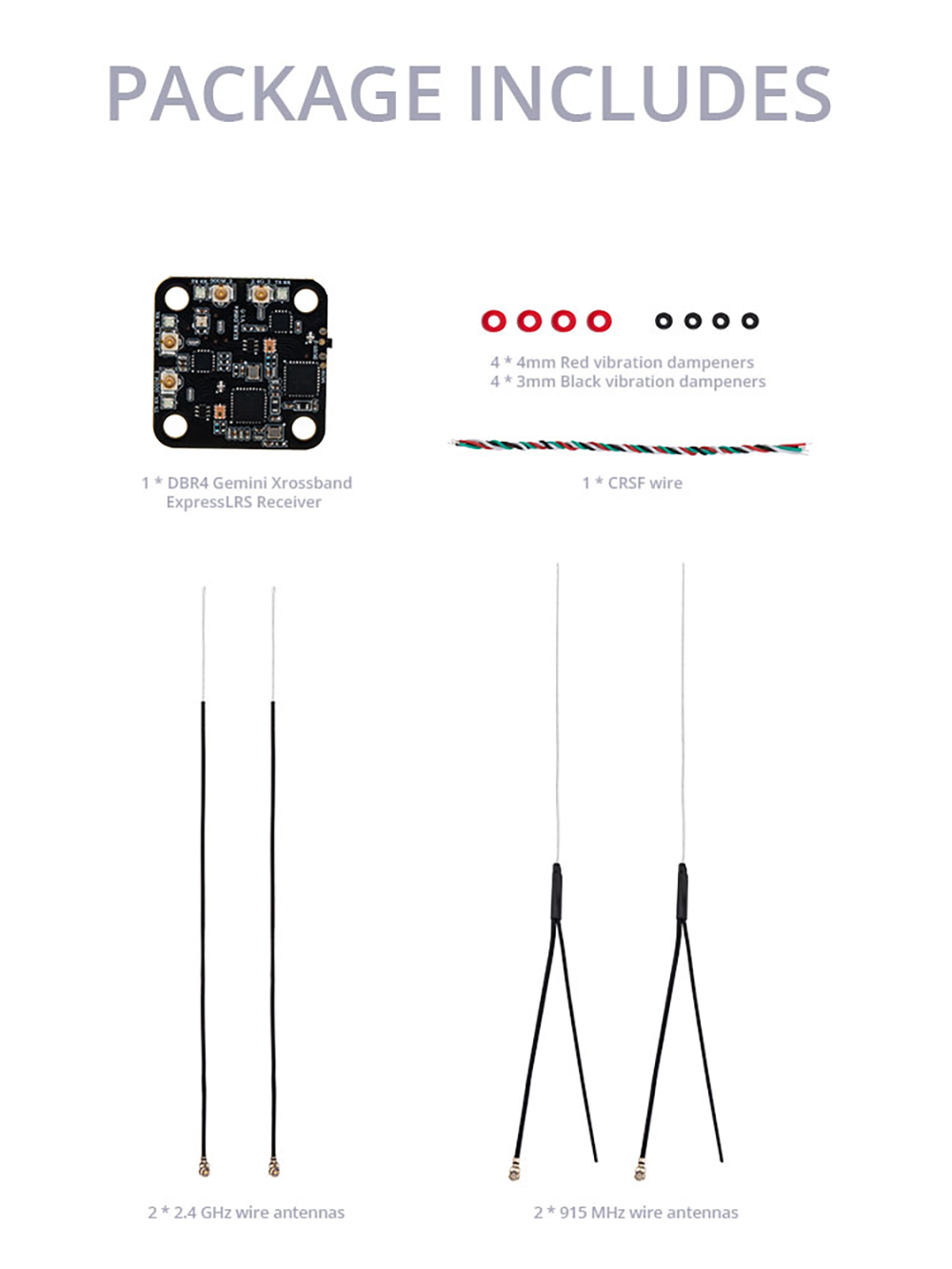

Package contents:
1 × DBR4 ExpressLRS Receiver
2 × 2.4GHz Antennas
2 × 915MHz Antennas
1 × CRSF Connecting Cable
4 × Rubber Vibration Dampers
Note:
Only the above package content, other products are not included.
