FITMENT:

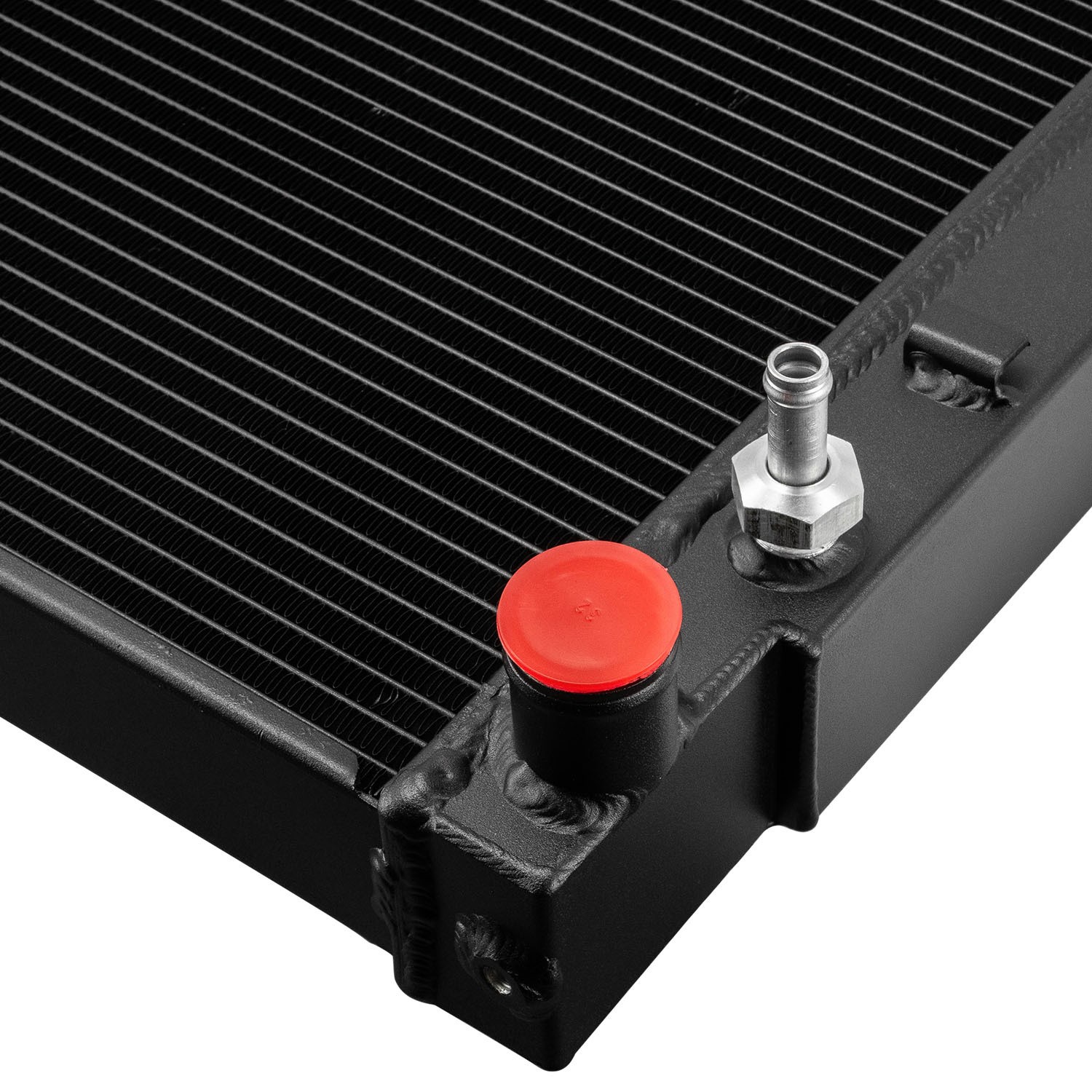

FOR 1990-2011 Toyota Forklift Radiator (for ONE oil cooler applications)
OEM# 16410U220071, 16410U220171, 16420U128171, 16420U128071A, 16410U120071, 16410U120171, 16410F110171

Radiator Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Material: AA5052 Aluminum
High Performance Racing Spec.
Core Size: 17-5/8" H x 17-3/4" W x 2" T
Inlet/Outlet: 1-5/16" & 1-5/16"
Transmisson Oil Cooler: 10 13/16 In
Radiator Cap：CNC machined filler neck and cap

Radiator Drain Plug: OEM Style Brass Petcock Drain.

Fits:
1. 1990-2011 Toyota Forklift 7FDAU50 L6 4.3L Engine
2. 1990-2011 Toyota Forklift 7FDKU40 L6 4.3L Engine
3. 1990-2011 Toyota Forklift 7FDU35 L6 4.3L Engine
4. 1990-2011 Toyota Forklift 7FDU45 L6 4.3L Engine
5. 1990-2011 Toyota Forklift 7FDU60 L6 4.3L Engine
6. 1990-2011 Toyota Forklift 7FDU70 L6 4.3L Engine
7. 1990-2011 Toyota Forklift 7FDU80 L6 4.3L Engine
8. 1998-2006 Toyota Forklift 7FG15 L4 2.2L Engine
9. 1998-2006 Toyota Forklift 7FG18 L4 2.2L Engine
10. 1998-2006 Toyota Forklift 7FG20 L4 2.2L Engine
11. 1998-2006 Toyota Forklift 7FG23 L4 2.2L Engine
12. 1998-2006 Toyota Forklift 7FG25 L4 2.2L Engine
13. 1998-2006 Toyota Forklift 7FG30 L4 2.2L Engine
14. 1990-2011 Toyota Forklift 7FGAU50 L6 4.3L Engine
15. 2000-2008 Toyota Forklift 7FGCSU20 L4 2.2L Engine
16. 2000-2008 Toyota Forklift 7FGCU15 L4 2.2L Engine
17. 2000-2008 Toyota Forklift 7FGCU18 L4 2.2L Engine
18. 2000-2007 Toyota Forklift 7FGCU20 L4 2.2L Engine
19. 2000-2007 Toyota Forklift 7FGCU25 L4 2.2L Engine
20. 2000-2007 Toyota Forklift 7FGCU30 L4 2.2L Engine
21. 2000-2007 Toyota Forklift 7FGCU32 L4 2.2L Engine
22. 1990-2011 Toyota Forklift 7FGCU35 L6 4.3L Engine
23. 1990-2011 Toyota Forklift 7FGCU35-BCS L6 4.3L Engine
24. 1990-2011 Toyota Forklift 7FGCU45 L6 4.3L Engine
25. 1990-2011 Toyota Forklift 7FGCU45-BCS L6 4.3L Engine
26. 1990-2011 Toyota Forklift 7FGCU55 L6 4.3L Engine
27. 1990-2011 Toyota Forklift 7FGCU55-BCS L6 4.3L Engine
28. 1990-2011 Toyota Forklift 7FGCU60 L6 4.3L Engine
29. 1990-2011 Toyota Forklift 7FGCU70 L6 4.3L Engine
30. 1998-2006 Toyota Forklift 7FGJ35 L4 2.2L Engine
31. 1998-2006 Toyota Forklift 7FGK20 L4 2.2L Engine
32. 1998-2006 Toyota Forklift 7FGK25 L4 2.2L Engine
33. 1998-2006 Toyota Forklift 7FGK30 L4 2.2L Engine
34. 1990-2011 Toyota Forklift 7FGKU40 L6 4.3L Engine
35. 2000-2007 Toyota Forklift 7FGU15 L4 2.2L Engine
36. 2000-2007 Toyota Forklift 7FGU18 L4 2.2L Engine
37. 2000-2007 Toyota Forklift 7FGU20 L4 2.2L Engine
38. 2000-2007 Toyota Forklift 7FGU25 L4 2.2L Engine
39. 2000-2007 Toyota Forklift 7FGU30 L4 2.2L Engine
40. 2000-2007 Toyota Forklift 7FGU32 L4 2.2L Engine
41. 1990-2011 Toyota Forklift 7FGU35 L6 4.3L Engine
42. 1990-2011 Toyota Forklift 7FGU45 L6 4.3L Engine
43. 1990-2011 Toyota Forklift 7FGU60 L6 4.3L Engine
44. 1990-2011 Toyota Forklift 7FGU70 L6 4.3L Engine

45. 1990-2011 Toyota Forklift 7FGU80 L6 4.3L Engine

Reasons for choose our AA5052 Aluminum Radiator：

1.Our Radiator is made of AA5052 aircraft aluminum, AA5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).

2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.

3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
