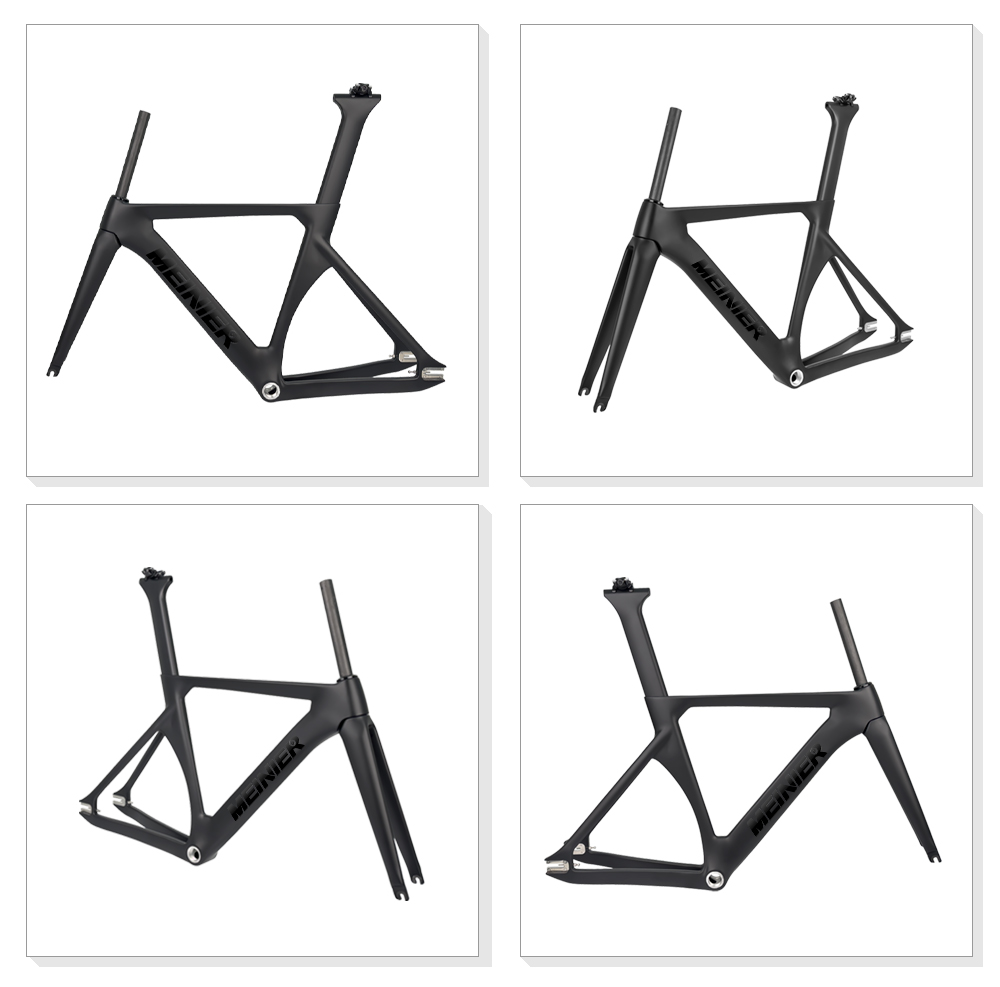

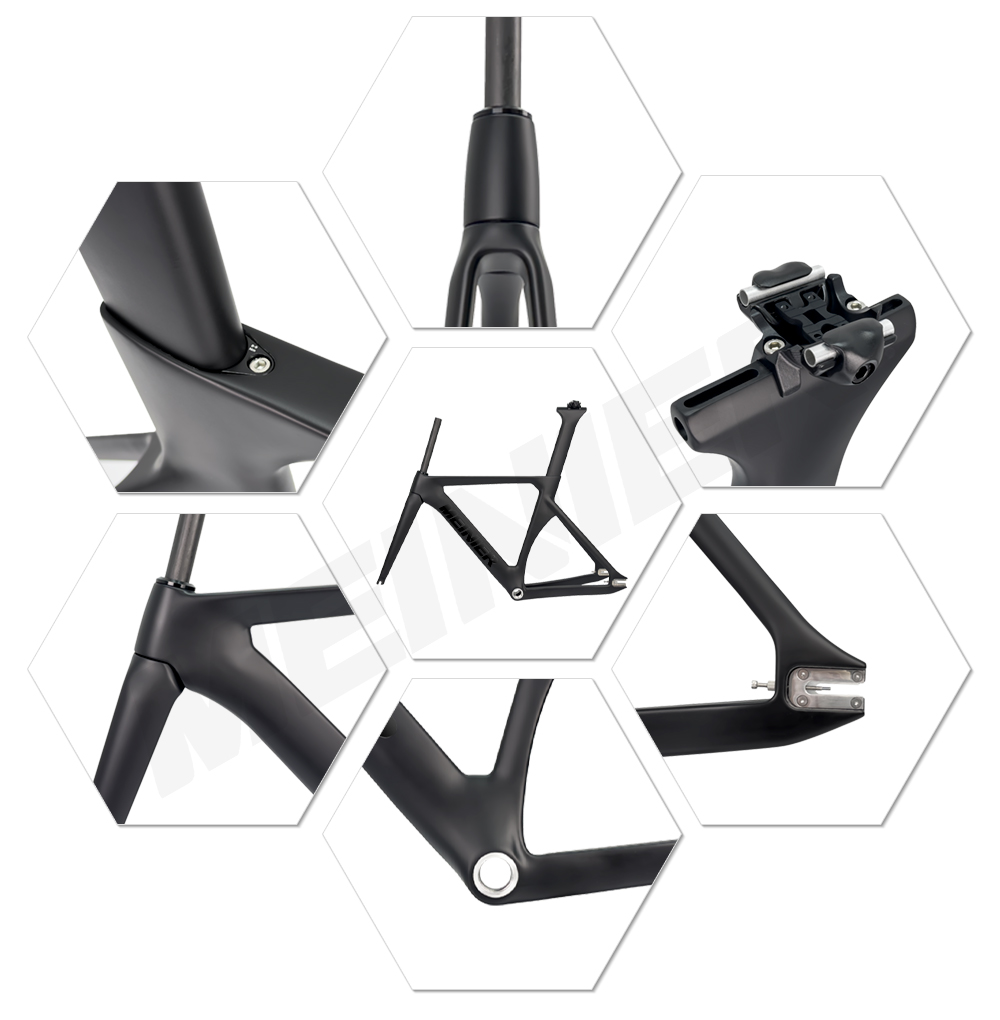

MEINIER TRH011 T1000 is a full carbon track frameset designed for track cycling and custom bike builds. Made from carbon fiber, it features a streamlined track-specific frame and matching carbon fork, with a 400mm carbon seatpost. The frameset supports 700x25C tires and uses 100x9mm front and 120x10mm rear hub spacing. It is equipped with a BSA 68mm threaded bottom bracket and tapered headset specifications of 1-1/8" top and 1-1/2" bottom. Available in 45, 48, 51, 54 and 57cm sizes, it suits riders from approximately 160cm to over 185cm.

Carbon Track Fixed Gea Bike Frame

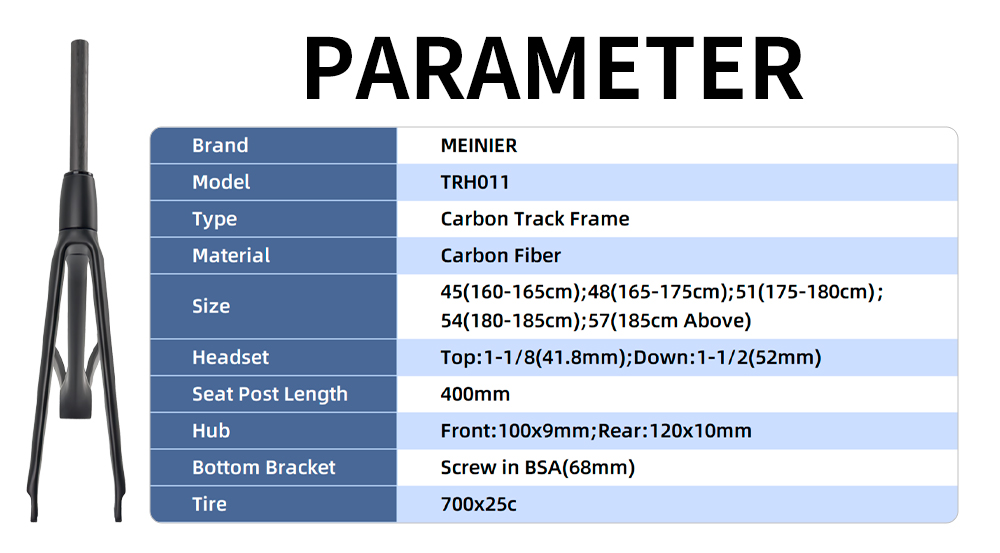

Model:MEINIER-TRH011

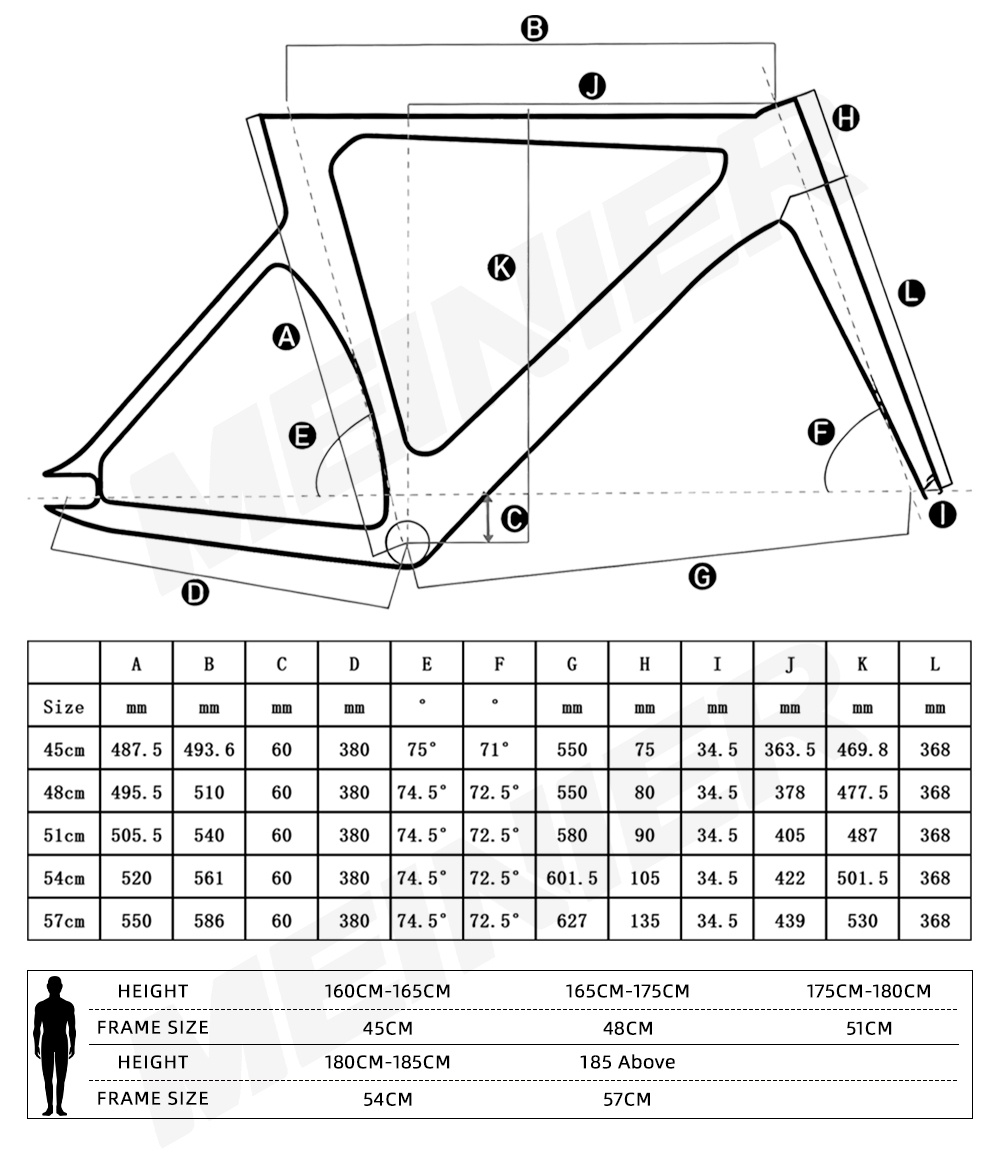

Size:45/48/51/54/57cm

Type: Carbon Track Bike Frame

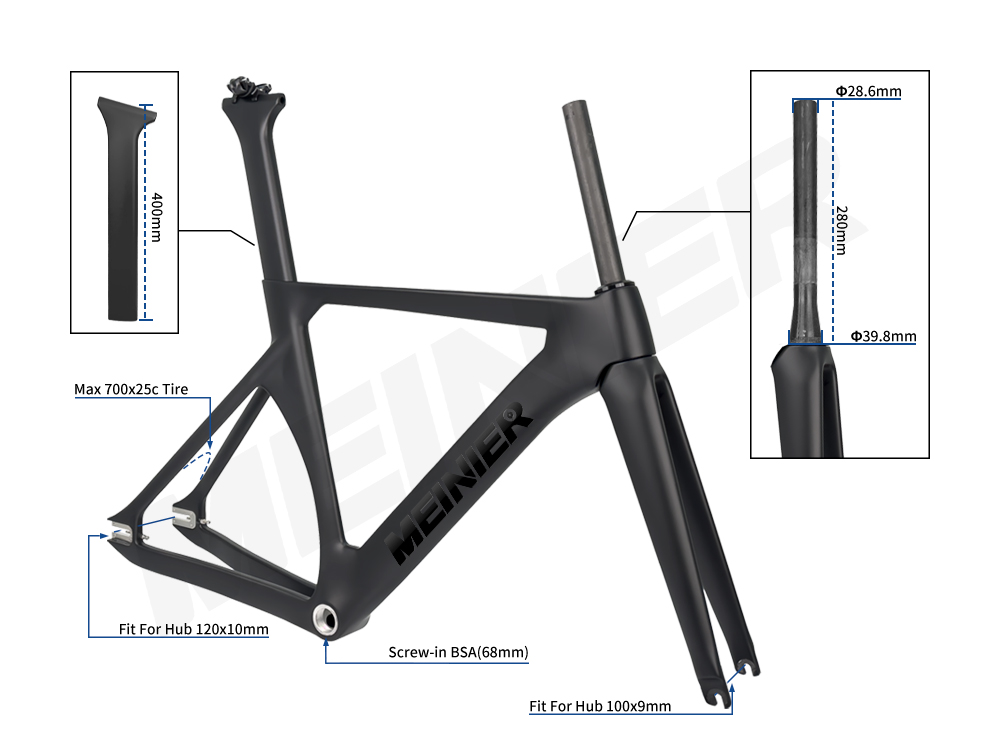

Bottom Bracket: BSA(68mm)

Headset Size: 1-1/8(41.8mm) and 1-1/2(52mm)

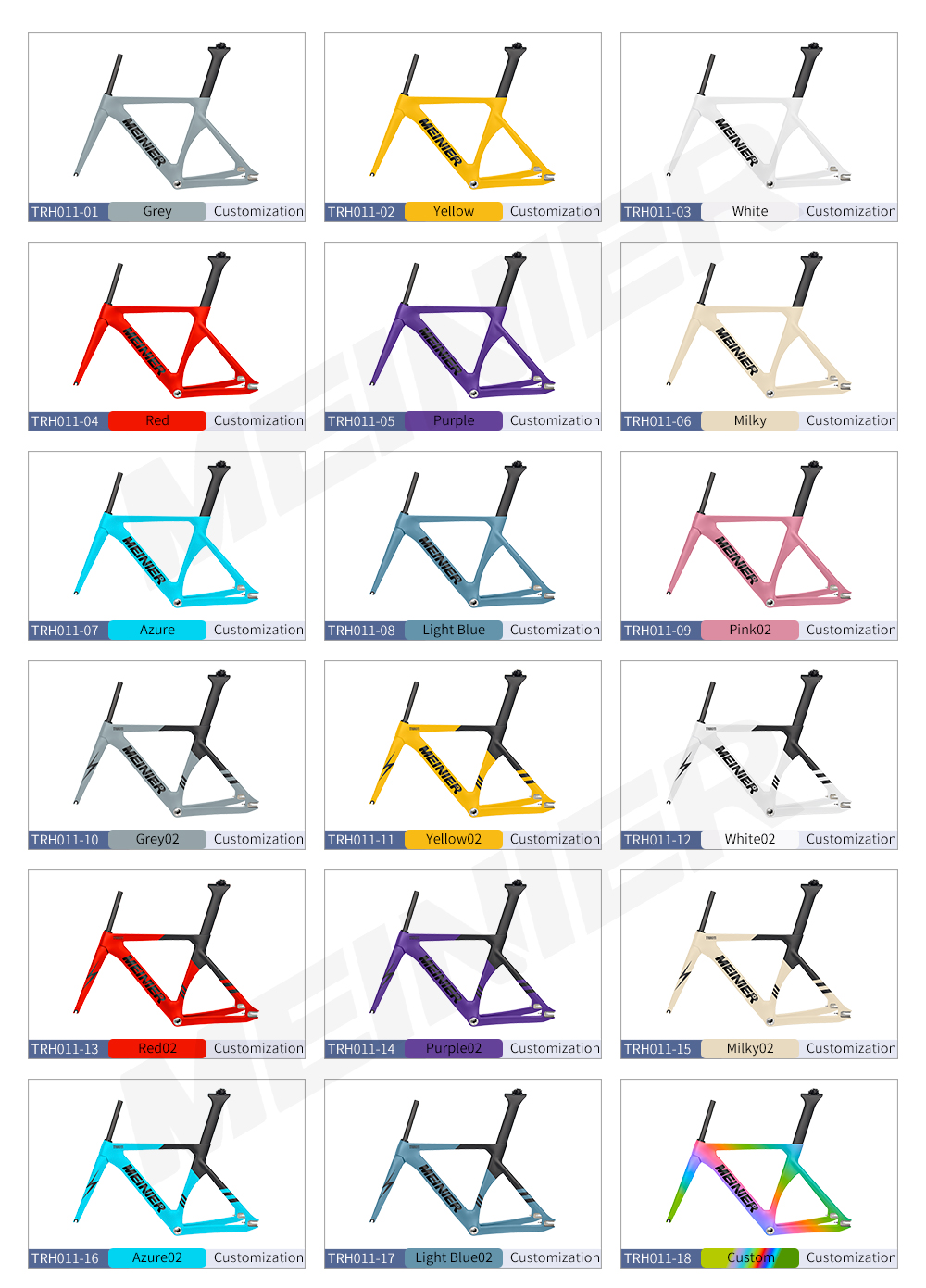

Available Painted Surface: Matte/Gloss

Maximum Tire: 700Cx25C

Frame Fit Hub: 120*10mm

Fork Fit Hub: 100*9mm

Seatpost Length:400mm

1. Regarding logo and color, if you need to customize any color or without logo, you can leave a message or contact me

2. Regarding delivery to the United States, we have duty-free logistics channels and fast delivery, you can contact me or click the link below

3. Regarding delivery to EU and UK, we have DPD duty-free logistics, you can contact me or click the link below
