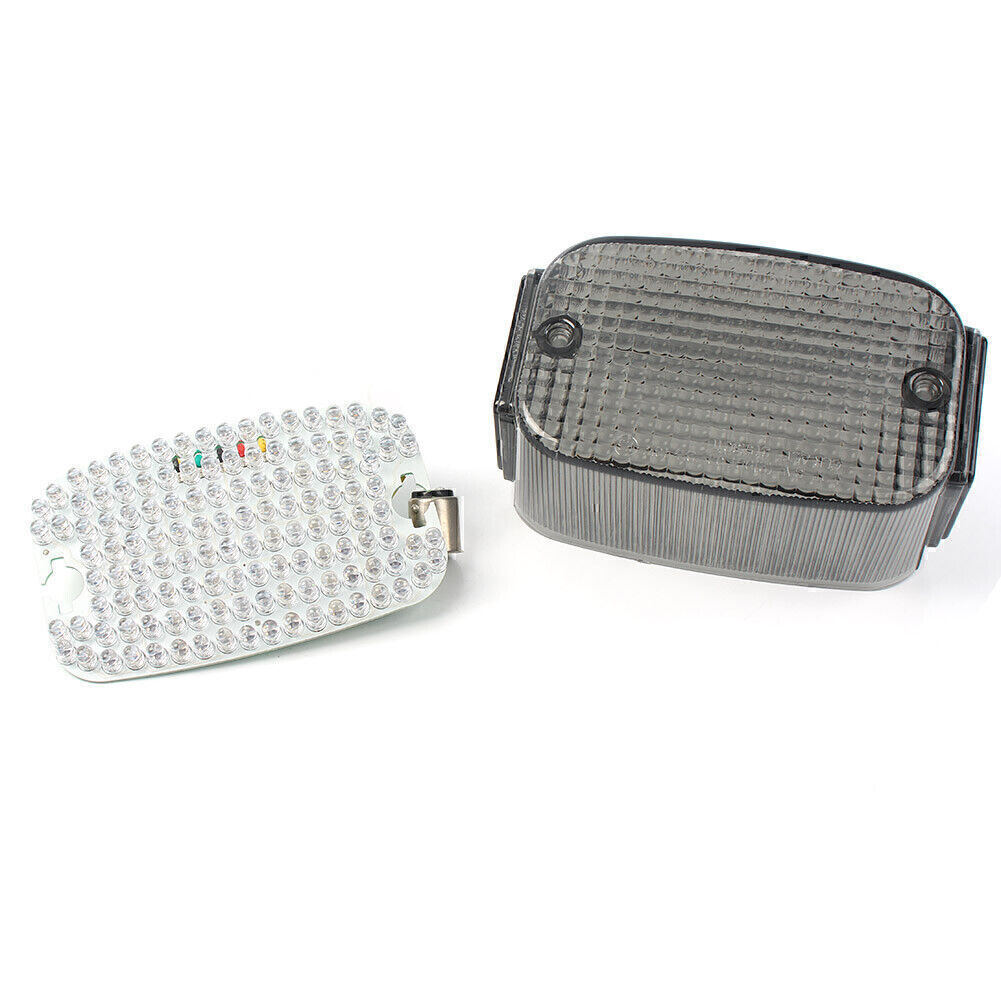

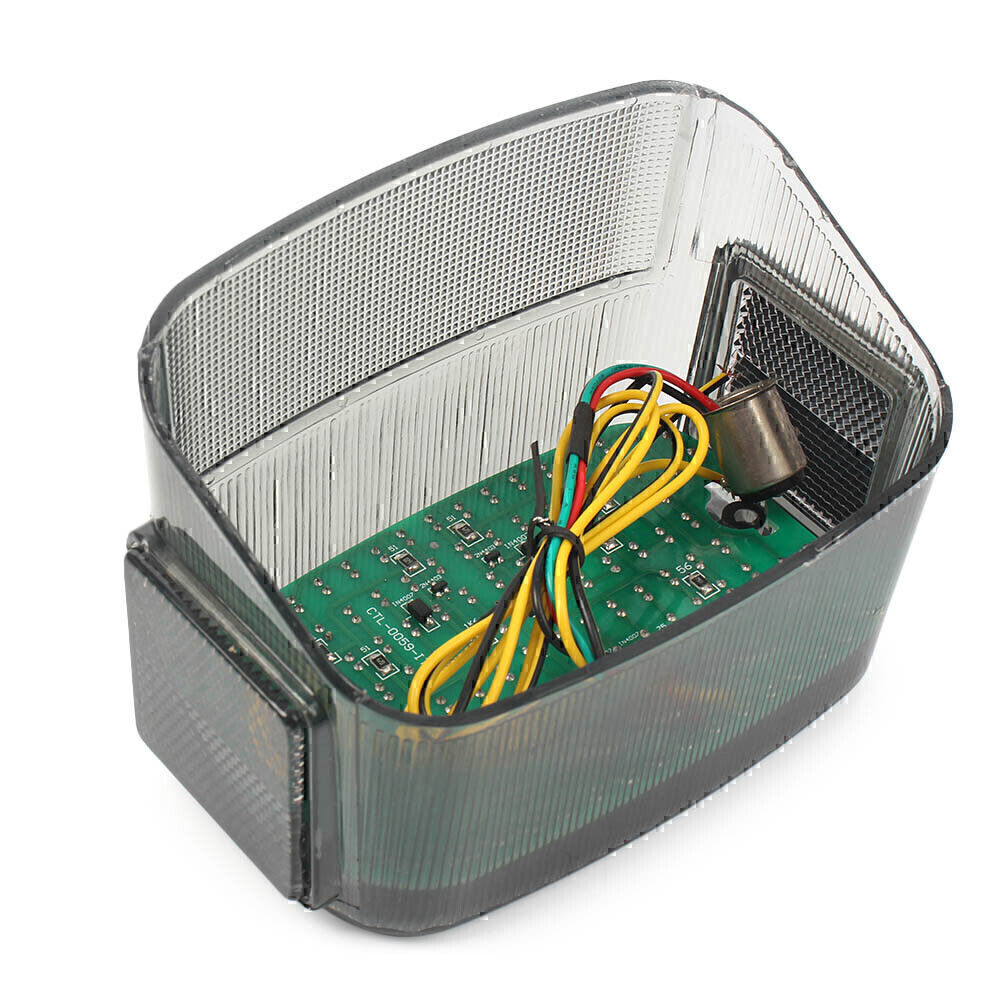

LED Tail Light w/Turn Signals for KAWASAKI VULCAN 800 CLASSIC 1500 88 Smoke New
Int.Turn Signals LED Light Clear for KAWASAKI Vulcan 800 Classic 1500 Vulcan 88
Features:

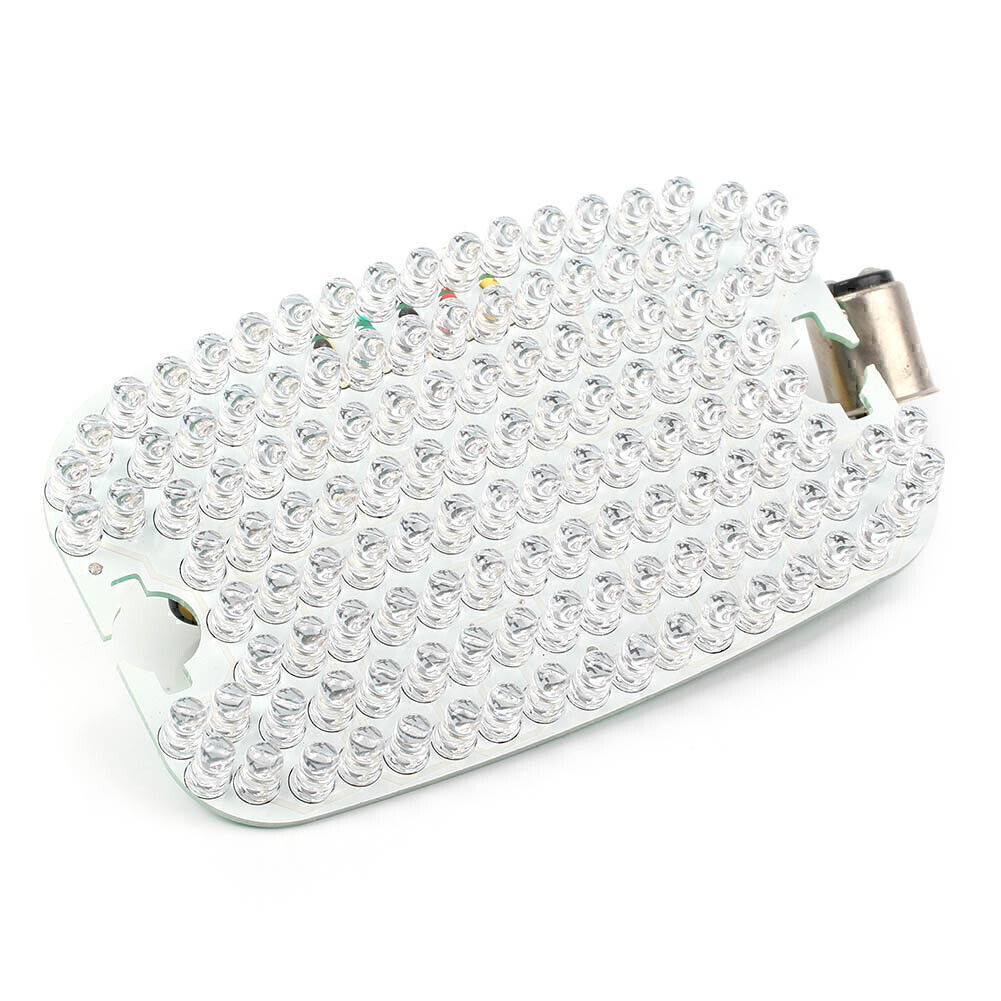

- High Brightness LED installed, 80 Red LEDs, 56 Amber LEDs.
- Specific Tail Light for the compatible models, Improved appearance and brightness.
- Fit well like original light without any modification.
- Comes with Amber Built-in Turn Signals.

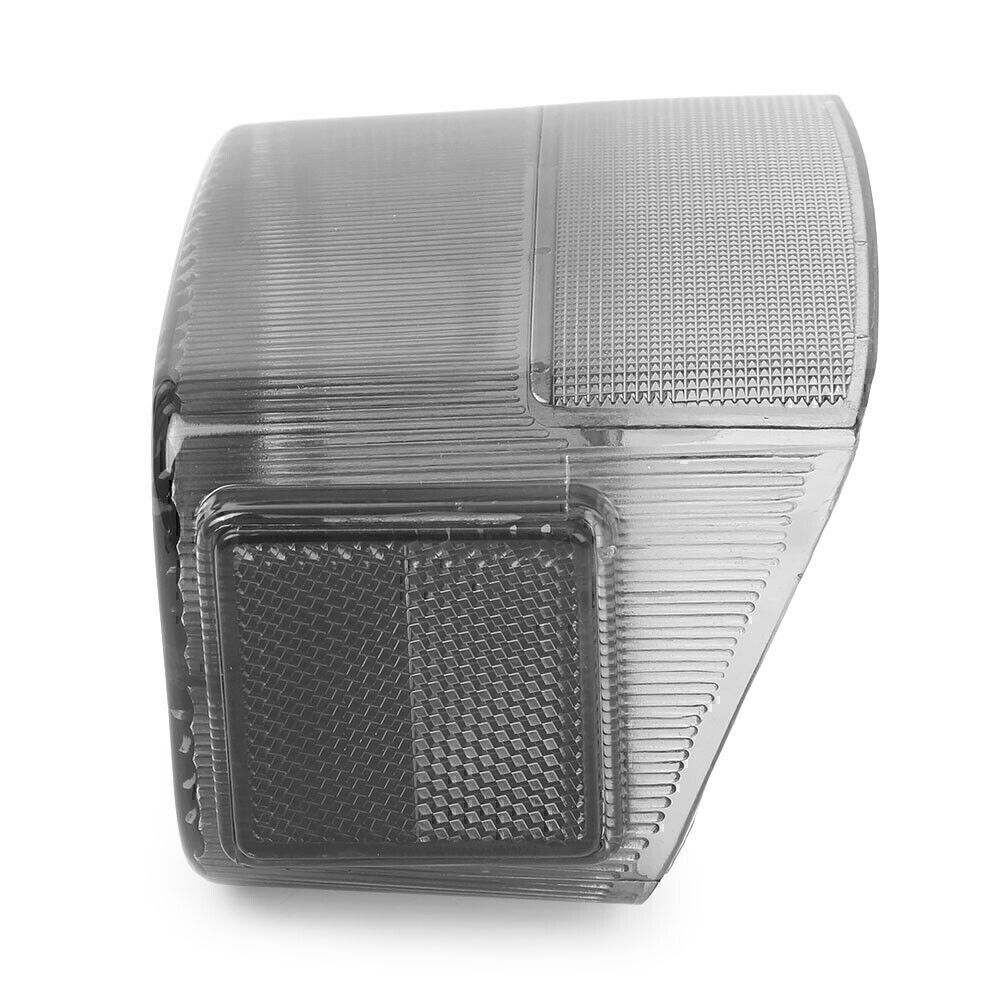

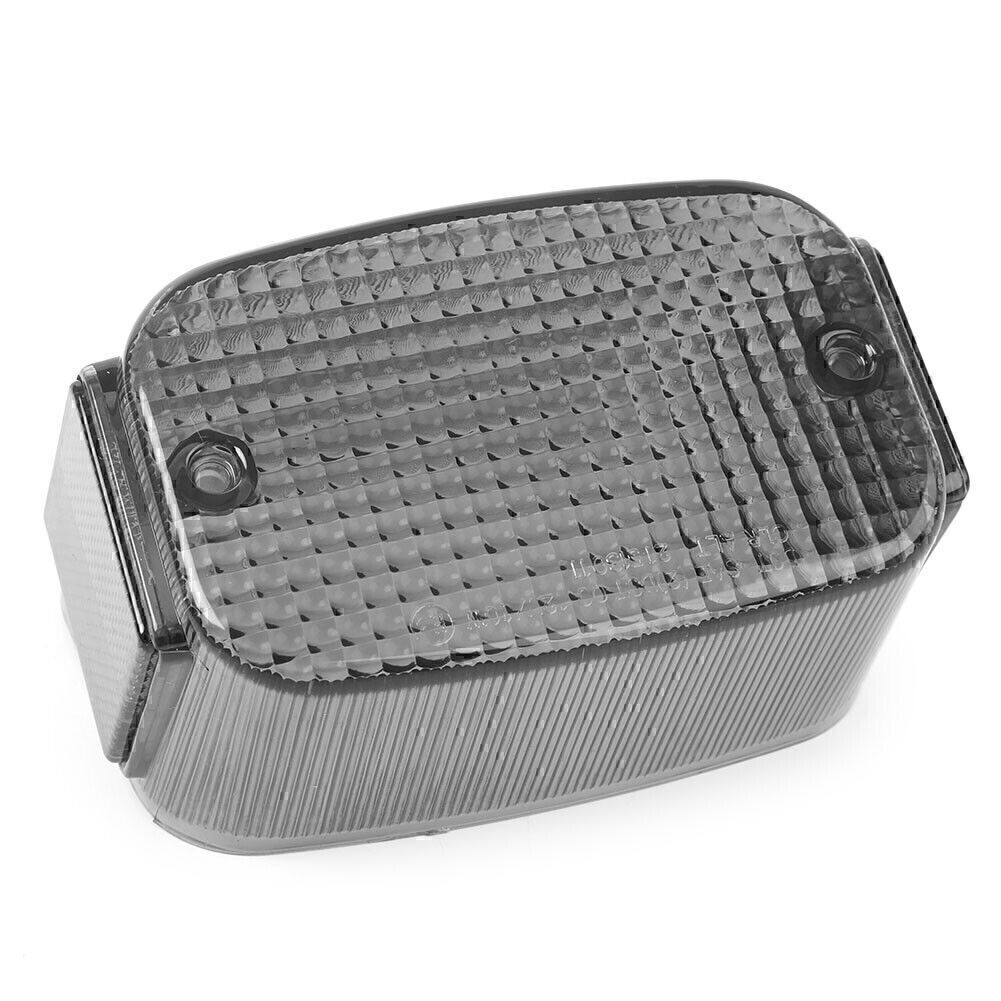

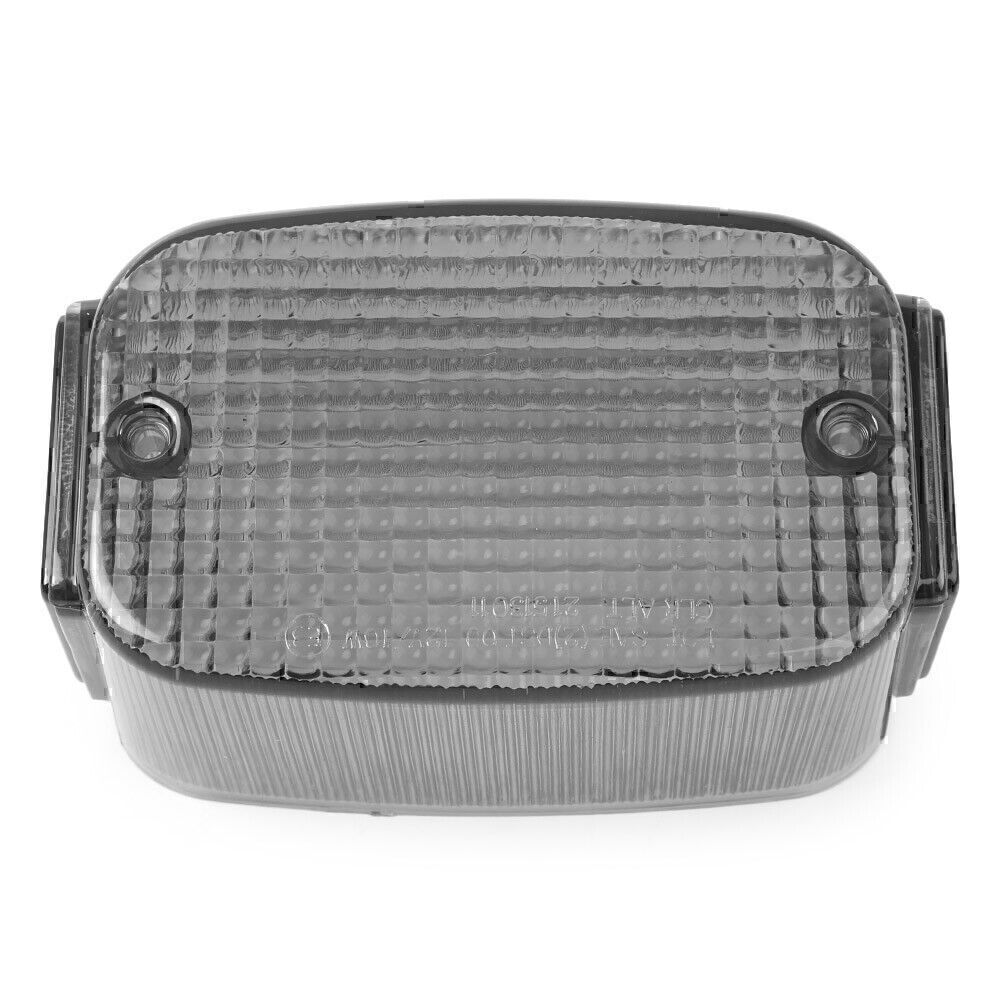

- Smoke Lens.
Specifications:
Condition:100% Brand New
Lens Color:Smoke
LED Color:Red(80pcs),Amber(56pcs)
QTY:1pc
Installation:
1.Connect the two YELLOW wires to the positive turn signal wires by provided red connectors or your existing factory connectors.
2.Ground wire is not needed unless you are using resistors to slow down the blinking rate.
(The ground wire is the same color wire used on both turn signals.)
3.To remove the error code on dashboard or slow down the blinking rate by provided resistors if necessary:

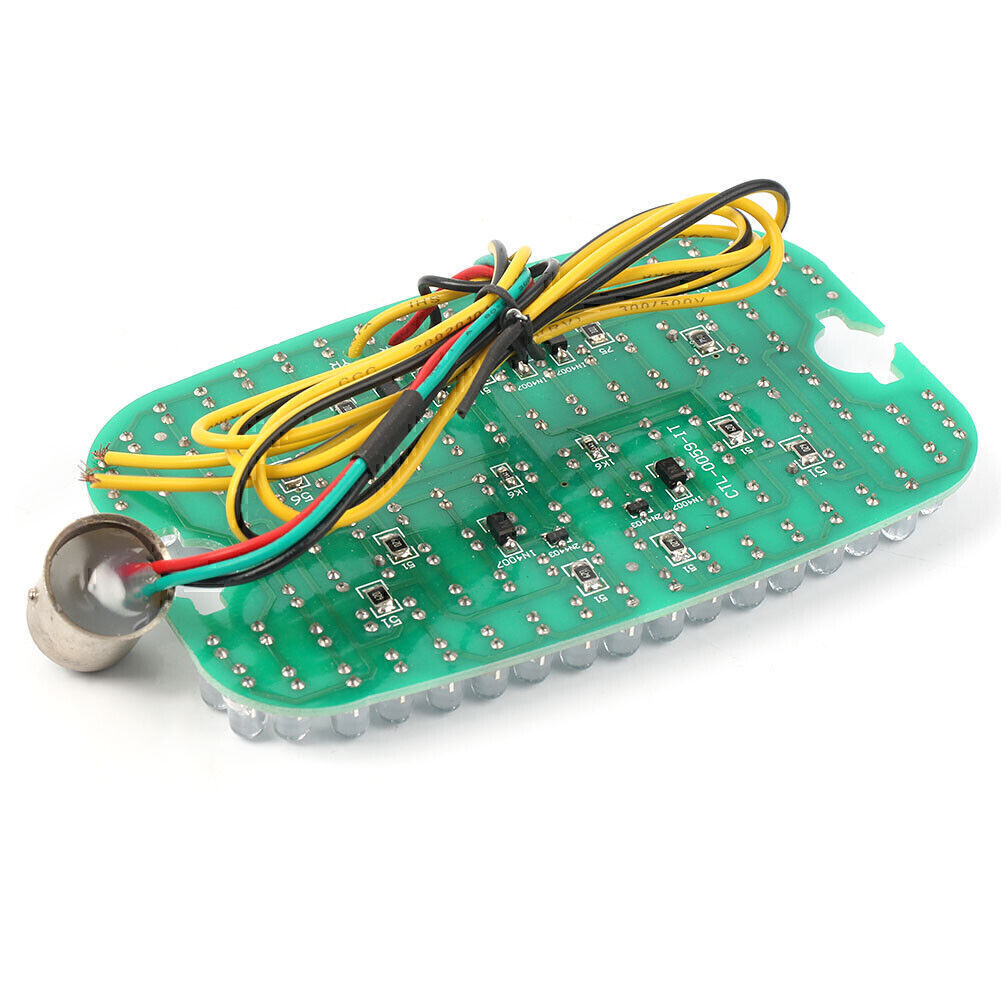

Wiring Diagram compatible for most bikes:
Black Wire(Negative)
Green Wire(Brake)
Red Wire(Running Light)
1)Connect one end of the resistor to the ground wire on your turn signal harness from your bike.
2)Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike.
3)Repeat the same process for the other side.

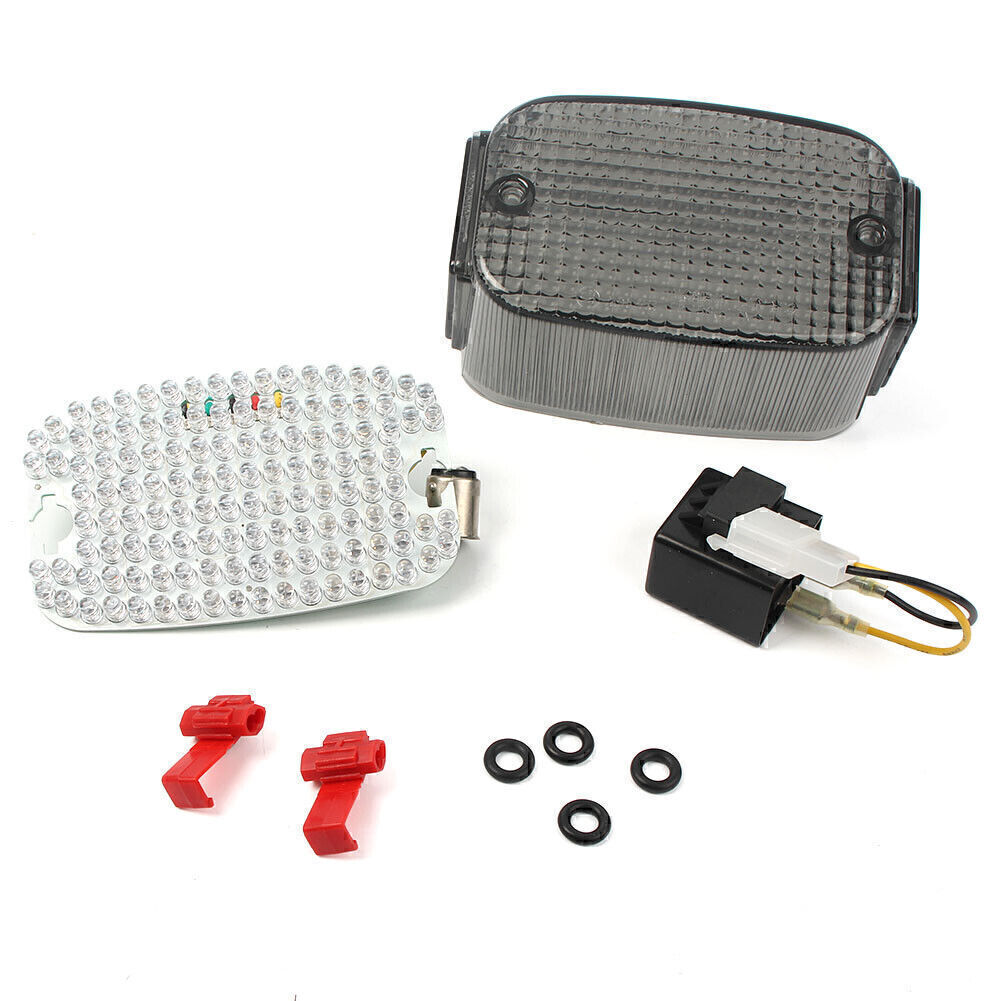

4.To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel.
Push down the metal pin as it will make a small cut on each wire bridging the connectors;
if you are using the resistors, place one end of the resistor in the middle of either channel with the one wire.
Note:Please understand that the pictures might be slightly different from the actual items because every monitor is not calibrated same.
Package Included:1pc LED Taillight
Fitment:
KAWASAKI Vulcan 800 Classic/ Vulcan 1500/ Vulcan 88/Nomad 1999-2006
