Features:

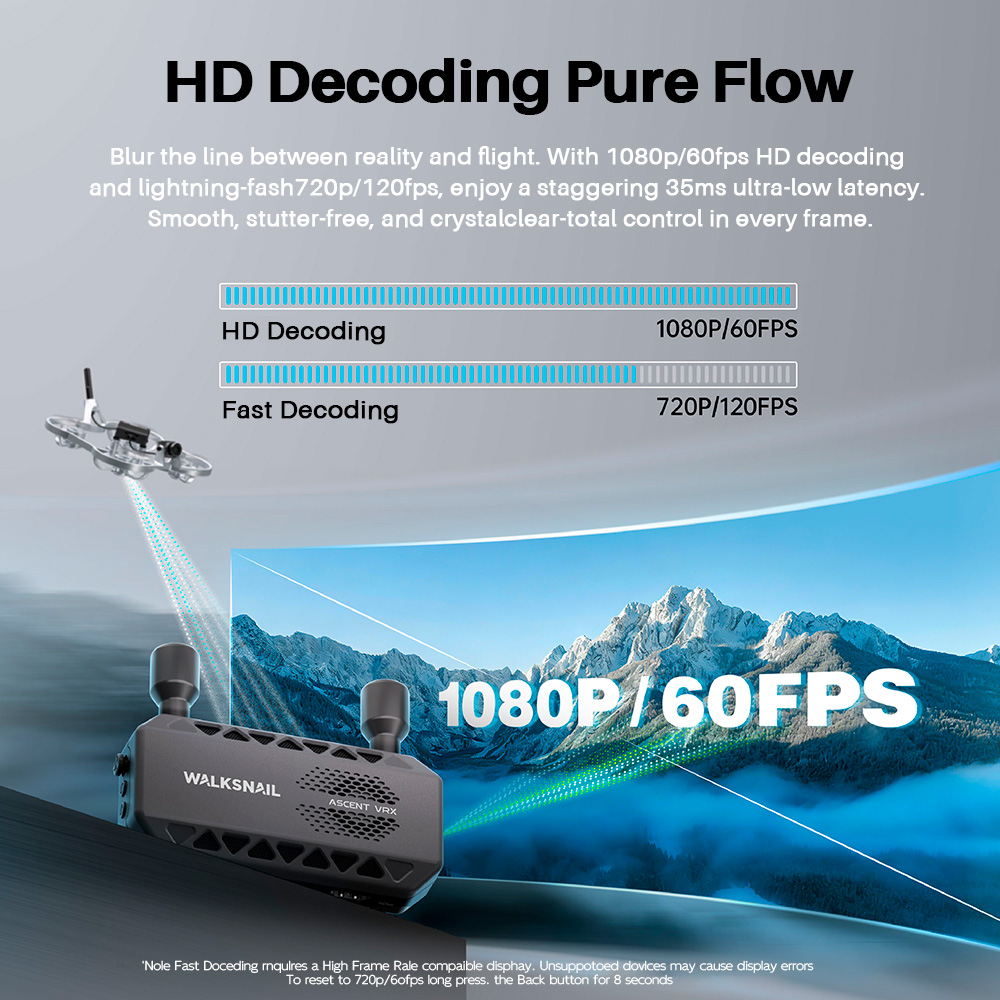

1. 35ms ultra-low latency, supports 1080P 60fps & 720P 120fps, smooth and clear FPV video.

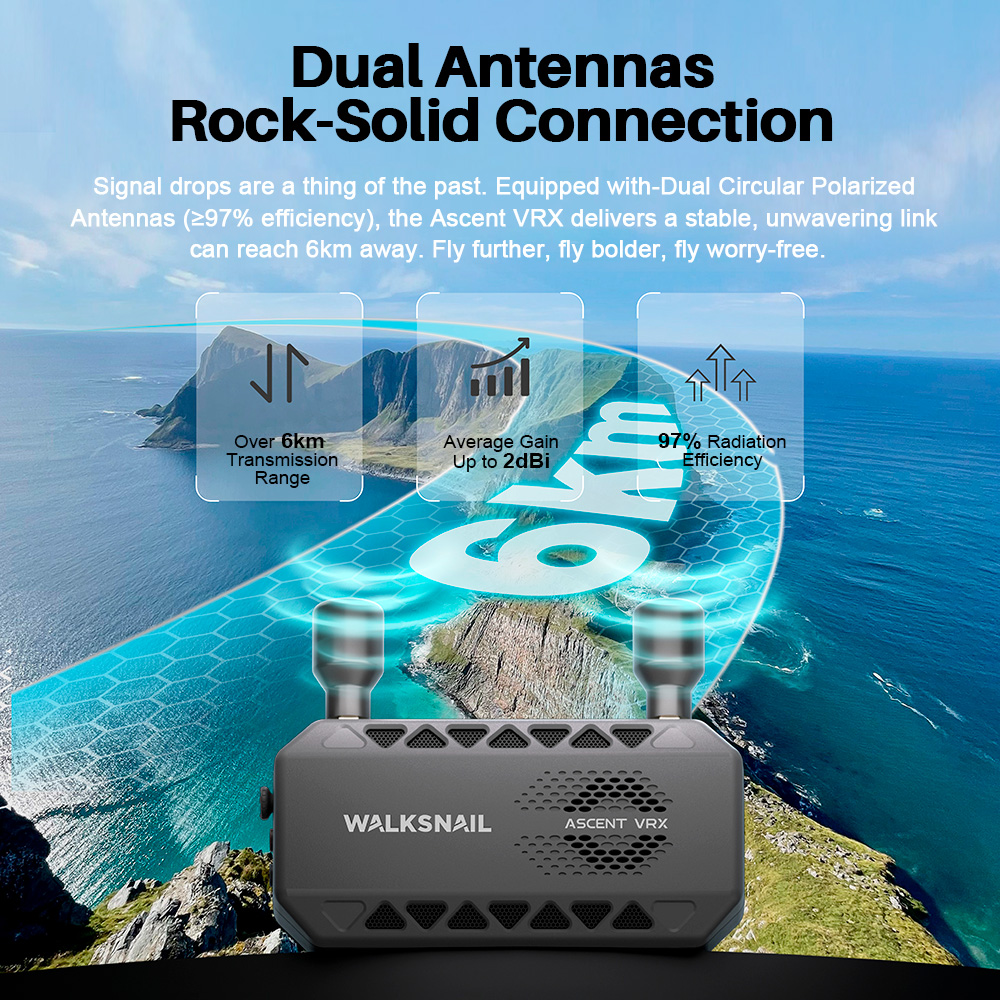

2. Dual high-gain antennas, strong anti-interference, stable 6KM long-range transmission.

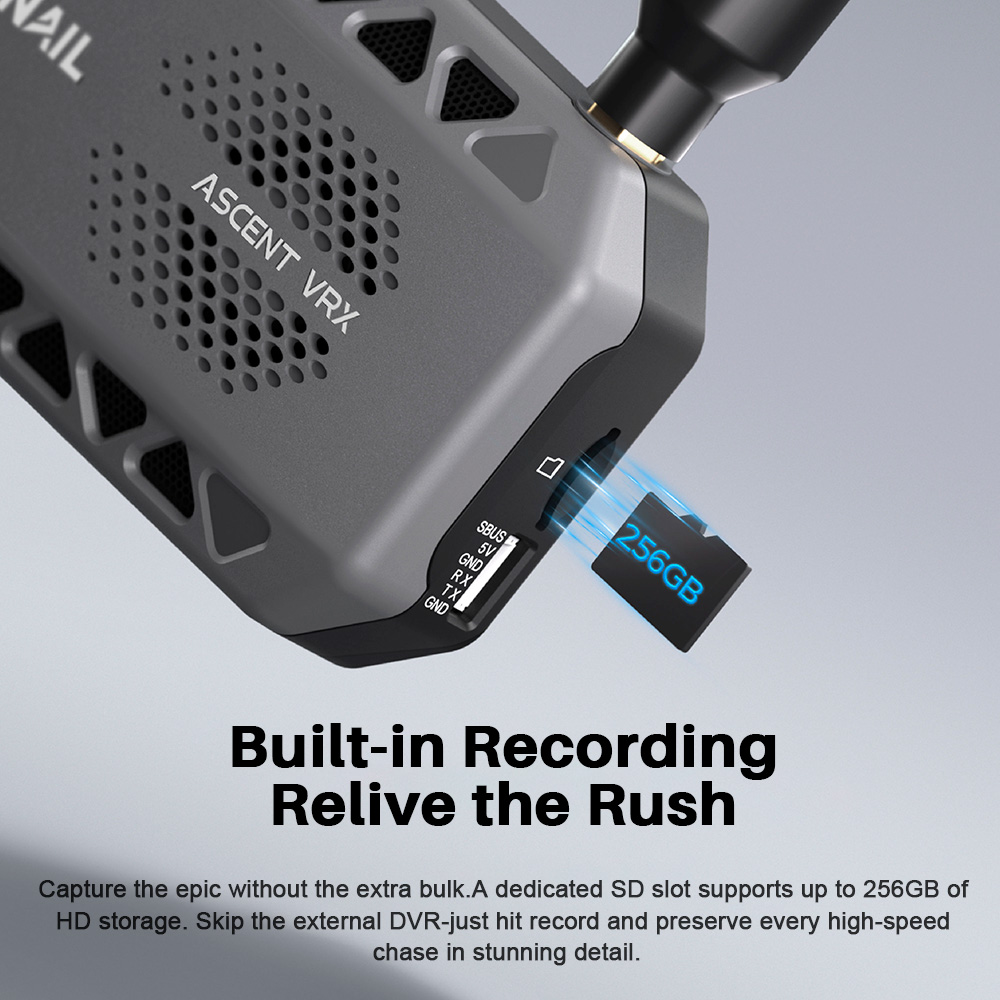

3. Built-in HD recording, up to 256GB TF card, no external DVR required.

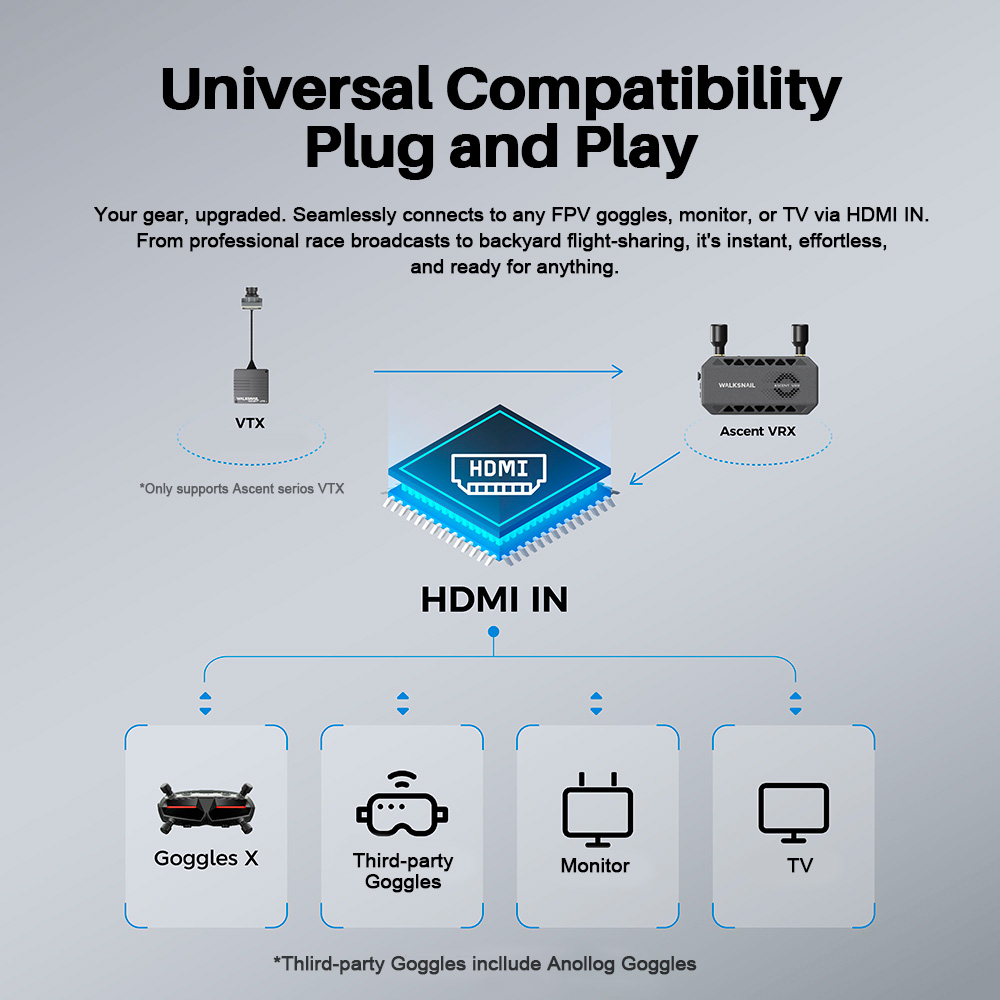

4. HDMI plug & play design, widely compatible with all FPV goggles,monitorsand TVs..

5. Support Betaflight/INAV OSD real-time tuning, professional for FPV pilots.

6. Widely applicable to drones, fixed-wing aircraft, RC cars and other RC models. Perfect for racing, cinematic shooting and beginner teaching, multi-purpose for all FPV adventures.

Description:

Professional Ascent VRX 5.8G HD FPV Receiver, featuring 35ms ultra‑low latency, 1080P/120fps HD decoding, dual high‑efficiency antennas for stable 6KM long‑range link, built‑in recording, no external DVR required, perfect for drones, fixed‑wings and RC cars.

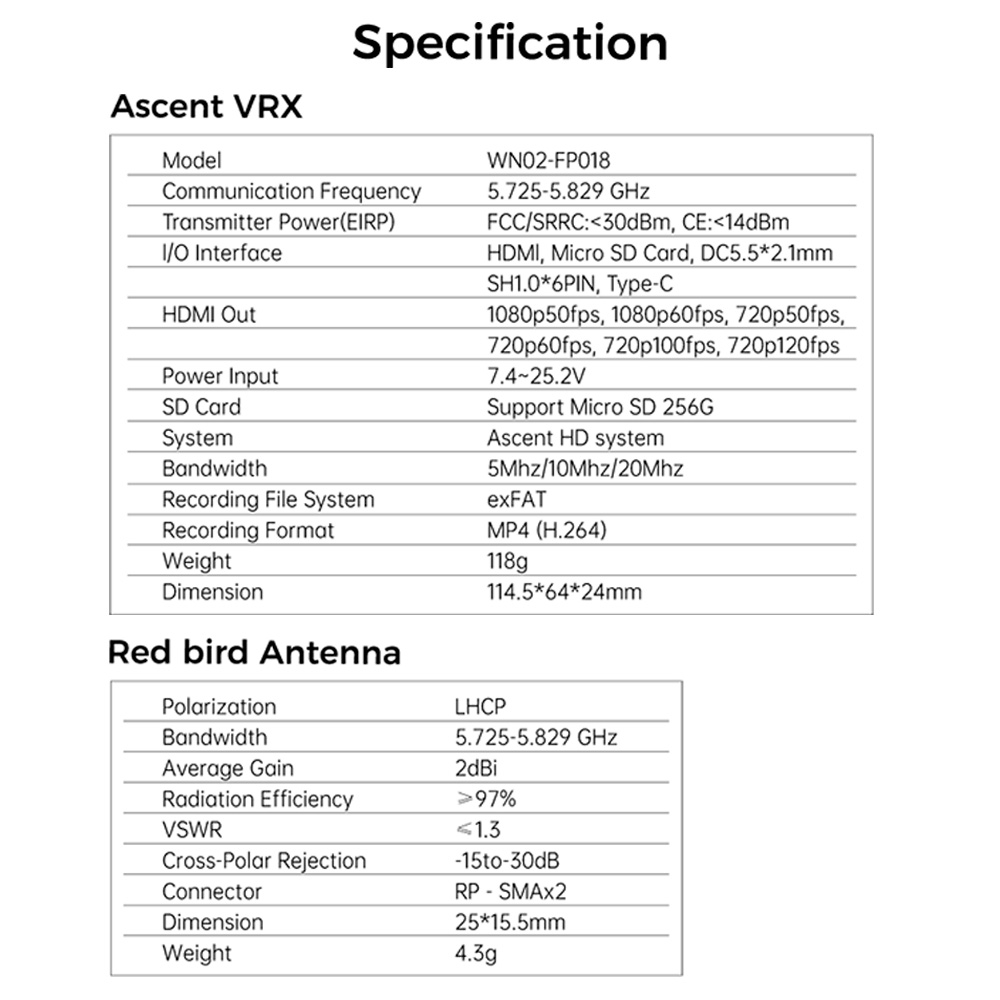

Specifications
Ascent VRX

Model: WN02-FP018

Frequency Band: 5.725GHz - 5.829GHz

Latency: 35ms Ultra Low Latency

Max Transmission Distance: 6KM Long Range

Decoding Resolution & FPS: 1080P 50/60fps, 720P 50/60/100/120fps

Transmit Power: FCC/SRRC＜30dBm, CE＜14dBm

Working Voltage: 7.4V- 25.2V

SD Card: 256GB Micro SD Card

Recording Format: MP4 (H.264)

Recording File System: exFAT

Bandwidth Mode: 5MHz / 10MHz / 20MHz

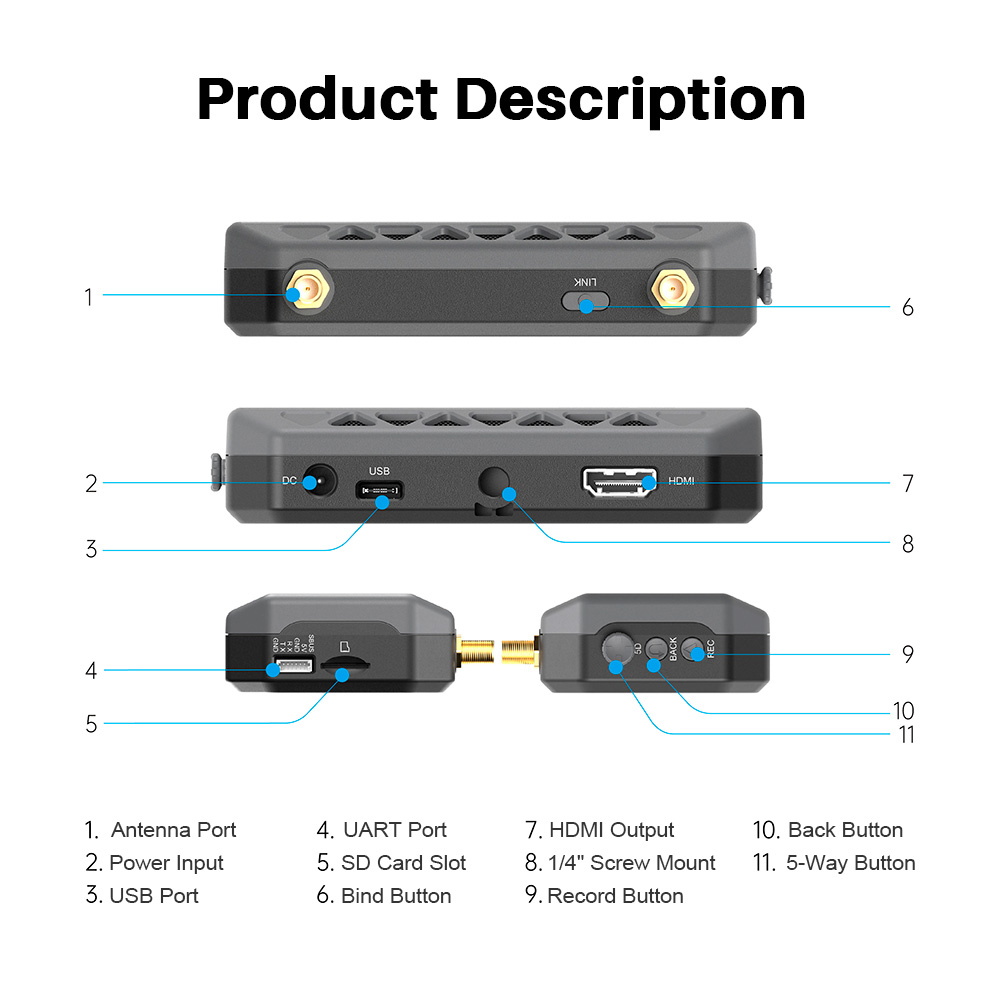

Interface: HDMI IN, Type-C, DC 5.5*2.1mm

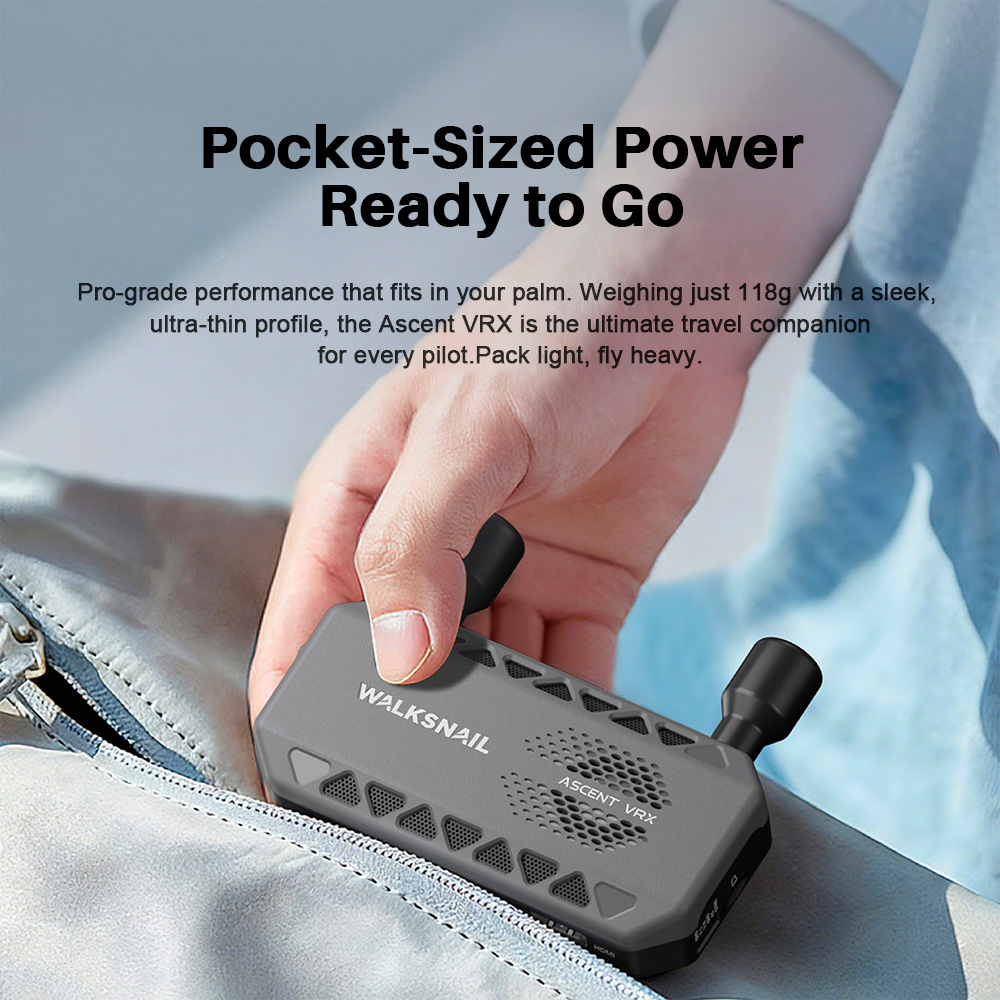

Weight: 118g

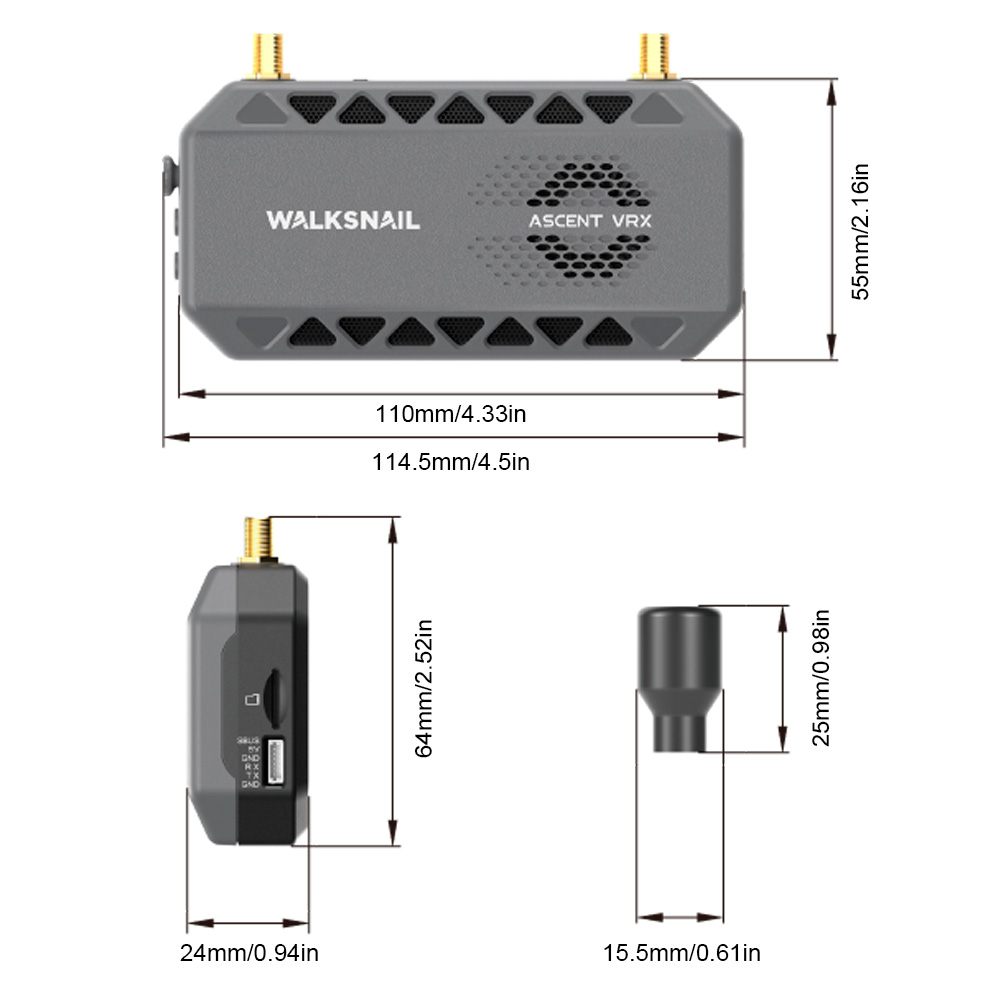

Dimension: 114.5*64*24mm

Red Bird Antenna

Polarization: LHCP

Bandwidth: 5.725GHz - 5.829GHz

Gain: 2dBi

Radiation Efficiency: ≥97%

VSWR: ≤1.3

Cross-Polar Rejection: -15dB ~ -30dB

Connector: RP-SMA x2

Dimension: 25*15.5mm

Weight: 4.3g

Package contents:

1 *Ascent VRX FPV Receiver

1* Manual

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
