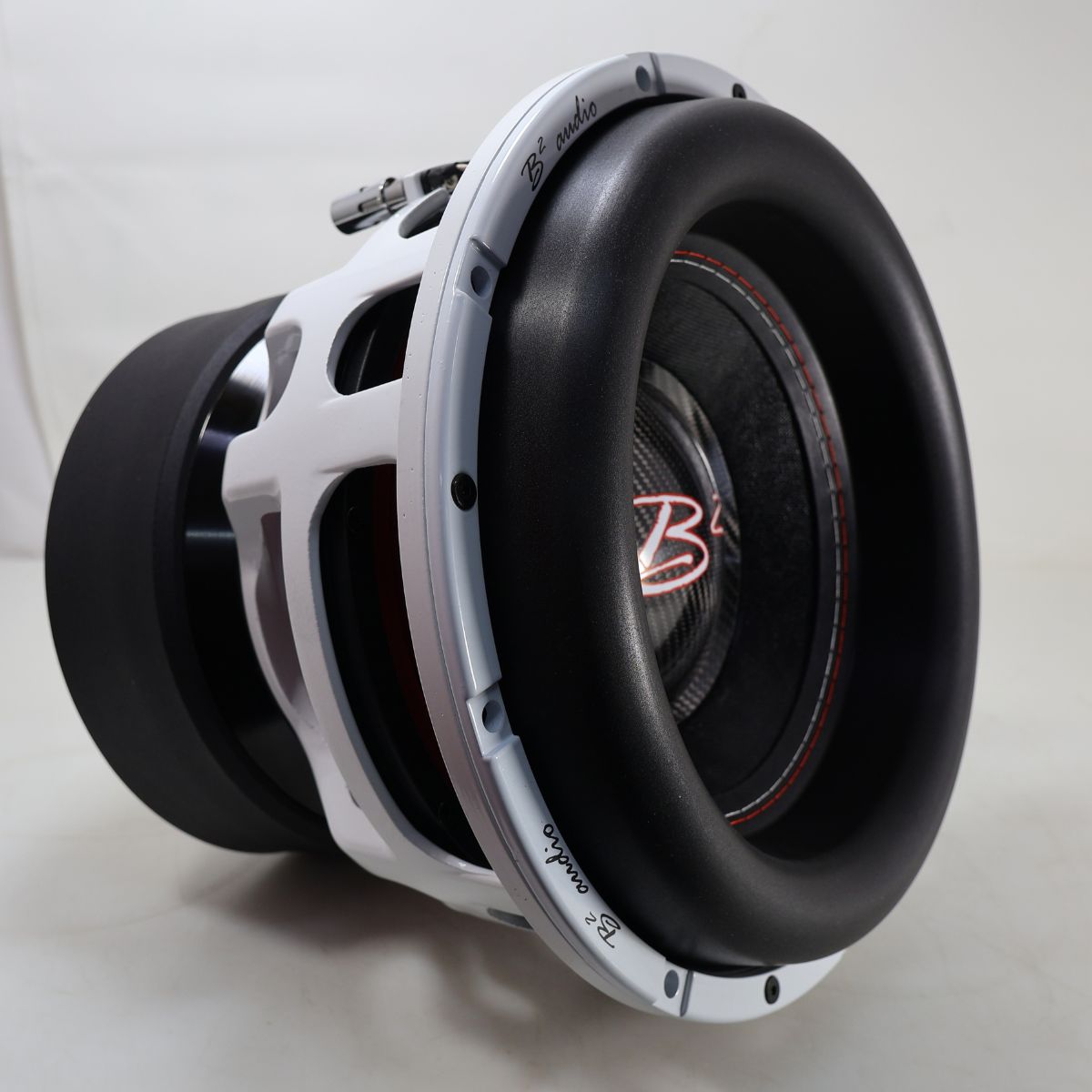

B2 Audio RAGE Subwoofer 12" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil V4 OPEN BOX
B2 Audio RAGE Subwoofer 12" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil V4 OPEN BOX
In perfect working condition
Has been mounted
Small scratches round the basket and bottom of magnet
Missing original box & documentation
Open-box items are not subject to returns. They are sold "As Is". All requests for returns will not be accepted.
This Listing Includes:
- (1) RAGE Series v4 12" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer
Description:
Introducing the epitome of sonic power and precision: the B2 Audio RAGE Series 12" Subwoofer. Prepare to be swept away on a tidal wave of bass, as every beat, every note, reverberates with unparalleled clarity and intensity.
Crafted with meticulous attention to detail, this subwoofer is a masterpiece of engineering prowess. Its voice coils unleash a torrent of raw energy, driving every low-frequency pulse with unbridled force. With staggering power handling capability, it dominates the audio landscape, commanding attention and respect with every thump.
But it's not just about brute power, it's about finesse and precision. The RAGE Series 12" subwoofer delivers bass so tight, so controlled, that you'll feel every nuance of your music with spine-tingling accuracy. Whether you're blasting hip-hop beats, rocking out to heavy metal, or immersing yourself in the depths of cinematic soundtracks, this subwoofer elevates your listening experience to unprecedented heights.
Immerse yourself in a world where sound knows no boundaries, where every bass drop hits you like a thunderclap, and every low-frequency vibration pulses through your veins. Elevate your car audio system to new realms of excellence with the B2 Audio RAGE Series 12" Subwoofer, where power meets precision, and music becomes an immersive, visceral experience.
Version 4 has been updated with a larger surround, allowing for increased excursion.
Specifications:
- RMS Power Handling: 2000 Watts
- Max Power Handling: 4000 Watts
- Push Terminal Wire Gauge: 4 Ga
- Nominal Impedance: Dual 1 Ohm
- Voice Coil Diameter: 3"
- Frequency Response: 10 Hz ~ 500 Hz
- Sensitivity: 91.2 dB
- Magnet Weight: 630 Oz
- Displacement Volume: 7.4 L / 0.26 cu.ft
Thiele & Small Parameters
- Free Air Resonance (Fs): 29.5 Hz
- Resistance (Re): 1 Ohm
- Mechanical Factor (Qms): 5.19
- Electrical Factor (Qes): 0.44
- Total Factor (Qts): 0.4
- Equivalent Volume (Vas): 29.4 L
- Compliance (Cms): 80 um/N
- BL Factor (BL): 151.38
- Moving Mass (Mms): 334.6 g
- Excursion Max (Xmax): 20 mm
Measurements:
- Overall Diameter: 12.24" / 311 mm
- Mounting Diameter: 11.11" / 282 mm
- Bolt Pattern Diameter: 11.57" / 294 mm
- Mounting Depth: 8.85" / 225 mm
- Overall Depth: 10.21" / 259 mm
Enclosure Suggestions:
Sealed:
- 30 L / 1.05 cu.ft
- Qtc: 0.451
Ported Compact:
- 32 L /1.13 cu.ft
- P: 4"
- Length : 13.2" / 35 cm
- FB: 42 Hz
Ported:
- 64 L / 2.25 cu.ft
- Port Area: 18.6 sq.in
- Length: 19.7"/ 50 cm
- FB: 32 Hz
Product Details
| Brand | B2 Audio |
|---|---|
| Color | White |
| Size | 12 inchs |
| Style | RAGE Series |
| Manufacturer | B2 Audio |
| Product Type | Subwoofer |
| Mpn | RAGE12-D1-V4 |
- Unrivaled Power: Experience the ultimate in bass domination with a colossal 2000 watts RMS power handling, ensuring every low-frequency note hits with earth-shattering force.
- Dual 1-Ohm Voice Coils: Engineered for maximum versatility and performance, the dual 1-ohm voice coils provide unparalleled control and flexibility, allowing you to customize your setup for optimal sound reproduction.
- Precision Engineering: Meticulously crafted to deliver bass so tight, so controlled, that you'll feel every beat with spine-tingling accuracy, enhancing your music, movies, and gaming experiences like never before.
- Built to Last: Constructed with durability in mind, this subwoofer is built to withstand the rigors of daily use, ensuring years of reliable performance and enjoyment.
- Immersive Audio Experience: Elevate your car audio system to new heights and immerse yourself in a world of unparalleled sound quality, where every bass drop transports you to the heart of the music.
-
